Abstract

The utility model discloses a cleaning machine for climbing belts, which comprises a main body of the cleaning machine and a support plate. A bracket is installed on the right side of the outer wall of the main body of the cleaning machine, and a first rotating shaft is arranged above the bracket. A first outer rod is connected above a rotating shaft, and a first inner rod is installed inside the first outer rod, a second rotating shaft is connected above the first inner rod, and a third rotating shaft is installed above the second rotating shaft , the middle position of the third rotating shaft is connected with a second inner rod, and the outside of the second inner rod is installed with a second outer rod, and the end of the second outer rod is installed with a fourth rotating shaft, and the support plate is arranged on The left side of the outer wall of the second rotating shaft and the third rotating shaft; the utility model can scrape off the surface stains of the climbing belt, making it more convenient to carry out subsequent cleaning work, better cleaning the belt, and saving manual cleaning time, which can improve the cleaning efficiency of the cleaning roller and make the cleaning effect of the cleaning roller better.

Description

A cleaning machine for climbing belts

technical field

The utility model belongs to the technical field of climbing belt cleaning machines, in particular to a cleaning machine for climbing belts.

Background technique

In Chinese patent CN202120764228.3, the utility model belongs to the technical field of belt conveyors, specifically a belt conveyor belt cleaning box mechanism, including a belt cleaning box, a high-pressure water gun nozzle, a scraper, a high-pressure air gun nozzle, a drain pipe, a high-pressure The water inlet pipe, water circulation filter mechanism, belt, and the return part of the belt pass through the belt cleaning box. The high-pressure water gun nozzle, scraper, and high-pressure air gun nozzle are located in the belt cleaning box, and the high-pressure water gun nozzle, scraper, and high-pressure air gun nozzle are along the return direction of the belt. It is arranged under the belt, and the water outlet of the water circulation filter mechanism is connected with the water inlet of the belt cleaning box by a high-pressure water inlet pipe, and the water inlet of the water circulation filter mechanism is connected with the outlet of the belt cleaning box by a drain pipe. Compared with the prior art, the utility model adopts three processes of high-pressure water gun nozzle, scraper and high-pressure air gun nozzle to clean the residual materials, and prevents the dust and dust adsorbed on the belt surface from raising, and the scraper adopts rubber material to reduce belt wear and tear.

The existing belt cleaning machine has the problem that if there is a lot of dust during the cleaning process, the cleaning structure needs to be replaced several times for cleaning, and the cleaning structure needs to be disassembled and cleaned for cleaning.

It should be noted that the above content belongs to the scope of the inventor's technical cognition and does not necessarily constitute the prior art.

Utility model content

In order to solve the above problems, the purpose of this utility model is to provide a cleaning machine for climbing belts, which solves the problem that if there is a lot of dust in the cleaning process, the cleaning structure needs to be replaced multiple times for cleaning, and the cleaning structure needs to be disassembled and cleaned when cleaning. The problem.

In order to achieve the above object, the utility model proposes a cleaning machine for climbing belts, including a cleaning machine main body and a support plate, a bracket is installed on the right side of the outer wall of the cleaning machine main body, and a first Rotating shaft, the first outer rod is connected above the first rotating shaft, and the first inner rod is installed inside the first outer rod, the second rotating shaft is connected above the first inner rod, and the upper part of the second rotating shaft A third rotating shaft is installed, and the middle position of the third rotating shaft is connected with a second inner rod, and a second outer rod is installed on the outside of the second inner rod, and a fourth rotating shaft is installed at the end of the second outer rod, so The supporting plate is arranged on the left side of the outer wall of the second rotating shaft and the third rotating shaft, and a supporting frame is installed on the top of the supporting plate, a positioning plate is installed on the top of the supporting frame, and a cleaning roller is installed in the middle of the positioning plate, so The inner side of the main body of the cleaning machine is provided with a nozzle, and the outer wall of the nozzle is provided with a nozzle.

In one example, a fixed block is installed on the top of the main body of the cleaning machine, a fixed plate is installed inside the fixed block, and a scraper is provided on the top of the fixed plate.

In one example, the bracket is connected to the first rotating shaft in rotation, and the first rotating shaft is connected to the first outer rod in rotation, and the first outer rod is connected to the first inner rod in telescopic connection, so There is a rotational connection between the bracket and the fourth shaft, a rotational connection between the fourth shaft and the second outer rod, and a telescopic connection between the second outer rod and the second inner rod.

In one example, the positioning plate and the cleaning roller are connected in rotation, and the cleaning roller and the nozzle are arranged parallel to each other.

In one example, the nozzles are equidistantly distributed on the outer wall of the nozzle, and the nozzles and nozzles are arranged perpendicular to each other.

In one example, the fixed block and the fixed plate are snap-connected, and the fixed plate and the scraper are welded.

A cleaning machine for climbing belts proposed by the utility model can bring the following beneficial effects:

1. The interior of the main body of the cleaning machine is hollow to collect the waste water after cleaning. The scraper can scrape off the surface stains of the climbing belt, making it more convenient for subsequent cleaning work. The first rotating shaft, the second rotating shaft, The third rotating shaft and the fourth rotating shaft are controlled to rotate by electric rotation. During the rotating process, the first outer rod, the first inner rod, the second inner rod and the second outer rod are driven to shrink, so as to adjust the height of the cleaning roller. Function, through such a setting, so that the device can adjust the height according to the actual position of the climbing machine, so as to better clean the belt;

2. The surface of the cleaning roller is a brush-like protrusion. When the cleaning roller is in use, it rotates through the internal rotating structure to clean the belt of the climbing machine, which can save the time of manual cleaning. After the main body of the cleaning machine starts the water pump, the crystal palace sprays The pipe is sprayed and rinsed by the nozzle, so that after cleaning the belt, the cleaning roller descends downwards to rinse the surface through the nozzle, which can improve the cleaning efficiency of the cleaning roller and make the cleaning effect of the cleaning roller better.

Description of drawings

The accompanying drawings described here are used to provide a further understanding of the utility model and constitute a part of the utility model. The schematic embodiments of the utility model and their descriptions are used to explain the utility model and do not constitute an improper limitation of the utility model . In the attached picture:

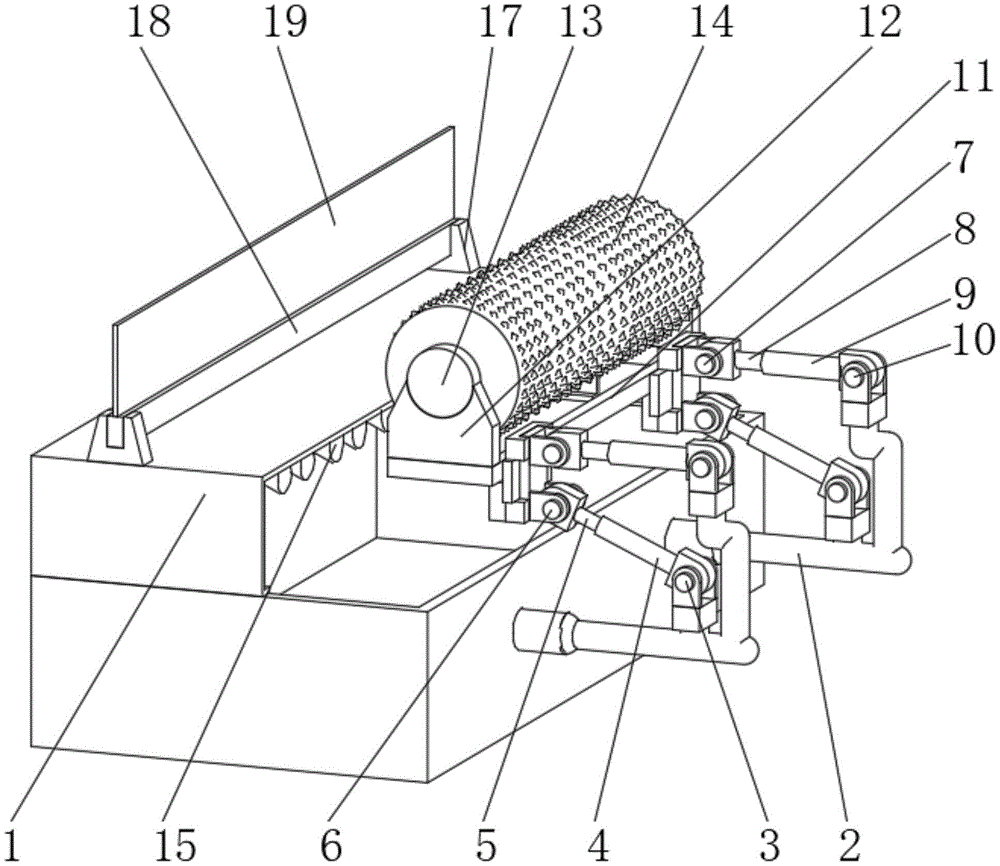

Fig. 1 is a three-dimensional structure schematic diagram of a cleaning machine used for climbing belts of the present utility model viewed from the front.

Fig. 2 is a three-dimensional structural schematic diagram of a side view of a cleaning machine for climbing belts of the present invention.

Fig. 3 is a three-dimensional structural schematic diagram of a side view of a nozzle of a cleaning machine for climbing belts of the present invention.

Fig. 4 is a three-dimensional structure schematic diagram of a side view of a cleaning machine bracket used for climbing belts of the present invention.

In the figure: 1. Cleaning machine main body; 2. Bracket; 3. First rotating shaft; 4. First outer rod; 5. First inner rod; 6. Second rotating shaft; 7. Third rotating shaft; 8. Second inner rod Rod; 9, second outer rod; 10, fourth rotating shaft; 11, support plate; 12, support frame; 13, positioning plate; 14, cleaning roller; 15, nozzle; 16, nozzle pipe; 17, fixed block; 18 , fixed plate; 19, scraper.

Detailed ways

In order to illustrate the overall concept of the present utility model more clearly, the following will be described in detail by way of examples in conjunction with the accompanying drawings.

In describing the present invention, it should be understood that the terms "center", "upper", "lower", "front", "rear", "left", "right", "vertical", "horizontal" , "Top", "Bottom", "Inner", "Outer", "Axial", "Radial", "Circumferential" and other indicated orientations or positional relationships are based on the orientations or positional relationships shown in the drawings, It is only for the convenience of describing the present invention and simplifying the description, but does not indicate or imply that the referred device or element must have a specific orientation, be constructed and operated in a specific orientation, and thus should not be construed as a limitation of the present invention.

In addition, the terms "first" and "second" are used for descriptive purposes only, and cannot be interpreted as indicating or implying relative importance or implicitly specifying the quantity of indicated technical features. Thus, a feature defined as "first" and "second" may explicitly or implicitly include one or more of these features. In the description of the present utility model, "plurality" means two or more, unless otherwise specifically defined.

In this utility model, unless otherwise clearly specified and limited, the terms "installation", "connection", "connection", "fixation" and other terms should be understood in a broad sense, for example, it can be a fixed connection or a detachable connection. Connection, or integration; it can be mechanical connection, electrical connection, or communication; it can be direct connection or indirect connection through an intermediary, it can be the internal communication of two components or the interaction of two components relation. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present utility model according to specific situations.

In the present invention, unless otherwise clearly specified and limited, the first feature may be in direct contact with the first feature or the first feature and the second feature through an intermediary indirect contact. In the description of this specification, descriptions referring to the terms "one aspect", "some aspects", "examples", "specific examples", or "some examples" mean that specific features, structures, structures, Materials or features are included in at least one aspect or example of the present invention. In this specification, the schematic representations of the above terms do not necessarily refer to the same scheme or example. Moreover, the described specific features, structures, materials or characteristics may be combined in any one or more aspects or examples in a suitable manner.

As shown in Figures 1 to 4, the embodiment of the utility model proposes a cleaning machine for climbing belts, including a cleaning machine main body 1 and a support plate 11, and a bracket 2 is installed on the right side of the outer wall of the cleaning machine main body 1 , and the top of the bracket 2 is provided with a first shaft 3, the top of the first shaft 3 is connected with the first outer rod 4, and the inside of the first outer rod 4 is installed with a first inner rod 5, and the top of the first inner rod 5 The second rotating shaft 6 is connected, and the third rotating shaft 7 is installed above the second rotating shaft 6. The middle position of the third rotating shaft 7 is connected with the second inner rod 8, and the second outer rod is installed on the outside of the second inner rod 8. 9, and the end of the second outer rod 9 is equipped with a fourth rotating shaft 10, the support plate 11 is arranged on the left side of the outer wall of the second rotating shaft 6 and the third rotating shaft 7, and the top of the supporting plate 11 is equipped with a support frame 12, supporting The top of the frame 12 is equipped with a positioning plate 13, and the middle position of the positioning plate 13 is equipped with a cleaning roller 14, and the inside of the cleaning machine main body 1 is equipped with a nozzle 16, and the outer wall of the nozzle 16 is provided with a nozzle 15.

Specifically, the top of the cleaning machine main body 1 is equipped with a fixed block 17, and the inside of the fixed block 17 is equipped with a fixed plate 18, and the top of the fixed plate 18 is provided with a scraper 19, and the inside of the cleaning machine main body 1 is hollow and is provided for cleaning. After the waste water is collected, the scraper 19 can scrape off the surface stains of the climbing belt, making it more convenient to carry out follow-up cleaning work.

Specifically, there is a rotational connection between the bracket 2 and the first shaft 3, and a rotational connection between the first shaft 3 and the first outer rod 4, and a telescopic connection between the first outer rod 4 and the first inner rod 5. , between the support 2 and the fourth shaft 10 is a rotational connection, and between the fourth shaft 10 and the second outer rod 9 is a rotational connection, and between the second outer rod 9 and the second inner rod 8 is a telescopic connection, the second The first rotating shaft 3, the second rotating shaft 6, the third rotating shaft 7 and the fourth rotating shaft 10 are controlled to rotate by electric rotation. During the rotation, the first outer rod 4, the first inner rod 5, the second inner rod 8 and the second outer rod are driven. The rod 9 shrinks to adjust the height of the cleaning roller 14. Through such setting, the device can adjust the height according to the actual position of the climbing machine, so as to better clean the belt.

Specifically, the positioning plate 13 and the cleaning roller 14 are rotationally connected, and the cleaning roller 14 and the spray pipe 16 are arranged parallel to each other. The structure is rotated to clean the belt of the climbing machine, which can save time for manual cleaning.

Specifically, the nozzles 15 are equidistantly distributed on the outer wall of the nozzle 16, and the nozzles 16 and the nozzles 15 are arranged perpendicular to each other. After the cleaning machine main body 1 starts the water pump, the crystal palace nozzle 16 is sprayed and rinsed by the nozzle 15, so that the cleaning After cleaning the belt, the roller 14 descends downwards to wash the surface through the nozzle 15, which can improve the cleaning efficiency of the cleaning roller 14 and make the cleaning effect of the cleaning roller 14 better.

Specifically, the fixed block 17 and the fixed plate 18 are snap-connected, and the fixed plate 18 and the scraper 19 are welded. The scraper 19 is fixed inside the fixed block 17 through the fixed plate 18. The scraper 19 first Impurities on the belt surface are scraped off, thereby facilitating the further cleaning operation of the cleaning roller 14.

Working principle: First, the interior of the main body 1 of the cleaning machine is hollow to collect the waste water after cleaning. The scraper 19 can scrape off the surface stains on the climbing belt, making it more convenient for subsequent cleaning work. The first rotating shaft 3. The second rotating shaft 6, the third rotating shaft 7 and the fourth rotating shaft 10 are rotated by electric rotation control. During the rotation, the first outer rod 4, the first inner rod 5, the second inner rod 8 and the second outer rod 9 are driven Shrink to adjust the height of the cleaning roller 14. Through this setting, the device can adjust the height according to the actual position of the climbing machine, so as to better clean the belt;

Secondly, the surface of the cleaning roller 14 is a brush-like protrusion. When the cleaning roller 14 is in use, it rotates through the internal rotating structure, thereby cleaning the belt of the climbing machine, which can save the time of manual cleaning. After the main body of the cleaning machine 1 starts the water pump , the Crystal Palace nozzle 16 is sprayed and rinsed by the nozzle 15, so that after cleaning the belt, the cleaning roller 14 descends downward and rinses the surface through the nozzle 15, which can improve the cleaning efficiency of the cleaning roller 14 and make the cleaning roller 14 clean. The effect is better, the scraper 19 is fixed inside the fixed block 17 through the fixed plate 18, the scraper 19 first scrapes off the impurities on the belt surface, so as to facilitate the further cleaning operation of the cleaning roller 14.

Each embodiment in this specification is described in a progressive manner, the same and similar parts of each embodiment can be referred to each other, and each embodiment focuses on the differences from other embodiments. In particular, for the system embodiment, since it is basically similar to the method embodiment, the description is relatively simple, and for relevant parts, refer to part of the description of the method embodiment.

The above descriptions are only examples of the present utility model, and are not intended to limit the present utility model. For those skilled in the art, the utility model can have various modifications and changes. Any modification, equivalent replacement, improvement, etc. made within the spirit and principle of the present utility model shall be included in the scope of claims of the present utility model.

Claims (6)

1. A cleaning machine for climbing belt, its characterized in that, including cleaning machine main part (1) and backup pad (11), support (2) are installed on outer wall right side of cleaning machine main part (1), and the top of support (2) is provided with first pivot (3), the top of first pivot (3) links up there is first outer pole (4), and the internally mounted of first outer pole (4) has first interior pole (5), the top of first interior pole (5) links up there is second pivot (6), and the top of second pivot (6) installs third pivot (7), the intermediate position of third pivot (7) is connected with second interior pole (8), and the outside of second interior pole (8) installs second outer pole (9) to fourth pivot (10) are installed to the tip of second outer pole (9), backup pad (11) set up in the outer wall left side of second pivot (6) and third pivot (7), and top of backup pad (11) links up there is second pivot (12), and install top (16) of backup pad (16) are installed in the top of third pivot (7), and spout (16) are installed in the intermediate position of cleaning machine (16) and are installed in the jet-holder (13).

2. A cleaning machine for a climbing belt according to claim 1, characterized in that a fixing block (17) is installed at the top of the cleaning machine body (1), a fixing plate (18) is installed inside the fixing block (17), and a scraper (19) is provided at the top of the fixing plate (18).

3. A cleaning machine for a climbing belt according to claim 1, characterized in that the support (2) is in rotational connection with the first spindle (3), and the first spindle (3) is in rotational connection with the first outer rod (4), and the first outer rod (4) is in telescopic connection with the first inner rod (5), the support (2) is in rotational connection with the fourth spindle (10), and the fourth spindle (10) is in rotational connection with the second outer rod (9), and the second outer rod (9) is in telescopic connection with the second inner rod (8).

4. A cleaning machine for climbing belts according to claim 1, characterized in that the positioning plate (13) is in rotational connection with the cleaning roller (14) and the cleaning roller (14) is arranged parallel to the nozzle (16).

5. The cleaning machine for the climbing belt according to claim 1, wherein the spray nozzles (15) are equally spaced on the outer wall of the spray pipe (16), and the spray pipe (16) and the spray nozzles (15) are arranged vertically to each other.

6. A cleaning machine for a climbing belt according to claim 2, characterized in that the fixing block (17) is in snap connection with the fixing plate (18), and the fixing plate (18) is in welded connection with the scraper (19).
