Abstract
The utility model discloses a clamping and fixing device for wood processing, which comprises a bottom sliding seat, wherein a first support seat and a second support seat are arranged on the bottom sliding seat in a sliding manner, a first upper flat plate is arranged on the horizontal plane of the first support seat, a threaded hole on the first upper flat plate is connected with a driving motor through a fastener, an adapter sleeve is sleeved at the output end of the driving motor, and a clamping seat is arranged at one end of the adapter sleeve; the second upper flat plate is fixedly arranged on the second support seat, and the clamping and fixing device for wood processing has the following advantages: the first support seat and the second support seat can move on the bottom sliding seat, the distance between the first support seat and the second support seat is adjusted, wood with different lengths can be processed conveniently, and the processing range is improved; when chucking is carried out to timber, insert timber with the pointed end of main card axle and vice card axle, and then guarantee that timber when processing, avoid it to take place displacement deviation, improve the machining precision of product, improve the convenience of use.
Description
Technical Field
The utility model relates to the technical field of wood processing, in particular to a clamping and fixing device for processing wood.
Background
The wood processing technology comprises basic processing technologies such as wood cutting, wood gluing, wood surface decoration and the like, and functional processing technologies such as wood protection, wood modification and the like. The existing wood processing device is inconvenient to clamp wood, so that the wood is often displaced during processing due to the fact that the clamping is not firm enough, processing errors are caused, and processing quality and processing efficiency are reduced.
Disclosure of Invention
The utility model aims to overcome the existing defects, and provides the clamping and fixing device for processing the wood, which can effectively fix the wood through the clamping seat and the clamping main shaft, ensure the stability during processing and the product processing precision and can effectively solve the problems in the background technology.
In order to achieve the above purpose, the present utility model provides the following technical solutions: the clamping and fixing device for wood processing comprises a bottom sliding seat, wherein a first support seat and a second support seat are arranged on the bottom sliding seat in a sliding manner, a first upper flat plate is arranged on the horizontal plane of the first support seat, a threaded hole on the first upper flat plate is connected with a driving motor through a fastener, an adapter sleeve is sleeved at the output end of the driving motor, and a clamping seat is arranged at one end of the adapter sleeve;
the second support seat is fixedly provided with a second upper flat plate, the second upper flat plate is provided with a base through a fastener, through holes at two ends of the base are internally sleeved with clamping spindles, the left end of each clamping spindle is provided with a rotary handle, and the base is provided with a locking seat for locking the clamping spindles.
Further, the bottom sliding seat comprises a bottom cross brace and a main body frame, wherein the main body frame is positioned above the bottom cross brace, and the bottom cross braces are arranged on the lower surface of the main body frame at intervals.
Further, the clamping seat is composed of an installation side plate, a main clamping shaft and an auxiliary clamping shaft, wherein the main clamping shaft and the auxiliary clamping shaft are arranged on one side surface of the installation side plate, and the auxiliary clamping shaft is circumferentially and uniformly distributed on one side surface of the installation side plate by taking the main clamping shaft as a circle center.
Further, the number of the auxiliary clamping shafts is at least three, the three auxiliary clamping shafts are arranged at intervals, the contact end of the auxiliary clamping shafts and the end part of the wood is a cone, and the end part of the auxiliary clamping shafts, which is in contact with the mounting side plate, is any one of a cylinder, a cuboid or a frustum or any one of a combination of more shapes.
Further, the clamping main shaft comprises a rotating shaft and a clamping tip, an external thread is arranged on the outer side face of the rotating shaft, an internal thread corresponding to the external thread of the rotating shaft is arranged on the base, the clamping tip is located at one end of the rotating shaft, and a rotary handle is arranged at one end of the rotating shaft.
Further, the locking seat comprises an external rotation handle, a cylindrical part is sleeved in a through hole at the end part of the external rotation handle, and the cylindrical part is in threaded connection with an inner hole of the outer wall mounting block.
Compared with the prior art, the clamping and fixing device for wood processing has the following advantages:
1. the first support seat and the second support seat can move on the bottom sliding seat, the distance between the first support seat and the second support seat is adjusted, wood with different lengths can be processed conveniently, and the processing range is improved;
2. when chucking is carried out to timber, insert timber with the pointed end of main card axle and vice card axle, and then guarantee that timber when processing, avoid it to take place displacement deviation, improve the machining precision of product, improve the convenience of use.
Drawings
FIG. 1 is a schematic diagram of the structure of the present utility model;

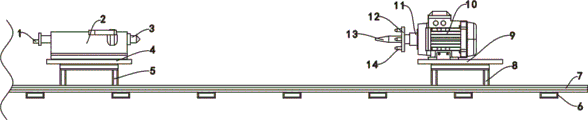

FIG. 2 is a front elevational view of the structure of the present utility model;
fig. 3 is a top view of the structure of the present utility model.
In the figure: the clamping device comprises a rotating handle 1, a base 2, a clamping main shaft 3, a second upper flat plate 4, a second support seat 5, a bottom transverse support 6, a main body frame 7, a first support seat 8, a first upper flat plate 9, a driving motor 10, an adapter sleeve 11, a mounting side plate 12, a main clamping shaft 13, a secondary clamping shaft 14, an outer wall mounting block 15 and an outward rotating handle 16.
Detailed Description
The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.
In the description of the present utility model, if an orientation description such as "upper", "lower", "front", "rear", "left", "right", etc. is referred to, it is merely for convenience of description of the present utility model and simplification of the description, and it is not indicated or implied that the apparatus or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and thus should not be construed as limiting the present utility model. When a feature is referred to as being "disposed," "secured" or "connected" to another feature, it can be directly disposed, secured or connected to the other feature or it can be indirectly disposed, secured or connected to the other feature.
Referring to fig. 1-3, the present utility model provides a technical solution: a clamping and fixing device for processing wood comprises a bottom sliding seat.
Specifically, the bottom sliding seat comprises a bottom cross brace 6 and a main body frame 7, wherein the main body frame 7 is positioned above the bottom cross brace 6, and the bottom cross brace 6 is arranged on the lower surface of the main body frame 7 at intervals.
The width between the main body frames 7 and the front-rear distance of the first and second stand bases 8 and 5 are disposed correspondingly.
The bottom sliding seat is provided with a first bracket seat 8 and a second bracket seat 5 in a sliding manner.
Further, the first support seat 8 and the second support seat 5 can move on the bottom sliding seat, the distance between the first support seat and the second support seat is adjusted, wood with different lengths can be processed conveniently, and the processing range is improved.
The horizontal plane of the first support seat 8 is provided with a first upper flat plate 9, a threaded hole in the first upper flat plate 9 is connected with a driving motor 10 through a fastener, the output end of the driving motor 10 is sleeved with an adapter sleeve 11, and one end of the adapter sleeve 11 is provided with a clamping seat.
Further, a bearing sleeve is arranged in the adapter sleeve 11, and the bearing sleeve is sleeved with the clamping seat.
The clamping seat is composed of a mounting side plate 12, a main clamping shaft 13 and a sub clamping shaft 14, wherein the main clamping shaft 13 and the sub clamping shaft 14 are arranged on one side surface of the mounting side plate 12, and the sub clamping shafts 14 are circumferentially and uniformly distributed on one side surface of the mounting side plate 12 by taking the main clamping shaft 13 as a circle center.
Further, the ends of the main clamping shaft 13 and the auxiliary clamping shaft 14 are pointed.
The number of the auxiliary clamping shafts 14 is at least three, three are arranged at intervals, the contact end of the auxiliary clamping shafts 14 with the wood end is a cone, and the end of the auxiliary clamping shafts, which is in contact with the mounting side plate 12, is any one of a cylinder, a cuboid or a frustum or any one of a combination of the shapes of the cylinder, the cuboid and the frustum.
When the wood is clamped, the tips of the main clamping shaft 13 and the auxiliary clamping shaft 14 are inserted into the wood, so that the displacement deviation of the wood is avoided when the wood is processed.
The second support seat 5 is fixedly provided with a second upper flat plate 4, the second upper flat plate 4 is provided with a base 2 through a fastener, through holes at two ends of the base 2 are internally sleeved with a clamping main shaft 3, the left end of the clamping main shaft 3 is provided with a rotary handle 1, and the base 2 is provided with a locking seat for locking the clamping main shaft 3.
The clamping main shaft 3 comprises a rotating shaft and a clamping tip, an external thread is arranged on the outer side face of the rotating shaft, an internal thread corresponding to the external thread of the rotating shaft is arranged on the base 2, the clamping tip is located at one end of the rotating shaft, and a rotary handle 1 is arranged at one end of the rotating shaft.
The rotary handle 1 acts to drive the rotating shaft to move on the base 2, so that the clamping tip moves forward, wood between the clamping tip and the clamping seat is further clamped, the wood to be processed is firmly fixed between the clamping tip and the clamping seat, and the processing stability and accuracy are ensured.
Further, the locking seat comprises an external rotation handle 16, a cylindrical piece is sleeved in a through hole at the end part of the external rotation handle 16, and the cylindrical piece is in threaded connection with an inner hole of the outer wall mounting block 15.
The external rotation handle 16 is rotated to enable the cylindrical member to move up and down along the inner hole of the outer wall mounting block 15, so that the cylindrical member is contacted with and separated from the rotating shaft in the clamping main shaft 3, and external threads of the rotating shaft are interfered, and locking is achieved.
When in use: according to the length of timber, adjust the interval between first support seat 8 and the second support seat 5, under external hoist device, make timber be in between first support seat 8 and the second support seat 5, rotatory handle 1 action drives the pivot and moves on base 2, and then make the tight pointed end forward movement of clamp, further press from both sides the timber that is in between tight pointed end and the tight seat of clamp, firmly fix the timber that waits to process between tight pointed end and tight seat of clamp, during the processing, driving motor 10 starts, thereby drive timber and rotate.
Although embodiments of the present utility model have been shown and described, it will be understood by those skilled in the art that various changes, modifications, substitutions and alterations can be made therein without departing from the principles and spirit of the utility model, the scope of which is defined in the appended claims and their equivalents.
Claims (6)
1. The utility model provides a clamp fixing device of processing timber, includes bottom slide, its characterized in that: the bottom sliding seat is provided with a first support seat (8) and a second support seat (5) in a sliding manner, a first upper flat plate (9) is arranged on the horizontal plane of the first support seat (8), a threaded hole in the first upper flat plate (9) is connected with a driving motor (10) through a fastening piece, an adapter sleeve (11) is sleeved at the output end of the driving motor (10), and a clamping seat is arranged at one end of the adapter sleeve (11);
the novel clamping device is characterized in that a second upper flat plate (4) is fixedly arranged on the second support seat (5), a base (2) is arranged on the second upper flat plate (4) through a fastener, a clamping main shaft (3) is sleeved in a through hole at two ends of the base (2), a rotary handle (1) is arranged at the left end of the clamping main shaft (3), and a locking seat for locking the clamping main shaft (3) is arranged on the base (2).
2. A clamping fixture for processing wood as recited in claim 1, wherein: the bottom sliding seat comprises a bottom cross brace (6) and a main body frame (7), wherein the main body frame (7) is located above the bottom cross brace (6), and the bottom cross braces (6) are arranged on the lower surface of the main body frame (7) at intervals.
3. A clamping fixture for processing wood as recited in claim 1, wherein: the clamping seat is composed of an installation side plate (12), a main clamping shaft (13) and an auxiliary clamping shaft (14), wherein the main clamping shaft (13) and the auxiliary clamping shaft (14) are arranged on one side surface of the installation side plate (12), and the auxiliary clamping shafts (14) are uniformly distributed on one side surface of the installation side plate (12) by taking the main clamping shaft (13) as the circle center circumference.
4. A clamping fixture for processing wood as recited in claim 3, wherein: the number of the auxiliary clamping shafts (14) is at least three, the three auxiliary clamping shafts are arranged at intervals, the contact end of the auxiliary clamping shafts (14) with the wood end is a cone, and the end of the auxiliary clamping shafts, which is in contact with the mounting side plate (12), is any one of a cylinder, a cuboid or a frustum or any one of a combination of more shapes.
5. A clamping fixture for processing wood as recited in claim 1, wherein: the clamping main shaft (3) comprises a rotating shaft and a clamping tip, an external thread is arranged on the outer side face of the rotating shaft, an internal thread corresponding to the external thread of the rotating shaft is arranged on the base (2), the clamping tip is located at one end of the rotating shaft, and a rotary handle (1) is arranged at one end of the rotating shaft.
6. A clamping fixture for processing wood as recited in claim 1, wherein: the locking seat comprises an outward-rotating handle (16), a cylindrical part is sleeved in a through hole at the end part of the outward-rotating handle (16), and the cylindrical part is in threaded connection with an inner hole of the outer wall mounting block (15).
