Abstract

The utility model relates to the technical field of food cleaning, and discloses a cleaning device, comprising a main body frame, three screening frames are fixedly installed on the inner wall of the main body frame, and ellipse frames with different sizes are fixedly installed on the tops of the three screening frames. Feed port, the top height of the ellipse feed port is equipped with a buffer ring, the top of the ellipse feed port is fixedly installed with a buffer plate at the top of the buffer ring, the utility model is equipped with a rotating shaft brush, cleaning Cylinder, cylinder brush, food falling into the cleaning cylinder due to its own gravity, makes its surface roll and rub against the cylinder brush for a second cleaning, the food after the second cleaning falls on the top of the rotating shaft brush, and rolls three times Cleaning, the food after cleaning falls on the filter plate, falls into the barrel from the discharge port to collect, the washed water passes through the holes on the surface of the filter plate, and is discharged from the drain hole, three times of cleaning makes the food cleaner .

Description

a cleaning device

technical field

The utility model relates to the technical field of food cleaning, in particular to a cleaning device.

Background technique

In some canteens or restaurants, due to the large amount of prepared vegetables and the low efficiency of manual cleaning, vegetable cleaning devices are needed. When cleaning potatoes, sweet potatoes, taro and other tuber foods, they are all put into drum cleaning equipment These devices usually use the motor to drive the rotating shaft of the propeller blades. At the same time, the outer cover of the propeller blades is equipped with a rotating drum. The inner wall of the drum is provided with a brush. Add tuber food and water to the entire equipment, and start the motor. Cleaning, but the size of the tuber food is different, so that the roller brush cannot clean some smaller foods, and the larger food brush will cause damage to the surface of the food when cleaning, which is not easy to use.

Utility model content

In order to overcome the above-mentioned defects of the prior art, the utility model provides a cleaning device to solve the problems in the above-mentioned background technology.

The utility model provides the following technical solutions: a cleaning device, including a main frame, three screening frames are fixedly installed on the inner wall of the main frame, and elliptical feeding ports of different sizes are fixedly installed on the tops of the three screening frames. A buffer ring is installed at the height of the top of the ellipse feed port, and a buffer plate at the top of the buffer ring is fixedly installed on the top of the ellipse feed port;

Further, the buffer ring is a rubber ring, and the buffer plate is a hard rubber "U"-shaped arc plate.

Further, a cleaning cylinder is fixedly installed at the bottom of the elliptical feed inlet, and a cylinder brush is fixedly installed inside the cleaning cylinder, and the cleaning cylinder is in the shape of an ellipse table.

Further, the inner wall of the screening rack is fixedly equipped with a rotating shaft brush, the bottom of the screening rack is fixedly installed with a cleaning rack, the bottom of the inner wall of the cleaning rack is fixedly installed with a filter plate, and the two screening racks are directly fixedly connected A swash plate is arranged, and a motor coupling is movably installed at one end of the brush of the rotating shaft.

Further, one side of the main frame is fixedly equipped with a main feed inlet, one side of the screening frame is movably installed with a motor coupling, the top of the main frame is fixedly installed with a water pipe, and the bottom of the water pipe is fixed A spray head is installed, and a drainage hole is opened on one side of the main frame.

Technical effect and advantage of the present utility model:

1. The utility model is equipped with a buffer ring and a buffer plate, and through the gravity of the food itself and the slope of the inner wall of the main feeding port, the food will roll to the top of the three screening frames in turn. At this time, the nozzle on the top of the inner wall of the main frame The food is initially sprayed and cleaned, and the top of the three screening racks is equipped with elliptical feeding ports of different sizes, so that the food will be roughly divided into three types: large, medium and small. When the mouth is closed, the food smaller than the size of the elliptical feeding port will fall into the cleaning cylinder, and the buffer ring will buffer the passing food to prevent the food from being broken and damaged during the rolling process. At the same time, the protruding part of the buffer plate makes it smaller than the elliptical The food in the feed port will not jump over, so that the food of different sizes can be cleaned accordingly, which increases the cleaning efficiency of the food.

2. The utility model is equipped with a rotating shaft brush, a cleaning cylinder, and a cylindrical brush. The food falling into the cleaning cylinder is subjected to rolling friction with the cylindrical brush for secondary cleaning due to its own gravity. The finished food falls on the top of the rotating shaft brush, and is rolled and cleaned three times. After cleaning, the food falls on the filter plate and falls into the barrel from the discharge port to collect. The food is discharged from the drain hole, and the food is cleaned three times. At the same time, food of different sizes is distinguished, which is convenient for the user to carry out the next step of processing, and increases the comfort of the user.

Description of drawings

Figure 1 is a schematic diagram of the overall structure of the utility model.

Fig. 2 is a sectional view of the overall structure of the utility model.

Fig. 3 is a schematic diagram of the structure combination of the screening frame of the present invention.

Fig. 4 is a partial schematic diagram of the screening rack structure of the present invention.

Fig. 5 is a cross-sectional view of the screening frame structure of the present invention.

Fig. 6 is a schematic diagram of the structure of the elliptical feed inlet of the present invention.

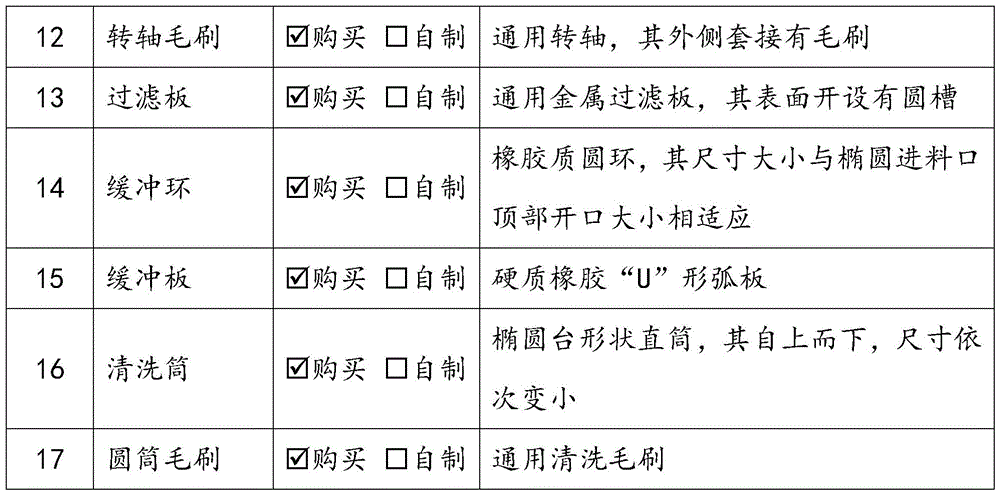

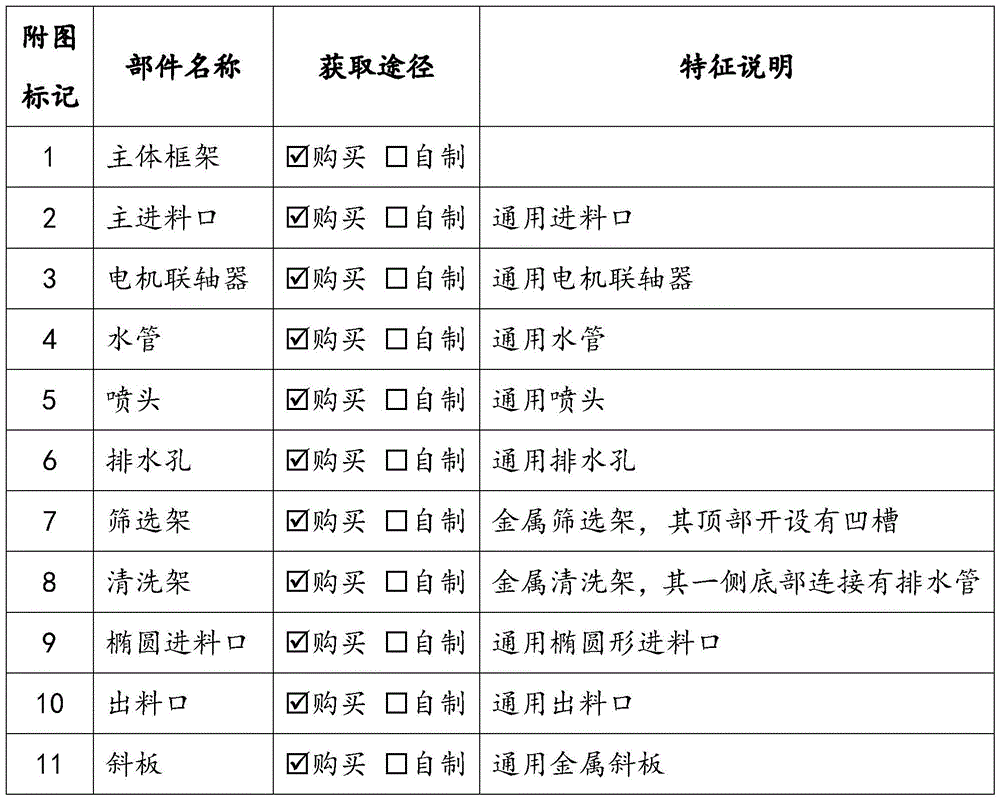

The reference signs are: 1. main frame; 2. main feed port; 3. motor coupling; 4. water pipe; 5. nozzle; 6. drainage hole; 7. screening rack; 8. cleaning rack; 10. Material outlet; 11. Inclined plate; 12. Shaft brush; 13. Filter plate; 14. Buffer ring; 15. Buffer plate; 16. Cleaning cylinder; 17. Cylindrical brush.

Detailed ways

The technical scheme in the utility model will be clearly and completely described below in conjunction with the accompanying drawings in the utility model. In addition, the forms of each structure recorded in the following embodiments are only examples, and the aspects involved in the utility model A cleaning device is not limited to the structures described in the following embodiments, and all other embodiments obtained by those skilled in the art without creative efforts fall within the protection scope of the present utility model.

Referring to Figures 1-6, the utility model provides a cleaning device, which consists of the following components:

Assembly instructions: firstly install the water pipe 4 on the top of the inner wall of the main frame 1, then install the nozzle 5 on the bottom of the water pipe 4, then install the cylindrical brush 17 on the inner wall of the cleaning cylinder 16, and then fix the cleaning cylinder 16 Be installed on the bottom of ellipse feed inlet 9, then fixedly install buffer ring 14 at the opening of ellipse feed inlet 9 tops, fixedly install buffer plate 15 at the top of buffer ring 14, then filter plate 13 is obliquely installed on the bottom of cleaning rack 8 At the bottom of the inner wall, the shaft brush 12 is movably installed on the inner wall of the screening frame 7, and then the cleaning frame 8 is fixedly installed on the bottom of the screening frame 7, and the installed three screening frames 7 are installed on the inner wall of the main frame 1 in turn, And use the slant plate 11 to connect between the two screening frames 7, and through the coupling, the rotating shaft brushes 12 on the inner walls of the three screening frames 7 are interactively linked, and finally the rotating shaft brushes 12 on the inner wall of the outermost screening frame 7 are coupled with the motor The device 3 is movably connected, and the output end of the motor is movably connected with the motor coupling 3.

The working principle of the utility model: the user pours tuber food such as potatoes into the main body frame 1 from the main feeding port 2, and then through the gravity of the food itself and the slope of the inner wall of the main feeding port 2, the food will flow Roll to the top of three screening racks 7 successively, now the nozzle 5 on the top of the main body frame 1 inner wall sprays and cleans the food initially, and the ellipse feeding ports 9 of different sizes are installed on the tops of the three screening racks 7, so that the food will It is roughly divided into three types: large, medium and small. When the food of three different sizes passes through the ellipse feed port 9, the food smaller than the size of the ellipse feed port 9 will fall into the cleaning cylinder 16, and the buffer ring 14 will simultaneously Buffer the passing food to prevent the food from being broken and damaged during the rolling process. At the same time, the protruding part of the buffer plate 15 prevents the food smaller than the elliptical feeding port 9 from jumping over, so that the food of different sizes can be cleaned accordingly, increasing the The cleaning efficiency of the food; at this time, the food falling into the cleaning cylinder 16 has its surface and the cylinder brush 17 undergo rolling friction for secondary cleaning due to its own gravity, and the food after the secondary cleaning falls on the top of the rotating shaft brush 12, Carry out rolling cleaning for three times. After cleaning, the food falls on the filter plate 13 and falls into the barrel from the outlet 10 for collection. The washed water passes through the holes on the surface of the filter plate 13 and is discharged from the drain hole 6 for three times. Washing makes the food cleaner, and at the same time distinguishes the food of different sizes, which is convenient for the user to carry out the next processing work on it, and increases the comfort of the user.

The above descriptions are only preferred embodiments of the present utility model, and are not intended to limit the present utility model. Any modifications, equivalent replacements, improvements, etc. made within the spirit and principles of the present utility model shall be included in this utility model. Protection scope of utility model.

Claims (5)

1. A cleaning device, comprising a main body frame (1), is characterized in that: the inner wall of the main body frame (1) is fixedly equipped with three screening frames (7), and the tops of the three screening frames (7) are fixedly installed There are elliptical feed inlets (9) of different sizes, the top height of the elliptical feed inlet (9) is equipped with a buffer ring (14), and the top of the elliptical feed inlet (9) is fixedly installed with a Buffer plate (15) on top of buffer ring (14). 2. A cleaning device according to claim 1, characterized in that: the buffer ring (14) is a rubber ring, and the buffer plate (15) is a hard rubber "U"-shaped arc plate. 3. A cleaning device according to claim 2, characterized in that: a cleaning cylinder (16) is fixedly installed at the bottom of the elliptical feed inlet (9), and a cleaning cylinder (16) is fixedly installed inside the cleaning cylinder (16). Cylindrical hairbrush (17), the cleaning cylinder (16) is ellipse-shaped. 4. A cleaning device according to claim 2, characterized in that: a shaft brush (12) is fixedly installed on the inner wall of the screening frame (7), and a cleaning brush (12) is fixedly installed on the bottom of the screening frame (7). frame (8), the bottom of the inner wall of the cleaning frame (8) is fixedly equipped with a filter plate (13), the two screening frames (7) are directly fixedly connected with a slant plate (11), and the shaft brush (12 ) is movably installed with a motor coupling (3). 5. A cleaning device according to claim 1, characterized in that: one side of the main body frame (1) is fixedly equipped with a main feed inlet (2), and one side of the screening frame (7) is movable A motor coupling (3) is installed, a water pipe (4) is fixedly installed on the top of the main body frame (1), and a nozzle (5) is fixedly installed on the bottom of the water pipe (4), and the main body frame (1) One side is provided with drainage hole (6).
