CN219122885U - Self-adhesive logistics label - Google Patents

Abstract

The utility model discloses a self-adhesive logistics label, which includes a self-adhesive label and a waterproof film, and also includes an easy-off structure, and the easy-off structure includes a release bottom paper, a waterproof bottom film, a first tear strip, and a tail tear strip , handle paper and tear seam, one side of the self-adhesive label is pasted with a waterproof film for sealing the surface of the self-adhesive label to waterproof the logistics information text, and the other side of the self-adhesive label away from the waterproof film is not dry by itself The adhesive surface is pasted on the release surface of the release backing paper, and the self-adhesive label that can be used to record the logistics information is provided with an easy-off structure that is easy to separate the label from the release backing paper. The improvement of the original release paper of the adhesive label allows both ends of the self-adhesive label to be exposed when it is pressed on the surface of the improved release liner, so that it is convenient for the self-adhesive label to be lifted from the surface of the release liner and used as a logistics label use.

Description

A self-adhesive logistics label

technical field

The utility model relates to the technical field of material labels, in particular to a self-adhesive logistics label.

Background technique

The logistics label is a barcode symbol label used to indicate the relevant information of the logistics unit in the logistics process. Many logistics companies need to master the distribution of goods, and the role of the label is very important at this time. The label can record a lot of information. , which is also very important for logistics staff.

A convenient self-adhesive logistics label with patent number CN202220159805.0, including a label body, a surface layer is provided on the outside of the label body, and an anti-sticking structure is provided on the top of the surface layer, and the middle of the inside of the label body is A core layer is provided at the center, the bottom of the core layer is provided with a second anti-scratch paper layer, the top of the core layer is provided with a first anti-scratch paper layer, and one side of the top of the surface layer is provided with a first Inner layer, the other side of the top of the surface layer is provided with a second inner layer. For the convenient self-adhesive logistics label, the first drawing paper drives the raised strip to be inserted into the groove on the second drawing paper. At this time, the label body begins to curl. Pull the paper, and at the same time, the first paper pull drives the double-sided adhesive tape and the second paper pull out from the paper frame, so that the label body will be pasted well, and the problem of poor label sticking and sticking and wrinkles can be solved.

At present, the self-adhesive material label is usually attached to the surface of the release liner. When the self-adhesive material label is attached to the surface of the release liner and needs to be torn off for use, the adhesion between the self-adhesive material label and the release liner is usually relatively tight. Tight and difficult to tear off the self-adhesive material label on the surface of the release liner and use it as a paste for logistics goods. For this reason, we propose a self-adhesive logistics label.

Utility model content

The main purpose of this utility model is to provide a self-adhesive logistics label. The self-adhesive label that can be used to record the logistics information is provided with an easy-off structure that is easy to separate the label from the release backing paper. The improvement of the original release paper of the self-adhesive label allows both ends of the self-adhesive label to be exposed when it is pressed on the surface of the improved release liner, so that it is convenient for the self-adhesive label to be lifted from the surface of the release liner The use of crop flow labels can effectively solve the problems in the background technology.

In order to achieve the above object, the technical scheme that the utility model takes is:

A self-adhesive logistics label, including a self-adhesive label and a waterproof film, also includes an easy-off structure, and the easy-off structure includes a release backing paper, a waterproof backing film, a first tear strip, a tail tear strip, a handle paper and a tear strip. Cracks, one side of the self-adhesive label is pasted with a waterproof film for sealing the surface of the self-adhesive label to waterproof the logistics information, and the other side of the self-adhesive label away from the waterproof film is pasted on the self-adhesive surface of the self-adhesive label. The release surface of the base paper, the other side of the release base paper away from the self-adhesive label is pasted with a waterproof base film for bottom surface waterproofing, and the release base paper is larger than the length of the self-adhesive label. A tear seam is formed to form a first tear strip and a tail tear strip which are easy to be torn off, and one end of the wide side of the strip body of the first tear strip and the tail tear strip is cut and shaped with a handle paper for being pinched by hand.

Further, the non-release paper surface of the release bottom paper is pasted with the waterproof bottom film, and the film body of the waterproof bottom film is completely covered on the non-release paper surface of the release bottom paper; The non-release liner side of the paper provides waterproofing.

Further, after the self-adhesive label is pasted on the surface of the release backing paper, a distance is reserved between the edge of the strip body of the first tear strip and the tail tear strip; smaller self-adhesive labels are pasted on the surface of the release backing paper It is convenient to tear off the first tear strip and the tail tear strip when leaving a distance from the edge of the strip body of the first tear strip and the tail tear strip.

Further, the paper body of the handle paper is a semicircular paper body; the handle paper of the semicircular paper body can be pinched by human hands to pull the first tear strip and the tail tear strip.

Compared with the prior art, the utility model has the following beneficial effects:

The utility model is provided with an easy-off structure that is easy to separate the label from the release backing paper at the self-adhesive label that can be used to record the logistics information, and improves the original release paper of the self-adhesive label by means of the easy-off structure , so that both ends of the self-adhesive label can be exposed when it is pressed on the surface of the improved release liner, so that it is convenient for the self-adhesive label to be lifted from the surface of the release liner and used as a logistics label.

Description of drawings

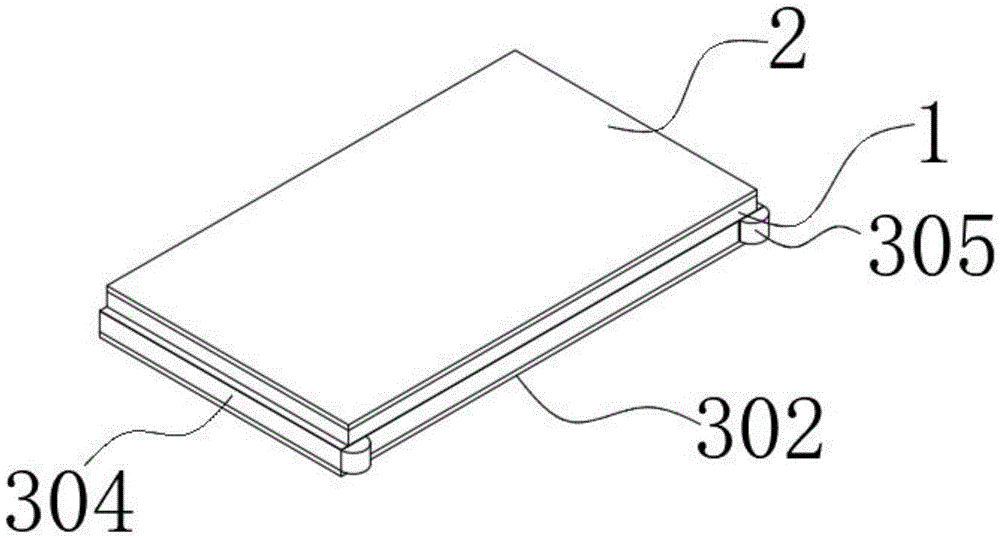

Figure 1 is a schematic diagram of the overall structure of a self-adhesive logistics label of the present invention.

Fig. 2 is an exploded view of an easy-to-detach structure of a self-adhesive logistics label of the present invention.

In the figure: 1. self-adhesive label; 2. waterproof membrane; 3. easy-off structure; 301. release backing paper; 302. waterproof backing film; 303. first tear strip; 304. tail tear strip; 305. handle paper ; 306, tear seam.

Detailed ways

In order to make the technical means, creative features, goals and effects achieved by the utility model easy to understand, the utility model will be further elaborated below in conjunction with specific embodiments.

As shown in Figure 1-2, a self-adhesive logistics label includes a self-adhesive label 1 and a waterproof film 2, and also includes an easy-off structure 3. The easy-off structure 3 includes a release backing paper 301, a waterproof backing film 302, The first tear strip 303, the tail tear strip 304, the handle paper 305 and the tear seam 306, one side of the self-adhesive label 1 is pasted with a waterproof film 2 for sealing the surface of the self-adhesive label 1 to waterproof the logistics information text, self-adhesive The other side of the label 1 away from the waterproof film 2 is pasted on the release surface of the release backing paper 301 through its self-adhesive surface, and the other side of the backing paper 301 away from the self-adhesive label 1 is pasted with a waterproof backing film for bottom surface waterproofing 302, the release liner 301 is larger than the length direction of the self-adhesive label 1. The two ends of the paper are interspersed and formed with tear seams 306, respectively forming a first tear strip 303 and a tail tear strip 304 that are easy to be torn off. The first tear strip 303 and One end of the strip body wide side of the tail tear strip 304 is cut and shaped with a handle paper 305 for being pinched by hand.

Among them, the non-release paper surface of the release backing paper 301 is pasted with the waterproof bottom film 302, and the film body of the waterproof bottom film 302 is completely covered on the non-release paper surface of the release back paper 301; The non-release paper surface of the backing paper 301 is pasted to provide waterproofing.

Wherein, after the self-adhesive label 1 is pasted on the surface of the release backing paper 301, a distance is reserved between the strip body edges of the first tear strip 303 and the tail tear strip 304; When the surface of 301 is pasted, a distance is left between the edge of the first tear strip 303 and the tail tear strip 304 to facilitate tearing off the first tear strip 303 and the tail tear strip 304.

Wherein, the paper body of the handle paper 305 is a semicircular paper body; the handle paper 305 of the semicircular paper body can be pinched by human hands to pull the first tear strip 303 and the tail tear strip 304 .

It should be noted that the utility model is a self-adhesive logistics label. The self-adhesive label 1 that can be used to record the logistics information is provided with an easy-off structure 3 that is easy to separate the label from the release backing paper 301. The surface of the release backing paper 301 is interspersed with tear seams 306 to form a first tear strip 303 and a tail tear strip 304 that are easy to be torn off, while the non-release surface of the release backing paper 301 uses a waterproof bottom film 302 to obtain the bottom surface Waterproof, when the logistics information text is printed on the surface of the self-adhesive label 1 and is affixed with a waterproof film 2, the self-adhesive surface of the self-adhesive label 1 can be pressed and pasted on the release backing paper 301, the first tear strip 303 and the The surface of the tail tear strip 304, when the self-adhesive label 1 printed with logistics information text is used as a self-adhesive logistics label, can be pulled down by hand at the handle paper 305 of the first tear strip 303 and the tail tear strip 304, so that The first tear strip 303 and the tail tear strip 304 are torn off from the tear seam 306, so that the two ends of the release backing paper 301 expose the self-adhesive surface of the self-adhesive label 1 while the waterproof bottom film 302 is also removed from the first tear strip 303 and The tail tear strip 304 is detached from the sagging, and then the staff can pick off the self-adhesive label 1 printed with the logistics information text at the tear-off place of the first tear strip 303 and the tail tear strip 304 and use it as a label on the surface of the logistics goods.

It should be noted that the utility model is a self-adhesive logistics label, including 1. self-adhesive label; 2. waterproof film; 3. easy-off structure; 301, release backing paper; 302, waterproof backing film; 303 , the first tear strip; 304, the tail tear strip; 305, the handle paper; 306, the tear seam, the parts are all general standard parts or parts known to those skilled in the art, and their structures and principles are all available to those skilled in the art. Known from the manual or by routine experimental methods.

The basic principles and main features of the present utility model and the advantages of the present utility model have been shown and described above. Those skilled in the industry should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principles of the utility model. Without departing from the spirit and scope of the utility model, the utility model The new model also has various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The scope of protection required by the utility model is defined by the appended claims and their equivalents.

Claims (4)

1. A self-adhesive logistics label, comprising a self-adhesive label (1) and a waterproof film (2), characterized in that: it also includes an easy-off structure (3), and the easy-off structure (3) includes a release bottom Paper (301), waterproof bottom film (302), first tear strip (303), tail tear strip (304), handle paper (305) and tear seam (306), one side of the self-adhesive label (1) A waterproof film (2) for sealing the surface of the self-adhesive label (1) to waterproof the logistics information text is pasted, and the other side of the self-adhesive label (1) away from the waterproof film (2) is pasted on the self-adhesive surface The release surface of the release base paper (301), the other side of the release base paper (301) away from the self-adhesive label (1) is pasted with a waterproof base film (302) for bottom surface waterproofing, and the release base paper (301) is larger than the self-adhesive label (1) The two ends of the paper in the length direction are interspersed and formed with tear seams (306) respectively forming a first tear strip (303) and a tail tear strip (304) that are easy to be torn off. One end of the wide side of the first tear strip (303) and the tail tear strip (304) is cut and shaped with a handle paper (305) for being pinched by hand. 2. A kind of self-adhesive logistics label according to claim 1, characterized in that: the non-release paper surface of the release backing paper (301) is pasted with the waterproof bottom film (302), and the waterproof bottom film ( 302) the film body is completely sealed on the non-release paper surface of the release backing paper (301). 3. A kind of self-adhesive logistics label according to claim 1, characterized in that: said self-adhesive label (1) is attached to the surface of the release liner (301) with the first tear strip (303) and the tail Spaces are reserved between the strip body edges of the tear strip (304). 4. A self-adhesive logistics label according to claim 1, characterized in that: the paper body of the handle paper (305) is a semicircular paper body.
