CN219121460U - Ultrasonic open channel flow continuous measuring device - Google Patents

Abstract

The utility model discloses an ultrasonic open channel flow continuous measuring device, which belongs to the field of flow measurement and comprises a bearing platform, four through holes are arranged on the edge of the upper end of the bearing platform, a drive assembly is arranged in the middle of the upper end of the bearing platform, and a drive assembly is arranged on the left side of the bearing platform. Telescopic component, the left side of the telescopic component is fixedly connected with a mounting frame, and the inside of the mounting frame is fixedly connected with an ultrasonic detection head. . The ultrasonic open channel flow continuous measuring device of the utility model can penetrate the external ground nails through the bearing platform and drive into the ground before use, so as to install the device on the bank next to the open channel. Compared with the prior art, the installation The method next to the open channel will not affect the water flow in the open channel, so the accuracy of the open channel flow measurement is higher.

Description

An ultrasonic open channel flow continuous measurement device

technical field

The utility model belongs to the field of flow measurement, in particular to an ultrasonic open channel flow continuous measurement device.

Background technique

Ultrasonic liquid measuring instrument is a device that measures the flow of this liquid by using the amount of ultrasonic waves passing through a specific surface in the same unit time, and the specific relationship between water depth and flow velocity. When detecting the flow in an open channel, the device The detection part is mostly installed in the open channel.

There is an existing ultrasonic open channel flow continuous measurement device (CN215893713U), which prevents the movement of the measuring frame by setting a fixed block, a limit block, a movable rod, a clamping rod and a clamping groove, so that the height of the measuring frame can be adjusted so as to measure the flow rate in the open channel. The effect of the flow of liquid at different heights. The measuring device is mainly fixed by inserting the movable rod into the bottom of the open channel. However, most of the open channels on the market are made of concrete. When dealing with concrete open channels, external equipment can only be used to drive the movable rod into the bottom of the open channel. Breaking the integrity of the bottom of the open channel leads to water leakage in the later stage of the open channel, and the movable rod will affect the flow direction and flow velocity of the water source in the open channel due to its own blocking, resulting in a decrease in measurement accuracy.

Utility model content

Aiming at one or more of the above defects or improvement needs of the prior art, the utility model provides an ultrasonic open channel flow continuous measurement device, which has the advantages of high precision and high applicability.

In order to achieve the above purpose, the utility model provides an ultrasonic open channel flow continuous measurement device, including a bearing platform; four through holes are opened on the edge of the upper end of the bearing platform, and a driving assembly is arranged in the middle of the upper end of the bearing platform. There is a telescopic component on the left side of the component, and the left side of the telescopic component is fixedly connected with a mounting frame, and an ultrasonic detection head is fixedly connected inside the mounting frame. instrument, the ultrasonic detection head is connected with the measuring instrument.

The driving assembly includes a column, a two-way threaded rod, two moving blocks and a threaded locking plate. The bottom of the column is fixedly connected to the middle part of the upper end of the bearing platform. A part of the two-way threaded rod is located in the long hole on the column. The two-way threaded rod Rotately connected with the column, the two moving blocks and the threaded locking piece are threaded on the outer wall of the two-way threaded rod, the two moving blocks are slidably connected in the hole on the column, and the threaded locking piece is located at the upper end of the column.

The telescopic assembly includes four telescopic frames with hinged seats, two of which are fixedly connected to the left sides of the two moving blocks, and the other two are fixedly connected to the right side of the mounting frame, and the telescopic frames are located at Between the installation frame and the column, the telescopic frame is hinged to four hinge seats.

The middle parts of the front and rear sides of the telescopic frame are fixedly connected with plane bearings, the end of the plane bearing away from the telescopic frame is fixedly connected with a connecting frame, and the front and rear sides of the mounting frame are fixedly connected with a fixed frame, and the fixed frame and the connecting frame are in the On the same horizontal line, one end of the fixing frame is provided with a supporting piece, and one end of the supporting piece runs through the connecting frame and the column in turn, and the supporting piece is slidably connected with the connecting frame and the upright column.

The supporting member is composed of a plurality of supporting rods, one end of the supporting rod has a protrusion, the other end of the supporting rod has an inner groove, and the outer wall of the protrusion and the inner wall of the inner groove are both provided with threads.

The beneficial effects that the utility model has include:

(1) External ground nails can be penetrated into the bearing platform and driven into the ground before use, so as to install the device on the bank next to the open channel. Compared with the prior art, the installation beside the open channel will not affect The water flow in the open channel is affected, so the accuracy of the open channel flow measurement is higher.

(2) The two-way threaded rod can be rotated, and the two moving blocks shrink under the push of the thread, and the telescopic frame drives the mounting frame to extend forward through the hinged seat, so as to change the use orientation of the ultrasonic detection head, and can realize the inspection of the open channel. Measure at any position to increase the applicability of use.

Description of drawings

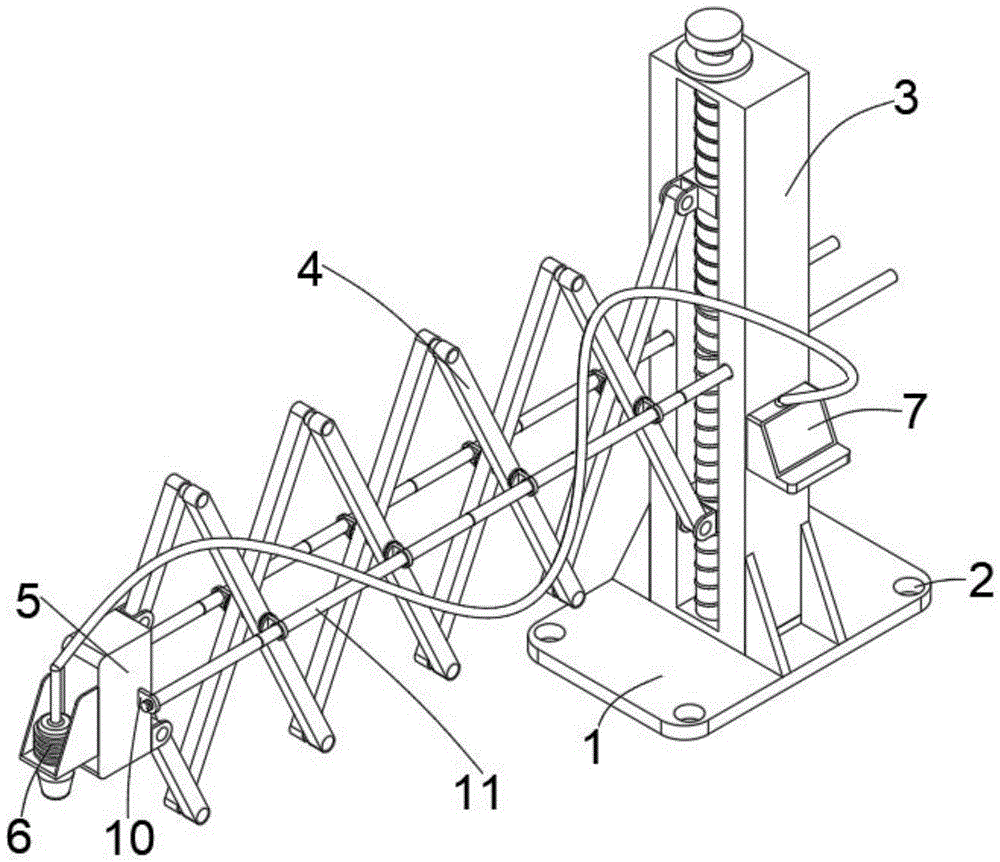

Fig. 1 is a structural representation of the utility model;

Fig. 2 is a structural schematic diagram of the drive assembly of the present invention;

Fig. 3 is a structural schematic diagram of the telescopic assembly of the utility model;

Fig. 4 is a schematic diagram of the structure of the support of the utility model.

In all the drawings, the same reference numerals represent the same technical features, specifically: 1. carrying platform; 2. through hole; 3. drive assembly; 31. column; 32. two-way threaded rod; 33. moving block; 34. Thread locking piece; 4. Telescopic component; 41. Hinged seat; 42. Telescopic frame; 5. Mounting frame; 6. Ultrasonic detection head; 7. Measuring instrument; 8. Planar bearing; frame; 11, a support piece; 111, a support rod; 112, a protrusion; 113, an inner groove.

Detailed ways

Referring to Fig. 1, external ground nails can be penetrated through the bearing platform 1 and driven into the ground before use, so as to install the device on the bank next to the open channel. Compared with the prior art, the installation method beside the open channel is different It will affect the water flow in the open channel, so the accuracy of the open channel flow measurement is higher.

Referring to Figures 1-3, when needed, the two-way threaded rod 32 can be rotated, and the two moving blocks 33 shrink under the push of the thread, and the telescopic frame 42 drives the mounting frame 5 to extend forward through the hinged seat 41, so as to provide and change The use orientation of the ultrasonic detection head 6 can realize the measurement of any position in the open channel, which increases the applicability during use. When the ultrasonic detection head 6 reaches the use position, the threaded locking piece 34 can be screwed between the top of the column 31 The current position of the two-way threaded rod 32 can be fixed by the friction between the two. When detection is required, the ultrasonic detection head 6 detects the water flow in the open channel through the emitted ultrasonic waves, and at the same time transmits the signal The measuring instrument 7 is processed (the prior art), and the measuring instrument 7 can display the current water flow in the open channel in real time for the staff's reference.

Referring to Fig. 3-4, in the process that the telescopic frame 42 drives the installation frame 5 to expand and contract, the fixing frame 10 pulls the support member 11 to slide in the connecting frame 9 and the column 31, and when the installation frame 5 reaches the use position, it passes through the support member 11 The supporting properties of the telescopic frame 42 and the mounting frame 5 can be reinforced to prevent them from bending under the action of the wind. The plane bearing 8 can keep the angle of the connecting frame 9 constant when the telescopic frame 42 is telescopic. If the length of 11 is too short, the splicing of the two support rods 111 can be realized by screwing the protruding part 112 into the inner groove 113, so as to extend the use length of the support 11 according to the demand. When the length of the support 11 is too long, you can Follow the above steps in reverse to reduce the use length of the support member 11 .

Claims (5)

1. An ultrasonic open channel flow continuous measuring device, comprising a bearing platform (1), is characterized in that, the upper edge of the bearing platform (1) is provided with four through holes (2), and the upper end of the bearing platform (1) is The middle part is provided with a drive assembly (3), and the left side of the drive assembly (3) is provided with a telescopic assembly (4), and the left side of the telescopic assembly (4) is fixedly connected with a mounting frame (5), and the mounting frame (5) ) is fixedly connected with an ultrasonic detection head (6), both ends of the ultrasonic detection head (6) run through the installation frame (5), the front of the driven component (3) is fixedly connected with a measuring instrument (7), and the ultrasonic detection head (6) Connect to measuring instrument (7). 2. The ultrasonic open channel flow continuous measuring device according to claim 1, characterized in that the drive assembly (3) includes a column (31), a bidirectional threaded rod (32), two moving blocks (33) and a threaded lock sheet (34), the bottom of the column (31) is fixedly connected to the middle part of the upper end of the bearing platform (1), and a part of the two-way threaded rod (32) is located in the elongated hole on the column (31), and the two-way threaded rod (32) Rotately connected with the column (31), the two moving blocks (33) and the thread lock pieces (34) are all threaded on the outer wall of the two-way threaded rod (32), and the two moving blocks (33) are slidingly connected to the column ( 31) in the hole on the upper end, the thread locking piece (34) is positioned at the column (31) upper end. 3. The ultrasonic open channel flow continuous measuring device according to claim 2, characterized in that, the telescopic assembly (4) comprises four hinged seats (41) and telescopic frames (42), wherein two of the hinged seats ( 41) are respectively fixedly connected to the left side of the two moving blocks (33), and the other two hinge seats (41) are fixedly connected to the right side of the mounting frame (5), and the telescopic frame (42) is located on the mounting frame (5) Between the column (31), the telescopic frame (42) is hinged to four hinge seats (41). 4. The ultrasonic open channel flow continuous measurement device according to claim 3, characterized in that, the middle parts of the front and rear sides of the telescopic frame (42) are fixedly connected with plane bearings (8), and the plane bearings (8) are far away from the telescopic One end of the frame (42) is fixedly connected with a connecting frame (9), and the front and rear sides of the mounting frame (5) are fixedly connected with a fixed frame (10), and the fixed frame (10) and the connecting frame (9) are on the same horizontal line , one end of the fixed frame (10) is provided with a support (11), and one end of the support (11) runs through the connecting frame (9) and the column (31) in sequence, and the support (11) is connected with the connecting frame (9) and the column ( 31) between sliding connections. 5. The ultrasonic open channel flow continuous measurement device according to claim 4, characterized in that, the support (11) is composed of a plurality of support rods (111) spliced together, and one end of the support rod (111) has a protrusion ( 112), the other end of the support rod (111) has an inner groove (113), and the outer wall of the protrusion (112) and the inner wall of the inner groove (113) are all provided with threads.
