Abstract

The utility model discloses a pressure wheel structure for a thin-knife paper separator, which comprises a fixed base, a No. There is a No. 2 rotating shaft rotating in the groove, and the two ends of the No. 2 rotating shaft are fixedly sleeved with cutters. One end of the No. 2 rotating shaft is fixedly connected to a No. 1 motor, and the No. 1 motor is installed on the side close to the fixed plate. A jacking assembly is installed between the other side of the sleeve rod and the upper surface of the support plate. The support plate is fixedly connected to the surface of one side of the fixed base. The utility model drives the second rotating shaft to rotate through the first motor. The end fixing sleeve is equipped with a cutter, which can drive the second rotating shaft and the cutter to rotate, and cut the film supported between the thin-knife paper separator, so that the film width can be adjusted while supporting the thin-knife paper separator. Carry out cutting to achieve the effect of improving the use value.

Description

A pressure wheel structure for thin-knife paper separator

technical field

The utility model belongs to the technical field of thin-knife paper splitters, in particular to a pressure wheel structure for thin-knife paper splitters.

Background technique

Thin knife separators can be divided into two categories: ready-to-coat thin knife separators and pre-coated thin knife separators. It is a special equipment for paper, board and film lamination. It is pressed together by a rubber roller and a heating roller to form a paper-plastic product.

In the prior art, the application number is: CN201610583206.0, a film conveying and trimming mechanism, which belongs to the field of film processing machinery and equipment. The invention includes a conveying bracket, a film feeding roller, a film guiding roller, a film discharging roller, an edge trimming mechanism and a material guiding mechanism. The motor drives the film-out roller, the trimming mechanism is set horizontally on the upper side of the transmission bracket, and the material guide mechanism is set on the transmission bracket on one side of the film guiding roller. The trimming mechanism includes a trimming bracket, a rotating shaft, a translation sleeve, and a trimming blade And the trimming cylinder, the material guide mechanism includes a translation rod, a material guide sleeve and a material guide tube, the two sides of the translation rod are respectively horizontally provided with a material guide sleeve, and the material guide tube is arranged on one side of the material guide sleeve obliquely upward. The invention has a reasonable structural design, can conveniently trim both sides of the film synchronously according to the needs of film processing, improves the efficiency and quality of film trimming processing, and meets the needs of production and use.

The problem with the above technology is that the thin-knife splitter needs to cut the width of the film on the transport roller in advance during use, so that the thin-knife splitter needs to use a large number of transport and trimming mechanisms to cut the film , thereby reducing the work efficiency while increasing the use cost of the thin-knife paper splitter.

Utility model content

Aiming at the problems existing in the prior art, the utility model provides a pressure wheel structure for the thin-knife paper separator, which can quickly press the film edge between the transport rollers during the transportation of the thin-knife paper separator, saving labor. The advantage of labor solves the need to cut the width of the film on the transport roller in advance during the use of the existing thin-knife paper splitter, so that the thin-knife paper splitter needs to use a large number of transportation and trimming mechanisms to cut the film. Cutting, thereby reducing work efficiency and increasing the use cost of the thin-knife paper splitter.

The utility model is realized in this way. A pressure wheel structure for a thin-knife paper separator includes a fixed base, and a No. 1 rotating shaft is fixedly connected between the inner walls of the fixed base. One side of the sleeve rod is fixedly connected with a fixed plate, one side of the fixed plate is provided with a mounting groove, the second rotating shaft is installed in rotation in the mounting groove, and the fixed sleeves at both ends of the second rotating shaft are provided with cutters One end of the No. 2 rotating shaft is fixedly connected to No. 1 motor, and the No. 1 motor is installed on the side close to the fixed plate. A jacking assembly is installed between the other side of the sleeve rod and the upper surface of the support plate. The support plate It is fixedly connected to the surface of one side of the fixed base.

As a preferred embodiment of the present invention, the jacking assembly includes an extension plate, the extension plate is fixedly connected to the surface of one side of the sleeve rod, and the other side of the extension plate is provided with a groove.

As a preferred embodiment of the present invention, a limiting rod is fixedly connected between the inner walls of the groove, and the limiting rod is installed in the limiting groove.

As preferred in the present invention, the limiting groove is arranged in the middle of the limiting block, and a connecting rod is rotatably installed below the limiting groove, and connecting sheet metals are fixedly connected to both ends of the connecting rod.

As preferred in the present invention, the lower ends of the connecting sheet metal on both sides are fixedly connected with movable blocks, and the movable blocks are installed on slide rails, and the slide rails are fixedly connected to both sides of the upper surface of the support plate.

As preferred in the utility model, the middle part of the movable block is connected with a threaded rod through threaded engagement, and the threaded rod is fixedly connected to the output shaft of the No. 2 motor.

As preferred in the present invention, the No. 2 motor is fixedly connected to the upper surface of the support plate.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. The utility model is fixedly connected to one side of the sleeve rod through the extension plate. The sleeve rod is sleeved on the No. 1 rotating shaft, which can limit the position of the sleeve rod. It rotates around the No. 1 rotating shaft, and passes through the extension plate. The limit rods are fixedly connected between the inner walls of the side grooves, and the limit rods and the connecting rods are installed in the limit grooves, so that the limit rods and the connecting rods can be used as limit supports.

2. In the utility model, the connecting sheet metal is fixedly connected at both ends of the connecting rod, and the lower end of the connecting sheet metal on both sides is fixedly connected with a movable block, and the movable block is installed on the slide rail, so that the movable blocks can be limited in movement Afterwards, because the connecting rod is installed in the limiting groove, it can play the effect of supporting and limiting it.

3. The utility model drives the threaded rod to rotate through the No. 2 motor. Since the threaded rod is connected to the movable block through threaded engagement, it can drive the movable block to move back and forth along the threaded rod, thereby pulling the extension plate to move downward, which can also drive the fixed block. The board is tilted.

4. The utility model drives the No. 2 rotating shaft to rotate through the No. 1 motor. Since the two ends of the No. 2 rotating shaft are fixed with cutters, it can drive the No. 2 rotating shaft and the cutter to rotate and support the thin-knife paper separator. Cut the film, so that the film width can be cut while supporting the limit of the thin knife paper separator, so as to improve the use value.

Description of drawings

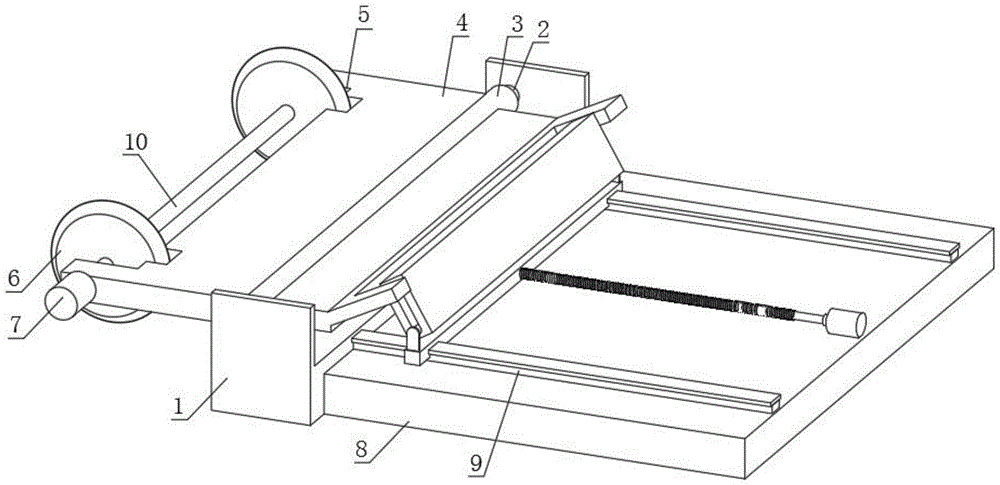

Fig. 1 is a schematic perspective view of the overall structure provided by the embodiment of the present invention;

Fig. 2 is a schematic perspective view of a partial structure provided by an embodiment of the present invention;

Fig. 3 is a schematic perspective view of the structure of the jacking assembly provided by the embodiment of the present invention;

Fig. 4 is a schematic perspective view of the structure of the jacking assembly provided by the embodiment of the present invention.

In the figure: 1. Fixed base; 2. No. 1 rotating shaft; 3. Sleeve rod; 4. Fixed plate; 5. Mounting slot; 6. Cutter; 7. No. 1 motor; 8. Support plate; ; 10, the second shaft; 901, extension plate; 902, groove; 903, limit rod; ; 909, slide rail; 910, threaded rod; 911, No. two motor.

Detailed ways

In order to further understand the invention content, characteristics and effects of the present utility model, the following examples are given, and detailed descriptions are given below in conjunction with the accompanying drawings.

Below in conjunction with accompanying drawing, the structure of the present utility model is described in detail.

As shown in Figures 1 to 4, a pressure wheel structure for a thin-knife paper separator includes a fixed base 1, a No. Sleeve rod 3, one side of sleeve rod 3 is fixedly connected with fixed plate 4, and one side of fixed plate 4 is provided with installation groove 5, and the rotation installation in installation groove 5 is installed with No. 2 rotating shaft 10, and the fixed sleeve at both ends of No. Knife 6, one end of No. 2 rotating shaft 10 is fixedly connected with No. 1 motor 7, and No. 1 motor 7 is installed on one side close to fixed plate 4, and a jacking assembly 9 is installed between the other side of sleeve rod 3 and the upper surface of support plate 8 to support The plate 8 is fixedly connected to one side surface of the fixed base 1 .

Adopt the above-mentioned scheme: through connecting bar 906 two ends are fixedly connected with connecting sheet metal 907, the lower end of both sides connecting sheet metal 907 is fixedly connected with movable block 908, and movable block 908 is installed on the slide rail 909, just can move between movable block 908 Play the role of limit movement, and then because the connecting rod 906 is installed in the limit groove 905, it can play the effect of supporting limit, through the second motor 911 to drive the threaded rod 910 to rotate, because the threaded rod 910 passes through The threaded engagement is connected to the movable block 908, which can drive the movable block 908 to move back and forth along the threaded rod 910, thereby pulling the extension plate 901 to move downward, which can also drive the fixed plate 4 to tilt up, and drive the second rotating shaft through the No. 1 motor 7 10 rotation, since the two ends of the second rotating shaft 10 are fixed with a cutter 6, it can drive the second rotating shaft 10 and the cutter 6 to rotate, and cut the film supported between the thin-knife paper separator, so that the thin The knife splitter can cut the width of the film while supporting the limit, so as to improve the use value.

Referring to Fig. 3 , the jacking assembly 9 includes an extension plate 901, which is fixedly connected to one side surface of the sleeve rod 3, and the other side of the extension plate 901 is provided with a groove 902, and the inner wall of the groove 902 is fixedly connected with a limit rod 903 , the limiting rod 903 is installed in the limiting groove 905, the limiting groove 905 is set in the middle of the limiting block 904, and the connecting rod 906 is installed in rotation below the limiting groove 905.

The above scheme is adopted: the extension plate 901 is fixedly connected to one side of the sleeve rod 3, and the sleeve rod 3 is sleeved on the No. 1 rotating shaft 2, so that the sleeve rod 3 can limit the position and rotate around the No. 1 rotating shaft 2 The limit rod 903 is fixedly connected between the inner walls of the groove 902 on one side of the extension plate 901, and the limit rod 903 and the connecting rod 906 are installed in the limit groove 905, so that the limit rod 903 and the connecting rod 906 can be adjusted. To the role of limit support.

Referring to Fig. 3, the two ends of the connecting rod 906 are fixedly connected with the connecting sheet metal 907, and the lower ends of the connecting sheet metal 907 on both sides are fixedly connected with the movable block 908, the movable block 908 is installed on the slide rail 909, and the slide rail 909 is fixedly connected to the support plate 8 on both sides of the upper surface.

Adopt the above-mentioned scheme: through connecting bar 906 two ends are fixedly connected with connecting sheet metal 907, the lower end of both sides connecting sheet metal 907 is fixedly connected with movable block 908, and movable block 908 is installed on the slide rail 909, just can move between movable block 908 The space plays the role of limiting movement, and then because the connecting rod 906 is installed in the limiting groove 905, it can support and limit the effect.

Referring to FIG. 3 , the middle part of the movable block 908 is connected with a threaded rod 910 through threaded engagement. The threaded rod 910 is fixedly connected to the output shaft of the No. 2 motor 911 , and the No. 2 motor 911 is fixedly connected to the upper surface of the support plate 8 .

The above scheme is adopted: the second motor 911 drives the threaded rod 910 to rotate. Since the threaded rod 910 is connected to the movable block 908 through threaded engagement, the movable block 908 can be driven to move back and forth along the threaded rod 910, thereby pulling the extension plate 901 to move downward. , just can drive fixed plate 4 to tilt.

Working principle of the utility model:

When in use, the extension plate 901 is fixedly connected to one side of the sleeve rod 3, and the sleeve rod 3 is sleeved on the No. 1 rotating shaft 2, so that the sleeve rod 3 can limit the position and rotate around the No. 1 rotating shaft 2 The limit rod 903 is fixedly connected between the inner walls of the groove 902 on one side of the extension plate 901, and the limit rod 903 and the connecting rod 906 are installed in the limit groove 905, so that the limit rod 903 and the connecting rod 906 can be adjusted. To the effect of the limit support, the two ends of the connecting rod 906 are fixedly connected to the connecting sheet metal 907, and the lower ends of the connecting sheet metal 907 on both sides are fixedly connected to the movable block 908, and the movable block 908 is installed on the slide rail 909, so that the movable Blocks 908 play the role of limiting movement, and then because the connecting rod 906 is installed in the limiting groove 905, it can play a supporting and limiting effect. The second motor 911 drives the threaded rod 910 to rotate. The rod 910 is connected to the movable block 908 through threaded engagement, so that the movable block 908 can be driven to move back and forth along the threaded rod 910, thereby pulling the extension plate 901 to move downward, which can also drive the fixed plate 4 to tilt up, driven by the No. 1 motor 7 The No. 2 rotating shaft 10 rotates. Since the two ends of the No. 2 rotating shaft 10 are fixedly sleeved with cutters 6, the No. 2 rotating shaft 10 and the cutter 6 can be driven to rotate to cut the film supported between the thin-knife paper separators. In this way, the width of the film can be cut while supporting the limit of the thin-knife paper separator, so as to achieve the effect of improving the use value.

It should be noted that in this article, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply that there is a relationship between these entities or operations. There is no such actual relationship or order between them. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (7)

1. A pinch wheel structure for a thin knife paper separator, comprising a fixed base (1), characterized in that: a No. 1 shaft (2) is fixedly connected between the inner walls of the fixed base (1), and the No. A sleeve rod (3) is movable on the rotating shaft (2), and one side of the sleeve rod (3) is fixedly connected with a fixed plate (4), and one side of the fixed plate (4) is provided with a mounting groove (5), A No. 2 rotating shaft (10) is rotatably installed in the installation groove (5), and a cutter (6) is fixedly sleeved at both ends of the No. 2 rotating shaft (10), and one end of the No. 2 rotating shaft (10) is fixedly connected to a No. 1 motor (7), the No. 1 motor (7) is installed on one side close to the fixed plate (4), and a jacking assembly is installed between the other side of the sleeve rod (3) and the upper surface of the support plate (8) (9), the support plate (8) is fixedly connected to one side surface of the fixed base (1). 2. A pressure wheel structure for a thin-knife paper separator according to claim 1, characterized in that: the jacking assembly (9) includes an extension plate (901), and the extension plate (901) is fixed It is connected to one side surface of the sleeve rod (3), and the other side of the extension plate (901) is provided with a groove (902). 3. A pressure wheel structure for a thin-knife paper separator according to claim 2, characterized in that: a limit rod (903) is fixedly connected between the inner walls of the groove (902), and the limit The rod (903) is installed in the limiting groove (905). 4. A pressure wheel structure for a thin-knife paper separator according to claim 3, characterized in that: the limiting groove (905) is set in the middle of the limiting block (904), and the limiting groove A connecting rod (906) is rotatably installed below the (905), and the two ends of the connecting rod (906) are fixedly connected with a connecting sheet metal (907). 5. A pressure roller structure for a thin-knife paper separator according to claim 4, characterized in that: the lower ends of the connecting sheet metal (907) on both sides are fixedly connected with movable blocks (908), and the movable blocks (908) The block (908) is installed on the slide rail (909), and the slide rail (909) is fixedly connected to both sides of the upper surface of the support plate (8). 6. A pressure roller structure for a thin-knife paper separator according to claim 5, characterized in that: the middle part of the movable block (908) is connected with a threaded rod (910) through threaded engagement, and the threaded rod (910) is fixedly connected to the output shaft of No. 2 motor (911). 7. A pressure wheel structure for a thin-knife paper separator according to claim 6, characterized in that: the No. 2 motor (911) is fixedly connected to the upper surface of the support plate (8).
