Abstract
The utility model discloses a construction dustproof device, which comprises a box body, wherein the lower end of the box body is fixedly connected with a universal wheel; the upper end of the box body is fixedly connected with a plurality of fixing plates, a cover plate is rotationally connected between the two fixing plates on the same side, and the lower end of the cover plate is fixedly connected with a plugging plate; the side wall of the box body is provided with a turnover mechanism for turning over the cover plate; a filter screen is arranged in the box body; the side wall of the box body is provided with an absorption mechanism for absorbing dust. According to the utility model, the fog gun machine is used for spraying and dust falling, manual spraying is not needed, the workload of workers is reduced, and dust is not adhered to the inner wall of the box body by utilizing the design of the filter frame, so that the dust is convenient to clean.
Description
Technical Field
The utility model relates to the technical field of civil engineering, in particular to a construction dust-proof device.
Background
The utility model provides a construction dust keeper, includes shower nozzle, liquid reserve tank and box, the shower nozzle passes through a carriage connection and is in the side of box, and the shower nozzle passes through hose connection and change the mouth, changes mouthful and passes through raceway and right angle union coupling immersible pump, and the immersible pump is connected in the bottom of liquid reserve tank simultaneously, the liquid reserve tank is connected in the recess second that the box was seted up, recess second intercommunication recess first, and the liquid reserve tank middle part passes through a mount connection filter screen first, and the liquid reserve tank is kept away from the one end of immersible pump and is passed through carriage second and connect the three-way pipe, and the three-way pipe passes through the blast pipe simultaneously and connects the fan, and the dust absorption board is connected through mount second in the side of box to the fan, the collecting vat is seted up to the upper surface of box, and the collecting mouth is seted up to the collecting mouth bottom, and is connected with filter screen second to the collecting mouth surface, and is connected with the limiting plate in the collecting mouth. The civil engineering construction dustproof device can effectively utilize rainwater resources, so that the cost is saved;
but in actual operation, inhale the liquid reserve tank with the dust in, but the dust adhesion is on its inner wall, is difficult for clear away, and the shower nozzle needs the manual work to hold and spray, increases staff's work load.
Disclosure of Invention
The utility model aims to solve the defects in the prior art, and provides a construction dust-proof device which utilizes a fog gun machine to spray and dust fall, does not need to spray manually, reduces the workload of staff, and utilizes the design of a filter frame, so that dust can not adhere to the inner wall of a box body, and the dust is convenient to clean.
In order to achieve the above purpose, the present utility model adopts the following technical scheme:
the construction dustproof device comprises a box body, wherein the lower end of the box body is fixedly connected with a universal wheel;
the upper end of the box body is fixedly connected with a plurality of fixing plates, a cover plate is rotationally connected between the two fixing plates on the same side, and the lower end of the cover plate is fixedly connected with a plugging plate;
the side wall of the box body is provided with a turnover mechanism for turning over the cover plate;
a filter screen is arranged in the box body;
the side wall of the box body is provided with an absorption mechanism for absorbing dust;
the side wall fixedly connected with mounting bracket of box, it is connected with fog gun machine to rotate on the mounting bracket, the lateral wall of mounting bracket rotates and is connected with electric putter, electric putter's flexible end rotates with fog gun machine and is connected, the lateral wall fixedly connected with water pump of box, the output and the fog gun machine of water pump are connected.
Preferably, the turnover mechanism comprises a mounting seat fixedly connected to the side wall of the box body, the upper end of the mounting seat is fixedly connected with a driving motor, the side wall of the box body is fixedly connected with two mounting plates, two mounting plates are rotatably connected with a rotating shaft, two ends of the rotating shaft are fixedly connected with worms, two cover plates are coaxially and fixedly connected with worm wheels, the worm wheels are meshed with the worms, and the driving motor is connected with the rotating shaft through a transmission assembly.
Preferably, the threads of the two worms are oppositely disposed.
Preferably, the transmission assembly comprises two chain wheels and a chain, and the two chain wheels are respectively and fixedly connected with the rotating shaft and the driving motor in a coaxial way.
Preferably, the absorption mechanism comprises a suction fan fixedly connected to the side wall of the box body, the output end of the suction fan is fixedly connected with an exhaust pipe, a filter frame is arranged in the box body, the other end of the exhaust pipe extends to the inside of the filter frame, two suction cavities are formed in the cover plate, the input end of the suction fan is communicated with the two suction cavities through a connecting hose, and suction openings communicated with the suction cavities are uniformly distributed in the side wall of the cover plate.
Preferably, the upper end of the cover plate is an inclined plane.
Preferably, the side walls of the two ends of the filter frame are provided with a plurality of meshes.
The utility model has the following beneficial effects:
through apron, tilting mechanism's setting, the apron upset can be opened the box to collect the rainwater, and the apron is the tilt state, can increase the collection area of rainwater, with the rainwater leading-in box, accelerated the collection speed of rainwater, reverse upset the apron, realized the closure of box, can reduce the evaporation rate of moisture like this;
through the arrangement of the absorption mechanism, dust collection treatment can be carried out while spraying and dust falling, so that the flying of the dried dust is reduced, and the dustproof effect is further improved;
through the arrangement of the filter frame, absorbed dust is discharged into the filter frame, so that the water quality outside the filter frame is not influenced, and the filter frame is also convenient to take out for cleaning;
through setting up of fog gun machine, mounting bracket, electric putter, can be according to the angle of the demand adjustment fog gun machine of using to better spraying dust fall handles.
Drawings
FIG. 1 is a schematic cross-sectional view of a construction dust-proof device according to the present utility model;
FIG. 2 is a schematic view showing an unfolding state of a cover plate of a construction dust-proof device according to the present utility model;
FIG. 3 is a perspective view of a cover plate of a construction dust-proof device according to the present utility model;

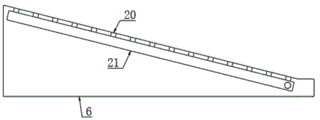

fig. 4 is a schematic cross-sectional view of a cover plate of a construction dust-proof device according to the present utility model.
In the figure: 1 box, 2 universal wheels, 3 suction fans, 4 exhaust pipes, 5 fixing plates, 6 cover plates, 7 plugging plates, 8 filter screens, 9 filter frames, 10 meshes, 11 fog gun machines, 12 electric push rods, 13 mounting frames, 14 water pumps, 15 worms, 16 rotating shafts, 17 mounting plates, 18 mounting seats, 19 driving motors, 20 air suction ports and 21 air suction cavities.
Detailed Description
The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments.
In the description of the present utility model, it should be understood that the terms "upper," "lower," "front," "rear," "left," "right," "top," "bottom," "inner," "outer," and the like indicate or are based on the orientation or positional relationship shown in the drawings, merely to facilitate description of the present utility model and to simplify the description, and do not indicate or imply that the devices or elements referred to must have a specific orientation, be configured and operated in a specific orientation, and thus should not be construed as limiting the present utility model.
Referring to fig. 1 to 4, a construction dust-proof device comprises a box body 1, wherein the lower end of the box body 1 is fixedly connected with a universal wheel 2;
the upper end of the box body 1 is fixedly connected with a plurality of fixing plates 5, a cover plate 6 is rotatably connected between the two fixing plates 5 on the same side, the upper end of the cover plate 6 is an inclined plane, dust absorption is facilitated, sundries such as garbage, leaves and garbage bags are prevented from being accumulated on the surface of the cover plate 6 and can slide down, the lower end of the cover plate 6 is fixedly connected with a plugging plate 7, the box body 1 can be plugged, the water evaporation speed is effectively reduced, and water resources are better utilized;
the side wall of the box body 1 is provided with a turnover mechanism for turning the cover plate 6, the turnover mechanism comprises a mounting seat 18 fixedly connected to the side wall of the box body 1, the upper end of the mounting seat 18 is fixedly connected with a driving motor 19, the side wall of the box body 1 is fixedly connected with two mounting plates 17, a rotating shaft 16 is rotationally connected between the two mounting plates 17, two ends of the rotating shaft 16 are fixedly connected with worms 15, the two cover plates 6 are coaxially and fixedly connected with worm wheels, the worm wheels are meshed with the worm wheels 15, the screw threads of the two worm wheels 15 are oppositely arranged, and due to the fact that the rotation directions are opposite, the rotation of the two worm wheels which are in different rotation directions is realized, the driving motor 19 is connected with the rotating shaft 16 through a transmission assembly, the transmission assembly comprises two chain wheels and a chain, and the two chain wheels are respectively and coaxially and fixedly connected with the rotating shaft 16 and the driving motor 19;
the inside of the box body 1 is provided with a filter screen 8, and the inside of the box body 1 is provided with a bulge for installing and placing the filter screen 8;
the side wall of the box body 1 is provided with an absorption mechanism for absorbing dust, the absorption mechanism comprises a suction fan 3 fixedly connected to the side wall of the box body 1, the output end of the suction fan 3 is fixedly connected with an exhaust pipe 4, the inside of the box body 1 is provided with a filter frame 9, the side walls at two ends of the filter frame 9 are provided with a plurality of meshes 10, dust is intercepted in the filter frame 9, water quality outside the filter frame 9 is not affected, the filter frame 9 is also convenient to take out and clean, the other end of the exhaust pipe 4 extends to the inside of the filter frame 9, the inside of the two cover plates 6 is provided with suction cavities 21, the input end of the suction fan 3 is communicated with the two suction cavities 21 through a connecting hose, and suction inlets 20 communicated with the suction cavities 21 are uniformly distributed on the side walls of the cover plates 6;
the lateral wall fixedly connected with mounting bracket 13 of box 1, rotate on the mounting bracket 13 and be connected with fog gun machine 11, the lateral wall of mounting bracket 13 rotates and is connected with electric putter 12, and electric putter 12's flexible end rotates with fog gun machine 11 to be connected, and the lateral wall fixedly connected with water pump 14 of box 1, the output and the fog gun machine 11 of water pump 14 are connected.
Working principle:
when raining, the driving motor 19 is turned on, the rotation of the rotating shaft 16 is realized by the driving motor 19 through the transmission assembly, the rotation of the rotating shaft 16 drives the two worms 15 to rotate, the rotation of the worms 15 drives the worm wheels to rotate, so that the overturning of the two cover plates 6 is realized, the plugging plate 7 is driven to overturn, the box body 1 is opened, rainwater is conveniently collected, the cover plates 6 are in an inclined state, the collection area of the rainwater can be increased, the rainwater is led into the box body 1, the collection speed of the rainwater is accelerated, after the collection is finished, the cover plates 6 are reversely overturned, the box body 1 is closed, and the evaporation speed of the water can be reduced;
when dust fall, the angle of the fog gun machine 11 is adjusted through the electric push rod 12, the water pump 14 is turned on, the water in the box body 1 is pumped into the fog gun machine 11 for atomization spraying, the effect of dust fall is achieved, meanwhile, the suction fan 3 is turned on, the suction fan 3 sucks dust into the exhaust pipe 4 through the air suction port 20 and the air suction cavity 21, finally, the dust is discharged into the box body 1 through the exhaust pipe 4 for collection, and the dust lifting after drying is reduced.
The present utility model is not limited to the above-mentioned embodiments, and any person skilled in the art, based on the technical solution of the present utility model and the inventive concept thereof, can be replaced or changed within the scope of the present utility model.
Claims (7)
1. A construction dustproof device, which comprises a box body (1) and is characterized in that,
the lower end of the box body (1) is fixedly connected with a universal wheel (2);
the upper end of the box body (1) is fixedly connected with a plurality of fixing plates (5), a cover plate (6) is rotatably connected between the two fixing plates (5) on the same side, and the lower end of the cover plate (6) is fixedly connected with a plugging plate (7);
the side wall of the box body (1) is provided with a turnover mechanism for turning over the cover plate (6);
a filter screen (8) is arranged in the box body (1);
the side wall of the box body (1) is provided with an absorption mechanism for absorbing dust;
the side wall fixedly connected with mounting bracket (13) of box (1), rotate on mounting bracket (13) and be connected with fog gun machine (11), the lateral wall rotation of mounting bracket (13) is connected with electric putter (12), the flexible end and the fog gun machine (11) of electric putter (12) rotate to be connected, the lateral wall fixedly connected with water pump (14) of box (1), the output and the fog gun machine (11) of water pump (14) are connected.
2. The construction dustproof device according to claim 1, wherein the turnover mechanism comprises a mounting seat (18) fixedly connected to the side wall of the box body (1), a driving motor (19) is fixedly connected to the upper end of the mounting seat (18), two mounting plates (17) are fixedly connected to the side wall of the box body (1), a rotating shaft (16) is rotatably connected between the two mounting plates (17), two worm screws (15) are fixedly connected to the two ends of the rotating shaft (16), worm gears are coaxially and fixedly connected to the two cover plates (6), the worm gears are meshed with the worm screws (15), and the driving motor (19) is connected with the rotating shaft (16) through a transmission assembly.
3. A construction dust control device according to claim 2, characterized in that the threads of the two worms (15) are oppositely disposed.
4. A construction dust-proof device according to claim 2, wherein the transmission assembly comprises two chain wheels and a chain, and the two chain wheels are respectively and fixedly connected with the rotating shaft (16) and the driving motor (19) in a coaxial way.
5. The construction dustproof device according to claim 1, characterized in that the absorbing mechanism comprises a suction fan (3) fixedly connected to the side wall of the box body (1), an exhaust pipe (4) is fixedly connected to the output end of the suction fan (3), a filter frame (9) is arranged in the box body (1), the other end of the exhaust pipe (4) extends to the filter frame (9), suction cavities (21) are formed in two cover plates (6), the input end of the suction fan (3) is communicated with the two suction cavities (21) through a connecting hose, and suction inlets (20) communicated with the suction cavities (21) are uniformly distributed on the side wall of the cover plates (6).
6. A construction dust-proof device according to claim 1, characterized in that the upper end of the cover plate (6) is beveled.
7. A construction dust-proof device according to claim 5, characterized in that the side walls of the two ends of the filter frame (9) are provided with a plurality of meshes (10).
