Abstract

The utility model relates to the technical field of air-conditioning units, in particular to an efficient cooling air-conditioning unit, comprising: a data center computer room, a plurality of data servers symmetrically arranged on both sides of the data center computer room; On the top of the outer wall of the air conditioner, cold air main pipes for conveying cold air are symmetrically arranged on the outer walls of both sides of the air conditioner's outer host; the branch air conditioner internal units, the branch air conditioner internal units and the data servers have the same number and corresponding positions, and the back of each data server is Branch air-conditioning internal units are installed, and exhaust fans are installed at the air outlets of the branch air-conditioning internal units. The utility model improves the cooling efficiency and cooling speed through the branch air-conditioning internal units arranged at each data server, and an exhaust fan is installed at the air outlet of each branch air-conditioning internal unit to discharge the cold air discharged from the branch air-conditioning internal units. Blows quickly onto data servers for improved cooling efficiency.

Description

A high-efficiency cooling air-conditioning unit

technical field

The utility model relates to the technical field of air-conditioning units, in particular to an efficient cooling air-conditioning unit.

Background technique

The electronic equipment in the data center computer room is generally distributed in a regular manner, the location is concentrated, and the relative heat source is also regularly distributed. However, the current air conditioner in the data center computer room is to adjust the temperature of the entire computer room, and it is difficult to centrally cool the heat source. The cooling of the space will increase the waste of air-conditioning, increase the energy consumption of air-conditioning, and reduce the cooling efficiency.

Publication (announcement) number: CN214249934U discloses a kind of air conditioner with low energy consumption and high performance in the data center computer room, including air conditioner inner unit body, the air conditioner inner unit body is provided with a wind wall mechanism outside, the wind wall mechanism includes the wind wall mechanism protective shell, the wind wall mechanism The protective shell of the wall mechanism is connected with a motor, the motor is connected with a driving gear, the protective shell of the wind wall mechanism is connected with a support frame, the support frame is connected with a transmission shaft, and the transmission shaft is connected with a fan blade. A driven gear is connected, an adjustment mechanism is connected to the protective shell of the wind wall mechanism, the motor is set through the protective shell of the wind wall mechanism, and the transmission rotating shaft is set through the support frame. The utility model sets the corresponding mechanism of the air conditioner in the data center computer room, so that the air conditioner can centrally cool down the heating electronic equipment, reduces the diffusion of part of the cold air, improves the utilization rate of the air conditioner, reduces the waste of the air conditioner, and reduces the cost of the air conditioner. Energy consumption, improve the cooling efficiency of the air conditioner.

The above-mentioned data center computer room air conditioner improves the utilization rate of cold air and reduces the waste of cold air. However, the data center computer room air conditioner only blows out cold air through a single air outlet. For a multi-server data center room, the cooling efficiency is low and cannot meet the needs of servers. cooling needs.

Utility model content

The purpose of the utility model is to provide a high-efficiency cooling air-conditioning unit to solve the problem of low cooling efficiency in the multi-server data center room proposed in the background art.

In order to achieve the above object, the utility model provides the following technical solutions:

A high-efficiency cooling air-conditioning unit comprising:

A data center computer room, the data center computer room is used to place multiple data servers, and the multiple data servers are symmetrically arranged on both sides of the data center computer room;

The air-conditioning external host, the air-conditioning external host is arranged on the top of the outer wall of the data center machine room, and the outer walls of both sides of the air-conditioning external host are symmetrically arranged with cold air main pipes for conveying cold air;

Branch air-conditioning internal units, the number of the branch air-conditioning internal units is the same as that of the data servers and the positions correspond to each other. A branch air-conditioning internal unit is installed on the back of each data server, and exhaust fans are installed at the air outlets of the branch air-conditioning internal units , each of the branch air-conditioning internal units is connected to the cold air main pipe through a cold air branch pipe.

Preferably, a computer room door for access is hinged at the center of one end of the data center computer room, and door handles are installed on the inner and outer walls of the computer room door.

Preferably, four corners of the bottom of the air-conditioning external main unit are all equipped with fixed columns, and the fixed columns are connected to the top outer wall of the data center machine room.

Preferably, each branch air conditioner internal unit is equipped with a limit seat connected to the outer wall of the data center machine room.

Preferably, the top and bottom of the limiting seat are symmetrically provided with fixing seats, and the fixing seats are provided with mounting holes.

Preferably, the limiting seat and the fixing seat are integrally formed, and a shock-absorbing pad made of rubber is arranged between the limiting seat, the fixing seat and the outer wall of the data center machine room.

Preferably, the fixing base is threadedly connected to the outer wall of the data center computer room by installing fixing bolts through the installation holes.

Compared with the prior art, the beneficial effects of the utility model are:

1. In this high-efficiency cooling air-conditioning unit, the cooling efficiency and cooling speed are improved through the branch air-conditioning internal units installed at each data server, and an exhaust fan is installed at the air outlet of each branch air-conditioning internal unit, and the branch air-conditioning The cold air discharged from the internal unit is quickly blown into the data server to improve cooling efficiency.

2. In this high-efficiency cooling air-conditioning unit, the fixing seat is threadedly connected to the outer wall of the data center machine room through the installation hole through the installation fixing bolt, which is convenient for installation or disassembly. After the internal unit of a single branch air conditioner is damaged, it can be replaced separately, saving maintenance cost.

3. In the high-efficiency cooling air-conditioning unit, a shock-absorbing pad made of rubber is arranged between the limit seat, the fixed seat and the outer wall of the data center machine room to improve the shock-absorbing effect.

Description of drawings

The accompanying drawings are used to provide a further understanding of the utility model, and constitute a part of the description, and are further explained in detail together with the embodiments of the utility model, but do not constitute a limitation to the utility model.

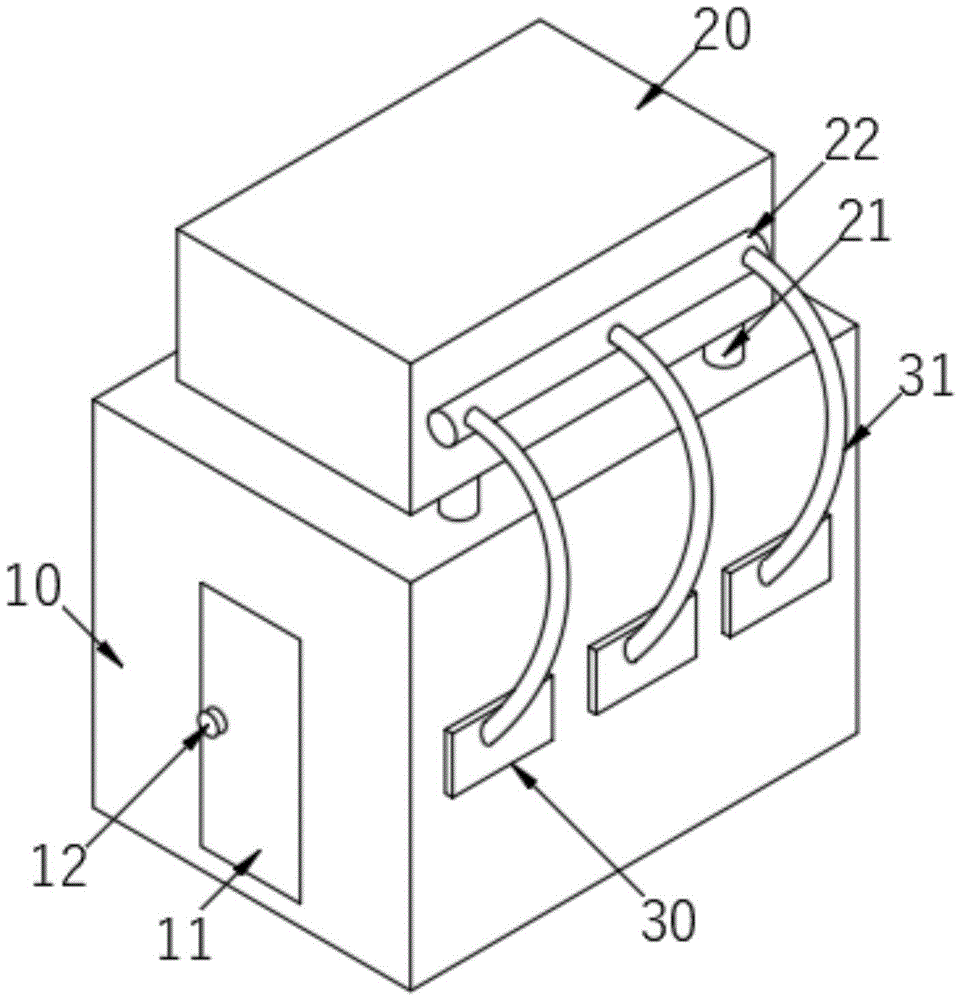

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the cross-sectional structure schematic diagram of the present utility model;

Fig. 3 is a schematic cross-sectional structure diagram of the branch air conditioner internal unit of the present invention.

The meaning of each label in the figure:

10. Data center computer room; 11. Computer room door; 12. Door handle; 13. Data server;

20. External host of air conditioner; 21. Fixed column; 22. Cold air supervisor;

30. Inner unit of branch air conditioner; 31. Limit seat; 32. Exhaust fan; 33. Cooling branch pipe; 34. Fixing seat; 35. Mounting hole.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the embodiments of the present invention and the accompanying drawings. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

In describing the present invention, it should be understood that the terms "center", "vertical", "transverse", "length", "width", "thickness", "upper", "lower", "front" , "Back", "Left", "Right", "Vertical", "Horizontal", "Top", "Bottom", "Inner", "Outer", "Clockwise", "Counterclockwise", etc. The orientation or positional relationship is based on the orientation or positional relationship shown in the drawings, which is only for the convenience of describing the utility model and simplifying the description, and does not indicate or imply that the referred equipment or elements must have a specific orientation or be constructed in a specific orientation. and operation, and therefore cannot be construed as a limitation of the present utility model.

A high-efficiency cooling air-conditioning unit, as shown in Figures 1-3, includes: a data center computer room 10, the data center computer room 10 is used to place a plurality of data servers 13, and the plurality of data servers 13 are symmetrically arranged in the data center computer room 10 Both sides; air-conditioning external host 20, the air-conditioning external host 20 is arranged on the top of the outer wall of the data center machine room 10, and the outer walls of both sides of the air-conditioning external host 20 are symmetrically provided with cold air main pipes 22 for delivering cold air; branch air-conditioning internal units 30, branch The number of air-conditioning internal units 30 and the data servers 13 are the same and the positions are corresponding. The back of each data server 13 is equipped with branch air-conditioning internal units 30, and the air outlets of the branch air-conditioning internal units 30 are equipped with exhaust fans 32. Each branch The air conditioner internal unit 30 and the cold air main pipe 22 are all connected through the cold air branch pipe 33, through the branch air conditioner internal unit 30 provided at each data server 13, the cooling efficiency and cooling speed are improved, and the output of each branch air conditioner internal unit 30 An exhaust fan 32 is also installed at the tuyere, and the cold air discharged from the branch air conditioner internal unit 30 is quickly blown onto the data server 13 to improve cooling efficiency.

Further, a computer room door 11 for entering and exiting is hinged at the center of one end of the data center computer room 10, and door handles 12 are installed on the inner and outer walls of the computer room door 11 to facilitate entry and exit.

Specifically, the four top corners of the bottom of the air-conditioning external main unit 20 are all equipped with fixed columns 21, and the fixed columns 21 are connected to the top outer wall of the data center machine room 10 to improve the stability of the air-conditioning external main unit 20 installation.

In addition, each branch air conditioner internal unit 30 is equipped with a limit seat 31 connected to the outer wall of the data center machine room 10. The top and bottom of the limit seat 31 are symmetrically provided with a fixed seat 34, and the fixed seat 34 is provided with a mounting hole 35. , the fixing seat 34 is threadedly connected to the outer wall of the data center machine room 10 through the mounting holes 35 through the mounting bolts, which is convenient for installation or disassembly. After a single branch air conditioner internal unit 30 is damaged, it can be replaced separately, saving maintenance costs.

It is worth noting that the limiting seat 31 and the fixing seat 34 are integrally formed, and a shock-absorbing pad made of rubber is arranged between the limiting seat 31 , the fixing seat 34 and the outer wall of the data center machine room 10 to improve the shock-absorbing effect.

The working principle of the utility model high-efficiency cooling air-conditioning unit: when in use, the operator opens a through hole on the outer wall of both sides of the data center machine room 10 that matches the cross-sectional size of the branch air-conditioning internal unit 30, and inserts the branch air-conditioning internal unit 30 into the through the through hole, and the fixed seat 34 is threadedly connected to the outer wall of the data center machine room 10 through the installation hole 35 through the installation fixing bolt, as shown in Figure 1, when the data server 13 is working, the air conditioner internal unit 30 and the exhaust fan 32 for cooling the data server 13 .

The basic principles, main features and advantages of the present utility model have been shown and described above. Those skilled in the industry should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions are only preferred examples of the utility model, and are not used to limit the utility model. Without departing from the utility model Under the premise of the spirit and scope, the utility model also has various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The scope of protection required by the utility model is defined by the appended claims and their equivalents.

Claims (7)

1. A high-efficiency cooling air-conditioning unit, characterized in that: comprising: A data center computer room (10), the data center computer room (10) is used to place a plurality of data servers (13), and a plurality of the data servers (13) are symmetrically arranged on both sides of the data center computer room (10); The air conditioner external host (20), the air conditioner external host (20) is arranged on the top of the outer wall of the data center machine room (10), and the outer walls of both sides of the air conditioner external host (20) are symmetrically arranged with cold air main pipes for conveying cold air (twenty two); Branch air conditioner internal unit (30), the number of the branch air conditioner internal unit (30) and the data server (13) are the same and the positions are corresponding, and the back of each data server (13) is equipped with a branch air conditioner internal unit (30) , the air outlets of the branch air-conditioning internal units (30) are equipped with exhaust fans (32), and each of the branch air-conditioning internal units (30) is connected with the cold air main pipe (22) by a cold air branch pipe (33). 2. The high-efficiency cooling air-conditioning unit according to claim 1, characterized in that: a machine room door (11) for entering and exiting is hinged at the center of one end of the data center machine room (10), and the machine room door (11) Door handles (12) are installed on the inner and outer walls. 3. The high-efficiency cooling air-conditioning unit according to claim 1, characterized in that: fixed columns (21) are installed at the four top corners of the bottom of the air-conditioning external main unit (20), and the fixed columns (21) are connected to on the top outer wall of the data center computer room (10). 4. The high-efficiency cooling air-conditioning unit according to claim 1, characterized in that: each of the branch air-conditioning internal units (30) is equipped with a limit seat (31) connected to the outer wall of the data center machine room (10) ). 5. The high-efficiency cooling air-conditioning unit according to claim 4, characterized in that: fixed seats (34) are symmetrically arranged on the top and bottom of the limit seat (31), and there are installations on the fixed seat (34). hole (35). 6. The high-efficiency cooling air-conditioning unit according to claim 5, characterized in that: the limiting seat (31) and the fixing seat (34) are integrally formed, and the limiting seat (31), the fixing seat (34) ) and the outer wall of the data center machine room (10) are provided with shock absorbing pads made of rubber. 7. The high-efficiency cooling air-conditioning unit according to claim 5, characterized in that: the fixing seat (34) is threadedly connected to the outer wall of the data center machine room (10) by installing fixing bolts through the installation holes (35).
