CN219095305U - EVA engraving machine - Google Patents
EVA engraving machine Download PDFInfo
- Publication number
- CN219095305U CN219095305U CN202320008171.3U CN202320008171U CN219095305U CN 219095305 U CN219095305 U CN 219095305U CN 202320008171 U CN202320008171 U CN 202320008171U CN 219095305 U CN219095305 U CN 219095305U
- Authority
- CN
- China
- Prior art keywords
- wall
- eva
- workbench
- suction box
- engraving machine
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
- 239000000428 dust Substances 0.000 claims abstract description 23
- 238000007664 blowing Methods 0.000 claims abstract description 13
- 230000005540 biological transmission Effects 0.000 claims description 16
- 238000004140 cleaning Methods 0.000 claims description 11
- 210000003437 trachea Anatomy 0.000 claims description 2
- 239000000463 material Substances 0.000 description 13
- 238000000034 method Methods 0.000 description 10
- 230000000694 effects Effects 0.000 description 2
- 239000006260 foam Substances 0.000 description 2
- 238000009825 accumulation Methods 0.000 description 1
- 230000000712 assembly Effects 0.000 description 1
- 238000000429 assembly Methods 0.000 description 1
- 238000005516 engineering process Methods 0.000 description 1
- 238000004064 recycling Methods 0.000 description 1
- 239000004575 stone Substances 0.000 description 1
- 239000002023 wood Substances 0.000 description 1
Images
Landscapes
- Perforating, Stamping-Out Or Severing By Means Other Than Cutting (AREA)
- Cleaning In General (AREA)
Abstract
The utility model relates to the technical field of engraving equipment, in particular to an EVA engraving machine, which comprises: the workbench is fixedly provided with a portal frame, the portal frame is provided with a dust removing mechanism, and the dust removing mechanism comprises an air suction box fixedly connected to the outer wall of one end of the workbench; the fan is fixedly arranged on the outer wall of one side of the suction box, and an air pipe is fixedly inserted into the outer wall of one side of the fan; the mounting plate is fixedly connected to the outer wall of one side of the portal frame, and the air pipe is fixedly inserted into the outer wall of the top of the mounting plate; the dust blowing pipe is fixedly connected to one end of the air pipe, and a plurality of air outlets which are distributed at equal intervals are formed in the dust blowing pipe.
Description
Technical Field
The utility model relates to the technical field of engraving equipment, in particular to an EVA engraving machine.
Background
Engraving is the process of cutting or engraving wood, stone or other materials into a desired shape in a sculpture, which can be called engraving, and with the progress of technology in the age, the mechanical engraving mode gradually replaces the manual engraving mode.
Through searching, the utility model of Chinese patent publication No. CN214420101U discloses a foam plastic engraving machine, which relates to the field of foam plastic engraving processing and comprises a supporting rod, one end of the supporting rod is connected with a first clamp, the other end of the supporting rod is connected with a second clamp, one end of the supporting rod is connected with the first clamp, the other end of the supporting rod is connected with the second clamp, the supporting rod is connected with the first clamp and the second clamp in a sliding manner along the direction close to or far away from the ground, and driving assemblies for driving the supporting rod to move are arranged on the first clamp and the second clamp.
The device can generate a large amount of scraps in the engraving process, the scraps are accumulated above the material to easily block the sight of workers, and the scraps also easily cause errors caused by instability of the engraving machine in the moving process, so that the engraving effect is affected, and the engraving device is inconvenient to use.
Disclosure of Invention
The utility model aims to provide an EVA engraving machine for solving the problems in the prior art.
The technical scheme of the utility model is as follows: an EVA engraving machine, comprising:
the workbench is fixedly provided with a portal frame, the portal frame is provided with a dust removing mechanism, and the dust removing mechanism comprises an air suction box fixedly connected to the outer wall of one end of the workbench;
the fan is fixedly arranged on the outer wall of one side of the suction box, and an air pipe is fixedly inserted into the outer wall of one side of the fan;
the mounting plate is fixedly connected to the outer wall of one side of the portal frame, and the air pipe is fixedly inserted into the outer wall of the top of the mounting plate;
the ash blowing pipe is fixedly connected to one end of the air pipe, and a plurality of air outlets which are distributed equidistantly are arranged on the ash blowing pipe.
Preferably, a hydraulic cylinder is fixedly arranged on the outer wall of the top of the portal frame, an engraving head is fixedly arranged at the output end of the hydraulic cylinder, and a plurality of air outlets and outlets are all obliquely arranged towards the bottom of the engraving head.
Preferably, a filter screen is arranged at the joint of the fan and the suction box, and a cleaning mechanism is arranged on one side of the filter screen.
Preferably, the cleaning mechanism comprises a transmission rod rotatably connected to the outer wall of one side of the workbench, an impeller is fixedly sleeved on the outer wall of the circumference of the transmission rod, one end of the transmission rod is fixedly connected with a brush, and bristles on the brush are contacted with the filter screen.
Preferably, the bottom of the suction box is connected with a dust collecting box in a sliding manner, and the dust collecting box is positioned right below the cleaning mechanism.
Preferably, the fixing mechanism is arranged on the inner wall of the bottom of the workbench, the fixing mechanism comprises a fixing plate fixedly connected with the inner wall of the bottom of the workbench, two limiting rods and pull rods are inserted on the outer wall of the other side of the workbench in a sliding manner, the pull rods and the two limiting rods are fixedly connected with the same fixing plate, and springs are sleeved on the two limiting rods.
Preferably, the plate material of the suction box at the top is inclined to the inner wall of the bottom of the workbench.
The utility model provides an EVA engraving machine through improvement, which has the following improvement and advantages compared with the prior art:
the method comprises the following steps: according to the utility model, the dust removing mechanism is arranged, so that chips generated in the carving process can be timely blown off the surface of a material and then sucked and collected by the suction box, the problem that the carving machine is unstable in the moving process due to chip accumulation is solved, the fan is started to generate air flow, external air enters the fan from the air inlet of the suction box, larger suction force can be generated due to the smaller area of the air inlet, then the air flow passes through the air pipe and is sprayed out from a plurality of air outlets on the ash blowing pipe, the generated air flow can blow the chips generated in the carving process to the left side of the workbench, and finally the chips sucked by the suction box are sucked and collected by the dust collecting box;
and two,: according to the utility model, the dust removing mechanism is arranged, so that the impeller can be driven to rotate when air flow is generated, the impeller drives the transmission rod to rotate, and the transmission rod drives the hairbrush to brush on the surface of the filter screen, so that scraps in meshes of the filter screen can be cleaned, and the suction of the fan can be ensured to be smooth enough.
Drawings
The utility model is further explained below with reference to the drawings and examples:

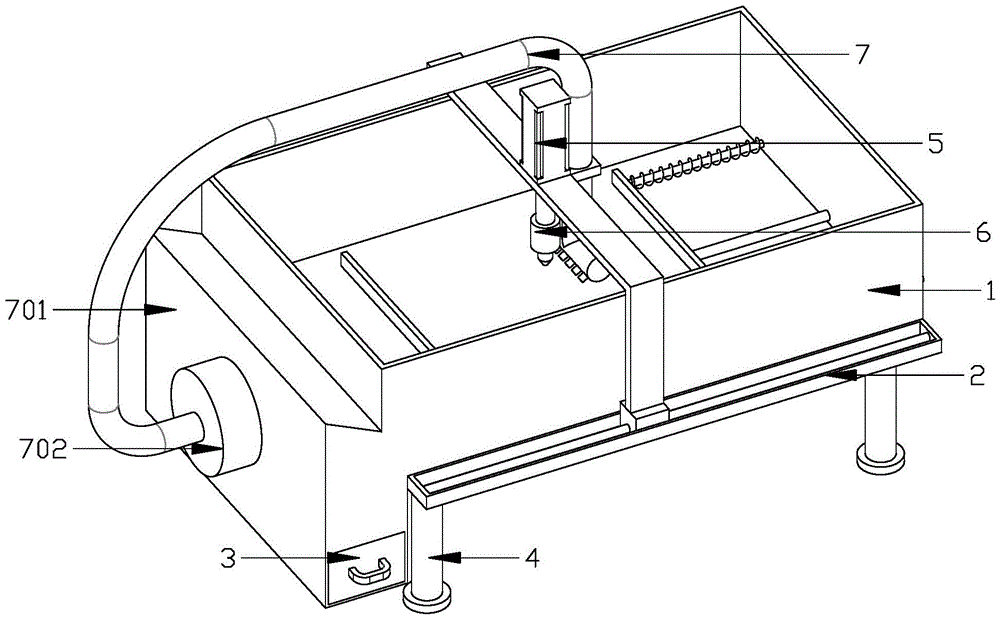

FIG. 1 is a schematic view of the overall first perspective of the present utility model;
FIG. 2 is a schematic view of the overall second perspective of the present utility model;
FIG. 3 is a schematic view of the dust removing mechanism of the present utility model;
FIG. 4 is a schematic view of the cleaning mechanism of the present utility model.
Reference numerals illustrate:
1. a work table; 2. a portal frame; 3. a dust collection box; 5. a hydraulic cylinder; 6. engraving heads; 7. a dust removing mechanism; 8. a cleaning mechanism; 9. a fixing mechanism; 701. a suction box; 702. a blower; 703. an air pipe; 704. a mounting plate; 705. a lance tube; 801. a filter screen; 802. a transmission rod; 803. an impeller; 804. a brush; 901. a fixing plate; 902. a pull rod; 903. a limit rod; 904. and (3) a spring.
Detailed Description
The following detailed description of the present utility model clearly and fully describes the technical solutions of the embodiments of the present utility model, and it is apparent that the described embodiments are only some embodiments of the present utility model, but not all embodiments. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.
The utility model provides an EVA engraving machine through improvement, which has the following technical scheme:
as shown in fig. 1-4, an EVA engraving machine, comprising:
the workbench 1, a portal frame 2 is fixedly arranged on the workbench 1, a dust removing mechanism 7 is arranged on the portal frame 2, and the dust removing mechanism 7 comprises an air suction box 701 fixedly connected to the outer wall of one end of the workbench 1;
the fan 702 is fixedly arranged on the outer wall of one side of the suction box 701, and an air pipe 703 is fixedly inserted on the outer wall of one side of the fan 702;
the mounting plate 704, the mounting plate 704 is fixedly connected to the outer wall of one side of the portal frame 2, and the air pipe 703 is fixedly inserted into the outer wall of the top of the mounting plate 704;
the ash blowing pipe 705, ash blowing pipe 705 fixed connection is in trachea 703 one end, is provided with a plurality of equidistance gas outlets on the ash blowing pipe 705.
By the above structure or mechanism: the fan 702 is started to generate air flow, external air enters the fan 702 from the air inlet of the suction box 701, larger suction force can be generated due to smaller area of the air inlet, then the air flow passes through the air pipe 703 and is sprayed out from a plurality of air outlets on the ash blowing pipe 705, and the generated air flow can blow chips generated in the carving process to the left side of the workbench 1 and finally is sucked by the suction box 701.
Further, a hydraulic cylinder 5 is fixedly arranged on the outer wall of the top of the portal frame 2, an engraving head 6 is fixedly arranged at the output end of the hydraulic cylinder 5, and a plurality of air outlets are obliquely arranged towards the bottom of the engraving head 6.
By the above structure or mechanism: the plurality of air outlets blow air flow to blow the chips completely away from the surface of the material.
Further, a filter screen 801 is arranged at the joint of the fan 702 and the suction box 701, and a cleaning mechanism 8 is installed on one side of the filter screen 801.
By the above structure or mechanism: the screen 801 prevents debris from re-entering the table 1.
Further, the cleaning mechanism 8 comprises a transmission rod 802 rotatably connected to the outer wall of one side of the workbench 1, an impeller 803 is fixedly sleeved on the outer wall of the circumference of the transmission rod 802, one end of the transmission rod 802 is fixedly connected with a brush 804, and bristles on the brush 804 are in contact with the filter screen 801.
By the above structure or mechanism: when the air flow is generated, the impeller 803 is driven to rotate, the impeller 803 drives the transmission rod 802 to rotate, and the transmission rod 802 drives the hairbrush 804 to brush on the surface of the filter screen 801, so that scraps in meshes of the filter screen 801 can be cleaned, and the suction of the fan 702 can be ensured to be smooth enough.
Further, the bottom of the suction box 701 is slidably connected with a dust box 3, and the dust box 3 is located at a position right below the cleaning mechanism 8.
By the above structure or mechanism: the scraps generated in the engraving process can be collected in a concentrated mode, so that recycling is facilitated.
Further, a fixing mechanism 9 is installed on the inner wall of the bottom of the workbench 1, the fixing mechanism 9 comprises a fixing plate 901 fixedly connected to the inner wall of the bottom of the workbench 1, two limiting rods 903 and a pull rod 902 are inserted on the outer wall of the other side of the workbench 1 in a sliding manner, the pull rod 902 and the two limiting rods 903 are fixedly connected with the same fixing plate 901, and springs 904 are sleeved on the two limiting rods 903.
By the above structure or mechanism: the pull rod 902 is pulled outwards, the fixed plate 901 connected with the pull rod 902 slides on the surface of the workbench 1 under the limit of the two limit rods 903, meanwhile, the spring 904 is compressed, then a material is placed between the two fixed plates 901, the pull rod 902 is released, the spring 904 is free from external force, the material can be fixed by the reaction force of the spring 904, and therefore the material can be prevented from moving when being engraved.
Further, the plate material at the top of the suction box 701 is inclined to the inner wall of the bottom of the table 1.
By the above structure or mechanism: the suction inlet volume of the suction box 701 becomes smaller so that the suction force can be increased and the debris falling onto the top of the suction box 701 will also slide down the ramp.
Working principle: the pull rod 902 is pulled outwards, the fixed plate 901 connected with the pull rod 902 slides on the surface of the workbench 1 under the limit of the two limit rods 903, meanwhile, the spring 904 is compressed, then a material is placed between the two fixed plates 901, the pull rod 902 spring 904 is released to prevent the material from being subjected to external force, the material can be fixed by the reaction force, so that the material can be prevented from moving when being engraved, then engraving work is started, meanwhile, the fan 702 is started to generate air flow, the outside air enters the fan 702 from the air inlet of the air suction box 701, the area of the air inlet is smaller, so that larger suction force can be generated, then the air flow passes through the air pipe 703 and is sprayed out from a plurality of air outlets on the ash blowing pipe 705, the generated air flow can blow the chips generated in the engraving process to the left side of the workbench 1, finally the chips are sucked into the dust collecting box 3 by the air suction box 701, the impeller 802 can be driven to rotate when the air flow is generated, the impeller drives the transmission rod 802 to rotate, and the transmission rod 802 can drive the brush 804 to brush the surface of the filter screen 801, so that the fan 803 can clean the filter screen 803, and the sufficient suction effect can be ensured.
Claims (7)
1. An EVA engraver, its characterized in that: comprising the following steps:
the workbench (1), a portal frame (2) is fixedly arranged on the workbench (1), a dust removing mechanism (7) is arranged on the portal frame (2), and the dust removing mechanism (7) comprises an air suction box (701) fixedly connected to the outer wall of one end of the workbench (1);
the fan (702), the fan (702) is fixedly arranged on the outer wall of one side of the suction box (701), and an air pipe (703) is fixedly inserted on the outer wall of one side of the fan (702);
the mounting plate (704), the mounting plate (704) is fixedly connected to the outer wall of one side of the portal frame (2), and the air pipe (703) is fixedly inserted into the outer wall of the top of the mounting plate (704);
the ash blowing pipe (705), ash blowing pipe (705) fixed connection is in trachea (703) one end, be provided with a plurality of equidistance gas outlets on ash blowing pipe (705).
2. The EVA engraving machine of claim 1, wherein: the device is characterized in that a hydraulic cylinder (5) is fixedly arranged on the outer wall of the top of the portal frame (2), an engraving head (6) is fixedly arranged at the output end of the hydraulic cylinder (5), and a plurality of air outlets are obliquely arranged towards the bottom of the engraving head (6).
3. The EVA engraving machine of claim 1, wherein: a filter screen (801) is arranged at the joint of the fan (702) and the suction box (701), and a cleaning mechanism (8) is arranged on one side of the filter screen (801).
4. An EVA engraving machine as claimed in claim 3, wherein: the cleaning mechanism (8) comprises a transmission rod (802) which is rotationally connected to the outer wall of one side of the workbench (1), an impeller (803) is fixedly sleeved on the outer wall of the circumference of the transmission rod (802), one end of the transmission rod (802) is fixedly connected with a hairbrush (804), and bristles on the hairbrush (804) are in contact with the filter screen (801).
5. An EVA engraving machine as claimed in claim 3, wherein: the dust collection box (3) is connected to the bottom of the suction box (701) in a sliding mode, and the dust collection box (3) is located at a position right below the cleaning mechanism (8).
6. The EVA engraving machine of claim 1, wherein: install fixed establishment (9) on workstation (1) bottom inner wall, fixed establishment (9) include fixed connection's on workstation (1) bottom inner wall fixed plate (901), slip grafting has two gag lever posts (903) and pull rod (902) on workstation (1) opposite side outer wall, same fixed plate (901) of pull rod (902) and two gag lever posts (903) fixedly connected with, two all overlap on gag lever post (903) and be equipped with spring (904).
7. The EVA engraving machine of claim 1, wherein: the plate at the top of the suction box (701) is inclined to the inner wall at the bottom of the workbench (1).
