Abstract

The utility model discloses a solar panel with sundry cleaning function, comprising a mounting bracket, the upper surface of the mounting bracket is provided with a solar panel main body, one end of the upper surface of the mounting bracket is provided with an adjustment component, and the bottom of the receiving rod is There is a cleaning roller connected in rotation, and the two ends of one side of the storage rod are equipped with dust-reducing components. The utility model has a design of fixed connection between the adjustment block and the fixed block. When the screw rod rotates, the adjustment block can be driven to move through the threaded hole. , the adjustment block can drive the storage rod to move through the fixed block, and the storage rod can drive the cleaning hair roller driven by the cleaning motor to move on the upper surface of the solar panel main body, and then cooperate with the electric push rod to make the cleaning hair roller and the upper surface of the solar panel main body The impurities on the upper surface of the main body of the solar panel can be pushed and cleaned by contacting with the impurities, thereby achieving the advantage of effectively avoiding excessive accumulation of impurities and reducing the absorption capacity of the main body of the solar panel.

Description

A solar panel with sundry cleaning function

technical field

The utility model belongs to the technical field of solar panels, in particular to a solar panel with the function of cleaning up sundries.

Background technique

Solar cells, also known as "solar chips" or "photovoltaic cells", are photoelectric semiconductor sheets that use sunlight to generate electricity directly. A single solar cell cannot be directly used as a power source. As a power supply, several single solar cells must be connected in series and parallel and tightly packed into components. Publication number: CN212210936U, discloses a solar panel with a clean structure for solar energy engineering, including a solar panel body, a support base plate, a support horizontal plate, a bottom bin, an electric core, a base, a leak hole, a functional side plate, a cleaning hair roller, Drive shaft, screw mandrel turntable, ball screw, drive motor and column, the lower end surface of the solar panel body is attached with a support base plate, and the inside of the support base plate is penetrated with a support horizontal plate, and the left end surface of the support base plate is installed with The bottom compartment, and the inside of the bottom compartment is provided with batteries, the left side of the drive shaft is provided with a screw turntable, and the inner side of the screw turntable is connected with a ball screw, and the side end surface of the ball screw is connected with a drive motor , the right end surface of the solar panel body is pasted with a column. The solar panel uses the principle of screw drive to make the cleaning hair roller driven by the motor move up and down on the surface of the solar panel, and then can clean the surface of the solar panel. Compared with traditional manual cleaning, the cleaning efficiency is high.

The problem with the above technology is that when most solar panels are used outdoors, impurities such as leaves and dust will accumulate on the surface. If they are not cleaned for a long time, the absorption capacity of the solar panels will decrease. At the same time, the traditional way to clean the dust is to wipe it directly, and the dust will still rise up and adhere to the surface of the solar panel, which requires multiple cleaning and wiping, which makes it impossible to clean and wipe the dust directly, so we propose a A solar panel with sundry cleaning function.

Utility model content

Aiming at the problems existing in the prior art, the utility model provides a solar panel with the function of cleaning up sundries, which can conveniently and quickly clean the dust on the surface of the solar panel, and avoid long-term accumulation that will affect the absorption work of the solar panel. It can also clean the dust conveniently and quickly, avoiding dust raising during cleaning, and improving the cleaning efficiency. It solves the problem that leaves and dust will accumulate on the surface of most solar panels when they are used outdoors. Impurities accumulate on the surface, and if they are not cleaned for a long time, the absorption capacity of the solar panel will decrease. At the same time, the traditional way of cleaning dust is to wipe it directly, and the dust will still rise and adhere to the surface of the solar panel. It needs to be cleaned and wiped many times, which leads to the problem that the dust cannot be cleaned and wiped off conveniently.

The utility model is achieved in this way. A solar panel with sundry cleaning function includes a mounting bracket, the upper surface of the mounting bracket is provided with a solar panel main body, and one end of the upper surface of the mounting bracket is provided with an adjustment assembly. One end of the upper surface of the installation bracket is provided with a fixed block through the adjustment assembly, and the other end of the upper surface of the installation bracket is slidably connected with a positioning block, and a storage rod is movably connected between the fixed block and the positioning block, and the bottom of the storage rod is rotatably connected with a To clean the hair roller, the two ends of one side of the storage rod are provided with dust suppression components.

As preferred in the present invention, the adjustment assembly includes a screw rod, and the screw rod is threadedly connected with an adjustment block, and one side of the adjustment block is provided with a threaded hole corresponding to the screw rod, and one end of the upper surface of the mounting bracket A groove is provided, the adjusting block is slidably installed inside the groove, the adjusting block is fixedly connected with the fixed block, and the screw rod is rotatably connected with the mounting bracket.

As preferred in the present invention, one end on one side of the mounting bracket is fixedly mounted with a geared motor, the output shaft of the geared motor runs through one end on one side of the mounting bracket to the groove, and one end on one side of the mounting bracket is provided with a through hole , one end of the output shaft of the reduction motor is fixedly connected to the screw rod, and one end of the screw rod is rotatably connected to one end of the groove.

As preferred in the present invention, the opposite sides of the positioning block and the fixed block are provided with guide grooves, and the upper surface of the fixed block is provided with an electric push rod, and the piston rod of the electric push rod passes through the upper surface of the fixed block to the guide groove , the upper surface of the fixed block is provided with another set of through holes, one end of the electric push rod piston rod is fixedly installed with a connecting block, and a positioning rod is arranged inside the guide groove on one side of the positioning block, and the side of the positioning rod The wall cover is provided with another set of connecting blocks, and the receiving rod is fixedly installed between the two sets of connecting blocks.

As preferred in the present invention, the bottom of the receiving rod is provided with a rotating groove, and one end of the rotating groove is provided with a cleaning motor, and one end of the output shaft of the cleaning motor is fixedly connected with the cleaning hair roller, and one end of the cleaning hair roller is rotated and installed at the other end of the rotating slot.

As preferred in the present invention, the dust suppression assembly includes a connecting plate and a water tank, a flexible hose is arranged on the upper surface of the connecting plate, an atomizing nozzle is arranged on the bottom of the connecting plate, and the flexible hose communicates with the atomizing nozzle , the upper surface of the connecting plate is provided with a connecting hole, the water tank is arranged on the other side of the receiving rod, the upper surface of the water tank is provided with a water pump, the telescopic hose is arranged at the upper end of the water pump, and one end of the connecting plate is rotatably connected with For the gear, an adjustment slot is provided on one side of the storage rod, and a tooth slot corresponding to the gear is provided at the bottom of the adjustment slot, and the gear is meshed with the tooth slot.

As preferred in the present invention, one end of the connecting plate is provided with a mounting groove, and one end of the mounting groove is provided with a positive and negative motor, and one end of the output shaft of the positive and negative motor is fixedly connected with the gear, and the bottom of the connecting plate is far away from the atomizer. One end of the spray head is provided with a guide block, both ends of one side of the receiving rod are fixedly installed with side mounting plates, and a guide rod is arranged between the two groups of side mounting plates, and the guide rod runs through one side of the guide block. A guide hole corresponding to the guide rod is provided on one side of the guide block.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. The utility model adopts the design of the fixed connection between the adjustment block and the fixed block. When the screw rod rotates, the adjustment block can be driven to move through the threaded hole, and the adjustment block can drive the storage rod to move through the fixed block, and the storage rod can drive the motor to be cleaned. The rotating cleaning roller moves on the upper surface of the main body of the solar panel, and then cooperates with the electric push rod to make the cleaning roller contact with the impurities on the upper surface of the main body of the solar panel, so as to push and clean the impurities on the upper surface of the main body of the solar panel, thereby achieving In order to effectively avoid the effect of excessive accumulation of impurities and reduce the absorption capacity of the main body of the solar panel, the design of the connection between the atomizing nozzle and the telescopic hose, the telescopic hose can transfer the water inside the water tank to the atomizing nozzle through the water pump, and the fog The atomizing nozzle can move on the side of the storage rod through the cooperation of the gear and the tooth groove, and the atomizing nozzle can fully wet the dust attached to the upper surface of the solar panel body, which can effectively prevent the dust from rising during cleaning , so as to achieve the effect of effectively avoiding dust raising and reducing cleaning efficiency.

2. The utility model is designed with a threaded hole corresponding to the screw rod on one side of the adjustment block. When the screw rod rotates, the screw hole can drive the adjustment block to move, and the adjustment block can move through the fixed block, thus achieving the goal of the screw. When the rod rotates, it can drive the fixed block to move on one end of the upper surface of the mounting bracket.

3. The utility model adopts the design that one end of the output shaft of the deceleration motor is fixedly connected with the screw rod, and the deceleration motor can drive the screw rod to rotate, thereby achieving the effect that the deceleration motor can control the movement of the fixed block at one end of the upper surface of the mounting bracket.

4. The utility model adopts the design that the connection block is fixedly installed on one end of the piston rod of the electric push rod. The electric push rod can drive the connection block to move up and down in the guide groove, and the storage rod is fixedly installed between the two groups of connection blocks, so as to achieve The electric push rod can drive the receiving rod to move up and down between the fixed block and the positioning block.

5. The utility model adopts the design that one end of the output shaft of the cleaning motor is fixedly connected with the cleaning hair roller. The cleaning motor can drive the cleaning hair roller to rotate, and the cleaning hair roller can wipe the upper surface of the solar panel body through rotation, thereby achieving cleaning The motor can drive the cleaning hair roller to clean the impurities on the upper surface of the solar panel main body.

6. The utility model adopts the design of the meshing connection between the gear and the tooth groove. When the positive and negative motor drives the gear to rotate, the gear can drive the atomizing nozzle to move on the side of the storage rod through the meshing connection with the tooth groove, so as to achieve The effect of making the atomizing nozzle fully wet the impurities on the upper surface of the main body of the solar panel.

7. In this utility model, the guide hole corresponding to the guide rod is designed on one side of the guide block. When the connecting plate moves, the guide block can be driven to move on the side wall of the guide rod, thereby achieving the gap between the guide block and the guide rod. The cooperation can improve the effect of the stability of the connecting plate movement.

Description of drawings

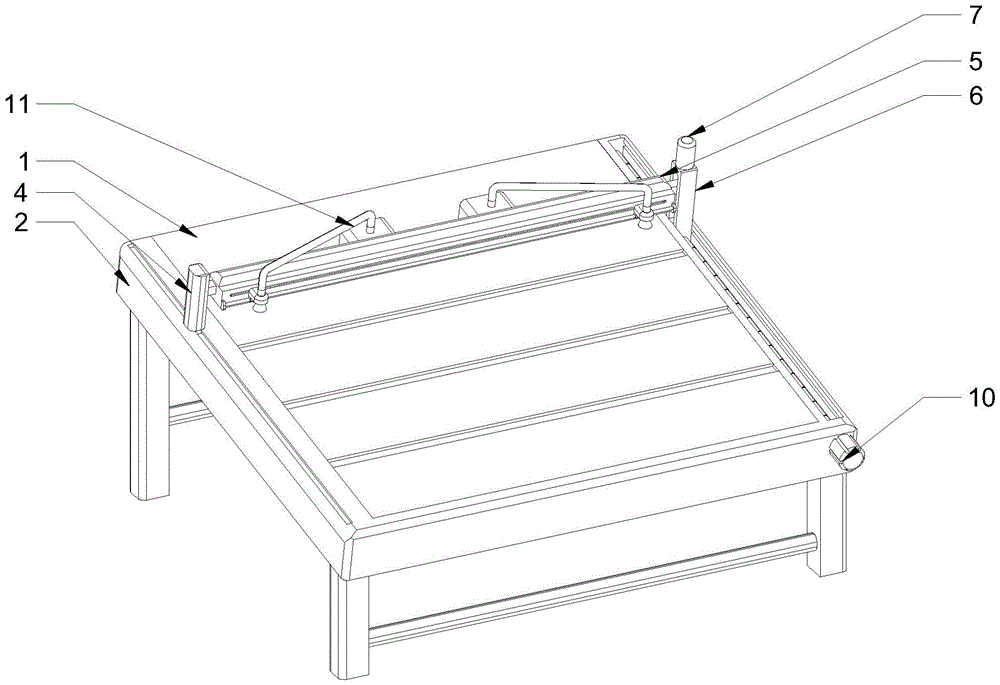

Fig. 1 is a schematic perspective view of the overall structure provided by the embodiment of the present invention;

Fig. 2 is a schematic perspective view of the structure of the adjustment assembly provided by the embodiment of the present invention;

Fig. 3 is a schematic perspective view of the structure of the storage rod provided by the embodiment of the present invention;

Fig. 4 is a schematic perspective view of the structure of the atomizing nozzle provided by the embodiment of the present invention.

In the figure: 1. Solar panel main body; 2. Mounting bracket; 3. Positioning rod; 4. Positioning block; 5. Storage rod; 6. Fixing block; 7. Electric push rod; 8. Connecting block; 9. Cleaning motor; 10. Adjustment component; 11. Dust reduction component; 12. Cleaning wool roller; 13. Side mounting plate; 14. Guide rod; 15. Adjustment groove; 16. Tooth groove; 17. Guide block; 103, adjusting block; 1101, telescopic hose; 1102, water pump; 1103, water tank; 1104, atomizing nozzle; 1105, connecting plate; 1106, positive and negative motor; 1107, gear.

Detailed ways

In order to further understand the invention content, characteristics and effects of the present utility model, the following examples are given, and detailed descriptions are given below in conjunction with the accompanying drawings.

Below in conjunction with accompanying drawing, the structure of the present utility model is described in detail.

As shown in Figures 1 to 4, a solar panel with sundry cleaning function provided by the embodiment of the utility model includes a mounting bracket 2, a solar panel main body 1 is arranged on the upper surface of the mounting bracket 2, and a solar panel main body 1 is arranged on the upper surface of the mounting bracket 2. One end is provided with an adjustment assembly 10, one end of the upper surface of the mounting bracket 2 is provided with a fixed block 6 through the adjustment assembly 10, and the other end of the upper surface of the installation bracket 2 is slidably connected with a positioning block 4, and the fixed block 6 and the positioning block 4 are flexibly connected with a storage The bottom of the rod 5 and the storage rod 5 are rotatably connected with a cleaning hair roller 12 , and both ends of one side of the storage rod 5 are provided with a dust suppression assembly 11 .

Adopt the above scheme: through the design that the adjusting block 103 is fixedly connected with the fixed block 6, when the screw mandrel 102 rotates, the adjusting block 103 can be driven to move through the threaded hole, and the adjusting block 103 can drive the receiving rod 5 to move through the fixing block 6, and the receiving rod 5 can drive the cleaning hair roller 12 driven by the cleaning motor 9 to move on the upper surface of the solar panel main body 1, and then cooperate with the electric push rod 7 to make the cleaning hair roller 12 contact with the impurities on the upper surface of the solar panel main body 1 to clean The impurities on the upper surface of the solar panel main body 1 are pushed and cleaned, thereby effectively avoiding the effect of excessive accumulation of impurities and reducing the absorption capacity of the solar panel main body 1. The atomizing nozzle 1104 is connected to the telescopic hose 1101. The pipe 1101 can transfer the water inside the water tank 1103 to the atomizing nozzle 1104 through the water pump 1102, and the atomizing nozzle 1104 can move on the side of the storage rod 5 through the cooperation of the gear 1107 and the tooth groove 16, and the atomizing nozzle 1104 can be completely Wetting the dust attached to the upper surface of the solar panel main body 1 can effectively prevent the dust from rising during cleaning, thus achieving the effect of effectively avoiding the dust from rising and reducing the cleaning efficiency.

Referring to Fig. 2, the adjustment assembly 10 includes a screw rod 102, the screw rod 102 is threadedly connected with an adjustment block 103, one side of the adjustment block 103 is provided with a threaded hole corresponding to the screw rod 102, and one end of the upper surface of the mounting bracket 2 is provided with a groove , the adjusting block 103 is slidably installed inside the groove, the adjusting block 103 is fixedly connected with the fixed block 6 , and the screw rod 102 is rotatably connected with the mounting bracket 2 .

The above scheme is adopted: through the design of the threaded hole corresponding to the screw mandrel 102 on one side of the adjusting block 103, the screw mandrel 102 can drive the adjusting block 103 to move through the threaded hole when the screw mandrel 102 rotates, and the adjusting block 103 can move through the fixed block 6 , so as to achieve the effect that when the screw mandrel 102 rotates, the fixed block 6 can be driven to move on one end of the upper surface of the mounting bracket 2 .

Referring to Fig. 2, one end on one side of the mounting bracket 2 is fixedly equipped with a geared motor 101, the output shaft of the geared motor 101 runs through one end on one side of the mounting bracket 2 to the groove, and one end on one side of the mounting bracket 2 is provided with a through hole, and the geared motor 101 One end of the output shaft is fixedly connected with the screw rod 102, and one end of the screw rod 102 is rotatably connected with one end of the groove.

Adopt the above scheme: through the design that one end of the output shaft of the geared motor 101 is fixedly connected with the screw rod 102, the geared motor 101 can drive the screw rod 102 to rotate, so that the geared motor 101 can control the movement of the fixed block 6 on one end of the upper surface of the mounting bracket 2 Effect.

Referring to Fig. 2, the opposite sides of the positioning block 4 and the fixed block 6 are provided with guide grooves, the upper surface of the fixed block 6 is provided with an electric push rod 7, and the piston rod of the electric push rod 7 runs through the upper surface of the fixed block 6 to the guide groove, and the fixed block Another group of through holes is provided on the upper surface of 6, a connection block 8 is fixedly installed on one end of the piston rod of the electric push rod 7, and a positioning rod 3 is arranged inside the guide groove on one side of the positioning block 4, and the side wall of the positioning rod 3 is provided with another A set of connecting blocks 8 and the receiving rod 5 are fixedly installed between the two sets of connecting blocks 8 .

The above scheme is adopted: through the design that one end of the piston rod of the electric push rod 7 is fixedly installed with the connecting block 8, the electric push rod 7 can drive the connecting block 8 to move up and down in the guide groove, and the receiving rod 5 is fixedly installed on two sets of connecting blocks 8 Thereby, the electric push rod 7 can drive the storage rod 5 to move up and down between the fixed block 6 and the positioning block 4 .

With reference to Fig. 3, receiving bar 5 bottoms are provided with turning groove, and one end of turning groove is provided with cleaning motor 9, and one end of cleaning motor 9 output shafts is fixedly connected with cleaning hair roller 12, and one end of cleaning hair roller 12 is rotatably installed on the other end of turning groove.

Adopt the above scheme: through the design that one end of the output shaft of the cleaning motor 9 is fixedly connected with the cleaning hair roller 12, the cleaning motor 9 can drive the cleaning hair roller 12 to rotate, and the cleaning hair roller 12 can wipe the upper surface of the solar panel main body 1 by rotating , thereby achieving the effect that the cleaning motor 9 can drive the cleaning hair roller 12 to clean the impurities on the upper surface of the solar panel main body 1 .

3 and 4, the dust suppression assembly 11 includes a connecting plate 1105 and a water tank 1103, the upper surface of the connecting plate 1105 is provided with a telescopic hose 1101, the bottom of the connecting plate 1105 is provided with an atomizing nozzle 1104, the telescopic hose 1101 and the atomizing nozzle 1104 Connected, the upper surface of the connecting plate 1105 is provided with a connecting hole, the water tank 1103 is arranged on the other side of the receiving rod 5, the upper surface of the water tank 1103 is provided with a water pump 1102, the telescopic hose 1101 is arranged at the upper end of the water pump 1102, and one end of the connecting plate 1105 is rotatably connected with a gear 1107 , an adjustment slot 15 is provided on one side of the storage rod 5 , and a slot 16 corresponding to the gear 1107 is provided at the bottom of the adjustment slot 15 , and the gear 1107 is meshed with the slot 16 .

The above scheme is adopted: through the design of the gear 1107 meshing with the tooth groove 16, when the positive and negative motor 1106 drives the gear 1107 to rotate, the gear 1107 can drive the atomizing nozzle 1104 on the receiving rod 5 through the meshing connection with the tooth groove 16. sideways movement, thereby achieving the effect that the atomizing nozzle 1104 can fully wet the impurities on the upper surface of the solar panel main body 1 .

Referring to Figure 3 and Figure 4, one end of the connecting plate 1105 is provided with a mounting groove, and one end of the mounting groove is provided with a positive and negative motor 1106, and one end of the output shaft of the positive and negative motor 1106 is fixedly connected with the gear 1107, and the bottom of the connecting plate 1105 is far away from the atomizing nozzle 1104. One end is provided with a guide block 17, and the two ends on one side of the receiving rod 5 are fixedly installed with side mounting plates 13, and a guide rod 14 is arranged between two groups of side mounting plates 13, and the guide rod 14 runs through one side of the guide block 17, and the guide block A guide hole corresponding to the guide rod 14 is provided on one side of the guide rod 17 .

Adopt the above scheme: through the design of the guide hole corresponding to the guide rod 14 provided on one side of the guide block 17, when the connecting plate 1105 moves, the guide block 17 can be driven to move on the side wall of the guide rod 14, thereby reaching the guide block 17. The cooperation with the guide rod 14 can improve the stability of the movement of the connecting plate 1105 .

Working principle of the utility model:

When in use, start the deceleration motor 101, and the deceleration motor 101 can drive the fixed block 6 to move through the cooperation between the screw rod 102 and the adjustment block 103. When the fixed block 6 moves, it can drive the storage rod 5 to move, and then start the electric push rod 7. The electric push rod 7 drives the cleaning hair roller 12 to move up and down between the positioning block 4 and the fixed block 6, and then starts the cleaning motor 9. The cleaning motor 9 can drive the cleaning hair roller 12 to rotate, and the cleaning hair roller 12 can clean the solar energy. The impurities on the upper surface of the panel main body 1 are cleaned. When the cleaning hair roller 12 is cleaning, the water pump 1102 is started. The water pump 1102 can transfer the water inside the water tank 1103 to the atomizing nozzle 1104, and the atomizing nozzle 1104 can spray the solar panel body. 1 Wet the impurities on the upper surface, which can effectively prevent dust from rising.

To sum up: this solar panel with sundry cleaning function, through the cooperation between the adjustment component 10 and the dust suppression component 11, solves the problem of the accumulation of leaves on the surface of most solar panels at present when they are used outdoors. Impurities such as dirt and dust accumulate on the surface, and if they are not cleaned for a long time, the absorption capacity of the solar panel will be reduced. At the same time, the traditional method of cleaning dust is to wipe it directly, and the dust will still rise and adhere to the surface of the solar panel. , which requires repeated cleaning and wiping, resulting in the problem that the dust cannot be easily and directly cleaned and wiped off.

It should be noted that in this article, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply that there is a relationship between these entities or operations. There is no such actual relationship or order between them. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (7)

1. A sun solar panel with sundry cleaning function, comprising a mounting bracket (2), characterized in that: the upper surface of the mounting bracket (2) is provided with a solar panel main body (1), and the mounting bracket (2) One end of the upper surface is provided with an adjustment assembly (10), one end of the upper surface of the mounting bracket (2) is provided with a fixed block (6) through the adjustment assembly (10), and the other end of the upper surface of the installation bracket (2) is slidingly connected with a positioning block (4), a receiving rod (5) is movably connected between the fixed block (6) and the positioning block (4), and the bottom of the receiving rod (5) is rotatably connected with a cleaning hair roller (12). Both ends of one side of the rod (5) are provided with dust suppression components (11). 2. A kind of solar panel with sundry cleaning function as claimed in claim 1, is characterized in that: described adjusting assembly (10) comprises screw mandrel (102), and described screw mandrel (102) is connected with An adjustment block (103), one side of the adjustment block (103) is provided with a threaded hole corresponding to the screw rod (102), and one end of the upper surface of the mounting bracket (2) is provided with a groove, and the adjustment block (103) ) is slidably installed inside the groove, the adjusting block (103) is fixedly connected with the fixed block (6), and the screw rod (102) is rotatably connected with the mounting bracket (2). 3. A kind of solar panel with sundry cleaning function as claimed in claim 2, it is characterized in that: one end on one side of the mounting bracket (2) is fixedly installed with a geared motor (101), and the geared motor (101) 101) The output shaft runs through one end on one side of the mounting bracket (2) to the groove, and one end on one side of the mounting bracket (2) is provided with a through hole, and one end of the output shaft of the geared motor (101) is connected to the screw rod (102 ) is fixedly connected, and one end of the screw rod (102) is rotationally connected with one end of the groove. 4. A kind of solar panel with sundry cleaning function as claimed in claim 1, is characterized in that: the opposite sides of described positioning block (4) and fixed block (6) are provided with guide grooves, and described fixed block (6) The upper surface is provided with an electric push rod (7), the piston rod of the electric push rod (7) runs through the upper surface of the fixed block (6) to the guide groove, and the upper surface of the fixed block (6) is provided with another A set of through holes, one end of the piston rod of the electric push rod (7) is fixedly installed with a connecting block (8), and a positioning rod (3) is arranged inside the guide groove on one side of the positioning block (4), and the positioning rod (3) Another set of connecting blocks (8) is set on the side wall, and the receiving rod (5) is fixedly installed between the two sets of connecting blocks (8). 5. A solar panel with sundry cleaning function as claimed in claim 1, characterized in that: the bottom of the receiving rod (5) is provided with a rotating groove, and one end of the rotating groove is provided with a cleaning motor (9) One end of the output shaft of the cleaning motor (9) is fixedly connected to the cleaning hair roller (12), and one end of the cleaning hair roller (12) is rotatably mounted on the other end of the rotating groove. 6. A solar panel with sundry cleaning function according to claim 1, characterized in that: said dust suppression assembly (11) comprises a connecting plate (1105) and a water tank (1103), said connecting plate (1105 ) is provided with a flexible hose (1101) on the upper surface, and the bottom of the connecting plate (1105) is provided with an atomizing nozzle (1104), and the flexible hose (1101) communicates with the atomizing nozzle (1104), and the connecting plate The upper surface of (1105) is provided with a connection hole, the water tank (1103) is arranged on the other side of the receiving rod (5), the water pump (1102) is arranged on the upper surface of the water tank (1103), and the telescopic hose (1101) Set on the upper end of the water pump (1102), one end of the connecting plate (1105) is rotatably connected with a gear (1107), one side of the storage rod (5) is provided with an adjustment slot (15), and the bottom of the adjustment slot (15) is provided with There is a cog (16) corresponding to the gear (1107), and the gear (1107) is engaged with the cog (16). 7. A solar panel with sundry cleaning function as claimed in claim 6, characterized in that: one end of the connection plate (1105) is provided with a mounting groove, and one end of the mounting groove is provided with a positive and negative motor (1106 ), one end of the output shaft of the positive and negative motor (1106) is fixedly connected to the gear (1107), and a guide block (17) is provided at the bottom of the connecting plate (1105) away from the atomizing nozzle (1104). Both ends of one side of the rod (5) are fixedly installed with side mounting plates (13), and guide rods (14) are arranged between the two groups of side mounting plates (13), and the guide rods (14) run through the guide block (17) one side, a guide hole corresponding to the guide rod (14) is opened on the side of the guide block (17).
