Abstract

The utility model relates to a high-load-bearing folding corrugated box, which includes a main box body. The main box body includes symmetrically arranged long box boards and symmetrically arranged short box boards. The support plate is provided with a bent plate on the side away from the long box body, the bent plate is provided with a clamping block, and the long box plate is provided with a clamping groove capable of inserting the clamping block. One purpose of the utility model is to place the long box board and the short box board to a state perpendicular to each other during use, and fold the two support boards towards the direction close to the box, so that the support board and the long box board are perpendicular to each other , the bent plate is arranged in the box body, and the bent plate is turned in the direction close to the long box plate along the connection position between the bent plate and the support plate, so that the clamping block on the bent plate can be inserted on the long box plate In the clamping groove, the bending plate is fixed and the overall stability of the main box is realized.

Description

A high load-bearing folding corrugated box

technical field

The utility model relates to a corrugated carton, more specifically, the utility model relates to a high load-bearing folding corrugated carton.

Background technique

Corrugated boxes are made of corrugated cardboard through die-cutting, creasing, nailing or glueing. Corrugated boxes are the most widely used packaging products. Boxes and other transportation packaging containers have become the main force of transportation packaging. In addition to protecting commodities, facilitating storage and transportation, they also play a role in beautifying commodities and promoting commodities. It is a green product that is not only beneficial to environmental protection, but also Conducive to loading and unloading transportation.

Based on the above technology, the inventor thinks that after the existing corrugated box is folded into a box, a plurality of corrugated papers are used to overlap, which is not stable enough.

Utility model content

One object of the present invention is to increase the stability of a folding corrugated box.

According to one aspect of the present invention, a high-load-bearing folding corrugated box is provided, which includes a main box body. The main box body includes symmetrically arranged long box boards and symmetrically arranged short box boards. The support plate on the lower surface of the box body, the side of the support plate away from the long box body is provided with a bent plate, the bent plate is set with a snap-in block, and the long box plate is provided with a snap-in slot for inserting the snap-in block .

Through this scheme, in the process of use, the long box board and the short box board are placed in a state perpendicular to each other, and the two support boards tend to be folded in the direction close to the box body, so that the support board and the long box board are perpendicular to each other and bend The folding plate is arranged in the box body, along the connecting position between the bending plate and the supporting plate, the bending plate tends to be turned in the direction close to the long box plate, so that the clamping block on the bending plate can be inserted into the long box plate and clamped In the groove, the bending plate is fixed and the overall stability of the main box is realized.

Optionally, the support plate, the stabilizing plate and the bent plate have the same width.

Through this solution, when the box body needs to be transported to the desired position, the box body is folded. The first step is to place the support plate on the same plane as the long box plate, and then bend the bending plate towards the inside of the box body for bending. Bending, so that the bending plate and the supporting plate are in contact with each other, because the width of the stabilizing plate is the same as that of the supporting plate, when the bending plate is bent, the end of the stabilizing plate and the supporting plate are in the same plane, reducing the Or the support plate is too long, and the longer parts are damaged during handling.

Optionally, the lower side of the short box board is provided with a stabilizing board.

Through this scheme, before folding the support plate, the stable plate is first turned to be folded in a direction close to the box body, so that the stable plate and the short box plate are perpendicular to each other, and then the support plate is rotated so that the support plate and the stable plate are in contact with each other, and then Rotate the bent plate so that the bent plate and the stabilizing plate abut against each other, and the bent plate can pass through the clamping block to achieve fixing relative to the long box plate, the stabilizing plate is arranged between the bent plate and the supporting plate, and It abuts against the bent plate and the supporting plate to play a role of supporting and stabilizing.

Optionally, a relief slot is provided in the middle of the stabilizing plate.

Through this solution, when the support plate is folded, the bent plate is passed from the relief groove to the box body, and the groove wall of the relief groove and the bent plate abut against each other to realize further reinforcement.

Optionally, the short box board is provided with indentations capable of folding the short box board.

Through this solution, when folding, the folding operation of the short box board can be performed through the creasing.

Optionally, a hand buckle is provided on the short box board.

Through this solution, the handling of the main box is realized through the hand buckle.

Optionally, an auxiliary groove is opened on the bent plate.

Through this solution, when the box body needs to be disassembled, the staff can disassemble the clamping block from the clamping groove through the auxiliary groove on the bending plate.

A technical effect of the present utility model is:

1. In the process of use, place the long box board and the short box board to a state perpendicular to each other, and fold the two support boards towards the direction close to the box body, so that the support board and the long box board are perpendicular to each other, and the bent board Set in the box body, turn the bent plate towards the direction of the long box plate along the connection position between the bent plate and the support plate, so that the clamping block on the bent plate can be inserted into the clamping groove on the long box plate , to realize the fixation of the bent plate and then realize the overall stability of the main box;

2. When the box body needs to be transported to the desired position, fold the box body. The first step is to place the support plate on the same plane as the long box plate, and then bend the bending plate towards the inside of the box body. Make the bending plate and the supporting plate contact each other, because the width of the stabilizing plate is the same as that of the supporting plate, when the bending plate is bent, the end of the stabilizing plate and the supporting plate are in the same plane, reducing the The board is too long, and the longer parts are damaged during handling;

3. Before folding the support plate, turn the stable plate towards the direction close to the box to fold, so that the stable plate and the short box plate are perpendicular to each other, then turn the support plate so that the support plate and the stable plate touch each other, and then turn the corner Folding plate, so that the bending plate and the stabilizing plate are in contact with each other, and the bending plate can be fixed relative to the long box plate through the clamping block, the stabilizing plate is arranged between the bending plate and the supporting plate, and The folded plate and the supporting plate abut against each other to play a role of supporting and stabilizing.

Other features and advantages of the present invention will become clear from the following detailed description of exemplary embodiments of the present invention with reference to the accompanying drawings.

Description of drawings

The accompanying drawings, which constitute a part of this specification, illustrate embodiments of the invention and together with the description serve to explain the principles of the invention.

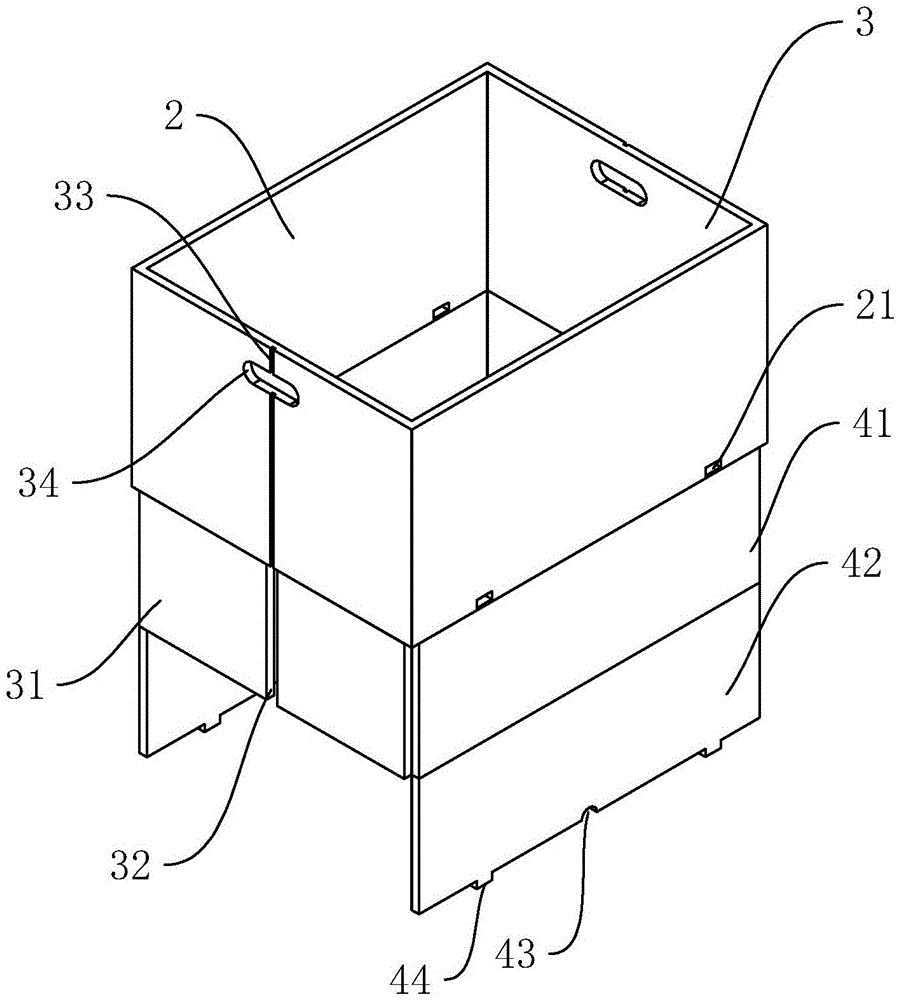

Figure 1 is an unfolded schematic diagram of a high load-bearing folding corrugated box.

Fig. 2 is a folded schematic diagram of a high load-bearing folded corrugated box.

Fig. 3 is a folded sectional view of a high load-bearing folding corrugated box.

Description of drawings: 1. Main box body; 2. Long box board; 3. Short box board; 4. Bottom board; 41. Support board; 42. Bending board; 43. Auxiliary groove; Clamping groove; 31. Stabilizing plate; 32. Relief groove; 33. Indentation; 34. Hand buckle;

Wherein, the same components are marked with the same reference numerals in the drawings; the drawings are not drawn according to the actual scale.

Detailed ways

Various exemplary embodiments of the present invention will now be described in detail with reference to the accompanying drawings. It should be noted that the relative arrangements of components and steps, numerical expressions and numerical values set forth in these embodiments do not limit the scope of the present invention unless specifically stated otherwise.

The following description of at least one exemplary embodiment is merely illustrative in nature, and in no way serves as any limitation of the invention and its application or use.

Techniques and devices known to those of ordinary skill in the relevant art may not be discussed in detail, but where appropriate, such techniques and devices should be considered part of the description.

In all examples shown and discussed herein, any specific values should be construed as exemplary only, and not as limitations. Therefore, other instances of the exemplary embodiment may have different values.

It should be noted that like numerals and letters denote like items in the following figures, therefore, once an item is defined in one figure, it does not require further discussion in subsequent figures.

Example

The utility model provides a high load-bearing folding corrugated box;

As shown in Figure 1, a high-load-bearing folding corrugated box includes a rectangular hexahedron groove-shaped main box 1 formed by bending corrugated paper. The main box 1 is a hexahedron structure with one side missing, forming a tank Used to accommodate items, this hexahedral trough structure has the characteristics of regular shape and large capacity.

As shown in Figures 1 and 2, the notch surface of the main box body 1 is an upper opening, and the four faces of the upper opening of the main box body 1 include a symmetrically arranged long box board 2 and a symmetrically arranged short box board 3, The adjacent long box boards 2 and short box boards 3 are arranged vertically to each other.

As shown in Fig. 1 and Fig. 2, the lower end of each long box board 2 is all fixedly connected with base plate 4, and the length of base plate 4 is identical with the length of long box board 2; Base plate 4 comprises support plate 41 and bending plate 42, support plate 41 is affixed to the lower end of the long box board 2, and can be bent along the axis of the lower end of the long box board 2 towards the direction close to the main box body 1, and the bending plate 42 and the support plate 41 are away from the side of the long box board 2 fixed, and the bent plate 42 can be bent along the lower end of the support plate 41 as the axis towards the direction of the main box 1; the width of the bent plate 42 is the same as the width of the support plate 41, and the width of the bottom plate 4 is the same as The length of the short box board 3 is the same, and the area of the base plate 4 is the same as the opening area of the main box body 1 .

As shown in Figure 1 and Figure 2, the middle part of the side of the bending plate 42 away from the support plate 41 is provided with an auxiliary groove 43, the auxiliary groove 43 is semicircular, and the direction of the arc is set away from the side of the support plate 41; Both sides of the plate 42 corresponding to the auxiliary groove 43 are fixedly connected with clamping blocks 44 , and the length direction of the clamping blocks 44 is the same as that of the bent plate 42 .

As shown in Fig. 1 and Fig. 2, on the side of the long box board 2 close to the position of the engaging block 44 of the base plate 4, a engaging groove 21 is provided, and the engaging block 44 can be engaged in the engaging groove 21, and the engaging The groove width of the groove 21 is the same as the thickness of the engaging block 44 .

As shown in Figures 1 and 2, the lower end of the short box plate 3 is affixed with a stabilizing plate 31, and the length direction of the stabilizing plate 31 is the same as that of the short box plate 3, and the lower end of the stabilizing plate 31 is affixed to the short box plate 3 , and can be bent along the lower end of the short box plate 3 as the axis, tending to be close to the direction of the main box body 1; the middle part of the stabilizing plate 31 is provided with a relief groove 32, and the opening direction of the relief groove 32 is in line with the length direction of the stabilizing plate 31 Perpendicular to each other, the groove width of the relief groove 32 is equal to twice the thickness of the bottom plate 4, the width of the stabilizing plate 31 is the same as the width of the bending plate 42, and the width of the stabilizing plate 31 is the same as the width of the supporting plate 41.

As shown in Figures 1 and 2, the middle part of the short box board 3 is provided with an indentation 33 along the vertical direction. Hand buckle 34, the opening direction of hand buckle 34 is identical with the length direction of short box board 3.

As shown in Figure 1, when the box body needs to be transported to the desired position, the first step is to place the support plate 41 on the same plane as the long box plate 2, and then the bent plate 42 tends to The inside of the box is bent so that the bent plate 42 and the support plate 41 are in contact with each other; in the second step, the short box plate 3 is bent toward the inside of the box along the direction of the indentation 33, and the short box plate 3 is folded, and at the same time Place the stabilizing plate 31 on the same plane as the short box plate 3; because the width of the stabilizing plate 31 is the same as the width of the supporting plate 41, when the bending plate 42 is bent, the end of the stabilizing plate 31 and the supporting plate 41 Being on the same plane reduces damage to longer components during transportation due to too long stabilizing plates 31 or supporting plates 41 .

As shown in Figure 2 and Figure 3, when in use, the first step: place the long box board 2 and the short box board 3 to a state perpendicular to each other, and keep the short box board 3 in a horizontal state; the second step: the rotation is stable When the board 31 tends to be folded in a direction close to the box, the stable board 31 and the short box board 3 are perpendicular to each other, and then the two supporting boards 41 are folded in a direction close to the box, so that the supporting board 41 and the long box board 2 are perpendicular to each other , and the supporting plate 41 can be in contact with the stabilizing plate 31, and the bent plate 42 arranged on the supporting plate 41 can be inserted into the relief groove 32; the third step: the bent plate 42 is arranged in the box, along the curved At the connection position between the folded plate 42 and the support plate 41, the bent plate 42 tends to be turned in a direction close to the long box plate 2, so that the snap-in block 44 on the bent plate 42 can be inserted into the snap-fit groove 21 on the long box plate 2 Inside, the fixing of the bent plate 42 is realized, the bent plate 42 abuts against the stabilizing plate 31, the stabilizing plate 31 is arranged between the bent plate 42 and the support plate 41, and mutually abuts against the bent plate 42 and the support plate 41 Connect, play the role of supporting stability; the fourth step: realize the handling of the main box body 1 through the hand buckle 34; the fifth step: when the box body needs to be disassembled, the staff passes through the auxiliary groove 43 on the bending plate 42, Disassemble the locking block 44 from the locking slot 21 .

Although some specific embodiments of the present utility model have been described in detail through examples, those skilled in the art should understand that the above examples are only for illustration, rather than limiting the scope of the present utility model. It should be understood by those skilled in the art that modifications may be made to the above embodiments without departing from the scope and spirit of the present invention. The scope of the invention is defined by the appended claims.

Claims (7)

1. The utility model provides a folding corrugated case of high bearing, a serial communication port, including main tank body (1), main tank body (1) are including long boxboard (2) and the short boxboard (3) of symmetry setting that the symmetry set up, long boxboard (2) downside is provided with backup pad (41) that can regard as main tank body (1) lower surface, one side that long box was kept away from to backup pad (41) is provided with bending plate (42), be provided with joint piece (44) on bending plate (42), set up joint groove (21) that can insert and set up joint piece (44) on long boxboard (2).

2. A high load bearing folded corrugated carton according to claim 1, wherein the support panels (41) are the same width as the bending panels (42).

3. A high-load-bearing folding corrugated carton as claimed in claim 1, characterized in that the underside of the short carton panels (3) is provided with stabilizing panels (31).

4. A high load bearing folding corrugated carton as claimed in claim 3, characterized in that the middle part of the stabilizing plate (31) is provided with a relief groove (32).

5. A high load bearing folding corrugated carton as claimed in claim 1, characterized in that the short carton (3) is provided with indentations (33) which enable folding of the short carton (3).

6. A high load bearing folding corrugated carton as claimed in claim 1, characterized in that the short carton (3) is provided with a hand button (34).

7. A high load bearing folding corrugated carton as claimed in claim 1, wherein the bending plate (42) is provided with auxiliary grooves (43).
