Protective goggles for newborns

technical field

The utility model relates to the technical field of goggles, in particular to a light-shielding protective goggle for newborns.

Background technique

Hyperbilirubinemia is a common disease in newborns. It is caused by the increase of serum unconjugated bilirubin. If it is not treated in time, it may affect the growth and development of newborns and lead to sequelae such as mental retardation. Blue light irradiation is an effective treatment to reduce unconjugated bilirubin in neonatal serum, with good curative effect and quick effect. In order to protect the eyes of newborns and prevent the adverse reaction of blue light to the eyes, goggles must be worn during irradiation.

At present, the goggles used in the hospital for blue light irradiation are not viscous enough, the flat design, partly airtight, and the goggles are easy to loosen during use, and adhesive tape is added on both sides to fix it on the temporal bun, but it will regenerate after a long time The baby is crying, making it difficult to fix the eye mask, and the baby is painful and crying when the tape is removed, and some children are allergic to the tape, which is a big safety hazard for the baby.

Utility model content

The utility model provides a light-proof protective goggle for newborns, which can prevent the goggles from shifting or falling off due to the twisting of the head of the newborn.

The utility model relates to a neonatal light-proof protective goggle, which comprises a goggle frame and a goggle cover. The end face of the goggle frame close to the face of the human body is detachably connected with a hydrocolloid dressing through a first connection structure, and the goggle frame is close to the face. A plurality of first through holes penetrating through the peripheral wall of the eye mask frame are arranged in an array on one side of the hydrocolloid dressing, and a plurality of second through holes for ventilation are arranged on the end surface of the hydrocolloid dressing close to the face of the human body. When the hydrocolloid dressing is fixedly connected to the eye mask frame, the second through hole communicates with the first through hole.

Compared with the protective goggles on the existing market, the technical solution is less likely to cause the protective goggles to shift or fall off due to the baby's rotation.

The protective goggles currently on the market are only fixed on the temporal bun with adhesive plasters on both sides of the goggles during use, so the adhesive plasters will easily fall off when the baby turns around, and then cause the goggles to shift or come off. But in the technical proposal, owing to be to arrange the structure that hydrocolloid dressing sticks on the eye mask frame body near the human face side end face. In this technical solution, the hydrocolloid dressing is pasted on the left and right sides of the human body's facial brow arch, cheekbones, bridge of the nose, and eye sockets, that is to say, the protective goggles in this technical solution are actually fixedly connected to the face by the hydrocolloid dressing. On the front of the human face. Therefore, even if the baby turns the body left and right, the protective goggles will not touch the bed surface or the table top of the Blu-ray table, which greatly reduces the risk of the protective goggles falling off.

At the same time, in this technical solution, the plurality of second through holes provided through the surface of the hydrocolloid dressing can effectively ensure that the contact surface between the human face and the hydrocolloid dressing will not be partially airtight.

As a preference, a first accommodating groove is provided on the left and right sides of the end face of the eye mask frame close to the face of the human body, and an eye mask body is arranged in each first accommodating groove.

As a preference: the eye mask body is sequentially composed of black light-absorbing cotton cloth, breathable elastic sponge and black light-absorbing cotton cloth. In this technical solution, the black light-absorbing cotton cloth, the breathable elastic sponge and the black light-absorbing cotton cloth are glued together.

As a preference: a second accommodating groove is arranged between the two first accommodating grooves, a first limiting protrusion is arranged in the second accommodating groove, and the first limiting protrusion and the bottom surface of the second accommodating groove A first spring is arranged between them, one end of the first spring is fixedly connected to the lower surface of the first limiting protrusion, and the end of the first spring away from the first limiting protrusion is fixedly connected to the bottom surface of the second accommodating groove. A light-shielding cover body is arranged between them, and the light-shielding cover body and the eye mask body are integrally formed. When the eye mask is used, the end of the light-shielding cover body away from the first limiting protrusion is fitted to the bridge of the nose of the face of the human body. In this technical solution, due to the existence of the first limiting protrusion, when people put on the protective goggles, the end surface of the light-shielding cover body away from the first limiting protrusion will be in close contact with the bridge of the nose of the human body, thereby preventing Blue light penetrates from the bridge of the nose to the baby's eyes.

As a preference: the light-shielding cover is sequentially composed of black light-absorbing cotton cloth, breathable elastic sponge and black light-absorbing cotton cloth. In this technical solution, the black light-absorbing cotton cloth, the breathable elastic sponge and the black light-absorbing cotton cloth are bonded by glue

As a preference: the first connection structure includes a Velcro hook surface arranged on the end surface of the eye mask frame close to the face of the human body; Fitted Velcro rough side. In this technical solution, a Velcro structure is provided on the hydrocolloid dressing to facilitate users to remove the hydrocolloid dressing from the eye mask frame or install the hydrocolloid dressing on the eye mask frame again.

As a preference: a release paper is glued on the end surface of the hydrocolloid dressing far away from the eye mask frame. In this technical solution, when the user does not need to use the protective goggles temporarily, he only needs to paste the release paper on the hydrocolloid dressing to prevent the disappearance of the adhesiveness of the hydrocolloid dressing. When the user needs to use the protective eye mask, he only needs to take off the release paper from the hydrocolloid dressing.

As a preference: the outer walls of the left and right sides of the eye mask frame are fixedly connected with an elastic band to prevent the eye mask from falling off. In this technical solution, the elastic band is a soft cotton band, and the main function of the elastic band is to further prevent the eye mask frame from falling off from the baby's face.

As a preference, an annular black sealing ring is provided on the inner peripheral wall of the first accommodating groove away from the face of the human body. In this technical solution, the annular black sealing ring is arranged between the inner peripheral wall of the first accommodating groove and the outer peripheral wall of the eye mask cover. The gap between the sealing ring and the eye mask body is filled, thereby preventing blue light from penetrating into the baby's eyes from the gap between the eye mask body and the eye mask frame.

Description of drawings

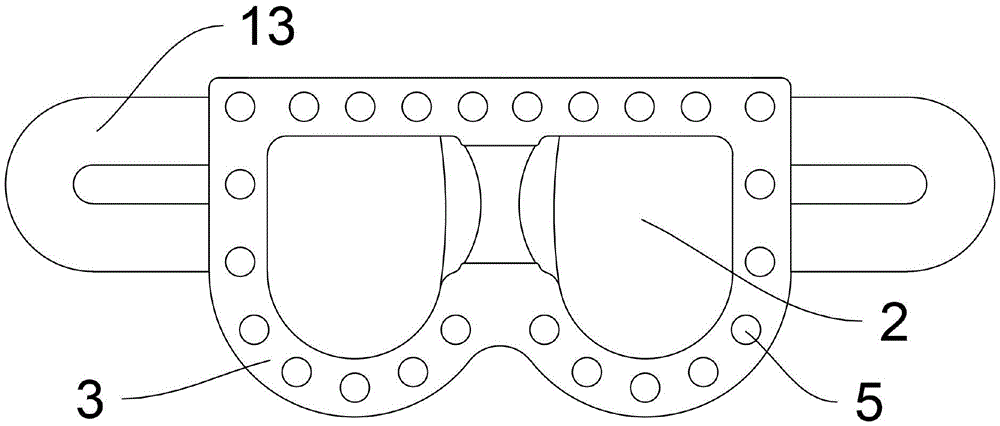

Fig. 1 is the structural representation of the utility model;

Fig. 2 is a top sectional view of the utility model.

Explanation of reference signs:

1-eye mask frame; 2-eye mask body; 3-hydrocolloid dressing; 4-first through hole; 5-second through hole; 6-first storage tank; 7-second storage tank; 8 - the first limit bump; 9 - the first spring; 10 - the light-shielding cover body; 11 - the hook surface of the Velcro; 12 - the rough surface of the Velcro; 13 - the elastic band; 14 - the annular black sealing ring.

Detailed ways

In order to make the above purpose, features and advantages of the utility model more obvious and easy to understand, specific embodiments of the utility model will be described in detail below in conjunction with the accompanying drawings.

Embodiment 1: Referring to FIG. 1 to FIG. 2 , in this embodiment, the entire protective goggle is composed of a goggle frame 1 and a goggle cover 2 arranged in the goggle frame 1 . The end face of the eye mask frame 1 close to the face of the human body is detachably connected to the hydrocolloid dressing 3 through the first connection structure. The first connection structure includes a Velcro hook surface 11 arranged along the peripheral direction of the eye mask frame 1 and a Velcro hair surface 12 arranged on the end surface of the hydrocolloid dressing 3 near the eye mask frame 1 side, when used When the person puts the hydrocolloid dressing 3 on the eye mask frame 1, the Velcro hair surface 12 on the hydrocolloid dressing 3 will be bonded with the Velcro hook surface 11 on the eye mask frame 1, so that the hydrocolloid dressing Sticker 3 is fixed on the eye mask frame body 1 .

In this embodiment, a pair of first accommodating grooves 6 are arranged symmetrically on the left and right sides of the end face of the eye mask frame 1 near the face of the human body, and a piece of eye mask body 2 is arranged in each first accommodating groove 6 . The outer peripheral wall of the eye mask body 2 placed in the first accommodating groove 6 is in close contact with the inner peripheral wall of the first accommodating groove 6 . The eye mask body 2 is sequentially composed of black light-absorbing cotton cloth, air-permeable elastic sponge and black light-absorbing cotton cloth.

An annular black sealing ring 14 is also arranged on the bottom surface of each first receiving groove 6 . The outer peripheral wall of the annular black sealing ring 14 is in close contact with the inner peripheral wall of the first accommodating groove 6 , and the outer peripheral wall of the eye mask body 2 is in close contact with the inner peripheral wall of the central hole of the annular black sealing ring 14 . When the user puts on the protective goggles, the goggle body 2 abuts against the eyes of the baby, and the goggle body 2 is squeezed and then deformed. At this moment, the gap between the peripheral wall of the eye mask body 2 and the inner peripheral wall of the central hole of the annular black sealing ring 14 can be further reduced, thereby preventing blue light from entering the gap between the eye mask body 2 and the inner peripheral wall of the first accommodating groove 6. penetration.

A second accommodating groove 7 is provided between the two first accommodating grooves 6 on the end surface of the eye mask frame 1 close to the face of the human body, and a first limiting protrusion 8 is arranged in the second accommodating groove 7 . A first spring 9 is arranged between the first limiting protrusion 8 and the bottom surface of the second receiving groove 7 . The end of the first limiting protrusion 8 away from the first spring 9 is provided with an arc-shaped groove into which the nose bridge of a human body can be embedded. A light-shielding cover body 10 is arranged between the two eyewear covers 2, and the light-shielding cover body 10 is sequentially composed of black light-absorbing cotton cloth, air-permeable elastic sponge and black light-absorbing cotton cloth. The eye mask body 2 is integrally formed. The end face of the light-shielding goggle away from the face of the human body abuts against the first limiting projection 8 . Therefore, when the baby puts on the protective goggles, the first spring 9 will give the first limiting projection 8 a pushing force to displace the face of the human body, thereby driving the first limiting projection 8 to push the light-shielding cover body 10 toward the bridge of the nose of the human body. position displacement, so that the light-shielding cover body 10 is close to the outer wall of the bridge of the nose of the human body, thereby preventing blue light from penetrating into the eyes of the baby from the gap between the eye mask and the bridge of the nose.

An elastic band 13 that prevents the eye mask frame 1 from falling off from the baby's face is fixedly connected on the left and right side walls of the eye mask frame 1 . What this elastic band 13 is by the soft band of cotton.

Although the present disclosure is disclosed as above, the protection scope of the present disclosure is not limited thereto. Those skilled in the art can make various changes and modifications without departing from the spirit and scope of the present disclosure, and these changes and modifications will all fall within the protection scope of the present utility model.

Claims (9)

1. A neonatal light-proof protective goggle, comprising a goggle frame (1) and a goggle cover (2), is characterized in that: said goggle frame (1) can be passed through the first connection structure near the end face of the face of the human body. A hydrocolloid dressing (3) is detachably connected, and the eye mask frame (1) is arranged in an array on the side surface of the eye mask frame (1) close to the hydrocolloid dressing (3). Through holes (4), the hydrocolloid dressing (3) is provided with a plurality of second through holes (5) for ventilation on the end surface near the face of the human body, when the hydrocolloid dressing (3) is connected with When the eye mask frame (1) is connected, the second through hole (5) communicates with the first through hole (4). 2. A neonatal light-shielding protective goggle according to claim 1, characterized in that: the goggle frame (1) is provided with a first accommodating groove on the left side and right side of the end face on the side close to the face of the human body (6), and an eye mask body (2) is embedded in each of the first accommodating grooves (6). 3. A neonatal light-shielding protective goggle according to claim 2, characterized in that: the goggle body (2) is sequentially composed of black light-absorbing cotton cloth, breathable elastic sponge and black light-absorbing cotton cloth. 4. A neonatal light-shielding protective goggle according to claim 2, characterized in that: the end surface of the goggle frame (1) close to the face of the human body is located between the two first accommodating grooves (6) A second accommodating groove (7) is also provided, and a first limiting protrusion (8) is arranged in the second accommodating groove (7), and the first limiting protrusion (8) and the second accommodating A first spring (9) is arranged between the bottom surfaces of the slots (7), and one end of the first spring (9) is fixedly connected to the lower surface of the first limiting protrusion (8). One end of a limiting protrusion (8) is fixedly connected to the bottom surface of the second accommodating groove (7), and a light-shielding cover body (10) is arranged between the two eye mask covers (2), and the light-shielding cover The body (10) is integrally formed with the eye mask body (2), and the end surface of the light-shielding cover body (10) away from the face of the human body is offset against the end of the first limiting protrusion (8) away from the first spring (9). When a person puts on the protective goggles, the end of the light-shielding cover body (10) away from the first limiting protrusion (8) is attached to the bridge of the nose of the human body. 5. A light-shielding protective goggle for newborns according to claim 4, characterized in that: the light-shielding cover body (10) is sequentially composed of black light-absorbing cotton cloth, breathable elastic sponge and black light-absorbing cotton cloth. 6. A kind of neonatal light-proof protective goggles according to claim 1, characterized in that: the first connection structure includes a Velcro hook surface ( 11), the hydrocolloid dressing (3) is provided with a velcro rough surface (12) that can be bonded to the velcro hook surface (11) on the end surface of the eye mask frame (1). 7. A neonatal light-shielding protective goggle according to claim 6, characterized in that a release paper is bonded to the end surface of the hydrocolloid dressing (3) away from the goggle frame (1). 8 . A neonatal light-shielding protective goggle according to claim 7 , characterized in that: the left and right side walls of the goggle frame ( 1 ) are fixedly connected with an elastic band ( 13 ) to prevent the goggle from falling off. 9. A newborn light-proof goggle according to claim 2, characterized in that: the inner peripheral wall of the first accommodating groove (6) away from the face of the human body is provided with an annular black sealing ring in the upper direction (14).
