Abstract

The utility model discloses an adjustable sorting device in the technical field of teaching appliances, which comprises a box body, a plurality of sets of installation frames are movably arranged on the inner side of the box body, storage frames are movably arranged on the inner sides of the plurality of sets of installation frames, and the upper side of the installation frame There are two groups of movable plates fixedly arranged, and the outer sides of the two groups of movable plates are movable and provided with inserting rods, the outer ends of the inserting rods are fixedly provided with pulling blocks, and the outer movable sleeves of the inserting rods are provided with springs, and one end of the springs is connected to the outer side of the movable plates, and The other end of the spring is connected to the inner side of the pulling block. There are two sets of fixed blocks on the inner side of the box. There are multiple sets of sockets for docking rods on the outside of the two sets of fixed blocks. There are multiple sets of limit plates on the inside of the box. There are spring telescopic rods on the upper side of the multiple sets of limiting plates. The utility model can conveniently classify and store test papers of different quantities and different types through a simple installation structure, improves the storage effect of test papers, has good practical effect, and is worthy of popularization and use in existing markets.

Description

An adjustable sorting device

technical field

The utility model relates to the technical field of teaching appliances, in particular to an adjustable sorting device.

Background technique

Language is a polysemous word, usually used as the abbreviation of language and characters, and its original meaning is "language and characters". Chinese class is generally regarded as a comprehensive subject of language and culture. It is inseparable from the concise collective designation of language and articles, language knowledge and cultural knowledge. It can also be said that Chinese is the sum of written or spoken speech works and the formation process formed by using language laws and specific language vocabulary. In Chinese teaching, examination is an indispensable part, especially in the high school stage, there are many Chinese test papers, and a large number of test papers will be stored together and it is easy to cause confusion, which increases the difficulty of teachers' work, so it is necessary to classify them through a classification device. Chinese test papers are classified and stored.

The internal space of the traditional sorting device is relatively fixed. The internal space of the sorting device is divided by setting partitions. The partitions are fixed on the inner wall of the sorting box by rivets. When there are many test papers in some categories, the space on one partition cannot be To store all the test papers, it is necessary to separate a part of the test papers and place them on other partitions, resulting in the placement of the test papers is not neat and orderly, which affects the search for the test papers later, and when the number of test papers in some categories is small, it will Cause the waste of space, there are certain disadvantages in using.

Utility model content

In order to overcome the above-mentioned defects of the prior art, an embodiment of the present invention provides an adjustable sorting device to solve the problems raised in the above-mentioned background art.

In order to achieve the above object, an adjustable sorting device includes a box body, multiple sets of installation frames are movable on the inside of the box body, storage frames are movable on the inside of the multiple sets of installation frames, and the upper side of the installation frame is fixed There are two groups of movable plates, the outer sides of the movable plates of the two groups are provided with inserting rods, the outer ends of the inserted rods are fixedly provided with pulling blocks, and the outer movable sleeves of the inserted rods are provided with springs, and one end of the springs is connected to the movable The outside of the plate, and the other end of the spring is connected to the inner surface of the pulling block. Two sets of fixing blocks are fixed on the inner side of the box. There are multiple sets of limit plates movable on the inner side, spring telescopic rods are movable on the upper side of the multiple sets of limit plates, one end of the spring telescopic rod is fixedly connected to the lower side of the installation frame, and the other end of the spring telescopic rod is fixedly connected to the limit upper side of the bit board.

Preferably, two sets of sliders are fixedly arranged on the outer side of the movable plate, and multiple sets of slide slots for docking with the sliders are provided on the inner side of the box.

Preferably, a handle is fixed on the outside of the storage frame, and a label box is fixed on the outside of the storage frame, and the label box is made of transparent material.

Preferably, drawer slide rails are movably provided on both sides of the installation frame, and the other sides of the two sets of drawer slide rails are fixedly connected to the storage frame.

Preferably, a humidity sensor and a PLC controller are fixedly installed on the inner side of the box, and a ventilation fan is installed on the lower side of the box, and multiple groups of ventilation ports are installed on the outer side of the box.

Preferably, an electric valve is provided inside the ventilation port.

Preferably, a box door is rotatably arranged on the outside of the box body, and an observation window is fixedly arranged on the outside of the box door.

Technical effect and advantage of the present utility model:

The utility model can conveniently adjust the position of the installation frame by setting the installation frame, the storage frame, the movable plate, the insertion rod, the spring, the fixed block, and the jack, and through the mutual cooperation of each mechanism, so that it can facilitate the adjustment of different quantities and different categories. The test papers are classified and stored, which is very convenient to use, which greatly improves the applicability of the test paper sorting device, and through the setting of humidity sensors, PLC controllers, ventilation fans, and ventilation ports, and through the cooperation of various mechanisms, the device can automatically clean the inside The humidity of the device is monitored and processed, so that the mold and corrosion of the test papers caused by the excessive humidity inside the device can be avoided, and the storage safety of the test papers is improved.

Description of drawings

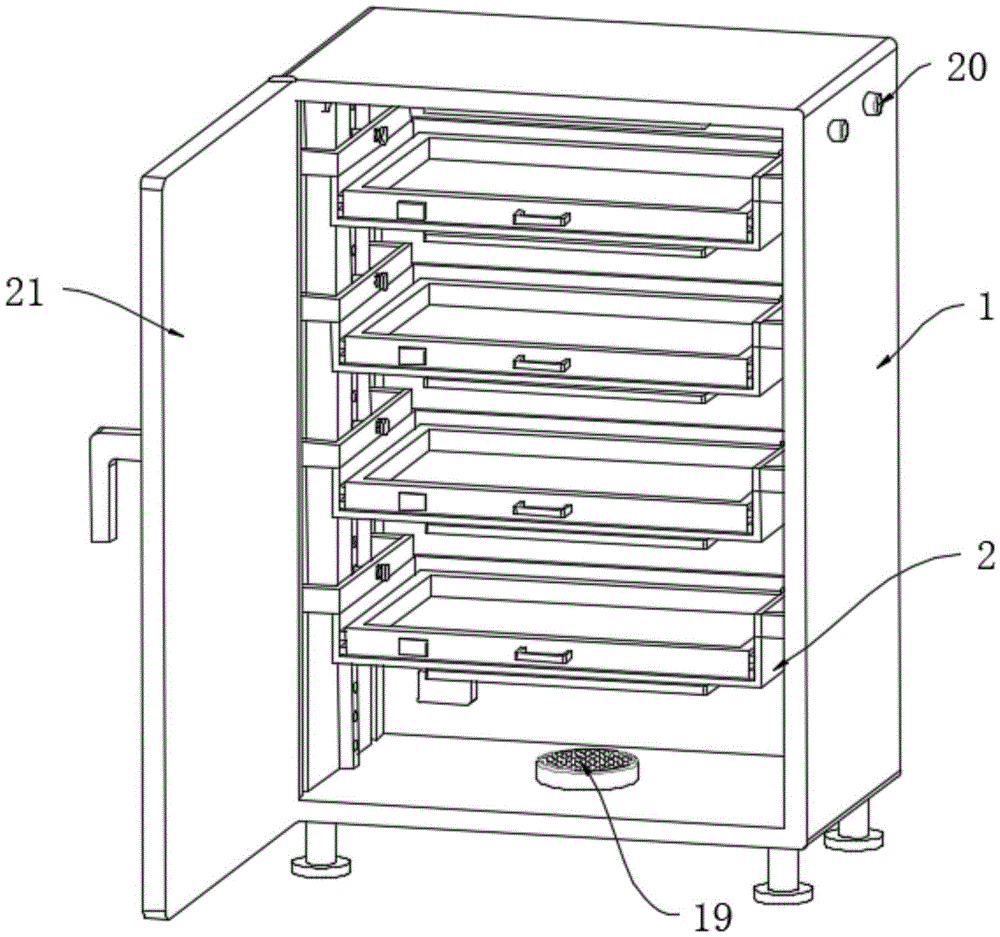

Fig. 1 is the utility model squint structure schematic diagram;

Fig. 2 is the utility model side view structure diagram;

Fig. 3 is a schematic diagram of the front view structure of the utility model;

Fig. 4 is a schematic diagram of the adjustment mechanism of the present invention.

The reference signs are:

1 box body, 2 installation frame, 3 storage frame, 4 movable plate, 5 inserting rod, 6 spring, 7 pulling block, 8 fixing block, 9 socket, 10 slider, 11 chute, 12 limit plate, 13 spring Telescopic rod, 14 handle, 15 label box, 16 drawer slide rail, 17 humidity sensor, 18PLC controller, 19 ventilation fan, 20 ventilation port, 21 box door, 22 observation window.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

As shown in Figure 1-4, an adjustable sorting device includes a box body 1. There are multiple sets of installation frames 2 on the inside of the box body 1, and storage frames 3 are installed on the inside of the multiple sets of installation frames 2. Two groups of movable plates 4 are fixedly arranged on the side, and the outer sides of the two groups of movable plates 4 are movable through and provided with inserting rods 5, and the outer ends of the inserting rods 5 are fixedly provided with pulling blocks 7, and the outer movable sleeves of the inserting rods 5 are provided with springs 6, and the springs One end of the spring 6 is connected to the outer side of the movable plate 4, and the other end of the spring 6 is connected to the inner side of the pulling block 7. Two sets of fixed blocks 8 are fixedly arranged on the inner side of the box body 1, and multiple sets of docking inserting rods 5 are provided on the outer sides of the two sets of fixed blocks 8. The jack 9 of the box body 1 is provided with multiple groups of limiting plates 12, and the upper side of the multiple groups of limiting plates 12 is movably provided with a spring telescopic rod 13, and one end of the spring telescopic rod 13 is fixedly connected to the lower side of the installation frame 2, and The other end of the spring telescopic rod 13 is fixedly connected to the upper side of the limit plate 12. The spring telescopic rod 13 is initially elastic, so that it can drive the limit plate 12 to move downwards, so that the test paper in the storage frame 3 is conveniently fixed, ensuring that the test paper Stability during storage.

Wherein, two groups of slide blocks 10 are fixedly arranged on the outside of the movable plate 4, and the inner side of the box body 1 is provided with a plurality of sets of chute 11 for docking the slide blocks 10. The bit slides, so that the stability of the installation frame 2 can be ensured.

Wherein, a handle 14 is fixedly arranged on the outside of the storage frame 3, and a label box 15 is fixedly arranged on the outside of the storage frame 3. The label box 15 is made of a transparent material, and the storage frame 3 can be easily pulled by the handle 14, thereby improving the convenience of operation, and Setting the label box 15 can better classify and record different types of test papers, thereby facilitating subsequent search of test papers.

Wherein, both sides of the installation frame 2 are provided with drawer slide rails 16, and the other side of the two sets of drawer slide rails 16 is fixedly connected to the storage frame 3. By setting the drawer slide rails 16, it is convenient to take and place the test papers in the storage frame 3. , improve the convenience of use.

Among them, a humidity sensor 17 and a PLC controller 18 are respectively fixedly installed inside the box body 1, and a ventilating fan 19 is provided through the lower side of the box body 1, and a plurality of groups of ventilating ports 20 are provided through the outer side of the case body 1, and the inside of the ventilating port 20 Equipped with electric valves, the temperature sensor 17, PLC controller 18, ventilation fan 19, and electric valves are all connected by internal lines. When the temperature sensor 17 detects that the humidity inside the cabinet 1 is too large, it will quickly transmit the information to the PLC Controller 18, now the PLC controller 18 immediately opens the electric valve on the inside of the ventilation fan 19 and the ventilation port 20, so that the inside of the casing 1 can be ventilated quickly, and the moisture inside the casing 1 can be effectively removed, thereby Ensure the security of test paper storage.

Wherein, box body 1 outside rotation is provided with box door 21, and box door 21 outside is fixedly provided with observation window 22, can observe the interior situation of box body 1 conveniently through observation window 22, is more conducive to the classified storage of test papers.

Embodiment: During the use of the utility model, the storage frame 3 is first pulled out from the installation frame 2 through the handle 14, and then the test paper is placed in the storage frame 3, and the blocks on both sides of the installation frame 2 are pulled out according to the number of test papers. 7 pull outward, so that the insertion rod 5 moves out of the socket 9 and stretches the spring 6, and then the installation frame 2 is moved up or down, so that the slider 10 slides in a limited position in the slide groove 11, and the installation frame 2 After adjusting to a suitable position, push the storage frame 3 to the inside of the installation frame 2, and at the same time push the limit plate 12 on the upper side of the installation frame 2 upward and compress the spring telescopic rod 13, when the storage frame 3 is completely moved to the installation frame 2 When inside, loosen the limit plate 12 so that the spring telescopic rod 13 is stretched. At this time, the spring telescopic rod 13 drives the limit plate 12 to clamp and fix the test papers in the storage frame 3. After different test papers are stored in sequence, close the The box door 21 connects the box body 1 to an external power supply. At this time, the humidity sensor 17 inside the box body 1 monitors the humidity in the box body 1. When the humidity reaches the set value, the humidity sensor 17 transmits the information to the PLC controller 18. At this time, the PLC controller 18 respectively opens the electric valves on the inside of the ventilation fan 19 and the ventilation port 20, so as to ventilate the inside of the box body 1, and avoid the mildew phenomenon of the test paper in the box body 1 due to excessive moisture.

The last few points should be explained: First, in the description of this application, it should be explained that, unless otherwise specified and limited, the terms "installation", "connection" and "connection" should be understood in a broad sense, which can be mechanical connection Or electrical connection, it can also be the internal communication of two components, it can be directly connected, "up", "down", "left", "right", etc. are only used to indicate the relative positional relationship, when the absolute position of the object being described change, then the relative positional relationship may change; secondly: in the drawings of the disclosed embodiments of the utility model, only the structures related to the disclosed embodiments are involved, and other structures can refer to the usual design. In the case of no conflict, the utility model The same embodiment of the new model and different embodiments can be combined with each other; finally: the above is only a preferred embodiment of the utility model, and is not intended to limit the utility model. Any modification, equivalent replacement, improvement, etc. shall be included in the protection scope of the present utility model.

Claims (6)

1. The utility model provides an adjustable sorter, includes box (1), its characterized in that, box (1) inboard activity is provided with multiunit installing frame (2), multiunit installing frame (2) inboard all activity is provided with deposits frame (3), and installing frame (2) upside is fixed to be provided with two sets of fly leaves (4), two sets of fly leaves (4) outside all activity run through is provided with inserted bar (5), inserted bar (5) outside end is fixed to be provided with pulls out piece (7), and inserted bar (5) outside movable sleeve is equipped with spring (6), spring (6) one end is connected in fly leaf (4) outside, and the spring (6) other end is connected in pulls out piece (7) medial surface, box (1) inboard fixed be provided with two sets of fixed blocks (8), two sets of jack (9) that multiunit butt joint inserted bar (5) were all seted up in the fixed block (8) outside, box (1) inboard activity is provided with multiunit limiting plate (12) upside activity is provided with spring (13), spring (13) one end is connected in flexible piece (13) side fixed connection in frame (13) side under the fixed connection in side (13).

2. An adjustable sorting apparatus according to claim 1, wherein: two groups of sliding blocks (10) are fixedly arranged on the outer side of the movable plate (4), and a plurality of groups of sliding grooves (11) for butt joint of the sliding blocks (10) are formed in the inner side of the box body (1).

3. An adjustable sorting apparatus according to claim 1, wherein: the handle (14) is fixedly arranged on the outer side of the storage frame (3), the label box (15) is fixedly arranged on the outer side of the storage frame (3), and the label box (15) is made of transparent materials.

4. An adjustable sorting apparatus according to claim 1, wherein: drawer slide rails (16) are movably arranged on two sides of the mounting frame (2), and the other sides of the two groups of drawer slide rails (16) are fixedly connected to the storage frame (3).

5. An adjustable sorting apparatus according to claim 1, wherein: the humidity sensor (17) and the PLC (programmable logic controller) are fixedly arranged on the inner side of the box body (1) respectively, the ventilation fan (19) is arranged on the lower side of the box body (1) in a penetrating mode, and a plurality of groups of ventilation ports (20) are arranged on the outer side of the box body (1) in a penetrating mode.

6. An adjustable sorting apparatus according to claim 5, wherein: an electric valve is arranged on the inner side of the ventilation opening (20).
