Abstract

The utility model relates to the technical field of fixing brackets for photovoltaic panels, and discloses an easy-to-install fixing bracket for photovoltaic panels, including a base, a bracket one is fixedly installed on the upper end of the base, and a bracket is fixedly installed on the upper end of the bracket one Two, the base, bracket one, and bracket two are all provided with the same two, a connecting rod one is fixedly installed between the two bases, and a storage box is fixedly installed on the rear sides of the two brackets two through bolts, A frame is arranged between the two brackets, and a skeleton is fixedly installed on the outside of the frame. The easy-to-install fixed bracket for photovoltaic panels, through the design of the slider group one and the adjustable installation component, facilitates the adjustment of the inclination angle of the frame, adapts to the installation requirements of different situations, and has small limitations, and the adjustment installation component can be installed on the frame Sliding inside, suitable for the installation of solar photovoltaic panels of different sizes. When not in use, the solar photovoltaic panels can be covered with a dustproof cloth, which improves the practicability.

Description

An easy-to-install fixing bracket for photovoltaic panels

technical field

The utility model relates to the technical field of fixing brackets for photovoltaic panels, in particular to a fixing bracket for photovoltaic panels that is convenient for installation.

Background technique

With the development of new energy, photovoltaic panels can be seen in more and more places for power generation. Solar photovoltaic panel support is a special support for placing, installing and fixing solar panels in solar photovoltaic power generation systems, but the structure of photovoltaic support must It is firm and reliable, and can withstand such problems as atmospheric erosion, wind load and other external effects, and most photovoltaic support structures lack angle adjustment devices to improve the utilization of light, and it is inconvenient for installation workers to install them.

According to the comparative document (patent name: a photovoltaic panel frame that facilitates the installation of photovoltaic panels, the authorized announcement number is CN204886811U, and the application number is 201520534774.2), although the device can adjust the installation angle of photovoltaic panels, the photovoltaic panel installed The board frame cannot be adjusted according to the size of the solar photovoltaic panel to adjust the adaptation of the installation components, and the practicability is poor.

Utility model content

(1) Solved technical problems

Aiming at the prior art, the utility model provides an easy-to-install fixed bracket for photovoltaic panels to solve the above-mentioned background. Although the device can adjust the installation angle of the photovoltaic panel, the photovoltaic panel frame installed on the photovoltaic panel cannot According to the size of the solar photovoltaic panel, the adaptation adjustment of the installation components is adjusted, which is a problem of poor practicability.

(2) Technical solution

In order to achieve the purpose of the above-mentioned photovoltaic panels, the utility model provides the following technical solutions: a fixed bracket for photovoltaic panels that is easy to install, including a base, a bracket one is fixedly installed on the upper end of the base, and a bracket is fixedly installed on the upper end of the bracket one Two, the base, bracket one, and bracket two are all provided with the same two, a connecting rod one is fixedly installed between the two bases, and a storage box is fixedly installed on the rear sides of the two brackets two through bolts, A frame is arranged between the two brackets, the outer side of the frame is fixed with a skeleton, the upper end of the base is provided with a chute 1, the outer side of the base is provided with a chute 2, and the front of the bracket 2 The side is provided with a chute three, the upper end of the storage box is provided with a groove, the upper end of the frame is provided with a chute five, the upper end of the chute one is slidably installed with a slider group one, and the upper end of the skeleton is slidably installed with an adjustment device Assemblies, the side of the frame is threaded with a bolt 1, the bolt 2 is arranged between the storage box and the bracket 2, the rotation shaft 1 is installed inside the storage box, and the roller 1 is fixedly installed on the outside of the rotation shaft 1, A dustproof cloth is wound on one surface of the roller;

The slider group one includes a shell, a bracket three, a bolt four, a roller two, a rotating shaft two and a connecting rod three. Bolt 4 is connected to the side thread, the inside of the shell is rotatably connected to roller 2, the right side of the bracket 3 is rotatably connected to shaft 2, and the left side of the shell is fixedly installed with connecting rod 3;

The adjustment installation assembly includes a slider body, a pressure block, bolt five and a hook, the slider body is slidably installed inside the chute five, the upper end of the slider body is fixedly mounted with a pressure block, and the pressure block is threaded A bolt five is connected, and the upper end of the bolt five is threadedly connected with a hook.

Preferably, the first chute communicates with the second chute, and the angle between the base and the first bracket is 90°, which facilitates the movement of the first slider group.

Preferably, the slider group 1 is provided with the same two groups, each group of slider group 1 is provided with the same one, the adjustment installation assembly is provided with the same two groups, and each group of adjustment installation assemblies is provided with the same two One, it is convenient to adjust the inclination angle of the photovoltaic panel mounting frame.

Preferably, the first bolt passes through the second bracket through the chute and is threadedly connected with the frame, and the second bolt runs through the storage box and is threadedly connected with the second bracket, so as to facilitate the installation of the storage box.

Preferably, the slider body is fixedly connected with the pressing block and the hook by five bolts, and the center line of the slider body and the pressing block are located on the same vertical line, which is convenient for adjusting the position of the hook.

Preferably, the same two frames are provided, the frames are symmetrically distributed on the front side of the frame, the first bolts pass through the chute three and extend to the inside of the frame, and the first bolts are symmetrically distributed on both sides of the frame , to facilitate the locking of the upper part of the frame.

Compared with the prior art, the utility model provides an easy-to-install fixed bracket for photovoltaic panels, which has the following beneficial effects: the easy-to-install fixed bracket for photovoltaic panels can be installed through slider group one and adjustment The design of the components makes it easy to adjust the inclination angle of the frame, adapting to the installation requirements of different situations, with less limitations, and the adjustment installation components can slide inside the frame, suitable for the installation of solar photovoltaic panels of different sizes, without using When used, dustproof cloth can be used to cover the solar photovoltaic panel, which improves the practicability.

Description of drawings

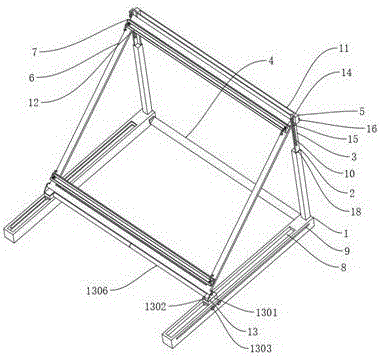

Fig. 1 is the three-dimensional structure schematic diagram of front view of framework of the present utility model;

Fig. 2 is a schematic diagram of a side-view three-dimensional structure of the framework of the utility model;

Fig. 3 is a schematic diagram of the three-dimensional structure of the framework of the utility model;

Fig. 4 is a schematic diagram of the split structure of the adjustment installation assembly of the present invention;

Fig. 5 is a schematic diagram of a disassembled structure of the slider group of the present invention;

Fig. 6 is a schematic diagram of the disassembled structure of the storage box of the present invention.

Among them: 1. Base; 2. Bracket 1; 3. Bracket 2; 4. Connecting rod 1; 5. Storage box; 6. Frame; 7. Skeleton; Groove three; 11, groove; 12, chute five; 13, slider group one; 1301, shell; 1302, bracket three; 1303, bolt four; 1304, roller two; 1305, rotating shaft two; 1306, connecting rod three ;14, adjust the installation assembly; 1401, slider body; 1402, pressure block; 1403, bolt five; 1404, hook; 15, bolt one; 16, bolt two; 18, shaft one; 19, roller one; 20, dust cloth.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Figures 1-6, the utility model provides the following technical solutions: a fixed bracket for photovoltaic panels that is easy to install, including a base 1, a bracket-2 is fixedly installed on the upper end of the base 1, and a bracket is fixedly installed on the upper end of the bracket-2 Two 3, the base 1, bracket one 2, and bracket two 3 are all provided with the same two, the connecting rod one 4 is fixedly installed between the two bases 1, and the rear side of the two bracket two 3 is fixed with a storage box by bolts 5. A frame 6 is set between the two brackets 2 3, and a frame 7 is fixedly installed on the outside of the frame 6. The frame 7 is provided with the same two. The frame 7 is symmetrically distributed on the front side of the frame 6, and the bolt 15 runs through the slide Slot three 10 extends to the inside of frame 6, and bolt one 15 is symmetrically distributed on both sides of frame 6. The upper end of base 1 is provided with chute one 8, and the outside of base 1 is provided with chute two 9, and chute one 8 and Chute two 9 intercommunicate, the angle between base 1 and bracket one 2 is 90°, the front side of bracket two 3 is provided with chute three 10, the upper end of storage box 5 is provided with groove 11, and the upper end of skeleton 7 is provided with slide Slot 5 12, the upper end of chute 1 8 is slidably installed with slider group 1 13, the upper end of skeleton 7 is slidably installed with adjustment installation assembly 14, the side of frame 6 is threadedly connected with bolt 1 15, between storage box 5 and bracket 2 3 Bolt 2 16 is provided, and rotating shaft 1 18 is mounted on the inside of storage box 5, and roller 1 19 is fixedly installed on the outside of rotating shaft 1 18, and dustproof cloth 20 is wrapped on the surface of roller 1 19, and bolt 1 15 passes through chute 3 10 and runs through bracket 2 3 is threadedly connected with the frame 6, and the bolt 2 16 runs through the storage box 5 and is threadedly connected with the bracket 2 3. When in use, through the settings of the two bases 1, bracket 1 2, bracket 2 3 and connecting rod 1 4, the photovoltaic panel is lifted With the stability of the fixed bracket, when not in use, the staff pulls the dustproof cloth 20 inside the storage box 5, and uses the dustproof cloth 20 to cover the solar photovoltaic panel, which can play a protective role;

Slider group 1 13 includes housing 1301, bracket 3 1302, bolt 4 1303, roller 2 1304, rotating shaft 2 1305 and connecting rod 3 1306, housing 1301 is slidably installed inside chute 1 8, and bracket 3 1302 is fixedly installed on the upper end of housing 1301 , the right side of the shell 1301 is threaded with the bolt four 1303, the inside of the shell 1301 is rotatably connected with the roller two 1304, the right side of the bracket three 1302 is rotatably connected with the rotating shaft two 1305, the left side of the shell 1301 is fixedly installed with the connecting rod three 1306, and the slider group one 13 is provided with the same two groups, and each group of sliders 13 is provided with the same one. The staff first twists the bolt 15 until the locking of the bolt 15 to the frame 6 disappears completely, and then the staff twists the casing Bolt 4 1303 on the side of 1301, until bolt 4 1303 and shell 1301 are completely loose, at this time the staff pushes the lower part of frame 6, through the setting of roller 2 1304 in slider group 1 13 at the lower part of frame 6, it is convenient for the lower part of frame 6 to move The upper part of the base 1 slides, and the upper part of the frame 6 moves upwards with the push of the lower part, thereby realizing the adjustment of the inclination angle of the frame 6;

The adjustment installation assembly 14 includes a slider body 1401, a briquetting block 1402, a bolt 5 1403 and a grab hook 1404. The slider body 1401 is slidably installed inside the chute 5 12, and the upper end of the slider body 1401 is fixedly equipped with a briquetting block 1402. 1402 is threadedly connected with bolt 5 1403, and the upper end of bolt 5 1403 is threadedly connected with grab 1404. The adjustment installation assembly 14 is provided with the same two groups, and each group of adjustment installation assembly 14 is provided with the same two. 1402 and the hook 1404 are fixedly connected by bolt 5 1403, the center line of the slider body 1401 and the pressure block 1402 are located on the same vertical line, the staff will place the photovoltaic panel to be installed on the upper part of the frame 7, and twist the slider Bolt five 1403 on the upper part of the body 1401 until the hook 1404 and the slider body 1401 are completely loose, use the hook on the side of the hook 1404 to hook the frame of the solar photovoltaic panel, and then push the slider body 1401 to adjust the position of the hook 1404 After the position adjustment is completed, the staff will tighten the bolt five 1403 again, and the installation of the solar photovoltaic panel and the support frame can be completed at this time.

Working principle: In the process of installing solar photovoltaic panels, the staff first twists the bolt 15 until the locking of the frame 6 by the bolt 15 completely disappears, and then the staff twists the bolt 4 1303 on the side of the casing 1301 until Bolt 4 1303 and shell 1301 are completely loose. At this time, the staff pushes the bottom of frame 6, and through the setting of roller 2 1304 in slide block group 1 13 at the bottom of frame 6, the bottom of frame 6 slides on the top of base 1 conveniently. The upper part moves upwards with the push of the lower part, and then realizes the adjustment of the inclination angle of the frame 6. After the adjustment is completed, the staff tightens the bolt one 15 and the bolt four 1303, and then the staff places the photovoltaic panels to be installed on the upper part of the frame 7, And screw the bolt five 1403 on the upper part of the slider body 1401 until the hook 1404 and the slider body 1401 are completely loose, use the hook on the side of the hook 1404 to hook the frame of the solar photovoltaic panel, and then push the slider body 1401 to lock Adjust the position of the hook 1404. After the position adjustment is completed, the staff tightens the bolt 5 1403 again. At this time, the installation of the solar photovoltaic panel and the support frame can be completed. When not in use, the staff pulls the dustproof cloth inside the storage box 5 20. Use dust-proof cloth 20 to cover the solar photovoltaic panel, which can play a protective role. The overall design is reasonable and easy to use.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (6)

1. An easy-to-install fixed bracket for photovoltaic panels, including a base (1), characterized in that: the upper end of the base (1) is fixed with a bracket (2), and the upper end of the bracket (2) is fixed Two brackets (3) are installed, and the base (1), bracket one (2), and bracket two (3) are all provided with the same two, and a connecting rod one is fixedly installed between the two bases (1). (4), the rear sides of the two brackets (3) are fixed with a storage box (5) by bolts, a frame (6) is arranged between the two brackets (3), and the frame (6 ) is fixedly installed with a skeleton (7), the upper end of the base (1) is provided with a chute one (8), the outer side of the base (1) is provided with a chute two (9), and the support two ( 3) There is a chute three (10) on the front side, a groove (11) is opened on the upper end of the storage box (5), and a chute five (12) is opened on the upper end of the skeleton (7), the chute The upper end of one (8) is slidably installed with a slider group one (13), the upper end of the frame (7) is slidably installed with an adjustment installation assembly (14), and the side of the frame (6) is threadedly connected with a bolt one (15) , there is a bolt 2 (16) between the storage box (5) and the bracket 2 (3), the storage box (5) is installed with a shaft 1 (18) for rotation inside, and the shaft 1 (18) is fixed on the outside A roller one (19) is installed, and a dustproof cloth (20) is wound on the surface of the roller one (19); The slider group one (13) includes a casing (1301), a bracket three (1302), a bolt four (1303), a roller two (1304), a rotating shaft two (1305) and a connecting rod three (1306), and the casing ( 1301) is slidably installed inside the chute one (8), the upper end of the casing (1301) is fixedly installed with the bracket three (1302), the right side of the casing (1301) is threadedly connected with the bolt four (1303), and the casing ( 1301) The inner rotation is connected with the second roller (1304), the right side of the support three (1302) is rotationally connected with the second rotating shaft (1305), and the left side of the shell (1301) is fixedly installed with the third connecting rod (1306); The adjustment installation assembly (14) includes a slider body (1401), a pressure block (1402), a bolt five (1403) and a hook (1404), and the slider body (1401) is slidably installed on the chute five ( 12) Inside, the upper end of the slider body (1401) is fixed with a pressure block (1402), the pressure block (1402) is threaded with bolt five (1403), and the upper end of the bolt five (1403) is threaded with a clamp Hook (1404). 2. An easy-to-install fixing bracket for photovoltaic panels according to claim 1, characterized in that: the first chute (8) communicates with the second chute (9), and the base (1) and the bracket one (2) The angle between them is 90°. 3. An easy-to-install fixing bracket for photovoltaic panels according to claim 2, characterized in that: the slider group one (13) is provided with the same two groups, and each slider group one (13) is set There is the same one, the same two sets of adjustment mounting assemblies (14) are provided, and each set of adjustment mounting assemblies (14) is provided with the same two. 4. An easy-to-install fixing bracket for photovoltaic panels according to claim 3, characterized in that: the first bolt (15) runs through the second bracket (3) and the frame (6) thread through the third chute (10) The second bolt (16) runs through the storage box (5) and is threadedly connected with the second bracket (3). 5. An easy-to-install fixing bracket for photovoltaic panels according to claim 4, characterized in that: the slider body (1401), the pressing block (1402) and the hook (1404) are connected by bolt five (1403) Fixedly connected, the center line of the slider body (1401) and the pressure block (1402) are located on the same vertical line. 6. An easy-to-install fixing bracket for photovoltaic panels according to claim 5, characterized in that: the same two skeletons (7) are arranged, and the skeletons (7) are symmetrically distributed on the frame (6) The first bolt (15) passes through the third chute (10) and extends to the inside of the frame (6), and the first bolt (15) is symmetrically distributed on both sides of the frame (6).
