CN219053912U - Stainless steel handle processing equipment - Google Patents

Abstract

The utility model discloses a stainless steel handle processing equipment, comprising a base, the top of the base is fixedly connected with a grinding frame, the surface of the grinding frame is fixedly connected with a storage box, and the left side of the inner cavity of the base rotates through a bearing A two-way threaded rod is connected, the right end of the two-way threaded rod runs through the base and extends to the outside of the base, both sides of the surface of the two-way threaded rod and the inside of the base are threaded with threaded sleeves, and the top of the threaded sleeve is fixed A support rod is connected, and the top end of the support rod penetrates the base and extends to the outside of the base. The utility model relates to the technical field of handle processing. The stainless steel handle processing equipment, by placing the handle to be polished inside the grinding groove, the handle falls to the top of the inclined block, and then drives the two-way threaded rod to drive the second rotating rod to move by turning the handle on the right side of the two-way threaded rod, so as to achieve The effect of clamping the handle inside the grinding tank.

Description

A stainless steel handle processing equipment

technical field

The utility model relates to the technical field of handle processing, in particular to stainless steel handle processing equipment.

Background technique

Handle is the handle of opening and closing doors and windows, window sashes, drawers and other components commonly used in building decoration and furniture production. The processing of the handle needs to be cut, polished and assembled. In the process of polishing the handle installation parts, due to the existing grinding equipment When grinding the handle, it is necessary to clamp the handle first. Because the handles are of different models, the length of the handle is different. Therefore, when grinding the handles of different lengths, it is necessary to adjust the clamping mechanism, and then adjust the handle Grinding will lead to an increase in processing time, which will lead to a decrease in grinding efficiency. Therefore, it is necessary to design a stainless steel handle processing equipment to solve the above problems.

Utility model content

In order to solve the technical problems in the background technology, the utility model proposes a stainless steel handle processing equipment, including a base, the top of the base is fixedly connected with a grinding frame, the surface of the grinding frame is fixedly connected with a storage box, and the base The left side of the inner cavity is rotatably connected with a two-way threaded rod through a bearing. The right end of the two-way threaded rod runs through the base and extends to the outside of the base. The top of the threaded sleeve is fixedly connected with a support rod, the top of the support rod passes through the base and extends to the outside of the base, and the two sides of the top of the base are provided with a first movable groove used in conjunction with the support rod One end of the support rod extending to the outside of the base is fixedly connected with a support plate, and the opposite sides of the two support plates are fixedly installed with a motor through a bracket, and the output shaft of the motor is fixedly connected with a second shaft through a coupling. A rotating rod, the opposite ends of the two first rotating rods pass through the supporting plate and extend to the outside of the supporting plate, and the opposite sides of the two supporting plates are provided with first slide grooves, and the first slide The inside of the groove is slidably connected with a first slider, and the rear part of the inner cavity of the first chute is fixedly connected with a first spring, and the front end of the first spring is fixedly connected with the rear side of the first slider. The opposite side of the first slider is rotatably connected with a square rotating rod through a bearing, and the opposite sides of the two support plates are fixed with a first electric telescopic rod through a bracket, and the first electric telescopic rod The bottom end is rotatably connected with a second rotating rod through a bearing, and the surfaces of the first rotating rod, the square rotating rod and the second rotating rod are all fixedly connected with sprockets, and the three sprockets are connected through a chain drive. .

Preferably, the top of the grinding frame is provided with a grinding groove, the bottom of the inner cavity of the grinding groove is fixedly installed with a second electric telescopic rod, and the top end of the second electric telescopic rod is fixedly connected with a slanting block, and the grinding groove Both sides of the inner cavity are provided with a second movable opening used in conjunction with the first rotating rod, and the front part of the inner cavity of the grinding groove is provided with a drop opening.

Preferably, an active slot is provided inside the grinding frame and located on the front side of the grinding slot, and a second chute is provided on both sides of the top of the inner chamber of the active slot, and the inside of the second chute is slidably connected with The second slider, the bottom of the second slider is fixedly connected with the first sleeve through the bracket, the two sides of the rear part of the movable groove inner cavity are fixedly connected with the second spring, and the front end of the second spring is fixed Connected to the rear side of the first sleeve, the inside of the first sleeve is rotatably connected to the second sleeve through bearings, and the two ends of the second sleeve pass through the movable groove and the grinding frame in turn and extend to the grinding frame of the exterior.

Preferably, both sides of the grinding frame are provided with a third movable port for use with the second sleeve.

Preferably, a grinding cylinder is fixedly connected to the surface of the second sleeve and between the two first sleeves.

Preferably, the rear side of the inner cavity of the movable groove is provided with a grinding port used in conjunction with the grinding cylinder.

Compared with the prior art, the above-mentioned technical solution of the utility model has the following beneficial technical effects:

(1) The stainless steel handle processing equipment, by placing the handle to be polished inside the grinding groove, the handle falls to the top of the inclined block, and then drives the two-way threaded rod to drive the second rotating rod to move by turning the handle on the right side of the two-way threaded rod , so as to achieve the effect of clamping the handles of different lengths inside the grinding tank, then start the motor, the motor drives the handle to rotate, the square rotating rod drives the second sleeve to rotate, the second sleeve drives the grinding cylinder to rotate, and then controls the first The electric telescopic rod is stretched out, the first electric telescopic rod drives the second rotating rod to move, the second rotating rod drives the square rotating rod to move through the chain, the square rotating rod drives the second sleeve to move, and the second sleeve drives the grinding cylinder to move , so as to achieve the effect of all-round grinding on the surface of the handle and improve the efficiency of grinding.

(2) The stainless steel handle processing equipment, by controlling the retraction of the slanting block, the slanting block drives the handle to move downward, and the handle falls to the inside of the storage box through the drop opening, so as to achieve the effect that the handle is stored neatly and easy to take.

Description of drawings

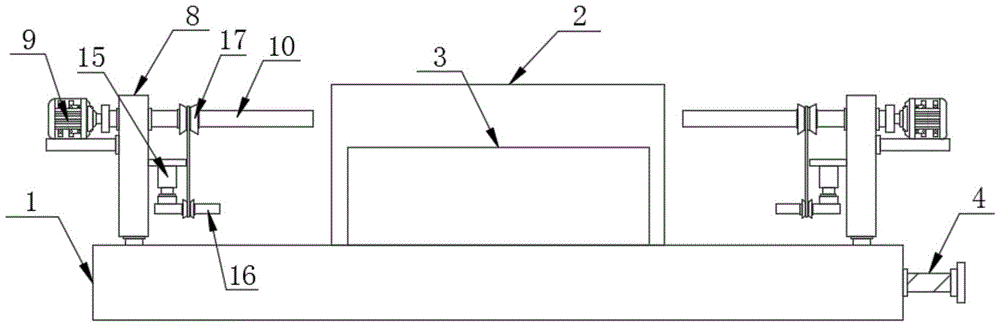

Fig. 1 is the structural representation of the utility model;

Fig. 2 is a cross-sectional view of the base structure of the utility model;

Fig. 3 is the side view of the internal structure of the grinding frame and the storage frame of the utility model;

Fig. 4 is the top view of the internal structure of the grinding frame and the support plate of the utility model;

Fig. 5 is a sectional view of the utility model grinding frame and movable groove structure;

Fig. 6 is a side view of the structure of the support plate of the present invention.

Reference signs: 1, base; 2, grinding frame; 3, storage box; 4, two-way threaded rod; 5, threaded sleeve; 6, support rod; 7, first movable groove; 8, support plate; 9, motor; 10. The first rotating rod; 11. The first chute; 12. The first slider; 13. The first spring; 14. The square rotating rod; 15. The first electric telescopic rod; 16. The second rotating rod; 17 , chain gear; 18, chain; 19, grinding groove; 20, movable groove; 21, second electric telescopic rod; 22, inclined block; 23, second movable port; 24, second spring; 25, first sleeve ; 26, the second sleeve; 27, the grinding cylinder; 28, the second chute; 29, the second slider; 30, the third movable port; 31, the drop port; 32, the grinding port.

Detailed ways

Please refer to Figures 1-6, the utility model provides a technical solution: a stainless steel handle processing equipment, including a base 1, the top of the base 1 is fixedly connected with a grinding frame 2, and the surface of the grinding frame 2 is fixedly connected with a storage box 3, The left side of the inner cavity of the base 1 is rotatably connected with a two-way threaded rod 4 through a bearing. The right end of the two-way threaded rod 4 runs through the base 1 and extends to the outside of the base 1. Both sides of the surface of the two-way threaded rod 4 are located inside the base 1. A threaded sleeve 5 is threaded, and the top of the threaded sleeve 5 is fixedly connected with a support rod 6. The top of the support rod 6 runs through the base 1 and extends to the outside of the base 1. Both sides of the top of the base 1 are equipped with The first movable slot 7 used, the end of the support rod 6 extending to the outside of the base 1 is fixedly connected with a support plate 8, and the opposite sides of the two support plates 8 are fixedly installed with a motor 9 through a bracket, and the motor 9 is a servo motor. The output shaft of the motor 9 is fixedly connected with the first rotating rod 10 through a coupling, and the opposite ends of the two first rotating rods 10 all pass through the supporting plate 8 and extend to the outside of the supporting plate 8, the first rotating rod 10 and the supporting plate 8 are connected through the rotation of the bearings, and the opposite sides of the two supporting plates 8 are provided with a first chute 11, and the inside of the first chute 11 is slidably connected with a first slider 12, and the rear of the inner cavity of the first chute 11 The first spring 13 is fixedly connected with the first spring 13, and the first spring 13 can be easily replaced. The front end of the first spring 13 is fixedly connected to the rear side of the first slider 12, and the opposite sides of the two first sliders 12 rotate through the bearing. Connected with a square rotating rod 14, the opposite sides of the two support plates 8 are fixed with a first electric telescopic rod 15 through a bracket, and the bottom end of the first electric telescopic rod 15 is connected with a second rotating rod 16 through a bearing member for rotation. , the surfaces of the first rotating rod 10 , the square rotating rod 14 and the second rotating rod 16 are all fixedly connected with sprockets 17 , and the three sprockets 17 are connected by chains 18 through transmission.

Further, in order to store the polished handle neatly in the storage box 3, the top of the grinding frame 2 is provided with a grinding groove 19, and the bottom of the grinding groove 19 inner cavity is fixedly equipped with a second electric telescopic rod 21, the second The top of electric telescopic link 21 is fixedly connected with inclined block 22, and the both sides of grinding groove 19 inner chambers all offer the second movable port 23 that cooperates with the first rotating rod 10, and the front portion of grinding groove 19 inner chambers is provided with Drop port 31 .

Further, in order to achieve the effect of moving the grinding cylinder 27 to the inside of the grinding port 32 to polish the handle inside the grinding tank 19, the inside of the grinding frame 2 and the front side of the grinding tank 19 are provided with a movable groove 20, and the movable groove 20 Both sides of the top of the inner chamber are provided with a second chute 28, the inside of the second chute 28 is slidably connected with a second slider 29, and the bottom of the second slider 29 is fixedly connected with a first sleeve 25 through a bracket, which is movable. The both sides of groove 20 inner cavity rear parts are all fixedly connected with second spring 24, and second spring 24 can be convenient to replace, and the front end of second spring 24 is fixedly connected with the rear side of first sleeve 25, and the rear side of first sleeve 25 The inside is rotatably connected with a second sleeve 26 through a bearing, and the two ends of the second sleeve 26 pass through the movable groove 20 and the grinding frame 2 in sequence respectively and extend to the outside of the grinding frame 2. The third movable port 30 used in conjunction with the two sleeves 26, the surface of the second sleeve 26 and between the two first sleeves 25 is fixedly connected with a grinding cylinder 27, and the rear side of the movable groove 20 inner cavity is provided with a The grinding port 32 used in conjunction with the grinding cylinder 27.

At the same time, the content not described in detail in this specification belongs to the prior art known to those skilled in the art.

During use, by placing the handle that needs to be polished in the inside of the grinding groove 19, the handle falls to the top of the inclined block 22, and then drives the two-way threaded rod 4 to rotate by turning the handle on the right side of the two-way threaded rod 4, and the two-way threaded rod 4 drives the screw thread The sleeve 5 moves inward, the threaded sleeve 5 drives the support rod 6 to move, the support rod 6 drives the support plate 8 to move, the support plate 8 drives the motor 9 to move, the motor 9 drives the first rotating rod 10 to move, and the support plate 8 drives the square to rotate The rod 14 moves, and the support plate 8 drives the first electric telescopic rod 15 to move, and the first electric telescopic rod 15 drives the second rotating rod 16 to move. When the first rotating rod 10 moves to the inside of the grinding tank 19 through the second movable port , so as to achieve the effect of clamping the handles of different lengths inside the grinding groove 19, and when the square rotating rod 14 moves to the inside of the second sleeve 26, then start the motor 9, and the motor 9 drives the first rotating rod 10 to rotate , the first rotating rod 10 drives the sprocket 17 to rotate, the sprocket 17 drives the square rotating rod 14 and the second rotating rod 16 to rotate through the chain 18, the first rotating rod 10 drives the handle to rotate, and the square rotating rod 14 drives the second set of The cylinder 26 rotates, the second sleeve 26 drives the grinding cylinder 27 to rotate, and then controls the first electric telescopic rod 15 to stretch out, the first electric telescopic rod 15 drives the second rotating rod 16 to move, and the second rotating rod 16 drives the square through the chain 18 The square rotating rod 14 moves, the square rotating rod 14 drives the second sleeve 26 to move, and the second sleeve 26 drives the grinding cylinder 27 to move, so as to achieve the effect of polishing the handle surface in all directions. By controlling the retraction of the inclined block 22, The inclined block 22 drives the handle to move downward, and the handle falls to the inside of the storage box 3 through the drop opening 31, so as to achieve the effect that the handle is neatly stored and easy to take.

Above, the embodiment of the present utility model has been described in detail in conjunction with the accompanying drawings, but the present utility model is not limited thereto. Make various changes.

Claims (6)

1. A stainless steel handle processing equipment, comprising a base (1), characterized in that: the top of the base (1) is fixedly connected with a grinding frame (2), and the surface of the grinding frame (2) is fixedly connected with a storage box (3), the left side of the inner cavity of the base (1) is rotatably connected to a bidirectional threaded rod (4) through a bearing, and the right end of the bidirectional threaded rod (4) runs through the base (1) and extends to the base (1) The two sides of the surface of the two-way threaded rod (4) and the inside of the base (1) are threaded with a threaded sleeve (5), and the top of the threaded sleeve (5) is fixedly connected with a support rod (6) , the top of the support rod (6) runs through the base (1) and extends to the outside of the base (1), and both sides of the top of the base (1) are provided with a first Movable groove (7), one end of the support rod (6) extending to the outside of the base (1) is fixedly connected with a support plate (8), and the opposite sides of the two support plates (8) are fixed and installed by a bracket There is a motor (9), the output shaft of the motor (9) is fixedly connected with a first rotating rod (10) through a coupling, and the opposite ends of the two first rotating rods (10) pass through the support plate (8 ) and extend to the outside of the support plate (8), the opposite sides of the two support plates (8) are provided with a first chute (11), and the inside of the first chute (11) is slidingly connected with First slide block (12), the rear portion of described first chute (11) inner cavity is fixedly connected with first spring (13), and the front end of described first spring (13) is fixedly connected with first slide block ( 12) on the rear side, the opposite sides of the two first sliders (12) are rotatably connected with a square rotating rod (14) through bearings, and the opposite sides of the two support plates (8) pass through The support is fixedly equipped with a first electric telescopic rod (15), and the bottom end of the first electric telescopic rod (15) is rotatably connected with a second rotating rod (16) through a bearing, and the first rotating rod (10), The surfaces of the square rotating rod (14) and the second rotating rod (16) are fixedly connected with sprockets (17), and the three sprockets (17) are connected through a chain (18) transmission. 2. A stainless steel handle processing equipment according to claim 1, characterized in that: the top of the grinding frame (2) is provided with a grinding groove (19), and the bottom of the inner cavity of the grinding groove (19) is fixedly installed There is a second electric telescopic rod (21), the top of the second electric telescopic rod (21) is fixedly connected with a slanting block (22), and both sides of the inner cavity of the grinding groove (19) are equipped with The rod (10) cooperates with the second movable opening (23), and the front part of the inner cavity of the grinding groove (19) is provided with a drop opening (31). 3. A stainless steel handle processing equipment according to claim 2, characterized in that: there is an active slot (20) inside the grinding frame (2) and on the front side of the grinding slot (19), and the movable Both sides of groove (20) inner cavity top all offer second chute (28), and the inside sliding connection of described second chute (28) is connected with second slide block (29), and described second slide block ( The bottom of 29) is fixedly connected with the first sleeve (25) through the bracket, and the two sides of the inner chamber rear part of the movable groove (20) are all fixedly connected with the second spring (24), and the second spring (24) The front end of the first sleeve (25) is fixedly connected to the rear side of the first sleeve (25), and the inside of the first sleeve (25) is rotatably connected with a second sleeve (26) through a bearing member, and the second sleeve (26) The two ends respectively pass through the movable groove (20) and the grinding frame (2) in sequence and extend to the outside of the grinding frame (2). 4. A stainless steel handle processing equipment according to claim 3, characterized in that: both sides of the grinding frame (2) are provided with a third movable port ( 30). 5. A stainless steel handle processing equipment according to claim 4, characterized in that: the surface of the second sleeve (26) is fixedly connected with a grinding cylinder ( 27). 6. A stainless steel handle processing equipment according to claim 5, characterized in that: the rear side of the inner cavity of the movable groove (20) is provided with a grinding port (32) used in conjunction with the grinding cylinder (27).
