Abstract

The application discloses a light-weight wall panel combined fixing frame that is easy to adjust, and belongs to the field of prefabricated buildings. An easy-to-adjust light-weight wall panel combined fixing frame, including a base, an adjustment mechanism, which is installed in the base by rotation, and a limit rod. One end of the limit rod is hinged with a mounting seat, and the other end is plugged and matched with the adjustment mechanism. , rotatably mounted on one end of the base, used to drive the adjustment mechanism to rotate. By pressing down on the runner and driving the runner to rotate, the runner drives the screw to rotate, so that the threaded sleeve cooperates with the sliding seat, which can drive the limit rod to adjust the angle, and then realize the vertical adjustment of the wallboard, which is easy to operate. Easy to use.

Description

An easy-to-adjust light-weight wall panel combined fixing frame

technical field

The present application relates to the field of prefabricated buildings, more specifically, to a light-weight wall panel combined fixing frame that is easy to adjust.

Background technique

Lightweight wallboard is a light material board body used in construction. After the wallboard is assembled, it needs to be connected with the wallboard and the ground through a fixing frame to adjust the verticality and stability of the wallboard after installation. The prior art is disclosed The patent document No. CN208009936U provides oblique supports for the installation of auxiliary prefabricated wallboards. Although the above-mentioned prior art solutions can achieve beneficial effects related to the structure of the prior art, there are still the following defects:

In the related art, the first telescopic rod and the second telescopic rod are connected between the prefabricated wall panel and the floor or the ground by adopting a detachable snap-in connection method, which has a simple structure, quick and efficient installation, and does not require workers to rely on ladders or other The tool climbs to the upper part of the prefabricated wall panel to install the oblique support, which ensures the safety of workers, is easy to construct, and is economical and practical.

In view of the above-mentioned related technologies, the inventor believes that the first telescopic rod needs to be connected to the high side of the wallboard, resulting in a high height of the first threaded rod, which is not convenient for manual adjustment. Therefore, we propose an easy-to-adjust light-weight wall panel combined fixing frame.

Utility model content

In order to improve the problems raised in the above-mentioned background technology, the present application provides an easy-to-adjust lightweight wall panel combined fixing frame,

The application provides an easy-to-adjust lightweight wall panel combined fixing frame, which adopts the following technical scheme:

An easy-to-adjust light-weight wall panel combined fixing frame, comprising

base;

The adjustment mechanism is rotatably installed in the base;

A limit rod, one end of the limit rod is hinged with a mounting seat, and the other end is plugged and matched with the adjustment mechanism;

The runner is rotatably mounted on one end of the base, and is used to drive the adjustment mechanism to rotate.

By adopting the above-mentioned technical scheme, by turning the runner, the adjustment mechanism can be driven to rotate, so that the adjustment mechanism can drive the limit rod to adjust the angle, and realize the adjustment of driving the wallboard.

Optionally, the base includes a fixed base and a fixed plate.

Optionally, the adjustment mechanism includes a screw rod rotatably connected to the base, a threaded sleeve is threaded on the screw rod, a sliding seat is fixedly connected to the threaded sleeve, and the sliding seat is slidably connected to the base.

By adopting the above technical scheme, the screw can drive the sliding threaded sleeve to move when the screw rotates, and the threaded sleeve cooperates with the sliding seat to make the sliding seat translate on the base.

Optionally, a sleeve is hinged on the sliding seat, and the sleeve is plug-fitted with the limit rod.

By adopting the above technical solution, the angle of the limit rod can be adjusted after the sleeve is inserted into the limit rod, and then the angle of the wallboard can be adjusted.

Optionally, a transmission rod A is fixedly connected to the runner, a transmission rod B is slidably connected to the transmission rod A, the transmission rod B is rotatably connected to the base, and one end of the transmission rod B is fixedly connected to a cone Gear A, said bevel gear A is engaged with bevel gear B fixedly connected to one end of the screw rod.

By adopting the above technical scheme, the runner cooperates with the transmission rod A and the transmission rod B to drive the bevel gear A to rotate, and the bevel gear A and the bevel gear B mesh to drive the screw to rotate.

Optionally, the transmission rod A is fixedly connected with a limit plate, one side of the limit plate is elastically connected with the transmission rod B through a spring, and the other side of the limit plate is fixedly connected with a plurality of blocks. A fixed cylinder is fixedly connected to the base, and the fixed cylinder is clamped and matched with the clamping block.

By adopting the above technical solution, when the clamping block is engaged with the fixed cylinder, the running wheel cannot rotate, and when the limiting plate is pressed down, the running wheel can rotate.

In summary, the present application includes at least one of the following beneficial technical effects:

1. When the runner is pressed down and the runner is driven to rotate, the runner drives the screw to rotate, so that the threaded sleeve cooperates with the sliding seat, which can drive the limit rod to adjust the angle, and then realize the vertical adjustment of the wallboard. Operation Simple and easy to use.

2. When the runner is not subjected to external force, the spring drives the limit plate to rise, and makes the clamping block engage with the fixed cylinder, which not only prevents the runner from being misoperated by others, but also prevents the screw from rotating and lifts the limit rod. stability.

Description of drawings

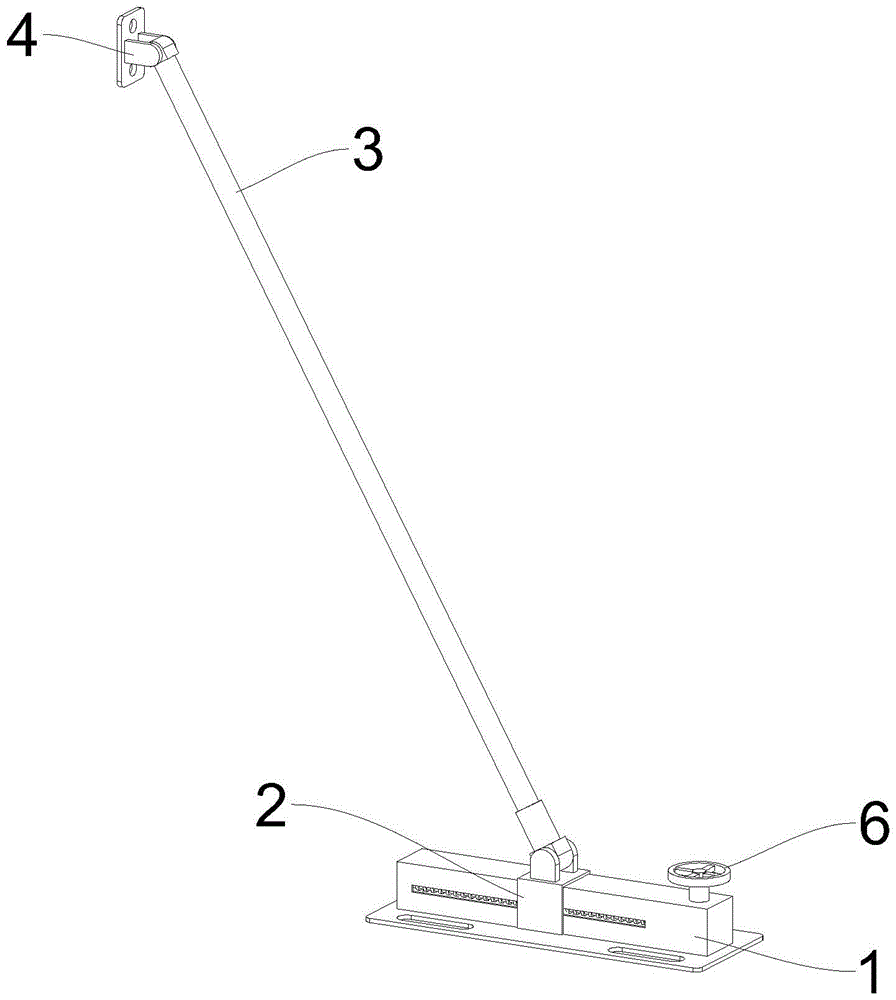

Fig. 1 is a schematic diagram of the overall structure of an easy-to-adjust lightweight wallboard combined fixing frame according to an embodiment of the present application;

Fig. 2 is a schematic diagram of the internal structure of the base of an easy-to-adjust lightweight wallboard combined fixing frame according to an embodiment of the present application;

Fig. 3 is an anatomical schematic diagram of the fixed cylinder structure of an easy-to-adjust lightweight wallboard combined fixing frame according to the embodiment of the present application;

Explanation of symbols in the figure: 1, base; 101, fixed seat; 102, fixed plate; 2, adjustment mechanism; 201, screw rod; 202, thread sleeve; 203, sliding seat; 3, limit rod; 4, mounting seat; 5 , sleeve; 6, runner; 7, transmission rod A; 8, transmission rod B; 9, bevel gear A; 10, bevel gear B; 11, limit plate; 12, spring; 13, block; 14, Fixed barrel.

Detailed ways

The present application will be described in further detail below in conjunction with the accompanying drawings of the description.

Referring to Figures 1-3, this application includes a base 1, an adjustment mechanism 2 is connected to the base 1 in rotation, and a limit rod 3 is connected to the adjustment mechanism 2. One end of the limit rod 3 is hinged to a mounting seat 4, and the mounting seat 4 is connected to the wall through bolts. The panels are connected, and one end of the base 1 is rotatably connected with a runner. By turning the runner 6, the adjustment mechanism 2 can drive the limit rod 3 to adjust the angle, so as to realize the vertical adjustment of the wallboard.

Referring to FIG. 2 , the base 1 is composed of a fixed seat 101 and a fixed plate 102 , the corners of the fixed plate 102 are provided with through holes, and the fixed plate 102 is installed and connected to the ground through the through holes and bolts.

Referring to Fig. 2, the adjustment mechanism 2 includes a screw rod 201 that is rotatably connected to the base 1. The screw rod 201 is threaded with a threaded sleeve 202, and the threaded sleeve 202 is fixedly connected with a sliding seat 203. The sliding seat 203 is slidably connected with the base 1, and the screw rod 201 rotates. When the threaded sleeve 202 is driven to move, the threaded sleeve 202 drives the sliding seat 203 to move left and right on the base 1 due to the sliding fit between the sliding seat 203 and the base 1 .

Referring to FIG. 2 , the sliding seat 203 is hinged with a sleeve 5 , the sleeve 5 is mated with the stop bar 3 and after the mounting seat 4 is connected to the wallboard, the movement of the slide seat 203 can realize the angle adjustment of the stop bar 3 .

Referring to Figure 2 and Figure 3, a transmission rod A7 is fixedly connected to the runner 6, a transmission rod B8 is slidably connected to the transmission rod A7, the transmission rod B8 is rotationally connected to the base 1, and one end of the transmission rod B8 is fixedly connected to a bevel gear A9, The bevel gear A9 is meshed with the bevel gear B10 fixedly connected to one end of the screw rod 201. When the runner 6 is rotated, the transmission rod A7 and the transmission rod B8 drive the bevel gear A9 to rotate, so that the bevel gear A9 and the bevel gear B10 mesh to drive the screw rod 201 to rotate.

Referring to Fig. 3, the limit plate 11 is fixedly connected to the transmission rod A7, one side of the limit plate 11 is elastically connected with the transmission rod B8 through a spring 12, and a plurality of blocks 13 are fixedly connected to the other side of the limit plate 11, and the base 1 Fixedly connected with a fixed cylinder 14, the runner 6 is not subject to external force, the spring 12 drives the limit plate 11 to rise, so that the clamping block 13 is engaged with the groove provided on the fixed cylinder 14, so that the transmission rod A7 cannot rotate.

The implementation principle of an easy-to-adjust lightweight wallboard combined fixing frame in the embodiment of the present application is as follows: the fixing plate 102 is installed on the ground through bolts, and the base 1 is perpendicular to the wallboard. After the wallboard is installed, the installation seat 4. Connect the wallboard with bolts, and insert the limit rod 3 and the sleeve 5. At this time, press the runner 6 downward, so that the transmission rod A7 is lowered, and the clamping block 13 is disengaged from the clamping connection with the fixed cylinder 14. Wheel 6, transmission rod A7, transmission rod B8 drive bevel gear A9 to rotate, so that bevel gear A9 and bevel gear B10 mesh to drive screw 201 to rotate, and when screw 201 rotates, it drives threaded sleeve 202 to move, and threaded sleeve 202 drives slide 203 to move on base 1 The upward translation is used to adjust the angle of the limit rod 3, so as to adjust the verticality of the wallboard.

Claims (6)

1. Light wallboard combination formula mount convenient to adjust, its characterized in that: comprising

A base;

the adjusting mechanism is rotatably arranged in the base;

one end of the limiting rod is hinged with the mounting seat, and the other end of the limiting rod is in plug-in fit with the adjusting mechanism;

and the rotating wheel is rotatably arranged at one end of the base and used for driving the adjusting mechanism to rotate.

2. The lightweight wall panel combination mount for easy adjustment as set forth in claim 1, wherein: the base comprises a fixed seat and a fixed plate.

3. The lightweight wall panel combination mount for easy adjustment as set forth in claim 1, wherein: the adjusting mechanism comprises a screw rod rotationally connected with the base, a threaded sleeve is in threaded fit with the screw rod, a sliding seat is fixedly connected to the threaded sleeve, and the sliding seat is in sliding connection with the base.

4. A lightweight wallboard combination holder for easy adjustment as set forth in claim 3, wherein: the sliding seat is hinged with a sleeve, and the sleeve is in plug-in fit with the limiting rod.

5. A lightweight wallboard combination holder for easy adjustment as set forth in claim 3, wherein: the rotary wheel is fixedly connected with a transmission rod A, the transmission rod A is connected with a transmission rod B in a sliding manner, the transmission rod B is rotationally connected with the base, one end of the transmission rod B is fixedly connected with a bevel gear A, and the bevel gear A is in meshed connection with a bevel gear B fixedly connected with one end of the screw rod.

6. The lightweight wall panel combination holder for easy adjustment as set forth in claim 5, wherein: the novel transmission device is characterized in that a limiting plate is fixedly connected to the transmission rod A, one side of the limiting plate is elastically connected with the transmission rod B through a spring, a plurality of clamping blocks are fixedly connected to the other side of the limiting plate, a fixing cylinder is fixedly connected to the base, and the fixing cylinder is matched with the clamping blocks in a clamping mode.
