CN219026990U - Polishing device for corrugated aluminum plate production - Google Patents

Abstract

The utility model discloses a grinding device for corrugated aluminum plate production, which belongs to the technical field of metal grinding, and comprises a support frame, a horizontal frame is fixedly installed above the support frame, a screw slide rail is installed below the horizontal frame, and a The corrugated aluminum plate is fixed by the fixing mechanism, and the grinding mechanism that can adjust the width of the grinding block according to the width of the corrugated plate is arranged under the screw rod slide rail. In the utility model, through the grinding mechanism, the staff can increase or decrease the number of grinding blocks according to the width of the corrugated aluminum plate. By snapping the buckle on one side of one grinding block into the slot of the other grinding block, the shrapnel and the depression are reset tightly. Hold tightly in the depression, and then connect the two grinding blocks together, continue the above work, connect multiple grinding blocks together, press the trigger lever, the trigger lever moves out of the depression against the shrapnel, and then the buckle moves out of the card smoothly slots, multiple grinding blocks can be disassembled for more flexible use.

Description

Grinding device for corrugated aluminum plate production

technical field

The utility model belongs to the technical field of metal grinding, in particular to a grinding device for corrugated aluminum plate production.

Background technique

Metal grinding generally refers to the processing method of rubbing the metal surface with a grinding tool to change the smoothness and brightness of the metal surface.

However, after research, it was found that for the corrugated aluminum plate, due to the complex shape, the staff usually need to manually press and fix the corrugated aluminum plate, and use sandpaper and other grinding tools to polish the surface of the corrugated aluminum plate in turn, the work efficiency is low, and increases the staff In addition, more grinding debris will be generated during the grinding process. The debris floating in the air will damage the respiratory health of the staff and pollute the environment. Therefore, a new device is provided to solve this problem.

Utility model content

The purpose of this utility model is to provide a grinding device for corrugated aluminum plate production in order to solve the above problems.

The technical scheme adopted by the utility model is as follows: a grinding device for corrugated aluminum plate production, including a support frame, a horizontal frame is fixedly installed above the support frame, and a screw slide rail is installed below the horizontal frame;

A fixing mechanism that can fix the corrugated aluminum plate is arranged under the support frame, and a grinding mechanism that can adjust the width of the grinding block according to the width of the corrugated plate is arranged under the screw rod slide rail.

Wherein, the fixing mechanism includes an electric vacuum suction cup, a support block and a suction cup, an electric vacuum suction cup is symmetrically and fixedly installed above the support frame, and a suction cup is matched with the electric vacuum suction cup, and a support block is symmetrically and fixedly installed above the electric vacuum suction cup , and the support block is arranged in an arc that fits the corrugation of the corrugated aluminum plate, and both sides of the support block are rotatably connected to the suction cup connecting rod through a rotating shaft, and the suction cup connecting rod is elastically connected to the support block through a spring.

Wherein, the grinding mechanism includes a grinding block, a buckle, a shrapnel, a touch rod, a connecting plate and a servo electric cylinder. A servo electric cylinder is installed through a slider under the screw slide rail, and a servo electric cylinder is fixedly installed at the end of the servo electric cylinder. A connecting plate, the middle part of the lower part of the connecting plate is movably connected with a grinding block, and the lower surface of the grinding block is elastically connected with a rubber connecting plate, and the lower surface of the rubber connecting plate is glued with sandpaper, and one side of the grinding block is symmetrically fixed and installed There is a buckle, one side of the buckle is connected with a shrapnel through the rotating shaft, a torsion spring acting on the shrapnel and the buckle is nested outside the shaft, and the other side of the polishing block is embedded with a slot that fits the buckle, And the inside of the card slot is provided with a depression that fits with the shrapnel, and a trigger rod is elastically connected to the top of the grinding block through a through groove, and the end of the trigger rod extends to the inside of the depression.

Wherein, a vacuum cleaner is fixedly installed under the support frame, and a dust suction port is embedded symmetrically under the connecting plate, and the dust suction port is connected to the vacuum cleaner through a telescopic pipe.

In summary, due to the adoption of the above technical solution, the beneficial effects of the utility model are:

1. In the utility model, through the fixing mechanism, the staff assists to align the troughs on both sides of the corrugated aluminum plate with the support blocks and place them on the support frame. On the side, turn on the power supply of the electric vacuum suction cup, and the vacuum generator of the electric vacuum suction cup will absorb the air in the contact area between the suction cup and the corrugated aluminum plate, making it in a vacuum state, and then make the suction cup tightly absorb the corrugated aluminum plate, and fix the corrugated aluminum plate. It avoids the movement of the corrugated aluminum plate during grinding, which reduces the difficulty of work, and does not require manual fixing by the staff, which reduces the labor intensity of the staff.

2. In the utility model, through the grinding mechanism, the staff can increase or decrease the number of grinding blocks according to the width of the corrugated aluminum plate. Restore with the dent and firmly stuck in the dent, then connect the two grinding blocks together, continue the above work, connect multiple grinding blocks together, press the trigger lever, the trigger lever moves out of the dent against the shrapnel, and then the card The buckle is smoothly removed from the card slot, and multiple grinding blocks can be disassembled, making it more flexible to use.

3. In the utility model, through the grinding mechanism, the threaded rod slide rail drives the spliced grinding block to move back and forth along the corrugated aluminum plate, and the surface of the corrugated aluminum plate is polished, which improves the work efficiency. The vacuum cleaner works at the same time to remove the debris generated by grinding Suction through the suction port to avoid grinding debris from causing harm to the body of the staff and avoid air pollution.

Description of drawings

Fig. 1 is a schematic diagram of the overall side sectional structure of the utility model;

Fig. 2 is a schematic diagram of enlarged structure at A place of Fig. 1 in the utility model;

Fig. 3 is a schematic diagram of enlarged structure at B of Fig. 1 in the utility model;

Fig. 4 is a schematic diagram of enlarged structure at C of Fig. 1 in the utility model;

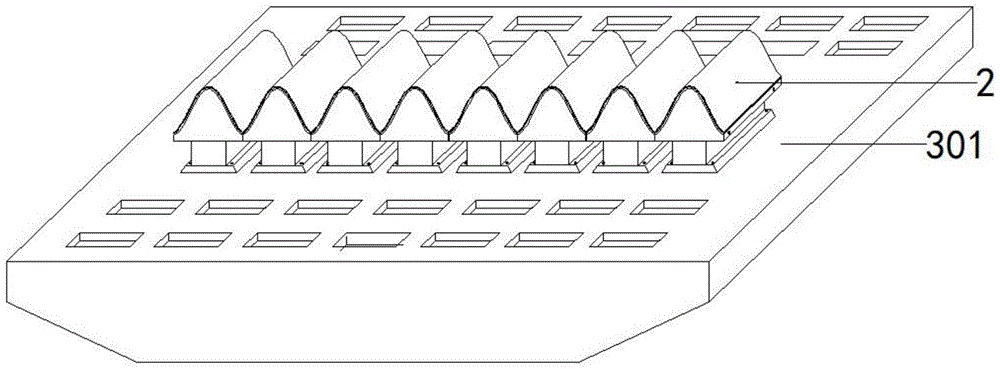

Fig. 5 is a schematic diagram of a partial three-dimensional structure of the connecting plate in the utility model.

Marks in the figure: 1, support frame; 101, horizontal frame; 1011, screw rod slide rail; 102, electric vacuum suction cup; 1021, support block; 1022, suction cup; 2, grinding block; 201, buckle; 2011, shrapnel; 202, touch rod; 3, vacuum cleaner; 301, connecting plate; 3011, servo electric cylinder.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

In the utility model:

Referring to Figures 1-5, a grinding device for corrugated aluminum plate production includes a support frame 1, a horizontal frame 101 is fixedly installed above the support frame 1, and a screw slide rail 1011 is installed below the horizontal frame 101;

A fixing mechanism that can fix the corrugated aluminum plate is provided under the support frame 1, and a grinding mechanism that can adjust the width of the grinding block according to the width of the corrugated plate is provided under the screw rod slide rail 1011.

With reference to Fig. 1, 2, further, fixing mechanism comprises electric vacuum suction cup 102, support block 1021 and suction cup 1022, and electric vacuum suction cup 102 is symmetrically fixedly installed above support frame 1, and electric vacuum suction cup 102 is equipped with suction cup 1022, and above electric vacuum suction cup 102 The support block 1021 is symmetrically and fixedly installed, and the support block 1021 is arranged in an arc shape that fits the corrugated aluminum plate, and the two sides of the support block 1021 are rotationally connected with the connecting rod of the suction cup 1022 through the rotating shaft, and the connecting rod of the suction cup 1022 is connected to the support block through a spring 1021 elastic connection;

The staff assists to align the troughs on both sides of the corrugated aluminum plate with the support block 1021 and place it on the support frame 1. The suction cup 1022 is tightly attached to both sides of the trough of the corrugated aluminum plate under the action of the rotating shaft and the spring, and the electric vacuum suction cup 102 is connected. Power supply, electric vacuum suction cup 102 is equipped with a vacuum generator to suck the air in the contact area between the suction cup 1022 and the corrugated aluminum plate to make it in a vacuum state, and then make the suction cup 1022 tightly absorb the corrugated aluminum plate to fix the corrugated aluminum plate.

Referring to Figures 1, 3, 4, and 5, further, the grinding mechanism includes a grinding block 2, a buckle 201, a shrapnel 2011, a touch lever 202, a connecting plate 301, and a servo electric cylinder 3011. Servo electric cylinder 3011, the end of servo electric cylinder 3011 is fixedly equipped with connecting plate 301, the middle part below connecting plate 301 is movably connected with grinding block 2, and the lower surface of grinding block 2 is elastically connected with rubber connecting plate, and the lower surface of rubber connecting plate Grinding sandpaper is bonded, and a buckle 201 is symmetrically fixedly installed on one side of the polishing block 2. One side of the buckle 201 is connected with a shrapnel 2011 through a rotating shaft, and a torsion spring acting on the shrapnel 2011 and the buckle 201 is nested outside the shaft. And the other side of the grinding block 2 is embedded with a draw-in groove that fits with the buckle 201, and the inside of the draw-in groove is provided with a depression that fits with the shrapnel 2011. The top of the grinding block 2 is elastically connected with a trigger lever 202 through a through groove, and the trigger lever 202 The end extends into the interior of the depression;

The staff snaps the buckle 201 on one side of one grinding block 2 into the slot of the other grinding block 2, and the shrapnel 2011 and the depression are reset and firmly stuck in the depression, and then the two grinding blocks 2 are connected together, and continue In the above work, a plurality of grinding blocks 2 are connected together, so that the width of the spliced grinding block 2 matches the width of the corrugated aluminum plate to be polished, and the number of corrugations is the same, and then the staff fixes the spliced grinding block 2 on the Below the connecting plate 301, the servo electric cylinder 3011 is extended afterwards, driving the connecting plate 301 and the grinding block 2 below the connecting plate 301 to move down, so that the grinding block 2 is stuck on the corrugated aluminum plate, and under the action of the rubber connecting plate and the spring, the The sandpaper is always attached to the surface of the corrugated aluminum plate, and then the screw slide rail 1011 works to drive the grinding block 2 to reciprocate along the corrugated aluminum plate to grind the surface of the corrugated aluminum plate. After the grinding is completed, the staff assists in turning over the corrugated aluminum plate To polish the other side, the staff can press the trigger lever 202, and the trigger lever 202 moves out of the depression against the shrapnel 2011, so that the buckle 201 is smoothly moved out of the slot, and multiple grinding blocks 2 are disassembled.

Referring to Fig. 1, further, a vacuum cleaner 3 is fixedly installed under the support frame 1, and a dust suction port is symmetrically embedded under the connecting plate 301, and the dust suction port is connected to the vacuum cleaner 3 through a telescopic pipe. During the grinding process, the vacuum cleaner 3 works. Vacuum the debris from grinding through the suction port.

Referring to Figures 1 and 2, further, the screw slide rail 1011, the electric vacuum chuck 102, the vacuum cleaner 3 and the servo electric cylinder 3011 are all electrically connected to an external power supply through a control panel.

Working principle: First, the staff assists to align the troughs on both sides of the corrugated aluminum plate with the support block 1021 and place it on the support frame 1. The suction cup 1022 is tightly attached to both sides of the trough of the corrugated aluminum plate under the action of the rotating shaft and the spring, and then connects Turn on the electric vacuum chuck 102 power supply, the electric vacuum chuck 102 is equipped with a vacuum generator to absorb the air in the contact area between the suction cup 1022 and the corrugated aluminum plate, making it in a vacuum state, and then make the suction cup 1022 tightly absorb the corrugated aluminum plate, and fix the corrugated aluminum plate , and then the staff snaps the buckle 201 on one side of one grinding block 2 into the slot of the other grinding block 2, and the shrapnel 2011 and the depression are reset tightly in the depression, and then the two grinding blocks 2 are connected together , continue the above work, connect multiple grinding blocks 2 together, so that the width of the spliced grinding block 2 matches the width of the corrugated aluminum plate to be polished, and the number of corrugations is the same, and then the staff passes the spliced grinding block 2 through the fixing bolts It is fixed under the connection plate 301, and then the servo electric cylinder 3011 is extended, driving the connection plate 301 and the grinding block 2 below the connection plate 301 to move down, so that the grinding block 2 is stuck on the corrugated aluminum plate, under the action of the rubber connection plate and the spring , so that the sandpaper is always attached to the surface of the corrugated aluminum plate, and finally the screw slide rail 1011 works to drive the grinding block 2 to reciprocate along the corrugated aluminum plate to polish the surface of the corrugated aluminum plate. For polishing the other side, the staff can press the trigger lever 202, the trigger lever 202 moves out of the depression against the shrapnel 2011, and then the buckle 201 is smoothly moved out of the slot, and multiple grinding blocks 2 are disassembled, and the vacuum cleaner 3 Working at the same time, the debris generated by grinding is sucked away through the suction port.

The above descriptions are only preferred embodiments of the present utility model, and are not intended to limit the present utility model. Any modifications, equivalent replacements and improvements made within the spirit and principles of the present utility model shall be included in this utility model. within the scope of protection of utility models.

Claims (3)

1. Polishing device is used in corrugated aluminum plate production, including support frame (1), its characterized in that: a transverse frame (101) is fixedly arranged above the support frame (1), and a screw rod sliding rail (1011) is arranged below the transverse frame (101);

a fixing mechanism capable of fixing the corrugated aluminum plate is arranged below the support frame (1), and a polishing mechanism capable of adjusting the width of the polishing block according to the width of the corrugated plate is arranged below the screw rod sliding rail (1011);

the fixing mechanism comprises an electric vacuum chuck (102), supporting blocks (1021) and suckers (1022), wherein the electric vacuum chuck (102) is symmetrically and fixedly arranged above the supporting frame (1), the suckers (1022) are matched with the electric vacuum chuck (102), the supporting blocks (1021) are symmetrically and fixedly arranged above the electric vacuum chuck (102), the supporting blocks (1021) are arranged in an arc shape which is matched with the corrugation of the corrugated aluminum plate, two sides of the supporting blocks (1021) are rotationally connected with connecting rods of the suckers (1022) through rotating shafts, and the connecting rods of the suckers (1022) are elastically connected with the supporting blocks (1021) through springs;

the polishing mechanism comprises a polishing block (2), a buckle (201), a spring piece (2011), a touch rod (202), a connecting plate (301) and a servo electric cylinder (3011);

the screw rod sliding rail (1011) below is installed servo electric jar (3011) through the slider, servo electric jar (3011) end fixed mounting has connecting plate (301), connecting plate (301) below middle part swing joint has polishing piece (2), and polishing piece (2) lower surface has rubber connecting plate through spring elastic connection, and rubber connecting plate lower surface bonding has abrasive paper of polishing, polishing piece (2) one side symmetry fixed mounting has buckle (201), buckle (201) one side is connected with shell fragment (2011) through the pivot rotation, and the outside nested torsional spring that is provided with of pivot is used for shell fragment (2011) and buckle (201), and polishing piece (2) opposite side embedding is provided with the draw-in groove that agrees with buckle (201), and the draw-in groove inside is provided with the recess that agrees with shell fragment (2011), polishing piece (2) top is through logical groove elastic connection touch pole (202), and touch pole (202) end extends to the recess inside.

2. A polishing device for corrugated aluminum plate production as defined in claim 1, wherein: a dust collector (3) is fixedly arranged below the supporting frame (1).

3. A polishing device for corrugated aluminum plate production as defined in claim 1, wherein: dust collection openings are symmetrically embedded below the connecting plates (301), and the dust collection openings are connected with the dust collector (3) through telescopic pipe pipelines.
