CN219026192U - Base fixing device for tapping machine - Google Patents

Abstract

The utility model discloses a base fixing device for a tapping machine, which comprises a base, a fixing seat is arranged on one side of the base, a reserved groove is arranged inside one side of the fixing seat, and the fixing seat Four corners of the top are movably connected with first fixing bolts, and the top of the fixing base is fixedly connected with a fixing groove, and an adjusting rod is arranged at the top of the fixing groove, and a positioning plate is sleeved outside of the adjusting rod. The base fixing device for the tapping machine is provided with the movable block of the movable groove, the first circular plate, the first assembly hole, and the third fixed bolt. Because the movable block is embedded in the movable groove and can rotate, it can be used in the tapping machine. When it is necessary to adjust the angle, turn the first circular plate to adjust its orientation. When it is adjusted to the desired position, use the third fixing bolt to screw and fix it, which makes it more suitable for use and solves the problem Easy to adjust the position of the base.

Description

A base fixing device for tapping machine

technical field

The utility model relates to the technical field of auxiliary fixing of a tapping machine base, in particular to a base fixing device for a tapping machine.

Background technique

Tapping machine is a kind of mechanical processing equipment that processes internal threads and screws on the end face of some equipment, flanges, etc. A device for auxiliary fixing of its base.

According to the application number CN201621061839.7, a tapping machine base fixing device is disclosed, which includes three sets of supporting devices, and the three sets of supporting devices are evenly distributed on the outer surface of the tapping machine base; the supporting devices include connecting rods and a support plate, one end of the connecting rod is rotatably mounted on the outer surface of the tapping machine base, and the supporting plate is connected with the other end of the connecting rod; the outer surface of the tapping machine base is provided with a connecting The rod limit installation position, the connecting rod limit installation position is provided with a rotating shaft, the connecting rod is set in the connecting rod limit installation position, and the end of the connecting rod is connected with the rotation shaft and rotates clockwise The connecting rod, the connecting rod abuts against the inner surface of the bottom of the restricting installation position of the connecting rod, the connecting rod is set perpendicular to the base of the tapping machine, and the connecting rod is rotated counterclockwise, the connecting rod The connecting rod abuts against the top inner surface of the restricting installation position, the connecting rod is arranged obliquely to the base of the tapping machine, and the bottom surface of the support plate is flush with the bottom surface of the base of the tapping machine.

According to the above scheme, by setting three sets of supporting devices on the outer surface of the tapping machine base, the setting of the supporting devices can support and reinforce the tapping machine base, and can effectively reduce the vibration generated by the tapping machine's working vibration. Shaking, to ensure the tapping efficiency and tapping quality of the tapping machine to the product, and to ensure the safety of the operator, but in the actual use process, the functionality of the auxiliary fixing device is relatively simple, and the base of the tapping machine cannot be adjusted, resulting in It is inconvenient to adjust the orientation during processing, so it is necessary to improve a base fixing device for a tapping machine.

Utility model content

The purpose of this utility model is to provide a base fixing device for a tapping machine, so as to solve the problem that it is not convenient to adjust the orientation of the base in the above-mentioned background technology.

In order to achieve the above object, the utility model provides the following technical solutions: a base fixing device for a tapping machine, including a base, one side of the base is provided with a fixing seat, and the inside of one side of the fixing seat is provided with A slot is reserved, the four corners at the top of the fixing base are movably connected with the first fixing bolts, the top of the fixing base is fixedly connected with a fixing slot, the top of the fixing slot is provided with an adjustment rod, and the top of the adjustment rod The outside is sleeved with a positioning plate, the two ends of the bottom of the positioning plate are fixedly connected with positioning blocks, the four corners of the top of the base are provided with positioning slots, and the inside of the top of the base is provided with movable slots. The top of the base is provided with a first circular plate, the inside of the first circular plate and the top of the base is provided with a first assembly hole, the inside of the first assembly hole is movably connected with a third fixing bolt, the first The bottom end of the circular plate is fixedly connected with a movable block.

Preferably, the movable block is rotatable embedded in the movable groove, two sets of the third fixing bolts are provided, and twenty sets of the first assembly holes are provided.

Preferably, the top end of the first circular plate is fixedly connected with a connecting seat, the top end of the connecting seat is fixedly connected with a second circular plate, the top end of the second circular plate is provided with a second assembly hole, and the second There are six groups of assembly holes, and second fixing bolts are movably connected inside the second assembly holes.

Preferably, the outside of the adjustment rod is provided with external threads, the inside of the positioning plate is provided with internal threads, and the bottom end of the adjustment rod is embedded in the fixing groove to be rotatable.

Preferably, two sets of positioning plates are provided, and the positioning plates are symmetrically distributed on both sides of the base.

Preferably, the positioning block is embedded in the positioning groove and is movable, and one side of the base is embedded in the reserved groove.

Compared with the prior art, the beneficial effect of the utility model is that the base fixing device for the tapping machine not only facilitates the adjustment of the orientation of the base, but also facilitates the disassembly and assembly of the base and the fixing device, and realizes the The improvement of the stability;

(1) By setting the movable block of the movable groove, the first circular plate, the first assembly hole and the third fixed bolt, because the movable block is embedded in the movable groove and can rotate, when the tapping machine needs to adjust the angle, the The first circular plate is rotated so that its orientation can be adjusted. When it is adjusted to the desired position, it can be screwed and fixed by the third fixing bolt, which makes it more suitable for use;

(2) By being provided with a second circular plate, a connecting seat, a second fixing bolt, and a second assembly hole, when installing, place the bottom end of the tapping machine on the second circular plate, and utilize the second circular plate distributed at equal intervals. The assembly hole can be used to screw and fix the base and the second circular plate with the second fixing bolt, making it convenient and fast to install;

(3) By being provided with a fixed seat, a reserved groove, a fixed groove, a first fixed bolt, an adjustment rod, a positioning plate, a positioning block, and a positioning groove, the base is placed in the reserved groove, and the adjustment rod is screwed. The positioning plate will move down on the adjusting rod, and at the same time, the positioning block will move in the positioning groove, so that the positioning plate will press and fix the base, and then use the first fixing bolt to screw and fix it on the table. The whole body is fixed, so that the tapping machine can be more stable when working like this, and it is not easy to shake.

Description of drawings

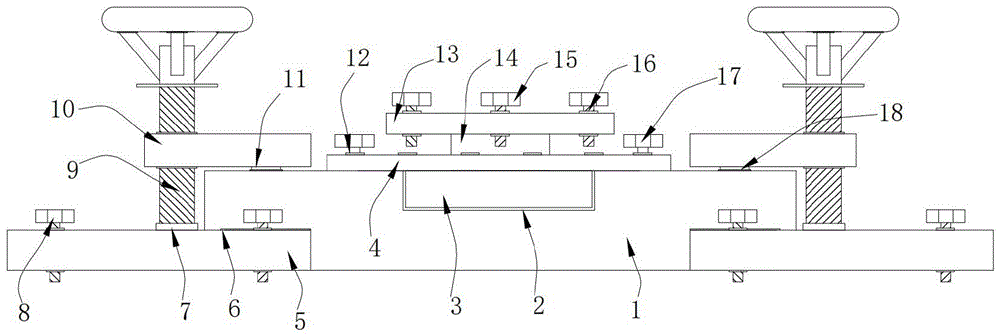

Fig. 1 is the front view sectional structure schematic diagram of the utility model;

Fig. 2 is a structural schematic diagram of the top view of the connection mode between the positioning plate and the adjusting rod of the present invention;

Fig. 3 is a top view structural diagram of the connection mode between the movable block and the movable groove of the utility model;

Fig. 4 is a top structural schematic diagram of the connection method between the second fixing bolt and the second circular plate of the present invention.

In the figure: 1. base; 2. movable groove; 3. movable block; 4. first circular plate; 5. fixed seat; 6. reserved groove; 7. fixed groove; 8. first fixing bolt; 9. Adjusting rod; 10, positioning plate; 11, positioning block; 12, the first assembly hole; 13, the second circular plate; 14, connecting seat; 15, the second fixing bolt; 16, the second assembly hole; 17, the third Fixing bolt; 18, positioning groove.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Embodiment 1: Please refer to Fig. 1-4, a base fixing device for a tapping machine, including a base 1, one side of the base 1 is provided with a fixing seat 5, and the inside of the fixing seat 5 side is provided with a reserved Groove 6, the four corners at the top of the fixed seat 5 are movably connected with the first fixed bolt 8, the top of the fixed seat 5 is fixedly connected with the fixed groove 7, the top of the fixed groove 7 is provided with the adjustment rod 9, the outer cover of the adjustment rod 9 Connected with a positioning plate 10, the two ends of the bottom of the positioning plate 10 are fixedly connected with positioning blocks 11, the four corners of the top of the base 1 are provided with positioning grooves 18, the inside of the top of the base 1 is provided with a movable groove 2, and the base 1 The top of the top is provided with a first circular plate 4, the inside of the first circular plate 4 and the top of the base 1 is provided with a first assembly hole 12, the inside of the first assembly hole 12 is movably connected with a third fixing bolt 17, the first circular plate The bottom end of 4 is fixedly connected with movable block 3;

The movable block 3 is embedded in the movable groove 2 to be rotatable, the third fixing bolt 17 is provided with two groups, and the first assembly hole 12 is provided with twenty groups;

Specifically, as shown in Figures 1 and 3, when the tapping machine needs to adjust the angle, the first circular plate 4 can be rotated to adjust its orientation, and when it is adjusted to the required position, the third fixing bolt can be used to 17 Screw it to the base 1 and fix it.

Embodiment 2: The top end of the first circular plate 4 is fixedly connected with the connection seat 14, the top end of the connection seat 14 is fixedly connected with the second circular plate 13, the top of the second circular plate 13 is provided with a second assembly hole 16, the second assembly There are six groups of holes 16, and second fixing bolts 15 are movably connected inside the second assembly holes 16;

Specifically, as shown in Figures 1 and 4, during installation, the bottom end of the tapping machine is placed on the second circular plate 13, and the second assembly holes 16 distributed at equal intervals can be used to connect the base to the second circular plate. The plates 13 are screwed and fixed by the second fixing bolts 15, and when dismounting, the second fixing bolts 15 can be disassembled.

Embodiment 3: the outside of the adjustment rod 9 is provided with external threads, the inside of the positioning plate 10 is provided with internal threads, and the bottom end of the adjustment rod 9 is embedded in the fixed groove 7 to be rotatable;

There are two groups of positioning plates 10, and the positioning plates 10 are symmetrically distributed on both sides of the base 1;

The positioning block 11 is movable inside the positioning groove 18, and one side of the base 1 is embedded inside the reserved groove 6;

Specifically, as shown in Figure 1 and Figure 2, the base 1 is placed in the reserved groove 6, and the adjusting rod 9 is screwed, at this time the positioning plate 10 will move downward on the adjusting rod 9, and the positioning block 11 will Move in the positioning groove 18, make the positioning plate 10 press and fix the base 1, and then use the first fixing bolt 8 to screw and fix it on the table, so that the whole can be fixed.

Working principle: When the utility model is in use, firstly, place the base 1 in the reserved groove 6, and screw the adjusting rod 9, at this time, the positioning plate 10 will move downward on the adjusting rod 9, and the positioning block 11 will move downward at the same time. Move in the positioning groove 18, make its positioning plate 10 press and fix the base 1, and then use the first fixing bolt 8 to screw and fix it on the table, so that the whole can be fixed. After that, when installing, the The bottom end of the tapping machine is placed on the second circular plate 13, and the second assembly holes 16 distributed at equal intervals can be used to screw and fix the base and the second circular plate 13 with second fixing bolts 15. When dismounting, Then the second fixing bolt 15 can be disassembled. Finally, when the tapping machine needs to adjust the angle, the first circular plate 4 can be rotated to adjust its orientation. Bolt 17 is screwed between it and base 1 and gets final product.

It is obvious to those skilled in the art that the present invention is not limited to the details of the above exemplary embodiments, and that the present invention can be implemented in other specific forms without departing from the spirit or essential features of the present invention. Therefore, no matter from all points of view, the embodiments should be regarded as exemplary and non-restrictive, and the scope of the present invention is defined by the appended claims rather than the above description, so it is intended to fall within the scope of the claims All changes within the meaning and range of equivalents of the required elements are included in the present invention. Any reference sign in a claim should not be construed as limiting the claim concerned.

Claims (6)

1. Base fixing device that tapping machine was used, including base (1), its characterized in that: one side of base (1) is provided with fixing base (5), the inside of fixing base (5) one side is provided with reservation groove (6), four corner swing joint in fixing base (5) top have first fixing bolt (8), the top fixedly connected with fixed slot (7) of fixing base (5), the top of fixed slot (7) is provided with regulation pole (9), locating plate (10) have been cup jointed to the outside of adjusting pole (9), the both ends fixedly connected with locating piece (11) of locating plate (10) bottom, four corners on base (1) top are provided with constant head tank (18), the inside on base (1) top is provided with movable groove (2), the top of base (1) is provided with first plectane (4), the inside on first plectane (4) and base (1) top is provided with first pilot hole (12), the inside swing joint of first pilot hole (12) has third fixing bolt (17), the bottom fixedly connected with movable block (3) of first plectane (4).

2. A base fixture for a tapping machine as defined in claim 1, wherein: the movable block (3) is embedded in the movable groove (2) and is rotatable, two groups of third fixing bolts (17) are arranged, and twenty groups of first assembly holes (12) are formed.

3. A base fixture for a tapping machine as defined in claim 1, wherein: the novel connecting device is characterized in that a connecting seat (14) is fixedly connected to the top end of the first circular plate (4), a second circular plate (13) is fixedly connected to the top end of the connecting seat (14), a second assembly hole (16) is formed in the top end of the second circular plate (13), six groups of second assembly holes (16) are formed, and a second fixing bolt (15) is movably connected to the inside of each second assembly hole (16).

4. A base fixture for a tapping machine as defined in claim 1, wherein: the outer part of the adjusting rod (9) is provided with external threads, the inner part of the positioning plate (10) is provided with internal threads, and the bottom end of the adjusting rod (9) is embedded in the fixing groove (7) to rotate.

5. A base fixture for a tapping machine as defined in claim 1, wherein: the positioning plates (10) are arranged in two groups, and the positioning plates (10) are symmetrically distributed on two sides of the base (1).

6. A base fixture for a tapping machine as defined in claim 1, wherein: the positioning block (11) is embedded in the positioning groove (18) and is movable, and one side of the base (1) is embedded in the reserved groove (6).
