CN219010279U - A new type of microbial fermentation tank - Google Patents

Abstract

The utility model provides a novel microbial fermentation tank, comprising a fermentation tank, a pillar is fixedly installed under the fermentation tank, a top cover is arranged at one end of the fermentation tank, and a drive motor is fixedly installed at one end of the top cover, so One end of the drive motor is equipped with a connecting shaft, the outer ring of the connecting shaft is fixedly equipped with a stirring blade, the inside of the fermenter is provided with a temperature control mechanism, one side of the fermenter is provided with a filter mechanism, and the fermenter One side of the tank is provided with an observation mechanism. The new microbial fermentation tank, through the setting of the discharge port, the fixed frame, the filter screen, the connecting pipe and the discharge valve, when in use, the filter screen is installed above the discharge port through the fixed frame, and then the connecting pipe and the discharge valve are connected. The lower part of the feed port is welded together, and the discharge valve is installed at one end of the connecting pipe. When the fermenter is discharging, the internal impurities can be filtered by the filter first, so that the purity of the finished product is better. better quality.

Description

A new type of microbial fermentation tank

technical field

The utility model relates to the technical field related to microbial fermentation, in particular to a novel microbial fermentation tank.

Background technique

Microbial fermentation refers to the process of using microorganisms to transform raw materials into products needed by humans through specific metabolic pathways under suitable conditions. The production level of microbial fermentation mainly depends on the genetic characteristics and culture conditions of the strain itself. Fermentation engineering The scope of application of pharmaceutical industry, food industry, energy industry, chemical industry, agriculture: transformation of plant genes; biological nitrogen fixation; engineering insecticide biopesticides; microbial nutrient environmental protection, etc., and in the fermentation process, it is indispensable Fermentation tanks will be used. Fermentation tanks are industrially used for microbial fermentation. During the fermentation process, it is necessary to separate the impurities produced by fermentation from the waste liquid. Therefore, a new type of microbial fermentation tank is especially needed. .

However, in the existing new microbial fermentation tanks, in the process of use, some fermentation tanks directly store and ferment the raw materials after stirring, and the impurities produced during the fermentation process will also be discharged together with the fermented product through the outlet. , so that the finished product of fermentation will be doped with certain impurities, which will affect the overall quality.

Utility model content

The purpose of this utility model is to provide a new type of microbial fermentation tank to solve the existing new type of microbial fermentation tank proposed in the above-mentioned background technology. During use, some fermentation tanks directly store and ferment raw materials after stirring. , The impurities produced during the fermentation process will also be discharged together with the fermented product through the outlet, so that the finished product of fermentation will be doped with certain impurities, which will affect the overall quality.

In order to achieve the above object, the utility model provides the following technical solutions: a novel microbial fermentation tank, comprising a fermentation tank, a pillar is fixedly installed below the fermentation tank, a top cover is provided at one end of the fermentation tank, and the top cover One end of the drive motor is fixedly installed with a drive motor, one end of the drive motor is equipped with a connecting shaft, the outer ring of the connecting shaft is fixedly equipped with a stirring blade, the inside of the fermenter is provided with a temperature control mechanism, and one of the fermenter A filtering mechanism is arranged on one side of the fermenter, and an observation mechanism is arranged on one side of the fermenter.

Preferably, the stirring blades form a rotating structure through a connecting shaft and a driving motor, and the stirring blades are distributed at one end of the connecting shaft at equal intervals.

Preferably, the temperature control mechanism includes a fixed groove, a heating wire and a control box, a fixing groove is opened around the inside of the fermenter, one end of the fixing groove is covered with a heating wire, and one end of the heating wire Connected to the control box.

Preferably, the filter mechanism includes a discharge port, a fixed frame, a filter screen, a connecting pipe and a discharge valve, a discharge port is provided below the inner wall of the fermenter, and a fixed frame is installed on the upper surface of the discharge port , the surface of the fixed frame is welded with a filter screen, a connecting pipe is connected below the discharge port, and one end of the connecting pipe is connected with a discharge valve.

Preferably, the fixed frame is in close contact with the surface of the outlet, and the filter screen is a high-density filter screen structure.

Preferably, the observation mechanism includes a communication pipe, a glass cover and a scale line, the two sides of the surface of the fermenter are penetrated with a communication tube, one end of the communication tube is connected to a glass cover, and the surface of the glass cover is provided with a scale line .

Compared with the prior art, the beneficial effect of the utility model is: the novel microbial fermentation tank, through the setting of the discharge port, the fixed frame, the filter screen, the connecting pipe and the discharge valve, when in use, the filter screen is passed through the fixed The frame is installed on the top of the discharge port, and then the connecting pipe and the bottom of the discharge port are welded together. At the same time, one end of the connecting pipe is installed with a discharge valve. When the fermenter is discharging, the internal impurities can be filtered The net is firstly filtered to make the finished product more pure and of better quality.

Description of drawings

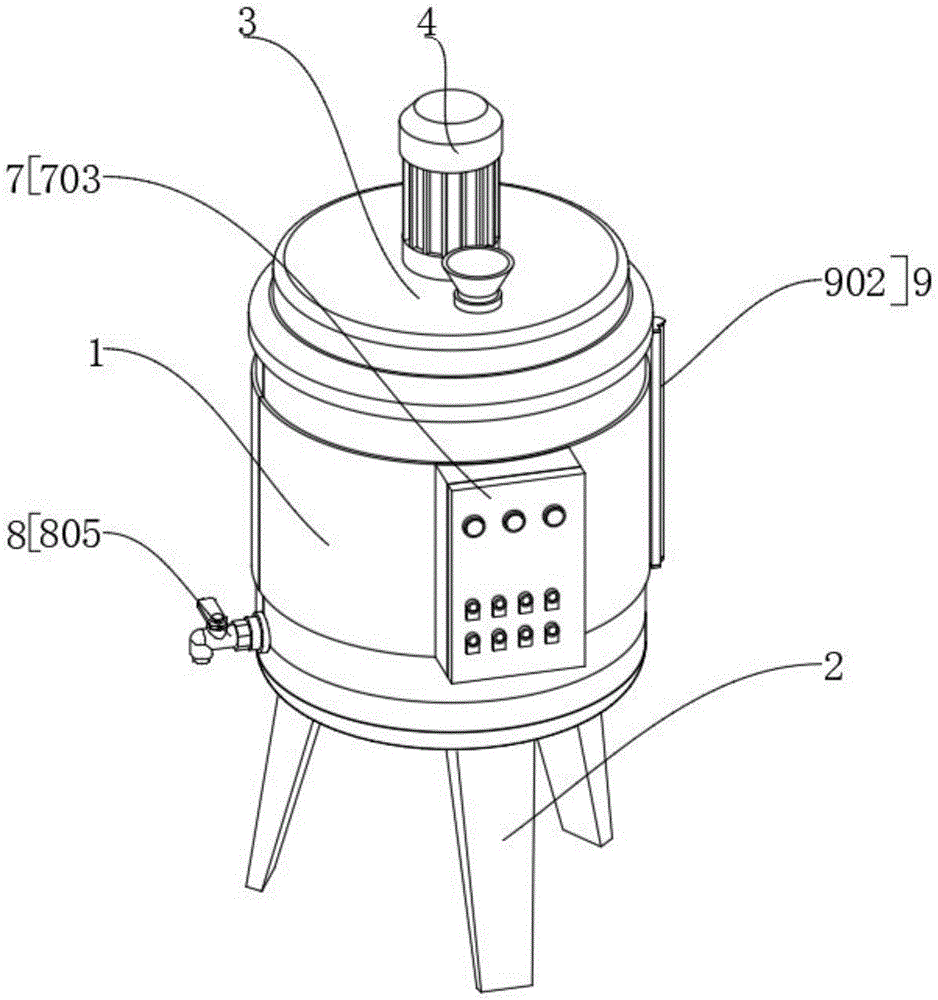

Fig. 1 is a schematic diagram of the utility model side view appearance structure;

Fig. 2 is a schematic diagram of the utility model's cross-sectional appearance structure;

Fig. 3 is a structural schematic diagram of the utility model observation mechanism;

Fig. 4 is a schematic diagram of the cooperation structure of the fixing frame and the filter net of the present invention.

In the figure: 1. Fermentation tank; 2. Pillar; 3. Top cover; 4. Driving motor; 5. Connecting shaft; 6. Stirring blade; 7. Temperature control mechanism; Electric control box; 8. Filtration mechanism; 801, discharge port; 802, fixed frame; 803, filter screen; 804, connecting pipe; 805, discharge valve; 9, observation mechanism; 901, connecting pipe; 902, glass cover ; 903, scale line.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Figures 1-4, the utility model provides a technical solution: a novel microbial fermentation tank, including a fermentation tank 1, a pillar 2 is fixedly installed below the fermentation tank 1, and a top cover 3 is provided at one end of the fermentation tank 1, One end of the top cover 3 is fixedly mounted with a drive motor 4, one end of the drive motor 4 is mounted with a connecting shaft 5, the outer ring of the connecting shaft 5 is fixedly mounted with a stirring blade 6, and the inside of the fermenter 1 is provided with a temperature control mechanism 7. One side of the fermenter 1 is provided with a filtering mechanism 8, and one side of the fermenter 1 is provided with an observation mechanism 9.

Further, the stirring blade 6 constitutes a rotating structure through the connecting shaft 5 and the driving motor 4, and the stirring blades 6 are equidistantly distributed at one end of the connecting shaft 5. Through the setting of the driving motor 4, the connecting shaft 5 and the stirring blade 6, when in use The stirring blade 6 connected to the outer ring of the shaft 5 can be driven by the driving motor 4 to rotate, thereby stirring the raw materials inside the fermenter 1, and the simultaneous rotation of multiple groups of stirring blades 6 can make the stirring more uniform.

Further, the temperature control mechanism 7 includes a fixed groove 701, a heating wire 702 and an electrical control box 703. A fixed groove 701 is opened around the inside of the fermenter 1, and a heating wire 702 is set on one end of the fixing groove 701. The heating wire 702 One end is connected with a control box 703, through the setting of the fixing groove 701, the heating wire 702 and the control box 703, when in use, the heating wire 702 is set and installed in the fixing groove 701, and then the heating wire 702 is connected with the fermentation tank 1 The electric control box 703 on the outside is connected, and the electric heating wire 702 is controlled to generate heat through the electric control box 703, so that the fermenter 1 can be heated and controlled, and the electric heating wire 702 with a spiral structure can make the heating more uniform.

Further, the filter mechanism 8 includes a discharge port 801, a fixed frame 802, a filter screen 803, a connecting pipe 804, and a discharge valve 805. The bottom of the inner wall of the fermenter 1 is provided with a discharge port 801, and the upper surface of the discharge port 801 is installed There is a fixed frame 802, the surface of the fixed frame 802 is welded with a filter screen 803, the bottom of the discharge port 801 is connected with a connecting pipe 804, and one end of the connecting pipe 804 is connected with a discharge valve 805, through the discharge port 801, the fixed frame 802, The setting of filter screen 803, connection pipe 804 and discharge valve 805, when in use, filter screen 803 is installed on the top of discharge port 801 through fixed frame 802, then the bottom of connection pipe 804 and discharge port 801 are welded Together, one end of the connecting pipe 804 is installed with a discharge valve 805. While the fermenter 1 is discharging, the internal impurities can be filtered by the filter 803 first, so that the purity of the finished product is better and the quality is better. good.

Further, the fixed frame 802 is closely attached to the surface of the discharge port 801, and the filter screen 803 is a high-density filter screen structure. Through the setting of the filter screen 803, the filter screen 803 can block most of the impurities in the finished product of fermentation, so that the quality of the finished product is improved. excellent.

Further, the observation mechanism 9 includes a connecting pipe 901, a glass cover 902 and a scale line 903. Both sides of the surface of the fermenter 1 are penetrated with a connecting pipe 901, and one end of the connecting pipe 901 is connected to a glass cover 902, and the surface of the glass cover 902 is provided with a scale Line 903, through the setting of connecting pipe 901, glass cover 902 and scale line 903, when in use, the raw materials inside the fermenter 1 will enter the glass cover 902 along the connecting pipe 901, and the liquid level displayed in the glass cover 902 is consistent with the fermentation The inside of the tank 1 is consistent, and the scale line 903 can display the liquid level height more accurately.

Working principle: firstly install the heating wire 702 in the fixed groove 701, then connect the heating wire 702 with the electric control box 703 outside the fermenter 1, and control the electric heating wire 702 to generate heat through the electric control box 703, so that the fermenter 1 can be heated and controlled, and then pour the raw materials that need to be fermented into the fermenter 1, and then turn on the drive motor 4, and the stirring blade 6 connected to the outer ring of the shaft 5 can be driven by the drive motor 4 to rotate, so that the raw materials inside the fermenter 1 Stir, and the simultaneous rotation of multiple sets of stirring blades 6 can make the stirring more uniform. Finally, the raw materials in the fermenter 1 will enter the glass cover 902 along the connecting pipe 901, and the liquid level displayed in the glass cover 902 is the same as that of the fermenter 1. Internally consistent, and the scale line 903 can more accurately display the liquid level height, thus completing a new type of microbial fermenter.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (6)

1. A novel microorganism fermentation tank, which comprises a fermentation tank (1), and is characterized in that: the utility model discloses a fermentation cylinder, including fermentation cylinder (1), connecting axle (5), outer lane fixed mounting has stirring leaf (6), the inside of fermentation cylinder (1) is provided with control by temperature change mechanism (7), one side of fermentation cylinder (1) is provided with filtering mechanism (8), one side of fermentation cylinder (1) is provided with observation mechanism (9).

2. The novel microbial fermentation tank according to claim 1, wherein the stirring blades (6) and the driving motor (4) form a rotating structure through the connecting shaft (5), and the stirring blades (6) are distributed at equal intervals at one end of the connecting shaft (5).

3. The novel microorganism fermentation tank according to claim 1, wherein the temperature control mechanism (7) comprises a fixing groove (701), an electric heating wire (702) and an electric control box (703), the fixing groove (701) is formed in the inner side of the fermentation tank (1) in a circle, the electric heating wire (702) is sleeved at one end of the fixing groove (701), and one end of the electric heating wire (702) is connected with the electric control box (703).

4. The novel microorganism fermentation tank according to claim 1, wherein the filtering mechanism (8) comprises a discharge hole (801), a fixed frame (802), a filter screen (803), a connecting pipe (804) and a discharge valve (805), the discharge hole (801) is formed below the inner wall of the fermentation tank (1), the fixed frame (802) is mounted on the surface of the upper portion of the discharge hole (801), the filter screen (803) is welded on the surface of the fixed frame (802), the connecting pipe (804) is connected to the lower portion of the discharge hole (801), and one end of the connecting pipe (804) is connected with the discharge valve (805).

5. The novel microbial fermentation tank according to claim 4, wherein the fixed frame (802) is tightly attached to the surface of the discharge port (801), and the filter screen (803) is a high-density filter screen structure.

6. The novel microbial fermentation tank according to claim 1, wherein the observation mechanism (9) comprises a communicating pipe (901), a glass cover (902) and scale marks (903), the communicating pipe (901) penetrates through two sides of the surface of the fermentation tank (1), one end of the communicating pipe (901) is connected with the glass cover (902), and the scale marks (903) are arranged on the surface of the glass cover (902).
