Abstract

The utility model discloses a granite surface treatment machine, which comprises a frame. The inner wall of the frame rotates with two turntables. The sides of the two turntables close to each other are fixedly equipped with hydraulic rods. The telescopic ends of each hydraulic rod Both are fixedly installed with a clamping plate. The left side of the frame is respectively provided with a rotating motor and a rotating motor. The output end of the rotating motor power runs through the frame and is fixedly connected with the left side of one of the turntables. The internal rotation of the frame is connected with Ball screw, the left end of the ball screw runs through the frame and is fixedly connected with the output end of the rotating motor power, the outer surface of the ball screw is threaded with a moving block, and an electric push rod is arranged under the moving block, and the telescopic movement of the electric push rod The end is fixed with a movable plate. The utility model realizes the purpose of turning over the granite by setting a frame, a hydraulic rod, a clamping plate, a rotating motor and a turntable, thereby eliminating the need for workers to turn over manually and reducing the work intensity of the workers.

Description

A granite surface treatment machine

technical field

The utility model relates to the technical field of stone processing, in particular to a granite surface treatment machine.

Background technique

Granite is mainly composed of quartz, feldspar and mica. Granite is a unique material. Granite has high-strength heat resistance and stability. It will not change due to changes in external temperature. Granite is processed into flowers. After the granite slab is installed, the surface of the granite slab needs to be polished to improve the surface finish of the stone slab.

The utility model with the existing authorized notification number CN210255640U discloses a granite slab surface treatment machine, including a base plate, the upper surface of the base plate is provided with two side risers, and the inner surfaces of the upper ends of the two side risers are all fixed. There is a rotating seat, the center of the two rotating seats is connected with a screw rod, the outer surface of the screw rod is threaded with a moving block, the bottom of the moving block is fixedly connected with a connecting rod, and the bottom of the connecting rod is fixed A grinding motor is connected, and the output end of the grinding motor is connected with a polishing wheel.

The above-mentioned technical solution solves the problems in the prior art that the polishing is not comprehensive enough, there are dead angles, and the polishing effect is not good. When the other side of the stone is processed, workers need to manually turn over the stone, which increases the processing time of the workers and reduces the work efficiency of the workers.

Utility model content

In view of this, it is necessary to provide a granite surface treatment machine to solve the problem that the granite surface treatment machine does not have the stone turning function.

According to one aspect of the present invention, a granite surface treatment machine is provided, which includes a frame, two turntables rotate on the inner wall of the frame, and hydraulic rods are fixedly installed on the sides of the two turntables that are close to each other. The telescopic end of each hydraulic rod is fixedly equipped with a clamping plate, and the left side of the frame is respectively provided with a rotating motor and a rotating motor, and the output end of the rotating motor power runs through the frame and is connected to The left side is fixedly connected, the inside of the frame is rotatably connected with a ball screw, the left end of the ball screw runs through the frame and is fixedly connected with the output end of the rotating motor power, the outer surface of the ball screw is threaded There is a moving block, an electric push rod is arranged under the moving block, and a moving plate is fixedly installed on the telescoping end of the electric push rod.

According to some embodiments, a cylinder is fixedly installed on the bottom surface of the moving plate, a stepper motor is fixedly installed at the telescoping end of the cylinder, and a polishing disc is fixedly installed at the output end of the stepper motor power.

According to some embodiments, two sets of support legs are fixedly installed on the bottom surface of the rack, and a mounting plate is fixedly installed on the bottom surface of each of the support legs.

According to some embodiments, two automatic telescopic rods are fixedly installed on the inner bottom wall of the frame, and a support plate is fixedly installed on the telescopic ends of the two automatic telescopic rods.

According to some embodiments, both the bottom surface of the rotating motor and the bottom surface of the rotating motor are fixedly installed with support platforms, and the right side of each support platform is fixedly connected with the left side of the frame.

According to some embodiments, a slide bar is fixedly installed on the inner wall of the frame, and the slide bar is slidably connected inside the moving block.

According to some embodiments, a fixing base is fixedly installed on the outer surface of the electric push rod, and the upper surface of the fixing base is fixedly connected with the bottom surface of the moving block.

According to some embodiments, two sliding blocks are fixedly installed on the upper surface of the moving plate, two sliding slots are opened on the bottom surface of the moving block, and each of the sliding blocks is slidably connected inside the sliding slots.

Compared with the prior art, the beneficial effects of the utility model are as follows: by providing a hydraulic rod and a clamping plate, the power provided by the hydraulic rod drives the clamping plate to move, thereby realizing the purpose of fixing the granite, Furthermore, the stability of the granite processing process is ensured. By setting up a rotating motor and a turntable, the power provided by the rotating motor is used to drive the turntable to rotate, thereby realizing the purpose of turning over the granite without manual turning by workers. It reduces the work intensity of the workers and increases the work efficiency of the workers. By setting up a rotating motor, a ball screw, a moving block, an electric push rod and a moving plate, the power provided by the rotating motor and the ball screw drive the moving block to move left and right. At the same time, the power provided by the electric push rod is used to drive the moving plate to move back and forth, so as to realize the purpose of adjusting the position of the polishing device, and then facilitate the workers to process the granite surface.

Description of drawings

In order to more clearly illustrate the technical solutions in the embodiments of the present invention or the prior art, the following will briefly introduce the accompanying drawings that need to be used in the description of the embodiments or the prior art. Obviously, the accompanying drawings in the following description These are only some embodiments of the present utility model, and those skilled in the art can also obtain other drawings according to these drawings without any creative effort.

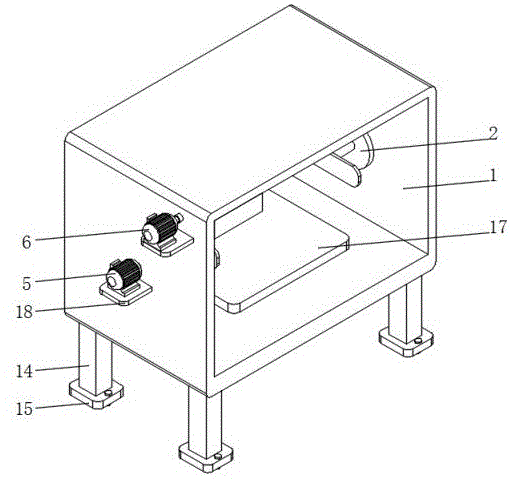

Fig. 1 is the three-dimensional structural schematic diagram of a frame of a granite surface treatment machine provided by the utility model;

Fig. 2 is the three-dimensional structural schematic diagram of the frame sectional view of a granite surface treatment machine provided by the utility model;

Fig. 3 is a three-dimensional structural schematic diagram of a bottom view of a moving block of a granite surface treatment machine provided by the utility model;

Fig. 4 is a three-dimensional structure diagram of a moving plate of a granite surface treatment machine provided by the utility model.

In the figure: 1. Rack; 2. Turntable; 3. Hydraulic rod; 4. Clamping plate; 5. Rotating motor; 6. Rotating motor; 7. Ball screw; 8. Moving block; 9. Electric push rod; 10. Moving plate; 11. Cylinder; 12. Stepping motor; 13. Polishing disc; 14. Supporting leg; 15. Mounting plate; 16. Automatic telescopic rod; 17. Supporting plate; ; 20, fixed seat; 21, slide block; 22, chute.

Detailed ways

In order to make the purpose, technical solution and advantages of the utility model clearer, the utility model will be further described in detail below in conjunction with the accompanying drawings and embodiments. It should be understood that the specific embodiments described here are only used to explain the utility model, and are not intended to limit the utility model.

Please refer to Fig. 1 to Fig. 4, the utility model provides a kind of granite surface treatment machine, comprises frame 1, and the inner wall of frame 1 rotates to have two turntables 2, and one side of two turntables 2 close to each other is fixedly installed Hydraulic rods 3, the telescopic ends of each hydraulic rod 3 are fixedly equipped with a clamping plate 4, the left side of the frame 1 is respectively provided with a rotating motor 5 and a rotating motor 6, the output end of the rotating motor 5 power runs through the frame 1 and It is fixedly connected with the left side of one of the turntables 2, and the inside of the frame 1 is connected with a ball screw 7 for rotation. The left end of the ball screw 7 runs through the frame 1 and is fixedly connected with the power output end of the rotary motor 6. The outer surface of 7 is threadedly connected with moving block 8, and the bottom of moving block 8 is provided with electric push rod 9, and the telescoping end of electric push rod 9 is fixedly equipped with moving plate 10.

The turntables 2 are rotatably connected to the inner wall of the frame 1 through the rotating shafts, and the rotating motor 5 is fixedly connected to one of the rotating shafts. The sides of the two clamping plates 4 that are close to each other are provided with anti-slip lines, thereby increasing the gripping of the clamping plates 4. Frictional force between stones, rotating motor 5 and rotating motor 6 all have self-locking function.

Further, a cylinder 11 is fixedly installed on the bottom surface of the moving plate 10, a stepper motor 12 is fixedly installed at the telescoping end of the cylinder 11, and a polishing disc 13 is fixedly installed at the output end of the power of the stepper motor 12, and the power provided by the cylinder 11 is used to drive the polishing disc. The optical disc 13 moves downwards, and at the same time, the power provided by the stepping motor 12 is used to drive the polishing disc 13 to rotate, thus playing the role of polishing the granite surface.

Further, two sets of support legs 14 are fixedly installed on the bottom surface of the frame 1, and a mounting plate 15 is fixedly mounted on the bottom surface of each support leg 14, and the mounting plate 15 is fixed on the ground by bolts, thereby avoiding the occurrence of The phenomenon of self-moving ensures the stability of the rack 1 .

Further, two automatic telescopic rods 16 are fixedly installed on the inner bottom wall of the frame 1, and the telescopic ends of the two automatic telescopic rods 16 are jointly fixedly installed with a support plate 17, and the power provided by the automatic telescopic rod 16 is used to drive the support plate 17 upward. Move, thereby playing a role in supporting the granite, thereby ensuring the stability of the granite processing process.

Further, the bottom surface of the rotating motor 5 and the bottom surface of the rotating motor 6 are all fixedly equipped with a supporting platform 18, and the right side of each supporting platform 18 is fixedly connected with the left side of the frame 1, and the installation of the supporting platform 18, The effect of fixing the rotating motor 5 and the rotating motor 6 is achieved, thereby avoiding the phenomenon that the rotating motor 5 and the rotating motor 6 rotate during work as far as possible, and then ensuring the stability of the rotating motor 5 and the rotating motor 6 .

Further, the inner wall of the frame 1 is fixedly equipped with a slide bar 19, and the slide bar 19 is slidably connected to the inside of the moving block 8. The installation of the slide bar 19 plays a role of limiting the moving track of the moving block 8, thereby avoiding the movement of the moving block 8 as much as possible. The phenomenon of deviating from the moving track occurs during the movement, thereby ensuring the stability of the movement of the moving block 8 .

Further, the outer surface of electric push rod 9 is fixedly installed with fixed seat 20, and the upper surface of fixed seat 20 is fixedly connected with the bottom surface of moving block 8, and the installation of fixed seat 20 has played the effect of fixing electric push rod 9, thereby as far as possible The phenomenon that the electric push rod 9 shakes during operation is avoided, thereby ensuring the stability of the electric push rod 9 .

Further, two slide blocks 21 are fixedly installed on the upper surface of the moving plate 10, and the bottom surface of the moving block 8 is provided with two slide grooves 22, and each slide block 21 is slidably connected in the inside of the slide groove 22. The shape is T-shaped, and the shape of the chute 22 matches the slide block 21. The installation of the slide block 21 and the chute 22 plays a role of limiting the moving track of the moving plate 10, thereby ensuring the stability of the moving plate 10.

Working principle: When in use, the worker first fixes the mounting plate 15 to the ground to ensure the stability of the frame 1, and then the worker connects the hydraulic rod 3, the rotating motor 5, the rotating motor 6, the electric push rod 9, the cylinder 11, the step The feed motor 12 and the automatic telescopic rod 16 are connected with the power supply. When the worker processes the granite, the worker first places the granite between the two clamping plates 4, and then the worker opens the hydraulic rod 3 and the automatic telescopic rod 16. Use the power provided by the hydraulic rod 3 to drive the two clamping plates 4 to move closer to each other, so that the clamping plate 4 can fix the granite, and at the same time use the power provided by the automatic telescopic rod 16 to drive the support plate 17 Move upwards, thereby playing the purpose of supporting the granite, and then the worker opens the rotating motor 6, the electric push rod 9, the cylinder 11 and the stepping motor 12, and uses the power provided by the stepping motor 12 to drive the polishing disc 13 to rotate. At the same time, the power provided by the cylinder 11 is used to drive the polishing disc 13 to move downward, and then the power provided by the rotating motor 6 is used to drive the ball screw 7 to rotate, so that the ball screw 7 drives the moving block 8 to move left and right. The power provided by 9 drives the moving plate 10 to move back and forth, thereby realizing the purpose of processing the granite surface. When the worker needs to turn over the granite, firstly, the moving block 8 is moved to the On the right side of the frame 1, the power provided by the automatic telescopic rod 16 is used to drive the support plate 17 to move downward, and then the worker turns on the rotating motor 5, and the power provided by the rotating motor 5 is used to drive the turntable 2 to rotate, thereby realizing the transformation of the granite. The purpose of turning over the granite, and then repeat the above-mentioned treatment process to complete the process of granite surface treatment.

In the accompanying drawings of this embodiment, the same or similar symbols correspond to the same or similar components; in the description of the utility model, it should be understood The orientation or positional relationship indicated by etc. is based on the orientation or positional relationship shown in the drawings, which is only for the convenience of describing the utility model and simplifying the description, rather than indicating or implying that the device or element referred to must have a specific orientation, use a specific Therefore, the terms describing the positional relationship in the drawings are for illustrative purposes only, and should not be construed as limitations on this patent. Those of ordinary skill in the art can understand the specific meanings of the above terms according to specific situations .

Claims (8)

1. A granite surface treatment machine, characterized in that it includes a frame (1), the inner wall of the frame (1) rotates with two turntables (2), and the two turntables (2) are close to each other A hydraulic rod (3) is fixedly installed on one side, and a clamping plate (4) is fixedly installed on the telescopic end of each hydraulic rod (3), and a rotating motor is respectively installed on the left side of the frame (1) (5) and a rotating motor (6), the power output end of the rotating motor (5) runs through the frame (1) and is fixedly connected to the left side of one of the turntables (2), the frame (1) A ball screw (7) is connected internally for rotation. The left end of the ball screw (7) passes through the frame (1) and is fixedly connected with the power output end of the rotating motor (6). The ball screw (7) A moving block (8) is threadedly connected to the outer surface, an electric push rod (9) is arranged under the moving block (8), and a moving plate (10) is fixedly installed on the telescoping end of the electric push rod (9). 2. A granite surface treatment machine according to claim 1, characterized in that a cylinder (11) is fixedly installed on the bottom surface of the moving plate (10), and a telescopic end of the cylinder (11) is fixedly installed with A stepping motor (12), a polishing disc (13) is fixedly installed at the power output end of the stepping motor (12). 3. A granite surface treatment machine according to claim 1, characterized in that two sets of support legs (14) are fixedly installed on the bottom surface of the frame (1), each of the support legs (14) The bottom surface of each is fixedly equipped with a mounting plate (15). 4. A granite surface treatment machine according to claim 1, characterized in that two automatic telescopic rods (16) are fixedly installed on the inner bottom wall of the frame (1), and the two automatic telescopic rods (16) The telescoping ends of the rods (16) are jointly fixedly equipped with a support plate (17). 5. A granite surface treatment machine according to claim 1, characterized in that, the bottom surface of the rotating motor (5) and the bottom surface of the rotating motor (6) are fixedly installed with a support platform (18), each The right side of the supporting platform (18) is fixedly connected with the left side of the frame (1). 6. A granite surface treatment machine according to claim 1, characterized in that a sliding rod (19) is fixedly installed on the inner wall of the frame (1), and the sliding rod (19) is slidably connected to move Inside of block (8). 7. A granite surface treatment machine according to claim 1, characterized in that, a fixing seat (20) is fixedly installed on the outer surface of the electric push rod (9), and the upper surface of the fixing seat (20) The surface is fixedly connected with the bottom surface of the moving block (8). 8. A granite surface treatment machine according to claim 1, characterized in that two sliders (21) are fixedly installed on the upper surface of the moving plate (10), and the moving block (8) Two sliding grooves (22) are provided on the bottom surface, and each of the sliding blocks (21) is slidably connected to the inside of the sliding grooves (22).
