CN219003908U - Automobile parts maintenance cleaning device - Google Patents

Abstract

The utility model relates to a maintenance and cleaning device for auto parts, which comprises a fixing seat, the top of the fixing seat is provided with a cleaning mechanism, the top of the fixing seat is provided with a drying mechanism, and the top of the fixing seat is provided with sequentially penetrating cleaning mechanisms. mechanism and the transmission mechanism of the drying mechanism, the cleaning mechanism includes a cleaning box located on the top of the fixed seat, the outer wall of the cleaning box is fixedly connected with a water pump, the outlet pipe of the water pump is fixedly connected with a fixed pipe, and the fixed pipe The outer wall is fixedly connected with a first ring, the outer wall of the first ring is movably connected with a first drum, the bottom of the first drum is fixedly connected with a rotating shaft, and the bottom of the rotating shaft is fixedly connected with a first motor, The outer wall of the first motor is fixedly connected with a first motor box, and the top of the first drum is fixedly connected with a first nozzle. The auto parts maintenance and cleaning device has the advantages of being convenient to dry the cleaned parts and the like.

Description

Maintenance and cleaning device for auto parts

technical field

The utility model relates to the technical field of automobile maintenance, in particular to an automobile parts maintenance and cleaning device.

Background technique

With the continuous development of society, going out by car has replaced manual walking, so it is relatively common for vehicles. In order to make the ride more comfortable, interior decorations will be installed in the vehicle. In order to keep clean and hygienic, regular inspections are required. In order to save energy, the traditional cleaning is the automatic cleaning of the washing machine.

The prior art CN201910067992.2 discloses an interior cleaning device for automobile maintenance and repair. This patent is relatively convenient to use, easy to rotate and clean, rinse and clean, so that it is convenient to clean, easy to maintain, reduce labor intensity, low cost, and easy to reuse The device of water source, but this patent also has some deficiencies, it is inconvenient to dry the cleaned parts.

Utility model content

The purpose of the utility model is to solve the problem in the prior art that it is inconvenient to dry the cleaned parts, and proposes a maintenance and cleaning device for auto parts.

In order to achieve the above object, the utility model provides the following technical solutions:

A maintenance and cleaning device for auto parts, comprising a fixing seat, the top of the fixing seat is provided with a cleaning mechanism, the top of the fixing seat is provided with a drying mechanism, and the top of the fixing seat is provided with a cleaning mechanism and a drying mechanism in sequence the transmission mechanism.

Further, the cleaning mechanism includes a cleaning box arranged on the top of the fixing seat, a water pump is fixedly connected to the outer wall of the cleaning box, and a fixed pipe is fixedly connected to the outlet pipe of the water pump.

Further, the outer wall of the fixed pipe is fixedly connected with a first ring, the outer wall of the first ring is movably connected with a first drum, and the bottom of the first drum is fixedly connected with a rotating shaft.

Further, a first motor is fixedly connected to the bottom of the rotating shaft, a first motor box is fixedly connected to the outer wall of the first motor, and a first nozzle is fixedly connected to the top of the first drum.

Further, the transmission mechanism includes four pillars arranged on the top of the fixing base, the outer walls of the pillars are fixedly connected with the motor, and the output shaft of the motor is fixedly connected with the rotating rod.

Further, the outer wall of the rotating rod is movably connected with a conveyor belt, the outer wall of the conveyor belt is fixedly connected with a fixed block, and the inside of the fixed block is rotatably connected with a hook.

Further, the drying mechanism includes a drying box arranged on the top of the fixed seat, an air pump is fixedly connected to the outer wall of the drying box, a connecting pipe is fixedly connected to the outlet pipe of the air pump, and a second round pipe is fixedly connected to the outer wall of the connecting pipe. ring.

Further, the outer wall of the second ring is rotatably connected with a second drum, the top of the second drum is fixedly connected with a second nozzle, and the bottom of the second drum is fixedly connected with a rotating column. The bottom of the rotating column is fixedly connected with a second motor, the outer wall of the second motor is fixedly connected with a second motor box, the inlet pipe of the air pump is provided with a fixed box, and the top of the fixed box is fixedly connected with a dehumidifier, A mesh is opened on the side of the fixed box away from the air pump.

Compared with prior art, the beneficial effect of the present application is:

The auto parts maintenance and cleaning device uses a motor to drive the conveyor belt to rotate inside the cleaning box and drying box. The auto parts are placed on the hook, and the auto parts rotate with the conveyor belt. The cylinder is sprayed and cleaned by the first nozzle on the first cylinder, and then rotated to the inside of the drying box through the auto parts, the air pump draws the outside gas through the fixed box, and dehumidifies it by the dehumidifier, and the gas passes through the connecting pipe Enter the inside of the second drum to dry the car parts, which is convenient for drying the cleaned parts.

Description of drawings

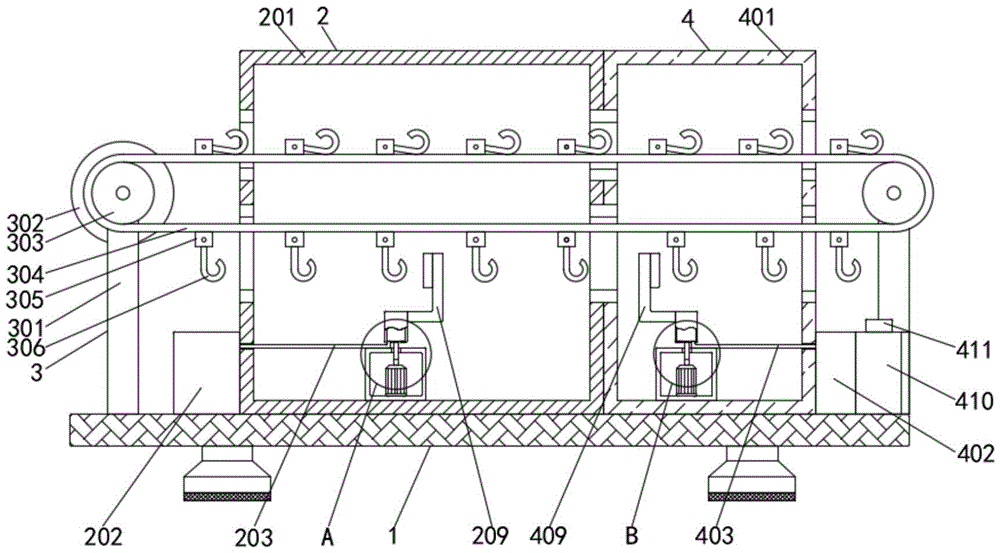

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the schematic diagram of enlarged structure of part A in Fig. 1 of the utility model;

Fig. 3 is a schematic diagram of enlarged structure of part B in Fig. 1 of the utility model;

Fig. 4 is a schematic diagram of the three-dimensional structure of the utility model.

Among the figure: 1, fixed seat; 2, cleaning mechanism; 201, cleaning box; 202, water pump; 203, fixed pipe; 204, the first ring; 205, the first drum; 208, the first motor; 209, the first nozzle; 3, the transmission mechanism; 301, the pillar; 302, the motor; 303, the rotating rod; 304, the conveyor belt; 305, the fixed block; 306, the hook; 4, the drying mechanism ; 401, drying oven; 402, air pump; 403, connecting pipe; 404, second ring; 405, second drum; 406, rotating column; 407, second motor box; 408, second motor; Two spray pipes; 410, fixed box; 411, dehumidifier.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

It should be noted that these drawings are all simplified schematic diagrams, and only schematically illustrate the basic structure of the utility model, so they only show the configurations related to the utility model.

In describing the present utility model, it should be understood that the terms "center", "longitudinal", "transverse", "upper", "lower", "front", "rear", "left", "right", The orientations or positional relationships indicated by "vertical", "horizontal", "top", "bottom", "inner" and "outer" are based on the orientations or positional relationships shown in the drawings, and are only for the convenience of describing the present invention. novel and simplified description, rather than indicating or implying that the device or element referred to must have a specific orientation, be constructed and operated in a specific orientation, and therefore cannot be construed as limiting the utility model. In addition, the terms "first", "second Two" is used for descriptive purposes only, and cannot be understood as indicating or implying the relative importance or implicitly indicating the number of indicated technical features. Therefore, the features defined as "first" and "second" can be expressed or implied Inclusively include one or more of these features, and in the description of the present utility model, unless otherwise specified, "plurality" means two or more.

In the description of the present utility model, it should be noted that, unless otherwise clearly stipulated and limited, the terms "installation", "connection" and "connection" should be interpreted in a broad sense, for example, it can be a fixed connection or a flexible connection. Detachable connection, or integral connection, can be mechanical connection or electrical connection, can be directly connected, can also be indirectly connected through an intermediary, and can be internal communication between two components. For those of ordinary skill in the art , the specific meanings of the above-mentioned terms in the present utility model can be understood in specific situations.

Please refer to Fig. 1-4, this application proposes a kind of auto parts maintenance and cleaning device, is used for cleaning and drying auto parts, comprises fixed seat 1, and the top of fixed seat 1 is provided with cleaning mechanism 2, and the top of fixed seat 1 A drying mechanism 4 is provided on the top, and a transmission mechanism 3 passing through the cleaning mechanism 2 and the drying mechanism 4 is arranged on the top of the fixed seat 1 .

It should be noted that, in the present embodiment, the water pump 202 is used to extract external water into the fixed pipe 203, and the cleaning mechanism 2 includes a cleaning box 201 arranged on the top of the fixed base 1, and the outer wall of the cleaning box 201 is fixedly connected with a water pump 202, and the water pump The outgoing pipe of 202 is fixedly connected with fixed pipe 203.

Further, the rotating shaft 206 drives the first drum 205 to rotate on the first ring 204 and the fixed pipe 203, the outer wall of the fixed pipe 203 is fixedly connected with the first ring 204, and the outer wall of the first ring 204 is movably connected with The first drum 205 , and the bottom of the first drum 205 is fixedly connected with a rotating shaft 206 .

It should be noted that, for the first motor 208 to drive the first nozzle 209 on the first drum 205 to rotate, the bottom of the rotating shaft 206 is fixedly connected with the first motor 208, and the outer wall of the first motor 208 is fixedly connected with the first electric motor. The cabinet 207 and the top of the first drum 205 are fixedly connected with a first spray pipe 209 .

It should be noted that, for the motor 302 to drive the rotating rod 303 to rotate on the pillar 301, the transmission mechanism 3 includes four pillars 301 arranged on the top of the fixed seat 1, the outer wall of the pillar 301 is fixedly connected with the motor 302, and the output shaft of the motor 302 A rotating rod 303 is fixedly connected.

In order to further improve the effect of hanging and picking up auto parts, the outer wall of the rotating rod 303 is movably connected with a conveyor belt 304 , the outer wall of the conveyor belt 304 is fixedly connected with a fixed block 305 , and the inside of the fixed block 305 is rotatably connected with a hook 306 .

What needs to be further added is that the air pump 402 is used to draw the outside gas into the inside of the connecting pipe 403. The drying mechanism 4 includes a drying box 401 arranged on the top of the fixed seat 1. The outer wall of the drying box 401 is fixedly connected with the air pump 402. The outlet of the air pump 402 The pipe is fixedly connected with a connecting pipe 403 , and the outer wall of the connecting pipe 403 is fixedly connected with a second circular ring 404 .

It should be further noted that the second motor 408 is used to drive the second drum 405 on the rotating column 406 to rotate to dry the gas inside the fixed box 410, and the outer wall of the second ring 404 is connected to the second drum 405 in rotation. , the top of the second drum 405 is fixedly connected with the second nozzle 409, the bottom of the second drum 405 is fixedly connected with the rotating column 406, the bottom of the rotating drum 406 is fixedly connected with the second motor 408, and the outer wall of the second motor 408 The second motor box 407 is fixedly connected, the inlet pipe of the air pump 402 is provided with a fixed box 410, the top of the fixed box 410 is fixedly connected with a dehumidifier 411, and the side of the fixed box 410 away from the air pump 402 is provided with a mesh.

When this embodiment is in use, at first, the car parts are placed on the hook 306, and the motor 302 drives the conveyor belt 304 on the rotating rod 303 to rotate, so that the car parts are driven by the conveyor belt 304 to rotate in the cleaning box 201 and the drying box 401. When the car The parts rotate to the inside of the cleaning box 201, and the water pump 202 draws the external water through the fixed pipe 203 and enters the inside of the first rotating drum 205, so that the first motor 208 drives the first rotating drum 205 on the rotating shaft 206 to rotate on the first ring 204 Rotate up, and then clean the auto parts through the first nozzle 209, when the auto parts rotate to the inside of the drying box 401, the air pump 402 extracts the outside gas, the gas passes through the fixed box 410, and the gas is dried by the dehumidifier 411, Then the gas enters the inside of the second drum 405 through the connecting pipe 403, and the second motor 408 drives the rotating column 406 and the second drum 405 to rotate, and the second nozzle 409 is used to dry the parts. Externally, remove the parts.

The electrical components appearing in the article are all electrically connected to the main controller and the power supply. The main controller can be a conventionally known device controlled by a computer, etc., and the existing public power connection technology will not be repeated in the article.

It should be noted that in this article, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply that there is a relationship between these entities or operations. There is no such actual relationship or order between them. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device. Without further limitations, an element defined by the phrase "comprising a ..." does not exclude the presence of additional identical elements in the process, method, article or apparatus comprising said element.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (8)

1. A maintenance and cleaning device for auto parts, comprising a fixed seat (1), characterized in that: the top of the fixed seat (1) is provided with a cleaning mechanism (2), and the top of the fixed seat (1) is provided with There is a drying mechanism (4), and the top of the fixed seat (1) is provided with a transmission mechanism (3) that runs through the cleaning mechanism (2) and the drying mechanism (4) in sequence. 2. The maintenance and cleaning device for auto parts according to claim 1, characterized in that: the cleaning mechanism (2) includes a cleaning box (201) arranged on the top of the fixing seat (1), and the cleaning box The outer wall of (201) is fixedly connected with a water pump (202), and the outlet pipe of the water pump (202) is fixedly connected with a fixed pipe (203). 3. A kind of auto parts maintenance and cleaning device according to claim 2, characterized in that: the outer wall of the fixed pipe (203) is fixedly connected with a first ring (204), and the first ring ( 204) is movably connected with a first drum (205), and the bottom of the first drum (205) is fixedly connected with a rotating shaft (206). 4. A kind of auto parts maintenance and cleaning device according to claim 3, characterized in that: the bottom of the rotating shaft (206) is fixedly connected with a first motor (208), and the bottom of the first motor (208) A first motor box (207) is fixedly connected to the outer wall, and a first spray pipe (209) is fixedly connected to the top of the first drum (205). 5. A maintenance and cleaning device for auto parts according to claim 1, characterized in that: the transmission mechanism (3) includes four pillars (301) arranged on the top of the fixing base (1), and the pillars An electric motor (302) is fixedly connected to the outer wall of (301), and a rotating rod (303) is fixedly connected to an output shaft of the electric motor (302). 6. The maintenance and cleaning device for auto parts according to claim 5, characterized in that: the outer wall of the rotating rod (303) is movably connected with a conveyor belt (304), and the outer wall of the conveyor belt (304) is fixedly connected There is a fixed block (305), and a hook (306) is rotatably connected to the inside of the fixed block (305). 7. The maintenance and cleaning device for auto parts according to claim 1, characterized in that: the drying mechanism (4) includes a drying box (401) arranged on the top of the fixed seat (1), and the drying box ( The outer wall of 401) is fixedly connected with an air pump (402), the outlet pipe of the air pump (402) is fixedly connected with a connecting pipe (403), and the outer wall of the connecting pipe (403) is fixedly connected with a second ring (404). 8. The maintenance and cleaning device for auto parts according to claim 7, characterized in that: the outer wall of the second ring (404) is rotatably connected with a second drum (405), and the second drum (405) The top of the cylinder (405) is fixedly connected with a second nozzle (409), the bottom of the second rotating cylinder (405) is fixedly connected with a rotating column (406), and the bottom of the rotating column (406) is fixedly connected with a second Two motors (408), the outer wall of the second motor (408) is fixedly connected with the second motor box (407), the inlet pipe of the air pump (402) is provided with a fixed box (410), and the fixed box (410 ) is fixedly connected with a dehumidifier (411), and the side of the fixed box (410) away from the air pump (402) is provided with a mesh.
