Wardrobe for medical use

technical field

The application belongs to the technical field of medical equipment, in particular to a medical ward wardrobe.

Background technique

Medical cabinets are commonly seen in hospitals. There are many large cabinets in hospitals, which are generally classified according to the type of medical cabinets. However, people usually classify medical cabinets according to other classification standards. There are mainly equipment Cabinets, medicine cabinets with drawers, instrument cabinets with drawers, glass slide cabinets, slicing cabinets, wax block cabinets, cool slice cabinets, and dense medicines are classified according to color, mainly in stainless steel, gray, blue, and green , blue and gray and other plastic spraying colors, the product color can meet the requirements of customers to the greatest extent. This also shows that for medical equipment manufacturers, their largest end-customer group still points to major hospitals.

The existing ward wardrobe is mainly composed of a wardrobe main body and a wardrobe drawer. When opening, the handle outside the drawer is usually held first, and the drawer is opened to store objects.

The current medical ward wardrobes are usually opened by manually pulling the drawers. Some patients are relatively weak. In the absence of nursing care, it is very laborious to get up and open the drawers, which is not conducive to the use of patients with serious illnesses.

Utility model content

The purpose of this application is: In order to solve the above-mentioned medical ward wardrobes, the drawers are usually opened manually. Some patients are relatively weak. In the absence of nursing care, it is very laborious to get up and open the drawers, which is not conducive to the use of patients with serious conditions. The problem is to provide a medical ward wardrobe.

The technical scheme adopted in this application is as follows: a wardrobe for a medical ward, including a bottom plate, the upper surface of the bottom plate is rotatably connected with a lower cabinet, the upper surface of the lower cabinet is fixedly connected with an upper cabinet, and the lower cabinet The inner wall of the slider is fixedly connected with a slider, the side of the slider is provided with a sliding groove, the inner wall of the sliding groove is fixedly connected with a limit rod, the surface of the limit rod is covered with a slide plate, and the slide plate is far away from the side of the slider. One side is fixedly connected with a drawer, the back of the lower cabinet is fixedly connected with a protective shell, the inner wall of the protective shell is fixedly connected with a receiving plate, the upper surface of the receiving plate is fixedly connected with a servo motor, and the output of the servo motor The end is fixedly connected with a rotating rod, the surface of the rotating rod is threaded with a threaded block, and the upper surface of the threaded block is fixedly connected with the lower surface of the drawer.

By adopting the above technical solution, the three motor switches control the power of the three servo motors to be turned on. When the patient needs to open the drawer, first press and hold the switch corresponding to the servo motor, and the servo motor turns on the power to drive the rotating rod to rotate, and the rotating rod Push the threaded block to move, the threaded block moves to drive the drawer, and the drawer moves using the limit rod and the slide plate until the drawer is fully opened, so that the device has the effect of facilitating the opening of the cabinet for seriously ill patients.

In a preferred embodiment, a handle is fixedly connected to the side of the upper cabinet, and a protective cover is provided on the surface of the handle.

By adopting the above technical solution and by providing the protective cover, the upper cabinet body can be pushed to rotate by using the pull handle.

In a preferred embodiment, the upper surface of the bottom plate is provided with a bearing groove, and the inner wall of the bearing groove is fixedly connected with a bearing, and the inner ring surface of the bearing is fixedly connected with a rotating column, and the top end of the rotating column is connected to the upper The lower surface of the cabinet is fixedly connected.

By adopting the above-mentioned technical solution and by setting the bearing, the lower cabinet can be rotated by the rotating column when it is pushed.

In a preferred embodiment, there are two handles, and the two handles are arranged on both sides of the upper cabinet symmetrically to the axis of symmetry of the front of the upper cabinet.

By adopting the above-mentioned technical scheme, by providing two pull handles, the user can push the upper cabinet body to rotate from two different directions.

In a preferred embodiment, motor switches are fixedly connected to the side of the upper cabinet, and there are three motor switches.

By adopting the above technical solution and by setting the motor switch, it is convenient for the user to separately control the operation of the servo motor.

In a preferred embodiment, the material of the protective cover is rubber, the surface of the rotating rod is provided with threads, and the front of the lower cabinet is provided with an opening groove.

By adopting the above technical solution, by setting the material of the protective cover to be rubber, the hands of the user can be protected and friction can be increased to facilitate the rotation of the upper cabinet.

In summary, due to the adoption of the above technical solution, the beneficial effects of the present application are:

1. In this application, the three motor switches control the power connection of the three servo motors. When the patient needs to open the drawer, first press and hold the switch corresponding to the servo motor, and the servo motor turns on the power to drive the rotating rod to rotate. Push the threaded block to move, the threaded block moves to drive the drawer, and the drawer moves using the limit rod and the slide plate until the drawer is fully opened, so that the device has the effect of facilitating the opening of the cabinet for seriously ill patients.

2. In this application, when it is necessary to rotate the upper cabinet and the lower cabinet, first hold the protective cover, and then use the protective cover to push the upper cabinet. After the upper cabinet is pushed, use the rotating column and the bearing to rotate, so that the device It has the effect of being convenient to rotate the direction of the cabinet body.

Description of drawings

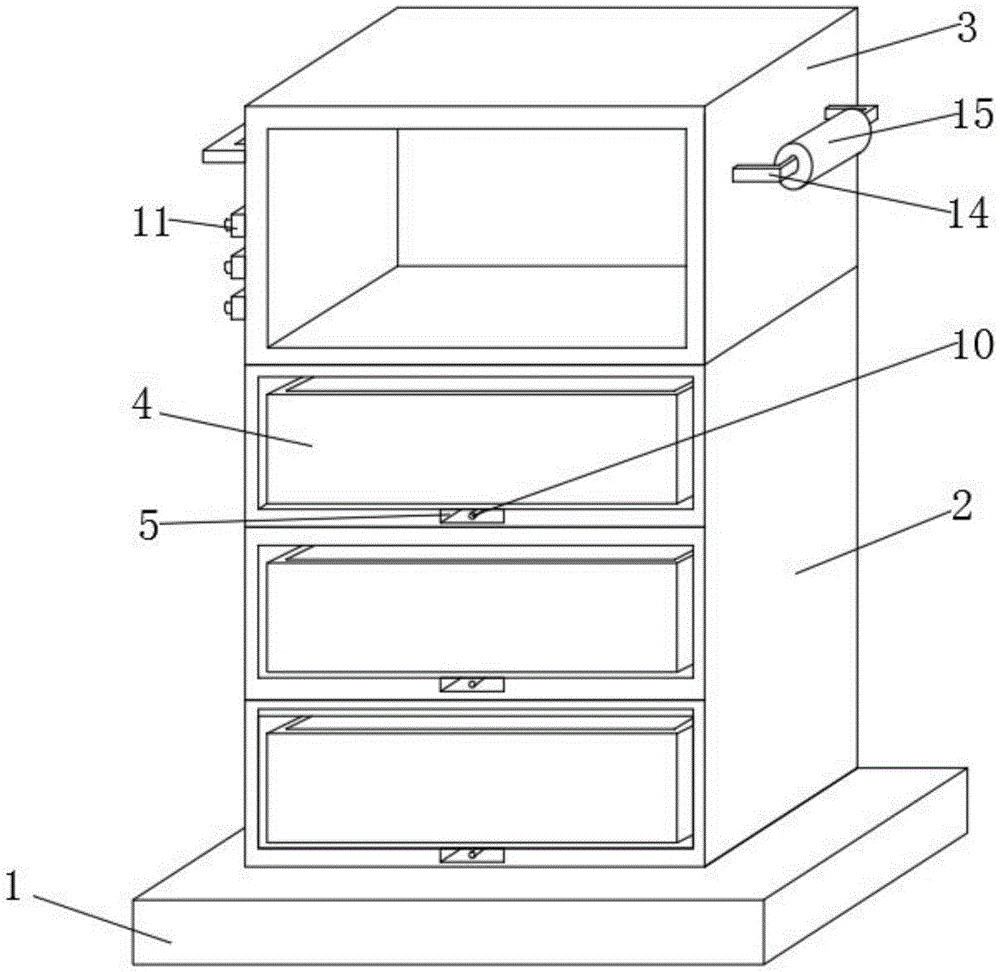

Fig. 1 is the schematic diagram of the three-dimensional structure of the present application;

Fig. 2 is the side sectional structure schematic diagram of the present application;

Fig. 3 is the schematic diagram of the front section structure of the present application;

FIG. 4 is a schematic diagram of an enlarged structure at A in FIG. 3 of the present application.

Marks in the figure: 1. Bottom plate; 2. Lower cabinet body; 3. Upper cabinet body; 4. Drawer; 5. Opening slot; 6. Protective shell; 10. Rotating rod; 11. Motor switch; 12. Rotating column; 13. Bearing; 14. Handle; 15. Protective cover; 16. Slider;

Detailed ways

In order to make the purposes, technical solutions and advantages of the embodiments of the present application clearer, the technical solutions in the embodiments of the present application will be clearly and completely described below in conjunction with the embodiments of the present application. Obviously, the described embodiments are part of the present application Examples, not all examples. Based on the embodiments in this application, all other embodiments obtained by persons of ordinary skill in the art without creative efforts fall within the protection scope of this application.

Referring to Figure 1-4,

Example:

Referring to Figures 2-4, a medical ward wardrobe includes a base plate 1, the upper surface of the base plate 1 is rotatably connected to a lower cabinet body 2, the upper surface of the lower cabinet body 2 is fixedly connected to an upper cabinet body 3, and the inner wall of the lower cabinet body 2 Fixedly connected with a slide block 16, the side of the slide block 16 is provided with a slide groove 19, the inner wall of the slide groove 19 is fixedly connected with a limit bar 18, and the surface of the limit bar 18 is covered with a slide plate 17, by setting the slide plate 17, the limiter can be used. Position rod 18 drives drawer 4 to move.

Referring to Figures 1-3, the side of the slide plate 17 away from the slider 16 is fixedly connected with the drawer 4, the back of the lower cabinet body 2 is fixedly connected with the protective shell 6, the inner wall of the protective shell 6 is fixedly connected with a receiving plate 7, and the upper surface of the receiving plate 7 The surface is fixedly connected with a servo motor 8, the output end of the servo motor 8 is fixedly connected with a rotating rod 10, the surface of the rotating rod 10 is threadedly connected with a threaded block 9, and the upper surface of the threaded block 9 is fixedly connected with the lower surface of the drawer 4, by setting Rotating rod 10 can utilize threaded block 9 to allow drawer 4 to move under the drive of servo motor 8 .

Referring to Figure 1-2, the side of the upper cabinet 3 is fixedly connected with a handle 14, the surface of the handle 14 is covered with a protective cover 15, by setting the protective cover 15, the upper cabinet 3 can be pushed to rotate by the handle 14.

Referring to Figure 1-2, the upper surface of the bottom plate 1 is provided with a bearing groove, and the inner wall of the bearing groove is fixedly connected with a bearing 13, and the inner ring surface of the bearing 13 is fixedly connected with a rotating column 12, and the top of the rotating column 12 is connected to the upper cabinet body 3 The lower surface of the cabinet body is fixedly connected, and by setting the bearing 13, it is possible to utilize the rotating column 12 to rotate when the lower cabinet body 2 is pushed.

Referring to Figure 1-2, there are two pull handles 14, and the symmetry axis of the front of the cabinet body 3 above the two pull handles 14 is symmetrically arranged on both sides of the upper cabinet body 3. By setting two pull handles 14, it is possible to use Or push the upper cabinet body 3 to rotate from two different directions.

Referring to Fig. 1-2, the side of upper cabinet body 3 is fixedly connected with motor switch 11, and the quantity of motor switch 11 has three, by arranging motor switch 11, can make it convenient for the user to control the operation of servo motor 8 respectively.

With reference to Fig. 1-2, the material of protective cover 15 is rubber, and the surface of turning rod 10 is provided with screw thread, and the front of lower cabinet body 2 is provided with opening groove 5, by arranging the material of protective cover 15 to be rubber, can protect the user. Both hands increase friction simultaneously and be convenient to promote upper cabinet body 3 and rotate.

The implementation principle of the embodiment of a medical ward wardrobe in the present application is as follows: three motor switches 11 control the power of three servo motors 8 to be connected, when the patient needs to open the drawer 4, first press and hold the switch corresponding to the servo motor 8, and the servo motor 8. Turn on the power and run to drive the rotating rod 10 to rotate. The rotating rod 10 rotates to push the threaded block 9 to move, and the threaded block 9 moves to drive the drawer 4. The drawer 4 uses the limit rod 18 and the slide plate 17 to move until the drawer 4 is fully opened, so that This device has the effect of being convenient for seriously ill patients to open the cabinet body. When it is necessary to rotate the upper cabinet body 3 and the lower cabinet body 2, first hold the protective cover 15, and then use the protective cover 15 to push the upper cabinet body 3, and the upper cabinet body 3 is closed. After being pushed, the rotating column 12 and the bearing 13 are used to rotate, so that the device has the effect of being convenient to rotate the direction of the cabinet body.

The above embodiments are only used to illustrate the technical solutions of the present application, rather than to limit them; although the present application has been described in detail with reference to the foregoing embodiments, those of ordinary skill in the art should understand that: it can still apply to the foregoing embodiments Modifications are made to the recorded technical solutions, or equivalent replacements are made to some of the technical features; and these modifications or replacements do not make the essence of the corresponding technical solutions deviate from the spirit and scope of the technical solutions of the embodiments of the present application.

Claims (6)

1. Medical ward wardrobe, including bottom plate (1), its characterized in that: the upper surface of bottom plate (1) rotates and is connected with cabinet body (2) down, the upper surface fixedly connected with of cabinet body (2) goes up cabinet body (3) down, the inner wall fixedly connected with slider (16) of cabinet body (2) down, sliding tray (19) have been seted up to the side of slider (16), the inner wall fixedly connected with gag lever post (18) of sliding tray (19), the surface cover of gag lever post (18) is equipped with slide (17), one side fixedly connected with drawer (4) of slider (16) are kept away from to slide (17), the back fixedly connected with protective housing (6) of cabinet body (2) down, the inner wall fixedly connected with of protective housing (6) accepts board (7), the upper surface fixedly connected with servo motor (8) of accepting board (7), the output fixedly connected with dwang (10) of servo motor (8), the surface threaded connection of dwang (10) has screw thread piece (9), the upper surface of screw piece (9) and the lower surface fixedly connected with drawer (4).

2. A medical ward wardrobe as in claim 1, wherein: the side of the upper cabinet body (3) is fixedly connected with a pull handle (14), and a protective sleeve (15) is sleeved on the surface of the pull handle (14).

3. A medical ward wardrobe as in claim 1, wherein: the upper surface of bottom plate (1) has seted up the bearing groove, and the inner wall fixedly connected with bearing (13) in bearing groove, the interior ring face fixedly connected with of bearing (13) rotates post (12), the top and the lower surface fixed connection of last cabinet body (3) of rotating post (12).

4. A medical ward wardrobe as in claim 2, wherein: the number of the pull handles (14) is two, and symmetry axes on the front face of the cabinet body (3) above the two pull handles (14) are symmetrically arranged on two sides of the upper cabinet body (3).

5. A medical ward wardrobe as in claim 1, wherein: the side of the upper cabinet body (3) is fixedly connected with motor switches (11), and the number of the motor switches (11) is three.

6. A medical ward wardrobe as in claim 2, wherein: the protective sleeve (15) is made of rubber, threads are arranged on the surface of the rotating rod (10), and the front face of the lower cabinet body (2) is provided with a through slot (5).
