Abstract

The utility model discloses a monitoring device for rail transportation tools, relates to the technical field of rail transportation, and solves the problem that the cleaning effect of the monitoring device is poor in the form of spraying or wiper, including the vehicle body, the vehicle A connecting rod is fixed on the top of the body, and a monitoring camera for detecting obstacles on the vehicle body is installed on the top of the connecting rod. The front end of the monitoring camera is provided with optical glass, and the right side of the front end of the optical glass is provided with a stain on its surface. Anti-interference components for cleaning. The utility model uses the designed air nozzle, rotating mechanism, connecting hose, connecting hard pipe and high-pressure air pump to remove stains on the surface of optical glass by means of high-pressure blowing. In addition, the rotating mechanism can The air nozzle is used to perform dust blowing operation on the entire optical glass, which expands the blowing range of the air nozzle and does not contact the glass surface, so that the surface of the optical glass will not be scratched.

Description

A monitoring device for rail vehicles

technical field

The utility model relates to the technical field of rail transportation, in particular to a monitoring device for rail transportation tools.

Background technique

In the fully automatic driverless line of urban rail transit, the active obstacle detection system has become one of the necessary functions of the smart train. When a foreign object is detected, an alarm will be sent to the control center and the driver in real time, and the type and distance of the identified foreign object will be detected to improve the reliability of line operation and reduce operation and maintenance costs.

At present, the commonly used sensors in existing rail vehicle obstacle detection systems include cameras, millimeter-wave radars, and lidars, each of which has its own advantages and disadvantages in application. Among them, the camera is image-based, capable of distinguishing shapes and colors, and plays a key role in obstacle type recognition. Compared with other sensors, the cost is low, but the performance of the camera is not good in extreme weather, such as rain, fog, and insufficient light. Under normal circumstances, the transparent cover in front of the camera lens will be easily contaminated with rainwater, sewage and dust. If it is not cleaned for a long time, it will lead to unclear shooting. Most of the existing technologies use spray or wiper to clean the surface of the camera optical glass. On the one hand, most of the spray cleaning methods directly spray the camera with water or water mist. After spraying, the surface is difficult to dry quickly, which affects the use of the camera. The impurities will scratch the glass surface along with the movement of the wiper. To this end, we propose a monitoring device for rail vehicles.

Utility model content

The purpose of this utility model is to provide a rail vehicle monitoring device that uses high-pressure air blowing to remove stains on the surface of the protective glass, so as to solve the problems raised in the above-mentioned background technology.

In order to achieve the above purpose, the utility model provides the following technical solutions: a monitoring device for rail vehicles, including a vehicle body, the top of the vehicle body is fixed with a connecting rod, and the top of the connecting rod is installed for connecting A monitoring camera for detecting obstacles on the vehicle body. The front end of the monitoring camera is provided with optical glass, and the right side of the front end of the optical glass is provided with an anti-interference component for cleaning stains on its surface. The anti-interference component It includes an air nozzle, a rotating mechanism, a connecting hose, a connecting hard pipe and a high-pressure air pump. The air nozzle is arranged horizontally. The rotating mechanism is installed on the right outer wall of the monitoring camera. The two ends of the connecting hose The high-pressure air pump is connected to the end of the connecting hard pipe away from the connecting hose, and is fixed on the outer wall of the monitoring camera.

Preferably, the rotating mechanism includes a motor box, a geared motor and a ring sleeve, the motor box is fixed on the right outer wall of the monitoring camera, the geared motor is fixed in the motor box, and the geared motor The output shaft is fixedly connected with the ring sleeve, and the air nozzle is fixedly arranged in the ring sleeve, and the rotation mechanism can be used to drive the air nozzle to rotate, so that the air nozzle can blow dust on the entire optical glass, and the air injection nozzle can be expanded. The air blowing range of the nozzle will not come into contact with the glass surface, so that the surface of the optical glass will not be scratched.

Preferably, the top of the monitoring camera is fixed with a rain shield, which can reduce the impact of rain on the surface of the optical glass.

Preferably, the inner bottom of the rain shield is fixed with an atomizing nozzle, and the bottom of the atomizing nozzle faces the surface of the optical glass, through which the atomizing nozzle can be sprayed to soften the impurities on the surface, and then Use an air nozzle to dry and blow out.

Preferably, the top of the atomizing nozzle is connected with a rubber tube, and the atomizing nozzle is connected with a micro-water pump through the rubber tube, and the input end of the micro-water pump is connected with a water storage assembly through a pipeline, and the micro-water pump can facilitate water Conduct a pressure test and introduce it into the atomizing nozzle.

Preferably, the water storage assembly includes a water storage tank, a water inlet pipe and a rain bucket, the water storage tank is fixed on the top of the motor box, the water inlet pipe communicates with the inside of the water storage tank, the The rain bucket is fixed on the top of the water inlet pipe, and a solenoid valve is installed on one side of the water inlet pipe, and the camera can be cleaned by collecting natural water resources through the rain through the water storage tank and the water inlet pipe.

Preferably, a plurality of hanging rings are fixed on the right outer wall of the motor box, and the connecting hard pipe is fixedly sleeved on the inner side of the hanging ring, and the connecting hard pipe is conveniently limited by the hanging rings.

Compared with the prior art, the beneficial effects of the utility model are:

1. The utility model adopts high-pressure air blowing to remove stains on the surface of optical glass through the cooperation of the designed air nozzle, rotating mechanism, connecting hose, connecting hard pipe and high-pressure air pump. In addition, the rotating mechanism can make the air nozzle The dust blowing operation of the optical glass expands the blowing range of the air nozzle, and does not contact the glass surface, so that the surface of the optical glass will not be scratched.

2. The utility model can perform spraying operation through the atomizing nozzle to soften the hard impurities on the glass surface, and then use the air nozzle to dry and blow to ensure rapid drying after spraying.

3. The utility model can collect natural water resources through rain through the water storage tank and the water inlet pipe to supply water for cleaning the camera.

Description of drawings

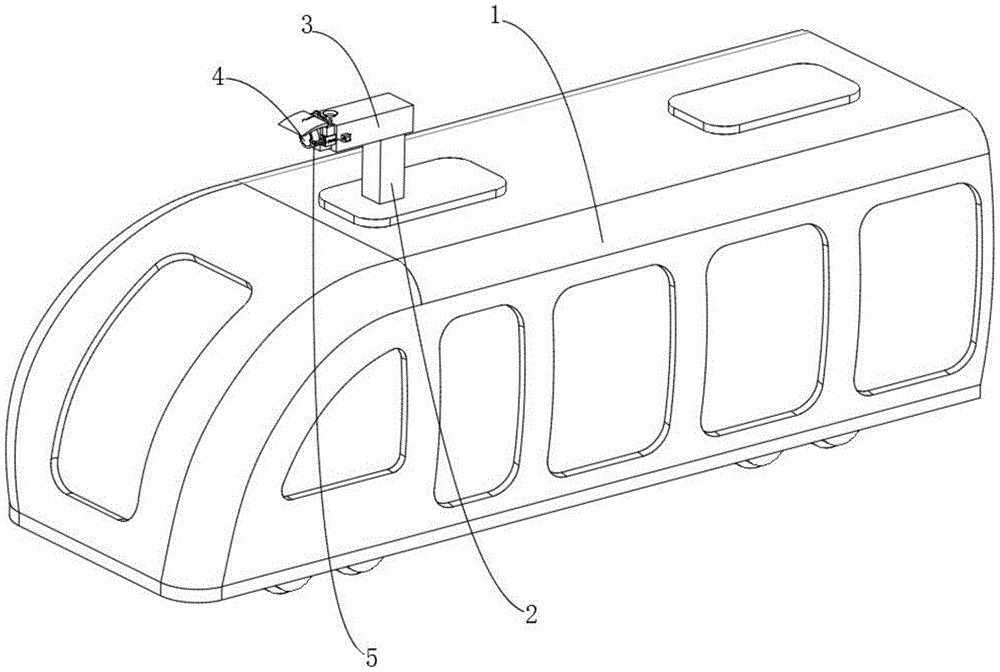

Fig. 1 is a schematic diagram of the overall structure of the utility model;

Fig. 2 is a structural schematic diagram of the anti-jamming component of the utility model;

Fig. 3 is a structural schematic diagram of the utility model rotating mechanism;

Fig. 4 is a structural schematic diagram of the atomizing nozzle and the water storage assembly of the utility model.

In the figure: 1-vehicle body; 2-connecting rod; 3-monitoring camera; 4-optical glass; 5-anti-interference component; 6-air nozzle; 7-rotating mechanism; 8-connecting hose; Tube; 10-high-pressure air pump; 11-motor box; 12-reduction motor; 13-ring sleeve; 14-rainshield; 15-atomizing nozzle; 16-micro water pump; ; 19-inlet pipe; 20-into the rain bucket; 21-electromagnetic valve; 22-hanging ring.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Example 1

As shown in Figures 1-3, a monitoring device for rail vehicles in the illustrations includes a vehicle body 1, a connecting rod 2 is fixed on the top of the vehicle body 1, and a connecting rod 2 is installed on the top of the connecting rod 2. The monitoring camera 3 for detecting obstacles in the vehicle body 1, the front end of the monitoring camera 3 is provided with an optical glass 4, and the right side of the front end of the optical glass 4 is provided with an anti-interference assembly 5 for cleaning stains on its surface, the anti-interference assembly 5 includes an air nozzle 6, a rotating mechanism 7, a connecting hose 8, a connecting hard pipe 9 and a high-pressure air pump 10, the air nozzle 6 is arranged horizontally, the rotating mechanism 7 is installed on the right outer wall of the monitoring camera 3, and the connecting hose 8 The two ends are respectively connected with the air nozzle 6 and the connecting hard pipe 9, and the high-pressure air pump 10 is connected with the end of the connecting hard pipe 9 away from the connecting hose 8. The high-pressure air pump 10 is fixed on the outer wall of the monitoring camera 3, and through the designed air nozzle 6. The rotating mechanism 7, the connecting hose 8, the connecting hard pipe 9 and the high-pressure air pump 10 cooperate with each other to remove the surface stains of the optical glass 4 by means of high-pressure blowing. In addition, the rotating mechanism 7 can make the air nozzle 6 affect the entire optical glass. 4. Perform the dust blowing operation to expand the blowing range of the air nozzle 6 without contacting the glass surface, so that the surface of the optical glass 4 will not be scratched.

Wherein, as shown in FIG. 4 , in order to reduce the influence of rainwater on the surface of the optical glass 4 , a rain shield 14 is fixed on the top of the monitoring camera 3 .

Simultaneously, as shown in FIG. 3 , in order to limit the connecting hard pipe 9 conveniently, a plurality of hanging rings 22 are fixed on the right side outer wall of the motor box 11 , and the connecting hard pipe 9 is fixedly sleeved on the inside of the hanging ring 22 .

Working principle: When the camera surface is blurred by remote monitoring, the high-pressure air pump 10 can be remotely controlled to work, and the high-pressure air pump 10 will guide the high-pressure gas through the connecting hose 8 and connecting hard pipe 9, and finally blow it through the air nozzle 6 To the surface of the optical glass 4 of the camera, the surface stains on the surface of the optical glass 4 are removed by high-pressure blowing.

In this solution, the high-pressure air pump 10 adopts the VUY6002 model, and the power supply interface of the air pump is connected to the power supply system of the monitoring camera 3 through a switch. The operation circuit of the air pump is a conventional control program, and the circuit operation is an existing conventional circuit. They are all prior art, and will not be described in detail here.

Example 2

As shown in Figures 1-3, this embodiment further describes Example 1. The anti-interference assembly 5 in the illustration includes an air nozzle 6, a rotating mechanism 7, a connecting hose 8, a connecting hard pipe 9 and a high-pressure air pump 10, The air nozzle 6 is arranged horizontally, the rotating mechanism 7 is installed on the right outer wall of the monitoring camera 3, the two ends of the connecting hose 8 communicate with the air nozzle 6 and the connecting hard pipe 9 respectively, and the high-pressure air pump 10 is far away from the connecting hard pipe 9. One end of the connecting hose 8 is connected, and the high-pressure air pump 10 is fixed on the outer wall of the monitoring camera 3; , the deceleration motor 12 is fixed in the motor box 11, the output shaft of the deceleration motor 12 is fixedly connected with the ring sleeve 13, the air nozzle 6 is fixed in the ring sleeve 13, and the rotation mechanism 7 can be used to drive the air nozzle 6 to rotate, which can make The air nozzle 6 performs dust blowing operation on the entire optical glass 4, which expands the blowing range of the air nozzle 6, and will not contact the glass surface, so that the surface of the optical glass 4 will not be scratched.

When rotating: the deceleration motor 12 can be started to work at the same time through remote control, and the deceleration motor 12 will drive the air nozzle 6 to rotate reciprocally within a certain angle to form a fan-shaped dust blowing surface, so that the air nozzle 6 can blow the entire optical glass 4 Dust operation, expanding the blowing range of the air nozzle 6.

In this scheme, the deceleration motor 12 is preferably Y80M1-2 type, and the power supply interface of the deceleration motor 12 is connected to the power supply system of the monitoring camera 3 through a switch. The operating circuit is a conventional motor forward and reverse control program, and the circuit operation is an existing conventional circuit. The circuits involved and the remote control are all prior art, and will not be repeated here.

Example 3

As shown in Figure 4, this embodiment further describes Example 1, the inside bottom of the rain shield 14 in the illustration is fixed with an atomizing spray head 15, and the bottom of the atomizing spray head 15 faces the surface of the optical glass 4, through atomization The spray nozzle 15 can spray to soften the impurities on the surface, and then use the air nozzle 6 to dry and blow.

Among them, as shown in Figure 4, in order to facilitate the pressure of the water, it is introduced into the atomizing nozzle 15. The top of the atomizing nozzle 15 is connected with a rubber tube, and the atomizing nozzle 15 is connected with a micro water pump 16 through the rubber tube. The input end of the water pump 16 is connected with a water storage assembly 17 through a pipeline.

In addition, as shown in Figure 4, the water storage assembly 17 includes a water storage tank 18, a water inlet pipe 19 and a rain bucket 20, the water storage tank 18 is fixed on the top of the motor box 11, and the water inlet pipe 19 communicates with the inside of the water storage tank 18 , the rain bucket 20 is fixed on the top of the water inlet pipe 19, and a solenoid valve 21 is installed on one side of the water inlet pipe 19, and the camera can be cleaned by collecting natural water resources through the rain by the water storage tank 18 and the water inlet pipe 19.

Working principle: When storing water, it is opened by opening the solenoid valve 21. At this time, the water inlet pipe 19 is opened, and the rainwater enters the water inlet pipe 19 through the rain bucket 20, and then is introduced into the water storage tank 18 through the water inlet pipe 19. When the water storage tank When the liquid level sensor in 18 detects that the liquid level is full, close the solenoid valve 21 to work; It is pulled out and introduced into the atomizing nozzle 15 through the rubber tube, and the atomization effect of the atomizing nozzle 15 is used to spray the rainwater on the surface of the lens in a spray shape so as to soften the stains, and then perform dust blowing treatment, while ensuring that the spray can be Dries quickly.

In this scheme, the preferred DC40D-1250 model of the micro-water pump 16, the power supply interface of the micro-water pump 16 is connected to the monitoring camera 3 power supply system through a switch, the water pump operation circuit is a conventional control program, and the circuit operation is an existing conventional circuit. The circuits involved in this scheme Both the remote control and the remote control are existing technologies, so they will not be described in detail here.

It should be noted that in this article, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply that there is a relationship between these entities or operations. There is no such actual relationship or order between them. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (7)

1. A monitoring device for rail vehicles, comprising a vehicle body (1), the top of the vehicle body (1) is fixed with a connecting rod (2), and the top of the connecting rod (2) is equipped with a The monitoring camera (3) for detecting obstacles on the vehicle body (1) is characterized in that: the front end of the monitoring camera (3) is provided with optical glass (4), and the front end of the optical glass (4) is on the right side An anti-interference assembly (5) for cleaning the stains on its surface is provided, and the anti-interference assembly (5) includes an air nozzle (6), a rotating mechanism (7), a connecting hose (8), a connecting hard pipe ( 9) and a high-pressure air pump (10), the air nozzle (6) is arranged horizontally, the rotating mechanism (7) is installed on the right side outer wall of the monitoring camera (3), and the connecting hose (8) The two ends of the air nozzle (6) and the connecting hard pipe (9) are connected respectively, and the high-pressure air pump (10) and the connecting hard pipe (9) are far away from the connecting hose (8) One end is connected, and the high-pressure air pump (10) is fixed on the outer wall of the monitoring camera (3). 2. A kind of monitoring equipment for rail vehicles according to claim 1, characterized in that: the rotating mechanism (7) includes a motor box (11), a reduction motor (12) and a ring sleeve (13), the The motor box (11) is fixed on the right outer wall of the monitoring camera (3), the geared motor (12) is fixed in the motor box (11), and the output shaft of the geared motor (12) is connected to the The ring sleeve (13) is fixedly connected, and the air nozzle (6) is fixedly arranged in the ring sleeve (13). 3. A monitoring device for rail vehicles according to claim 2, characterized in that: a rain shield (14) is fixed on the top of the monitoring camera (3). 4. A kind of monitoring equipment for rail vehicles according to claim 3, characterized in that: the inside bottom of the rain shield (14) is fixed with an atomizing nozzle (15), and the atomizing nozzle (15) ) towards the surface of the optical glass (4). 5. A kind of monitoring equipment for rail vehicles according to claim 4, characterized in that: the top of the atomizing nozzle (15) is communicated with a rubber tube, and the atomizing nozzle (15) is connected by a rubber tube There is a micro water pump (16), and the input end of the micro water pump (16) is connected with a water storage assembly (17) through a pipeline. 6. A monitoring device for rail vehicles according to claim 5, characterized in that: the water storage assembly (17) includes a water storage tank (18), a water inlet pipe (19) and a rain bucket (20 ), the water storage tank (18) is fixed on the top of the motor box (11), the water inlet pipe (19) communicates with the inside of the water storage tank (18), and the rain bucket (20) It is fixed on the top of the water inlet pipe (19), and a solenoid valve (21) is installed on one side of the water inlet pipe (19). 7. A kind of monitoring equipment for rail vehicles according to claim 2, characterized in that: the outer wall on the right side of the motor box (11) is fixed with a plurality of hanging rings (22), and the connecting hard pipe ( 9) The fixed sleeve is connected to the inner side of the hanging ring (22).
