CN218981781U - A ball mill for refractory production - Google Patents

Abstract

The utility model discloses a ball mill for refractory material production, which comprises a ball mill. A motor is installed on one side of the ball mill, a reducer is installed on one side of the motor, a gear is connected to one side of the reducer, and a reciprocating lead screw is connected to one side of the gear. The outer cover of the reciprocating lead screw is provided with a moving sleeve, and the outer side of the moving sleeve is fixedly connected with a moving frame. The upper end of the moving frame is rotatably connected with a percussion rod. One side of the reciprocating lead screw is fixedly connected with a mounting groove, and the inside of the mounting groove is slidably connected to the first limiting plate and the second limiting plate. The utility model is designed with a reciprocating screw and a moving frame, and the cylinder body of the ball mill can be knocked back and forth through the reciprocating movement of the moving frame, so that the attached materials inside the ball mill fall down, and the grinding effect of the device is improved.

Description

A ball mill for refractory production

technical field

The utility model relates to a ball mill, in particular to a ball mill for refractory production.

Background technique

The ball mill is the key equipment for crushing the material after it is crushed. This type of grinding machine is filled with a certain number of steel balls in its cylinder as the grinding medium. It is widely used in cement, silicate products, new building materials , refractory materials, chemical fertilizers, black and non-ferrous metal beneficiation and glass ceramics and other production industries, dry or wet grinding of various ores and other grindable materials, ball mills are suitable for grinding various ores and other materials, and are widely used It is used in mineral processing, building materials and chemical industries, and can be divided into two types of grinding methods: dry type and wet type. According to different ore discharge methods, it can be divided into two types: grid type and overflow type. The existing ball mill for refractory production is working During the process, it is impossible to shake off the materials attached to the inner wall of the cylinder, which reduces the grinding effect and wastes materials. Therefore, those skilled in the art provide a ball mill for refractory production to solve the problems raised in the above-mentioned background technology.

Utility model content

In order to solve the above technical problems, the utility model provides a ball mill for refractory production, including a ball mill, a motor is installed on one side of the ball mill, a reducer is installed on one side of the motor, a gear is connected to one side of the reducer, and a gear is connected to one side of the gear There is a reciprocating screw, and a moving sleeve is set on the outer side of the reciprocating screw. The outer side of the moving sleeve is fixedly connected with a moving frame. The upper end of the moving frame is rotatably connected with a percussion rod. connected with a spring;

One side of the reciprocating lead screw is fixedly connected with an installation groove, and the inside of the installation groove is slidably connected to the first limit plate and the second limit plate, the first limit plate runs through the first connecting column, and the second limit plate runs through the second connecting column, The two ends of the installation groove are rotatably connected with a rotating rod, the connecting column 2 and the connecting column 1 are located inside the rotating rod, the left side of the reciprocating screw is slidingly connected to the slant plate 1, and the slanting plate 1 is located above the rotating rod, and the right side of the reciprocating screw is slidingly connected to the The slant plate two, the slant plate two is located below the rotating rod, the limit plate one and the limit plate two are fixedly connected with some blocks inside, and one end of the knocking rod is inserted into the limit plate one and the limit plate two inside to be positioned between the blocks.

Preferably: a magnetic plate is fixedly connected to the lower part of the installation groove, and iron cladding is provided outside the lower ends of the first and second limiting plates.

Preferably: a roller is rotatably connected to the bottom of the moving frame.

Preferably: the first swash plate is slidably connected to the fixed frame on the outer side of the gear, and the second swash plate is slidably connected to the support plate with the end of the reciprocating lead screw.

Preferably: a manhole is provided above the roller of the ball mill.

Preferably: a gear ring is provided on the outside of the ball mill, and the gear ring is located on one side of the gear and meshed with the gear.

Technical effect and advantage of the present utility model:

The utility model is designed with a reciprocating screw and a moving frame, and the cylinder body of the ball mill can be knocked back and forth through the reciprocating movement of the moving frame, so that the attached materials inside the ball mill fall down, and the grinding effect of the device is improved.

Description of drawings

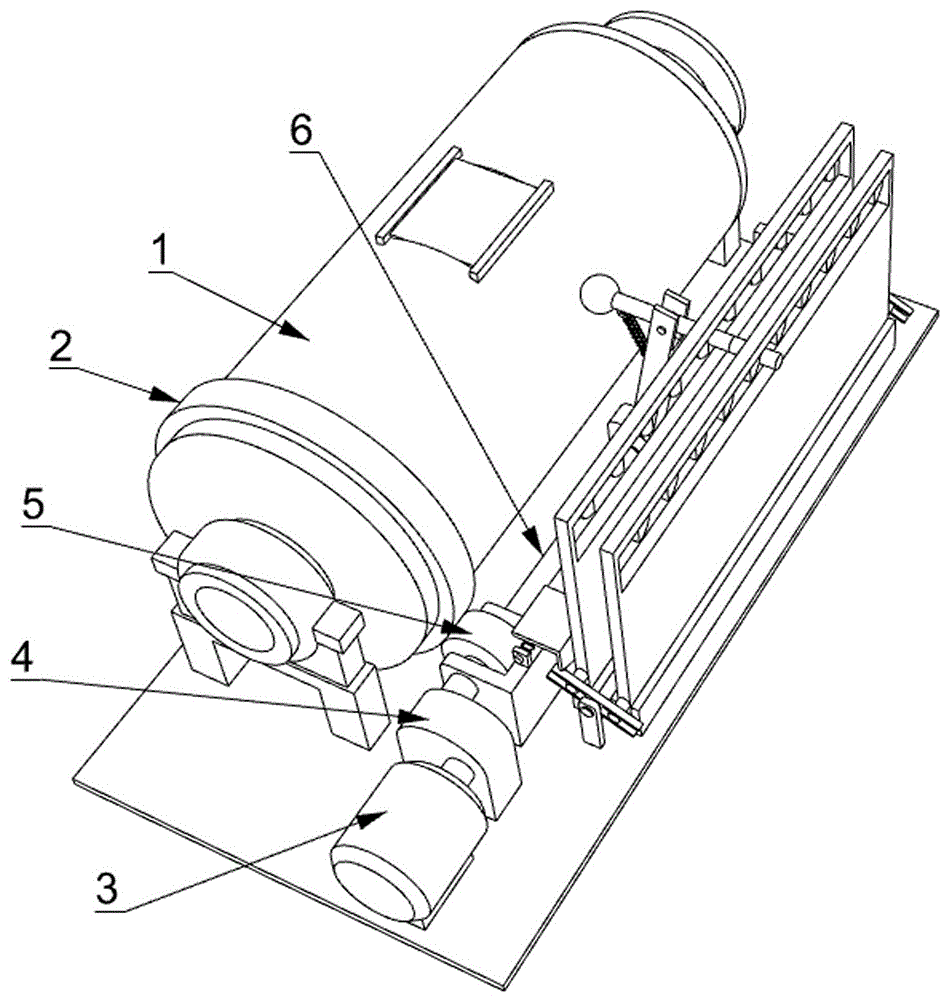

Fig. 1 is the structural representation that the application provides;

Fig. 2 is the structural representation of the knocking rod provided by the present application;

Fig. 3 is a schematic structural view of the rotating rod provided by the present application;

Fig. 4 is a schematic structural view of the mounting groove provided by the present application;

In the picture:

1. Ball mill; 2. Gear ring; 3. Motor; 4. Reducer; 5. Gear; 6. Reciprocating screw; 7. Moving sleeve; 8. Moving frame; 9. Knocking rod; 10. Spring; 11. Limiting plate one; 12, limiting plate two; 13, connecting column two; 14, connecting column one; 15, rotating rod; 16, inclined plate one; 17, inclined plate two; 18, installation slot; .

Detailed ways

Below in conjunction with accompanying drawing and specific embodiment, the utility model is described in further detail. The embodiments of the invention have been presented for purposes of illustration and description, but are not intended to be exhaustive or to limit the invention to the forms disclosed. Many modifications and changes will be apparent to those of ordinary skill in the art. The embodiment was chosen and described in order to better explain the principle and practical application of the invention, and to enable those of ordinary skill in the art to understand the invention and design various embodiments with various modifications suitable for particular purposes.

Please refer to Figures 1 to 4. In this embodiment, a ball mill for refractory production is provided, including a ball mill 1. A motor 3 is installed on one side of the ball mill 1, and a reducer 4 is installed on one side of the motor 3. The reducer 4- A gear 5 is connected to the side of the ball mill 1. A gear ring 2 is provided on the outside of the ball mill 1. The gear ring 2 is located on the side of the gear 5 and meshes with the gear 5. There is a manhole above the roller of the ball mill 1. A reciprocating screw is connected to the side of the gear 5. 6. The outer side of the reciprocating lead screw 6 is provided with a moving sleeve 7, the outer side of the moving sleeve 7 is fixedly connected with a moving frame 8, the lower part of the moving frame 8 is rotatably connected with a roller, and the upper end of the moving frame 8 is rotatably connected with a percussion rod 9. One end of the rod 9 is located above the ball mill 1, and a spring 10 is connected between the knocking rod 9 and the moving frame 8;

One side of the reciprocating lead screw 6 is fixedly connected with a mounting groove 18, and the inside of the mounting groove 18 is slidingly connected with a limiting plate one 11 and a limiting plate two 12, and the inner bottom of the mounting groove 18 is fixedly connected with a magnetic plate, and the limiting plate one 11 and limit plate 2 12 are provided with cladding iron on the outer side of the lower end, limit plate 1 11 is penetrated with connecting column 1 14 inside, limit plate 2 12 is penetrated with connecting column 2 13, and the two ends of the installation groove 18 are rotatably connected with a rotating rod 15. Connecting column 2 13 and connecting column 1 14 are located inside the rotating rod 15. The left side of the reciprocating screw 6 is slidably connected to a swash plate 16. The slanting plate 16 is located above the rotating rod 15. The right side of the reciprocating screw 6 is slidably connected to a Inclined plate 2 17, inclined plate 2 17 is located below the rotating rod 15, limiting plate 11 and limiting plate 2 12 are fixedly connected with a number of blocks 19 inside, and one end of the knocking rod 9 is inserted into limiting plate 11 and limiting plate The inside of the second 12 is located between the clamping blocks 19, the first swash plate 16 is slidably connected with the fixed frame on the outside of the gear 5, and the second swash plate 17 is slidably connected with the end support plate of the reciprocating screw 6.

The working principle of the utility model is:

When the device is in use, put the material into the ball mill 1 through the shaft hole on one side of the ball mill 1, start the motor 3, and drive the gear 5 to rotate after the motor 3 is decelerated by the reducer 4, and the gear 5 passes through the gear 5 on the outside of the ball mill 1. The cylinder rotates to grind the internal materials. At the same time, when the motor 3 starts, it also drives the reciprocating screw 6 on the side of the gear 5 to rotate. Drive the mobile frame 8 to move back and forth. When the mobile frame 8 moves to the left, one end of the knocking rod 9 on the mobile sleeve 7 will continue to fall under the action of the block 19 inside the limit plate 2 12 and then under the action of the spring 10. Down reset, knock the barrel through the knocking ball at the other end of the knocking rod 9, and knock off the attached material inside the barrel. When the moving frame 8 moves to the leftmost side, push the swash plate 16 to the left Side movement, swash plate one 16 presses the rotating rod 15 to rotate, and the rotating rod 15 rotates so that the limit plate one 11 descends and the limit plate two 12 rises, and the moving frame 8 starts to move rightward at the same time. The clamping block 19 makes the knock rod 9 move up and down to knock on the barrel again, and at the same time, when the moving frame 8 moves to the far right, the rotating rod 15 is rotated through the swash plate 2 17, so that the limit plate 11 rises Limiting plate two 12 descends, and when making mobile frame 8 move to the left, play the effect of spacing by limiting plate two 12 again.

Apparently, the described embodiments are only some of the embodiments of the present invention, but not all of them. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art and related fields without creative efforts shall fall within the protection scope of the present utility model. The structures, devices and operation methods that are not specifically described and explained in the utility model, unless otherwise specified and limited, are implemented according to conventional means in the art.

Claims (6)

1. A ball mill for refractory production, comprising a ball mill (1), characterized in that a motor (3) is installed on one side of the ball mill (1), and a speed reducer (4) is installed on one side of the motor (3). One side of the device (4) is connected with a gear (5), and one side of the gear (5) is connected with a reciprocating screw (6), and the outer side of the reciprocating screw (6) is provided with a moving sleeve (7), and the outer side of the moving sleeve (7) The mobile frame (8) is fixedly connected, and the upper end of the mobile frame (8) is rotatably connected with a knocking rod (9). One end of the knocking rod (9) is located above the ball mill (1). ) is connected with a spring (10); One side of the reciprocating lead screw (6) is fixedly connected with a mounting groove (18), and the mounting groove (18) is internally slidably connected to the first limiting plate (11) and the second limiting plate (12), and the first limiting plate (11) A connecting column one (14) runs through the inside, a connecting column two (13) runs through the inside of the limit plate two (12), and the two ends of the installation groove (18) are rotatably connected with a rotating rod (15), and the connecting column two (13) and Connecting column one (14) is located at the inside of the rotating rod (15), and the left side of the reciprocating screw (6) is slidingly connected with a swash plate one (16). 6) There is a second inclined plate (17) slidingly connected on the right side, and the second inclined plate (17) is located under the rotating rod (15), and the first limiting plate (11) and the second limiting plate (12) are fixedly connected with several blocks inside (19), one end of the knock rod (9) is inserted into the limit plate one (11) and the limit plate two (12) and is located between the clamping blocks (19). 2. A ball mill for refractory production according to claim 1, characterized in that a magnetic plate is fixedly connected to the bottom of the installation groove (18), and the first limiting plate (11) and the second limiting plate (12 ) The outside of the lower end is provided with cladding iron. 3. The ball mill for refractory production according to claim 1, characterized in that there are rollers connected to the bottom of the moving frame (8) for rotation. 4. A ball mill for refractory production according to claim 1, characterized in that the first inclined plate (16) is slidingly connected to the fixed frame outside the gear (5), and the second inclined plate (17) is connected to the reciprocating wire Bar (6) is slidably connected with an end support plate. 5. A ball mill for refractory production according to claim 1, characterized in that a manhole is provided above the roller of the ball mill (1). 6. A ball mill for refractory production according to claim 1, characterized in that a gear ring (2) is provided on the outside of the ball mill (1), and the gear ring (2) is located on one side of the gear (5) and the gear (5) meshing.
