CN218976117U - Power distribution cabinet for power system - Google Patents

Abstract

The utility model discloses a power distribution cabinet for an electric power system, which belongs to the technical field of power distribution cabinets, and comprises an installation substrate and a power cabinet body located on the upper part of the installation substrate. A cabinet door is hinged on one side of the power cabinet body. The body door is embedded with a window and a handle groove is opened on the cabinet door. The top surface of the installation base plate is installed with a support stand for the power cabinet body to support and support heat dissipation. The inner cavity top wall of the power cabinet body is hinged with a cooling fan. , the top wall of the inner cavity of the power cabinet body is embedded with a servo motor, the top surface of the cooling fan is installed with a protruding plate, the top wall of the inner cavity of the power cabinet body is provided with a groove matching the protruding plate, and the output of the servo motor The shaft is connected with the raised plate. The power distribution cabinet for the power system can discharge the accumulated heat in the inner cavity of the power cabinet body, so that the airflow in the power cabinet body can be circulated, the temperature of the inner cavity can be cooled, and the service life of the electrical components can be improved.

Description

A power distribution cabinet for a power system

technical field

The utility model belongs to the technical field of power distribution cabinets, in particular to a power distribution cabinet for power systems.

Background technique

The power distribution cabinet is an important device in the power system. It is the general name of the motor control center. Its function is to distribute the electric energy of a certain circuit of the upper-level power distribution equipment to the nearby charges, and to protect, monitor and control the charges.

There are generally many electrical components installed in the power cabinet. When these electrical components run for a long time and generate high temperature, especially in summer, the temperature of these electrical components rises faster. At this time, it is necessary to cool down the electrical components in the power cabinet. Currently, The heat dissipation structure of the power cabinet is generally air-cooled by a fan installed in the inner cavity of the power cabinet. Due to the lack of a guide structure for the airflow, it is easy to cause the airflow to spiral and accumulate in the inner cavity of the power cabinet. This traditional air-cooled structure has a lower cooling effect. Not obvious, the air-cooled structure of a single fan is easy to accumulate heat in the power cabinet, but cannot effectively discharge the heat in time, reducing the service life of its electrical components.

For example, the existing Chinese patent number is: a kind of power distribution cabinet of CN212991730U, which: "comprises a cabinet body and a cabinet door hinged on the front of the cabinet body, the two sides of the cabinet body are respectively provided with a first heat dissipation port, and A first dust-proof heat dissipation net is provided in the first heat dissipation port, and a second heat dissipation port is respectively provided on the rear side of the cabinet door and the cabinet body.

It has such a problem that when the cooling fan is running in the cabinet, the airflow is input into the cabinet. There is no flow guide structure in the cabinet, and the airflow will first be pushed down by the cooling fan, and when it falls to the lower part of the cabinet cavity, it will slowly It rises slowly, but the cooling fan will continuously deliver airflow, and the airflow will continue to be pushed down, resulting in the inability to discharge heat in time, and more airflow will accumulate in the lower part of the cabinet cavity.

Utility model content

The purpose of this utility model is to provide a power distribution cabinet for an electric power system to solve the problems raised in the above-mentioned background technology.

In order to achieve the above object, the utility model provides the following technical solutions:

A power distribution cabinet for a power system, comprising an installation base plate and a power cabinet body located on the upper part of the installation base board, a support stand for supporting and dissipating the power cabinet body is installed on the top surface of the installation base board, and the inside of the power cabinet body The top wall of the cavity is hinged with a cooling fan, and the outer walls on both sides of the power cabinet body are respectively equipped with a first cooling grille and a second cooling grid. shaped vertical plate, the outer walls of both sides of the T-shaped vertical plate are symmetrically installed with a first arc-shaped deflector and a second arc-shaped deflector, and the first arc-shaped deflector and the second arc-shaped deflector The arc-shaped surface of the plate is respectively provided with a first vent hole and a second vent hole, and the first arc-shaped deflector and the second arc-shaped deflector are respectively corresponding to the first heat dissipation grid plate and the second heat dissipation The grid plates are used symmetrically.

Preferably, a servo motor is embedded in the inner cavity top wall of the power cabinet body, a protruding plate is installed on the top surface of the cooling fan, and a protruding plate is provided on the inner cavity top wall of the power cabinet body. The groove, the output shaft of the servo motor is connected with the protruding plate.

Preferably, activated carbon dust adsorption nets are embedded on one side of the first arc-shaped deflector and the second arc-shaped deflector and on the side of the vertical plate of the T-shaped vertical plate;

Preferably, there are arc-shaped notches on both sides of the activated carbon dust adsorption net and on the inner wall of the T-shaped vertical plate.

Preferably, two aluminum heat-dissipating and heat-conducting blocks are embedded symmetrically on both sides of the T-shaped vertical plate and on the bottom wall of the inner cavity of the power cabinet body.

Preferably, the two aluminum heat-dissipating and heat-conducting blocks extend longitudinally to the outside of the bottom surface of the power cabinet body.

Preferably, two rectangular grooves are symmetrically formed on the top surface of the support platform, and the two aluminum heat dissipation and heat conduction blocks are respectively plugged into the two rectangular grooves.

Preferably, a plurality of U-shaped mounting plates arranged horizontally are equidistantly installed on the side wall of the inner cavity of the power cabinet body.

Preferably, L supporting ribs are installed on the bottom surface of each U-shaped mounting plate, and the L supporting ribs are fixedly connected with the power cabinet body.

Compared with prior art, technical effect and advantage of the present utility model are as follows:

The power distribution cabinet for the power system of the utility model, when cooling the inner cavity of the power cabinet body, the cooling fan blows towards the T-shaped vertical plate, and the air flows from the first arc-shaped deflector and the second arc-shaped deflector on both sides of the T-shaped vertical plate. Under the action of the first arc-shaped deflector and the second arc-shaped deflector, the air flow can transfer the heat accumulated in the inner cavity of the power cabinet body from the adjacent first heat dissipation grill plate and the second heat dissipation grid plate, so as to discharge the accumulated heat in the inner cavity of the power cabinet body, so that the airflow in the power cabinet body can be circulated, thereby cooling the inner cavity and improving the use of electrical components life;

The first air hole can push the airflow down to the second arc-shaped deflector, while the second air hole can discharge the heat accumulated at the T-shaped vertical plate from the second heat dissipation grille, thereby improving the uniformity of heat dissipation and cooling .

Description of drawings

In order to more clearly illustrate the specific implementation of the utility model or the technical solutions in the prior art, the accompanying drawings that need to be used in the description of the specific implementation or the prior art will be briefly introduced below. Obviously, the following descriptions The accompanying drawings are some implementations of the utility model, and those skilled in the art can obtain other drawings according to these drawings without any creative work.

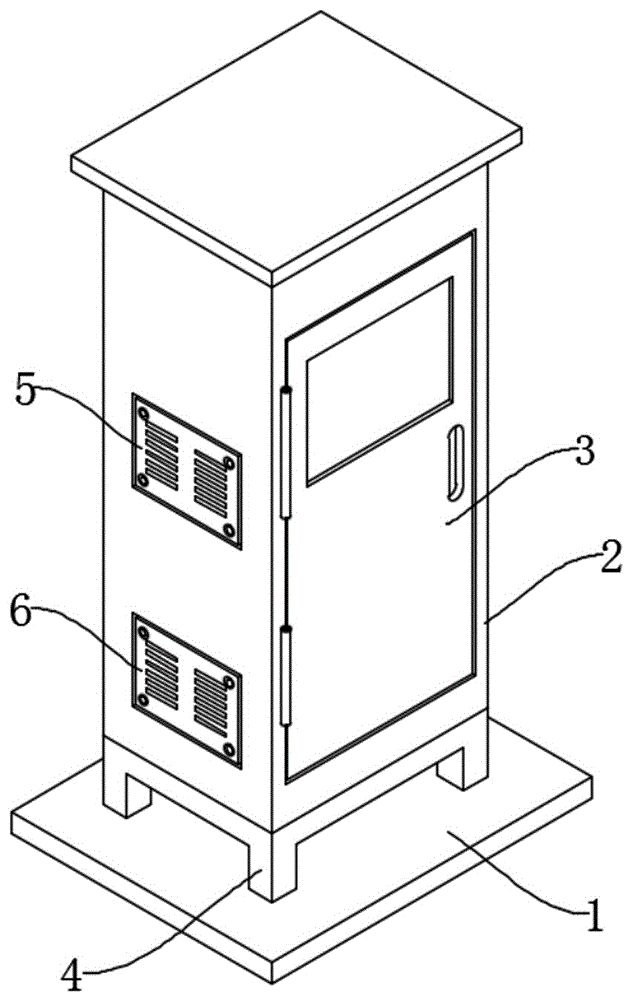

Fig. 1 is the structural representation of the utility model;

Fig. 2 is a schematic diagram of the connection structure of the power cabinet body and the T-shaped vertical plate of the present invention;

Fig. 3 is a schematic diagram of the connection structure of the first arc-shaped deflector and the second arc-shaped deflector of the present invention;

Fig. 4 is a sectional view of the power cabinet body of the present utility model;

Fig. 5 is a structural schematic diagram of the support platform of the present invention.

In the figure: 1. Installation base plate; 2. Power cabinet body; 3. Cabinet door; 4. Support platform; 5. First heat dissipation grille plate; 6. Second heat dissipation grille plate; 8. The first arc deflector; 9. The second arc deflector; 10. Aluminum heat dissipation block; 11. The first vent hole; 12. The second vent hole; 13. Activated carbon dust adsorption net; 14 15. Cooling fan; 16. Protruding plate; 17. Servo motor; 18. U-shaped mounting plate; 19. L support rib; 20. Rectangular groove.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example.

The power distribution cabinet is an important device in the power system. It is the general name of the motor control center. Its function is to distribute the electric energy of a certain circuit of the upper-level power distribution equipment to the nearby charges, and to protect, monitor and control the charges.

The utility model provides a power distribution cabinet for a power system as shown in Fig. 1-Fig. The deflector 9 , the first heat dissipation grid plate 5 and the second heat dissipation grid plate 6 perform heat dissipation and cooling, and at the same time, the accumulated heat in the power cabinet body 2 can be discharged in time, thereby forming an effective cooling cycle.

It includes the installation substrate 1 and the power cabinet body 2 located on the upper part of the installation substrate 1. A cabinet door 3 is hinged on one side of the power cabinet body 2. A window is embedded on the cabinet door 3 and a window is opened on the cabinet door 3. The handle groove, the top surface of the installation substrate 1 is installed with a support stand 4 for supporting the heat dissipation of the power cabinet body 2, the inner cavity top wall of the power cabinet body 2 is hinged with a cooling fan 15, and the inner cavity top wall of the power cabinet body 2 A servo motor 17 is embedded, a protruding plate 16 is installed on the top surface of the cooling fan 15, a groove matching the protruding plate 16 is provided on the top wall of the inner cavity of the power cabinet body 2, and the output shaft of the servo motor 17 is connected to the protruding plate 16. Out board 16 connection;

The T-shaped vertical plate 7, the first arc-shaped deflector 8, and the second arc-shaped deflector 9 will not touch the U-shaped mounting plate 18, so as not to hinder the installation of electrical components;

The servo motor 17 is fixedly installed in the power cabinet body 2, and when the servo motor 17 is running, the output shaft of the servo motor 17 runs half a circle, and drives the cooling fan 15 to swing in an arc, and the swing angle is less than 120° to prevent the cooling fan 15 from colliding The top wall of the inner cavity of the power cabinet body 2 and the output shaft of the servo motor 17 drive the protruding plate 16 to fit in an arc to swing in the groove, so that the wind blown by the cooling fan 15 can cool the electrical appliances installed on the U-shaped mounting plate 18. The components are air-cooled to cool down;

One side of the first arc deflector 8 and the second arc deflector 9 and the vertical plate side of the T-shaped vertical plate 7 are embedded with an activated carbon dust adsorption net 13, and the activated carbon dust adsorption net 13 both sides and located at the T-shaped The inner wall of the vertical plate 7 is provided with an arc-shaped gap 14, through which the activated carbon dust adsorption net 13 can be easily removed for cleaning. When the dust passes through the activated carbon dust adsorption net 13 with the air flow, the activated carbon dust adsorption net 13 can absorb the dust in the power cabinet body 2 .

The outer walls on both sides of the power cabinet body 2 are respectively equipped with a first heat dissipation grille plate 5 and a second heat dissipation grille plate 6, and an inverted T-shaped vertical plate 7 is installed on the inner cavity bottom wall of the power cabinet body 2. The outer walls on both sides of the plate 7 are respectively symmetrically equipped with a first arc-shaped deflector 8 and a second arc-shaped deflector 9, and the arc-shaped surfaces of the first arc-shaped deflector 8 and the second arc-shaped deflector 9 The first vent hole 11 and the second vent hole 12 are correspondingly opened, and the first arc-shaped deflector 8 and the second arc-shaped deflector 9 correspond to the first heat dissipation grille plate 5 and the second heat dissipation grille plate respectively. 6 are used in conjunction with each other.

On both sides of the T-shaped vertical plate 7 and on the bottom wall of the inner cavity of the power cabinet body 2, two aluminum heat dissipation and heat conduction blocks 10 are symmetrically embedded, and the two aluminum heat dissipation and heat conduction blocks 10 extend longitudinally to the outside of the bottom surface of the power cabinet body 2, Two rectangular grooves 20 are symmetrically formed on the top surface of the support stand 4 , and two aluminum heat dissipation and heat conduction blocks 10 are respectively plugged into the two rectangular grooves 20 .

The side wall of the inner cavity of the power cabinet body 2 is equidistantly installed with a plurality of U-shaped mounting plates 18 placed horizontally, and the bottom surface of each U-shaped mounting plate 18 is equipped with L supporting ribs 19, L supporting ribs 19 It is fixedly connected with the power cabinet body 2.

The working principle of the utility model is as follows:

The power distribution cabinet for the power system of the utility model installs electrical components on the U-shaped mounting plate 18, and the L supporting ribs 19 can support the U-shaped mounting plate 18. When it is necessary to cool and dissipate the inner cavity of the power cabinet body 2, Turn on the cooling fan 15, and when the servo motor 17 is running, the output shaft of the servo motor 17 runs half a circle, and drives the cooling fan 15 to swing in an arc, and the swing angle is less than 120°, preventing the cooling fan 15 from hitting the top of the inner cavity of the power cabinet body 2 wall, the output shaft of the servo motor 17 drives the protruding plate 16 to adapt to the arc swing in the groove, so that the wind blown by the cooling fan 15 can air-cool the electrical components installed on the U-shaped mounting plate 18, and the cooling fan 15 Blow towards the T-shaped vertical plate 7, and the air flow is guided and discharged from the first arc-shaped deflector 8 and the second arc-shaped deflector 9 on both sides of the T-shaped vertical plate 7, and the first arc-shaped deflector 8 And under the action of the second arc-shaped deflector 9, the air flow can discharge the heat accumulated in the inner cavity of the power cabinet body 2 from the first heat dissipation grid plate 5 and the second heat dissipation grid plate 6;

Two aluminum heat dissipation and heat conduction blocks 10 are plugged into two rectangular grooves 20 respectively. Since the aluminum heat dissipation and heat conduction blocks 10 are made of aluminum, the two aluminum heat dissipation and heat conduction blocks 10 can connect the power cabinet body 2 The heat is conducted to the outside of the power cabinet body 2 .

It should be noted that in this article, relational terms such as one and two are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply any relationship between these entities or operations. This actual relationship or sequence.

In this article, the terms "connection" and "fixation" should be understood in a broad sense, for example, "connection" can be a fixed connection, a detachable connection, or an integral connection. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present utility model according to specific situations.

In the description of the present invention, it should be understood that the indicated orientation or positional relationship is based on the orientation or positional relationship shown in the drawings, which is only for the convenience of describing the present invention and simplifying the description, rather than indicating or implying the referred device or positional relationship. The unit must have a specific orientation, be constructed and operate in a specific orientation, and therefore, should not be construed as limiting the invention.

The above is only a preferred specific implementation of the utility model, but the scope of protection of the utility model is not limited thereto. Any skilled person familiar with the technical field shall, within the technical scope disclosed by the utility model, according to the technical solution of the utility model Equivalent replacement or change of its utility model concept should be covered within the scope of protection of the utility model.

Claims (8)

1. The utility model provides a switch board for electric power system, includes mounting substrate (1) and is located electric power cabinet body (2) on mounting substrate (1) upper portion, its characterized in that: the electric power cabinet comprises an installation substrate (1), wherein a supporting frame table (4) for supporting an electric power cabinet body (2) to radiate heat is installed on the top surface of the installation substrate (1), a cooling fan (15) is hinged to the top wall of an inner cavity of the electric power cabinet body (2), a first cooling grid plate (5) and a second cooling grid plate (6) are respectively installed on the outer walls of two sides of the electric power cabinet body (2), a T-shaped vertical plate (7) which is inverted is installed on the bottom wall of the inner cavity of the electric power cabinet body (2), a first arc-shaped guide plate (8) and a second arc-shaped guide plate (9) are symmetrically installed on the outer walls of two sides of the T-shaped vertical plate (7), a first ventilation hole (11) and a second ventilation hole (12) are correspondingly formed in the arc-shaped surfaces of the first arc-shaped guide plate (8) and the second arc-shaped guide plate (9) respectively, and the first cooling grid plate (5) and the second cooling grid plate (6) are symmetrically matched for use; an activated carbon dust adsorption net (13) is embedded on one side of the first arc-shaped guide plate (8) and one side of the second arc-shaped guide plate (9) and is positioned on the side face of the vertical plate of the T-shaped vertical plate (7).

2. A power distribution cabinet for an electric power system according to claim 1, characterized in that: the utility model discloses a power cabinet, including electric power cabinet body (2), servo motor (17) are inlayed to the inner chamber roof of electric power cabinet body (2), protruding board (16) are installed to the top surface of radiator fan (15), the recess with protruding board (16) adaptation is seted up to the inner chamber roof of electric power cabinet body (2), and the output shaft and the protruding board (16) of servo motor (17) are connected.

3. A power distribution cabinet for an electric power system according to claim 1, characterized in that: arc-shaped notches (14) are formed in the inner walls of the T-shaped vertical plates (7) on the two sides of the activated carbon dust adsorption net (13).

4. A power distribution cabinet for an electric power system according to claim 1, characterized in that: two aluminum heat dissipation and conduction blocks (10) are symmetrically embedded in the bottom wall of the inner cavity of the power cabinet body (2) at two sides of the T-shaped vertical plate (7).

5. The power distribution cabinet for a power system according to claim 4, wherein: the two aluminum heat dissipation and conduction blocks (10) longitudinally extend to the outer side of the bottom surface of the electric cabinet body (2).

6. A power distribution cabinet for an electric power system according to claim 1, characterized in that: two rectangular grooves (20) are symmetrically formed in the top surface of the support stand (4), and two aluminum heat dissipation and conduction blocks (10) are respectively inserted into the two rectangular grooves (20).

7. A power distribution cabinet for an electric power system according to claim 1, characterized in that: a plurality of U-shaped mounting plates (18) which are horizontally arranged are equidistantly arranged on the side wall of the inner cavity of the electric power cabinet body (2).

8. The power distribution cabinet for a power system according to claim 7, wherein: the bottom surface of each U-shaped mounting plate (18) is provided with an L-shaped supporting rib plate (19), and the L-shaped supporting rib plates (19) are fixedly connected with the electric cabinet body (2).
