Abstract

The utility model relates to the technical field of wall cloth construction, in particular to a construction wall-attaching device, comprising a support part and an extruding part; The belt is fixedly connected; a pressure roller is installed between the two ear plates, and the rear side wall of the fixed plate is installed with two sliding bars that are slidingly connected with the fixed plate. Spring; through the set support part and extrusion part: that is, the motor drives the idler roller to rotate, the idler roller drives the belt to move, the belt drives the connecting block and the pressure roller to reciprocate in the vertical direction, and the pressure roller can reciprocate and squeeze the wall covering. Make the wall covering closely fit the wall; this design does not need to manually squeeze the wall covering, and the pressing roller is driven up and down by a mechanical structure such as a motor to realize the extrusion of the wall covering, so that the wall covering and the wall are closely attached, This design saves manpower and is easy to operate.

Description

A construction wall-mounting device

technical field

The utility model relates to the technical field of wall cloth construction, in particular to a construction wall sticking device.

Background technique

Wall cloth, also known as wall cloth, is a kind of cloth installed on the wall and used to decorate the wall. There are many production processes for wall cloth, such as printing and embossing, etc. At present, wall cloth installation is one of the common interior decoration constructions. First, when installing the wall covering, it is necessary to apply glue to the wall, and then attach the wall covering to the wall.

In order to ensure the close fit between the wall covering and the wall, it is necessary to use tools to scrape the wall covering back and forth. However, due to the large area of the wall covering and the overall height of some wall coverings, manual scraping of the wall covering is not only extremely labor-intensive, Moreover, when scraping the wall covering at a high place, it is very inconvenient to climb up and down with the help of ladders, etc. In view of this, we propose a construction wall-attaching device.

Utility model content

The purpose of this utility model is to provide a construction wall sticking device to solve the problems raised in the above-mentioned background technology.

In order to achieve the above object, the utility model provides the following technical solutions:

A construction wall-attaching device, comprising a supporting part and an extruding part;

The support part is used to support the extruding part; it includes a height-adjustable shell, and two idler rollers are installed in the opening of the front side wall of the shell, and a belt is set between the two idler rollers, and the outer wall of the shell is installed There is a motor used to drive the lower roller to rotate; a guide rod is installed on the front side of the belt, and a connecting block is installed on the guide rod, and the rear end of the connecting block is fixedly connected with the belt;

The extruding part is used to extrude the wall cloth so that the wall cloth fits the wall; it is detachably installed at the connecting block; it includes a fixed plate installed on the connecting block, and a movable plate is installed on the front side of the fixed plate, and the movable plate Two ear plates are installed on the front side wall of the front wall, and a pressure roller is installed between the two ear plates. The rear side wall of the fixed plate is installed with two sliding rods that are slidably connected with the fixed plate, and the end of the sliding rod is installed with a limit block. , the slide bar is sheathed with a spring, and the two ends of the spring respectively press against the fixed plate and the movable plate.

As a preferred technical solution of the utility model, two threaded columns are installed on the rear side wall of the fixing plate, two mounting holes are opened on the connecting block, the threaded columns pass through the corresponding mounting holes, and the threaded columns are threaded to install There are nuts for locking the fixing plate to the connecting block.

As a preferred technical solution of the utility model, the rear side wall of the housing is located at both ends of the upper and lower bearing plates, and threaded rods are threaded on the bearing plates, and the two ends of the two threaded rods are connected to each other. Rotation is installed with a top block.

As a preferred technical solution of the utility model, the overall shape of the top block is cylindrical, and the top block is a finished product made of rubber.

As a preferred technical solution of the utility model, the housing is a finished product made of aluminum alloy, and the length of the housing is 2.5m.

As a preferred technical solution of the present invention, the two opposite ends of the two threaded rods are coaxially fixed with the limiting ring, and the length of the threaded rods is 0.2m.

As a preferred technical solution of the utility model, the overall shape of the connecting block is T-shaped, and the rear end of the connecting block is fixedly connected to the belt through a rivet.

Compared with the prior art, the utility model has the beneficial effects:

Through the set support part and extrusion part: the motor drives the idler roller to rotate, the idler roller drives the belt to move, the belt drives the connection block and the pressure roller to reciprocate in the vertical direction, and the pressure roller can reciprocate and squeeze the wall covering, making the wall The cloth is closely attached to the wall; this design does not need to manually squeeze the wall cloth, and the pressure roller is driven up and down by a mechanical structure such as a motor to realize the extrusion of the wall cloth, so that the wall cloth and the wall are closely attached. It saves manpower and is easy to operate.

Description of drawings

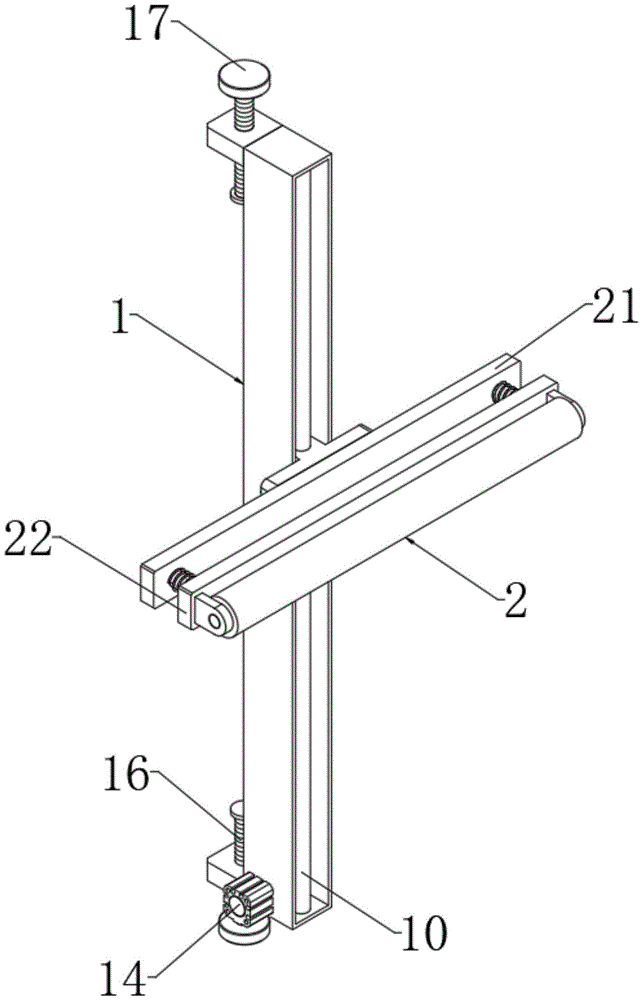

Fig. 1 is the overall structural representation of the utility model;

Fig. 2 is the structural representation of support part in the utility model;

Fig. 3 is a structural cross-sectional view of a support portion in the utility model;

Fig. 4 is the structural representation of extrusion part in the utility model;

Fig. 5 is a schematic diagram of the explosion structure of the extrusion part in the utility model;

Fig. 6 is a schematic diagram of the use state of the utility model.

In the picture:

1. Support part; 10. Guide rod; 11. Shell; 12. Idler; 13. Belt; 14. Motor; 15. Loading plate; 16. Threaded rod; 17. Top block; 18. Connection block; Mounting holes;

2. Extrusion part; 21. Fixed plate; 211. Threaded column; 212. Nut; 22. Movable plate; 221. Ear plate; 222. Slide bar;

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

This embodiment provides a technical solution:

Please refer to FIGS. 1-3 , a construction wall attachment device, including a supporting part 1 and an extruding part 2 . The support part 1 is used to support the extruding part 2; it includes a height-adjustable housing 11, and two idler rollers 12 are rotatably installed in the opening of the front side wall of the housing 11, and a belt is sleeved between the two idler rollers 12 13. The outer wall of the housing 11 is equipped with a motor 14 for driving the lower roller 12 to rotate; a guide rod 10 is installed on the front side of the belt 13, and the guide rod 10 is fixedly connected with the housing 11 through bolts. Connecting block 18, the rear end of connecting block 18 is fixedly connected with belt 13;

Specifically, the rear side wall of the housing 11 is located at the upper and lower ends and is equipped with a bearing plate 15, the bearing plate 15 is tightly welded with the housing 11, and the bearing plate 15 is threaded with threaded rods 16, and the two threaded rods 16 The top blocks 17 are rotatably mounted on the two ends facing away from each other, and the position of the top blocks 17 can be adjusted by rotating the threaded rod 16 , so as to facilitate fixing the housing 11 .

In this embodiment, the overall shape of the top block 17 is cylindrical, and the top block 17 is made of rubber material. This design can improve the friction between the top block 17 and the ground or ceiling, and improve the stability of the housing 11 after it is fixed. stability.

In this embodiment, the housing 11 is made of aluminum alloy, and the length of the housing 11 is 2.5 m. The aluminum alloy material has the advantage of light weight, which improves the portability of the housing 11 .

In this embodiment, the two opposite ends of the two threaded rods 16 are coaxially fixed to the limit ring, the length of the threaded rods 16 is 0.2m, the setting of the limit ring can prevent the threaded rods 16 from breaking away from the bearing plate 15, To ensure the normal use of threaded rod 16.

In this embodiment, the overall shape of the connecting block 18 is T-shaped, and the rear end of the connecting block 18 is fixedly connected to the belt 13 through a rivet. Solid and stable.

Please refer to Fig. 4-6, the extruding part 2 is used to extrude the wall cloth so that the wall cloth fits the wall; it is detachably installed at the connecting block 18; it includes a fixing plate 21 installed on the connecting block 18, which A movable plate 22 is installed on the front side of the plate 21, and two ear plates 221 are installed on the front side wall of the movable plate 22, and the ear plates 221 and the movable plate 22 are tightly welded, and a pressure roller 24 is installed between the two ear plates 221, The rear side wall of the fixed plate 21 is equipped with two slide bars 222 that are slidably connected with the fixed plate 21, and the end of the slide bar 222 is equipped with a limit block 223, and the two ends of the slide bar 222 are closely connected with the limit block 223 and the movable plate 22 respectively. For welding, a spring 23 is sheathed on the slide bar 222 , and the two ends of the spring 23 respectively press against the fixed plate 21 and the movable plate 22 .

In this embodiment, two threaded columns 211 are installed on the rear side wall of the fixing plate 21, and the threaded columns 211 are tightly welded with the fixing plate 21, and two mounting holes 181 are opened on the connecting block 18, and the threaded columns 211 pass through the corresponding Corresponding to the mounting hole 181, the threaded column 211 is threaded with a nut 212 for locking the fixing plate 21 on the connecting block 18, and the extrusion part 2 is conveniently disassembled through the cooperation between the threaded column 211 and the nut 212 , thereby improving the portability of the device.

What needs to be added is that since the floor height of a conventional house is 2.8m, the length of the housing 11 in this embodiment is 2.5m, and the length of the threaded rod 16 is 0.2m. This design is convenient for installing and fixing the housing 11 indoors. Then it is convenient to fit the wall covering.

It is worth noting that the motor 14 in this embodiment is an existing conventional technology and will not be repeated here.

During specific use, the user first places the housing 11 vertically on one side of the wall covering, then the user passes the threaded column 211 through the mounting hole 181, and tightens the nut 212 on the threaded column 211, and the fixing plate 21 is connected with the wall covering. The connecting block 18 is fixed, and at the same time, the user makes the pressure roller 24 press against the wall covering. At this time, the movable plate 22 is pressed from one side of the pressure roller 24, and the sliding rod 222 slides along the fixed plate 21, and the spring 23 is compressed. , and then the user rotates the threaded rods 16 on the upper and lower sides. With the rotation of the threaded rods 16, the top block 17 moves synchronously. At the same time, the top blocks 17 on the upper and lower sides press against the ceiling and the floor respectively, and the housing 11 is installed and fixed. Finally, the user turns on the power supply of the motor 14, the motor 14 starts to work, the output shaft of the motor 14 rotates to drive the idler roller 12 to rotate, the idler roller 12 drives the belt 13 to move, the belt 13 moves to drive the connecting block 18 to move in the vertical direction, The connecting block 18 synchronously drives the fixed plate 21, the movable plate 22 and the pressure roller 24 to move in the vertical direction, and the pressure roller 24 moves along the wall at the same time and squeezes the wall covering. Under the pressure of the pressure roller 24, the wall covering can be made Fits snugly against the wall.

The basic principles, main features and advantages of the present utility model have been shown and described above. Those skilled in the industry should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions are only preferred examples of the utility model, and are not used to limit the utility model. Without departing from the utility model Under the premise of the spirit and scope, the utility model also has various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The scope of protection required by the utility model is defined by the appended claims and their equivalents.

Claims (7)

1. A construction wall-attaching device, comprising a support portion (1) and an extruding portion (2), characterized in that: The supporting part (1) is used to support the extruding part (2); it includes a height-adjustable housing (11), and two supporting rollers (12) are installed in the opening of the front side wall of the housing (11). A belt (13) is sleeved between the idler rollers (12), and the outer wall of the housing (11) is equipped with a motor (14) for driving the idler roller (12) below to rotate; the front side of the belt (13) is equipped with Guide rod (10), connecting block (18) is installed on the guiding rod (10), the rear end of connecting block (18) is fixedly connected with belt (13); The extruding part (2) is used to extrude the wall cloth so that the wall cloth fits the wall; it is detachably installed at the connection block (18); it includes a fixing plate (21) installed on the connection block (18), The front side of fixed plate (21) is equipped with movable plate (22), and the front side wall of movable plate (22) is equipped with two lugs (221), and rotation is installed with pressure roller (221) between two lugs (221). 24), the rear side wall of the fixed plate (21) is equipped with two slide bars (222) that are slidably connected with the fixed plate (21), the end of the slide bar (222) is equipped with a limit block (223), and the slide bar (222 ) is sheathed with a spring (23), and the two ends of the spring (23) press against the fixed plate (21) and the movable plate (22) respectively. 2. The construction wall sticking device according to claim 1, characterized in that: two threaded columns (211) are installed on the rear side wall of the fixing plate (21), and two threaded columns (211) are provided on the connecting block (18). Mounting holes (181), threaded posts (211) pass through corresponding mounting holes (181), threaded posts (211) are installed with nuts ( 212). 3. The construction wall sticking device according to claim 1, characterized in that: the rear side wall of the housing (11) is located at the upper and lower ends of the bearing plate (15), and the bearing plate (15) is equipped with a bearing plate (15). A threaded rod (16) is threadedly connected, and two opposite ends of the two threaded rods (16) are rotatably mounted with a top block (17). 4. The construction wall sticking device according to claim 3, characterized in that: the overall shape of the jacking block (17) is cylindrical, and the jacking block (17) is a finished product made of rubber. 5. The construction wall sticking device according to claim 1, characterized in that: the housing (11) is a finished product made of aluminum alloy, and the length of the housing (11) is 2.5m. 6. The construction wall-attaching device according to claim 3, characterized in that: two opposite ends of the two threaded rods (16) are coaxially fixed with a limit ring, and the length of the threaded rods (16) is 0.2m. 7. The construction wall sticking device according to claim 1, characterized in that: the overall shape of the connecting block (18) is T-shaped, and the rear end of the connecting block (18) is fixedly connected to the belt (13) by rivets .
