Abstract

The utility model relates to an aquaculture cleaning device, which comprises a collection box, the left and right sides of the front end of the collection box are respectively provided with a water suction pipe and a water outlet pipe, and the water suction pipe and the water outlet pipe are respectively provided with a first water pump and a second water pump. Two water pumps, a battery pack is provided on the rear end of the collection box, the first water pump and the second water pump are respectively electrically connected to the battery pack, the water suction pipe is extended downward, and the bottom end of the water suction pipe is provided with Sewage suction mechanism, the inside of the collection box is provided with a filter screen, the upper end surface of the collection box is detachably provided with a cover plate, the end surface of the cover plate is provided with a handle, and the rear end surface of the collection box is provided with a sewage pipe. The sewage pipe is provided with a valve, the right end of the collection box is provided with an L-shaped pipe, and the front end of the L-shaped pipe is provided with a cleaning mechanism; the design of the collection box improves efficiency; the design of the scraper improves practicability; The design of the battery board improves energy efficiency.

Description

A kind of aquaculture cleaning device

technical field

The utility model relates to the technical field of aquaculture, in particular to an aquaculture cleaning device.

Background technique

When aquaculture is carried out, aquatic animals need to be cultured in the breeding pond. The breeding pond has been used for a long time, and a large amount of debris is attached to the wall of the pond. If the debris in the pond cannot be cleaned in time, it is easy to affect the breeding environment and affect the breeding effect. Therefore, it is necessary to regularly clean the inner wall. When the existing cleaning device is in use, it lacks a suitable cleaning mechanism, and the dirt adhering to the pool wall is inconvenient to clean. , it needs to be cleaned regularly, resulting in troublesome use of the device as a whole and low efficiency.

Utility model content

(1) Solved technical problems

Aiming at the deficiencies of the prior art, the utility model provides an aquaculture cleaning device to solve the problem that the filtering mechanism proposed in the background technology needs to be cleaned regularly after it has been used for a period of time, which makes the overall use of the device more troublesome and less efficient. low problem.

(2) Technical solution

In order to achieve the above purpose, the utility model provides the following technical solutions: an aquaculture cleaning device, including a collection box, the left and right sides of the front end of the collection box are respectively provided with a water suction pipe and a water outlet pipe, and the water suction pipe and the water outlet pipe The first water pump and the second water pump are respectively arranged on the upper surface, and the battery pack is arranged on the rear end of the collection box, and the first water pump and the second water pump are respectively electrically connected to the battery pack, and the water suction pipe is extended downward. , the bottom end of the water suction pipe is provided with a sewage suction mechanism, the inside of the collection box is provided with a filter screen, the upper end surface of the collection box is detachably provided with a cover plate, the top surface of the cover plate is provided with a handle, the collection box A sewage discharge pipe is provided through the rear end surface, a valve is provided on the sewage discharge pipe, an L-shaped pipe is provided on the left end surface of the collection box, and a cleaning mechanism is provided on the front end surface of the L-shaped pipe.

In a further preferred embodiment, the dirt suction mechanism includes a funnel and an extension cover, the funnel is installed at the bottom of the water suction pipe, and the extension cover is installed at the bottom of the funnel to facilitate water absorption.

Further preferably, a rotating shaft is installed inside the water suction pipe, and the rotating shaft extends upwards through the water suction pipe, and a crushing impeller is arranged inside the extension cover, and the crushing impeller is installed on the rotating shaft, so that A rotating motor is connected to the top of the rotating shaft, and the rotating motor is electrically connected to the battery pack to avoid blockage.

In a further preferred embodiment, the cleaning mechanism includes a mounting plate and a scraper, the mounting plate is installed at the front end of the L-shaped pipe, and the scraper is mounted at the lower end of the mounting plate to facilitate cleaning.

In a further preferred embodiment, the mounting plate and the scraper are connected by bolts, there are multiple scrapers, and the lengths of the plurality of scrapers are set differently, which is convenient for replacement and adjustment as required.

It is further preferred that a bracket is provided on the top of the rear end surface of the collection box, and a solar panel is provided on the upper end surface of the bracket, and the solar panel is electrically connected to the battery pack, which is convenient for long-term use in an outdoor environment.

(3) Beneficial effects

Compared with the prior art, the utility model provides an aquaculture cleaning device, which has the following

Beneficial effect:

In the utility model, the design of the collection box starts the first water pump, and the battery pack supplies power to it. The first water pump sucks the water in the pool into the collection box through the water suction pipe, and the water containing dirt enters the inside of the collection box through the water suction pipe. The collection box The inner filter screen can filter the water. After a certain amount of internal water has accumulated, the second water pump will be started. The second water pump will suck out the filtered water inside the collection box, and the filtered water will be sprayed out through the outlet pipe to realize water circulation and filtration. , the collection box collects a large amount of dirt, avoids frequent cleaning of the filter mechanism, and improves efficiency;

For the design of the scraper, select a scraper with a suitable length according to the needs. The scraper is installed corresponding to the mounting plate, and the bolts are tightened and fixed. After the device is installed, it is put into use, and the roller drives the device to move as a whole. The dirt attached to the pool wall ensures the cleaning effect and improves the practicality;

The design of the solar panel, when the whole device is used outside, the solar panel absorbs the solar energy, converts the solar energy into electric energy, and stores it in the battery pack, which is convenient for long-term use by the outside world and improves the energy utilization rate.

Description of drawings

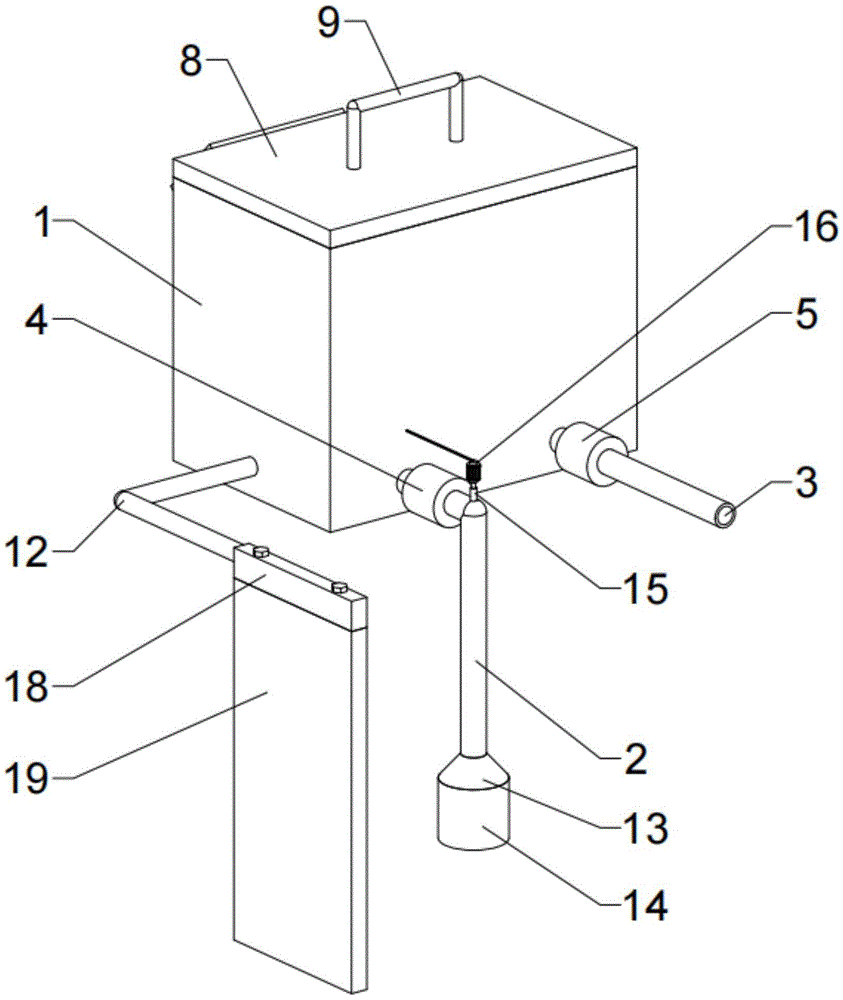

Fig. 1 is the upper schematic diagram of the preferred overall structure of a kind of aquaculture cleaning device in the utility model;

Fig. 2 is a schematic diagram of the lower side of the preferred overall structure of an aquaculture cleaning device in the utility model;

Fig. 3 is a preferred overall structure schematic diagram of an aquaculture cleaning device not equipped with a cover plate in the utility model;

Fig. 4 is a sectional view of the preferred internal structure of a water suction pipe of an aquaculture cleaning device in the utility model;

Fig. 5 is an exploded diagram of a preferred mounting plate and scraper cooperation structure of an aquaculture cleaning device in the utility model.

In the figure: 1. Collection box; 2. Suction pipe; 3. Outlet pipe; 4. First water pump; 5. Second water pump; 6. Battery pack; 7. Filter screen; 8. Cover plate; 9. Handle; 10 , sewage pipe; 11, valve; 12, L-shaped pipe; 13, funnel; 14, extension cover; 15, rotating shaft; 16, crushing impeller; 17, rotating motor; 18, mounting plate; 19, scraper; 20, bracket 21. Solar panels.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Embodiment one:

Please refer to Figure 1-4, an aquaculture cleaning device, including a collection box 1, the left and right sides of the front end of the collection box 1 are respectively provided with a water suction pipe 2 and a water outlet pipe 3, and the water suction pipe 2 and the water outlet pipe 3 are respectively provided with The first water pump 4 and the second water pump 5, the rear end of the collection box 1 is provided with a storage battery pack 6, the first water pump 4 and the second water pump 5 are respectively electrically connected to the storage battery pack 6, the water suction pipe 2 extends downwards, and the water suction pipe 2 The bottom end is equipped with a sewage suction mechanism, the inside of the collection box 1 is provided with a filter screen 7, the upper end surface of the collection box 1 is detachably provided with a cover plate 8, the upper end surface of the cover plate 8 is provided with a handle 9, and the rear end surface of the collection box 1 is provided with a sewage discharge The pipe 10 and the sewage pipe 10 are provided with a valve 11, the left end of the collecting box 1 is provided with an L-shaped pipe 12, and the front end of the L-shaped pipe 12 is provided with a cleaning mechanism.

Please refer to Fig. 1-4, in the present embodiment, the sewage suction mechanism comprises funnel 13 and extension cover 14, and funnel 13 is installed on the bottom end of water suction pipe 2, and extension cover 14 is installed on the bottom end of funnel 13, and water suction pipe 2 internal rotation device A rotating shaft 15 is arranged, and the rotating shaft 15 extends upwards through the water suction pipe 2. The inside of the extension cover 14 is provided with a pulverizing impeller 16. Sexually connected, start rotary motor 17, the motor shaft of rotary motor 17 drives rotating shaft 15 to rotate, and rotating shaft 15 drives pulverizing impeller 16 to rotate, and the dirt impurity etc. that enter through extension cover 14 are pulverized.

Referring to Fig. 1, Fig. 2 and Fig. 5, in the present embodiment, the cleaning mechanism includes a mounting plate 18 and a scraper 19, the mounting plate 18 is installed on the front end of the L-shaped pipe 12, and the scraper 19 is installed on the lower end of the mounting plate 18, and the installation The plate 18 and the scraper 19 are connected by bolts. There are multiple scrapers 19, and the lengths of the multiple scrapers 19 are different. According to the needs, select the scraper 19 with a suitable length. The scraper 19 is installed corresponding to the mounting plate 18, and the bolts are tightened and fixed. .

Please refer to Fig. 3, in this embodiment, the top of the rear end surface of the collection box 1 is provided with a support 20, the upper end surface of the support 20 is provided with a solar panel 21, the solar panel 21 is electrically connected with the storage battery pack 6, and the solar panel 21 pairs The solar energy is absorbed, and the solar energy is converted into electrical energy, which is stored in the battery pack 6 .

Embodiment two:

To sum up, when in use, first place the device on the side of the breeding pool, the rollers at the bottom of the collection box 1 drive the device to move around the pool, and select a suitable length of scraper 19 according to the needs, and the scraper 19 corresponds to the installation plate 18 for installation , the bolts are tightened and fixed, after the installation of the device is completed, it is put into use, the roller drives the device to move as a whole, the scraper 19 cleans the pool wall, removes the dirt attached to the pool wall, starts the first water pump 4, and the battery pack 6 supplies power to it , the first water pump 4 sucks the water in the pool into the collection box 1 through the water suction pipe 2, and starts the rotating motor 17 while absorbing water. The dirt and impurities that enter the cover 14 are pulverized to prevent larger particles of impurities from entering the water suction pipe 2 and avoiding blockage.

Embodiment three:

To sum up, when in use, the water containing dirt enters the interior of the collection box 1 through the water suction pipe 2, and the filter screen 7 in the collection box 1 filters the water. After a certain amount of internal water is accumulated, the second water pump 5 is started, and the second water pump 5. Suck out the filtered water inside the collection box 1, and the filtered water is sprayed out through the outlet pipe 3 to realize water circulation and filtration. The collection box 1 can collect a large amount of dirt, avoid frequent cleaning of the filter mechanism, and improve efficiency. When used in the outside world, the solar panel 21 absorbs the solar energy, and the solar energy is converted into electric energy and stored in the storage battery pack 6, which is convenient for the outside world to use for a long time. 1. Add water inside, open the valve 11 on the sewage pipe 10, and discharge the internal dirt.

In all the schemes mentioned above, those involving the connection between two parts can choose welding, bolt and nut fit connection, bolt or screw connection or other known connection methods according to the actual situation, so I won’t go into details here. Where the text involves a fixed connection with writing, welding is given priority. The above is only a preferred embodiment of the utility model, but the scope of protection of the utility model is not limited thereto. Anyone familiar with the technical field Within the technical scope disclosed in the utility model, any equivalent replacement or change according to the technical solution of the utility model and the concept of the utility model shall be covered by the protection scope of the utility model.

Claims (6)

1. The utility model provides an aquaculture belt cleaning device, includes collecting box (1), its characterized in that, terminal surface left and right sides runs through respectively and is equipped with water suction pipe (2) and outlet pipe (3) before collecting box (1), be equipped with first water pump (4) and second water pump (5) on water suction pipe (2) and outlet pipe (3) respectively, collecting box (1) rear end face is equipped with storage battery (6), first water pump (4) and second water pump (5) respectively with storage battery (6) electric connection, water suction pipe (2) downwardly extending sets up, water suction pipe (2) bottom is equipped with dirt absorbing mechanism, collecting box (1) inside is equipped with filter screen (7), collecting box (1) up end can be dismantled and be equipped with apron (8), apron (8) up end is equipped with handle (9), collecting box (1) rear end face runs through and is equipped with blow off pipe (10), be equipped with valve (11) on blow off pipe (10), collecting box (1) left end face is equipped with L type pipe (12), L type pipe (12) front is equipped with clearance mechanism.

2. An aquaculture cleaning apparatus according to claim 1 wherein: the dirt sucking mechanism comprises a funnel (13) and an extension cover (14), wherein the funnel (13) is arranged at the bottom end of the water sucking pipe (2), and the extension cover (14) is arranged at the bottom end of the funnel (13).

3. An aquaculture cleaning apparatus according to claim 2 wherein: the inside rotation of water suction pipe (2) is equipped with pivot (15), pivot (15) upwards extend and run through water suction pipe (2), extension cover (14) inside is equipped with smash impeller (16), smash impeller (16) install on pivot (15), pivot (15) top connection is equipped with rotating electrical machines (17), rotating electrical machines (17) and storage battery (6) electric connection.

4. An aquaculture cleaning apparatus according to claim 1 wherein: the cleaning mechanism comprises a mounting plate (18) and a scraping plate (19), wherein the mounting plate (18) is mounted at the front end of the L-shaped pipe (12), and the scraping plate (19) is mounted at the lower end of the mounting plate (18).

5. An aquaculture cleaning apparatus according to claim 4 wherein: the mounting plate (18) is connected with the scrapers (19) through bolts, the scrapers (19) are provided with a plurality of scrapers (19) with different lengths.

6. An aquaculture cleaning apparatus according to claim 1 wherein: the solar cell collecting box is characterized in that a support (20) is arranged at the top of the rear end face of the collecting box (1), a solar cell panel (21) is arranged on the upper end face of the support (20), and the solar cell panel (21) is electrically connected with a storage battery pack (6).
