Abstract
The utility model discloses a novel high-low voltage switch cabinet which comprises a high-low voltage switch cabinet main body, wherein a line concentration bin is arranged in the high-low voltage switch cabinet main body, a mounting plate is slidably arranged at the top of the line concentration bin, a plurality of groups of first limiting frames are fixedly arranged on the inner walls of two sides of the high-low voltage switch cabinet main body, a support frame is slidably arranged in the inner sides of the plurality of groups of first limiting frames, and a mounting frame is slidably connected to the top of the support frame. The second limiting frame is connected to the inner side of the first limiting frame in a sliding mode, so that a worker can conveniently take out the mounting frames from the inside of the high-low voltage switch cabinet main body, the electronic elements of the high-low voltage switch cabinet main body are divided into a plurality of units through the plurality of groups of mounting frames, when the worker overhauls the high-low voltage switch cabinet main body, the worker can conveniently take out damaged parts for maintenance according to the needs, and the worker does not need to detach the whole high-low voltage switch cabinet main body when detaching, so that the workload of the worker is reduced.
Description
Technical Field
The utility model relates to the technical field of high-low voltage switch cabinets, in particular to a novel high-low voltage switch cabinet.
Background
The high-low voltage switch cabinet is the equipment for connecting high-voltage or low-voltage cables as the name implies, the high-voltage cabinet is used by a general power supply office and a power substation, then the voltage is reduced by a transformer and then the low-voltage cabinet is connected to each power distribution box, and the protection devices such as a plurality of switch breakers are assembled into integrated electrical equipment.
The defects of the high-low voltage switch cabinet in the prior art are as follows:
at present, patent document CN112803262a discloses a high-low voltage switch cabinet, the intelligent cabinet temperature adjusting device comprises a cabinet body, be provided with a plurality of spouts on the inner wall of the cabinet body, the spout is two pairs of corresponding settings, the internal locating rack that is provided with a plurality of concave structures of cabinet, the both sides of locating rack all are provided with the draw-in groove of draw-in strip, the draw-in groove that is provided with L type structure on the locating rack is inserted respectively to the draw-in strip, all be provided with the link on the locating rack, the both ends of link are provided with the fixture block respectively, the fixture block is inserted respectively and is established in the draw-in groove that corresponds the setting, one side of fixture block all is provided with a spring bar, one end that the fixture block was kept away from to the spring bar all is provided with the clamp plate of arc structure, one side that the clamp plate kept away from a spring bar contacts with the locating rack that corresponds the setting respectively, the bilateral symmetry of the cabinet body is provided with a plurality of grooves. The utility model can realize the quick assembly and disassembly of the connecting frame in the high-low voltage switch cabinet, greatly facilitates the installation and maintenance and is suitable for popularization.
When the high-low voltage switch cabinet in the file is used, the connecting frame inside the high-low voltage switch cabinet is quickly disassembled and assembled, so that the installation and maintenance are greatly facilitated, the damaged part is difficult to take out for maintenance when the part is disassembled, and workers need to be integrally disassembled when the part is disassembled, so that the workload of the workers is increased, and the use of the workers is inconvenient.
Disclosure of Invention
The utility model aims to provide a novel high-low voltage switch cabinet so as to solve the problems in the background technology.
In order to achieve the above purpose, the utility model provides a novel high-low voltage switch cabinet, which comprises a high-low voltage switch cabinet main body, wherein a line concentration bin is arranged in the high-low voltage switch cabinet main body, a mounting plate is slidably arranged at the top of the line concentration bin, a plurality of groups of first limiting frames are fixedly arranged on the inner walls of two sides of the high-low voltage switch cabinet main body, a supporting frame is slidably arranged in the inner sides of the plurality of groups of first limiting frames, the top of the supporting frame is slidably connected with a mounting frame, and a sealing door is rotatably connected to the front surface of the high-low voltage switch cabinet main body.
Preferably, an access board is fixedly connected to the outer wall of one side of the high-low voltage switch cabinet main body through bolts, and a dustproof filter screen is fixedly arranged on the outer wall of the access board.
Preferably, the through hole has been seted up to the outer wall of mounting panel, the equal fixedly connected with limiting plate in both ends of mounting panel.
Preferably, the first mounting groove has been seted up to the outer wall of limiting plate, the inside rotation of mounting groove is connected with multiunit first pulley, and the support of first pulley is at the inner wall in line concentration storehouse.
Preferably, the inside wall of first locating part is all fixed mounting has the stopper, the second mounting groove has been seted up to the outer wall of stopper, the inside rotation of second mounting groove is connected with multiunit second pulley.
Preferably, the outer wall fixed mounting of support frame has the second spacing, and second spacing sliding connection is in the inboard of first spacing, the interior bottom wall fixed mounting of support frame has the damping bumper shock absorber, and the top of damping bumper shock absorber is connected with the bottom of mounting bracket.
Preferably, the top fixed mounting of high-low voltage switch cabinet main part has the mounting box, and the inside of mounting box and the inside intercommunication of high-low voltage switch cabinet main part, the inside fixed mounting of mounting box has radiator fan.
Compared with the prior art, the utility model has the following beneficial effects:
1. the second limiting frame is connected to the inner side of the first limiting frame in a sliding mode, so that a worker can conveniently take out the mounting frames from the inside of the high-low voltage switch cabinet main body, the electronic elements of the high-low voltage switch cabinet main body are divided into a plurality of units through the plurality of groups of mounting frames, when the worker overhauls the high-low voltage switch cabinet main body, the worker can conveniently take out damaged parts for maintenance according to the needs, and the worker does not need to detach the whole high-low voltage switch cabinet main body when detaching, so that the workload of the worker is reduced.
2. According to the utility model, the heat dissipation fan can be used for ventilating and dissipating heat in the high-low voltage switch cabinet main body, so that the damage of electronic elements in the high-low voltage switch cabinet main body caused by the overhigh temperature in the high-low voltage switch cabinet main body is prevented, and the mounting frame has a damping effect through the damping shock absorber, thereby avoiding the influence of the outside on the electronic elements above the mounting frame.
Drawings

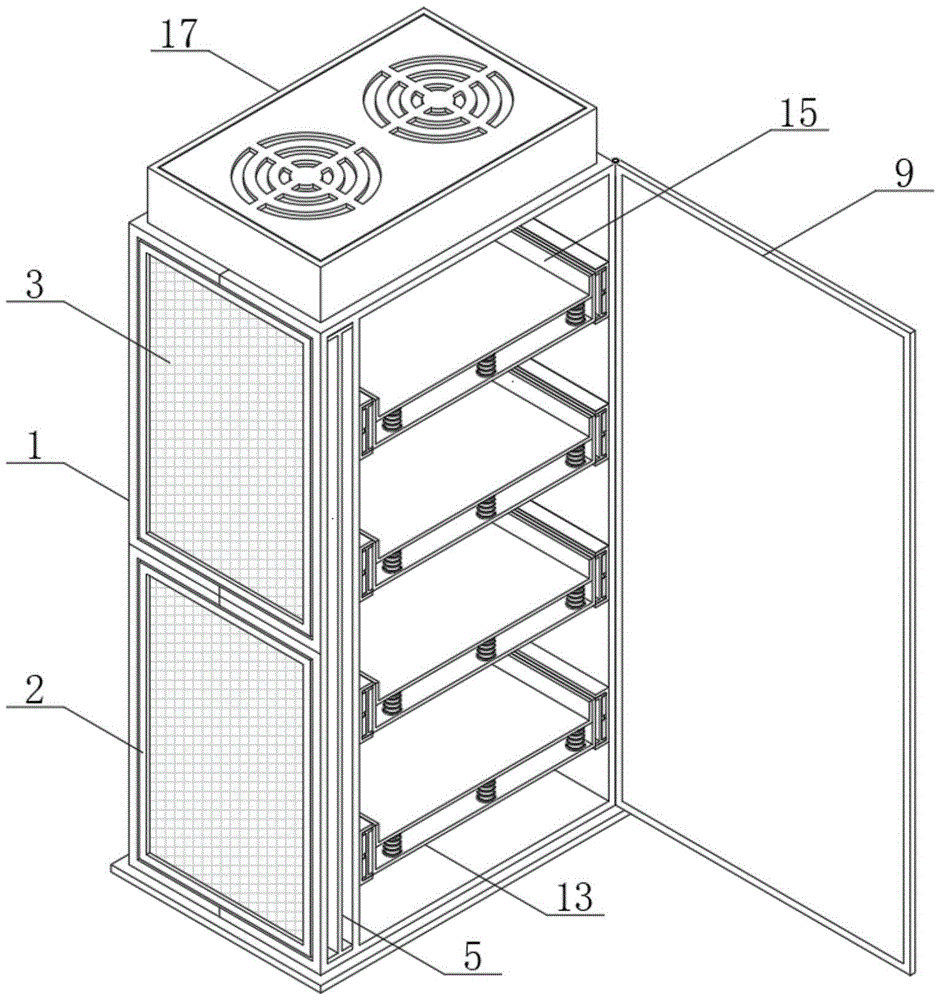

FIG. 1 is a schematic diagram of the overall structure of the present utility model;
FIG. 2 is a schematic diagram of the main structure of the high-low voltage switch cabinet of the utility model;
FIG. 3 is a schematic view of a mounting plate structure of the present utility model;
fig. 4 is a schematic view of the structure of the mounting frame of the present utility model.
In the figure: 1. a high and low voltage switch cabinet body; 2. an access panel; 3. a dust-proof filter screen; 4. a line concentration bin; 5. a mounting plate; 6. a through hole; 7. a limiting plate; 8. a first pulley; 9. sealing the door; 10. a first limiting frame; 11. a limiting block; 12. a second pulley; 13. a support frame; 14. damping shock absorber; 15. a mounting frame; 16. the second limiting frame; 17. a mounting box; 18. a heat radiation fan.
Detailed Description
The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.
Referring to fig. 1 to 4, a new high-low voltage switch cabinet:
including high-low voltage switch cabinet main part 1, the inside of high-low voltage switch cabinet main part 1 sets up line concentration storehouse 4, the top slidable mounting in line concentration storehouse 4 has mounting panel 5, the positive rotation of high-low voltage switch cabinet main part 1 is connected with sealing door 9, the top fixed mounting of high-low voltage switch cabinet main part 1 has mounting box 17, and the inside of mounting box 17 and the inside intercommunication of high-low voltage switch cabinet main part 1, the inside fixed mounting of mounting box 17 has radiator fan 18, one side outer wall of high-low voltage switch cabinet main part 1 passes through bolt fixedly connected with access panel 2, the outer wall fixed mounting of access panel 2 has dustproof filter screen 3, through-hole 6 has been seted up to the outer wall of mounting panel 5, the equal fixedly connected with limiting plate 7 in both ends of mounting panel 5, first mounting groove has been seted up to the outer wall of limiting plate 7, the inside rotation of mounting groove is connected with multiunit first pulley 8, and the inner wall in line concentration storehouse 4 of first pulley 8.
Can provide mounted position for mounting panel 5 through line concentration storehouse 4, can provide the position of accomodating for the connecting wire of high-low voltage switch cabinet main part 1 through mounting panel 5, make the connecting wire can normally fix the front at mounting panel 5 through hole 6, guarantee the stability of mounting panel 5 inside line concentration storehouse 4 through limiting plate 7, can make things convenient for the staff to take out mounting panel 5 through first pulley 8, thereby be convenient for the staff to connect spacing accomodating and dismantle, through dismantling access panel 2, can be convenient for the staff to the connection of accomodating inside line concentration storehouse 4 maintain, can provide mounted position for radiator fan 18 through mounting box 17, can ventilate the heat dissipation to the inside of high-low voltage switch cabinet main part 1 through radiator fan 18, prevent that the inside temperature of high-low voltage switch cabinet main part 1 is too high, lead to the inside electronic component of high-low voltage switch cabinet main part 1 to damage.
The equal fixed mounting of both sides inner wall of high-low voltage switch cabinet main part 1 has the first spacing 10 of multiunit, the equal fixed mounting of inside wall of first spacing 10 has stopper 11, the second mounting groove has been seted up to the outer wall of stopper 11, the inside rotation of second mounting groove is connected with multiunit second pulley 12, the inboard slidable mounting of multiunit first spacing 10 has support frame 13, the top sliding connection of support frame 13 has mounting bracket 15, the outer wall fixed mounting of support frame 13 has second spacing 16, and second spacing 16 sliding connection is in the inboard of first spacing 10, the interior bottom wall fixed mounting of support frame 13 has damping damper 14, and the top of damping damper 14 is connected with the bottom of mounting bracket 15.
Can carry out spacingly to second spacing 16 through first spacing 10 and stopper 11, can provide the mounted position for mounting bracket 15 through support frame 13, can provide the mounted position for the electronic component of high-low voltage switch cabinet main part 1 through mounting bracket 15, can make mounting bracket 15 have the shock attenuation effect through damping bumper 14, thereby avoid external electronic component to mounting bracket 15 top to cause the influence, through the inboard of second spacing 16 sliding connection at first spacing 10, thereby make things convenient for the staff to take out mounting bracket 15 from the inside of high-low voltage switch cabinet main part 1, the staff of being convenient for overhauls the electronic component of high-low voltage switch cabinet main part 1, divide into a plurality of units with the electronic component of high-low voltage switch cabinet main part 1 through multiunit mounting bracket 15.
The theory of operation can provide the mounted position for mounting bracket 15 through support frame 13, can provide the mounted position for the electronic component of high-low voltage switch cabinet main part 1 through mounting bracket 15, can make mounting bracket 15 have the shock attenuation effect through damping bumper shock absorber 14, through the inboard of second spacing 16 sliding connection at first spacing 10 to make things convenient for the staff to take out mounting bracket 15 from the inside of high-low voltage switch cabinet main part 1, divide into a plurality of units with the electronic component of high-low voltage switch cabinet main part 1 through multiunit mounting bracket 15. Can provide mounted position for mounting panel 5 through line concentration storehouse 4, can provide the storage position for the connecting wire of high-low voltage switch cabinet main part 1 through mounting panel 5, make the connecting wire normally fix the front at mounting panel 5 through-hole 6, guarantee the stability of mounting panel 5 in line concentration storehouse 4 inside through limiting plate 7, can provide mounted position for radiator fan 18 through mounting box 17, can ventilate the heat dissipation to the inside of high-low voltage switch cabinet main part 1 through radiator fan 18.
It will be evident to those skilled in the art that the utility model is not limited to the details of the foregoing illustrative embodiments, and that the present utility model may be embodied in other specific forms without departing from the spirit or essential characteristics thereof. The present embodiments are, therefore, to be considered in all respects as illustrative and not restrictive, the scope of the utility model being indicated by the appended claims rather than by the foregoing description, and all changes which come within the meaning and range of equivalency of the claims are therefore intended to be embraced therein. Any reference sign in a claim should not be construed as limiting the claim concerned.
Claims (7)
1. The utility model provides a novel high-low voltage switch cabinet, includes high-low voltage switch cabinet main part (1), its characterized in that: the inside of high-low voltage switch cabinet main part (1) sets up line concentration storehouse (4), the top slidable mounting in line concentration storehouse (4) has mounting panel (5), the equal fixed mounting of both sides inner wall of high-low voltage switch cabinet main part (1) has first spacing (10) of multiunit, multiunit the inside of first spacing (10) is sliding and is installed support frame (13), the top sliding connection of support frame (13) has mounting bracket (15), the front rotation of high-low voltage switch cabinet main part (1) is connected with sealing door (9).
2. A new high and low voltage switchgear as claimed in claim 1, wherein: the high-low voltage switch cabinet is characterized in that an overhaul plate (2) is fixedly connected to the outer wall of one side of the high-low voltage switch cabinet body (1) through bolts, and a dustproof filter screen (3) is fixedly arranged on the outer wall of the overhaul plate (2).
3. A new high and low voltage switchgear as claimed in claim 1, wherein: through holes (6) are formed in the outer wall of the mounting plate (5), and limiting plates (7) are fixedly connected to the two ends of the mounting plate (5).
4. A new high and low voltage switchgear as claimed in claim 3, wherein: the outer wall of limiting plate (7) has seted up first mounting groove, the inside rotation of mounting groove is connected with multiunit first pulley (8), and the inner wall in line concentration storehouse (4) of support of first pulley (8).
5. A new high and low voltage switchgear as claimed in claim 1, wherein: the inner side walls of the first limiting frames (10) are fixedly provided with limiting blocks (11), the outer walls of the limiting blocks (11) are provided with second mounting grooves, and a plurality of groups of second pulleys (12) are rotatably connected in the second mounting grooves.
6. A new high and low voltage switchgear as claimed in claim 1, wherein: the outer wall fixed mounting of support frame (13) has second spacing (16), and second spacing (16) sliding connection is in the inboard of first spacing (10), the interior bottom wall fixed mounting of support frame (13) has damping bumper shock absorber (14), and the top of damping bumper shock absorber (14) is connected with the bottom of mounting bracket (15).
7. A new high and low voltage switchgear as claimed in claim 1, wherein: the top of high-low voltage switch cabinet main part (1) fixed mounting has mounting box (17), and the inside of mounting box (17) and the inside intercommunication of high-low voltage switch cabinet main part (1), the inside fixed mounting of mounting box (17) has radiator fan (18).
