The utility model belongs to the field of glass processing equipment, and proposes a glass processing center capable of automatically conveying glass, including a body, which is arranged across a roller conveyor, the conveying surface of the roller conveyor faces the processing tool, and the front side of the body is arranged There is a positioning mechanism, the positioning mechanism includes a beam, the two ends of the beam are provided with a lifting mechanism, the beam is provided with a long hole, and at least two compactors are arranged in the long hole to cooperate with its horizontal movement, and the beam faces one side of the processing tool. A pair of corner brackets are arranged on the side, a compactor is also arranged on the corner brackets, a first dust suction assembly is arranged between the corner brackets, a sliding cover is installed on the top of the body, and the side of the body facing away from the positioning mechanism is installed There is a second vacuum assembly. The utility model has reasonable design, simple structure, high feeding efficiency and good dustproof effect, and is suitable for large-scale popularization.

Description

Glass processing center with automatic glass conveying

technical field

The utility model belongs to the field of glass processing equipment, in particular to a glass processing center capable of automatically conveying glass.

Background technique

Glass is an amorphous inorganic non-metallic material, the main components are silicon dioxide and other oxides, generally made of various inorganic minerals as the main raw material, and a small amount of auxiliary raw materials are added. Glass is widely used in daily life, such as windows, kitchen cabinets, mobile phones and cars. Glass production processes include screening, batching, heating, melting, molding, cooling, cutting, edging and packaging.

At present, most glass processing centers are manually loaded, which has low feeding efficiency and poor dust-proof effect, which affects the processing environment of the frame.

Utility model content

Aiming at the technical problems of the above-mentioned processing centers, the utility model proposes a glass processing center that can automatically transport glass with reasonable design, simple structure, high feeding efficiency and good dust-proof effect.

In order to achieve the above purpose, the technical solution adopted by the utility model is that the glass processing center provided by the utility model that can automatically transport glass includes a body, and a moving assembly is arranged inside the body, and a processing tool is arranged on the moving assembly , the body is arranged across the roller conveyor, the conveying surface of the roller conveyor faces the processing tool, the front side of the body is provided with a positioning mechanism, the positioning mechanism includes a beam, and the two ends of the beam A lifting mechanism is provided, and a long hole is provided on the crossbeam, and at least two compactors are arranged in the long hole to cooperate with the horizontal movement, and a pair of corner code pieces are provided on the side of the crossbeam facing the processing tool , a compactor is also arranged on the corner code parts, a first dust suction assembly is arranged between the corner code parts, a sliding cover plate is provided on the top of the body, and the side of the body facing away from the positioning mechanism A second dust suction component is provided.

Preferably, the first dust suction assembly includes a dust suction box, the dust suction box includes a plurality of first suction holes, the first dust suction pipe is arranged on the dust suction box, and the first dust suction pipe The power end is equipped with a dust collector.

Preferably, the second dust collection assembly includes a horizontal dust collection board, the dust collection board includes a number of through holes, a dust collection box is provided on the side of the dust collection board facing away from the body, and the dust collection box One end is provided with a second dust suction pipe, and the second dust suction pipe is connected with the dust remover.

As a preference, the lifting mechanism includes a vertical lead screw, the lead screw is rotatably matched with the lug plate arranged at the end of the beam, and one side of the body is provided with a mounting seat for installing the lead screw, and the lead screw The top is provided with a geared motor.

Preferably, the compactor includes a rubber post, a connecting rod is arranged on the top of the rubber post, and a pair of threaded weights are arranged on the connecting rod.

Compared with the prior art, the utility model has the advantages and positive effects that:

1. The glass processing center that can automatically transport glass provided by the utility model uses the roller conveyor that runs through the machine body to automatically transport the glass workpiece, and the positioning mechanism that can lift the workpiece is used to position the workpiece. At the same time, the first suction The dust assembly and the second dust collection assembly absorb the smoke and dust generated in the processing range, with reasonable design, simple structure, high feeding efficiency and good dust prevention effect, which is suitable for large-scale promotion.

Description of drawings

In order to more clearly illustrate the technical solutions of the embodiments of the utility model, the following will briefly introduce the accompanying drawings that need to be used in the description of the embodiments. Obviously, the accompanying drawings in the following description are some embodiments of the utility model , for those skilled in the art, other drawings can also be obtained according to these drawings on the premise of not paying creative work.

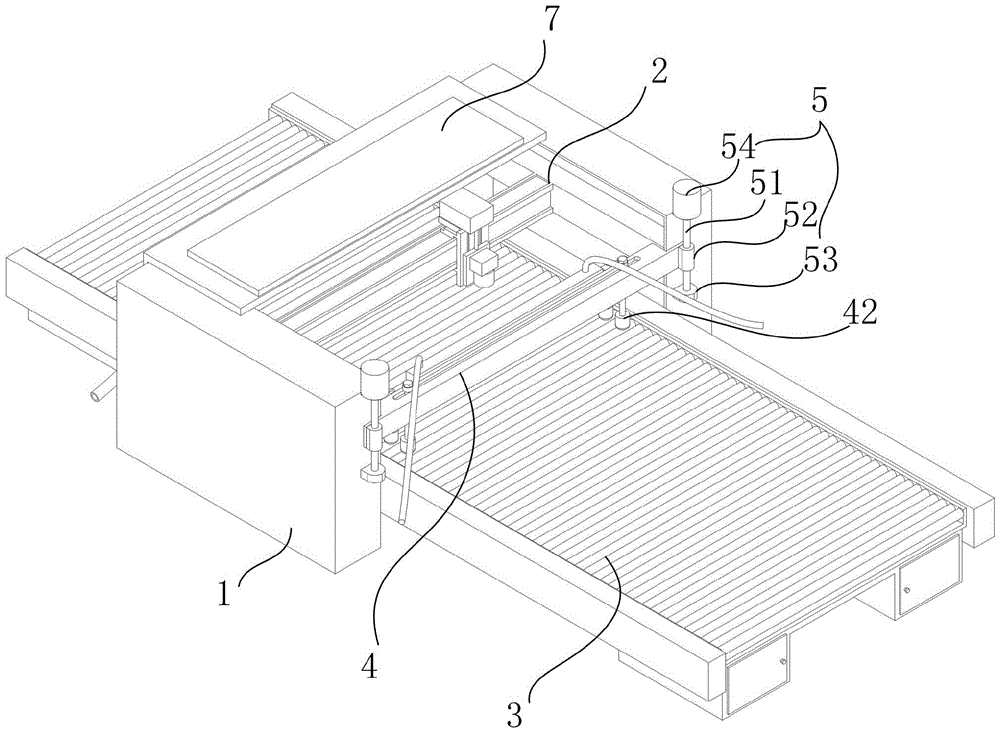

Fig. 1 is the axonometric view of the glass processing center that can automatically transport glass provided by the embodiment;

Fig. 2 is the front view of the glass processing center that can automatically transport glass provided by the embodiment;

Fig. 3 is the rear view of the glass processing center that can automatically transport glass provided by the embodiment;

Fig. 4 is a top view of a glass processing center (rollerless conveyor) capable of automatically conveying glass;

In the above figures, 1. Body; 2. Moving components; 3. Roller conveyor; 4. Positioning mechanism; 41. Beam; 411. Slot hole; 42. Compressor; 421. Rubber column; Rod; 423, threaded weight; 43, corner code piece; 5, lifting mechanism; 51, leading screw; 52, ear plate; 53, mounting seat; 54, reduction motor; Dust box; 62, first dust suction pipe; 7, sliding cover plate; 8, second dust suction assembly; 81, dust suction plate; 82, dust suction box; 83, second dust suction pipe; 9, dust collector.

Detailed ways

In order to understand more clearly the above purpose, features and advantages of the utility model, the utility model will be further described below in conjunction with the accompanying drawings and embodiments. It should be noted that, in the case of no conflict, the embodiments of the present application and the features in the embodiments can be combined with each other. For the convenience of description, if the words "up", "down", "left" and "right" appear below, it only means that the directions of up, down, left and right are consistent with the drawings themselves, and do not limit the structure.

In the following description, a lot of specific details have been set forth in order to fully understand the utility model, but the utility model can also be implemented in other ways that are different from those described here. Therefore, the utility model is not limited to the specific details of the following disclosure EXAMPLE LIMITATIONS.

Embodiment, as shown in Fig. 1, Fig. 2, Fig. 3 and Fig. 4, the glass processing center that can automatically transport glass provided by the utility model includes a body 1, and a moving assembly 2 is arranged inside the body 1, and the moving assembly 2 is provided with a processing tool. Wherein, the moving assembly 2 is used to drive the processing tool to move back and forth, up and down and left and right, and the processing tool directly processes the glass workpiece such as engraving and cutting. On this basis, the body 1 is arranged across the roller conveyor 3, the conveying surface of the roller conveyor 3 faces the processing tool, and the front side of the body 1 is provided with a positioning mechanism 4, and the positioning mechanism 4 includes a beam 41, the beam 41 Lifting mechanism 5 is provided at both ends of the crossbeam 41, and elongated hole 411 is provided on the crossbeam 41, and at least two compactors 42 are arranged in the elongate hole 411 to cooperate with its horizontal movement, and a pair of clamping devices 42 are arranged on the side of the crossbeam 41 facing the processing tool. Angle brackets 43, a compactor 42 is also arranged on the angle brackets 43, the first dust suction assembly 6 is arranged between the angle brackets 43, the top of the body 1 is provided with a sliding cover 7, and the body 1 faces away from the positioning mechanism One side of 4 is provided with the second suction assembly 8.

Specifically, the roller conveyor 3 that runs through the machine body 1 from front to back automatically transports the glass workpiece, moves the glass workpiece to the processing station and enables the processing tool to process it, and the height of the positioning mechanism 4 is adjusted by the lifting mechanism 5 For flexible adjustment, the workpiece can be positioned by the lifting positioning mechanism 4, and the compactor 42 on the beam 41 and the compactor 42 on the corner code 43 can form a certain area of the plane support system to carry out the workpiece positioning. Pressing is beneficial to improve the stability of the workpiece at the processing station. At the same time, the first dust suction assembly 6 and the second dust suction assembly 8 absorb the smoke and dust generated during processing from the front and rear sides of the processing range, and the protective effect of the sliding cover plate 7 effectively improves the working efficiency of the processing center. The dustproof effect is better.

In order to improve the dust-absorbing performance of the first dust-absorbing assembly 6, the first dust-absorbing assembly 6 provided by the utility model includes a dust-absorbing box 61, and the dust-absorbing box 61 includes a plurality of first dust-absorbing holes, and the dust-absorbing box 61 is provided with a first dust-absorbing hole. A dust suction pipe 62, the power end of the first dust suction pipe 62 is provided with a dust remover 9. The dust collection box 61 covers the processing range horizontally, and the smoke generated by the processing has a certain power, coupled with the power of the dust collector, it can promote the processing smoke and dust to leave the processing station, and the dust is collected by the working devices inside the dust collector.

Further, the second dust collection assembly 8 provided by the utility model includes a horizontal dust collection board, the dust collection board 81 includes a plurality of through holes, and the side of the dust collection board 81 facing away from the body 1 is provided with a dust collection box 82 for dust collection. One end of the box 82 is provided with a second dust suction pipe 83 , and the second dust suction pipe 83 is connected with the dust remover 9 . Among them, the dust collection plate 81 and the dust collection box are opposite to the dust collection box 61, and can form a certain height difference with the dust collection box 61, and the power action of the dust generated by processing on the dust collector can promote the processing dust to leave the processing station , thereby improving the cleaning performance near the body 1 .

In order to improve the action stability of the positioning mechanism 4, the lifting mechanism 5 provided by the utility model includes a vertical screw 51, the screw 51 is in rotation with the ear plate 52 arranged at the end of the beam 41, and one side of the body 1 is provided with a useful To install the mounting seat 53 of the leading screw, the top of the leading screw 51 is provided with a geared motor 54. Among them, the reduction motor 54 drives the screw 51 to rotate, and the rotation of the screw 51 can be converted into the lifting action of the lug plate 52, thereby driving the beam 41 to lift together with the corner bracket 43 and the presser 42, and then achieve pressing and releasing the glass. The purpose of the artifact.

In order to improve the practicability of the compactor 42, the compactor 42 provided by the utility model includes a rubber post 421, a connecting rod 422 is arranged on the top of the rubber post 421, and a pair of threaded weights 423 are arranged on the connecting rod 422. Wherein, the threaded weights 423 on the same connecting rod 422 are opposite up and down and distributed about the elongated hole 411 or the corner code 43, by adjusting the relative position of the threaded weights on the connecting rod, the connecting rod can be locked on the beam 41 or the corner codes. The specific position on the piece 43, and the rubber column directly elastically presses the glass workpiece to achieve the purpose of positioning the glass workpiece. The actual diameter of the rubber column 421 can be flexibly selected according to the elastic pressure requirement.

The above is only a preferred embodiment of the utility model, and is not intended to limit the utility model in other forms. Any skilled person who is familiar with this profession may use the technical content disclosed above to change or remodel it into an equivalent change. The equivalent embodiments are applied to other fields, but any simple modifications, equivalent changes and modifications made to the above embodiments according to the technical essence of the present invention without departing from the content of the technical solution of the present utility model still belong to the technical solution of the present utility model scope of protection.

Claims (5)

1. A glass processing center capable of automatically conveying glass, comprising a body, a moving assembly is arranged inside the body, and a processing tool is arranged on the moving assembly, and it is characterized in that the body straddles the roller conveyor On the machine, the conveying surface of the roller conveyor faces the processing tool, and the front side of the body is provided with a positioning mechanism, the positioning mechanism includes a beam, and the two ends of the beam are provided with a lifting mechanism, and the beam is provided with The elongated hole is provided with at least two compactors that cooperate horizontally with it, and a pair of corner codes are provided on the side of the beam facing the processing tool, and the corner codes are also provided with a compression device. A tightener, a first dust-absorbing assembly is arranged between the corner brackets, a sliding cover is arranged on the top of the body, and a second dust-absorbing assembly is arranged on the side of the body facing away from the positioning mechanism. 2. The glass processing center capable of automatically conveying glass according to claim 1, characterized in that, the first dust suction assembly includes a dust collection box, and the dust collection box includes a plurality of first suction holes, and the suction suction The dust box is provided with a first dust suction pipe, and the power end of the first dust suction pipe is provided with a dust remover. 3. The glass processing center capable of automatically conveying glass according to claim 2, wherein the second dust collection assembly comprises a horizontal dust suction plate, the dust suction plate includes several through holes, and the dust suction A dust collection box is provided on the side of the board facing away from the body, and a second dust suction pipe is provided at one end of the dust collection box, and the second dust suction pipe is connected with the dust collector. 4. The glass processing center capable of automatically conveying glass according to claim 3, wherein the lifting mechanism includes a vertical lead screw, and the lead screw rotates in cooperation with the lug plate arranged at the end of the beam, so that One side of the body is provided with a mounting base for installing a lead screw, and a geared motor is provided on the top of the lead screw. 5. The glass processing center capable of automatically conveying glass according to claim 1, wherein the compactor comprises a rubber column, and a connecting rod is arranged on the top of the rubber column, and a pair of connecting rods are arranged on the connecting rod. Thread weights.
