Abstract

The utility model discloses an easy-to-adjust winding device for geotextile production, which comprises a base, a first scissor-fork structure is arranged on the left side of the top of the base, a support plate is arranged on the top of the first scissor-fork structure, and the support plate The top of the base is provided with a first motor, the right side of the first motor is provided with a first rotating shaft, the outer ring of the first rotating shaft is provided with a rotating roller, the right side of the top of the base is provided with a second motor, and the left side of the second motor is provided with a connection seat, a screw rod is set between the second motor and the connecting seat, the outer ring of the screw rod is threadedly connected with a moving block, the top of the moving block is provided with a second scissor fork structure, and the top of the second scissor fork structure is provided with a flat plate . The easy-to-adjust winding device for geotextile production adjusts the position of the moving block and the fixed seat left and right according to the width of the geotextile, so that the left side of the fixed seat is close to the geotextile, avoiding the geotextile during the winding process. Slanted to facilitate the fixing of the geotextile during the coiling process.

Description

An easily adjustable winding device for geotextile production

technical field

The utility model relates to the technical field of winding machines, in particular to an easy-to-adjust winding device for geotextile production.

Background technique

The winding device is mainly used for the winding and packaging of geotextiles. It is generally installed behind the geotextile processing production line, and the raw materials are mechanically wound into rolls. According to the actual process requirements, the design is diversified. The common ones are simple winders, Hydraulic winders, winders generally have strict requirements on the inner diameter of the material, the outer diameter of the roll, the thickness and width of the roll material. With the development of science and technology, the easy-to-adjust winding device for geotextile production has a large The development, its type and quantity are also increasing day by day, but this winding device still has problems such as the inconvenient take-and-place adjustment of the winding roller.

The patent with the publication number CN214059340U discloses a rewinding device that is easy to adjust for geotextile production, including a base, a second fixed seat, a rewinding roller, a support rod and a tension roller. The top of the base is fixed with a leg, The top end of the leg is fixed with a first fixing base, one end of the first fixing base is connected with a first rotating shaft, and the second fixing base is connected with the first fixing base through the first rotating shaft. The geotextile production is easy to adjust the winding device, unscrew the bolt, pull the second fixed seat to rotate around the first shaft to open, pull one end of the winding roller to separate from the fixed roller, then take out the geotextile, and then place it for winding The roller is above the first fixed seat, so that the winding roller and the fixed roller are docked, and then the second fixed seat is reversely rotated, so that the first connecting plate and the second connecting plate are attached, and then the bolts are tightened so that the bolts are in contact with the first The connecting plate and the second connecting plate are through-connected, so as to fix the winding roller, thereby facilitating the replacement of the winding roller of the winding device. However, in the process of actually using this device, raw materials of different widths and thicknesses will be rewound, but the device lacks a corresponding adjustment mechanism, so it is difficult to rewind raw materials of different widths and thicknesses, so the adaptability of the device It is narrow and cannot be used in a large area for a long time in the factory.

Utility model content

The purpose of this utility model is to provide an easy-to-adjust winding device for geotextile production, so as to solve the problems raised in the above-mentioned background technology.

In order to achieve the above purpose, the utility model provides the following technical solutions: an easy-to-adjust winding device for geotextile production, including a base, the left side of the top of the base is provided with a first scissors fork structure, the first scissors The top of the fork structure is provided with a support plate, the top of the support plate is provided with a first motor, the right side of the first motor is provided with a first rotating shaft, and the outer ring of the first rotating shaft is fitted with a rotating roller. The right side of the top of the base is provided with a second motor, the left side of the second motor is provided with a connecting seat, a screw is provided between the second motor and the connecting seat, and the outer ring of the screw is threadedly connected with a moving Block, the top of the moving block is provided with a second scissors fork structure, the top of the second scissors fork structure is provided with a flat plate, the top of the flat plate is provided with a fixed seat, and the rotating roller is arranged on the fixed seat In the inner cavity, a shaft sleeve connection is arranged between the rotating roller and the fixed seat.

Preferably, the first scissors set structure and the second scissors set structure start and stop at the same time, which can be controlled manually.

Preferably, a chute is provided on the top of the base, a slider is provided on the bottom of the moving block, and the slider is arranged in an inner cavity of the chute.

Preferably, the outer ring of the first motor is provided with a protective seat.

Preferably, connecting rods are arranged on the front of the base, a second rotating shaft is arranged between the connecting rods, and a guide roller is set on the outer ring of the second rotating shaft.

Preferably, the fixing seat is connected to the flat plate through bolts, and can be manually disassembled.

Compared with the prior art, the beneficial effects of the utility model are:

1. The rewinding device is easy to adjust for the production of geotextiles. Through the cooperation of the fixed seat and the moving block, the positions of the moving block and the fixed seat are adjusted left and right according to the width of the geotextile, so that the left side of the fixed seat is close to the geotextile. Cloth, to avoid the skewing of the geotextile during the coiling process, and to facilitate the fixing of the geotextile during the coiling process.

2. The easy-to-adjust winding device for geotextile production, through the cooperation of the first scissor-fork group structure and the second scissor-fork group, due to the different requirements for the thickness of the geotextile during the winding process, it can be used at this time Artificial control of the structure of the first scissor fork group and the structure of the second scissor fork group raises the position of the support plate and the flat plate respectively, which drives the position of the first motor, the rotating roller and the fixed seat to rise, so that the rotating roller is separated from the base The distance increases to accommodate thicker geotextiles.

Description of drawings

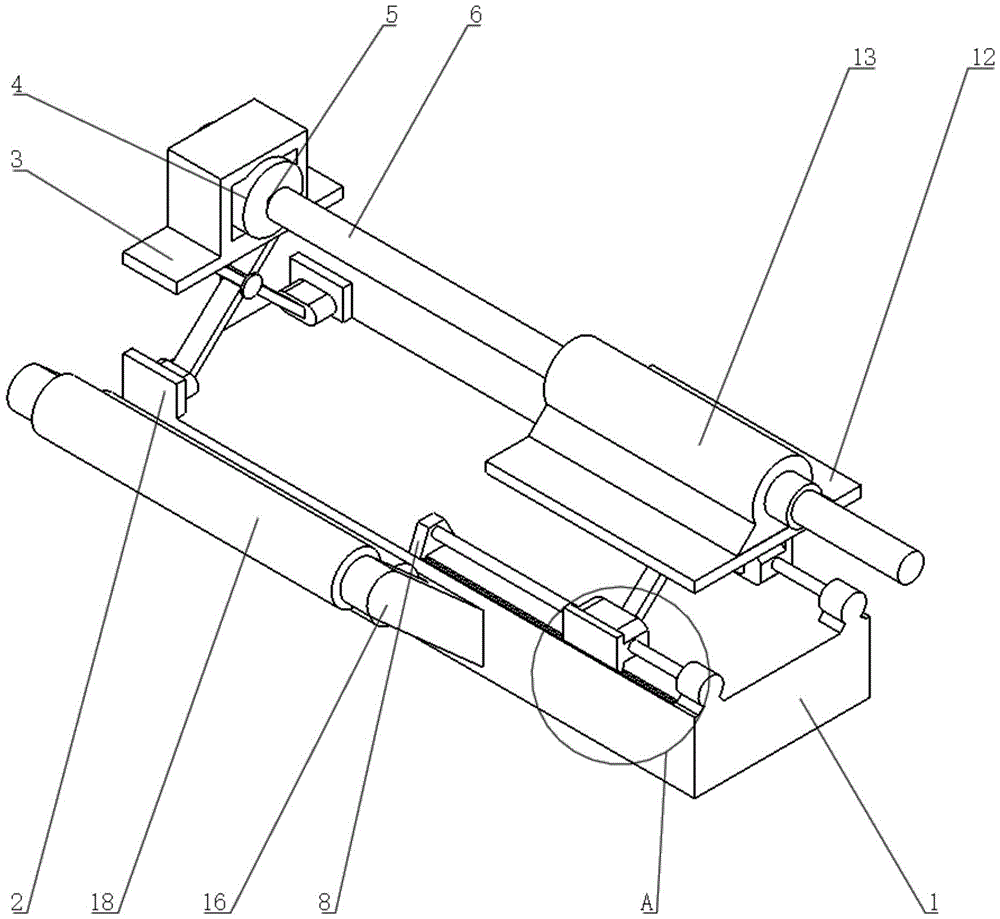

Fig. 1 is the structural representation of the utility model.

Figure 2 is an enlarged view of A in Figure 1 .

Fig. 3 is a front view of the utility model.

FIG. 4 is an enlarged view of B in FIG. 3 .

In the figure: 1, the base; 2, the structure of the first scissors and forks; 3, the support plate; 4, the first motor; 5, the first rotating shaft; 6, the rotating roller; 7, the second motor; , screw rod; 10, moving block; 11, second scissors fork group structure; 12, flat plate; 13, fixed seat; 14, chute; 15, slider; 16, connecting rod; 17, second rotating shaft; guide roller.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Figures 1-4, the utility model provides a technical solution: an easy-to-adjust winding device for geotextile production, including a base 1, the left side of the top of the base 1 is provided with a first scissors and fork structure 2, the second The top of a scissors and fork structure 2 is provided with a support plate 3, the top of the support plate 3 is provided with a first motor 4, the right side of the first motor 4 is provided with a first rotating shaft 5, and the outer ring of the first rotating shaft 5 is equipped with a rotating roller 6. A second motor 7 is provided on the right side of the top of the base 1, a connecting seat 8 is provided on the left side of the second motor 7, a screw 9 is provided between the second motor 7 and the connecting seat 8, and the outer ring of the screw 9 The moving block 10 is threadedly connected, the top of the moving block 10 is provided with a second scissors fork structure 11, the top of the second scissors fork structure 11 is provided with a plate 12, the top of the plate 12 is provided with a fixed seat 13, and the rotating roller 6 is provided In the inner cavity of the fixed seat 13 , a shaft sleeve connection is arranged between the rotating roller 6 and the fixed seat 13 .

Wherein, the first scissors fork structure 2 and the second scissors fork structure 11 start and stop at the same time, which can be controlled manually.

In this embodiment, the first scissor-fork structure 2 and the second scissor-fork structure 11 can be artificially controlled to rise, so that the positions of the support plate 3 and the flat plate 12 are raised respectively, and the first motor 4, the rotating roller 6 and the fixed roller are driven. The elevation of the position of the seat 13 increases the distance between the rotating roller 6 and the base 1, thereby accommodating a thicker geotextile. And the first scissors fork structure 2 and the second scissors fork structure 11 start and stop simultaneously, which can prevent the skewing when the rotating roller 6 rotates.

Wherein, a sliding slot 14 is provided on the top of the base 1 , and a sliding block 15 is provided on the bottom of the moving block 10 , and the sliding block 15 is arranged in the inner cavity of the sliding slot 14 .

In this embodiment, a slider 15 is provided at the bottom of the moving block 10, and the sliding block 15 can move in the relatively smooth chute 14, so that the moving direction of the moving block 10 can be restricted, so that the moving block 10 can move more stably.

Wherein, the outer ring of the first motor 4 is provided with a protective seat.

In this embodiment, the protection seat is placed outside the first motor 4 to provide protection for the operation of the first motor 4 .

Wherein, connecting rods 16 are arranged on the front of the base 1 , and a second rotating shaft 17 is arranged between the connecting rods 16 , and a guide roller 18 is sheathed on the outer ring of the second rotating shaft 17 .

In this embodiment, the geotextile passes between the guide rollers 18 and is stored on the outer ring of the rotating roller 6 , and the guide roller 18 plays a guiding role in winding up the geotextile.

Wherein, the fixing seat 13 and the flat plate 12 are connected by bolts and can be manually disassembled.

In this embodiment, when the winding of the geotextile is completed, the fixed seat 13 can be disassembled from the flat plate 12 at this time, and after the right side mechanism of the rotating roller 6 is removed, the rotating roller 6 can be moved out as a whole to facilitate the rotation. The roller 6 is replaced and replaced with a new one.

Working principle: When using the device, pass one end of the geotextile between two sets of guide rollers 18 and fix it on the rotating roller 6, then start the second motor 7. The start of the second motor 7 will drive the screw mandrel 9 to rotate, and then drive the threaded moving block 10 to move. The bottom of the moving block 10 is provided with a slide block 15, which can move in the relatively smooth chute 14, so that the moving direction of the moving block 10 can be limited, so that the moving block 10 can move more stably. The top of the moving block 10 is provided with a second scissor fork structure 11 and a fixed seat 13, and the positions of the moving block 10 and the fixed seat 13 can be adjusted left and right according to the width of the geotextile, so that the left side of the fixed seat 13 is close to the geotextile. Cloth, to avoid the skewing of the geotextile during the coiling process, and to facilitate the fixing of the geotextile during the coiling process. After the position of the fixed seat 13 is determined, the first motor 4 is started to drive the first rotating shaft 5 and the rotating roller 6 to rotate, so that the geotextile passes between the guide rollers 18 and is stored on the outer ring of the rotating roller 6 . The guide roller 18 guides the winding of the geotextile. An axle sleeve is arranged between the rotating roller 6 and the fixed seat 13, and the axle sleeve can prevent the direct contact between the rotating roller 6 and the fixed seat 13, avoiding a large amount of friction of the rotating roller 6, thereby improving the service life of the rotating roller 6. Since the thickness requirements for geotextile coiling are different during the coiling process, the first scissor-fork structure 2 and the second scissor-fork structure 11 can be artificially controlled to rise, so that the positions of the support plate 3 and the flat plate 12 are respectively Elevation drives the position of the first motor 4, the rotating roller 6 and the fixed seat 13 to increase, thereby increasing the distance between the rotating roller 6 and the base 1, thereby accommodating thicker geotextiles. And the first scissors fork structure 2 and the second scissors fork structure 11 start and stop simultaneously, which can prevent the skewing when the rotating roller 6 rotates. When the winding of the geotextile is completed, the fixed seat 13 can be disassembled from the flat plate 12 at this time, and after the right side mechanism of the rotating roller 6 is taken off, the rotating roller 6 can be removed as a whole, so that the rotating roller 6 can be easily replaced. new.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (6)

1. An easy-to-adjust winding device for geotextile production, comprising a base (1), characterized in that: the left side of the top of the base (1) is provided with a first scissors and fork structure (2), the first The top of a scissors and fork structure (2) is provided with a support plate (3), the top of the support plate (3) is provided with a first motor (4), and the right side of the first motor (4) is provided with a first The rotating shaft (5), the outer ring of the first rotating shaft (5) is covered with a rotating roller (6), the right side of the top of the base (1) is provided with a second motor (7), and the second motor (7) ) is provided with a connecting seat (8), and a screw (9) is provided between the second motor (7) and the connecting seat (8), and the outer ring of the screw (9) is threadedly connected with a moving block (10), the top of the moving block (10) is provided with a second scissors fork structure (11), and the top of the second scissors fork structure (11) is provided with a flat plate (12), and the flat plate ( 12) is provided with a fixed seat (13) on the top, the rotating roller (6) is arranged in the inner cavity of the fixed seat (13), and a shaft sleeve is arranged between the rotating roller (6) and the fixed seat (13) connect. 2. The easy-to-adjust rewinding device for geotextile production according to claim 1, characterized in that: the first scissor-fork structure (2) and the second scissor-fork structure (11) are simultaneously activated and Stopping can be controlled manually. 3. The easy-to-adjust winding device for geotextile production according to claim 1, characterized in that: the top of the base (1) is provided with a chute (14), and the moving block (10) The bottom is provided with a slide block (15), and the slide block (15) is arranged in the inner cavity of the slide groove (14). 4. An adjustable winding device for geotextile production according to claim 1, characterized in that: the outer ring of the first motor (4) is provided with a protective seat. 5. The easy-to-adjust winding device for geotextile production according to claim 1, characterized in that: the front of the base (1) is provided with connecting rods (16), and the connecting rods (16) A second rotating shaft (17) is provided, and a guide roller (18) is sheathed on the outer ring of the second rotating shaft (17). 6. An adjustable winding device for geotextile production according to claim 1, characterized in that: said fixing base (13) is connected to the flat plate (12) by bolts and can be manually disassembled.
