Abstract

The utility model relates to the technical field of orthopedic care, and discloses a conveniently portable fixed bracket, comprising a fixed arc plate, the bottom end of the fixed arc plate is fixedly connected with a mounting block, and the inner side of the mounting block is movably socketed with a A mounting plate, one end of the inner side of the mounting plate is movably connected with a connecting block, one end of the connecting block is movably connected with a support rod, one end of the connecting block is fixedly connected with a threaded rod, and one end of the threaded rod is movably socketed There are support rods. This device supports the fixed arc plate through the expandable and retractable mounting plate and support rod, so as to change the inconvenient portability of the fixed bracket during orthopedic care. At the same time, the fixed arc plate is supported by the threaded rod The height of the fixed bracket can be adjusted to prevent the patient's limb swelling caused by the inconvenient adjustment of the fixed bracket during orthopedic care, which greatly increases the practicability of the fixed bracket and the applicable personnel.

Description

A portable fixed bracket

technical field

The utility model relates to the technical field of fixing brackets, in particular to a convenient and portable fixing bracket.

Background technique

Orthopedics is also called orthopedics. It is a profession or discipline of medicine, specializing in the study of the anatomy, physiology and pathology of the musculoskeletal system, using drugs, surgery and physical methods to maintain and develop the normal form and function of this system, and to treat injuries and diseases of this system. With the changes of the times and society, the spectrum of orthopedic injuries has undergone significant changes. For example, bone and joint tuberculosis, osteomyelitis, polio and other diseases have decreased significantly, and trauma caused by traffic accidents has increased significantly.

When traumatized, the fractured end of a fractured patient is very likely to cause secondary damage to the adjacent vascular nerves when the fracture is moved. Most patients with open fractures are accompanied by neurovascular injuries. During transportation, the patient's limbs need to be temporarily fixed to prevent the patient from The damage to the surrounding tissues is aggravated by the pain. The medical staff generally fix the patient's limbs with a splint. At this time, one of the medical staff needs to raise the patient's leg limbs, and then the other medical staff fixes the splint with a strap Nursing and fixing of the patient's fracture is completed at the patient's sick place. During this process, multiple medical staff are required to care for the patient, resulting in a waste of human resources.

Utility model content

Aiming at the deficiencies of the prior art, the utility model provides a conveniently portable fixed bracket, which has the advantages of being easy to carry during orthopedic care and preventing swelling of the patient's injured limbs, and solves the problems raised by the above background technology.

The utility model provides the following technical solutions: a portable fixed bracket, including a fixed arc plate, the bottom end of the fixed arc plate is fixedly connected with a mounting block, and the inner side of the mounting block is movably socketed with a mounting plate. One end of the inner side of the installation plate is movably socketed with a connecting block, one end of the connecting block is movably connected with a support rod, one end of the connecting block is fixedly connected with a threaded rod, and one end of the threaded rod is movably socketed with a support rod, This device supports the fixed arc plate through the expandable and retractable mounting plate and support rod, so as to change the inconvenient portability of the fixed bracket during orthopedic care, and adjust the height of the fixed arc plate through the threaded rod , so as to prevent the inconvenient adjustment of the fixed bracket during orthopedic care and cause swelling of the patient's limbs, which greatly increases the practicability of the fixed bracket and the applicable personnel. The second protective pad can be used in conjunction with the splint to fix the patient's limbs. The device is placed on the sick part of the patient, and then the splint is placed between the patient's limb and the first Velcro and the second Velcro, and then the patient's sick part is fixed, so as to complete the nursing work.

Preferably, the middle part of the top of the fixed arc plate is fixedly connected with a first protective pad, the top side of the fixed arc plate is fixedly connected with a fixing belt, and the top side of the fixing belt is fixedly connected with a second Velcro, One side of the fixing belt is movably connected with a second protective pad at the bottom of the second Velcro, both sides of the two ends of the second protective pad are fixedly connected with fixing strips, and the inner side of the fixing strip is movably sleeved with A fixing belt, the other side of the top of the fixed arc plate is fixedly connected with a first Velcro, and one side of the first Velcro is movably connected with a second Velcro, this structure can be used for wounding patients of different sizes through the fixing belt The patient's limbs are fixed, and at the same time, the patient's limbs are protected by the first protective pad and the second protective pad, so as to prevent the secondary injury of the patient's injured limbs by the fixed arc plate.

Preferably, the other end of the connecting block is fixedly connected with a fixing plate, one side of both ends of the fixing plate is movably connected with a clamping block, one end of the clamping block is fixedly connected with a connecting rod, and one end of the clamping block is located at The outer side of the connecting rod is fixedly connected with a spring, one end of the spring is fixedly connected with a connecting plate, and one end of the connecting rod is fixedly connected with a pull plate. This structure is used to prevent the mounting plate Movement with the support rod causes the patient's limbs to move, resulting in secondary injury to the patient's limbs.

Preferably, one end of the support rod is fixedly sleeved with a protective ball, and the material of the protective ball is rubber material, and the ratio of the outer diameter of the protective ball to the inner width of the mounting plate is ten to eight. This structure is used for Secure the support rod while preventing one end of the support rod from coming into contact with the patient and causing injury to the patient.

Preferably, the inner end of the installation plate is located on one side of the connecting block and is movably connected with a fixed plate, and the inner end of the installation plate is located at both ends of the fixed plate and is provided with sliding grooves, and the sliding groove of the installation plate is connected with the fixed plate. The width of the plate is matched, and the structure is convenient for the rotation of the fixed plate.

Preferably, the surfaces of the first protective pad and the second protective pad are provided with ventilation holes, and the materials of the fixing strip and the fixing belt are elastic bands, and this structure is used for fixing the patient's limbs when the fixing bracket is fixed. A feeling of stuffiness is generated in the place, which causes limb discomfort.

Preferably, the bottom of one end of the block is provided with an inclined surface, the angle of the inclined surface of the block is 45 degrees, and the top of the mounting plate is located on the top side of the pull plate and has a placement groove. When fixing the fixed plate, it is more convenient to fix, and at the same time, it makes the movement of the clamping block more convenient.

Compared with the prior art, the beneficial effect of the utility model is: the utility model fixes and supports the patient's limbs through the fixed arc plate, the mounting plate, the fixing belt, and the support rod, and at the same time, the fixed bracket is satisfied at different heights through the threaded rod. , to prevent swelling of the patient's injured limbs, so that there is no need to fix the patient's limbs with a splint, and at the same time use a thin quilt to raise the patient's limbs, and then use the protective ball to store the fixed bracket in a smaller state, and then make the fixed bracket in a small state. It is easy to carry when performing orthopedic care, and it is simple and quick to fix the injured limb of the patient.

Description of drawings

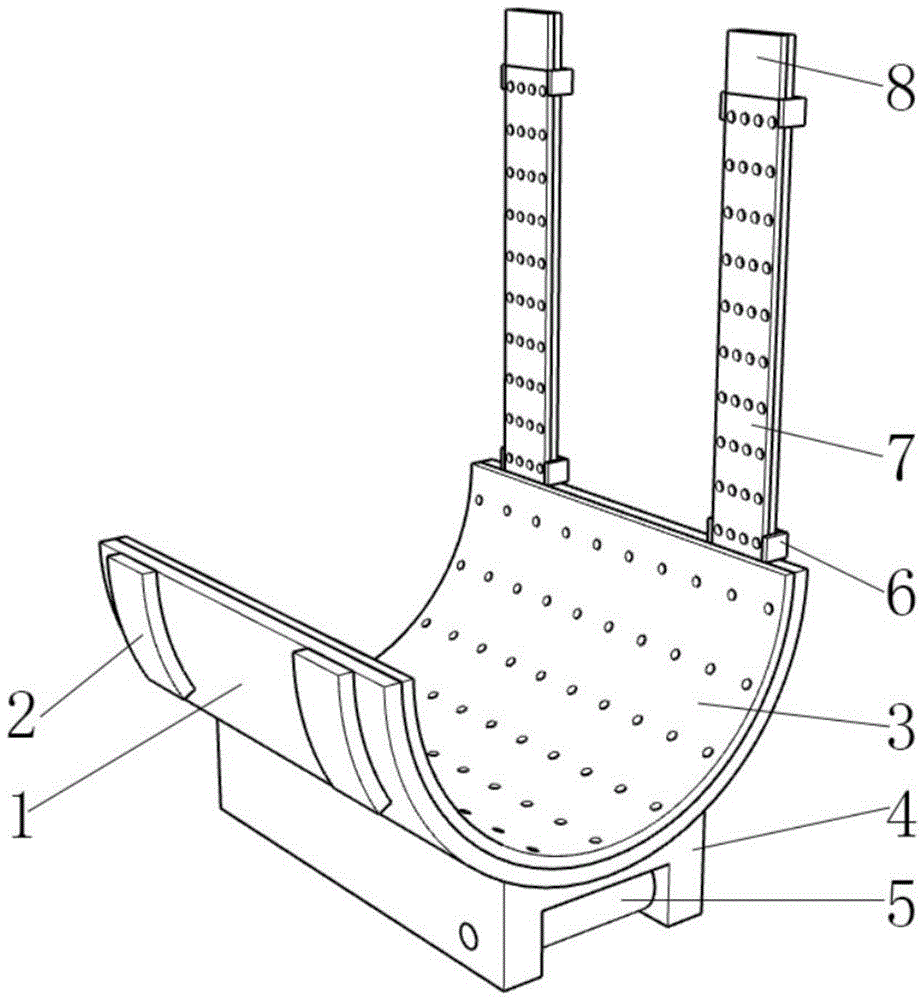

Fig. 1 is the overall schematic diagram of the structure of the utility model;

Fig. 2 is a schematic diagram of explosion at the fixing belt of the utility model;

Fig. 3 is the enlarged schematic view of the mounting plate of the present invention;

Fig. 4 is a schematic diagram of the explosion at the support rod of the utility model;

Fig. 5 is a schematic cross-sectional view of the mounting plate of the present invention.

In the figure: 1, fixed arc plate; 2, first Velcro; 3, first protective pad; 4, installation block; 5, installation plate; 6, fixing bar; 7, second protective pad; 8, second magic Paste; 9, fixed belt; 10, fixed plate; 11, connecting block; 12, support rod; 13, protective ball; 14, pull plate; 15, threaded rod; 16, block; 17, spring; 18, connecting plate ; 19, connecting rod.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Figure 1-5, a portable fixed bracket, including a fixed arc plate 1, the bottom end of the fixed arc plate 1 is fixedly connected with a mounting block 4, and the inner side of the mounting block 4 is movably socketed with a mounting plate 5. One end of the inner side of the plate 5 is movably socketed with a connection block 11, and one end of the connection block 11 is movably connected with a support rod 12, as shown in Figure 4, the shape of the support rod 12 is cylindrical, and one end of the connection block 11 is fixedly connected with a threaded rod 15, one end of the threaded rod 15 is movably socketed with the support rod 12;

The middle part of the top of the fixed arc plate 1 is fixedly connected with the first protective pad 3, the top side of the fixed arc plate 1 is fixedly connected with the fixed belt 9, and the top side of the fixed belt 9 is fixedly connected with the second Velcro 8, the fixed belt 9 One side of the bottom of the second Velcro 8 is movably connected with a second protective pad 7, and both sides of the second protective pad 7 are fixedly connected with a fixed strip 6, and the inner side of the fixed strip 6 is movably connected with a fixed belt 9 The other side of the top of the fixed arc plate 1 is fixedly connected with the first Velcro 2, one side of the first Velcro 2 is movably connected with the second Velcro 8, and the other end of the connecting block 11 is fixedly connected with the fixed plate 10. One side of both ends of the plate 10 is movably connected with a block 16, and one end of the block 16 is fixedly connected with a connecting rod 19, and one end of the block 16 is fixedly connected with a spring 17 outside the connecting rod 19, and one end of the spring 17 is fixedly connected with a Connecting plate 18, one end of connecting rod 19 is fixedly connected with drawing plate 14, and the top of drawing plate 14 is flush with the top of mounting plate 5, and one end of supporting rod 12 is fixedly sleeved with protective ball 13, and the material of protective ball 13 is rubber Material, the ratio of the outer diameter of the protective ball 13 to the inner width of the mounting plate 5 is ten to eight, the inner end of the mounting plate 5 is located at the side of the connecting block 11 and is movably connected with the fixed plate 10, and the inner end of the mounting plate 5 is located at the fixed Both ends of the plate 10 are provided with sliding grooves, the sliding grooves of the mounting plate 5 are compatible with the width of the fixed plate 10, the surfaces of the first protective pad 3 and the second protective pad 7 are all provided with air holes, the first protective pad 3 and the air holes of the second protective pad 7 improve the discomfort caused by the fixed bracket to the patient's limbs, the materials of the fixed strip 6 and the fixed belt 9 are elastic bands, and an inclined surface is provided at the bottom of one end of the clamping block 16, and the clamping block The angle of the inclined surface of 16 is forty-five degrees, and the top of the mounting plate 5 is positioned at the top side of the pull plate 14 and is provided with a placement groove. Belt 9 connects the second protective pad 7 with the patient's limbs, and at the same time connects the second Velcro 8 with the first Velcro 2, so that the fixed bracket is connected with the patient's limbs. When supporting, the fixing plate 10 is moved to the card by pulling the support rod 12 At the same time, the spring 17 drives the block 16 to move, so that the support rod 12 is fixed, and at the same time, the bottom end of the support rod 12 is wrapped by the protective ball 13. When the height of the fixed arc plate 1 needs to be adjusted, turn the support rod 12 is that the support rod 12 is away from the connecting block 11 through the threaded rod 15 and supports the fixed bracket. When storing, the connecting rod 19 drives the block 16 to move by moving the pull plate 14, and the fixed plate 10 moves to the block 16 At the same time, the support rod 12 is fixed by the protective ball 13, so that the fixed bracket is stored in a smaller state, so that the fixed bracket is more convenient to carry.

It should be noted that in this article, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply that there is a relationship between these entities or operations. There is no such actual relationship or order between them. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device. At the same time, in the description of the present utility model, it should be understood that the terms "center", "longitudinal", "transverse", "length", "width", "thickness", "upper", "lower", "front" , "Back", "Left", "Right", "Vertical", "Horizontal", "Top", "Bottom", "Inner", "Outer", "Clockwise", "Counterclockwise", etc. The orientation or positional relationship is based on the orientation or positional relationship shown in the drawings, which is only for the convenience of describing the utility model and simplifying the description, and does not indicate or imply that the referred equipment or elements must have a specific orientation or be constructed in a specific orientation. and operation, and therefore cannot be construed as a limitation of the present utility model. And in the drawings of the present utility model, the filling patterns are only for distinguishing layers, without any other limitation.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (7)

1. The utility model provides a fixed bolster that conveniently carries, includes fixed arc board (1), its characterized in that: the utility model discloses a fixed arc board, including fixed arc board (1), fixed arc board (1) are fixed arc board (1), fixed arc board (5) have been cup jointed in the activity of the inboard one end of fixed arc board (1), connecting block (11) have been cup jointed in the activity of the inboard one end of fixed arc board (4), one end swing joint of connecting block (11) has bracing piece (12), one end fixedly connected with threaded rod (15) of connecting block (11), bracing piece (12) have been cup jointed in the activity of the one end of threaded rod (15).

2. A portable mounting bracket according to claim 1, wherein: the utility model discloses a protection device for a fixed arc plate, including fixed arc plate (1) and fixed arc plate, top middle part fixedly connected with first protection pad (3) of fixed arc plate (1), top one side fixedly connected with fixed band (9) of fixed band (1), top one side fixedly connected with second magic subsides (8) of fixed band (9), one side of fixed band (9) is located the bottom swing joint that second magic was pasted (8) and is protected pad (7), the equal fixedly connected with fixed strip (6) in both sides at second protection pad (7) both ends, fixed band (9) have been cup jointed in the inboard activity of fixed strip (6), the top opposite side fixedly connected with first magic subsides (2) of fixed arc plate (1), one side swing joint second magic subsides (8) of first magic subsides (2).

3. A portable mounting bracket according to claim 1, wherein: the other end fixedly connected with fixed plate (10) of connecting block (11), one side at fixed plate (10) both ends is all swing joint has fixture block (16), the one end fixedly connected with connecting rod (19) of fixture block (16), the one end of fixture block (16) is located outside fixedly connected with spring (17) of connecting rod (19), the one end fixedly connected with connecting plate (18) of spring (17), the one end fixedly connected with arm-tie (14) of connecting rod (19).

4. A portable mounting bracket according to claim 1, wherein: one end of the supporting rod (12) is fixedly sleeved with a protective ball (13), the protective ball (13) is made of rubber materials, and the ratio of the outer diameter of the protective ball (13) to the inner width of the mounting plate (5) is ten to eight.

5. A portable mounting bracket according to claim 1, wherein: the utility model discloses a fixed plate, including mounting panel (5), fixed plate (10) is located one side swing joint of connecting block (11) to inboard one end of mounting panel (5), the sliding tray has all been seted up at the both ends that inboard one end of mounting panel (5) is located fixed plate (10), the sliding tray of mounting panel (5) and the width looks adaptation of fixed plate (10).

6. A portable mounting bracket according to claim 2, wherein: the surfaces of the first protection pad (3) and the second protection pad (7) are provided with ventilation holes, and the fixing strips (6) and the fixing strips (9) are made of elastic strips.

7. A portable mounting bracket according to claim 3, wherein: the bottom of one end of the clamping block (16) is provided with an inclined surface, the inclined surface angle of the clamping block (16) is forty-five degrees, and one side of the top end of the mounting plate (5) positioned at the top end of the pulling plate (14) is provided with a placing groove.
