Abstract
The utility model relates to the technical field of seedling raising and discloses a three-dimensional multilayer seedling raising frame based on agricultural technology popularization, which comprises a body mechanism, a seedling raising mechanism, a bearing mechanism and a spraying mechanism, wherein the seedling raising mechanism is positioned at the inner end of the body mechanism, the bearing mechanism is positioned below the seedling raising mechanism, the spraying mechanism is positioned at the upper end of the body mechanism, the spraying mechanism comprises a water tank, a conducting port, a connecting plug, a motor, a stirring rod, a stirring blade, a scraping blade, a connecting pipe, a switching valve, a shunt pipe and a spray head, the conducting port is fixedly arranged at the upper end of the water tank, the connecting plug is in threaded connection with the outer end of the conducting port, the motor is fixedly arranged at the upper end of the water tank, and the stirring rod is fixedly arranged at the driving end of the motor. The three-dimensional multilayer seedling raising frame based on agricultural technology popularization, stirring vane and doctor-bar rotate simultaneously and can make the device increase the medicine that the device was convenient for seedling more and spray when water spray structure maintained the convenience, have improved the result of use of this seedling raising frame.
Description
Technical Field
The utility model relates to the technical field of seedling raising, in particular to a three-dimensional multilayer seedling raising frame based on agricultural technology popularization.
Background
The seedling raising means that the seedlings are cultivated so as to better enable the seedlings to survive, the purpose of the seedling raising is to cultivate the seedlings in a nursery, a hotbed or a greenhouse so as to be transplanted into the soil for planting, the survival rate of the seedlings can be well improved, and the structure of a crop seedling raising frame in the current market is complex.
Most of the seedlings are difficult to fully absorb sprayed water to cause excessive accumulated water in the seedling raising barrel, so that death of seedling raising and waste of water resources occur, and therefore, the seedling raising frame popularized by the existing agricultural technology is high in draining performance, seedlings can be sprayed with water better, and the seedlings can fully absorb water and cannot rot.
But the water spray structure only possesses single water spray effect when seedling raising frame that the agricultural technology promoted uses, and long-time water spray work leads to inside water tank to be covered with the inconvenient cleanness of incrustation scale to can not cooperate the water spray structure effectively convenient when the seedling needs to spray the medicine and spray the medicine, make the water spray structure of seedling raising frame that the agricultural technology promoted be difficult to maintain, lead to the water spray of seedling raising frame that the agricultural technology promoted and the convenience of using reduce.
Disclosure of Invention
(one) solving the technical problems
The utility model aims to provide a three-dimensional multilayer seedling raising frame based on agricultural technology popularization, which solves the problems that a water spraying structure only has a single water spraying effect when the seedling raising frame based on agricultural technology popularization is used, scale is not convenient and clean due to long-time water spraying work, and medicine can not be effectively and conveniently sprayed by matching with the water spraying structure when seedlings need to spray medicine, so that the using convenience of the seedling raising frame is reduced.
(II) technical scheme
In order to achieve the above purpose, the present utility model provides the following technical solutions: the utility model provides a three-dimensional multilayer seedling raising frame based on agricultural technology is promoted, includes body mechanism, seedling raising mechanism, accepting mechanism and spraying mechanism, seedling raising mechanism is located the inner of body mechanism, accepting mechanism is located the below of seedling raising mechanism, spraying mechanism is located the upper end of body mechanism, spraying mechanism includes water tank, conducting port, connecting plug, motor, puddler, stirring vane, doctor-bar, connecting pipe, ooff valve, shunt tubes and shower nozzle, conducting port fixed mounting is in the upper end of water tank, connecting plug threaded connection is at the outer end of conducting port, motor fixed mounting is in the upper end of water tank, puddler fixed mounting is at the driving end of motor, stirring vane fixed mounting is the outer end of puddler, stirring vane and doctor-bar rotate simultaneously through installation stirring vane and doctor-bar can clean the impurity of water tank inner wall adhesion to can effectively mix with the liquid medicine that sprays, make the device increase the structure maintenance convenience let the device be convenient for the seedling raising more and spray the effect of this seedling raising frame has been improved.
Preferably, the connecting pipe fixed connection is in the lower extreme of water tank, ooff valve fixed mounting is in the outer end of connecting pipe, shunt tubes fixed connection is in the lower extreme of connecting pipe, through installation shunt tubes, can effectively carry out the reposition of redundant personnel conduction with the water of spraying of water tank inner, lets this seedling raising frame water spray area increase.
Preferably, the shower nozzle fixed mounting is in the outer end of shunt tubes, the shower nozzle is the equidistance and distributes, through the installation shower nozzle, and a plurality of shower nozzles can avoid the seedling to absorb too much water and lead to seedling rotting, lets the spraying effect of this seedling raising frame further increase.
Preferably, the body mechanism includes seedling raising frame body, waterlogging caused by excessive rainfall frame, support column, base, reinforcement frame and rack, waterlogging caused by excessive rainfall frame fixed mounting is in the lower extreme of seedling raising frame body, shunt tubes fixed connection is at the inner of seedling raising frame body, support column fixed mounting is in the lower extreme of waterlogging caused by excessive rainfall frame, the support column is the symmetric distribution, the quantity of support column is four, base fixed mounting is in the lower extreme of support column, through installation support column and base, can let this seedling raising frame more stable at the in-process of growing seedlings, has improved the stability that this seedling raising frame work was used, avoids growing seedlings to drop.
Preferably, the reinforcing frame fixed mounting is at the inner of seedling raising frame body, the reinforcing frame is symmetrical distribution, the quantity of reinforcing frame is six, rack fixed mounting is at the inner of reinforcing frame, through installing the rack, a plurality of seedlings can be placed to a plurality of rack inner, lets this seedling raising frame more practical.
Preferably, the seedling raising mechanism comprises a seedling raising box, a positioning ring, a separation net and draining holes, wherein the seedling raising box is movably arranged at the inner end of a placing frame and is equidistantly distributed, the positioning ring is fixedly arranged at the outer end of the seedling raising box, the separation net is fixedly arranged at the inner end of the seedling raising box, the draining holes are fixedly arranged at the inner end of the seedling raising box, and accumulated water at the inner end of the seedling raising box can be discharged through the separation net and the draining holes, so that the problem that the root of a seedling is rotten due to excessive accumulated water inside the seedling raising box is solved, and the survival rate of seedling raising of the device is increased.
Preferably, the accepting mechanism includes mounting bracket, assembly jig and accepting the case, mounting bracket movable mounting is in the below of rack, mounting bracket fixed mounting is at the inner of support column, assembly bracket fixed mounting is at the inner of mounting bracket, the assembly bracket is U-shaped structure, accepting case movable mounting is at the inner of assembly bracket, the assembly bracket is the symmetric distribution, through installation assembly bracket and accepting the case, the assembly bracket can carry out the joint with accepting the case to when making accepting the case and can stably accepting spraying the drainage, make accepting the more convenient dismantlement of case, can let the better collection of spraying water concentrate clean.
Compared with the prior art, the utility model has the beneficial effects that:
1. according to the three-dimensional multilayer seedling raising frame based on agricultural technology popularization, the stirring blades and the scraping blades are arranged, the scale impurities attached to the inner wall of the water tank can be cleaned through the stirring blades and the scraping blades, and the scale impurities can be effectively mixed with the liquid medicine sprayed on the seedlings, so that the device is more used, the convenience of maintenance of a water spraying structure is improved, meanwhile, the device is more convenient for the medicine spraying of the seedlings, the cultivation of the agricultural technology popularization seedlings is more smoothly completed, and the use effect of the seedling raising frame is improved;
2. according to the three-dimensional multilayer seedling raising frame based on agricultural technology popularization, through the installation of the separation net and the water draining holes, accumulated water at the inner end of the seedling raising box can be discharged through the separation net and the water draining holes, the problem that the root of seedlings is rotten due to excessive accumulated water in the seedling raising box is reduced, the functionality of the seedling raising box is increased, the survival rate of seedling raising of the device is increased, and the cultivation effect of the device is improved;
3. this three-dimensional multilayer seedling raising frame based on agricultural technology is promoted, through installing the assembly jig and accepting the case, the assembly jig can carry out the joint with accepting the case to when making accepting the case and can stably accepting spraying the leaching, make accepting the more convenient dismantlement of case, let the device spray water can not spill over easily, can let the better collection of spray water concentrate clean, improved the convenience that the device used.
Drawings
FIG. 1 is a schematic perspective view of the present utility model;
FIG. 2 is a schematic perspective view of a seedling raising rack body according to the present utility model;

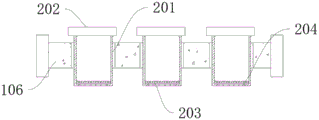

FIG. 3 is a schematic cross-sectional view of the nursery box of the present utility model;
FIG. 4 is a schematic plan view of a spray mechanism according to the present utility model;
fig. 5 is a schematic view of a three-dimensional enlarged structure at a in fig. 2 according to the present utility model.
In the figure: 1. a body mechanism; 101. a seedling raising frame body; 102. a draining rack; 103. a support column; 104. a base; 105. a reinforcing frame; 106. a placing rack; 2. a seedling raising mechanism; 201. a seedling raising box; 202. a positioning ring; 203. a separation net; 204. a draining hole; 3. a receiving mechanism; 301. a mounting frame; 302. an assembly frame; 303. a receiving box; 4. a spraying mechanism; 401. a water tank; 402. a conductive port; 403. a connecting plug; 404. a motor; 405. a stirring rod; 406. stirring blades; 407. a wiper blade; 408. a connecting pipe; 409. a switch valve; 410. a shunt; 411. a spray head.
Detailed Description
The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.
Referring to fig. 1-5, the present utility model provides a technical solution: the utility model provides a three-dimensional multilayer seedling raising rack based on agricultural technology popularization, including body mechanism 1, seedling raising mechanism 2, accept mechanism 3 and spraying mechanism 4, seedling raising mechanism 2 is located the inner of body mechanism 1, accept mechanism 3 is located the below of seedling raising mechanism 2, spraying mechanism 4 is located the upper end of body mechanism 1, spraying mechanism 4 includes water tank 401, the conducting port 402, connect plug 403, motor 404, puddler 405, stirring vane 406, doctor blade 407, connecting pipe 408, switch valve 409, shunt tubes 410 and shower nozzle 411, connect port 402 fixed mounting is in the upper end of water tank 401, connect plug 403 threaded connection is in the outer end of conducting port 402, motor 404 fixed mounting is in the upper end of water tank 401, stirring vane 405 fixed mounting is in the driving end of motor 404, stirring vane 406 is the equidistance and distributes, doctor blade 407 fixed mounting is in the outer end of stirring vane 406, through installing stirring vane 406 and doctor blade 407, start-up motor 404 can drive stirring vane 406 and 407 and doctor blade 407 and the simultaneous rotation, stirring vane 406 and doctor blade 407 can be with the attached to the inner wall of water tank 401 clean, and can make seedling raising and the seedling raising device more convenient for the agricultural technology to use, this seedling raising device can be more convenient to make the maintenance of the seedling raising device more convenient to use, this agricultural technology has improved the efficiency, the spraying device is convenient for the seedling raising device is used to increase the efficiency;
the connecting pipe 408 is fixedly connected to the lower end of the water tank 401, the switch valve 409 is fixedly arranged at the outer end of the connecting pipe 408, the shunt pipe 410 is fixedly connected to the lower end of the connecting pipe 408, the spraying water at the inner end of the water tank 401 can be effectively conducted in a shunt mode through the arrangement of the shunt pipe 410, the spraying water area of the seedling raising rack is increased, seedlings can fully absorb water, the using effect of the seedling raising rack is improved, the spray heads 411 are fixedly arranged at the outer end of the shunt pipe 410, the spray heads 411 are equidistantly distributed, the spray heads 411 can be used for shunting the spraying water into a uniform spraying structure, the seedlings are prevented from being rotten due to excessive water absorption by the seedlings, the spraying effect of the seedling raising rack is further increased, the body mechanism 1 comprises a seedling raising rack body 101, a drainage rack 102, support columns 103, a base 104, a reinforcing rack 105 and a placing rack 106, the drainage rack 102 is fixedly arranged at the lower end of the seedling raising rack body 101, the support columns 103 are symmetrically distributed, the support columns 103 are fixedly arranged at the lower end of the drainage rack body 101, the support columns 103 are fixedly arranged at the lower end of the drainage rack 102, the support columns 104 are fixedly arranged at the lower end of the base 104, the support columns 103 are fixedly arranged at the lower end of the seedling raising rack body 104, the support columns 103 are fixedly arranged at the lower end of the support columns 104, the support columns 104 are stably arranged at the lower end of the seedling raising rack and the support rack, the lower end of the seedling raising rack is stably used in the seedling raising rack, and the process is stable;
reinforcing frames 105 are fixedly arranged at the inner end of a seedling raising frame body 101, the reinforcing frames 105 are symmetrically distributed, the number of the reinforcing frames 105 is six, a plurality of placing frames 106 are fixedly arranged at the inner end of the reinforcing frames 105, a plurality of seedlings can be placed at the inner ends of a plurality of placing frames 106 through the mounting of the placing frames 106, the seedling raising frame is more practical, the seedling raising effect of the seedling raising frame is improved, a seedling raising mechanism 2 comprises a seedling raising box 201, a positioning ring 202, a separation net 203 and draining holes 204, the seedling raising box 201 is movably arranged at the inner end of the placing frames 106, the seedling raising box 201 is equidistantly distributed, the positioning ring 202 is fixedly arranged at the outer end of the seedling raising box 201, the separation net 203 is fixedly arranged at the inner end of the seedling raising box 201, the draining holes 204 are fixedly arranged at the inner end of the seedling raising box 201, the separation net 203 and the draining holes 204 can drain accumulated water at the inner end of the seedling raising box 201 through the mounting of the separation net 203 and the draining holes 204, the problem of root rot of seedlings caused by excessive water accumulation in the seedling raising box 201 is reduced, the functionality of the seedling raising box 201 is increased, the survival rate of seedling raising of the device is increased, the raising effect of the device is improved, the bearing mechanism 3 comprises a mounting rack 301, a mounting rack 302 and a bearing box 303, the mounting rack 301 is movably mounted below the mounting rack 106, the mounting rack 301 is fixedly mounted at the inner end of a supporting column 103, the mounting rack 302 is fixedly mounted at the inner end of the mounting rack 301, the mounting rack 302 is in a U-shaped structure, the bearing box 303 is movably mounted at the inner end of the mounting rack 302, the mounting racks 302 are symmetrically distributed, the bearing box 303 can be clamped by the mounting rack 302 and the bearing box 303, so that the bearing box 303 can be conveniently and quickly dismounted while the bearing box 303 can stably bear spray water, the spray water borne inside the bearing box 303 is convenient to clean, the device can not easily overflow, can make the better collection of spray water concentrate the cleanness, improve the convenience that the device used.
Working principle: this three-dimensional multilayer seedling raising frame based on agricultural technology is promoted, when using, place the seedling into seedling raising box 201 inner and cultivate, when the seedling needs the water spray, starter motor 404 can drive stirring vane 406 and doctor-bar 407 and rotate simultaneously, pivoted stirring vane 406 and doctor-bar 407 can clean the attached incrustation scale impurity of water tank 401 inner wall, and can carry out effective mixing with the liquid medicine of spraying the seedling, make the device more use, it makes the device more convenient for the medicine spraying of seedling of the device more convenient for seedling to let in the maintenance convenience of water spray structure, let the agricultural technology promote the completion that seedling is cultivated more smooth, the inside water of water tank 401 is conducted by shunt tubes 410, can effectively carry out the reposition of redundant personnel conduction with the water spray of water tank 401 inner, let this seedling raising frame water spray area increase, let the seedling can fully absorb moisture, a plurality of shower nozzles 411 can let the water spray become evenly spray structure, avoid the seedling to absorb too much water and lead to the seedling, when spraying, the time, the separation net 203 and the waterlogging hole 204 of seedling raising box 201 inner can be with the water discharge that the inner accumulation of seedling raising box 201, the problem that the inside water spray box 201 is inside ponding is led to too much, make the seedling root of growing box is sprayed, make the device that the seedling raising box is more convenient for the seedling raising box is convenient for water spray can be carried out, the water spray 303 can be improved, the water spray device is more stable under the water spray 303 can be improved, the water spray 303 can be more stable, the device is improved, and can's 303 can be more convenient for carrying device is convenient to carry out under the water spray 303, and 303 can's can be improved.
Finally, it should be noted that the above description is only for illustrating the technical solution of the present utility model, and not for limiting the scope of the present utility model, and that the simple modification and equivalent substitution of the technical solution of the present utility model can be made by those skilled in the art without departing from the spirit and scope of the technical solution of the present utility model.
Claims (7)
1. The utility model provides a three-dimensional multilayer seedling raising frame based on agricultural technology promotes, includes body mechanism (1), seedling raising mechanism (2), accepts mechanism (3) and spraying mechanism (4), its characterized in that: the utility model provides a seedling raising mechanism (2) is located the inner of body mechanism (1), accept mechanism (3) and be located the below of seedling raising mechanism (2), spray mechanism (4) are located the upper end of body mechanism (1), spray mechanism (4) include water tank (401), conducting port (402), connect stopper (403), motor (404), puddler (405), stirring vane (406), doctor blade (407), connecting pipe (408), ooff valve (409), shunt tubes (410) and shower nozzle (411), conducting port (402) fixed mounting is in the upper end of water tank (401), connect stopper (403) threaded connection is in the outer end of conducting port (402), motor (404) fixed mounting is in the upper end of water tank (401), puddler (405) fixed mounting is in the driving end of motor (404), stirring vane (406) fixed mounting is the outer end of puddler (405), stirring vane (406) are the equidistance and distribute, doctor blade (407) fixed mounting is in the outer end of stirring vane (406).
2. The stereoscopic multi-layer seedling raising frame based on agricultural technology popularization according to claim 1, wherein: the connecting pipe (408) is fixedly connected to the lower end of the water tank (401), the switch valve (409) is fixedly arranged at the outer end of the connecting pipe (408), and the shunt pipe (410) is fixedly connected to the lower end of the connecting pipe (408).
3. The stereoscopic multi-layer seedling raising frame based on agricultural technology popularization according to claim 2, wherein: the spray heads (411) are fixedly arranged at the outer end of the shunt pipe (410), and the spray heads (411) are distributed at equal intervals.
4. The three-dimensional multilayer seedling raising frame based on agricultural technology popularization according to claim 3, wherein: the body mechanism (1) comprises a seedling raising frame body (101), a draining frame (102), supporting columns (103), bases (104), reinforcing frames (105) and placing frames (106), wherein the draining frame (102) is fixedly installed at the lower end of the seedling raising frame body (101), the shunt tubes (410) are fixedly connected at the inner ends of the seedling raising frame body (101), the supporting columns (103) are fixedly installed at the lower ends of the draining frame (102), the supporting columns (103) are symmetrically distributed, the number of the supporting columns (103) is four, and the bases (104) are fixedly installed at the lower ends of the supporting columns (103).
5. The three-dimensional multilayer seedling raising frame based on agricultural technology popularization of claim 4, wherein: the seedling raising rack comprises a seedling raising rack body (101) and reinforcing frames (105), wherein the reinforcing frames (105) are fixedly arranged at the inner ends of the seedling raising rack body (101), the reinforcing frames (105) are symmetrically distributed, the number of the reinforcing frames (105) is six, and placing frames (106) are fixedly arranged at the inner ends of the reinforcing frames (105).
6. The three-dimensional multilayer seedling raising frame based on agricultural technology popularization of claim 5, wherein: the seedling raising mechanism (2) comprises a seedling raising box (201), a positioning ring (202), a separation net (203) and draining holes (204), wherein the seedling raising box (201) is movably mounted at the inner end of a placing rack (106), the seedling raising boxes (201) are distributed at equal intervals, the positioning ring (202) is fixedly mounted at the outer end of the seedling raising box (201), the separation net (203) is fixedly mounted at the inner end of the seedling raising box (201), and the draining holes (204) are fixedly formed at the inner end of the seedling raising box (201).
7. The three-dimensional multilayer seedling raising frame based on agricultural technology popularization of claim 6, wherein: the bearing mechanism (3) comprises a mounting frame (301), an assembling frame (302) and a bearing box (303), wherein the mounting frame (301) is movably mounted below the placing frame (106), the mounting frame (301) is fixedly mounted at the inner end of the supporting column (103), the assembling frame (302) is fixedly mounted at the inner end of the mounting frame (301), the assembling frame (302) is of a U-shaped structure, the bearing box (303) is movably mounted at the inner end of the assembling frame (302), and the assembling frames (302) are symmetrically distributed.
