Abstract

A kind of verticality detection equipment for construction engineering, its structure includes two detection ruler rods, the tops of the two detection ruler rods are hingedly connected, the upper ends of the two detection ruler rods are equipped with non-slip grip pads, and one of the detection ruler rods is in the middle of the front end There is a level tube, and an instrument dial is set outside the middle of the other detection ruler rod. The bottom ends of the two detection ruler rods are equipped with ruler and foot pads. When in use, hold the non-slip hand grip pad and place the detection ruler rod against For walls that need to detect verticality, the adjustable abutment at the front end of the foot rest will stick to the wall. After long-term use, when the adjustable abutment is worn to a certain extent, you can loosen the limiting bolt and then slide Restricting bolt, the restricting bolt will drive the threaded adjustment rod, and the adjusting rod will drive the adjustable abutment to move horizontally, move the adjustable abutment to a suitable abutment position, and finally tighten the restriction bolt to limit the movement, easy to operate , improve durability.

Description

A kind of construction engineering verticality detection equipment

technical field

The utility model relates to a construction engineering perpendicularity detection device, which belongs to the field of construction engineering verticality detection equipment.

Background technique

The ruler is a kind of detection tool in the verticality detection equipment of construction projects. The ruler is divided into student ruler, vertical detection ruler, diameter measurement ruler and engineering quality detector according to classification. It can detect whether the wall and tile are flat and vertical, and detect the floor keel Whether it is level and flat or not, the existing vertical detection ruler used in construction projects is fixedly connected with the body. Since the ruler needs to be attached to the wall during use, it is prone to wear and tear. When the wear affects the During the detection work, it needs to be replaced, and the cost is relatively high.

Utility model content

Aiming at the deficiencies of the existing technology, the purpose of this utility model is to provide a construction engineering verticality detection equipment to solve the problem that the existing construction engineering uses a vertical detection of the bottom end of the ruler and the foot of the ruler is fixedly connected to the body. The feet of the ruler need to be attached to the wall during use, which is prone to wear and tear. When the wear affects the detection work, it needs to be replaced, which is a problem of high cost.

In order to achieve the above object, the utility model is achieved through the following technical solutions: a construction verticality detection equipment, its structure includes two detection ruler rods, the top hinge connection of the two detection ruler rods, two detection ruler rods The front end of the upper end is equipped with non-slip hand grip pads, one of the detection ruler rods is equipped with a level tube at the front end of the middle part, the other detection ruler rod is equipped with an instrument dial outside the middle part, and the bottom ends of the two detection ruler rods are equipped with a ruler and foot pad , the rear part of the upper end surface of the foot rest pad is provided with a telescopic piece that is movably nested in the corresponding detection ruler rod, the bottom rear end of the detection ruler rod is screwed with an adjusting bolt, and the rear end surface of the telescopic piece is from top to bottom A plurality of threaded holes are arranged at intervals, and the adjusting bolt is threadedly connected with one of the threaded holes. The front end of the ruler rest pad is movable with an adjustable abutment, and the rear end of the adjustable abutment is provided with a movable insert. For the adjustment rod in the foot rest pad, the bottom surface of the adjustable abutment is provided with a strip-shaped sliding hole, and the lower end of the strip-shaped sliding hole is provided with a bolt groove, and the bolt groove is embedded with a limiting bolt. The movement of the top of the restriction bolt penetrates through the bar-shaped sliding hole, and is threadedly connected with the bottom surface of the adjusting rod.

Further, the strip-shaped sliding hole is in contact with the adjusting rod.

Further, the detection rod is a stainless steel square tube structure.

Further, the foot rest pad is an L-shaped structure.

Further, when the limiting bolt is tightened, the driving end of the bottom is closely attached to the notch of the bolt groove.

The beneficial effect of the utility model is: when in use, hold the non-slip hand grip pad, lean the detection ruler against the wall surface that needs to detect the verticality, and the adjustable abutting part at the front end of the ruler rest pad will stick to the wall, After long-term use, when the adjustable abutment is worn to a certain extent, the limit bolt can be loosened, and then slide the limit bolt. The limit bolt will drive the adjusting rod connected by the thread, and the adjustment rod will drive the adjustable abutment to move horizontally, and the adjustment The type abutment part is moved to a suitable abutment position, and finally the limit bolt is tightened to limit the movement, which is easy to operate and improves durability.

Description of drawings

Other features, objects and advantages of the present invention will become more apparent by reading the detailed description of non-limiting embodiments with reference to the following drawings:

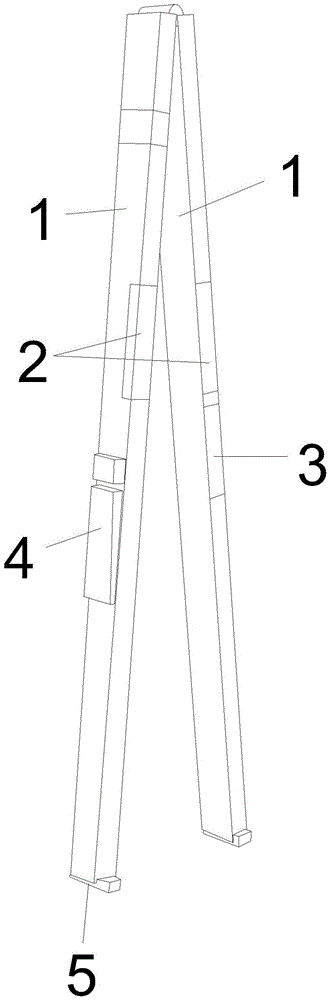

Fig. 1 is the structural representation of a kind of verticality detection equipment of construction project of the present utility model;

Fig. 2 is a partial cross-sectional structure schematic diagram of a construction verticality detection device of the present invention.

Detailed ways

In order to make the technical means, creative features, goals and effects achieved by the utility model easy to understand, the utility model will be further elaborated below in conjunction with specific embodiments.

Please refer to Fig. 1 and Fig. 2, the utility model provides a kind of construction project perpendicularity detection equipment technical scheme: its structure includes two detection ruler rods 1, the top hinge connection of two detection ruler rods 1, two detection ruler rods 1 The front end of the upper end is provided with an anti-slip grip pad 2, one of which is provided with a leveling tube 3 at the front end of the middle part of the detection ruler rod 1, and an instrument dial 4 is arranged outside the middle part of the other detection ruler rod 1, and the bottom ends of the two detection ruler rods 1 are provided with There is a ruler resting pad 5, and the rear part of the upper end surface of the ruler resting pad 5 is provided with a telescopic part 6 that is movable and nested in the corresponding detection ruler rod 1, and the bottom rear end of the detection ruler rod 1 is screwed to adjust Bolt 7, the rear end surface of the telescopic member 6 is provided with a plurality of threaded holes 8 at intervals from top to bottom, the adjusting bolt 7 is threadedly connected with one of the threaded holes 8, and the front end of the footrest 5 is movable with an adjustment Type abutting part 9, the rear end of the adjustable abutting part 9 is provided with an adjusting rod 10 movable embedded in the foot pad 5, and the bottom surface of the adjustable abutting part 9 is provided with a strip-shaped sliding hole 11, The lower end of the strip-shaped sliding hole 11 is provided with a bolt groove 12, and a limiting bolt 13 is embedded in the bolt groove 12. The top of the limiting bolt 13 penetrates the strip-shaped sliding hole 11 and is threadedly connected with the bottom surface of the adjusting rod 10. The strip-shaped sliding hole 11 is connected with the adjusting rod 10, the detection ruler rod 1 is a square tube structure of stainless steel, the ruler rest pad 5 is an L-shaped structure, and when the limit bolt 13 is tightened, the bottom The driving end is close to the bolt groove 12 notches.

For example, when in use, hold the anti-slip hand grip pad 2, lean the detection ruler bar 1 against the wall surface that needs to detect the verticality, and the adjustable abutment part 9 at the front end of the ruler rest pad 5 will be attached to the wall, and in the long-term After use, when the adjustable abutting part 9 is worn to a certain extent, the limit bolt 13 can be unscrewed, and then the limit bolt 13 can be slid. Move horizontally, move the adjustable abutting member 9 to a suitable abutting position, and finally tighten the limiting bolt 13 to limit the movement, which is easy to operate and improves durability.

The basic principles and main features of the utility model and the advantages of the utility model have been shown and described above. For those skilled in the art, it is obvious that the utility model is not limited to the details of the above-mentioned exemplary embodiments, and without departing from the utility model The present utility model can be realized in other specific forms without the spirit or essential features. Therefore, no matter from all points of view, the embodiments should be regarded as exemplary and non-restrictive, and the scope of the present invention is defined by the appended claims rather than the above description, so it is intended to fall within the scope of the claims All changes within the meaning and range of equivalents of the required elements are included in the present invention. Any reference sign in a claim should not be construed as limiting the claim concerned.

In addition, it should be understood that although this specification is described according to implementation modes, not each implementation mode only contains an independent technical solution, and this description in the specification is only for clarity, and those skilled in the art should take the specification as a whole , the technical solutions in the various embodiments can also be properly combined to form other implementations that can be understood by those skilled in the art.

Claims (5)

1. The utility model provides a building engineering straightness check out test set that hangs down which characterized in that: the structure comprises two detection ruler rods (1), the top hinges of the two detection ruler rods (1) are connected, the front ends of the upper ends of the two detection ruler rods (1) are respectively provided with an anti-skid handheld pad (2), one of the front ends of the middle parts of the detection ruler rods (1) is provided with a level pipe (3), the outer side of the middle part of the other detection ruler rod (1) is provided with an instrument dial (4), the bottom ends of the two detection ruler rods (1) are respectively provided with a guiding rule foot pad (5), the rear ends of the guiding rule foot pads (5) are respectively provided with a telescopic part (6) movably nested in the corresponding detection ruler rods (1), the rear ends of the bottoms of the detection ruler rods (1) are respectively provided with an adjusting bolt (7), the rear ends of the telescopic parts (6) are respectively provided with a plurality of threaded holes (8) from top to bottom, the adjusting bolts (7) are in threaded connection with one of the threaded holes (8), the front ends of the guiding rule foot pads (5) are respectively provided with an adjusting type attaching part (9), the rear ends of the adjusting type attaching part (9) are respectively provided with an adjusting rod (10) movably embedded in the guiding rule attaching part (5), the rear ends of the guiding rule attaching part are provided with an adjusting rod (10) movably embedded in the guiding bolt (5), the bottom surfaces of the guiding rod (11) are respectively provided with a limiting bolt (12) and the sliding bolt (12), and is in threaded connection with the bottom surface of the adjusting rod (10).

2. The construction perpendicularity detection apparatus according to claim 1, wherein: the strip-shaped sliding hole (11) is connected with the adjusting rod (10).

3. The construction perpendicularity detection apparatus according to claim 1, wherein: the detection ruler rod (1) is of a square tube structure of stainless steel.

4. The construction perpendicularity detection apparatus according to claim 1, wherein: the guiding ruler leaning foot pad (5) is of an L-shaped structure.

5. The construction perpendicularity detection apparatus according to claim 1, wherein: when the limiting bolt (13) is screwed, the driving end at the bottom is tightly attached to the notch of the bolt groove (12).
