CN218899953U - More comfortable diaper for infants - Google Patents
More comfortable diaper for infants Download PDFInfo
- Publication number
- CN218899953U CN218899953U CN202222053731.5U CN202222053731U CN218899953U CN 218899953 U CN218899953 U CN 218899953U CN 202222053731 U CN202222053731 U CN 202222053731U CN 218899953 U CN218899953 U CN 218899953U
- Authority
- CN
- China
- Prior art keywords
- elastic
- waistline
- comfortable
- infants
- diaper
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Active
Links
- 238000010521 absorption reaction Methods 0.000 claims abstract description 30
- 239000007788 liquid Substances 0.000 claims abstract description 21
- 239000004831 Hot glue Substances 0.000 claims abstract description 18
- 239000002131 composite material Substances 0.000 claims abstract description 16
- 229920002334 Spandex Polymers 0.000 claims description 6
- 150000001875 compounds Chemical class 0.000 claims description 6
- 239000004759 spandex Substances 0.000 claims description 6
- 210000002700 urine Anatomy 0.000 claims description 6
- 239000000463 material Substances 0.000 claims description 3
- 230000002745 absorbent Effects 0.000 abstract description 12
- 239000002250 absorbent Substances 0.000 abstract description 12
- 238000000034 method Methods 0.000 abstract description 10
- 230000008569 process Effects 0.000 abstract description 8
- 230000002349 favourable effect Effects 0.000 description 3
- 230000002265 prevention Effects 0.000 description 3
- 230000009286 beneficial effect Effects 0.000 description 2
- 239000003292 glue Substances 0.000 description 2
- 230000004048 modification Effects 0.000 description 2
- 238000012986 modification Methods 0.000 description 2
- 230000035515 penetration Effects 0.000 description 2
- 230000035699 permeability Effects 0.000 description 2
- 238000002407 reforming Methods 0.000 description 2
- 206010040925 Skin striae Diseases 0.000 description 1
- 208000031439 Striae Distensae Diseases 0.000 description 1
- 230000004888 barrier function Effects 0.000 description 1
- 230000007547 defect Effects 0.000 description 1
- 230000029142 excretion Effects 0.000 description 1
- 230000000149 penetrating effect Effects 0.000 description 1
- 238000009958 sewing Methods 0.000 description 1
Images
Landscapes
- Absorbent Articles And Supports Therefor (AREA)
Abstract
The utility model relates to the field of infant products and discloses more comfortable diaper for infants, which comprises two elastic waistlines, a diaper body and a composite absorption core, wherein the two elastic waistlines comprise a plurality of reverse folding fold sheets, hot melt adhesives and a plurality of first rubber strings, the composite absorption core comprises a liquid permeable top layer, an absorption layer, a liquid impermeable bottom layer and two leakage-proof side edges, and the two sides of the inner part of the diaper body are fixedly provided with second rubber strings. According to the utility model, the reverse folding type comfortable elastic folding area is used at the front waistline and the back waistline, so that the problem that the skin and friction are easy to be caught by the elastic waistline of the conventional diaper is solved, the elastic waistline is softer and more comfortable, the hot melt adhesive is utilized to reform and fuse the reverse folding type folding sheets, stable folding is ensured, and the elastic waistline of the absorbent product is soft and comfortable in the process of wearing dynamic adjustment by utilizing the first elastic band and the second elastic band, so that the experience feeling of a user is improved.
Description
Technical Field
The utility model relates to the field of infant products, in particular to a more comfortable diaper for infants.
Background
Infants and other individuals who cannot take care of their lives often need to wear absorbent articles, such as pull-ups, which are also known as diaper pants, that function to store and isolate such excretions from the body, clothing, bedding, etc. of the wearer, and currently, pull-ups are composed mainly of a liquid permeable top layer, a liquid impermeable side-leakage barrier layer, a liquid impermeable bottom layer, an absorbent layer, and a closed elastic waist.
The two-piece type or three-piece type pull-up pants are generally two types, namely the two-piece type or three-piece type pull-up pants which are currently sold in the market, and the rubber strings are arranged in the crease areas of the front elastic waist and the rear elastic waist, so that the rubber strings on the contact side of the front end part and the rear end part of the elastic waist of the pull-up pants and the skin are easy to stretch, and the phenomena of red marks and stretch marks are caused, therefore, a person skilled in the art provides a more comfortable diaper for infants, and solves the problems in the background art.
Disclosure of Invention
The utility model aims to solve the defects in the prior art, and provides a more comfortable diaper for infants, which solves the problem that the elastic waistline of the conventional diaper is easy to tie the skin and friction by using a reverse folding type comfortable elastic folding area at the front waistline and the rear waistline, so that the elastic waistline is softer and more comfortable, a plurality of reverse folding type folding sheets are reformed and fused by using hot melt adhesive, stable folding is ensured, and the elastic waistline of an absorbent product is softer and more comfortable in the process of wearing dynamic adjustment by using a plurality of first rubber strings and second rubber strings, so that the experience of a user is improved.
In order to achieve the above purpose, the present utility model provides the following technical solutions: the utility model provides a more comfortable infant is with urine trousers, includes two elastic waistline, trousers body and compound absorption core, two elastic waistline include a plurality of reverse folding fold piece, hot melt adhesive and a plurality of first rubber band, compound absorption core includes liquid permeability top layer, absorbed layer, liquid impermeability bottom and two leak protection sides, the inside both sides of trousers body are all fixed and are provided with the second rubber band, two elastic waistline both sides tie point is fixed and is provided with the bonding lateral wall;
through above-mentioned technical scheme, the elastic waistline department uses the comfortable elasticity fold area of reverse-folding, solves the easy problem of reining in skin and friction of elastic waistline of current diaper for elastic waistline is softer, comfortable, and a plurality of first rubber band and second rubber band provide elasticity for whole device, and the wearing process is more next to the skin, is difficult for droing.
Further, the upper end surfaces of the two elastic waistlines are fixedly provided with side leakage prevention layers, a plurality of reverse folding type fold sheets are connected through hot melt adhesive, the reverse folding type fold sheets are respectively fixedly arranged on the front end surfaces and the rear end surfaces of the two elastic waistlines, and a plurality of first rubber strings transversely penetrate through the reverse folding type fold sheets at the positions of the hot melt adhesive connection points;
through the technical scheme, the hot melt adhesive is favorable for reforming and fusing the plurality of reverse folding type fold sheets, and stable folding is ensured.
Further, the width of the two elastic waistlines is 40-45mm, the two elastic waistlines transversely penetrate and are distributed along the waist, and the two elastic waistlines are distributed in an omega reverse folding mode at the end part of the waist;
through the technical scheme, the dimension specification of the elastic waistline of the diaper is favorably controlled, and the falling-off of the diaper caused by the fact that the elastic waistline is too large and the infant cannot wear or is too loose is avoided.
Further, the upper end face of the outer side of the trousers body is fixedly connected with the upper end face of the inner side of the elastic waistline, through holes are formed in two sides of the lower end of the trousers body, and the two through holes are O-shaped and unfolded to form arc edges;
through above-mentioned technical scheme, thereby be favorable to wearing the in-process, thereby adult's both hands run through urine trousers through the through-hole and prop big waistline, facilitate the use, wear more convenient and fast.
Further, the liquid-permeable top layer is fixedly arranged on the upper end surface of the absorption layer, the liquid-impermeable bottom layer is fixedly arranged on the lower end surface of the absorption layer, and the two leakage-proof side edges are fixedly arranged on two sides of the absorption layer;
through the technical scheme, the infant liquid excrement can be absorbed conveniently, and meanwhile, the liquid excrement is prevented from leaking laterally and penetrating through the diaper.
Further, the composite absorption core is fixedly arranged at the middle point of the inner side of the trousers body, and the upper end and the lower end of the composite absorption core are respectively connected with the inner side of the two elastic waistlines close to the lower ends;
through above-mentioned technical scheme, be favorable to compound absorbent core to laminate infant's skin more, strengthen the absorption to liquid excrement, reduce the side leakage and take place.
Further, the elastic waistline elastic force is designed to be 560-620D high-elastic spandex silk material, the stretch ratio of the spandex silk is controlled to be 2.9-3.2 times, and the effective resilience force of the whole elastic waist is designed to be 460-520gf when the whole elastic waist is stretched to 80%;
through the technical scheme, the elastic ratio of the elastic waistline is controlled, and the phenomenon that the elasticity is too large or too small, so that the whole comfort level is influenced due to loosening or too tight is avoided.
Further, the first elastic threads are designed to be 620-720D heavy denier elastic threads, gaps among the first elastic threads are designed to be 8.33mm, the middle waistline is designed to be 560-620D denier elastic threads, gaps among the elastic threads are designed to be 6.25-8.33mm in interval distribution, two second elastic threads are designed to be 620D elastic threads, and gaps among the two second elastic threads are designed to be 6.25mm;
through above-mentioned technical scheme, a plurality of first rubber band and second rubber band for the elastic waistline of absorbent article is soft, comfortable at wearing dynamic adjustment's in-process, improves user's experience impression.
The utility model has the following beneficial effects:
1. according to the more comfortable diaper for infants, the problem that the skin and friction are easy to be caught by the elastic waistline of the conventional diaper is solved by using the reverse folding type comfortable elastic folding area at the front waistline and the rear waistline, so that the elastic waistline is softer and more comfortable, the reverse folding type folding pieces are reformed and fused by using hot melt adhesive, stable folding is ensured, and the elastic waistline of an absorbent product is soft and comfortable in the process of wearing dynamic adjustment by using the first elastic band and the second elastic band, so that the experience feeling of a user is improved.
2. According to the more comfortable diaper for infants, the hot melt adhesive is used for reforming and fusing the plurality of reverse folding type fold sheets, stable folding is guaranteed, the size specification of the elastic waistline of the diaper is controlled, the problem that the diaper falls off due to the fact that the elastic waistline is too large and cannot be worn or is too loose is avoided, through holes are beneficial to the fact that both hands of an adult penetrate through the diaper through the through holes in the wearing process, so that the waistline is supported, and the diaper is convenient to use and more convenient and quicker to wear.
3. The utility model provides more comfortable infant diaper, the composite absorption core absorbs liquid excrement of an infant, meanwhile, the side leakage and the penetration of the liquid excrement are avoided, the elasticity ratio of the elastic waistline is controlled, and the problem that the elasticity is too large or too small, so that the infant diaper is loose or too tight, and the overall comfort degree is affected is avoided.
Drawings
FIG. 1 is a schematic axial view of a more comfortable diaper for infants in accordance with the present utility model;
FIG. 2 is a schematic view of a more comfortable infant diaper shown in a unfolded state in a cut-away view;
FIG. 3 is a schematic cross-sectional view of the elastic waistline of the diaper for infants, which is more comfortable;

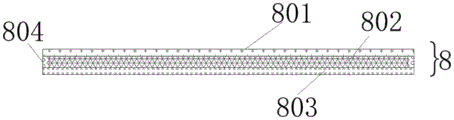

fig. 4 is a schematic cross-sectional view of a composite absorbent core of a more comfortable diaper for infants in accordance with the present utility model.
Legend description:
1. a side leakage prevention layer; 2. bonding the side walls; 3. elastic waistline; 301. reverse folding type fold sheet; 302. a hot melt adhesive; 303. a first elastic band; 4. a through hole; 5. a pant body; 6. an arc edge; 7. a second rubber band; 8. a composite absorbent core; 801. a liquid permeable top layer; 802. an absorption layer; 803. a liquid impermeable back sheet; 804. and (5) leakage-proof side edges.
Detailed Description
The following description of the embodiments of the present utility model will be made clearly and completely with reference to the accompanying drawings, in which it is apparent that the embodiments described are only some embodiments of the present utility model, but not all embodiments. All other embodiments, which can be made by those skilled in the art based on the embodiments of the utility model without making any inventive effort, are intended to be within the scope of the utility model.
Referring to fig. 1-4, one embodiment provided by the present utility model is: the utility model provides a more comfortable infant is with urine trousers, including two elastic waistline 3, the trousers body 5 and compound absorption core 8, two elastic waistline 3 include a plurality of reverse folding fold piece 301, hot melt adhesive 302 and a plurality of first rubber band 303, compound absorption core 8 includes liquid permeability top layer 801, the absorbed layer 802, liquid impermeable bottom 803 and two leak protection sides 804, the inside both sides of trousers body 5 are all fixed and are provided with second rubber band 7, two elastic waistline 3 both sides tie point is fixed and are provided with bonding lateral wall 2, four bonding lateral wall 2 pass through the glue adhesion, the comfortable elastic fold district of reverse folding is used in preceding and following elastic waistline 3 department, solve the elastic waistline of current urine trousers and rein in skin and friction problem easily, make elastic waistline 3 more soft, comfortablely, a plurality of first rubber band 303 and second rubber band 7 provide elasticity for whole device, the wearing process is more close to the body, difficult drop.
The two elastic waistline 3 upper end surfaces are fixedly provided with the side leakage prevention layer 1, the plurality of reverse folding type fold sheets 301 are fixedly connected through the hot melt adhesive 302, the plurality of reverse folding type fold sheets 301 are fixedly arranged on the front end surface and the rear end surface of the two elastic waistline 3 respectively, the plurality of reverse folding type fold sheets 301 are positioned at the connecting point of the hot melt adhesive 302 and transversely penetrate through the plurality of first rubber strings 303, the hot melt adhesive 302 reforms and fuses the plurality of reverse folding type fold sheets 301, stable folding is ensured, the width of the two elastic waistlines 3 is 40-45mm, the two elastic waistlines 3 transversely penetrate and distribute along the waist, the two elastic waistlines 3 are in omega reverse folding type distribution at the waist end part, the size specification of the elastic waistline 3 of the diaper is controlled, the elastic waistline 3 is prevented from being too large, infants can not wear or wear to loose, the diaper is prevented from falling off, the upper end surface on the outer side of the pants 5 is fixedly connected with the upper end surface on the inner side of the elastic waistline 3, through holes 4 are arranged on two sides of the lower end of the pants 5, the through holes 4 are in O shape and are in an arc-shaped edge 6, in the process of wearing, the adult pants are enabled to penetrate through the through holes 4, so that the diaper is convenient to wear, and use is more convenient to wear;
the liquid-permeable top layer 801 is fixedly arranged on the upper end face of the absorption layer 802, the liquid-impermeable bottom layer 803 is fixedly arranged on the lower end face of the absorption layer 802, the two leakage-proof side edges 804 are fixedly arranged on two sides of the absorption layer 802 to absorb liquid excrement of infants, meanwhile, side leakage and urine penetration trousers are avoided, the composite absorption core 8 is fixedly arranged at the middle point of the inner side of the trousers body 5, the upper end and the lower end of the composite absorption core 8 are respectively connected with the lower ends of the inner sides of the two elastic waistlines 3, the composite absorption core 8 is more attached to the skin of the infants, the absorption of the liquid excrement is enhanced, the side leakage is reduced, the elastic force of the two elastic waistlines 3 is designed to be 560-620D high-elasticity spandex materials, the stretch ratio of the spandex filaments is controlled to be 2.9-3.2 times, the elastic ratio of the elastic waistline 3 is controlled, and the elastic force of the elastic waistline 3 is prevented from being excessively large or excessively small, so that the elastic waist is loosened or excessively tight, and the integral comfort is influenced;
the first elastic threads 303 are designed to be 620-720D heavy denier elastic threads, gaps among the first elastic threads 303 are designed to be 8.33mm, gaps among the middle waistline is designed to be 560-620D denier elastic threads, gaps among the elastic threads are designed to be 6.25-8.33mm in interval distribution, the second elastic threads 7 are designed to be 620D elastic threads, gaps among the second elastic threads 7 are designed to be 6.25mm, and the first elastic threads 303 and the second elastic threads 7 are designed to be soft and comfortable in the process of dynamic adjustment of wearing, so that the experience of a user is improved.
Working principle: the two sides of the two elastic waistlines 3 are sewed with the bonding side walls 2, the front side and the rear side of the two elastic waistlines 3 are provided with a plurality of reverse folding fold sheets 301 through a sewing technology, the reverse folding fold sheets 301 are bonded and fixed by using hot melt adhesives 302, then the trousers body 5 with two sides provided with the through holes 4 are connected with the lower ends of the inner sides of the two elastic waistlines 3 into a whole, the composite absorbent core 8 is fixed on the middle point of the inner sides of the trousers body 5 and is integrated with the trousers body 5, the upper end and the lower end of the composite absorbent core 8 are connected with the inner sides of the two elastic waistlines 3, the liquid permeable top layer 801 of the composite absorbent core 8 faces upwards, and the four bonding side walls 2 are connected with each other by glue solution to complete the integrated diaper.
Finally, it should be noted that: the foregoing description is only illustrative of the preferred embodiments of the present utility model, and although the present utility model has been described in detail with reference to the foregoing embodiments, it will be apparent to those skilled in the art that modifications may be made to the embodiments described, or equivalents may be substituted for elements thereof, and any modifications, equivalents, improvements or changes may be made without departing from the spirit and principles of the present utility model.
Claims (8)
1. The utility model provides a more comfortable infant is with urine trousers, includes two elastic waistline (3), trousers body (5) and compound absorption core (8), its characterized in that: the two elastic waistline (3) comprise a plurality of reverse folding fold sheets (301), hot melt adhesives (302) and a plurality of first rubber strings (303), the composite absorption core (8) comprises a liquid permeable top layer (801), an absorption layer (802), a liquid impermeable bottom layer (803) and two leakage-proof side edges (804), the second rubber strings (7) are fixedly arranged on two sides of the inside of the trousers body (5), and the bonding side walls (2) are fixedly arranged at two connecting points on two sides of the elastic waistline (3).
2. A more comfortable diaper for infants as set forth in claim 1, wherein: two elastic waistline (3) up end is fixed to be provided with prevents side leakage layer (1), and a plurality of reverse folding fold piece (301) are through hot melt adhesive (302) bonding connection, and a plurality of reverse folding fold piece (301) are fixed respectively to be set up in the terminal surface around two elastic waistline (3), and a plurality of reverse folding fold piece (301) are located hot melt adhesive (302) tie point department and transversely run through and be provided with a plurality of first rubber band (303).
3. A more comfortable diaper for infants as set forth in claim 1, wherein: the width of the two elastic waistlines (3) is 40-45mm, the two elastic waistlines (3) transversely penetrate and are distributed along the waist, and the two elastic waistlines (3) are distributed in an omega reverse folding mode at the end part of the waist.
4. A more comfortable diaper for infants as set forth in claim 1, wherein: the trousers body (5) are characterized in that the upper end face on the outer side of the trousers body (5) is fixedly connected with the upper end face on the inner side of the elastic waistline (3), through holes (4) are formed in two sides, close to the lower end, of the trousers body (5), and the two through holes (4) are O-shaped and are unfolded to form arc edges (6).
5. A more comfortable diaper for infants as set forth in claim 1, wherein: the liquid-permeable top layer (801) is fixedly arranged on the upper end face of the absorption layer (802), the liquid-impermeable bottom layer (803) is fixedly arranged on the lower end face of the absorption layer (802), and the two leakage-proof side edges (804) are fixedly arranged on two sides of the absorption layer (802).
6. A more comfortable diaper for infants as set forth in claim 1, wherein: the composite absorption core (8) is fixedly arranged at the middle point of the inner side of the trousers body (5), and the upper end and the lower end of the composite absorption core (8) are respectively connected with the inner side of the two elastic waistlines (3) close to the lower ends.
7. A more comfortable diaper for infants as set forth in claim 1, wherein: the elastic waistline (3) is designed to be 560-620D high-elasticity spandex silk material, the stretch ratio of the spandex silk is controlled to be 2.9-3.2 times, and the effective resilience force of the whole elastic waist is designed to be 460-520gf when the whole elastic waist is stretched to 80%.
8. A more comfortable diaper for infants as set forth in claim 1, wherein: the first elastic bands (303) are designed to be 620-720D thick denier elastic bands, gaps among the first elastic bands (303) are designed to be 8.33mm, the middle waistline is designed to be 560-620D denier elastic bands, gaps among the elastic bands are designed to be 6.25-8.33mm in interval distribution, two second elastic bands (7) are designed to be 620D elastic bands, and gaps among the two second elastic bands (7) are designed to be 6.25mm.
