Abstract

The utility model discloses a spandex yarn frequency conversion, speed regulation, twisting, drafting and unwinding device, which belongs to the technical field of spandex yarn processing, and comprises a debonding main body. A power groove is provided inside the debonding main body. The inside of the power groove is A motor is fixedly installed, and an inlet is opened on the side of the decomposing body away from the collecting column. When the motor works, the device will drive the collection column to rotate and collect the spandex yarn, and the rotation of the collection column can drive the reciprocating screw rod to rotate through the power gear and the connecting gear, and the rotation of the reciprocating screw rod will make the reciprocating screw rod rotate. The traction block is raised and lowered, so that the spandex yarn can be wound more evenly on the collection column, and a small amount of dust adsorbed during the processing of the spandex yarn can be cleaned by using the thread-passing hole and the dust-stained cloth plate, which can improve the cleanliness of the spandex yarn, and The collection columns are placed vertically, occupying a small area, and more collection columns can be placed for collection, which can improve the decomposing effect of the device.

Description

A spandex yarn frequency conversion speed regulation twisting draft unwinding device

technical field

The utility model relates to the technical field of spandex yarn processing, in particular to a spandex yarn frequency conversion, speed regulation, twisting, drafting and unwinding device.

Background technique

With the continuous expansion of the market and product upgrades, more and more manufacturers have integrated the spandex yarn material into various thick and short fibers through the ring spinning machine to produce composite yarns for various purposes. However, in this spinning process However, the yarn quality is often affected by process defects or poor equipment functions. As a new type of synthetic fiber, spandex yarn can be sewn as inner lining or outer protection because of its advantages of high elasticity, wear resistance, and non-deformation. , and widely welcomed by garment factories and consumers, spandex yarn needs to go through multiple processes in the preparation and production;

Most of the collection columns of general spandex yarn frequency conversion, speed regulation, twisting, drafting and unwinding devices on the market are placed horizontally, which will occupy a lot of space, reduce the use of collection columns, and reduce the working efficiency of the device. A small amount of dust may be absorbed during the process, which will easily affect the quality of the finished product of spandex yarn and cause the problem of device defects. Therefore, we propose a spandex yarn frequency conversion speed regulation twisting, drafting and unwinding device.

Utility model content

The purpose of this utility model is to provide a spandex yarn frequency conversion, speed regulation, twisting, drafting and unwinding device. When the motor is working, it will drive the collection column to rotate and collect the spandex yarn, and the rotation of the collection column can pass through the power gear and the connection. The gear drives the reciprocating screw to rotate, and the rotation of the reciprocating screw makes the traction block on the reciprocating screw go up and down, so that the spandex yarn can be wound more evenly on the collection column, and the thread hole and the dusty cloth can be used to clean A small amount of dust adsorbed during the spandex yarn processing can improve the cleanliness of the spandex yarn, and the collection column is placed vertically, with a small footprint, and more collection columns can be placed for collection, which can improve the degradation effect of the device , to solve the problems raised in the background art above.

In order to achieve the above purpose, the utility model provides the following technical solutions: a spandex yarn frequency conversion speed regulation twisting and drafting annealing device, including an annealing main body, a power groove is provided inside the annealing main body, and the power groove A motor is fixedly installed inside, and a collection column is fixedly installed on the upper end of the motor, and the collection column extends through the power groove to the outside of the retreating body, and an inlet is opened on the side of the retreating body away from the collecting column.

Preferably, two positioning plates are fixedly installed on the inner wall of the decomposing body near the entrance, and rollers are rotatably installed on the opposite side of the two positioning plates, and the two positioning plates are respectively located on the upper and lower sides of the entrance.

Preferably, a power gear is fixedly installed on the collecting column in the power tank, and a reciprocating screw rod is installed in rotation inside the power tank, and the reciprocating screw rod runs through the power tank and extends to the outside of the retreating main body, and the power tank A connecting gear is fixedly installed on the reciprocating screw rod inside, and the power gear and the connecting gear are gear meshed.

Preferably, a traction block is screw-mounted on the reciprocating screw rod, and a thread-passing hole is opened inside the traction block, and dust-smeared cloth boards are fixedly installed around the thread-passing hole.

Preferably, a drive slot is provided inside the retreating main body, a fan shaft is installed in rotation inside the drive slot, a second pulley is fixedly installed on the fan shaft, and a reciprocating screw rod in the power slot is fixed A first pulley is installed, and a belt is detachably installed between the first pulley and the second pulley.

Preferably, an installation groove is opened inside the decomposing body, and the fan shaft extends into the installation groove, a mesh plate is fixedly installed in the installation groove, and a collection port is opened at the lower end of the installation groove, and the collection port The interior is fixed with a collection box.

Compared with the prior art, the beneficial effects of the utility model are:

When the motor works, it will drive the collection column to rotate, and then the spandex yarn will be collected, and the rotation of the collection column can drive the reciprocating screw to rotate through the power gear and the connecting gear, and the reciprocating screw can be driven by the rotation of the reciprocating screw. The traction block on the screw rod is lifted, so that the spandex yarn can be wound more evenly on the collection column, and a small amount of dust adsorbed during the processing of the spandex yarn can be cleaned by using the thread passing hole and the dust-stained cloth plate, which can improve the spandex yarn cleanliness, the structure of the device is simple, and the collection column is placed vertically, the footprint is small, more collection columns can be placed for collection, and the delysis effect of the device can be improved;

When the reciprocating screw rod rotates, the first pulley and the second pulley can drive the fan shaft to rotate, and then the fan shaft rotates to produce the effect of suction, and the fine cotton wool produced by the spandex yarn processing on the suction is absorbed into the installation groove. Then blow it into the collection box through the collection port, so that the cotton wadding produced by spandex yarn processing can be collected in time to prevent the wadding from being inhaled by the workers and affecting the health of the body, which can protect the workers' health to a certain extent .

Description of drawings

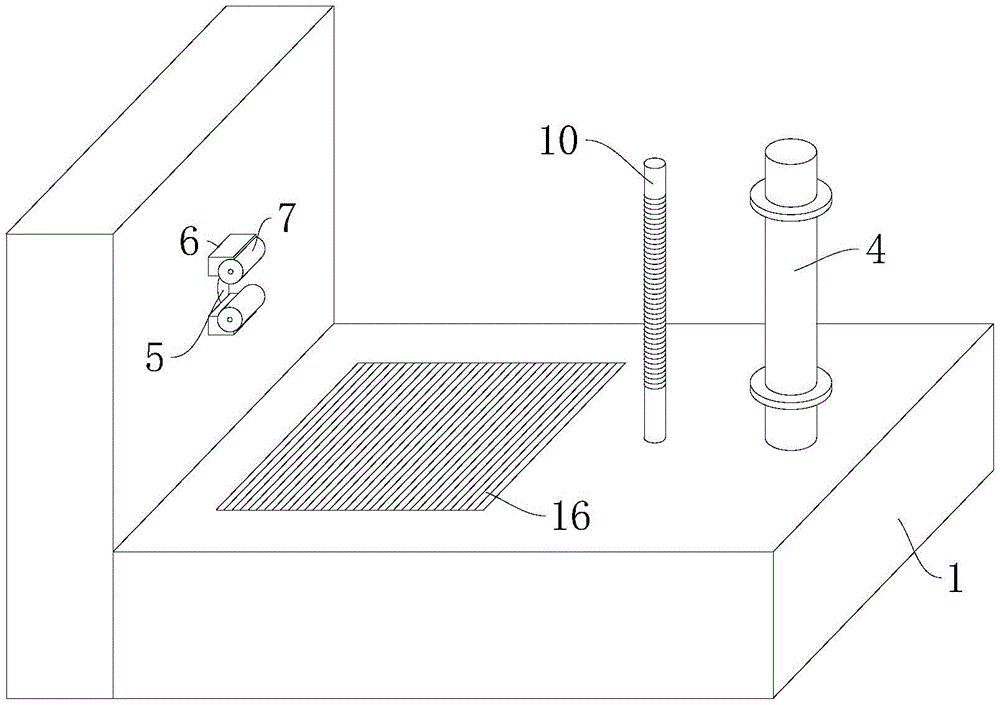

Fig. 1 is a schematic diagram of the three-dimensional structure of the utility model;

Fig. 2 is a sectional view of the front structure of the utility model;

Fig. 3 is the enlarged schematic view of A in Fig. 2 of the utility model;

Fig. 4 is the three-dimensional connection relationship between the power gear and the connecting gear of the present invention.

In the figure: 1. Removal main body; 2. Power tank; 3. Motor; 4. Collection column; 5. Inlet; 6. Positioning plate; 7. Roller; 8. Power gear; 9. Connecting gear; 10. Reciprocating wire Rod; 11, first pulley; 12, installation groove; 13, fan shaft; 14, second pulley; 15, transmission groove; 16, screen plate; 17, collection port; 18, collection box; 19, traction block; 20 , Wire hole; 21, Dip the gray cloth board.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Example 1:

Please refer to Figures 1-4, the utility model provides a technical solution: a spandex yarn frequency conversion, speed regulation, twisting, drafting and annealing device, including an annealing main body 1, and a power tank 2 is provided inside the annealing main body 1, and the power A motor 3 is fixedly installed inside the tank 2, and a collection column 4 is fixedly installed on the upper end of the motor 3, and the collection column 4 runs through the power tank 2 and extends to the outside of the retreating main body 1, and the side of the retreating main body 1 away from the collecting column 4 is opened There is an entrance 5, and two positioning plates 6 are fixedly installed on the inner wall of the retreating body 1 near the entrance 5, and a roller 7 is installed on the opposite side of the two positioning plates 6, and the two positioning plates 6 are respectively located at the entrance 5 On the upper and lower sides, a power gear 8 is fixedly installed on the collecting column 4 in the power tank 2, and a reciprocating screw rod 10 is installed in the inner rotation of the power tank 2, and the reciprocating screw rod 10 runs through the power tank 2 and extends to the outside of the retreating main body 1 , the connecting gear 9 is fixedly installed on the reciprocating screw rod 10 in the power tank 2, and the power gear 8 and the connecting gear 9 are gear meshed, and the reciprocating screw rod 10 is spirally installed with a traction block 19, and the inside of the traction block 19 is opened Wire passing hole 20 is arranged, and dust cloth plate 21 is fixedly installed around the wire passing hole 20 .

Specifically, when the motor 3 works, it will drive the collection column 4 to rotate, and then the spandex yarn will be collected, and the rotation of the collection column 4 can drive the reciprocating screw rod 10 to rotate through the power gear 8 and the connecting gear 9 , the traction block 19 on the reciprocating screw mandrel 10 is lifted by the rotation of the reciprocating screw mandrel 10, so that the spandex yarn can be more evenly wound on the collection column 4, and the thread hole 20 and the dusty cloth plate 21 can be used to clean the A small amount of dust adsorbed during the spandex yarn processing can improve the cleanliness of the spandex yarn. The structure of the device is simple, and the collection column 4 is vertically placed, and the floor space is small, and more collection columns 4 can be placed for collection. The de-solution effect of the device can be improved.

Example 2:

Please refer to Figure 1-2, the utility model provides a technical solution: a spandex yarn frequency conversion, speed regulation, twisting, drafting and annealing device, the interior of the annealing main body 1 is provided with a power groove 2, and the interior of the power groove 2 is fixed and installed There is a motor 3, the upper end of the motor 3 is fixedly installed with a collection column 4, and the collection column 4 extends through the power tank 2 to the outside of the retreating main body 1, and the side of the retreating main body 1 away from the collecting column 4 is provided with an entrance 5, and the retreating The inside of the main body 1 is provided with a transmission groove 15, the inside of the transmission groove 15 is rotated and installed with a fan shaft 13, the second pulley 14 is fixedly installed on the fan shaft 13, and the first pulley is fixedly installed on the reciprocating screw rod 10 in the power tank 2 11, and a belt is detachably installed between the first pulley 11 and the second pulley 14, a mounting groove 12 is opened inside the retreating body 1, and the fan shaft 13 extends into the mounting groove 12, and the mounting groove 12 is fixedly installed with Stencil 16, the lower end of mounting groove 12 offers collection mouth 17, and the inside of collection mouth 17 is fixedly equipped with collection box 18.

Specifically, when the reciprocating screw mandrel 10 rotates, the fan shaft 13 can be driven to rotate by the first pulley 11 and the second pulley 14, and then the fan shaft 13 rotates to produce the effect of suction, and the spandex yarn processing on the suction is used. The fine cotton wool is absorbed into the installation groove 12, and then blown into the collection box 18 through the collection port 17, so that the cotton wool produced by the spandex yarn processing can be collected in time to prevent the cotton wool from being sucked into the body of the worker and affecting the health of the body. This can have a certain protective effect on the body of the worker.

Working principle: When the unwinding device is working, the spandex yarn is passed between the entrance 5 and the two rollers 7 in advance, and then connected to the collecting column 4. When the motor 3 works, the collecting column 4 will be driven to rotate At this time, the spandex yarn will be collected, and the rotation of the collection column 4 can drive the reciprocating screw mandrel 10 to rotate through the power gear 8 and the connecting gear 9, and the rotation of the reciprocating screw mandrel 10 can make the traction on the reciprocating screw mandrel 10 Block 19 is lifted, so that the spandex yarn can be more evenly wound on the collection column 4, and a small amount of dust adsorbed in the spandex yarn processing process can be cleaned by using the wire passing hole 20 and the dusty cloth plate 21, when the reciprocating screw mandrel 10 rotates When the first pulley 11 and the second pulley 14 can drive the fan rotating shaft 13 to rotate, then the fan rotating shaft 13 rotates to produce the effect of air suction, and the fine cotton wool produced by the spandex yarn processing on the air suction is absorbed into the installation groove 12, Then it is blown into the collection box 18 through the collection port 17.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (6)

1. A spandex yarn frequency conversion, speed regulation, twisting, drafting and unraveling device, comprising a dismantling main body (1), is characterized in that: a power groove (2) is provided inside the dissolving main body (1), and the power A motor (3) is fixedly installed inside the tank (2), and a collection column (4) is fixedly installed on the upper end of the motor (3), and the collection column (4) extends through the power tank (2) to the retreating main body (1 ), the side of the decomposing body (1) away from the collection column (4) is provided with an inlet (5). 2. A spandex yarn frequency conversion, speed regulation, twisting, drafting and annealing device according to claim 1, characterized in that two Two positioning plates (6), the opposite sides of the two positioning plates (6) are rotated with rollers (7), and the two positioning plates (6) are respectively located on the upper and lower sides of the entrance (5). 3. A spandex yarn frequency conversion, speed regulation, twisting, drafting and unwinding device according to claim 1, characterized in that: a power gear (8) is fixedly installed on the collecting column (4) in the power tank (2) ), the internal rotation of the power tank (2) is equipped with a reciprocating screw rod (10), and the reciprocating screw rod (10) extends through the power tank (2) to the outside of the retreating main body (1), and the power tank ( 2) A connecting gear (9) is fixedly installed on the reciprocating screw mandrel (10) inside, and the power gear (8) is gear meshed with the connecting gear (9). 4. A spandex yarn frequency conversion, speed regulation, twisting, drafting and unwinding device according to claim 3, characterized in that: a traction block (19) is spirally installed on the reciprocating screw mandrel (10), and the traction block The inside of (19) is provided with a wire hole (20), and the surroundings of the wire hole (20) are fixedly equipped with dust-stained cloth plates (21). 5. A spandex yarn frequency conversion, speed regulation, twisting, drafting and annealing device according to claim 4, characterized in that: the interior of the annealing main body (1) is provided with a transmission groove (15), and the transmission groove (15) is installed with a fan rotating shaft (13) for internal rotation, the second pulley (14) is fixedly installed on the fan rotating shaft (13), and the reciprocating screw mandrel (10) in the described power tank (2) is fixedly installed There is a first pulley (11), and a belt is detachably installed between the first pulley (11) and the second pulley (14). 6. A spandex yarn frequency conversion, speed regulation, twisting, drafting and annealing device according to claim 4, characterized in that: the interior of the annealing main body (1) is provided with an installation groove (12), and the fan shaft ( 13) extending into the installation groove (12), the screen plate (16) is fixedly installed in the installation groove (12), the lower end of the installation groove (12) is provided with a collection port (17), and the collection port ( 17) A collection box (18) is fixedly installed inside.
