Abstract
The utility model relates to a refrigerator production field discloses a front beam assembly in refrigerator, including well front beam body and the strengthening iron body that is located well front beam body both ends, well front beam body has the cardboard along the width direction upset, the bottom of well front beam body is provided with the sponge strip, the upside both ends of well front beam body are along the equal fixedly connected with limiting plate of length direction, the cardboard is provided with two, and two cardboard upset direction is unanimous, two cardboard and well front beam body integrated into one piece, two the one end that the strengthening iron body was kept away from each other sets up to isosceles trapezoid structure and has seted up the screw hole, the utility model discloses conveniently make well front beam body install on the refrigerator door, convenient to use reaches easy to assemble, the effect of dismantling, and the follow-up maintenance of being convenient for to the connection degree of accuracy of providing well front beam and strengthening iron reduces the intensity of labour of installation.
Description
Technical Field
The utility model relates to a refrigerator production field especially relates to a front beam assembly in refrigerator.
Background
Present refrigerator door all is through hinged mounting on the refrigerator roof beam, but the thickness of refrigerator roof beam is less, need weld the hinge stiffening iron on the refrigerator roof beam during installation hinge, in order to promote the steadiness of hinge and refrigerator roof beam assembly, the hinge stiffening iron all fixes on the refrigerator roof beam through the welded mode among the prior art, this kind of mode troublesome poeration, high labor strength, product percent of pass and production efficiency are low, high in production cost, can not guarantee about all screw hole position levels are unanimous on the hinge stiffening iron, cause the refrigerator door rotation axis out of plumb of box deformation and installation easily, the performance of refrigerator has greatly been influenced, so front beam assembly in the refrigerator now needs.
SUMMERY OF THE UTILITY MODEL
For the technical problem who solves front-axle beam and the stiffening iron degree of accuracy of being connected in the refrigerator, the utility model provides a front-axle beam assembly in refrigerator.
The utility model discloses a following technical scheme realizes: the refrigerator middle front beam assembly comprises a middle front beam body and reinforcing iron bodies positioned at two ends of the middle front beam body, wherein clamping plates are arranged on the middle front beam body in a turnover mode along the width direction, a sponge strip is arranged at the bottom of the middle front beam body, and limiting plates are fixedly connected to two ends of the upper side of the middle front beam body along the length direction.
Through the technical scheme, the reinforcing iron can be detachably arranged on the middle front beam body, and is convenient to adjust and use.
As a further improvement of the above scheme, two sets of the limiting plates are provided in each set, and the two limiting plates in each set are respectively provided at two sides of the reinforcing iron body.
Through the technical scheme, the reinforcing iron body can be accurately positioned, and the installation efficiency is improved.
As a further improvement of the scheme, the clamping plates are arranged in two, the overturning directions of the clamping plates are consistent, and the two clamping plates and the middle front beam body are integrally formed.
Through the technical scheme, the rigidity of the middle front beam body is larger, deformation is prevented, and the service life of the middle front beam body is prolonged.
As a further improvement of the scheme, one end, far away from each other, of each of the two reinforcing iron bodies is of an isosceles trapezoid structure and is provided with a screw hole.
Through the technical scheme, the reinforcing iron body can be conveniently connected with the refrigerator door, the connection firmness is improved, and the installation is more convenient.
As a further improvement of the scheme, through holes located between the limiting plates are formed in the two reinforcing iron bodies, and gaskets are arranged on the upper sides of the two reinforcing iron bodies.
Through above-mentioned technical scheme, can make strengthening iron body coupling more stable, prevent not hard up, improve stability.
As a further improvement of the scheme, the two clamping plates are both provided with threaded holes, and the middle of one of the clamping plates is provided with a clamping groove.
Through the technical scheme, the connection of the middle front beam body is tighter, and the installation and the disassembly are convenient.
Compared with the prior art, the beneficial effects of the utility model reside in that:
1. the utility model discloses, through the screw hole at reinforced iron and reinforced iron both ends, conveniently make well front-axle beam body install on the refrigerator door, convenient to use reaches easy to assemble, the effect of dismantling, and the follow-up maintenance of being convenient for to the connection degree of accuracy of front-axle beam and reinforced iron reduces the intensity of labour of installation in providing.
2. Through the cardboard of well front-axle beam body along the width direction upset, front-axle beam body rigidity in can improving prevents that well front-axle beam body from warping, improves the life of well front-axle beam body, improves the performance of refrigerator.
Drawings

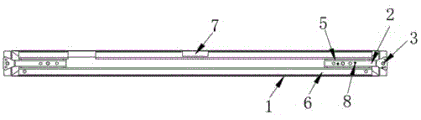

Fig. 1 is a schematic view of an overall structure of a front beam assembly in a refrigerator according to the present invention;
fig. 2 is a schematic top view of a front beam assembly in a refrigerator according to the present invention;
fig. 3 is a schematic front view of a front beam assembly in a refrigerator according to the present invention;
fig. 4 is a schematic side view and cross-sectional view of a front beam assembly in a refrigerator according to the present invention.
Description of the main symbols:
1. a center front beam body; 2. a reinforcing iron body; 3. screw holes; 4. a threaded hole; 5. a limiting plate; 6. clamping a plate; 7. a card slot; 8. a gasket; 9. a sponge strip.
Detailed Description
The present invention will be further described with reference to the accompanying drawings and the detailed description, and it should be noted that the embodiments or technical features described below can be arbitrarily combined to form a new embodiment without conflict.
Example 1:
referring to fig. 1-4, the front beam assembly of the present embodiment of a refrigerator includes a front beam body 1 and two reinforcing iron bodies 2 disposed at two ends of the front beam body 1, wherein the front beam body 1 is provided with two clamping plates 6 in a width direction, the bottom of the front beam body 1 is provided with a sponge strip 9, two limiting plates 5 are fixedly connected to two ends of the upper side of the front beam body 1 along a length direction, so that the reinforcing iron can be detachably disposed on the front beam body for convenient adjustment, and the two clamping plates 5 are convenient to use, each two limiting plates 5 are disposed, and each two limiting plates 5 are disposed at two sides of the reinforcing iron body 2 respectively, so that the reinforcing iron bodies 2 can be accurately positioned, the installation efficiency is improved, the two clamping plates 6 are disposed, and the two clamping plates 6 have the same turning direction, two cardboard 6 and well front-axle beam body 1 integrated into one piece, can be so that well front-axle beam body 1's rigidity is bigger, prevent to warp, improve well front-axle beam body 1's life, the one end that two stiffening iron bodies 2 kept away from each other sets up to isosceles trapezoid structure and has seted up screw hole 3, can make the stiffening iron body conveniently be connected with the refrigerator door, improve the fastness of connecting, it is more convenient to install, set up the through-hole that is located between limiting plate 5 on two stiffening iron bodies 2, the upside of two stiffening iron bodies 2 all is provided with gasket 8, can make the stiffening iron body connect more stably, prevent to become flexible, improve stability, threaded hole 4 has all been seted up on two cardboard 6, draw-in groove 7 has been seted up to the centre of one of them cardboard 6, can make well front-axle beam body 1 connect inseparabler, and is convenient to install, dismantle.
The implementation principle of a front beam assembly in refrigerator in this application embodiment does: through the reinforced iron body 2 at 1 both ends of well front-axle beam body, can make things convenient for well front-axle beam body 1 to connect in one side of refrigerator door, improve the convenience of installation to through cardboard 6 of well front-axle beam body 1 edge width direction upset, can improve well front-axle beam body 1 rigidity, and then prevent that the refrigerator door from warping, improve the life of refrigerator door.
The above embodiments are only preferred embodiments of the present invention, and the protection scope of the present invention cannot be limited thereby, and any insubstantial changes and substitutions made by those skilled in the art based on the present invention are all within the protection scope of the present invention.
Claims (6)
1. The refrigerator middle front beam assembly comprises a middle front beam body (1) and reinforcing iron bodies (2) located at two ends of the middle front beam body (1), and is characterized in that clamping plates (6) are arranged on the middle front beam body (1) in a turnover mode along the width direction, sponge strips (9) are arranged at the bottom of the middle front beam body (1), and limiting plates (5) are fixedly connected to two ends of the upper side of the middle front beam body (1) along the length direction.
2. The front beam assembly of claim 1, wherein the two limiting plates (5) are provided, two limiting plates are provided for each group, and two limiting plates (5) are provided for each group on two sides of the reinforcing iron body (2).
3. A front rail assembly in a refrigerator according to claim 1, wherein there are two of said clamping plates (6), and the turning directions of two of said clamping plates (6) are the same, and two of said clamping plates (6) are integrally formed with the front rail body (1).
4. The front beam assembly of claim 1, wherein the ends of the two reinforcing iron bodies (2) far away from each other are arranged in an isosceles trapezoid structure and are provided with screw holes (3).
5. The front beam assembly of the refrigerator as claimed in claim 1, wherein the two reinforcing iron bodies (2) are provided with through holes between the limiting plates (5), and the upper sides of the two reinforcing iron bodies (2) are provided with gaskets (8).
6. The front beam assembly of the refrigerator as claimed in claim 1, wherein the two clamping plates (6) are provided with threaded holes (4), and the middle of one of the clamping plates (6) is provided with a clamping groove (7).
