Abstract
The utility model provides a hidden strip knitted fabric with moisture absorbable and breathable and cool function, hidden strip knitted fabric grey cloth comprises cool coil and moisture absorbable and breathable coil transversely in turn, and the linear density ratio of cool coil yarn and moisture absorbable and breathable coil yarn that constitute hidden strip knitted fabric grey cloth is 0.9 ~ 1.1, and the vertical coil density and the horizontal coil density ratio of hidden strip knitted fabric grey cloth are 1.3 ~ 1.6. The advantages are that: (1) The common single jersey structure is adopted to process the knitted fabric with the invisible stripe style, so that the knitted fabric variety in summer is enriched; (2) Introducing moisture absorption and sweat releasing polyester filament yarns and performing moisture absorption and sweat releasing finishing on the grey cloth, so that the fabric has the moisture absorption and sweat releasing functions; (3) The introduction of the modal fiber with cool feeling and the stripes reduces the contact area of the fabric and the body, increases the cool feeling, and is more comfortable to wear in summer.
Description
Technical Field
The invention belongs to the technical field of knitted fabrics, and particularly relates to a hidden strip knitted fabric with moisture absorption, sweat releasing and cool feeling functions.
Background
Modal fiber is an environment-friendly cellulose fiber produced by Austilanjec, and the production process of pulp and fiber has no pollution to the environment. The fiber is soft and smooth, has the general luster and texture of real silk, has good dyeing property and higher moisture absorption rate than cotton fiber, and can keep the skin dry and comfortable. The single-sided undershirt cloth woven by the Modal fiber staple fiber yarn and the lining spandex fiber not only has good elasticity, wrinkle resistance and extensibility, but also has good moisture absorption and air permeability, smooth hand feeling, softness and comfort, elegant and noble luster, is not only an ideal fabric of high-grade underwear, but also is often used for manufacturing summer clothing. However, when the fabric is used for summer clothing fabric, the following problems exist: the single style of the single jersey cannot meet the requirement of consumers on the diversified styles of the garment materials; the moisture absorption and sweat releasing performance can not meet the requirement of taking the clothes in summer in high-temperature weather; the cool feeling can not meet the requirements of clothes in summer in high-temperature weather, so that the knitted fabric which is suitable for summer clothes, has the functions of moisture absorption, sweat releasing and cool feeling and has a striped appearance needs to be developed.
Disclosure of Invention
In order to solve the technical problem, an object of the utility model is to provide a hidden strip knitted fabric which is suitable for summer clothing and has the functions of moisture absorption, sweat releasing and cool feeling.
In order to achieve the above object, the present invention provides a hidden stripe knitted fabric with moisture absorption and sweat releasing functions, the grey fabric of the hidden stripe knitted fabric is composed of cool loops and moisture absorption and sweat releasing loops in a horizontal alternation, the linear density ratio of the cool loops and the moisture absorption and sweat releasing loops forming the grey fabric of the hidden stripe knitted fabric is 0.9-1.1, and the longitudinal loop density and the horizontal loop density ratio of the grey fabric of the hidden stripe knitted fabric are 1.3-1.6.
Preferably, in the utility model provides a hidden strip knitted fabric with moisture absorbable and breathable and cool sense function, cool sense coil and moisture absorbable and breathable coil or according to 1 line of cool sense coil 1 line moisture absorbable and breathable coil cyclic arrangement or according to 2 lines of cool sense coil 2 lines moisture absorbable and breathable coil cyclic arrangement or according to 2 lines of cool sense coil 1 line moisture absorbable and breathable coil cyclic arrangement or according to 1 line of cool sense coil 2 lines moisture absorbable and breathable coil cyclic arrangement.
Preferably, in the hidden strip knitted fabric with moisture absorption, sweat releasing and cool feeling functions provided by the utility model, the cool feeling coil is composed of modal inseparable siro yarn and spandex filament.
Further preferably, in the utility model provides a hidden strip knitted fabric with moisture absorption and sweat releasing and cool feeling function, cool feeling coil comprises inseparable match winding of 50S wood daier and 20D' S spandex filament.
Further preferably, in the hidden strip knitted fabric with moisture absorption, sweat releasing and cool feeling functions provided by the utility model, in the cool feeling loops, the length of the 50S Modal compact siro yarn is 24-24.5 cm/100 loops, and the strip length of the 20D spandex filament is 26-26.5 cm/100 loops.
Preferably, in the hidden strip knitted fabric with moisture absorption and sweat releasing and cool feeling functions provided by the utility model, the moisture absorption and sweat releasing coil is composed of moisture-conductive polyester yarns and spandex filament yarns.
Further preferably, in the hidden strip knitted fabric with functions of moisture absorption, sweat releasing and cool feeling provided by the utility model, the moisture absorption and sweat releasing coil is composed of 100D/72F moisture-conducting polyester yarns and 20D spandex yarns.
Further preferably, in the hidden strip knitted fabric with moisture absorption and sweat releasing and cool feeling functions provided by the utility model, in the moisture absorption and sweat releasing coils, the length of the 100D/72F moisture-conducting polyester yarn is 24-24.5 cm/100 coils, and the strip length of the 20D spandex filament yarn is 26-26.5 cm/100 coils.
Preferably, in the hidden strip knitted fabric with the moisture absorption quick-drying and cool feeling functions provided by the utility model, the hidden strip knitted fabric gray fabric is subjected to moisture absorption and sweat releasing treatment.
Has the advantages that: (1) The knitted fabric with the invisible stripe style is processed by adopting a common single jersey weave structure, so that the variety and style of the knitted fabric in summer are enriched; (2) The moisture absorption and sweat releasing polyester filament yarns are introduced into the production of the grey cloth as raw materials and the grey cloth is subjected to moisture absorption and sweat releasing treatment, so that the manufactured final fabric has good moisture absorption and sweat releasing functions; (3) The body contact area is reduced by introducing the Modal fiber with cool feeling and the greige cloth with stripes, so that the cool feeling of instant contact is improved, and the clothes are more comfortable to wear in summer.
Drawings
FIG. 1 is a schematic view of a hidden strip knitted fabric with alternately arranged cool feeling loops and moisture absorption and sweat releasing loops 1:1;
fig. 2 is a schematic view of a hidden strip knitted fabric with alternately arranged cool feeling coils and moisture absorption and sweat releasing coils 2:2;
FIG. 3 is a schematic view of a hidden strip knitted fabric with alternately arranged cool feeling loops and moisture absorption and sweat releasing loops 2:1;
fig. 4 is a schematic view of a hidden strip knitted fabric with alternately arranged cool feeling coils and moisture absorption and sweat releasing coils 1:2;
in the figure, 1-cool induction coil; 2-moisture-absorbing sweat-releasing coil
Detailed Description
In order to solve the single, poor, the sweltering scheduling problem of wearing of summer knitting undershirt cloth surface fabric style, moisture absorption perspire, the utility model discloses the design: the fabric has the advantages that the fabric does not change the texture structure of the single jersey, meanwhile, the cool feeling coil and the moisture absorption and sweat releasing coil are configured, the gray fabric has the moisture absorption and sweat releasing function and the cool feeling function, the common single jersey has the stripe style through the yarn linear density, the coil density and the like of the cool feeling coil and the moisture absorption and sweat releasing coil, the variety of the single jersey is enriched, the cool feeling function is improved, and the moisture absorption and sweat releasing function and the cool feeling function of the fabric are enhanced through the moisture absorption and sweat releasing arrangement of the gray fabric.
The utility model provides a hidden strip knitted fabric with moisture absorbable and breathable and cool sense function, hidden strip knitted fabric grey cloth comprises cool sense coil and moisture absorbable and breathable coil transversely in turn, can be according to the style design of stealthy stripe, according to 1:1, 2 with cool sense coil and moisture absorbable and breathable coil: 2. 1:2, 2:1, and the like, are formed alternately in the transverse direction. In order to ensure the stripe effect, the linear density ratio of the yarn used by the cool feeling coil and the moisture absorption and sweat releasing coil is 0.9-1.1, and the ratio of the longitudinal coil density to the transverse coil density of the hidden stripe knitted fabric gray fabric is 1.3-1.6.
Example 1
The process is the same as the process design of the common undershirt cloth, the process comprises the steps of arranging triangles, needles and yarns, and as shown in figure 1, arranging 50S modal tight siro yarns and 20D spandex yarns on odd yarn paths of 1, 3, 5, 7 … and the like, wherein the length of the 50S modal tight siro yarns is 24-24.5 cm/100 coils, and the length of the strip bundles of the 20D spandex yarns is 26-26.5 cm/100 coils. 2. 4, 6, 8, 10 … and other even double yarn path rows 100D/72F wet guide polyester yarns and 20D spandex yarns, wherein the length of the 100D/72F wet guide polyester yarns is 24-24.5 cm/100 coils, and the length of the 20D spandex filament strip is 26-26.5 cm/100 coils. The moisture-conducting polyester is a novel differential profiled fiber which greatly improves the moisture absorption and conduction performance by changing the cross section shape of a single fiber, and various companies in the market provide moisture-conducting fibers with various trade names, such as CoolMax, coolPlus, coolDry and Lucool.
The longitudinal density of the prepared light grey cloth is 131 coils/5 cm, and the transverse density is 92 coils/5 cm. The grey cloth is finished by a commercially available HK-702 moisture absorption and sweat release finishing agent, the moisture absorption and sweat release and cool feeling performances of the finished knitted fabric are detected according to GB/T35263-2017 and GB/T21655.2-2019, and the detection results are shown in Table 1.

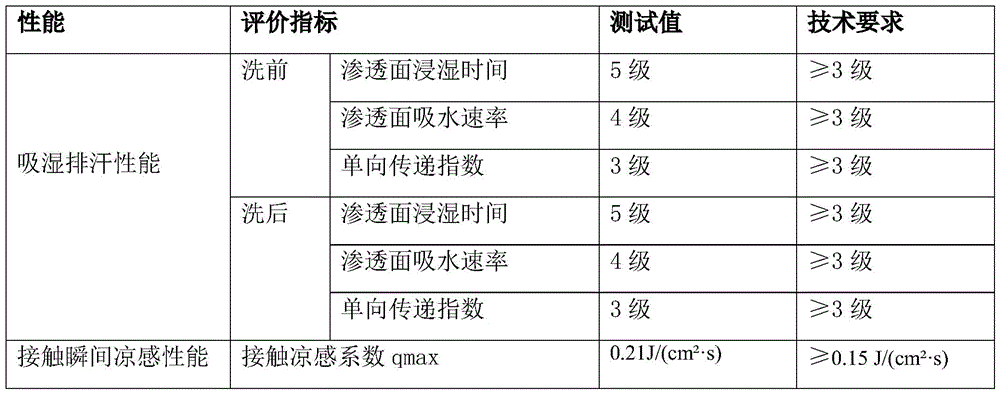

Table 1 performance index of the hidden stripe knitted fabric in example 1
The utility model provides a hidden strip knitted fabric has good contact cool sense performance and moisture absorption and sweat releasing performance in the twinkling of an eye, and hidden strip knitted fabric dyeing back outward appearance has obvious stripe effect.
Example 2
As shown in fig. 2, the yarn paths of 1, 2, 5, 6, 9 and 10 … are arranged with Modal compact siro spinning plus spandex yarn, and the yarn paths of 3, 4, 7 and 8 … are arranged with wet-conducting polyester yarn plus spandex yarn. The linear density ratio of the yarn for forming the cool feeling loop and the moisture absorption and sweat releasing loop is 0.9. The density ratio of the longitudinal and transverse loops of the hidden strip knitted fabric grey cloth is 1.3.
Example 3
As shown in fig. 3, the yarn path 1, 2, 4, 5, 7, 8 … is arranged with the Modal compact siro spun yarn + the spandex yarn, and the yarn path 3, 6, 9 … is arranged with the wet-guiding polyester yarn + the spandex yarn. The linear density ratio of the yarn for forming the cool feeling loop and the moisture absorption and sweat releasing loop is 1.1. The ratio of the longitudinal coil density to the transverse coil density of the hidden-stripe knitted fabric grey cloth is 1.6.
Example 4
As shown in fig. 4, the yarn paths of 1, 4, 7 … are arranged in the manner of woodfree compact siro spinning plus spandex yarn, and the yarn paths of 2, 3, 5, 6, 8, 9 … are arranged in the manner of wet-conducting polyester yarn plus spandex yarn. The linear density ratio of the yarn for forming the cool feeling loop and the moisture absorption and sweat releasing loop is 1.0. The density ratio of the longitudinal and transverse loops of the hidden strip knitted fabric grey cloth is 1.45.
Claims (9)
1. The hidden knitted fabric with the moisture absorption and sweat releasing functions is characterized in that the hidden knitted fabric gray fabric is formed by horizontally alternating cool coils and moisture absorption and sweat releasing coils, the linear density ratio of the cool coils and the moisture absorption and sweat releasing coils forming the hidden knitted fabric gray fabric is 0.9-1.1, and the ratio of the longitudinal coil density to the horizontal coil density of the hidden knitted fabric gray fabric is 1.3-1.6.
2. The hidden strip knitted fabric with moisture absorption, sweat releasing and cooling functions according to claim 1, characterized in that the cooling loops and the moisture absorption, sweat releasing loops are circularly arranged according to 1 line of cooling loops and 1 line of moisture absorption, sweat releasing loops or 2 lines of cooling loops and 2 lines of moisture absorption, sweat releasing loops or 1 line of cooling loops and 1 line of moisture absorption, sweat releasing loops or 1 line of cooling loops and 2 lines of moisture absorption, sweat releasing loops.
3. The concealed stripe knitted fabric with moisture absorption, sweat releasing and cool feeling functions of claim 1, wherein the cool feeling loop is formed by Modal compact siro yarn and spandex filament.
4. The hidden stripe knitted fabric with moisture absorption, sweat releasing and cool feeling functions as claimed in claim 3, wherein the cool feeling loop is composed of 50S Modal siro and 20D spandex filament.
5. The hidden stripe knitted fabric with moisture absorption, sweat releasing and cool feeling functions as claimed in claim 4, wherein the length of 50S Modal compact siro yarn is 24-24.5 cm/100 loops, and the stripe length of 20D spandex filament is 26-26.5 cm/100 loops.
6. The hidden strip knitted fabric with the functions of moisture absorption, sweat releasing and cool feeling as claimed in claim 1, wherein the moisture absorption and sweat releasing loops are formed of moisture-conductive polyester filaments and spandex filaments.
7. The hidden strip knitted fabric with the moisture absorption, sweat releasing and cool feeling functions as claimed in claim 6, wherein the moisture absorption and sweat releasing loops are formed by 100D/72F moisture-conductive polyester yarn and 20D spandex yarn.
8. The hidden strip knitted fabric with moisture absorption, sweat releasing and cool feeling functions as claimed in claim 7, wherein: in the moisture absorption and sweat releasing coil, the length of the 100D/72F moisture-conductive polyester yarn is 24-24.5 cm/100 coils, and the length of the strip of the 20D spandex filament is 26-26.5 cm/100 coils.
9. The hidden strip knitted fabric with moisture absorption, sweat releasing and cool feeling functions as claimed in claim 1, wherein: the hidden strip knitted fabric gray fabric is subjected to moisture absorption and sweat releasing treatment.
