Abstract

The utility model discloses a novel treatment cart, which belongs to the field of medical equipment. A new type of treatment car, including a car board and a car frame, and the car frame is assembled on the car board; an adjustment box is assembled on the car board, and the height of the seat board is adjusted by an adjustment device on the adjustment box, and the adjustment device includes an adjustable Telescopic stop plate, the other end of the stop plate is rotated and installed with a threaded rod, and the outer surface of the threaded rod is threaded with a movable threaded block, and is connected with the bottom end of the seat in rotation; the armrest plate is assembled on the frame At the same time, the height and angle of the armrest board can be adjusted; the utility model adjusts the armrest board to the best height of the patient through the cooperation of the adjustable seat board and the armrest board, and rotates the armrest board to bring it to the patient's arm for the best Angle, and through the adjustable seat, the medical staff can sit on the seat and inject the patient, thereby reducing the work intensity of the medical staff and reducing the damage to the health of the medical staff.

Description

A New Type of Treatment Vehicle

technical field

The utility model relates to the technical field of medical equipment, in particular to a novel treatment vehicle.

Background technique

With the rapid development of science and materials, various new medical devices are more and more commonly used in clinical practice. In the clinical medical process, intravenous infusion is one of the most common treatment measures, and intravenous infusion must be It is placed in front of the patient's bed for operation, so the treatment trolley is an essential tool.

In the infusion room, patients generally sit on the infusion chair for infusion. The nurse usually needs to bend over every time the needle is injected, and the patient puts his hand on the armrest of the infusion chair. The working hours are relatively long every day, and there are many times of bending over, which puts a great burden on the health of nurses.

Furthermore, in order to solve the burden on the health of medical staff due to long hours of work, a new type of treatment vehicle was developed.

Utility model content

The purpose of the utility model is to solve the problem that the traditional Chinese medicine nurses bend over for a long time to work, which causes a great burden on the health of the medical staff, and proposes a new type of treatment cart.

In order to achieve the above object, the utility model adopts the following technical solutions:

A new type of treatment car, including a car board and a car frame, and the car frame is assembled on the car board;

The adjustment box is assembled on the vehicle board, and the height of the seat board is adjusted through the adjustment device on the adjustment box, and the adjustment device includes a retractable stop plate, and the other end of the stop plate is rotated and installed There is a threaded rod, and the outer surface of the threaded rod is threaded with a movable threaded block, and is connected to the bottom end of the seat in rotation, so as to fold the seat;

The armrest board is assembled on the vehicle frame, and the height and angle of the armrest board can be adjusted at the same time.

Preferably, a chute is provided on one side of the adjusting box, and the inner wall of the chute is slidably connected with the outer surface of the threaded block.

Preferably, a fixed block is installed on one side of the adjustment box, and a rotatable support rod is installed on one side of the fixed block, and the other end of the support rod is rotatably connected to the bottom end of the seat board.

Preferably, one end of the armrest board is equipped with a rotating shaft, and the other end of the rotating shaft is equipped with a rotatable connecting piece, which is connected to the vehicle frame through the connecting piece.

Preferably, the opening of the connecting piece is fixed by a screw rod and a nut.

Preferably, arc-shaped grooves are opened on the armrest plate.

Compared with the prior art, the utility model provides a new treatment cart, which has the following beneficial effects:

1. This new type of treatment trolley, through the adjustable seat board, allows the medical staff to open it anywhere and adjust it to the best position, and reduces the risk of health problems caused by long hours of work and repeated bending. Situations that cause a great burden occur.

2. This new type of treatment car supports the patient's arm through the armrest board on the frame, and adjusts the height of the armrest board according to the patient's height, and at the same time, rotates the armrest board to make it reach the patient's best angle.

3. The new type of treatment trolley, through the retractable seat board, when the medical staff moves, the seat board at the edge of the treatment trolley is collected, so as not to affect the medical staff to move.

The parts not involved in the device are the same as the existing technology or can be realized by using the existing technology. The utility model cooperates with the adjustable seat board and the handrail board to adjust the handrail board to the optimal height of the patient, and rotate the handrail The board can be brought to the best angle of the patient's arm, and the adjustable seat allows the medical staff to sit on the seat and inject the patient, thereby reducing the work intensity of the medical staff and reducing the health of the medical staff. damage.

Description of drawings

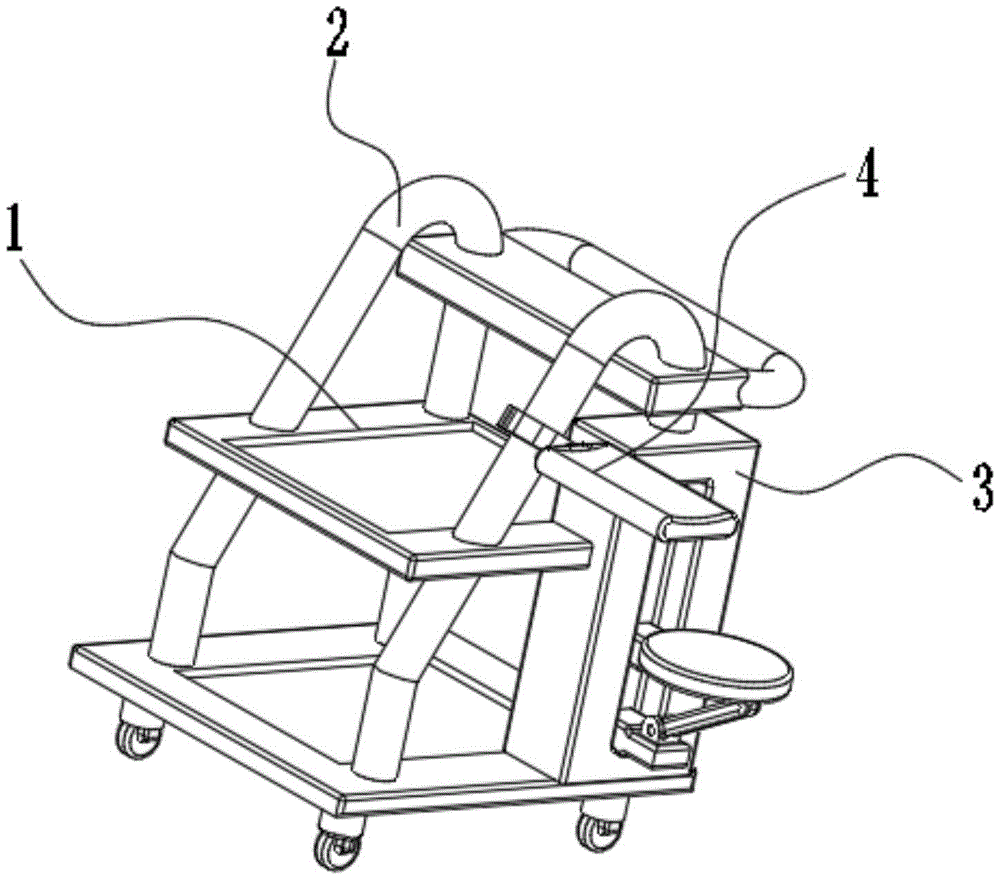

Fig. 1 is the structural representation of a kind of novel treatment vehicle that the utility model proposes;

Fig. 2 is the structural bottom view of a kind of novel treatment car that the utility model proposes;

Fig. 3 is a kind of structure enlargement diagram of novel treatment car A that the utility model proposes;

Fig. 4 is a structural schematic diagram of a novel treatment car adjusting box proposed by the utility model;

Fig. 5 is a schematic diagram of the internal structure of a novel treatment vehicle adjustment box proposed by the utility model;

Fig. 6 is a structural schematic diagram of a new type of treatment car armrest proposed by the utility model.

Among the figure: 1, vehicle plate; 2, vehicle frame; 3, adjustment box; 4, armrest plate; 31, adjustment device; 32, seat board; 33, chute; 34, fixed block; 35, support rod; 41, Rotating shaft; 42, connector; 43, arc groove; 311, stop plate; 312, threaded rod; 313, threaded block.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example.

In describing the present utility model, it should be understood that the terms "upper", "lower", "front", "rear", "left", "right", "top", "bottom", "inner", The orientation or positional relationship indicated by "outside" is based on the orientation or positional relationship shown in the drawings, which is only for the convenience of describing the utility model and simplifying the description, rather than indicating or implying that the referred device or element must have a specific orientation , are constructed and operated in a specific orientation and therefore cannot be construed as limiting the invention.

Embodiment: As shown in Figures 1-6, a new type of treatment trolley consists of a vehicle board 1 and a vehicle frame 2, and a plurality of vehicle boards 1 are fixed by the vehicle frame 2 to form a treatment vehicle. Without changing the whole body of the treatment trolley, an adjustable seat 32 is installed between the two trolley panels 1, and a slidable armrest panel 4 is provided on the vehicle frame 2, which does not affect the use of the treatment trolley.

The adjustable seat plate 32 is arranged on the adjusting device 31, wherein the adjustable seat plate 32 slides with the chute 33, and the threaded block 313 is controlled to slide up and down by the threaded rod 312 on the adjusting device 31, because the other threaded block 313 One end is rotatably connected to the bottom end of the seat plate 32, as shown in Figure 3, when the threaded block 313 moves up and down, one end of the seat plate 32 slides with it on the chute 33, and the other end of the seat plate 32 is a fixed block connected by rotation. 34. The support rod 35 is connected to the adjustment box 3, and the seat plate 32 and the threaded block 313 are connected in rotation, so that when the seat plate 32 moves upward, it gradually approaches the adjustment box 3 until the threaded block 313 reaches the top, and the seat The plate 32 fits with the adjustment box 3. When the medical personnel need to adjust the height of the seat plate 32, they only need to press the stop plate 311 downward and rotate it at the same time, so that the height of the seat plate 32 can be adjusted, and the The support bar 35 on the other side of the bottom end of the seat plate 32 is overturned to a vertical state, and presents a right angle with the ground, and then the seat plate 32 is supported, and the fixed block 34 at the other end of the support bar 35 and the adjustment box 3 Connected by magnetic attraction.

During general infusion, the patient sits on the infusion chair or the infusion sofa, and the medical staff pushes the treatment trolley to the front of the patient, opens the seat board 32, and the medical staff just sits on the seat board 32.

The armrest board 4 is fixed to the connecting piece 42 through the rotating shaft 41 at one end, and the armrest board 4 is provided with an arc-shaped groove 43 for fitting with the patient's arm. At the same time, the armrest board 4 and the rotating shaft 41 can rotate, and the connecting piece 42 can be sleeved on the vehicle frame 2, and then when encountering patients of different heights, it can be adjusted in time, and the connecting piece 42 can be moved to the best position and fixed at the same time. The patient sits on the sofa and puts his hand on the armrest On the board 4, the medical staff just sits on the sitting board 32 and injects.

In the utility model, the treatment cart is moved to the side of the patient, and the threaded rod 312 is driven to rotate by rotating the stop plate 311, so that the seat plate 32 is opened and moved to a suitable position, and at the same time, the support rod at the bottom end of the seat plate 32 35 is opened to make it form a right angle with the ground, and support the seat board 32, and then move the armrest board 4 to a suitable position, then fix the connecting piece 42 on the vehicle frame 2, and rotate the armrest board 4 at the same time to make it The patient’s arm is placed in the best position for injection. When the site needs to be changed, reverse rotation of the stop plate 311 causes the threaded rod 312 to rotate in the opposite direction and the threaded block 313 drives the seat plate 32 to move upwards, while the support rod 35 is turned over to On the adjustment box 3, when the threaded block 313 rises to the highest point, the seat plate 32 rotates downward on the threaded block 313, and the seat plate 32 is attached to the side of the adjustment box 3 near the chute 33, and the armrest plate 4 Turn over to the side of the vehicle frame 2, and then facilitate the medical staff to move.

The above is only a preferred embodiment of the utility model, but the scope of protection of the utility model is not limited thereto. The equivalent replacement or change of the new technical solution and the concept of the utility model shall be covered by the protection scope of the utility model.

Claims (6)

1. A novel treatment car, characterized in that, comprising: a vehicle board (1) and a vehicle frame (2), and the vehicle frame (2) is assembled on the vehicle board (1); The adjustment box (3) is assembled on the vehicle board (1), and the height of the seat plate (32) is adjusted by the adjustment device (31) on the adjustment box (3), and the adjustment device (31) Including a retractable stop plate (311), the other end of the stop plate (311) is rotatably mounted with a threaded rod (312), and the outer surface of the threaded rod (312) is threaded with a movable threaded block (313), and is rotatably connected with the bottom end of the seat board (32), for folding the seat board (32); The armrest plate (4) is assembled on the vehicle frame (2), and the height and angle of the armrest plate (4) can be adjusted at the same time. 2. A new type of treatment cart according to claim 1, characterized in that: one side of the adjustment box (3) is provided with a chute (33), and the inner wall of the chute (33) is in contact with the The outer surface of the threaded block (313) is slidingly connected. 3. A new type of treatment cart according to claim 1, characterized in that: a fixed block (34) is installed on one side of the adjustment box (3), and a side of the fixed block (34) is equipped with A rotatable support rod (35), and the other end of the support rod (35) is rotatably connected to the bottom end of the seat board (32). 4. A new type of treatment cart according to claim 1, characterized in that: one end of the armrest board (4) is equipped with a rotating shaft (41), and the other end of the rotating shaft (41) is equipped with a rotatable The connecting piece (42) is connected with the vehicle frame (2) through the connecting piece (42). 5. A new treatment cart according to claim 4, characterized in that: the opening of the connecting piece (42) is fixed by a screw rod and a nut. 6. A new treatment cart according to claim 1, characterized in that: said armrest board (4) is provided with an arc-shaped groove (43).
