Abstract

The utility model discloses a fertilizing machine, which comprises a fertilizing machine box, the four corners of the bottom of the fertilizing machine box are fixedly connected with moving wheels, the top of the left side of the fertilizing machine box is connected with a feeding pipe, and the center of the top of the fertilizing machine box is fixed A first motor is connected, the output end of the first motor is fixedly connected with a rotating rod, and the bottom end of the rotating rod penetrates into the inner cavity of the fertilizer applicator box. The utility model is equipped with a protective box, a storage battery, a box body, a second motor, a threaded rod, a threaded block, a sliding sleeve, a sliding rod, a sliding rod, a lifting plate, a third motor, a drill rod, a slotted inclined block, and a pumping tube. , pumping machine, discharge nozzle and sliding groove cooperate with each other to achieve the advantages of deep fertilization, so that when the fertilizer applicator is in use, it can automatically drill holes, and then fertilize the bottom of the soil to achieve deep fertilization and improve the fertilization effect. It also improves the fertilization efficiency of the fertilizer applicator, which can meet the actual use needs.

Description

a fertilizer spreader

technical field

The utility model relates to the technical field of forestry planting, in particular to a fertilizer applicator.

Background technique

In the field of forestry planting technology, it is necessary to fertilize forestry plants in order to facilitate the normal growth of forestry plants. At present, the existing fertilizer applicators do not have the function of deep fertilization. As a result, when the fertilizer applicator is used, it is realized by spraying, and the fertilizer is easy to stay. On the soil surface, it cannot penetrate below the soil, resulting in poor fertilization effect and reducing the fertilization efficiency of the fertilizer applicator, so we provide a fertilizer applicator to solve the above problems.

Utility model content

The purpose of this utility model is to provide a fertilizer applicator, which has the advantage of deep fertilization, and solves the problem that the existing fertilizers do not have the function of deep fertilization, so that when the fertilizer is in use, it is realized by spraying, and the fertilizer is easy to stay On the soil surface, it cannot penetrate into the soil below, resulting in poor fertilization effect.

In order to achieve the above object, the utility model provides the following technical solutions: a fertilizer applicator, including a fertilizer applicator box, the four corners of the bottom of the fertilizer applicator box are fixedly connected with moving wheels, and the top of the left side of the fertilizer applicator box is connected with a feeding pipe. The center of the top of the fertilization cabinet is fixedly connected with a first motor, the output end of the first motor is fixedly connected with a rotating rod, the bottom end of the rotating rod penetrates into the inner cavity of the fertilizing cabinet, and the surface of the rotating rod is Stirring blades are connected, pressure relief holes are opened on both sides of the front of the stirring blades, a protection box is fixedly connected to the left side of the top of the fertilization cabinet, and a battery is fixedly connected to the top of the inner wall of the protection cabinet. The top on the right side is fixedly connected with a box, the right side of the box is provided with a sliding groove, the top of the inner wall of the box is fixedly connected with a second motor, and the output end of the second motor is fixedly connected with a threaded rod, The surface of the threaded rod is threadedly connected with a threaded block, the left side of the threaded block is fixedly connected with a sliding sleeve, and the inner cavity of the sliding sleeve is slidably connected with a sliding rod, and the outer end of the sliding rod is connected to the inner wall of the box body. Fixed connection, the right side of the threaded block is fixedly connected with a sliding rod, the surface of the sliding rod is slidingly connected with the inner cavity of the sliding groove, the right side of the sliding rod penetrates to the right side of the box body and is fixedly connected with a lifting plate, the bottom of the lifting plate is fixedly installed with a third motor, the output end of the third motor is fixedly connected with a drill rod, and the four sides of the surface of the drill rod are fixedly connected with slotted inclined blocks. The bottom of the side is connected with a pumping pipe, the right side of the pumping pipe is connected with a pumping machine, and the bottom of the pumping machine is connected with a discharge nozzle.

As a preferred solution, a heat dissipation groove is opened on the left side of the protection box, and a dust-proof net is fixedly connected to the inner wall of the heat dissipation groove.

As a preferred solution, the bottom end of the threaded rod is sleeved with a bearing seat, and the bottom of the bearing seat is fixedly connected with the bottom of the inner wall of the box.

As a preferred solution, a chute is provided on the left side of the inner wall of the box, a slider is slidably connected to the inner cavity of the chute, and the right side of the slider is fixedly connected to the left side of the sliding sleeve.

As a preferred solution, mounting frames are fixedly connected to both sides of the top of the pumping machine, and the top of the mounting frame is fixedly connected to the bottom of the box body.

As a preferred solution, the width and height of the inner chamber of the sliding groove are larger than the width and height of the sliding rod, and the length of the inner chamber of the sliding groove is shorter than the length of the sliding rod.

Compared with the prior art, the beneficial effects of the utility model are as follows:

1. The utility model is equipped with a protective box, a storage battery, a box body, a second motor, a threaded rod, a threaded block, a sliding sleeve, a sliding rod, a sliding rod, a lifting plate, a third motor, a drill rod, a slotted inclined block, a pumping The feeding pipe, pumping machine, discharge nozzle and sliding groove cooperate with each other to achieve the advantage of deep fertilization, so that when the fertilizer applicator is in use, it can automatically drill holes, and then fertilize the bottom of the soil to achieve deep fertilization and improve the fertilization effect , At the same time, it also improves the fertilization efficiency of the fertilizer applicator, which can meet the actual use needs.

2. The utility model plays a role of convenient heat dissipation for the storage battery by setting a cooling groove, and plays a role of dustproofing the inner cavity of the protection box by setting a dust-proof net, and plays a role in rotating the threaded rod by setting a bearing seat. The stabilizing effect increases the stability of the threaded rod when it rotates. By setting the chute and the slider, it can stabilize the sliding sleeve and the threaded block when moving, increasing the stability of the sliding sleeve and the threaded block when moving. Through The installation frame is provided to facilitate the installation of the pumping machine, and the sliding groove and the sliding rod are provided to facilitate the lifting of the lifting plate.

Description of drawings

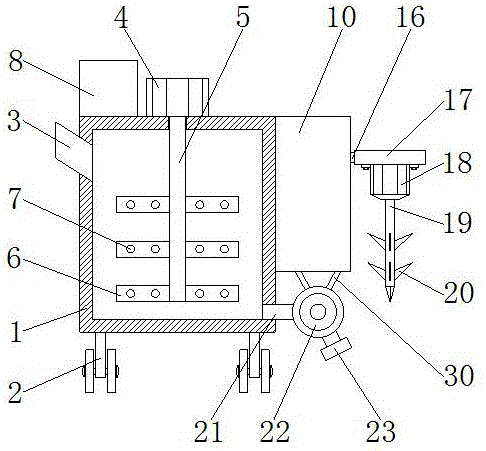

Fig. 1 is the structural representation of the utility model;

Fig. 2 is the enlarged view of the internal structure section of the utility model box;

Fig. 3 is an enlarged cross-sectional view of the internal structure of the protection box of the present invention.

In the figure: 1. Fertilization chassis; 2. Moving wheel; 3. Feeding pipe; 4. First motor; 5. Rotating rod; 6. Stirring blade; 7. Pressure relief hole; 8. Protection box; , box body; 11, second motor; 12, threaded rod; 13, threaded block; 14, sliding sleeve; 15, sliding rod; 16, sliding rod; 17, lifting plate; 18, third motor; 19, drill rod ;20, slotted inclined block; 21, pumping pipe; 22, pumping machine; 23, discharge nozzle; 24, sliding groove; 25, cooling groove; 26, dust-proof net; Groove; 29, slide block; 30, mounting frame.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

Please refer to Fig. 1-3, a kind of fertilization machine, comprises fertilization machine box 1, and the four corners of the bottom of fertilizer machine box 1 are all fixedly connected with moving wheel 2, and the top on the left side of fertilizer machine box 1 is communicated with feeding pipe 3, and the center of the top of fertilizer machine box 1 The first motor 4 is fixedly connected to the first motor 4, and the output end of the first motor 4 is fixedly connected to a rotating rod 5. The bottom end of the rotating rod 5 penetrates into the inner cavity of the fertilizer application cabinet 1, and the surface of the rotating rod 5 is fixedly connected to a stirring blade 6. Both sides of the front of the mixing blade 6 are provided with pressure relief holes 7, the left side of the top of the fertilization cabinet 1 is fixedly connected with a protection box 8, the top of the inner wall of the protection box 8 is fixedly connected with a storage battery 9, and the top of the right side of the fertilization cabinet 1 is fixedly connected There is a box body 10, the right side of the box body 10 is provided with a slide groove 24, the top of the inner wall of the box body 10 is fixedly connected with a second motor 11, the output end of the second motor 11 is fixedly connected with a threaded rod 12, and the surface of the threaded rod 12 A threaded block 13 is threaded, and the left side of the threaded block 13 is fixedly connected with a sliding sleeve 14, and the inner cavity of the sliding sleeve 14 is slidably connected with a sliding rod 15, and the outer end of the sliding rod 15 is fixedly connected with the inner wall of the box body 10, and the threaded block The right side of 13 is fixedly connected with sliding rod 16, and the surface of sliding rod 16 is slidingly connected with the inner cavity of sliding groove 24, and the right side of sliding rod 16 penetrates to the right side of box body 10 and is fixedly connected with lifting plate 17, and lifting plate The bottom of 17 is fixedly installed with the 3rd motor 18, and the output end of the 3rd motor 18 is fixedly connected with drill bit bar 19, and the four sides of drill bit bar 19 surfaces are all fixedly connected with grooved inclined block 20, and the bottom of fertilization cabinet 1 right side communicates with The material pumping pipe 21, the right side of the material pumping pipe 21 is connected with a pumping machine 22, and the bottom of the material pumping machine 22 is connected with a discharge nozzle 23, by setting the protection box 8, the storage battery 9, the casing 10, the second motor 11, Threaded rod 12, threaded block 13, sliding sleeve 14, sliding rod 15, sliding rod 16, lifting plate 17, third motor 18, drill bit rod 19, slotted inclined block 20, feeding pipe 21, feeding machine 22, outlet The feed nozzle 23 and the sliding groove 24 cooperate with each other to achieve the advantage of deep fertilization, so that when the fertilizer applicator is in use, it can automatically drill holes, and then fertilize the bottom of the soil to realize deep fertilization and improve the fertilization effect. The fertilization efficiency can meet the actual demand.

The left side of the protection box 8 is provided with a heat dissipation groove 25, and the inner wall of the heat dissipation groove 25 is fixedly connected with a dustproof net 26.

Through the above-mentioned technical solution, by setting the cooling groove 25, the battery 9 can be conveniently radiated heat, and by setting the dust-proof net 26, the inner cavity of the protection box 8 can be dust-proof.

The bottom end of the threaded rod 12 is sleeved with a bearing seat 27 , and the bottom of the bearing seat 27 is fixedly connected with the bottom of the inner wall of the box body 10 .

Through the above technical solution, the arrangement of the bearing seat 27 plays a role in stabilizing the threaded rod 12 during rotation, increasing the stability of the threaded rod 12 during rotation.

The left side of the inner wall of the casing 10 is provided with a chute 28 , the inner cavity of the chute 28 is slidably connected with a slider 29 , and the right side of the slider 29 is fixedly connected with the left side of the sliding sleeve 14 .

Through the above technical solution, by setting the sliding groove 28 and the sliding block 29, the sliding sleeve 14 and the threaded block 13 are stabilized when moving, and the stability of the sliding sleeve 14 and the threaded block 13 is increased.

Both sides of the top of the pumping machine 22 are fixedly connected with a mounting frame 30 , and the top of the mounting frame 30 is fixedly connected with the bottom of the box body 10 .

Through the above-mentioned technical solution, the setting of the installation frame 30 facilitates the installation of the pumping machine 22 .

The width and height of the inner chamber of the sliding groove 24 are larger than the width and height of the sliding rod 16 , and the length of the inner chamber of the sliding groove 24 is shorter than the length of the sliding rod 16 .

Through the above technical solution, by setting the sliding groove 24 and the sliding rod 16, it is convenient to drive the lifting plate 17 up and down.

The working principle of the utility model is: by arranging the storage battery 9, the first motor 4, the second motor 11 and the third motor 18 are supplied with power; , and then turn on the first motor 4 through the peripheral controller, the first motor 4 starts to drive the rotating rod 5, the stirring blade 6 and the pressure relief hole 7 to mix the fertilizer and water, and then push the device through the moving wheel 2 to move to the place where fertilization is required Next to the plant, and then turn on the second motor 11 and the third motor 18 through the peripheral controller, the second motor 11 starts to drive the threaded rod 12 to start rotating in the inner cavity of the bearing seat 27, and the threaded rod 12 rotates to drive the threaded block 13 through the thread The surface of the threaded rod 12 starts to move, the threaded block 13 moves to drive the sliding sleeve 14 to slide on the surface of the sliding rod 15, the sliding sleeve 14 moves to drive the slider 29 to slide in the inner cavity of the chute 28, and the threaded block 13 moves to drive the sliding rod 16 Sliding in the inner cavity of the sliding groove 24, the sliding rod 16 moves to drive the lifting plate 17 to descend, and at the same time the third motor 18 starts to drive the drill rod 19 and the slotted inclined block 20 to start to rotate, and the lifting plate 17 descends to drive the third motor 18, the drill rod 19 and the slotted inclined block 20 descend to open holes in the soil, then open the pumping machine 22 through the peripheral controller, and the pumping machine 22 starts to pump the water and fertilizer in the inner cavity of the fertilization cabinet 1 through the pumping pipe 21, water and fertilizer Through the pumping pipe 21, the pumping machine 22 and the discharge nozzle 23 spraying into the opened soil holes, deep fertilization is realized and the fertilization effect is improved, thereby achieving the advantage of deep fertilization.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (6)

1. The utility model provides a fertilizer distributor, includes fertilizer distributor case (1), its characterized in that: the four corners of the bottom of the fertilizer application case (1) are fixedly connected with movable wheels (2), the top of the left side of the fertilizer application case (1) is communicated with a feeding pipe (3), the center of the top of the fertilizer application case (1) is fixedly connected with a first motor (4), the output end of the first motor (4) is fixedly connected with a rotary rod (5), the bottom end of the rotary rod (5) penetrates through the inner cavity of the fertilizer application case (1), the surface of the rotary rod (5) is fixedly connected with a stirring blade (6), the two positive sides of the stirring blade (6) are respectively provided with a pressure relief hole (7), the left side of the top of the fertilizer application case (1) is fixedly connected with a protection box (8), the top of the inner wall of the protection box (8) is fixedly connected with a storage battery (9), the top of the right side of the fertilizer application case (1) is fixedly connected with a box body (10), the right side of the box body (10) is provided with a sliding groove (24), the top of the inner wall of the box body (10) is fixedly connected with a second motor (11), the output end of the second motor (11) is fixedly connected with a threaded rod (12), the surface of the threaded rod (12) is connected with a threaded block (13), the sliding sleeve (14), and the sliding sleeve (14) is connected with a sliding sleeve (14), the utility model discloses a fertilizer distributor, including the outer end of slide bar (15) and the inner wall fixed connection of box (10), the right side fixedly connected with slide bar (16) of screw thread piece (13), the surface of slide bar (16) and the inner chamber sliding connection of sliding tray (24), the right side of slide bar (16) runs through right side and fixedly connected with lifter plate (17) to box (10), the bottom fixed mounting of lifter plate (17) has third motor (18), the output fixedly connected with drill rod (19) of third motor (18), equal fixedly connected with fluting sloping block (20) all around on drill rod (19) surface, the bottom intercommunication on fertilizer distributor case (1) right side has material pumping pipe (21), the right side intercommunication of material pumping pipe (21) has material pumping machine (22), the bottom intercommunication of material pumping machine (22) has ejection of compact shower nozzle (23).

2. A fertilizer applicator as claimed in claim 1 wherein: radiating groove (25) have been seted up on the left side of guard box (8), the inner wall fixedly connected with dust screen (26) of radiating groove (25).

3. A fertilizer applicator as claimed in claim 1 wherein: the bottom of threaded rod (12) has cup jointed bearing frame (27), the bottom of bearing frame (27) and the bottom fixed connection of box (10) inner wall.

4. A fertilizer applicator as claimed in claim 1 wherein: the left side of box (10) inner wall has seted up spout (28), the inner chamber sliding connection of spout (28) has slider (29), the right side of slider (29) and the left side fixed connection of sliding sleeve (14).

5. A fertilizer applicator as claimed in claim 1 wherein: the two sides of the top of the material pumping machine (22) are fixedly connected with mounting frames (30), and the top of each mounting frame (30) is fixedly connected with the bottom of the box body (10).

6. A fertilizer applicator as claimed in claim 1 wherein: the width and the height of the inner cavity of the sliding groove (24) are both larger than the width and the height of the sliding rod (16), and the length of the inner cavity of the sliding groove (24) is smaller than the length of the sliding rod (16).
