Abstract

The utility model relates to a wiring right-angle type corner bridge frame for power distribution engineering, comprising a corner bridge frame and a cover plate installed on the top of the corner bridge frame, two fixing components and two limit plates are installed on the bottom inner wall of the corner bridge frame, and The two fixed components and the two limit plates are symmetrically arranged; in this scheme, after the wire passes through the U-shaped groove, the turning plate is clamped into the top block to limit the position, preventing the rotating plate from being lifted up, and the wire can be pressed more Tighten, turn the rotary block to insert the threaded column into the bottom of the limit port, prevent the rotary plate from detaching from the top block, and fix the wire through the adjustment seat. The wires are routed smoothly; when the wires pass through the wire groove, the orderly arrangement of the wires can be ensured, and the clip is elastic, which can hold the wires to prevent warping, so that the wires are more beautiful, neat and will not bend, which can reduce the occurrence of circuits The risk of the problem is also more convenient to find during maintenance.

Description

A wiring right-angle corner bridge for power distribution engineering

technical field

The utility model relates to the technical field of bridge frames, in particular to a wiring right-angle corner bridge frame for power distribution engineering.

Background technique

During the construction of many projects, electricity is required to facilitate the operation of the machine, so power distribution is a very important part when the project starts.

When distributing power to the project, a lot of bridges are needed. Most of the bridges are laid along the walls of the building. The number of right-angle turning bridges is also very large. They are usually used at the corners of the walls of the house. When the wires turn, different The turning distance of the wires is different, so the wires are often messy or even entangled when they pass through the corner bridges. The commonly used bridges are simply separated and limited, and cannot be well limited and clamped, so they cannot solve the messy problem. Therefore, those skilled in the art provide a wiring right-angle corner bridge for power distribution engineering to solve the problems raised.

Utility model content

In order to solve the above-mentioned unresolved problem of messy electric wires, the utility model provides a wiring right-angle type corner bridge for power distribution engineering.

The utility model provides a wiring right-angle corner bridge frame for power distribution engineering, which adopts the following technical scheme:

A wiring right-angle corner bridge for power distribution engineering, including a corner bridge and a cover plate installed on the top of the corner bridge, two fixing components and two limiting plates are installed on the bottom inner wall of the corner bridge, and the two fixing components and the two limiting plates are symmetrically set;

The fixed assembly includes an adjustment seat, which is arranged inside the corner bridge, and the top of the adjustment seat is provided with a plurality of U-shaped grooves, and the plurality of U-shaped grooves are evenly arranged, and a limit opening is also provided on the adjustment seat, and the adjustment The top of the seat is evenly fixed with a plurality of top blocks, and the top blocks are located between multiple U-shaped grooves. The top edge of the adjustment seat is rotated by a rotating shaft to install a rotating plate, and the other end of the rotating plate is vertically installed with a screw thread. column.

Preferably, the bottom end of the threaded post is plugged into the limiting opening, and the bottom of the limiting opening is provided with a round hole to facilitate the insertion of the threaded post.

Preferably, a rotary block is fixedly installed on the top of the threaded column, and anti-slip lines are provided on the side of the rotary block.

Preferably, the rotating plate is inserted between a plurality of top blocks, and the top and one side of the rotating plate are in contact with adjacent two sides of the top block, and the top block is arranged in an "L" shape.

Preferably, two crossbars are inserted and connected laterally on the adjustment seat, fixed blocks are fixedly installed at both ends of the crossbar, the fixed block is fixedly installed with the bottom inner wall of the corner bridge frame, and two limiters are installed on the crossbar through threads. position nuts, and the two limit nuts are respectively located on both sides of the adjustment seat and are in contact with each other.

Preferably, the limiting plate is fixedly installed on the bottom inner wall of the corner bridge, the limiting plate is evenly opened with wire grooves, and the top of the wire grooves is fixedly installed with clamping bars.

In summary, the utility model includes the following beneficial technical effects:

1. After the wire passes through the U-shaped groove, turn the rotating plate to snap into the top block to limit the position, prevent the rotating plate from being lifted up, and press the wire tighter. Turn the rotating block to insert the threaded column into the bottom of the limit port. To prevent the rotating plate from detaching from the top block, the wires are fixed by the adjustment seat, and the adjustment seat can slide on the crossbar to reach a suitable position and be fixed by the limit nut, and the wires are routed smoothly;

2. When the wires pass through the wire groove, the orderly arrangement of the wires can be guaranteed. The clamping strip is elastic, which can hold the wires to prevent them from warping, making the wiring more beautiful, tidy and not bent, which can reduce the risk of circuit problems. It is also easier to find during maintenance.

Description of drawings

Fig. 1 is a schematic structural diagram of a wiring right-angle corner bridge for power distribution engineering in an embodiment of the utility model;

Fig. 2 is the enlarged schematic diagram of the area A in Fig. 1;

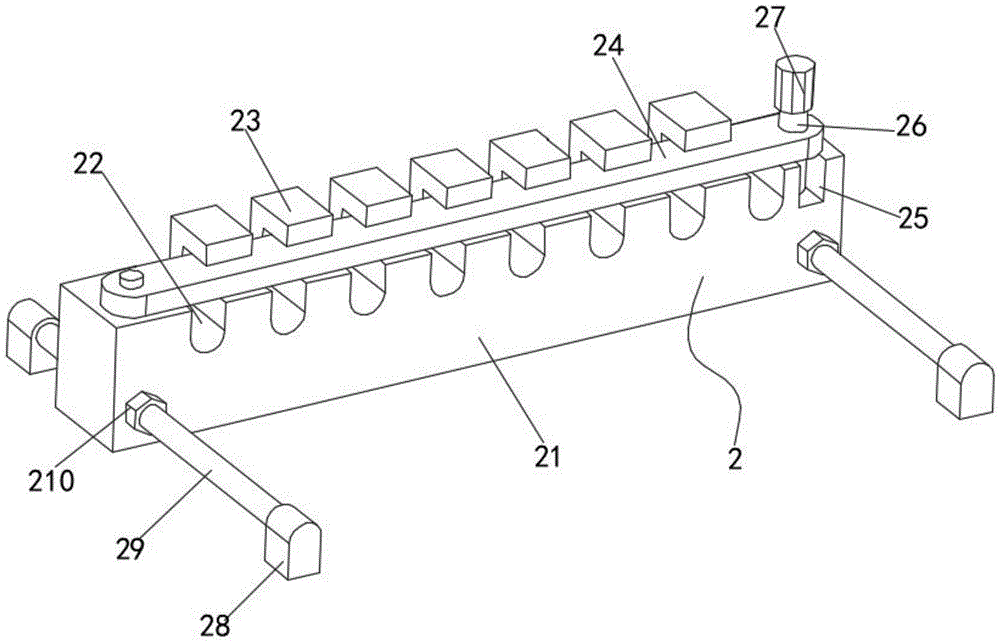

Fig. 3 is a structural schematic diagram of a fixing component of a wiring right-angle corner bridge for power distribution engineering in an embodiment of the utility model.

Description of reference signs: 1, corner bridge; 2, fixed assembly; 3, limit plate; 11, cover plate; 21, adjustment seat; 22, U-shaped groove; 23, top block; 24, turn plate; 26, threaded column; 27, turning block; 28, fixed block; 29, cross bar; 210, limit nut; 31, wire groove;

Detailed ways

Below in conjunction with accompanying drawing 1-3 the utility model is described in further detail.

The embodiment of the utility model discloses a wiring right-angle type corner bridge frame for power distribution engineering.

A right-angled corner bridge frame for power distribution engineering, including a corner bridge frame 1, and a cover plate 11 installed on the top of the corner bridge frame 1, two fixing components 2 and two limit plates 3 are installed on the bottom inner wall of the corner bridge frame 1, and The two fixing assemblies 2 and the two limiting plates 3 are arranged symmetrically; the fixing assembly 2 includes an adjusting seat 21, which is arranged inside the corner bridge frame 1, and the top of the adjusting seat 21 is provided with a plurality of U-shaped grooves 22, And a plurality of U-shaped grooves 22 are evenly arranged, and a limit opening 25 is also provided on the adjustment seat 21, and a plurality of top blocks 23 are evenly and fixedly installed on the top of the adjustment seat 21, and the top blocks 23 are located in a plurality of U-shaped grooves 22 Between, the top edge of the adjustment seat 21 is installed with a rotating plate 24 through the rotating shaft, and the other end of the rotating plate 24 is vertically installed with a threaded column 26 through threads.

In Fig. 1 and Fig. 3: the bottom end of the threaded column 26 is plugged into the limit port 25, and the bottom of the limit port 25 is provided with a round hole for the insertion of the threaded column 26, which can limit the threaded column 26 so that The rotating plate 24 is limited; the top of the threaded column 26 is fixedly equipped with a rotating block 27, and the side of the rotating block 27 is provided with anti-skid lines, which is convenient for rotating the rotating block 27, thereby rotating the threaded column 26; the rotating plate 24 is plugged in a plurality of Between the jacking blocks 23, and the top and one side of the rotating plate 24 are in contact with the adjacent two sides of the jacking block 23, the jacking block 23 is arranged as an "L" shaped structure, which can make the rotating plate 24 and the jacking block 23 in close contact, convenient Limit the position of the electric wires; two cross bars 29 are inserted horizontally on the adjustment seat 21, and the two ends of the cross bar 29 are fixedly installed with a fixed block 28, and the fixed block 28 is fixedly installed with the bottom inner wall of the corner bridge frame 1, and the cross bar 29 Two limit nuts 210 are threaded on the top, and the two limit nuts 210 are respectively located on both sides of the adjustment seat 21 and are in contact with each other, so that the position of the adjustment seat 21 can be adjusted, so that the wires can be reasonably limited.

In Fig. 1 and Fig. 2: the limit plate 3 is fixedly installed on the bottom inner wall of the corner bridge frame 1, the limit plate 3 is evenly provided with a wire groove 31, and the top of the wire groove 31 is fixedly installed with a clip 32, which can make the wire Can be neatly placed, easy to find and repair.

According to the embodiment of the utility model, the implementation principle of a wiring right-angle corner bridge frame for power distribution engineering is as follows: during the laying process of the line, follow the connection sequence of the fixed component 2, the limit plate 3, the limit plate 3 and the fixed component 2. Installation, after the wires pass through a plurality of U-shaped grooves 22, turn the rotating plate 24 to make the rotating plate 24 snap into the top block 23, and the top block 23 is set in an "L" shape, which can limit the rotating plate 24 and prevent it from rotating. The plate 24 is jacked up, causing damage to the connection between the rotating rod and the rotating plate 24, and can also press the wire tighter. Turning the rotating block 27 can make the threaded column 26 be inserted into the bottom of the limit port 25 to tighten the rotating plate 24. Limiting, preventing from breaking away from the top block 23, when the right-angle bridge and the straight bridge are installed, the wires at the connection will be bent, and the wires will be fixed through the adjustment seat 21. When the distance between the adjustment seat 21 and the straight bridge is close to When the distance is appropriate, there will be no bending, the adjustment seat 21 can slide on the cross bar 29, and the adjustment seat 21 can be fixed by the limit nut 210; when the wires pass through the wire groove 31, the orderly arrangement of the wires can be ensured , the clip 32 has elasticity, which can block the wires and prevent them from warping, so that the wires are more beautiful, tidy and will not bend, which can reduce the risk of problems in the circuit, and is also more convenient during maintenance.

The above are all preferred embodiments of the present utility model, and do not limit the scope of protection of the present utility model accordingly. Therefore: all equivalent changes made according to the structure, shape and principle of the present utility model should be covered by the utility model. within the scope of protection.

Claims (6)

1. A wiring right-angle type corner bridge for power distribution engineering, comprising a corner bridge (1), and a cover plate (11) installed on the top of the corner bridge (1), characterized in that: the bottom inner wall of the corner bridge (1) Two fixing components (2) and two limiting plates (3) are installed, and the two fixing components (2) and the two limiting plates (3) are arranged symmetrically; The fixing assembly (2) includes an adjustment seat (21), the adjustment seat (21) is arranged inside the corner bridge (1), the top of the adjustment seat (21) is provided with a plurality of U-shaped grooves (22), and a plurality of The U-shaped groove (22) is evenly arranged, and the limit opening (25) is also offered on the adjustment seat (21), and the top of the adjustment seat (21) is uniformly fixedly equipped with a plurality of top blocks (23), and the top block ( 23) Located between multiple U-shaped grooves (22), the top edge of the adjustment seat (21) is installed with a rotating plate (24) through the rotation of the rotating shaft, and the other end of the rotating plate (24) is vertically installed with a threaded post ( 26). 2. A wiring right-angle corner bridge for power distribution engineering according to claim 1, characterized in that: the bottom end of the threaded column (26) is plugged into the limit port (25), and the limit port The bottom of (25) is provided with the round hole that facilitates threaded column (26) to insert. 3. A wiring right-angle type corner bridge for power distribution engineering according to claim 2, characterized in that: the top of the threaded column (26) is fixedly equipped with a turning block (27), and the side of the turning block (27) Set with anti-slip texture. 4. A wiring right-angle corner bridge frame for power distribution engineering according to claim 1, characterized in that: the rotating plate (24) is inserted between a plurality of top blocks (23), and the rotating plate (24 ) top and one side are in contact with the adjacent two sides of the top block (23), and the top block (23) is set to an "L" shaped structure. 5. A wiring right-angle corner bridge frame for power distribution engineering according to claim 1, characterized in that two horizontal bars (29) are inserted into the adjustment seat (21) horizontally, and the horizontal bars (29 ) are fixedly installed with a fixed block (28), the fixed block (28) is fixedly installed with the bottom inner wall of the corner bridge (1), and two limit nuts (210) are installed on the cross bar (29) by threads, and The two limit nuts (210) are respectively located on both sides of the adjustment seat (21) and are in contact with each other. 6. A wiring right-angle corner bridge for power distribution engineering according to claim 1, characterized in that: the limit plate (3) is fixedly installed on the bottom inner wall of the corner bridge (1), and the limit plate (3) ) is evenly provided with a wire groove (31), and the top of the wire groove (31) is fixedly equipped with a clip (32).
