Abstract

The utility model provides a numerically controlled lathe with a fixture for easy adjustment of the angle, comprising a numerically controlled lathe, a cabinet is fixedly installed on one side of the numerically controlled lathe, a motor is fixedly installed inside the cabinet, and the output end of the motor is fixed A first rotating rod is installed, one end of the first rotating rod is fixedly mounted with a first rotating disc, the top of the cabinet body is fixedly mounted with a cabinet cover, and one side of the cabinet cover is fixedly mounted with a first fixing plate. Push the L-shaped splint through the first electric push rod, so that the L-shaped splint and the splint clamp the workpiece, and the second rotating disc and the third rotating disc drive the L-shaped splint and the splint to rotate respectively, so that the workpiece rotates up and down , the up and down angle of the workpiece is adjusted, the motor drives the first rotating rod to rotate, the first rotating rod drives the first rotating disc to rotate, the first rotating disc drives the workpiece to rotate, so that the workpiece rotates left and right, and the workpiece is adjusted left and right angles.

Description

A Numerical Control Lathe with Angle Adjustment Fixture

technical field

The utility model relates to the technical field of numerically controlled lathes, in particular to a numerically controlled lathe with a fixture for easy adjustment of angles.

Background technique

CNC lathe is one of the most widely used CNC machine tools. It is mainly used for cutting the inner and outer cylindrical surfaces of shaft parts or disk parts, the inner and outer conical surfaces of arbitrary cone angles, the complex rotary inner and outer curved surfaces, cylinders, and conical threads, etc., and can perform grooving, drilling, reaming, and reaming. Hole and boring etc.

When the CNC lathe is used, it is usually necessary to use the fixture to clamp the workpiece. When the existing fixture is clamping the workpiece, the clamping angle of the fixture cannot be adjusted, which affects the use and reduces the work efficiency. Few can fix the workpiece. Those who adjust the angle usually can only adjust the angle of one direction to the workpiece, and cannot adjust the workpiece in the up-down direction and left-right direction respectively.

Utility model content

In view of the above problems, the utility model provides a numerically controlled lathe with a fixture for easy adjustment of the angle, which solves the problems raised in the above background technology.

In order to achieve the above object, the technical scheme adopted by the utility model is as follows:

A numerically controlled lathe with a fixture for easy adjustment of angles, comprising a numerically controlled lathe, a cabinet is fixedly installed on one side of the numerically controlled lathe, a motor is fixedly installed inside the cabinet, and the output end of the motor is fixedly installed with a first A rotating rod, one end of the first rotating rod is fixedly installed with a first rotating disk, the top of the cabinet body is fixedly installed with a cabinet cover, one side of the cabinet cover is fixedly installed with a first fixed plate, and the first fixed plate One side of the first electric push rod is rotatably installed with a first electric push rod, one end of the first electric push rod penetrates to one side of the first fixed plate, and an L-shaped splint is fixedly installed on the output end of the first electric push rod. A second electric push rod is fixedly mounted on the bottom of the L-shaped splint, a circular splint is fixedly mounted on the output end of the second electric push rod, and an auxiliary clamping mechanism is provided on one side of the cabinet cover.

Preferably, the auxiliary clamping mechanism includes a second fixing plate, a second rotating rod, and a splint, the second fixing plate is fixedly installed on one side of the cabinet cover, and the second fixing plate is rotatably installed on one side of the second fixing plate. Two rotating rods, one end of the second rotating rod penetrates to one side of the second fixing plate, and one end of the second rotating rod is fixedly installed with a splint.

Preferably, one end of the first electric push rod is fixedly installed with a second rotating disk, one side of the second rotating disk is fixedly installed with a first handle, one end of the second rotating rod is fixedly installed with a third Rotating the disc, a second handle is fixedly installed on one side of the third rotating disc.

Preferably, one side of the L-shaped splint is the same size as the front of the splint, and cooperates to clamp the workpiece more stably left and right.

Preferably, the first electric push rod and the second rotating rod are on the same axis, and the center point of the first rotating disk and the center point of the circular splint are on the same straight line, so that the upper and lower clamping is more stable artifact.

Preferably, the first rotating disc is in contact with the surface of the cabinet cover, and the second rotating disc and the third rotating disc are of the same size, so that when the workpiece is rotated up and down, the movement is more stable .

Beneficial effects of the utility model:

When the workpiece needs to adjust its angle up and down, the worker places the workpiece between the L-shaped splint and the splint, and pushes the L-shaped splint through the first electric push rod, so that the L-shaped splint and the splint clamp the workpiece. When it is necessary to adjust the angle, the staff holds the first handle and the second handle, and turns the second rotating disc and the third rotating disc, and the second rotating disc and the third rotating disc drive the first electric push rod and the second rotating disc respectively. The rotating rod rotates, and the first electric push rod and the second rotating rod drive the L-shaped splint and the splint to rotate respectively, so that the workpiece rotates up and down, and the up and down angle of the workpiece is adjusted.

When the workpiece needs to adjust the left and right angles, the worker places the workpiece on the first rotating disk, and drives the L-shaped splint to move through the first electric push rod, so that the bottom of the L-shaped splint reaches the top of the workpiece. The second electric push rod drives the circular splint to move, so that the circular splint and the first rotating disc cooperate to clamp the workpiece. When the angle needs to be adjusted, the motor drives the first rotating rod to rotate, and the first rotating disc The rod drives the first rotating disk to rotate, and the first rotating disk drives the workpiece to rotate, so that the workpiece rotates left and right, which adjusts the left and right angles of the workpiece, and achieves the purpose of adjusting the up and down angles and left and right angles of the workpiece.

Description of drawings

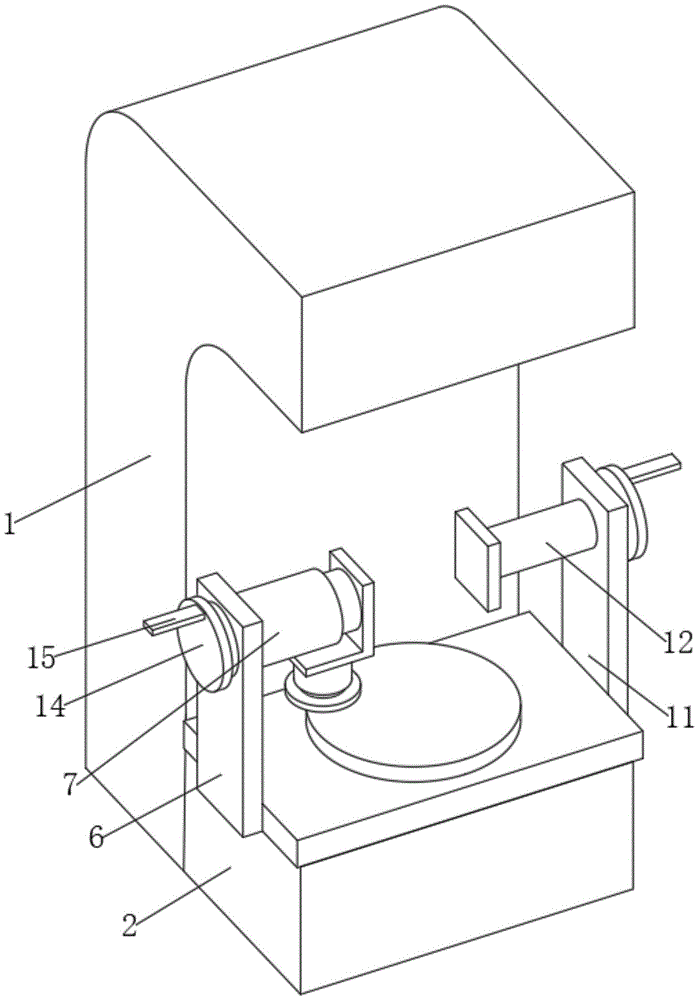

Fig. 1 is the structural representation of the utility model positive three-dimensional drawing;

Fig. 2 is the structural representation of the utility model top view partial sectional view;

Fig. 3 is the structural representation of partial figure of the utility model;

In the figure: 1. CNC lathe; 2. Cabinet body; 3. Motor; 4. The first rotating rod; 5. The first rotating disc; 6. The first fixed plate; 7. The first electric push rod; 8. L 9. The second electric push rod; 10. The circular splint; 11. The second fixed plate; 12. The second rotating rod; 13. The splint; 14. The second rotating disc; 15. The first handle; 16. The third rotating disc; 17, the second handle; 18, the cabinet cover.

Detailed ways

The technical scheme of the present utility model is described below in conjunction with accompanying drawing and embodiment.

As shown in Fig. 1-3, a kind of numerical control lathe of the present utility model has the fixture that is convenient to adjust angle, comprises numerical control lathe 1, and one side of numerical control lathe 1 is fixedly installed with cabinet body 2, and the inside of cabinet body 2 is fixedly installed with motor 3, The output end of the motor 3 is fixedly installed with the first rotating rod 4, and one end of the first rotating rod 4 is fixedly installed with the first rotating disk 5, and the top of the cabinet body 2 is fixedly installed with a cabinet cover 18, and one side of the cabinet cover 18 is fixed The first fixed plate 6 is installed, and one side of the first fixed plate 6 is rotated with a first electric push rod 7, and one end of the first electric push rod 7 penetrates to one side of the first fixed plate 6, and the first electric push rod 7 The output end of the L-shaped splint 8 is fixedly installed, the bottom of the L-shaped splint 8 is fixedly installed with the second electric push rod 9, the output end of the second electric push rod 9 is fixedly installed with a circular splint 10, and one side of the cabinet cover 18 An auxiliary clamping mechanism is provided.

Specifically, the auxiliary clamping mechanism includes a second fixed plate 11, a second rotating rod 12, and a splint 13. One side of the cabinet cover 18 is fixedly equipped with the second fixed plate 11, and one side of the second fixed plate 11 is rotatably installed with the second fixed plate. Two rotating rods 12, one end of the second rotating rod 12 penetrates to one side of the second fixed plate 11, and one end of the second rotating rod 12 is fixedly equipped with a splint 13, and the staff holds the first handle 15 and the second handle 17, and rotates the second rotating rod 12 Two rotating discs 14 and the third rotating disc 16, the second rotating disc 14 and the third rotating disc 16 drive the first electric push rod 7 and the second rotating rod 12 to rotate respectively, the first electric push rod 7 and the third rotating disc 16 The second rotating rod 12 drives the L-shaped clamping plate 8 and the clamping plate 13 to rotate respectively, so that the workpiece rotates up and down, and the up and down angle of the workpiece is adjusted. The first rotating rod 4 is driven by the motor 3 to rotate, and the first rotating rod 4 drives the first rotating rod 4. The rotating disk 5 rotates, and the first rotating disk 5 drives the workpiece to rotate, so that the workpiece rotates left and right, which adjusts the left and right angles of the workpiece, and achieves the purpose of adjusting the up and down angles and left and right angles of the workpiece.

Specifically, one end of the first electric push rod 7 is fixedly installed with a second rotating disk 14, one side of the second rotating disk 14 is fixedly installed with a first handle 15, and one end of the second rotating rod 12 is fixedly installed with a third rotating disk. Disc 16, a second handle 17 is fixedly installed on one side of the third rotating disc 16 .

Specifically, one side of the L-shaped splint 8 is the same size as the front of the splint 13, and cooperates to clamp the workpiece left and right more stably.

Specifically, the first electric push rod 7 and the second rotating rod 12 are on the same axis, and the center point of the first rotating disk 5 and the center point of the circular splint 10 are on the same straight line, so that the upper and lower clamping is more stable. artifact.

Concretely, the surface of the first rotating disk 5 and the cabinet cover 18 fits, and the size of the second rotating disk 14 and the third rotating disk 16 are consistent, so that the workpiece moves more smoothly when it is rotated up and down.

The working principle of the present utility model: when using the numerically controlled lathe 1 with the jig that is convenient for adjusting the angle, when the workpiece needs to adjust the angle up and down, the staff will place the workpiece between the L-shaped splint 8 and the splint 13, through The first electric push rod 7 pushes the L-shaped splint 8, so that the L-shaped splint 8 and the splint 13 clamp the workpiece. When the angle needs to be adjusted, the staff holds the first handle 15 and the second handle 17 and rotates the second rotating circle The disc 14 and the third rotating disk 16, the second rotating disk 14 and the third rotating disk 16 respectively drive the first electric push rod 7 and the second rotating rod 12 to rotate, the first electric push rod 7 and the second rotating The rod 12 respectively drives the L-shaped splint 8 and the splint 13 to rotate, so that the workpiece rotates up and down, and the up and down angle of the workpiece is adjusted. 5, the first electric push rod 7 drives the L-shaped splint 8 to move, so that the bottom of the L-shaped splint 8 reaches directly above the workpiece, and the second electric push rod 9 drives the circular splint 10 to move, so that the circular splint 10 cooperates with the first rotating disc 5 to clamp the workpiece. When the angle needs to be adjusted, the motor 3 drives the first rotating rod 4 to rotate, and the first rotating rod 4 drives the first rotating disc 5 to rotate. A rotating disk 5 drives the workpiece to rotate, so that the workpiece rotates left and right, which adjusts the left and right angles of the workpiece, and achieves the purpose of adjusting the up and down angles and left and right angles of the workpiece.

In the description of the present utility model, it should be understood that the terms "upper", "lower", "left", "right", etc. indicating orientation or positional relationship are based on the orientation or positional relationship shown in the accompanying drawings, and are only for the purpose of It is convenient to describe the utility model and simplify the description, but does not indicate or imply that the device or element referred to must have a specific orientation, as well as a specific orientation configuration and operation, therefore, it should not be construed as a limitation of the utility model. In addition, "first" and "second" are for descriptive purposes only, and cannot be interpreted as indicating or implying relative importance or implicitly specifying the quantity of the indicated technical features. Therefore, a feature defined as "first" and "second" may explicitly or implicitly include one or more of these features. In the description of the present utility model, unless otherwise specified, "plurality" means two or more.

In the description of the present utility model, it should be noted that unless otherwise specified and limited, the terms "installation", "connection", "connection" and so on should be understood in a broad sense, for example, it can be a fixed connection or a detachable connection. Connected, or integrally connected; it can be mechanically connected or electrically connected; it can be directly connected or indirectly connected through an intermediary, and it can be the internal communication of two components. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present utility model in specific situations.

An embodiment of the present utility model has been described in detail above, but the content described is only a preferred embodiment of the present utility model, and cannot be considered as limiting the implementation scope of the present utility model. All equal changes and improvements made according to the application scope of the utility model should still belong to the scope covered by the patent of the utility model.

Claims (6)

1. The utility model provides a numerical control lathe with be convenient for angle of adjustment anchor clamps, includes numerical control lathe (1), its characterized in that, one side fixed mounting of numerical control lathe (1) has the cabinet body (2), the inside fixed mounting of the cabinet body (2) has motor (3), the output fixed mounting of motor (3) has first rotation pole (4), the one end fixed mounting of first rotation pole (4) has first rotating disc (5), and the top fixed mounting of the cabinet body (2) has cabinet cover (18), one side fixed mounting first fixed plate (6) of cabinet cover (18), one side of first fixed plate (6) is rotated and is installed first electric putter (7), the one end of first electric putter (7) runs through to one side of first fixed plate (6), the output fixed mounting of first electric putter (7) has L clamp plate (8), the bottom fixed mounting of L clamp plate (8) has second electric putter (9), the output fixed mounting of second electric putter (9) has circular splint (10), one side of cabinet cover (18) is provided with supplementary clamping mechanism.

2. The numerically controlled lathe with the clamp facilitating angle adjustment according to claim 1, wherein the auxiliary clamping mechanism comprises a second fixing plate (11), a second rotating rod (12) and a clamping plate (13), the second fixing plate (11) is fixedly mounted on one side of the cabinet cover (18), the second rotating rod (12) is rotatably mounted on one side of the second fixing plate (11), one end of the second rotating rod (12) penetrates through one side of the second fixing plate (11), and the clamping plate (13) is fixedly mounted on one end of the second rotating rod (12).

3. The numerically controlled lathe with the clamp facilitating angle adjustment according to claim 2, wherein a second rotating disk (14) is fixedly mounted at one end of the first electric push rod (7), a first handle (15) is fixedly mounted at one side of the second rotating disk (14), a third rotating disk (16) is fixedly mounted at one end of the second rotating rod (12), and a second handle (17) is fixedly mounted at one side of the third rotating disk (16).

4. The numerically controlled lathe with a jig for facilitating adjustment of the angle according to claim 2, wherein one side of the L-shaped clamping plate (8) and the front face of the clamping plate (13) are the same in size and are fitted.

5. The numerically controlled lathe with a clamp for facilitating the adjustment of the angle according to claim 2, characterized in that said first electric push rod (7) and said second rotary rod (12) are on the same axis, and the central point of said first rotary disk (5) and the central point of said circular clamping plate (10) are on the same line.

6. The numerically controlled lathe with a clamp for facilitating the adjustment of the angle according to claim 3, characterized in that said first rotating disc (5) is in abutment with the surface of the cabinet cover (18), and said second rotating disc (14) is of the same size as said third rotating disc (16).
