Abstract

The utility model discloses an intelligent cooling device for a communication base station, which relates to the technical field of communication device cooling. Including the base station communicator body, one side of the base station communicator body is provided with a protective shell, the surface of the protective shell is installed with a heat dissipation net, and the surface of one side of the heat dissipation net is equipped with an installation frame, and the number of the installation frames is Two, one side of the installation frame is fixedly connected with a heat dissipation guide plate, and one end of the heat dissipation guide plate is connected to the surface of the base station communicator body, and the surface of the heat dissipation guide plate is equipped with a mounting seat; the utility model can better communicate The base station receiving equipment performs heat dissipation treatment to improve the heat dissipation efficiency of the communication base station receiving equipment, which is beneficial to the cooling protection of the communication base station receiving equipment that works continuously for a long time, improves the heat dissipation efficiency of the communication base station receiving equipment, and increases the protection performance of the communication base station receiving equipment. The working quality of the receiving equipment of the communication base station is improved.

Description

An intelligent cooling device for a communication base station

technical field

The utility model relates to the technical field of heat dissipation of communication equipment, in particular to an intelligent heat dissipation equipment for a communication base station.

Background technique

The base station, that is, the public mobile communication base station, is a form of radio station, which refers to a radio transceiver station that transmits information between mobile phone terminals through a mobile communication switching center in a certain radio coverage area. The construction of mobile communication base stations is an important part of the investment of mobile communication operators in my country. The construction of mobile communication base stations is generally carried out around factors such as coverage, call quality, investment benefits, difficulty of construction, and convenient maintenance. With the development of mobile communication network services in the direction of dataization and packetization, the development trend of mobile communication base stations must also be broadband, large coverage construction and IP.

At present, the receiving equipment of communication base stations often needs to work continuously for 24 hours, and some receiving equipment of communication base stations do not have heat dissipation equipment, and the receiving equipment of communication base stations is prone to overheating during long-term use. When the cooling effect is not good, it is easy to cause The working effect of the receiving equipment of the communication base station is reduced. In severe cases, the receiving equipment of the communication base station may be short-circuited or burned out, which will affect the normal operation of the communication base station. Therefore, we need to provide an intelligent cooling device for the communication base station.

Utility model content

The utility model provides an intelligent heat dissipation device for a communication base station, which has the advantage of being able to improve the heat dissipation effect of the communication base station equipment, thereby solving the problems raised in the above-mentioned background technology.

In order to achieve the above purpose, the utility model is realized through the following technical solutions: an intelligent heat dissipation device for a communication base station includes a base station communicator body, one side of the base station communicator body is provided with a protective shell, and the surface of the protective shell is installed There is a heat dissipation net, the surface of one side of the heat dissipation net is equipped with an installation frame, and the number of the installation frames is two, one side of the installation frame is fixedly connected with a heat dissipation guide plate, and one end of the heat dissipation guide plate is connected to the body of the base station communicator Surface connection, the surface of the heat dissipation guide plate is installed with a mounting seat, the surface of the mounting seat is installed with a heat dissipation motor, the output end of the heat dissipation motor is fixedly connected with a heat dissipation blade, and the inner wall of the protective shell is provided with a mounting groove. A water-cooled radiator is installed in the installation groove, and a condensation pipe is connected to the surface of the water-cooled radiator. Two power supply harnesses are connected to one side of the heat dissipation net, and the two power supply harnesses are respectively connected to the water-cooled radiator and the cooling motor. sexual connection.

As an intelligent heat dissipation device for a communication base station of the utility model, a dustproof net is installed on one side of the installation frame, and air holes are opened on the surface of the heat dissipation guide plate, and the number of air holes is several.

As an intelligent heat dissipation device for a communication base station of the utility model, both sides of the surface of the installation frame are provided with chutes, and the inner wall of the chute is slidably connected with a dust removal mechanism, and the dust removal mechanism includes a dust removal installation plate , a hand-held pull plate, a limit slider and a dust removal scraper, the ash removal installation plate is slidably connected to the installation frame, the hand-held pull plate is fixedly connected to the ash removal installation plate, and the limit sliders are respectively welded At both ends of the dust removal installation plate, and the limit slider is slidably connected with the chute, and the dust removal scraper is installed on one side of the dust removal installation plate, and the dust removal scraper is used in conjunction with the dust-proof net.

As an intelligent heat dissipation device for a communication base station of the present invention, induction chips are installed on both sides of the inside of the installation groove, the type of the induction chip is a temperature identification sensor, and the two induction chips are respectively connected to the water-cooled radiator, Used in conjunction with cooling motors.

As an intelligent heat dissipation device for a communication base station of the utility model, the bottom of the heat dissipation net is fixedly connected with anti-skid pillars, the number of the anti-skid pillars is four, and the anti-skid pillars are located at the four corners of the heat dissipation net. The bottom of the post is provided with non-slip stripes.

As an intelligent heat dissipation device for a communication base station of the present invention, the surface on one side of the heat dissipation net is provided with mounting screw holes, and the number of mounting screw holes is two, and the surface on one side of the base station communicator body is provided with There are two mounting bolts, and the mounting bolts are used in conjunction with the mounting screw holes.

The utility model provides an intelligent cooling device for a communication base station. Has the following beneficial effects:

The intelligent heat dissipation equipment for the communication base station, through the base station communicator body, protective shell, heat dissipation net, installation frame, heat dissipation guide plate, installation seat, heat dissipation motor, heat dissipation blade, installation groove, water cooling radiator, condensation pipe and power wiring harness, It can better dissipate heat from the receiving equipment of the communication base station, improve the heat dissipation efficiency of the receiving equipment of the communication base station, help to protect the receiving equipment of the communication base station that has been working for a long time, improve the heat dissipation efficiency of the receiving equipment of the communication base station, and increase the heat dissipation efficiency of the receiving equipment of the communication base station. The protection performance of the receiving equipment improves the working quality of the receiving equipment of the communication base station.

Description of drawings

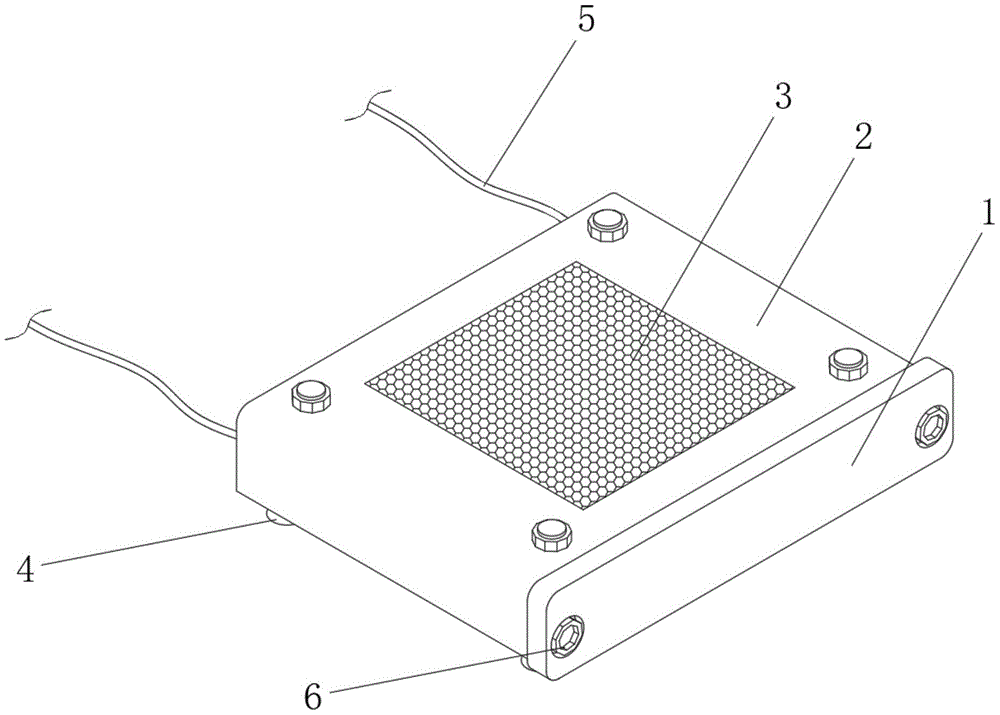

Fig. 1 is the three-dimensional structure schematic diagram of the present utility model;

Fig. 2 is the rear view of the three-dimensional structure of the utility model;

Fig. 3 is the exploded view of the first partial structure of the utility model;

Fig. 4 is the perspective view of the first partial structure of the utility model;

Fig. 5 is the exploded view of the second partial structure of the utility model;

Fig. 6 is the perspective view of the second partial structure of the utility model;

Fig. 7 is an enlarged view of the structure at A in Fig. 5 of the present utility model.

In the figure: 1. Base station communicator body; 2. Protective shell; 3. Heat dissipation net; 4. Anti-skid pillar support; 5. Power harness; 6. Mounting bolt; 7. Mounting frame; 8. Chute; Net; 10, dust removal mechanism; 1001, dust removal installation plate; 1002, hand-held pull plate; 1003, limit slider; 1004, dust removal scraper; 11, installation screw hole; 12, installation groove; 13, condensation pipe ; 14. heat dissipation guide plate; 15. heat dissipation motor; 16. heat dissipation blade; 17. vent hole;

Detailed ways

The technical solution in the practical embodiment will be clearly and completely described below in conjunction with the accompanying drawings in the practical embodiment. Obviously, the described embodiments are only a part of the practical embodiments, not all of them. Based on the embodiments in this application, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of this application.

In the practical description, it should be noted that the orientations or positional relationships indicated by the terms "upper", "lower", "inner", "outer", "top/bottom", etc. are based on the orientations shown in the drawings Or positional relationship is only for the convenience of describing the present application and simplifying the description, but does not indicate or imply that the referred device or element must have a specific orientation, be constructed and operated in a specific orientation, and therefore cannot be construed as a limitation to the present application. In addition, the terms "first" and "second" are used for descriptive purposes only, and should not be understood as indicating or implying relative importance.

In the description of this utility, it should be noted that, unless otherwise clearly stipulated and limited, the terms "installed", "set with", "sleeved/connected", "connected", etc. should be understood in a broad sense, such as " Connection" can be a fixed connection, a detachable connection, or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection or an indirect connection through an intermediary, and it can be two components Internal connectivity. Those of ordinary skill in the art can understand the specific meanings of the above terms in this application in specific situations.

Please refer to Figures 1-7, the utility model provides a technical solution: an intelligent heat dissipation device for a communication base station, including a base station communicator body 1, one side of the base station communicator body 1 is provided with a protective shell 2, and the protective shell 2 The heat dissipation net 3 is installed on the surface, and the surface of the heat dissipation net 3 side is equipped with an installation frame 7, and the number of the installation frames 7 is two, and one side of the installation frame 7 is fixedly connected with a heat dissipation guide plate 14, and one end of the heat dissipation guide plate 14 is connected to the The surface of the base station communicator body 1 is connected, the surface of the heat dissipation guide plate 14 is installed with a mounting base 18, the surface of the mounting base 18 is mounted with a heat dissipation motor 15, the output end of the heat dissipation motor 15 is fixedly connected with a heat dissipation blade 16, and the inner wall of the protective shell 2 is opened. There is an installation groove 12, and a water-cooled radiator 20 is installed in the installation groove 12. The surface of the water-cooled radiator 20 is connected with a condensation pipe 13, and one side of the cooling net 3 is connected with two power supply harnesses 5, and the two power supply harnesses 5 are respectively connected with The water cooling radiator 20 is electrically connected to the cooling motor 15 .

In this embodiment, through the base station communicator body 1, the protective shell 2, the heat dissipation net 3, the installation frame 7, the heat dissipation guide plate 14, the mounting seat 18, the heat dissipation motor 15, the heat dissipation blades 16, the installation groove 12, the water cooling radiator 20, the condensation The arrangement of the tube 13 and the power harness 5 can better dissipate heat from the receiving equipment of the communication base station, improve the heat dissipation efficiency of the receiving equipment of the communication base station, and help to protect the receiving equipment of the communication base station that works continuously for a long time, and improve the cooling efficiency of the receiving equipment of the communication base station. The heat dissipation efficiency of the receiving equipment increases the protection performance of the receiving equipment of the communication base station, and improves the working quality of the receiving equipment of the communication base station.

Specifically, a dustproof net 9 is installed on one side of the installation frame 7 , and the surface of the heat dissipation guide plate 14 is provided with air holes 17 , and the number of air holes 17 is several.

In this embodiment, through the setting of the dust-proof net 9 and the ventilation holes 17, the dust-proof effect of the heat dissipation net 3 can be improved, the amount of dust entering the interior of the heat dissipation net 3 can be reduced, and the effect of subsequent use of the base station communicator body 1 can be improved. At the same time, it can also improve the heat dissipation effect of the heat dissipation guide plate 14 after heat conduction, and accelerate the heat dissipation efficiency of the base station communicator body 1 .

Specifically, both sides of the surface of the installation frame 7 are provided with a chute 8, and the inner wall of the chute 8 is slidably connected with a dust removal mechanism 10. The dust removal mechanism 10 includes a dust removal installation plate 1001, a hand-held pull plate 1002, and a limit slider. 1003 and the cleaning brush 1004, the cleaning mounting plate 1001 is slidably connected to the mounting frame 7, the hand-held pull plate 1002 is fixedly connected to the cleaning mounting plate 1001, and the limit slider 1003 is welded to the two sides of the cleaning mounting plate 1001 respectively. end, and the limit slider 1003 is slidably connected with the chute 8, and the dust removal scraper 1004 is installed on one side of the dust removal installation plate 1001, and the dust removal scraper 1004 is used in conjunction with the dustproof net 9.

In this embodiment, through the setting of the chute 8, the dust removal mechanism 10, the dust removal installation plate 1001, the hand-held pull plate 1002, the limit slider 1003 and the dust removal scraper 1004, it is possible to facilitate the attachment of the surface of the dustproof net 9 Dust is removed, the cleaning efficiency of the dust-proof net 9 is improved, convenience is provided for the user, and the effect of subsequent use of the dust-proof net 9 is improved.

Specifically, both sides of the installation groove 12 are installed with induction chips 19, the type of the induction chips 19 is a temperature identification sensor, and the two induction chips 19 are used in conjunction with the water cooling radiator 20 and the heat dissipation motor 15 respectively.

In this embodiment, through the setting of the induction chip 19, the temperature inside the cooling network 3 can be detected, and the temperature information can be transmitted to the water-cooled radiator 20, and the water-cooled radiator 20 can be started to work according to the temperature value, so as to improve communication with the base station. The heat dissipation effect of the device body 1.

Specifically, the bottom of the heat dissipation net 3 is fixedly connected with anti-skid struts 4, the number of anti-slip struts 4 is four, and the anti-slip struts 4 are located at the four corners of the heat dissipation net 3, and the bottom of the anti-slip struts 4 is provided with anti-slip stripes.

In this embodiment, through the setting of the anti-slip pillar support 4, the frictional force between the cooling net 3 and the ground can be improved, the stability of the base station communicator body 1 during use can be improved, and the stability of the base station communicator body 1 during the working process can be improved. protective effect in .

Specifically, the surface on one side of the cooling net 3 is provided with mounting screw holes 11, and the number of mounting screw holes 11 is two, and the surface on one side of the base station communicator body 1 is provided with mounting bolts 6, and the number of mounting bolts 6 is Two, and the mounting bolts 6 are used in conjunction with the mounting screw holes 11.

In this embodiment, through the setting of the mounting screw holes 11 and the mounting bolts 6, it is convenient to install or disassemble the heat dissipation net 3 and the base station communicator body 1, which is beneficial to the later maintenance of the heat dissipation net 3 and provides convenience for users. Save time at work.

When in use, first set the temperature at which the water-cooled radiator 20 starts to work at a temperature value that the base station communicator body 1 can withstand under the use environment, and then through the cooperation of the mounting bolts 6 and the mounting screw holes 11, connect the heat dissipation net 3 to the base station. The communicator body 1 is installed and fixed, and then the power harness 5 is connected to the power supply. When the base station communicator body 1 continues to work, when the sensor chip 19 detects that the temperature of the base station communicator body 1 reaches a set value, the The temperature information is transmitted to the water-cooled radiator 20 and the heat dissipation motor 15, and then the heat dissipation motor 15 and the water-cooled radiator 20 are started to work simultaneously, and the heat dissipation motor 15 drives the heat dissipation blades 16 to rotate to discharge the heat conducted by the heat dissipation guide plate 14. The surface of the base station communicator body 1 is continuously dissipated by driving the condensation pipe 13 until the temperature is controlled below the set temperature. When there is too much dust on the surface of the dust-proof net 9, the dust removal installation plate is driven by pulling the hand-held pull plate 1002 1001 and the dust removal scraper 1004 move, then the dust removal scraper 1004 scrapes off the dust on the surface of the dustproof net 9, the limit slider 1003 slides in the chute 8, and pulls the dust removal mechanism 10 back and forth until the dust Clearing is complete.

The above is only a preferred embodiment of the utility model, but the scope of protection of the utility model is not limited thereto. The equivalent replacement or change of the new technical solution and the concept of the utility model shall be covered by the protection scope of the utility model.

Claims (6)

1. An intelligent heat dissipation device for a communication base station, characterized in that it includes a base station communicator body (1), a protective shell (2) is provided on one side of the base station communicator body (1), and the protective shell (2) ) is installed with a heat dissipation net (3), and the surface of one side of the heat dissipation net (3) is equipped with an installation frame (7), and the number of installation frames (7) is two, and the installation frame (7) One side is fixedly connected with a heat dissipation guide plate (14), and one end of the heat dissipation guide plate (14) is connected to the surface of the base station communicator body (1), the surface of the heat dissipation guide plate (14) is installed with a mounting seat (18), the A heat dissipation motor (15) is installed on the surface of the mounting base (18), the output end of the heat dissipation motor (15) is fixedly connected with a heat dissipation blade (16), and the inner wall of the protective shell (2) is provided with a mounting groove (12) , a water-cooled radiator (20) is installed in the installation groove (12), the surface of the water-cooled radiator (20) is connected with a condensation pipe (13), and one side of the heat dissipation net (3) is connected with two The power wire harness (5), and the two power wire harnesses (5) are electrically connected to the water-cooled radiator (20) and the cooling motor (15) respectively. 2. The intelligent heat dissipation equipment for communication base stations according to claim 1, characterized in that: a dust-proof net (9) is installed on one side of the installation frame (7), and the surface of the heat dissipation guide plate (14) Air holes (17) are provided, and the number of air holes (17) is several. 3. An intelligent cooling device for communication base stations according to claim 2, characterized in that: both sides of the surface of the installation frame (7) are provided with chute (8), and the chute (8) The inner wall is slidingly connected with a dust removal mechanism (10), which includes a dust removal installation plate (1001), a hand-held pull plate (1002), a limit slider (1003) and a dust removal scraper (1004) , the cleaning mounting plate (1001) is slidably connected to the mounting frame (7), the hand-held pull plate (1002) is fixedly connected to the cleaning mounting plate (1001), and the limit sliders (1003) are respectively It is welded to both ends of the dust removal installation plate (1001), and the limit slider (1003) is slidingly connected with the chute (8). The dust removal scraper (1004) is installed on one side of the dust removal installation board (1001). side, and the dust-cleaning scraper (1004) is used in conjunction with the dust-proof net (9). 4. The intelligent cooling device for communication base stations according to claim 1, characterized in that: induction chips (19) are installed on both sides inside the installation groove (12), and the induction chips (19) The type is a temperature identification sensor, and two induction chips (19) are respectively used in conjunction with a water-cooled radiator (20) and a heat dissipation motor (15). 5. The intelligent heat dissipation equipment for communication base stations according to claim 1, characterized in that: the bottom of the heat dissipation net (3) is fixedly connected with an anti-skid pillar (4), and the anti-skid pillar (4) The number is four, and the anti-skid pillars (4) are located at the four corners of the cooling net (3), and the bottom of the anti-skid pillars (4) is provided with anti-skid stripes. 6. An intelligent heat dissipation device for communication base stations according to claim 1, characterized in that: the surface of one side of the heat dissipation net (3) is provided with mounting screw holes (11), and the mounting screw holes (11) The number is two, the surface of one side of the base station communicator body (1) is provided with mounting bolts (6), the number of the mounting bolts (6) is two, and the mounting bolts (6) and the mounting screw holes (11) Used together.
