CN218843469U - Curtain wall installation embedded parts - Google Patents

Abstract

The utility model discloses a pre-embedded part for installing a curtain wall, which includes a pre-embedded board; a fixed part is rotatably connected to the central position of one end of the pre-buried board; Protective shell; the utility model adopts an adjustment plate, an adjustment groove, a rotating rod and a bolt structure to correct the offset fixing part. The fixing part is rotated through the rotating rod to maintain the normal position, and then the screw thread is in the rotation process of the fixing part. The inside of the adjustment slot is moved. When the position of the fixing part is corrected, the nut is fixed to the surface of the bolt through the thread structure, and then the fixing part is fixed, so as to avoid the deviation of the installation frame during the installation process, so that the installation frame can be installed in the process of installing the curtain wall. Normal installation and fixation in the middle, so as to improve the installation effect of the curtain wall.

Description

Curtain wall installation embedded parts

technical field

The utility model relates to the technical field of curtain wall installation, in particular to a pre-embedded part for curtain wall installation.

Background technique

The curtain wall is the outer wall enclosure of the building. It is not load-bearing and hangs up like a curtain, so it is also called "curtain wall". It is a light-weight wall with decorative effects commonly used in modern large-scale and high-rise buildings. The system is composed of a building envelope or decorative structure that can have a certain displacement capacity relative to the main structure or itself has a certain deformation capacity, and does not bear the role of the main structure. Therefore, it is first necessary to fix the embedded parts in the process of installing the curtain wall. wall surface.

When the pre-buried pre-embedded parts are installed before the curtain wall is installed and fixed, they are usually installed inside the wall during the wall pouring process, and the fixing of the wall during the fixing process of the pre-embedded parts can easily cause the pre-embedded parts to shift. When fixing the curtain wall installation frame through the embedded parts, the fixing parts on the surface of the embedded parts are usually used for fixed installation with the installation frame, and the fixing parts are usually fixed on the surface of the embedded parts by welding when fixing, so When there is a deviation during the installation of the embedded parts, it will cause the fixing parts to shift, which will cause the fixing of the installation frame to shift, resulting in problems during the installation of the curtain wall;

When the fixed parts on the surface of the embedded parts are fixedly connected with the mounting frame, bolts are usually used for fixed connection, and when bolts are used for fixed connection, the bolts will be exposed to the air for a long time, and the water vapor in the air will affect the surface of the bolts. Corrosion causes the bolts to be damaged during long-term use. Therefore, when bolts are used for fixed connections, the service life of the bolts exposed to the air for a long time will be shortened, which will affect the connection between the fixture and the mounting frame. .

Utility model content

The purpose of this utility model is to provide curtain wall installation embedded parts, in order to solve the problems raised in the above-mentioned background technology.

The utility model provides the following technical scheme: the curtain wall is equipped with pre-embedded parts, including a pre-embedded board; one end of the pre-embedded board is rotatably connected to a fixing part, and the bottom end of the fixing part is rotatably connected to a supporting shell, and the fixing part There is a protective shell on the side;

An adjustment plate is fixedly installed on the side of the embedded plate, and an adjustment groove is provided on the side of the adjustment plate. One end of the fixing piece is located inside the adjustment plate and a rotating rod is provided for rotation connection. One end side of the fixing piece runs through the adjustment groove and is fixedly installed. with bolts;

The front of the protective shell is slidably connected with a moving plate, the opposite sides of the moving plate are provided with sliders, the front of the protective shell is provided with a chute slidingly connected with the slider, and the bottom end of the moving plate is provided with a rubber block. The bottom end of the protective shell is provided with a sealing groove which is engaged and sealed with the moving plate.

Preferably, a pre-embedded rod is fixedly installed in the center of the opposite side of the pre-embedded board, and the pre-embedded board is fixed on the surface of the wall through the pre-embedded rod.

Preferably, one end of the supporting shell is rotatably connected with a threaded rod, and the other end of the supporting shell is rotatably mounted with a rotating block.

Preferably, a rotating projection is provided at the center of one end of the supporting shell, a rotating groove is provided on the side of the rotating block to be rotatably connected to the rotating projection, and a fixed block is rotatably connected to the threaded rod and one end of the rotating block.

Preferably, the rotating block to which one end of the threaded rod is rotatably connected is fixedly installed on the surface of the embedded plate, and the fixed block to which one end of the rotating block is rotatably connected is fixedly installed to the bottom end of the fixing member.

Preferably, a fixing hole is provided on the side of the fixing member, and a sealing rubber ring is provided on the inner side of the fixing member on the surface of the fixing hole.

Compared with the prior art, the beneficial effects of the utility model are:

1. The utility model adopts an adjustment plate, an adjustment groove, a rotating rod and a bolt structure to correct the offset fixed part. The fixed part is rotated by the rotating rod to maintain the normal position, and then the thread is adjusted during the rotation of the fixed part. The inside of the groove is moved. When the position of the fixing part is corrected, the nut is fixed to the surface of the bolt through the thread structure, and then the fixing part is fixed, so as to avoid the deviation of the installation frame during the installation process, so that the installation frame can be installed in the process of installing the curtain wall. Perform normal installation and fixation to improve the installation effect of the curtain wall.

2. The utility model adopts a protective shell, a moving plate, a chute and a slider structure to realize the protection of the fixedly connected bolts. After the fixing part and the mounting frame are fixedly connected by using the connecting part, the moving block will pass through the slider Move on the surface of the chute, so that the moving block completely covers the connecting piece, thus avoiding the external water vapor from corroding the surface of the connecting piece, so that the bolts are fully protected, thereby prolonging the service life of the connecting piece.

Description of drawings

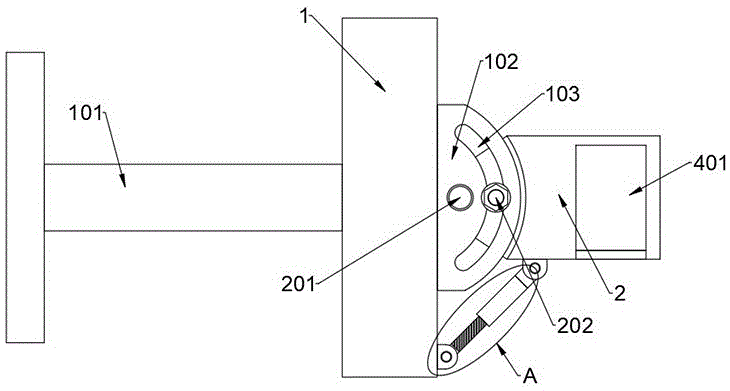

Fig. 1 is the front view of the utility model;

Fig. 2 is the main sectional view of the utility model;

Fig. 3 is a side sectional view of the utility model;

Fig. 4 is the enlarged sectional view of A in Fig. 1 of the present utility model;

Fig. 5 is an enlarged sectional view of B in Fig. 3 of the present invention.

In the figure: 1, embedded plate; 101, embedded rod; 102, adjusting plate; 103, adjusting groove; 2, fixing piece; 201, rotating rod; 202, bolt; 203, fixing hole; 204, sealing rubber ring; 3, supporting shell; 301, threaded rod; 302, rotating block; 303, fixed block; 304, rotating bump; 305, rotating groove; 4, protective shell; 401, moving plate; 402, sliding block; 403, sliding Groove; 404, rubber block; 405, sealing groove.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

In the description of the present utility model, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "both ends", "one end", "another end" The orientation or positional relationship indicated by ", etc. is based on the orientation or positional relationship shown in the drawings, which is only for the convenience of describing the utility model and simplifying the description, rather than indicating or implying that the device or element referred to must have a specific orientation, so as to Specific orientation configurations and operations, therefore, should not be construed as limitations on the invention. In addition, the terms "first" and "second" are used for descriptive purposes only, and should not be understood as indicating or implying relative importance.

In the description of the present utility model, it should be noted that, unless otherwise specified and limited, the terms "installed", "set with", "connected", etc. should be understood in a broad sense, such as "connected", which can be a fixed The connection can also be a detachable connection or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection or an indirect connection through an intermediary, and it can be the internal communication of two components. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present utility model in specific situations.

The technical solution of the utility model will be further elaborated below in conjunction with the drawings and specific embodiments of the description.

Embodiment one:

The curtain wall installation embedded parts provided by this application include the embedded board 1; the central position of one end of the embedded board 1 is rotatably connected with the fixing part 2, and the bottom end of the fixing part 2 is rotatably connected with the supporting shell 3, and the side of the fixing part 2 is provided with With protective shell 4;

An adjustment plate 102 is fixedly installed on the side of the embedded plate 1, and an adjustment groove 103 is provided on the side of the adjustment plate 102. One end of the fixing member 2 is located inside the adjustment plate 102 and a rotating rod 201 is provided for rotation connection. One end of the fixing member 2 runs through the side The adjusting groove 103 is fixedly installed with bolts 202;

Specifically, as shown in Fig. 1 and Fig. 2, when in use, when the pre-embedded board 1 is pre-embedded, the fixing part 2 on the front of the pre-embedded board 1 is rotated inside the adjustment board 102 through the rotating rod 201, At the same time, the bolt 202 moves inside the adjustment groove 103. After the fixing part 2 is adjusted and corrected, the nut is installed on the surface of the bolt 202 through the threaded structure, so that the fixing part 2 can be installed stably, thus avoiding the deviation of the mounting frame during the installation process. Move, so that the installation frame can be installed and fixed normally during the installation of the curtain wall, thereby improving the installation effect of the curtain wall.

Further, a pre-embedded rod 101 is fixedly installed at the central position on the opposite side of the pre-embedded board 1, and the pre-embedded board 1 is fixed on the surface of the wall through the pre-embedded rod 101;

Specifically, as shown in FIG. 1 , when the embedded panel 1 is installed, the embedded rod 101 is placed inside the wall, so that the embedded panel 1 is installed on the surface of the wall.

Further, one end of the supporting shell 3 is rotatably connected with a threaded rod 301, and the other end of the supporting shell 3 is rotatably equipped with a rotating block 302; The rotation groove 305 that the bump 304 is rotatably connected, the threaded rod 301 and one end of the rotatable block 302 are rotatably connected with a fixed block 303; 302, a fixed block 303 that is rotatably connected at one end is fixedly installed on the bottom end of the fixing member 2;

Specifically, as shown in Fig. 1, Fig. 2 and Fig. 4, when the position of the fixing part 2 is adjusted, the supporting shell 3 installed between the embedded plate 1 and the fixing part 2 is fixed by the rotating block 302, and the The surface of the threaded rod 301 rotates, and at the same time, the rotating lug 304 at one end of the supporting shell 3 rotates inside the rotating groove 305 , so that the supporting shell 3 can be adjusted and supported following the fixing member 2 .

Further, the side of the fixing part 2 is provided with a fixing hole 203, and the inner side of the fixing part 2 is provided with a sealing rubber ring 204 on the surface of the fixing hole 203;

Specifically, as shown in FIG. 1 , when the mounting frame is placed in the middle of the fixing part 2, the sealing rubber ring 204 on the surface of the fixing hole 203 first closely fits the side of the mounting frame to avoid air contact with the surface of the connecting part after installation.

The difference from the first embodiment is that the utility model also provides the second embodiment, which is used to solve the problem that when the fixing parts on the surface of the above-mentioned embedded parts are fixedly connected with the installation frame, bolts are usually used for fixed connection, while bolts are used to fix the connection. When a fixed connection is made, the bolt will be exposed to the air for a long time, and the water vapor in the air will cause corrosion on the surface of the bolt, causing damage to the bolt during long-term use. Therefore, when the bolt is used for a fixed connection, long-term exposure Bolts in the air will have a shortened service life, thereby affecting the connection effect between the fixed parts and the mounting frame. The application discloses the embedded parts for curtain wall installation. The reverse side both sides of 401 are provided with slide block 402, and the front of protective shell 4 is provided with the chute 403 that is slidably connected with slide block 402, and the bottom end of mobile plate 401 is provided with rubber block 404, and the bottom end of protective shell 4 is provided with and The sealing groove 405 in which the moving plates 401 are locked and sealed with each other;

Specifically, as shown in Fig. 1, Fig. 2, Fig. 3 and Fig. 5, after the connecting part fixes the fixed part 2 and the installation frame, the moving plate 401 is moved on the surface of the chute 403 through the slider 402 until it moves The rubber block 404 at the bottom of the plate 401 is inserted into the corresponding sealing groove 405 at the bottom of the protective shell 4, so as to prevent external water vapor from corroding the surface of the connector, so that the connector is fully protected, thereby prolonging the service life of the connector.

Working principle: When in use, first rotate the fixing part 2 through the rotating rod 201, so that the position of the fixing part 2 meets the needs of fixed connection with the installation frame, and then install it on the surface of the bolt 202 through the nut, and support it through the supporting shell 3 at the same time , so that the fixing part 2 is prevented from being offset and cannot be fixedly connected with the mounting frame. At the same time, when using the connecting part to fix the mounting frame inside the fixing part 2, the two ends of the connecting part are covered by the protective shell 4 and the moving plate 401, At the same time, the rubber block 404 and the sealing groove 405 are used for sealing, so as to prevent the water vapor in the air from corroding the surface of the connecting piece.

Finally, it should be noted that the above specific embodiments are only used to illustrate the technical solutions of the utility model without limitation. Although the utility model has been described in detail with reference to the embodiments, those of ordinary skill in the art should understand that the utility model can be understood Modifications and equivalent replacements of the technical solutions without departing from the spirit and scope of the technical solutions of the utility model shall be covered by the claims of the utility model.

Claims (6)

1. The curtain wall mounting embedded part comprises an embedded plate (1); the method is characterized in that: a fixing piece (2) is rotatably connected to the center of one end of the embedded plate (1), a supporting shell (3) is rotatably connected to the bottom end of the fixing piece (2), and a protective shell (4) is arranged on the side face of the fixing piece (2);

an adjusting plate (102) is fixedly installed on the side face of the embedded plate (1), an adjusting groove (103) is formed in the side face of the adjusting plate (102), a rotating rod (201) which is rotatably connected is arranged at one end of the fixing member (2) and located in the adjusting plate (102), and a bolt (202) is fixedly installed on the side face of one end of the fixing member (2) in a penetrating mode through the adjusting groove (103);

the front side of the protective shell (4) is connected with a movable plate (401), sliding blocks (402) are arranged on two sides of the back side of the movable plate (401), sliding grooves (403) which are connected with the sliding blocks (402) in a sliding mode are formed in the front side of the protective shell (4), rubber blocks (404) are arranged at the bottom end of the movable plate (401), and sealing grooves (405) which are connected with the movable plate (401) in a clamping and sealing mode are formed in the bottom end of the protective shell (4).

2. The curtain wall mounting embedment of claim 1, wherein: the embedded plate is characterized in that an embedded rod (101) is fixedly installed in the center of the back surface of the embedded plate (1), and the embedded plate (1) is fixed on the surface of a wall body through the embedded rod (101).

3. The curtain wall mounting embedment of claim 1, wherein: one end of the supporting shell (3) is rotatably connected with a threaded rod (301), and the other end of the supporting shell (3) is rotatably provided with a rotating block (302).

4. The curtain wall mounting embedment of claim 1, wherein: the supporting shell is characterized in that a rotating lug (304) is arranged at the center of one end of the supporting shell (3), a rotating groove (305) rotatably connected with the rotating lug (304) is formed in the side face of the rotating block (302), and a fixing block (303) is rotatably connected with one end of the threaded rod (301) and one end of the rotating block (302).

5. The curtain wall mounting embedment of claim 3, wherein: and a rotating block (302) with one end of the threaded rod (301) rotatably connected is fixedly arranged on the surface of the embedded plate (1), and a fixed block (303) with one end of the rotating block (302) rotatably connected is fixedly arranged at the bottom end of the fixed part (2).

6. The curtain wall mounting embedment of claim 1, wherein: the side of the fixing piece (2) is provided with a fixing hole (203), and the inner side of the fixing piece (2) is provided with a sealing rubber ring (204) on the surface of the fixing hole (203).
