Abstract

The application relates to a recyclable environmental protection water washing pool produced by electroplating, which includes: a pool body, on which a water inlet pipe, an outlet pipe, and a drain pipe are arranged; a circulation filter assembly, which includes a connecting pipe, a filter element, and a water pump, and The two ends of the connecting pipe are respectively connected to the water inlet pipe and the water outlet pipe, and the filter element and the water pump are both arranged on the connecting pipe; the leaking net is arranged on the end of the connecting pipe near the water outlet pipe; the collection box is detachably arranged on the outlet pipe At the lower end, the collection box is located below the leaking net; when the application filters and recycles the water source, some larger impurities and dirt will fall and settle in the collection box with the action of gravity, and avoid large pieces of dirt through the leaking net. Impurities and dirt enter the connecting pipe, so as to prevent larger impurities and dirt from entering the filter element through the connecting pipe, causing the filter element to be clogged and affecting the filtration efficiency and water discharge effect of the filter element, so that the staff does not need to frequently disassemble and assemble the filter element Maintenance, strong practicability.

Description

A recyclable and environmentally friendly washing pool for electroplating production

technical field

The application relates to the technical field of electroplating production, in particular to a recyclable and environmentally friendly washing pool for electroplating production.

Background technique

At present, because the electroplating process has high requirements on the surface cleanliness of the workpiece, the workpiece needs to be cleaned in a washing pool before electroplating. In order to ensure the cleanliness of the workpiece cleaning, the workpiece is usually cleaned with flowing water. Then the cleaned water flows directly out of the waste water outlet, but this cleaning method will waste a lot of water resources, so some manufacturers will install water pipes, water pumps and filter elements on the washing tank, and the water in the washing tank will continue to flow through the water pump. The cleaning water is filtered, so that the water in the washing pool can flow continuously and be recycled, which is more environmentally friendly.

However, in the actual production process, since the workpiece may be contaminated with various impurities and dirt, after cleaning, these impurities and dirt will enter the filter element with the water flow, although the filter element can remove the impurities and dirt in the water. However, some larger impurities and dirt can easily enter the filter element and block it during the filtration process, thereby affecting the filtration efficiency of the filter element and the water outlet effect, which requires the staff to frequently disassemble and assemble the filter element Clean, very inconvenient.

In view of the problems referred to above, a kind of electroplating production recyclable environment-friendly washing pool is designed now.

Utility model content

The embodiment of the present application provides a recyclable and environmentally friendly water washing pool produced by electroplating to solve the problem that the filter element in the related art is easily blocked by large impurities and dirt in the process of filtering clean water, thereby affecting the filtration efficiency and water output effect of the filter element. The staff frequently disassembles and cleans the filter element.

In the first aspect, a kind of electroplating production recyclable environmental protection washing pool is provided, which includes:

A pool body, the pool body is provided with a water inlet pipe, a water outlet pipe and a drain pipe;

A circulating filter assembly, which includes a connecting pipe, a filter element and a water pump, the two ends of the connecting pipe are respectively connected to the water inlet pipe and the water outlet pipe, and the filter element and the water pump are all arranged on the connecting pipe;

The leaking net is arranged at the end of the connecting pipe close to the outlet pipe;

The collection box is detachably arranged at the lower end of the water outlet pipe, and the collection box is located under the leakage net.

In some embodiments, the water inlet pipe is arranged at the upper end of one side of the pool body, and the water outlet pipe is arranged at the lower end of the other side of the pool body.

In some embodiments, the outlet pipe includes a first pipe body, a second pipe body and a valve, the first pipe body is arranged at the lower end of the pool body, the first pipe body is connected to a connecting pipe, and the leaking net is provided In the first pipe body, the valve is arranged at the lower end of the first pipe body, the second pipe body is arranged at the lower end of the valve, and the collection box is detachably connected with the second pipe body.

In some embodiments, the outer side of the lower end of the second pipe body is provided with external threads;

The inside of the upper end of the collection box is provided with an internal thread, and the internal thread is threadedly connected with the external thread.

In some embodiments, the outer wall of the collection box is provided with anti-skid lines.

In some embodiments, the sieve is hemispherical.

In some embodiments, a cleaning assembly is also included. The cleaning assembly includes a scraper, a rotating shaft and a handle. In the tube body, the rotating shaft is connected with the scraper, and the handle is arranged on the rotating shaft.

The embodiment of this application provides a recyclable and environmentally friendly water washing pool produced by electroplating. When the water source is filtered and recycled, some larger impurities and dirt will fall with gravity and slowly settle in the collection box. , and prevent the larger impurities and dirt from entering the connecting pipe through the leaking net, so as to prevent the larger impurities and dirt from entering the filter element through the connecting pipe, causing the filter element to be clogged and affecting the filtration efficiency of the filter element and the water outlet effect, so that it will not It is necessary for the staff to frequently disassemble and maintain the filter element. At the same time, during use, the user can disassemble the collection box from the outlet pipe for cleaning, so as to avoid excessive impurities and dirt in the collection box from blocking the connecting pipe, which is convenient. used.

Description of drawings

In order to more clearly illustrate the technical solutions in the embodiments of the present application, the drawings that need to be used in the description of the embodiments will be briefly introduced below. Obviously, the drawings in the following description are only some embodiments of the present application. For those skilled in the art, other drawings can also be obtained based on these drawings without creative effort.

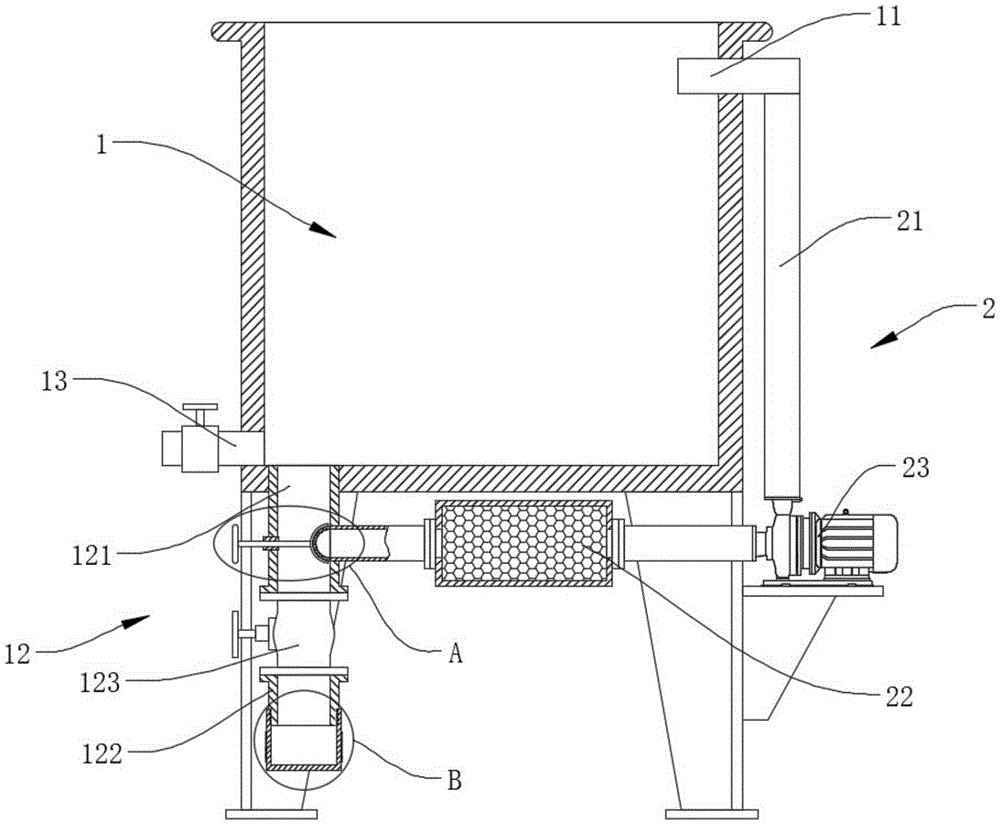

Fig. 1 is the schematic structural diagram that the embodiment of the present application provides;

Figure 2 is a schematic diagram of the enlarged structure at A in Figure 1 provided by the embodiment of the present application;

FIG. 3 is a schematic diagram of an enlarged structure at B in FIG. 1 provided by an embodiment of the present application.

In the figure: 1, pool body; 11, water inlet pipe; 12, water outlet pipe; 121, first pipe body; 122, second pipe body; 123, valve; 13, drain pipe; 2, circulation filter assembly; 21, connection Tube; 22, filter element; 23, water pump; 3, leaking net; 4, collection box; 5, external thread; 6, internal thread; 7, anti-slip pattern; 8, cleaning component; 81, scraper; handle.

Detailed ways

In order to make the purposes, technical solutions and advantages of the embodiments of the present application clearer, the technical solutions in the embodiments of the present application will be clearly and completely described below in conjunction with the drawings in the embodiments of the present application. Obviously, the described embodiments It is a part of the embodiments of this application, but not all of them. Based on the embodiments in the present application, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the protection scope of the present application.

The embodiment of the present application provides a recyclable and environmentally friendly water washing pool produced by electroplating, which can solve the problem that the filter element in the related art is easily blocked by large impurities and dirt during the process of filtering clean water, which in turn affects the filtration efficiency of the filter element and the water output effect. , requires staff to frequently disassemble and clean the filter element.

Please refer to Fig. 1-Fig. 3, a kind of recyclable environment-friendly water washing pool produced by electroplating, which includes: pool body 1, circulation filter assembly 2, leaking net 3 and collection box 4, said pool body 1 is provided with water inlet pipe 11, outlet A water pipe 12 and a drain pipe 13, the drain pipe 13 is provided with a switch, so that when the switch is turned on, the water in the pool body 1 can be discharged through the drain pipe 13;

The circulating filter assembly 2 includes a connecting pipe 21, a filter element 22 and a water pump 23, the two ends of the connecting pipe 21 are respectively connected to the water inlet pipe 11 and the water outlet pipe 12, and the filter element 22 and the water pump 23 are all arranged on the connecting pipe 21 ;

In this way, when cleaning the workpiece between electroplating, the staff can put the workpiece into the pool body 1, then start the water pump 23, and the water in the pool body 1 is drawn into the connecting pipe 21 from the outlet pipe 12 by the water pump 23, Finally, water is re-flowed into the pool body 1 through the water inlet pipe 11, so that the water in the pool body 1 flows continuously, so that the workpiece can be washed by the continuously flowing water, and the impurities and dirt adhered to the workpiece are washed by the flowing water at the same time. After washing down, it will enter the connecting pipe 21 along the water flow, so that the sewage can be filtered through the filter element 22 on the connecting pipe 21, so that the water through the filter element 22 can be kept clean, so that the sewage can be continuously treated by the filter element 22. Filtering is carried out, and at the same time, the water inlet pipe 11 continuously flows into the pool body 1. During use, the staff only needs to clean the filter element 22 from time to time;

In this way, when cleaning the workpiece, the clean water source can be used to rinse the workpiece all the time, and at the same time, the water in the pool body 1 can be continuously circulated, so that the waste of water resources can be reduced and the environment is more environmentally friendly;

Described leaking net 3 is arranged on connecting pipe 21 near one end of water outlet pipe 12, and described collecting box 4 is detachably arranged on the lower end of water outlet pipe 12, and described collecting box 4 is positioned at the below of leaking net 3, and when workpiece is cleaned like this, Because the collection box 4 is located at the lower end of the water outlet pipe 12, after some larger impurities and dirt enter the water outlet pipe 12, they will fall with gravity and slowly settle in the collection box 4. Preliminary filtration is carried out to prevent the larger impurities and dirt from entering the connecting pipe 21, so that the larger impurities and dirt can be prevented from entering the filter element 22 through the connecting pipe 21, causing the filter element 22 to block and affect the filtration efficiency of the filter element 22 and Water outlet effect, so that the staff does not need to frequently disassemble and maintain the filter element 22, which is convenient for use;

At the same time, in the process of sewage flowing into the outlet pipe 12, some impurities and dirt accumulated on the leaky net 3 can be washed away, so that the device can always automatically clean the leaky net 3 in the process of circulating filtered water, thereby avoiding the leaky net 3. The filter efficiency is affected by the clogging of impurities and dirt, and the practicability is strong;

During use, the user can disassemble the collection box 4 from the outlet pipe 12, and then clean up the impurities and dirt accumulated in the collection box 4. After the cleaning is completed, install the collection box 4 on the outlet pipe 12 That is, in this way, too much impurity and dirt in the collection box 4 can be avoided from blocking the connecting pipe 21, which is convenient for use.

Wherein, the water inlet pipe 11 is arranged at the upper end of one side of the pool body 1, and the outlet pipe 12 is arranged at the lower end of the other side of the pool body 1, so that the water pump 23 is started so that the water in the pool body 1 is continuously discharged from the outlet. The water pipe 12 flows into the connecting pipe 21, and finally the water flows into the pool body 1 again through the water inlet pipe 11. The water inlet and outlet are carried out diagonally from the side, so that the flow effect of the water in the pool body 1 can be enhanced, and the washing effect on the workpiece can be enhanced, and the flow effect of impurities and dirt in the pool body 1 can be enhanced, so that the impurities and dirt can be removed in time. Precipitation and filtration prevent impurities and dirt from accumulating in the pool body 1 .

Specifically, in this embodiment, the outlet pipe 12 includes a first pipe body 121, a second pipe body 122 and a valve 123, the first pipe body 121 is arranged at the lower end of the pool body 1, and the first pipe body 122 Body 121 is connected with connecting pipe 21, and described leakage net 3 is arranged in the first pipe body 121, and described valve 123 is arranged at the lower end of first pipe body 121, and described second pipe body 122 is arranged at the lower end of valve 123, so The collection box 4 is detachably connected to the second pipe body 122;

In this way, during use, when the collection box 4 needs to be cleaned, the user can close the valve 123 to prevent water from continuing to enter the second pipe body 122, and then the user can remove the collection box 4 from the second pipe body 122 Remove it from the top and clean it, so that the pool body 1 can continue to run in the process of cleaning the collection box 4 without affecting the work of the pool body 1. After the collection box 4 is cleaned, the collection box 4 is installed in the second Two pipes 122, and then open the valve 123 to facilitate the use.

Please refer to Fig. 3, the outside of the lower end of the second pipe body 122 is provided with an external thread 5, the inside of the upper end of the collection box 4 is provided with an internal thread 6, and the internal thread 6 is threaded with the external thread 5, so that the staff Only need to rotate the collection box 4, so that the internal thread 6 on the collection box 4 cooperates with the thread of the external thread 5 on the second pipe body 122, the collection box 4 can be disassembled and cleaned, which is convenient for use.

Further, the outer wall of the collection box 4 is provided with anti-slip lines 7, which can increase the surface friction of the collection box 4, thereby facilitating the staff to twist the collection box 4, thus facilitating the disassembly and assembly of the collection box 4.

Preferably, the leaky net 3 is hemispherical, so that the surface area of the leaky net 3 can be increased relative to the planar leaky net 3, so that when the same amount of impurities and dirt are accumulated on the leaky net 3, the planar leaky net 3 is just very large. It is easy to be completely blocked, which affects the filtration efficiency, and the spherical filter screen 3 has a larger area. Therefore, when a part of the spherical filter screen 3 is blocked, the non-blocked part of the filter screen 3 can continue to filter water, so that it can be filtered as much as possible. It avoids the filter efficiency of the filter screen 3 from being completely blocked by impurities and dirt on the filter screen 3, and has strong practicability.

Please refer to FIG. 2 , the washing tank also includes a cleaning assembly 8, and the cleaning assembly 8 includes a scraper 81, a rotating shaft 82 and a handle 83. Fitted together, the rotating shaft 82 is rotatably arranged in the first pipe body 121, the rotating shaft 82 is connected with the scraper 81, and the handle 83 is arranged on the rotating shaft 82;

In use like this, the staff just can turn handle 83, and handle 83 drives rotating shaft 82 and scraper 81 to rotate, and scraper 81 is rotated on the surface of leaky net 3, and just can be adhered to leaky net 3 by scraper 81 like this. Impurities and dirt on the surface are scraped off to prevent the leakage screen 3 from being clogged by impurities and dirt to affect the filtration efficiency, which is convenient for use.

This application works as follows:

In the implementation process, when the workpiece is cleaned before electroplating, the water in the pool body 1 can be continuously circulated through the water pump 23 to rinse the workpiece, and the sewage can be filtered through the filter element 22, so that the water in the pool body 1 can be cleaned. The water is continuously recycled, and at the same time, during the cleaning process of the workpiece, after some large-scale impurities and dirt enter the outlet pipe 12, they will fall with gravity and slowly settle in the collection box 4. At the same time, the leakage net 3 can avoid Larger impurities and dirt enter the connecting pipe 21, causing the filter element 22 to block and affect the filtration efficiency and water discharge effect of the filter element 22, so that the staff does not need to frequently disassemble and maintain the filter element 22, which is convenient for use;

During use, the staff can turn the handle 83 to make the scraper 81 rotate on the surface of the filter screen 3, thereby scraping off the impurities and dirt adhering to the surface of the filter screen 3 through the scraper 81, so as to prevent the filter screen 3 from being blocked by impurities and dirt and affecting the filtration efficiency;

After the device is used for a long time, the user can close the valve 123, and then the collection box 4 is removed from the second pipe body 122 for cleaning. After the collection box 4 is cleaned, the collection box 4 is installed in the second pipe body On the body 122, then open the valve 123, so that the impurity and dirt in the collection box 4 can be avoided from blocking the connecting pipe 21 too much, which is convenient for use.

In the description of the present application, it should be noted that the orientation or positional relationship indicated by the terms "upper", "lower" and so on is based on the orientation or positional relationship shown in the drawings, and is only for the convenience of describing the present application and simplifying the description. It is not intended to indicate or imply that the device or element referred to must have a particular orientation, be constructed, or operate in a particular orientation, and thus should not be construed as limiting the application. Unless otherwise clearly specified and limited, the terms "installation", "connection" and "connection" should be interpreted in a broad sense, for example, it may be a fixed connection, a detachable connection, or an integral connection; it may be a mechanical connection, It can also be an electrical connection; it can be a direct connection, or an indirect connection through an intermediary, or an internal communication between two components. Those of ordinary skill in the art can understand the specific meanings of the above terms in this application according to specific situations.

It should be noted that in this application, relative terms such as "first" and "second" are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply There is no such actual relationship or order between these entities or operations. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device. Without further limitations, an element defined by the phrase "comprising a ..." does not exclude the presence of additional identical elements in the process, method, article or apparatus comprising said element.

The above descriptions are only specific implementation manners of the present application, so that those skilled in the art can understand or implement the present application. Various modifications to these embodiments will be readily apparent to those skilled in the art, and the general principles defined herein may be implemented in other embodiments without departing from the spirit or scope of the application. Therefore, the present application will not be limited to the embodiments shown herein, but is to be accorded the widest scope consistent with the principles and novel features claimed herein.

Claims (7)

1. An electroplating production recyclable environmental protection washing pool is characterized in that it comprises: A pool body (1), the pool body (1) is provided with a water inlet pipe (11), an outlet pipe (12) and a drain pipe (13); A circulating filter assembly (2), which includes a connecting pipe (21), a filter element (22) and a water pump (23), the two ends of the connecting pipe (21) are respectively connected to the water inlet pipe (11) and the water outlet pipe (12), The filter element (22) and the water pump (23) are all arranged on the connecting pipe (21); A leaking net (3), which is located at the end of the connecting pipe (21) close to the outlet pipe (12); The collection box (4) is detachably arranged at the lower end of the water outlet pipe (12), and the collection box (4) is located below the leaking net (3). 2. a kind of electroplating production as claimed in claim 1 recyclable environment-friendly washing pool, is characterized in that: The water inlet pipe (11) is arranged at the upper end of one side of the pool body (1), and the water outlet pipe (12) is arranged at the lower end of the other side of the pool body (1). 3. a kind of electroplating production as claimed in claim 2 recyclable environment-friendly washing pool, is characterized in that: The outlet pipe (12) includes a first pipe body (121), a second pipe body (122) and a valve (123), the first pipe body (121) is arranged at the lower end of the pool body (1), and the The first pipe body (121) is connected with the connecting pipe (21), the leaking net (3) is arranged in the first pipe body (121), and the valve (123) is arranged at the lower end of the first pipe body (121), The second pipe body (122) is arranged at the lower end of the valve (123), and the collection box (4) is detachably connected with the second pipe body (122). 4. a kind of electroplating production as claimed in claim 3 recyclable environment-friendly washing pool, is characterized in that: External threads (5) are provided on the outside of the lower end of the second pipe body (122); An internal thread (6) is provided on the inner side of the upper end of the collection box (4), and the internal thread (6) is threadedly connected with the external thread (5). 5. a kind of electroplating production as claimed in claim 4 recyclable environment-friendly washing pool, is characterized in that: The outer wall of the collection box (4) is provided with anti-slip lines (7). 6. a kind of electroplating production as claimed in claim 1 recyclable environment-friendly washing pool, is characterized in that: The leaking net (3) is hemispherical. 7. a kind of electroplating production as claimed in claim 6 recyclable environment-friendly washing pool, is characterized in that: Also comprise cleaning assembly (8), described cleaning assembly (8) comprises scraper (81), rotating shaft (82) and handle (83), and described scraper (81) is arc-shaped, and described scraper (81) Fitted with the curved surface of the leaking net (3), the rotating shaft (82) is rotated and arranged in the first pipe body (121), the rotating shaft (82) is connected with the scraper (81), and the handle (83) is set On the rotating shaft (82).
