Abstract

The utility model discloses a chest care belt for thoracic surgery, which comprises a bra body, which includes shoulder straps and back buckles. A breast support pocket is arranged on the front of the bra body, and a shielding part is movable on the breast support pocket. The connecting part of the breast support pocket is the turning area to keep turning over; there is a nylon belt connected between the breast support pocket and the back buckle, and the shoulder strap includes a first part connected to the breast support pocket at one end and a second part connected to the back buckle at one end. The ends of the first part and the second part are connected by Velcro so that the width of the nylon strap can be adjusted. The breast care belt for thoracic surgery provided by this utility model changes the strength of the breast support pocket against the female breast by changing the length of the first part and the second part, and the shielding part is used to shield the female nipple part, and the shielding part and The connection with the breast support pocket is used as the flipping area to keep flipping, so it can only play a role of shielding without squeezing women's nipples like a traditional bra.

Description

Chest care belt for thoracic surgery

technical field

The utility model relates to the technical field of medical appliance production, in particular to a chest care belt for thoracic surgery.

Background technique

Lactating women's breasts will become larger due to the secretion of milk, while traditional bras are basically gathered together, which is very unfriendly to breastfeeding women's breasts. After wearing it, it will squeeze the breasts for a long time, causing breastfeeding. Problems such as breast lumps in women.

Clinically, when encountering agglomeration problems, massage will be used to help resolve agglomerates, so as to avoid blockage and complications.

Utility model content

The purpose of this utility model is to provide a chest nursing belt for thoracic surgery, which is used to solve the above problems.

In order to achieve the above object, the utility model provides the following technical solutions: a breast care belt for thoracic surgery, including a bra body, which includes shoulder straps and back buckles, a breast support pocket is provided on the front of the bra body, and the breast support A shielding part is movable on the pocket, and the shielding part keeps turning over with the joint with the breast support pocket as the turning area;

A nylon belt is connected between the breast support pocket and the back buckle, and the shoulder strap includes a first part connected with the breast support pocket at one end and a second part connected with the back buckle at one end, the first The ends of the first part and the second part are connected by Velcro so that the width of the nylon strap can be adjusted.

Preferably, a covering cloth is movably arranged between the two second parts, and the covering cloth is used to cover the exposed breast support pockets.

Preferably, adhesive strips are provided on the breast support pocket, and both of the adhesive strips are connected to the covering cloth.

Preferably, the skin-friendly surface of the first part is provided with a protein sponge block.

Preferably, the skin-friendly surface of the shielding part is provided with a silicone cushion, and the silicone cushion is provided with a perforation completely penetrating the shielding part.

As a preference, a disposable plastic cover is bonded to the outer wall of the shielding part opposite to the side of the silicone cushion, a cavity is formed between the disposable plastic cover and the shielding part, and the disposable plastic A water-absorbing sponge with an arc-shaped structure is arranged on the side of the cover, and the water-absorbing sponge is located in the cavity.

In the above technical solution, the utility model provides a breast care belt for thoracic surgery, which has the following beneficial effects: by changing the length of the first part and the second part, the strength of the breast support pocket against the female breast can be changed, and the The part is used to cover the nipple part of the woman, and the cover part and the connection with the breast support pocket are kept turned over, so it can only play the role of cover without squeezing women like a traditional bra nipples.

Description of drawings

In order to more clearly illustrate the technical solutions in the embodiments of the present application or the prior art, the accompanying drawings required in the embodiments will be briefly introduced below. For some embodiments described, those skilled in the art can also obtain other drawings according to these drawings.

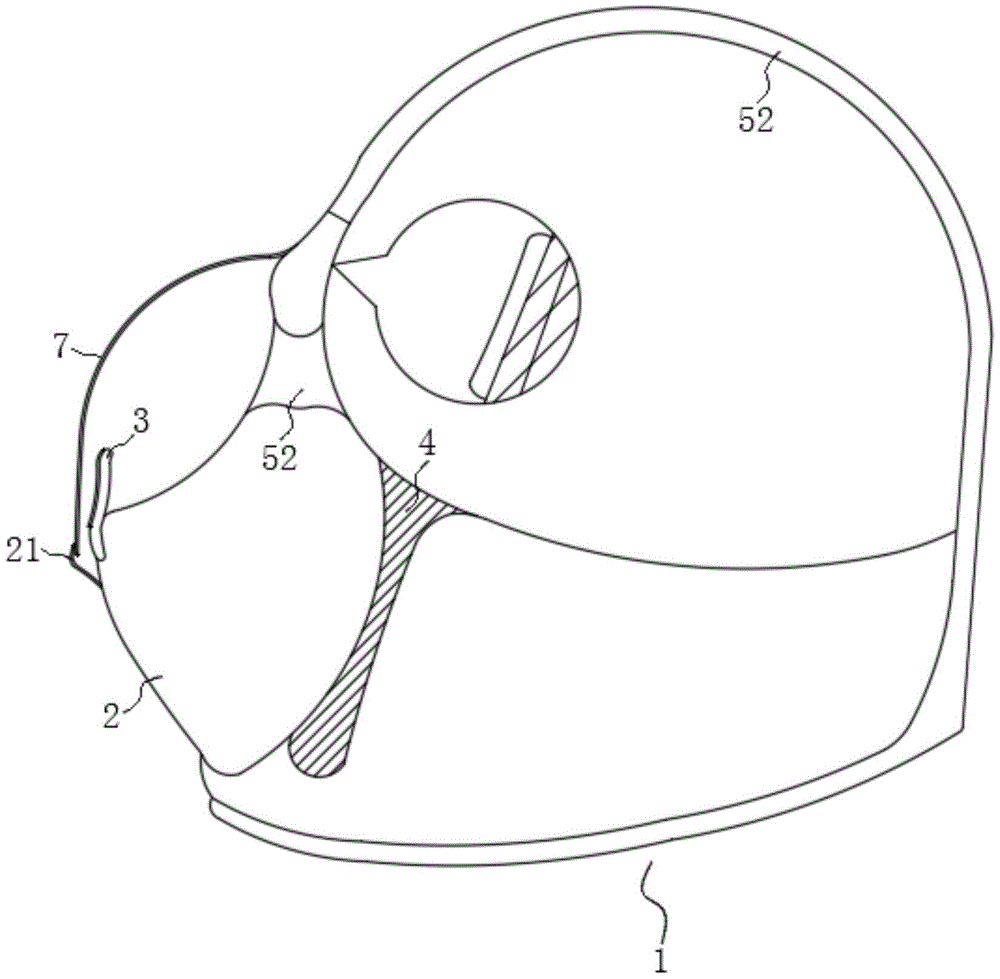

Fig. 1 is the structural representation of the pipe clip that the utility model embodiment provides;

Fig. 2 is a partial structural schematic diagram of the pipe clip provided by the embodiment of the present invention.

Explanation of reference signs:

1. Bra body; 2. Breast support pocket; 21. Adhesive tape; 3. Covering part; 31. Silicone cushion; 4. Nylon belt; 51. First part; 52. Second part; 6. Disposable plastic Covering; 61, water-absorbing sponge; 7, covering cloth; 100, perforation.

Detailed ways

In order to make those skilled in the art better understand the technical solution of the utility model, the utility model will be further introduced in detail below in conjunction with the accompanying drawings.

As shown in Figure 1-2, a breast care belt for thoracic surgery includes a bra body 1, which includes shoulder straps and back buckles. The front of the bra body 1 is provided with a breast support pocket 2. The shielding part 3, the shielding part 3 takes the connection with the breast support pocket 2 as the turning area to keep turning over;

A nylon strap 4 is connected between the breast support pocket 2 and the back buckle, and the shoulder strap includes a first part 51 connected to the breast support pocket 2 at one end and a second part 52 connected with the back buckle at one end, the first part 51 and the second The end of portion 52 is connected by Velcro so that the width of nylon strap 4 can be adjusted.

In the above technical solution, by changing the lengths of the first part 51 and the second part 52, the strength of the breast support pocket 2 against the breast of the woman can be changed, and the shielding part 3 is used to shield the nipple part of the woman, and the shielding part 3 and the breast The connecting part of the support pocket 2 is kept turning over for the turning area, so it can only play a role of shielding and does not happen, and it will not squeeze women's nipples like a traditional bra.

As yet another technical solution further provided by the present invention, as can be seen from FIG. 1 , a cover cloth 7 is movably arranged between the two second parts 52 , and the cover cloth 7 is used to cover the two exposed breast support pockets 2 . Moreover, the breast support pocket 2 is provided with adhesive tapes 21 , and the two adhesive tapes 21 are both connected to the shielding portion cloth 7 . Specifically, the shielding cloth 7 in the embodiment is bonded and fixed by Velcro, and wearing the above-mentioned breast care belt will not affect normal female breastfeeding.

As yet another technical solution further provided by the present invention, as can be seen from FIG. 1 , the skin-friendly surface of the first part 51 is provided with a protein sponge block. Specifically, the first part 51 is a skin-friendly part, while the second part 52 is far away. Adding protein sponge blocks can provide a good elastic contact, so as to prevent the first part 51 and the second part 52 from being squeezed after lamination and bonding. Pressing female breasts.

As another technical solution further provided by the present invention, as can be seen from FIG. 1 , the skin-friendly surface of the shielding part 3 is provided with a silicone cushion 31 , and the silicone cushion 31 is provided with a perforation 100 that completely penetrates the shielding part 3 . In addition, a disposable plastic cover 6 is bonded to the outer wall of the shielding part 3 relative to the side of the silicone cushion 31, a cavity is formed between the disposable plastic cover 6 and the shielding part 3, and an arc is provided on the side of the disposable plastic cover 6. The water-absorbing sponge 61 of shape structure, and the water-absorbing sponge 61 is positioned in the cavity. Specifically, in the above technical solution, the disposable plastic cover 6 is a disposable product, because the milk secretion of women during breastfeeding will overflow, and after wearing it, the nipple will pass through the perforation 100 and be inside the water-absorbing sponge 61 .

It should be noted that the radius of the perforation 100 in the above embodiment is 3 cm, so there will be no wear and tear on the nipple, and the silicone cushion 31 can also play a good positioning role.

Some exemplary embodiments of the present utility model have been described above only by way of illustration. Undoubtedly, for those skilled in the art, without departing from the spirit and scope of the present utility model, various Modifications are made to the described embodiments. Therefore, the above drawings and descriptions are illustrative in nature and should not be construed as limiting the protection scope of the claims of the present utility model.

Claims (4)

1. A thoracic surgery breast nursing belt comprises a bra body (1) and is characterized in that a breast supporting pocket (2) is arranged on the front side of the bra body (1), a shielding part (3) is movably arranged on the breast supporting pocket (2), and the shielding part (3) keeps turning by taking the joint with the breast supporting pocket (2) as a turning area;

a nylon belt (4) is connected between the breast supporting pocket (2) and the back buckle, the shoulder strap comprises a first part (51) with one end connected with the breast supporting pocket (2) and a second part (52) with one end connected with the back buckle, and the end parts of the first part (51) and the second part (52) are connected through a magic tape so that the width of the nylon belt (4) is adjustable;

a shielding part cloth (7) is movably arranged between the two second parts (52), and the shielding part cloth (7) is used for covering the two breast supporting pockets (2) to be exposed;

the breast supporting pocket (2) is provided with adhesive tapes (21), and the two adhesive tapes (21) are connected with the shielding portion cloth (7).

2. The thoracic surgical breast care band of claim 1, wherein the skin-friendly surface of the first portion (51) is provided with a protein sponge mass.

3. The thoracic surgery breast nursing belt as claimed in claim 1, wherein the skin-friendly surface of the shielding portion (3) is provided with a silicone cushion (31), and the silicone cushion (31) is provided with a through hole (100) which completely penetrates through the shielding portion (3).

4. The thoracic surgery breast nursing belt according to claim 3, wherein a disposable plastic cover (6) is bonded on the outer wall of the shielding portion (3) opposite to the side of the silica gel cushion (31), a cavity is formed between the disposable plastic cover (6) and the shielding portion (3), a water absorption sponge (61) with an arc structure is arranged on the side surface of the disposable plastic cover (6), and the water absorption sponge (61) is positioned in the cavity.
