CN218824447U - A hidden anti-aging electric meter box - Google Patents

Abstract

The utility model relates to the technical field of electric meter boxes, in particular to a hidden anti-aging electric meter box, which includes a wall, an electric meter box body and an electric meter box cabinet door. The front of the box body is fixed with a door of the meter box, and the front of the door of the meter box is fixed with a heat dissipation through hole, and the inner side of the door of the meter box is fixed with a mounting plate, and the mounting plate is fixed with a cooling fan. A solar battery panel is fixedly installed above the door of the electric meter box, and an alarm light is fixedly installed on one side of the solar battery panel. There are slots and limit slots on the top, the meter box is placed inside the slot, and the gap is blocked by the packaging board, and the plug is inserted into the limit slot for clamping, so that when the equipment is used, it can effectively reduce the It takes up less space, and it is more convenient and quick to install by clamping.

Description

A hidden anti-aging electric meter box

technical field

The utility model relates to the technical field of electric meter boxes, in particular to a hidden anti-aging electric meter box.

Background technique

There are many kinds of existing meter boxes, but most of them are only changes in style, and the meter box itself does not have much functional improvement. When the existing meter boxes are used, most of the meter boxes are installed outside the wall , takes up more space, and the meter box is easy to age, resulting in damage, easy leakage, and danger. Therefore, a hidden anti-aging meter box is needed to change the status quo.

In summary, the utility model solves the existing problems by designing a hidden anti-aging electric meter box.

Utility model content

The purpose of this utility model is to provide a hidden anti-aging electric meter box to solve the problems raised in the above-mentioned background technology.

In order to achieve the above object, the utility model provides the following technical solutions:

A concealed anti-aging electric meter box, comprising a wall, an electric meter box body and an electric meter box cabinet door, a packaging board is fixedly installed on the outside of the front end of the electric meter box body, and an electric meter box cabinet door is fixedly installed on the front side of the electric meter box body, The front of the meter box door is fixed with a heat dissipation through hole, the inner side of the meter box door is fixedly installed with a mounting plate, the installation plate is fixedly installed with a heat dissipation fan, and a solar energy fan is fixedly installed above the meter box door. A battery panel, an alarm light is fixedly installed on one side of the solar panel, a fixed frame is fixedly installed inside the meter box, components are fixedly installed on the fixed frame, and a rechargeable lithium battery is fixedly installed on the top of the fixed frame , a current sensor is fixedly installed on one side of the rechargeable lithium battery, a card slot is fixedly opened at the bottom of the meter box, an insert block is fixedly attached to the inside of the card slot, and the top of the insert block is fixedly installed with a limited position plate, and the top of the limiting plate is fixedly equipped with a pull buckle.

As a preferred solution of the present invention, the front of the wall is fixedly provided with a slot, the inner bottom of the slot is fixedly provided with a limiting slot, and the inside of the slot is fixedly equipped with an electric meter box.

As a preferred solution of the present utility model, the rechargeable lithium battery is respectively connected to the warning light, solar panel, cooling fan and current sensor through wires, and the connection mode is electrical connection, and the position of the cooling fan is located at the side of the cooling through hole. back.

As a preferred solution of the present invention, the position of the inserting block corresponds to the position of the limiting groove, and the size is just enough to be inserted.

As a preferred solution of the present invention, a limiting slide is provided at the joint between the insert block and the slot.

Compared with the prior art, the beneficial effects of the utility model are:

1. In the utility model, through the provided slots and limiting slots, when the equipment is in use, by opening the slots and limiting slots on the wall, the meter box is placed inside the slots, and the packaging board Cover the gap, and press the plug to insert into the limit slot for clamping, so that when the equipment is in use, it can effectively reduce the occupied space, and the installation by clamping is more convenient and quick.

2. In the utility model, through the heat dissipation fan and the heat dissipation through hole provided, when the equipment is in use, because the box is installed inside the wall, it is not easy to dissipate heat. The heat dissipation fan installed on the cabinet door and the heat dissipation through hole Holes guide the internal heat of the device to dissipate heat, so that the device has better heat dissipation when in use.

3. In this utility model, through the current sensor and the alarm light, after the equipment is used for a long time, the phenomenon of aging damage and leakage may occur. The current sensor installed inside is used to detect the inside. The alarm light sends out an alarm to remind personnel to pay attention and carry out maintenance, making it safer and more reliable.

Description of drawings

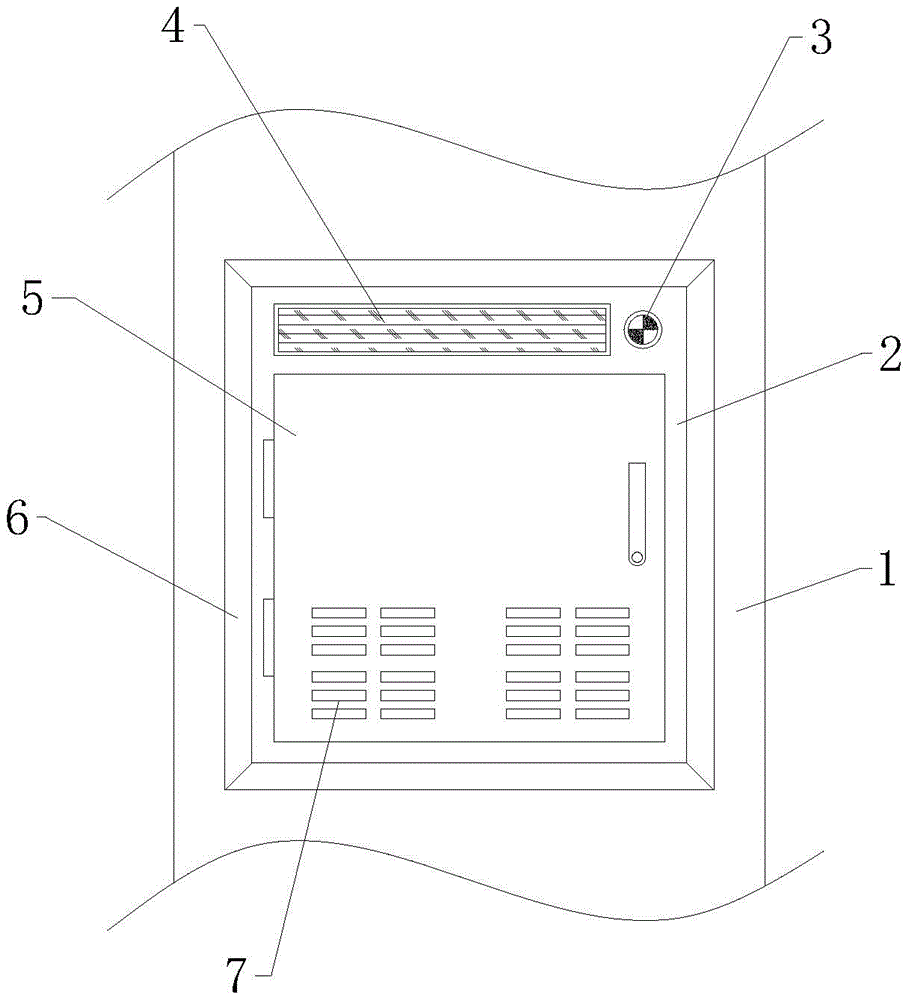

Fig. 1 is a schematic diagram of the overall structure of the utility model;

Fig. 2 is the internal structure diagram of the utility model;

Fig. 3 is a side view of the internal structure of the utility model.

In the figure: 1. Wall; 2. Electric meter box; 3. Alarm light; 4. Solar panel; 5. Electric meter cabinet door; Fan; 10, mounting plate; 11, card slot; 12, insert block; 13, limit plate; 14, pull buckle; 15, fixed frame; 16, current sensor; 17, rechargeable lithium battery; 18, slotting; 19, limit groove.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the embodiments of the present invention. Obviously, the described embodiments are only a part of the embodiments of the present invention, rather than all embodiments. Based on the present invention The embodiments in the utility model, and all other embodiments obtained by persons of ordinary skill in the art without creative efforts, all belong to the scope of protection of the utility model.

In order to facilitate the understanding of the utility model, the utility model will be described more fully below with reference to the relevant drawings, and several embodiments of the utility model are provided. However, the utility model can be realized in many different forms, and is not limited to The embodiments described herein, on the contrary, are provided for the purpose of making the disclosure of the present utility model more thorough and comprehensive.

It should be noted that when an element is said to be "fixed on" another element, it may be directly on the other element or there may be an intervening element, and when an element is said to be "connected" to another element, it may The terms "vertical", "horizontal", "left", "right" and similar expressions are used herein for the purpose of illustration only.

Unless otherwise defined, all technical and scientific terms used herein have the same meaning as commonly understood by those skilled in the technical field of the present invention, and the terms used in the description of the present invention herein are only to describe specific The purpose of the embodiment is not intended to limit the utility model, and the term "and/or" used herein includes any and all combinations of one or more related listed items.

Please refer to Figure 1-3, the utility model provides a technical solution:

A concealed anti-aging electric meter box, comprising a wall 1, an electric meter box body 2 and an electric meter box door 5, a packaging board 6 is fixedly installed on the outside of the front end of the electric meter box body 2, and an electric meter box cabinet is fixedly installed on the front of the electric meter box body 2 Door 5, the front of the meter box door 5 is fixed with a heat dissipation through hole 7, the inner side of the meter box door 5 is fixedly installed with a mounting plate 10, and the cooling fan 9 is fixedly installed on the mounting plate 10, and the top of the meter box door 5 is fixed. There is a solar panel 4, a warning light 3 is fixedly installed on one side of the solar panel 4, a fixed frame 15 is fixedly installed inside the ammeter box 2, and a component 8 is fixedly installed on the fixed frame 15, and a rechargeable battery is fixedly installed on the top of the fixed frame 15. Lithium battery 17, a current sensor 16 is fixedly installed on one side of the rechargeable lithium battery 17, a card slot 11 is fixedly provided at the inner bottom of the ammeter box 2, and an insert block 12 is fixedly attached to the inside of the card slot 11, and the top of the insert block 12 is fixedly installed There is a limiting plate 13, and a pull button 14 is fixedly installed on the top of the limiting plate 13.

Embodiment, referring to Fig. 1 and Fig. 2, a slot 18 is fixedly provided on the front of the wall body 1, and a limit slot 19 is fixedly provided at the inner bottom of the slot 18, and an electric meter box 2 is fixedly installed inside the slot 18, and the electric meter box 2 is placed inside the slot 18, and the gap is covered by the packaging board 6, and the insert block 12 is inserted into the limit slot 19 for clamping, so that when the equipment is used, it can effectively reduce the occupied space, and the clamping installation is more convenient. Convenient;

Embodiment, with reference to Fig. 1, Fig. 2 and Fig. 3, the rechargeable lithium battery 17 is connected to the warning light 3, the solar panel 4, the cooling fan 9 and the current sensor 16 respectively through wires, and the connection mode is electrical connection, and the cooling fan The position 9 is located on the back side of the heat dissipation through hole 7. When the equipment is in use, since the box is installed inside the wall 1, it is not easy to dissipate heat. Guide the internal heat of the device to dissipate heat, so that the device has better heat dissipation capability when it is used. Through the current sensor 16 and the alarm light 3, after the device is used for a long time, aging damage and leakage may occur. Through the current sensor installed inside 16. Detect the inside. After detecting the current, an alarm will be issued through the alarm lamp 3 to remind personnel to pay attention and carry out maintenance, making it safer and more reliable.

The work flow of the utility model: when in use, the electric meter box 2 is placed in the Open the inside of the slot 18, and cover the gap through the packaging board 6, and press the plug 12 to insert into the limit slot 19 for clamping, so that when the device is in use, it can effectively reduce the occupied space, and the installation by clamping is more convenient and fast. Through the heat dissipation fan 9 and the heat dissipation through hole 7 provided, when the equipment is in use, because the box is installed inside the wall 1, it is not easy to dissipate heat. Hole 7 guides the internal heat dissipation of the device, so that the device has better heat dissipation capability when the device is in use. Through the current sensor 16 and the alarm light 3, after the device is used for a long time, aging damage and leakage may occur. Through the internal installation The current sensor 16 detects the interior, and after detecting the current, an alarm is issued through the alarm lamp 3 to remind personnel to pay attention and perform maintenance, so that it is safer and more reliable, and has certain promotional value.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (5)

1. A concealed anti-aging electric meter box, comprising a wall (1), an electric meter box (2) and an electric meter box cabinet door (5), characterized in that: the outside of the front end of the electric meter box (2) is fixedly installed There is a packaging board (6), the front of the meter box (2) is fixed with a meter box door (5), and the front of the meter box door (5) is fixed with a heat dissipation through hole (7), the meter A mounting plate (10) is fixedly installed on the inner side of the cabinet door (5), a cooling fan (9) is fixedly mounted on the mounting plate (10), and a solar panel is fixedly mounted above the electric meter cabinet door (5) (4), the side of the solar panel (4) is fixedly equipped with an alarm light (3), and the inside of the ammeter box (2) is fixedly installed with a fixed frame (15), and the fixed frame (15) is fixed Components (8) are installed, a rechargeable lithium battery (17) is fixedly installed on the top of the fixed frame (15), and a current sensor (16) is fixedly installed on one side of the rechargeable lithium battery (17). The inner bottom of the body (2) is fixed with a card slot (11), and the inside of the card slot (11) is fixedly connected with an insert block (12), and the top of the insert block (12) is fixedly installed with a limiting plate (13) , a pull button (14) is fixedly installed on the top of the limiting plate (13). 2. A concealed anti-aging electric meter box according to claim 1, characterized in that: the front of the wall (1) is fixed with a slot (18), and the inner bottom of the slot (18) A limiting slot (19) is fixedly provided, and an electric meter box (2) is fixedly installed inside the slot (18). 3. A kind of concealed anti-aging electric meter box according to claim 1, characterized in that: the rechargeable lithium battery (17) passes through the wire and the warning lamp (3), the solar panel (4), and the heat dissipation respectively. On the fan (9) and the current sensor (16), and the connection mode is electrical connection, and the position of the heat dissipation fan (9) is located at the back of the heat dissipation through hole (7). 4. A concealed anti-aging electric meter box according to claim 1 or 2, characterized in that: the position of the insert block (12) corresponds to the position of the limiting groove (19), and the size is just enough to be inserted. 5. A concealed anti-aging electric meter box according to claim 1, characterized in that: a limiting chute is provided at the connection between the insert block (12) and the card slot (11).
