Abstract

The utility model relates to the technical field of blister copper smelting equipment, and discloses a cooling device for blister copper production, comprising a cooling box, a water pump is fixedly installed on the inner cavity bottom wall of the cooling box, and a water pump is fixedly installed on the left side of the cooling box. There is a water inlet pipe, the inner cavity of the cooling box is rotatably connected with a pillar extending to its rear side, the rear side of the cooling box is fixedly installed with a motor fixedly connected to the rear side of the pillar, and the outer side of the pillar is fixedly installed with a radiator The inner side of the top of the heat dissipation plate is hinged with a mesh plate, and the inside of the heat dissipation plate is provided with a snap-in slot, and the front side wall of the snap-in slot is fixed with a spring, and the rear side of the spring is fixedly installed There are slides. The cooling device for blister copper production has the advantages of rapidly cooling the copper block and simultaneously cooling and filtering the gas generated during production, so as to ensure a good working environment in the workshop.

Description

A cooling device for blister copper production

technical field

The utility model relates to the technical field of blister copper smelting equipment, in particular to a cooling device for blister copper production.

Background technique

Copper smelting plants or copper products processing plants often need to smelt raw materials. During the smelting process, a lot of harmful waste gas and dust will be produced. Since the waste gas produced during copper smelting is less than that produced during coal combustion, it is directly Released in the air.

In today's society, most of the gas is passed through a long pipe to dissipate the heat to the surrounding air, causing the temperature in the workplace to gradually rise, which is a great test for the staff. Over time, it will cause physical Discomfort, cause disease, therefore propose a kind of blister copper production and use cooling device to solve the above-mentioned problem that proposes.

Utility model content

(1) Solved technical problems

Aiming at the deficiencies of the existing technology, the utility model provides a cooling device for blister copper production, which can quickly cool down the copper block and at the same time cool down and filter the gas generated in the production, so as to ensure a good working environment in the workshop, etc. Advantages, it solves the problem of heat loss to the surrounding air, causing the temperature in the work room to gradually rise, which is a great test for the staff, and will lead to physical discomfort and disease after a long time.

(2) Technical solution

The technical scheme of the utility model for solving the above technical problems is as follows: a cooling device for blister copper production, including a cooling box, a water pump is fixedly installed on the bottom wall of the inner cavity of the cooling box, and an inlet is fixedly installed on the left side of the cooling box. Water pipe, the inner cavity of the cooling box is rotatably connected with a pillar extending to its rear side, the rear side of the cooling box is fixedly installed with a motor fixedly connected to the rear side of the pillar, and the outer side of the pillar is fixedly installed with a cooling plate, The inner side of the top of the heat dissipation plate is hinged with a mesh plate, and the interior of the heat dissipation plate is provided with a snap-in groove, and a spring is fixedly installed on the front side wall of the snap-fit groove, and a sliding slide is fixedly installed on the rear side of the spring. The interior of the sliding sheet is fixedly installed with a pin that extends to the inside of the mesh plate and the other end to the top of the heat dissipation plate. The inside of the cooling box is provided with an air inlet above the water inlet pipe. The inner cavity is fixedly installed with a sprinkling pipe located above the cooling plate, the bottom of the sprinkling pipe is fixedly installed with a nozzle, the rear side of the water pump is fixedly installed with a water guide pipe whose other end is fixedly connected to the right side of the sprinkling pipe, and the cooling box A filter plate located above the sprinkler pipe is fixedly installed in the inner cavity of the filter plate, a fan is rotatably connected to the top of the filter plate, and an air outlet is opened on the top of the cooling box.

The beneficial effects of the utility model are:

The cooling device for blister copper production has the advantages of rapidly cooling the copper block and simultaneously cooling and filtering the gas generated during production, so as to ensure a good working environment in the workshop.

On the basis of the above technical solutions, the utility model can also be improved as follows.

Further, the number of the heat dissipation plates and the fixedly installed structures inside them are multiple and distributed in a circular array, the plurality of mesh plates are all located on the top of the heat dissipation plates, and the bottoms of the plurality of heat dissipation plates are all in the shape of a mesh .

The beneficial effect of adopting the above further solution is that the top and the bottom of the heat dissipation plate are both mesh-shaped, which can better dissipate heat from the copper block.

Further, the bottom wall of the inner cavity of the cooling box is fixedly installed with a plurality of condensation pipes located on the left side of the water pump, and the inside of the cooling box is filled with cooling liquid.

The beneficial effect of adopting the above further solution is that, because the water inside the cooling box is circulating water, long-term heat dissipation will increase the water temperature, and adding a condenser tube will cool the water.

Further, there are multiple air inlets distributed in a circular array inside the cooling box, and there are multiple air outlets distributed symmetrically.

The beneficial effect of adopting the above further scheme is that multiple air inlets and air outlets accelerate air convection and realize rapid cooling.

Further, the sprinkling pipes are distributed in a network shape, and the number of the sprinkler heads is multiple and are respectively located at the joints of the sprinkling pipes.

The beneficial effect of adopting the above-mentioned further solution is that the sprinkler pipes distributed in mesh and multiple nozzles increase the water spraying area and accelerate the cooling effect.

Further, the top and bottom of the cooling box are clamped, and the openings of the top and bottom of the cooling box are located above the air inlet.

The beneficial effect of adopting the above further solution is that it is convenient to open and replace the cooled copper block.

Description of drawings

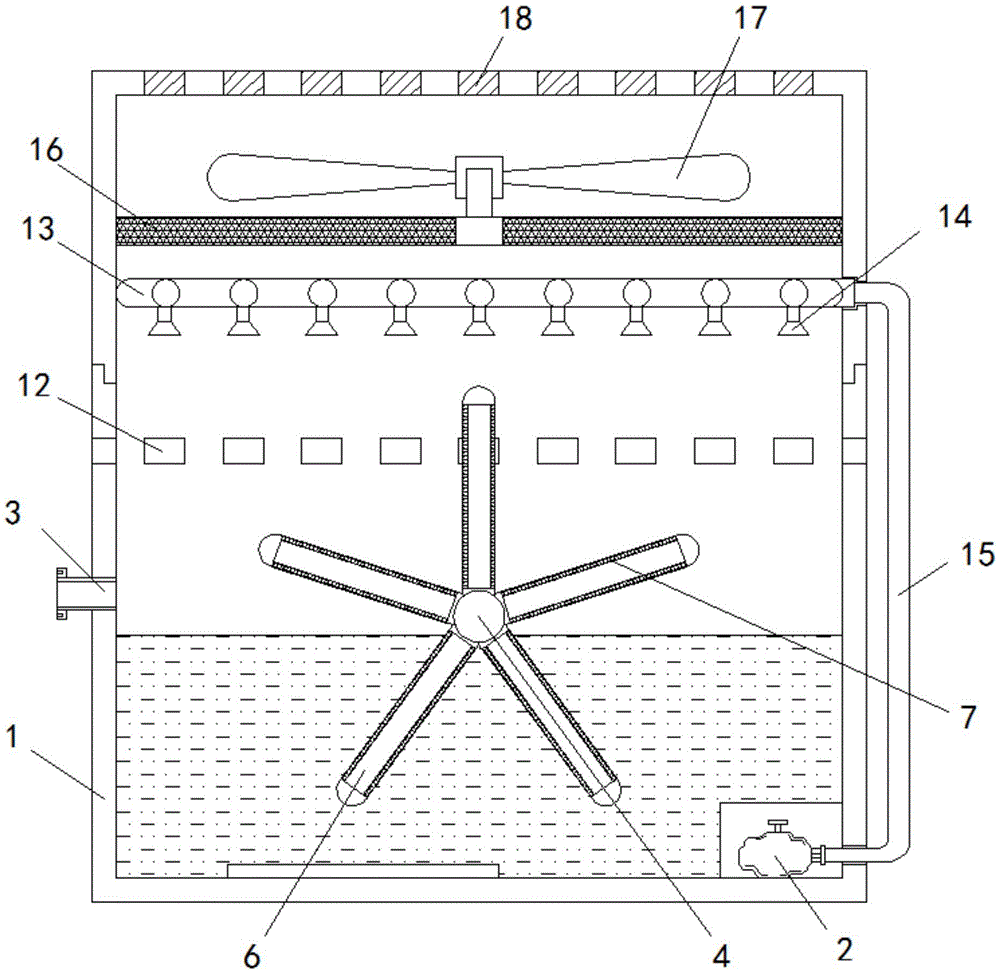

Fig. 1 is a structural representation of the utility model;

Fig. 2 is the connection diagram of the sprinkler pipe and the water guide pipe of the utility model;

Fig. 3 is the connection diagram of the pillar of the utility model and the cooling plate;

Fig. 4 is an enlarged view of A in Fig. 3 of the present utility model.

In the figure: 1. cooling box; 2. water pump; 3. water inlet pipe; 4. pillar; 5. motor; 11. Pin; 12. Air inlet; 13. Sprinkler pipe; 14. Nozzle; 15. Water guide pipe; 16. Filter plate; 17. Fan; 18. Air outlet.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below in conjunction with the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are only part of the embodiments of the present invention, not all of them. example. Based on the embodiments of the present utility model, all other embodiments obtained by persons of ordinary skill in the art without making creative efforts belong to the scope of protection of the present utility model.

In the embodiment, given by Fig. 1-4, a cooling device for blister copper production, the utility model comprises a cooling box 1, the bottom wall of the inner cavity of the cooling box 1 is fixedly installed with a water pump 2, and the left side of the cooling box 1 is fixed A water inlet pipe 3 is installed, and the inner cavity of the cooling box 1 is rotatably connected with a pillar 4 extending to its rear side. The rear side of the cooling box 1 is fixedly installed with a motor 5 fixedly connected to the rear side of the pillar 4, and the outer side of the pillar 4 is fixedly installed. There is a heat dissipation plate 6, the top inside of the heat dissipation plate 6 is hinged with a mesh plate 7, the inside of the heat dissipation plate 6 is provided with a snap-in groove 8, and a spring 9 is fixedly installed on the front side wall of the snap-fit groove 8, and the rear side of the spring 9 A slide plate 10 is fixedly installed, and the inside of the slide plate 10 is fixedly installed with one end extending to the inside of the mesh plate 7 and the other end extending to the pin 11 on the top of the heat dissipation plate 6. The inside of the cooling box 1 is provided with an air intake above the water inlet pipe 3. mouth 12, the inner cavity of the cooling box 1 is fixedly installed with a sprinkling pipe 13 located above the cooling plate 6, the bottom of the sprinkling pipe 13 is fixedly installed with a nozzle 14, and the rear side of the water pump 2 is fixedly installed with the other end fixed to the right side of the sprinkling pipe 13 Connected water guide pipe 15, the inner cavity of cooling box 1 is fixedly installed with the filter plate 16 that is positioned at sprinkler pipe 13 top, and the top of filter plate 16 is connected with fan 17 in rotation, and the top of cooling box 1 is provided with air outlet 18.

Among them, the number of heat dissipation plates 6 and the fixedly installed structures inside are multiple and distributed in a circular array, the plurality of mesh plates 7 are all located on the top of the heat dissipation plate 6, and the bottoms of the plurality of heat dissipation plates 6 are all in a mesh shape.

Both the top and the bottom of the cooling plate 6 are mesh-shaped, which can better dissipate heat from the copper block.

Wherein, the bottom wall of the inner cavity of the cooling box 1 is fixedly installed with a plurality of condensation pipes located on the left side of the water pump 2, and the inside of the cooling box 1 is filled with cooling liquid.

Because the water inside the cooling box 1 is circulating water, long-term heat dissipation will increase the water temperature, and a condenser tube is added to cool the water.

Wherein, the number of air inlets 12 is multiple and distributed in the cooling box 1 in a circular array, and the number of air outlets 18 is multiple and distributed symmetrically.

Multiple air inlets 12 and air outlets 18 accelerate air convection and realize rapid cooling.

Wherein, the sprinkling pipes 13 are distributed in a network shape, and the number of the sprinkler heads 14 is multiple and are respectively located at the joints of the sprinkling pipes 13 .

The sprinkling pipes 13 and a plurality of nozzles 14 distributed in a mesh shape increase the water spraying area and accelerate the cooling effect.

Wherein, the top and bottom of the cooling box 1 are clamped, and the openings of the top and bottom of the cooling box 1 are located above the air inlet 12 .

It is convenient to open and replace the cooled copper block.

working principle:

The first step: firstly open the cooling box 1, then pull the pin 11 to drive the sliding piece 10 fixedly connected to the outer side, and the sliding piece 10 compresses the spring 9, thereby opening the mesh plate 7, and placing the copper block to be cooled inside the cooling plate 6 , pull the latch 11, close the screen plate 7 and release the latch 11 to complete the clamping;

The second step: inject water into the cooling box 1 through the water inlet pipe 3, start the condensation pipe to cool the water inside the cooling box 1, and start the motor 5 at the same time to drive the support 4 fixedly connected to the output shaft to rotate, so that the copper inside the cooling plate 6 The block rotates inside the water to cool down, and starts the water pump 2 at the same time, and the condensed water is introduced into the inside of the sprinkler pipe 13 from the water guide pipe 15 on the rear side, and then sprayed through the nozzle 14 to realize the cooling of circulating water;

The third step: start the fan 17, extract the air inside the cooling box 1, so that the hot air discharged from the production enters the inside of the cooling box 1 from multiple air inlets 12, and realize cooling through the spraying of condensed water, and then filter through the filter plate 16, Then it is drawn by the fan 17 to the air outlet 18 to be discharged to realize cooling and filtering.

It should be noted that in this article, relational terms such as first and second are only used to distinguish one entity or operation from another entity or operation, and do not necessarily require or imply that there is a relationship between these entities or operations. There is no such actual relationship or order between them. Furthermore, the term "comprises", "comprises" or any other variation thereof is intended to cover a non-exclusive inclusion such that a process, method, article, or apparatus comprising a set of elements includes not only those elements, but also includes elements not expressly listed. other elements of or also include elements inherent in such a process, method, article, or device. Without further limitations, an element defined by the phrase "comprising a ..." does not exclude the presence of additional identical elements in the process, method, article or apparatus comprising said element.

Although the embodiments of the present invention have been shown and described, those skilled in the art can understand that various changes and modifications can be made to these embodiments without departing from the principle and spirit of the present invention , replacements and modifications, the scope of the present utility model is defined by the appended claims and their equivalents.

Claims (6)

1. a cooling device for crude copper production, comprising a cooling box (1), is characterized in that: the inner cavity bottom wall of the cooling box (1) is fixedly equipped with a water pump (2), and the cooling box (1) A water inlet pipe (3) is fixedly installed on the left side, and the inner cavity of the cooling box (1) is rotatably connected with a pillar (4) extending to its rear side, and the rear side of the cooling box (1) is fixedly installed with a (4) The rear side is fixedly connected to the motor (5), the outer side of the pillar (4) is fixedly equipped with a cooling plate (6), and the inner side of the cooling plate (6) is hinged with a mesh plate (7), the cooling The inside of the plate (6) is provided with a clamping groove (8), the front side wall of the clamping groove (8) is fixedly installed with a spring (9), and the rear side of the spring (9) is fixedly installed with a slide sheet (10), the inside of the sliding sheet (10) is fixedly installed with a pin (11) that extends to the inside of the net plate (7) and the other end extends to the top of the cooling plate (6), and the cooling box (1) The interior of the cooling box (1) is provided with an air inlet (12) above the water inlet pipe (3), and the inner cavity of the cooling box (1) is fixedly equipped with a sprinkler pipe (13) above the cooling plate (6). The bottom of (13) is fixedly installed with sprinkler (14), and the rear side of described water pump (2) is fixedly installed with the water conduit (15) that the other end is fixedly connected with sprinkling pipe (13) right side, and described cooling box (1 ) is fixedly installed with a filter plate (16) above the sprinkler pipe (13), the top of the filter plate (16) is rotatably connected with a fan (17), and the top of the cooling box (1) is provided with an outlet Air port (18). 2. A cooling device for blister copper production according to claim 1, characterized in that: a plurality of said stencils (7) are all positioned at the top of the heat dissipation plate (6), and a plurality of said heat dissipation plates (6) The bottoms are meshed. 3. A cooling device for blister copper production according to claim 1, characterized in that: the bottom wall of the inner cavity of the cooling box (1) is fixedly installed with multiple water pumps located on the left side of the water pump (2). Condenser pipe, the interior of the cooling box (1) is filled with cooling liquid. 4. A cooling device for blister copper production according to claim 1, characterized in that: the number of the air inlets (12) is multiple and distributed in a ring-shaped array inside the cooling box (1), The number of the air outlets (18) is multiple and distributed symmetrically. 5. a kind of blister copper production cooling device according to claim 1, is characterized in that: described sprinkling pipe (13) is reticular distribution, and described sprinkler head (14) quantity is a plurality of and is respectively positioned at sprinkling pipe ( 13) Junction. 6. A cooling device for blister copper production according to claim 1, characterized in that: the top and bottom of the cooling box (1) are clamped, and the openings of the top and bottom of the cooling box (1) are located at Above the air inlet (12).
