CN218820659U - Cabinet air conditioner - Google Patents

Abstract

The present application relates to the technical field of air conditioning, and discloses an air conditioner cabinet, including: a casing with symmetrically arranged first air outlets and second air outlets; or close the first air outlet; the second panel is arranged at the second air outlet to open or close the second air outlet; wherein, the first panel and the second panel operate independently, When the first air outlet and the second air outlet are opened, the first panel and the second panel move relatively. The double air outlet effect is realized through the first air outlet and the second air outlet, and the two air outlets operate independently, which helps to improve the flexibility of the use of the two air outlets; in addition, when the first air outlet and the second air outlet are opened In this case, the relative movement of the first panel and the second panel makes the structure compact, avoids taking up extra space during use, helps to improve space utilization, and thus enhances user experience.

Description

Air conditioner

technical field

The present application relates to the technical field of air conditioning, for example, to an air conditioning cabinet.

Background technique

In the related art, the housing of the air conditioner indoor unit includes a panel, the panel is provided with a first air outlet and a second air outlet, an air outlet duct is formed in the housing, the first air outlet communicates with the air outlet duct, and the air outlet duct There are two first air outlets. There are two first air outlets. The two first air outlets are respectively located on both sides of the second air outlet. The two first air outlets communicate with the two air outlets in one-to-one correspondence. Two first air outlets are provided with open and close doors, and a second drive mechanism connected with the open and close doors is also provided in the casing, and the second drive mechanism is used to drive the open and close doors to open or block the first air outlets. There are two second drives, and the two second drive mechanisms are connected to the two switch doors one by one, and the two switch doors are driven to move toward the two sides of the air conditioner indoor unit and move away from each other through the two second drive mechanisms. Thereby the two first air outlets are opened.

The two opening and closing doors move away from each other towards the air-conditioning indoor unit to open the two first air outlets, so that the air-conditioning indoor unit needs to occupy a certain amount of extra space during use, that is, the installation position of the air-conditioning indoor unit needs to be in line with that of the air-conditioning indoor unit. The distance between the surrounding homes is sufficient to meet the normal use of the air conditioner indoor unit. And when the air-conditioning room is turned off, this part of the space is in an idle state, resulting in a certain waste of space.

Utility model content

In order to provide a basic understanding of some aspects of the disclosed embodiments, a brief summary is presented below. The summary is not intended to be an extensive overview nor to identify key/important elements or to delineate the scope of these embodiments, but rather serves as a prelude to the detailed description that follows.

An embodiment of the present disclosure provides an air conditioner cabinet. When the first air outlet and the second air outlet are fully opened, the first panel and the second panel move inward relatively, avoiding the extra space occupied by the outward movement, which helps To improve space utilization.

In some embodiments, the air conditioner cabinet includes:

The casing has symmetrically arranged first air outlets and second air outlets;

a first panel, located at the first air outlet, for opening or closing the first air outlet;

a second panel, located at the second air outlet, for opening or closing the second air outlet;

Wherein, the first panel and the second panel move independently, and when the first air outlet and the second air outlet are opened, the first panel and the second panel move relatively.

In some embodiments, also include:

The purification module is arranged in the casing and is arranged corresponding to the first air outlet, so that the air purified by the purification module is blown out from the first air outlet.

In some embodiments, also include:

The fresh air module is arranged in the casing and is arranged corresponding to the second air outlet, so that the air passing through the fresh air module is blown out from the second air outlet.

In some embodiments, when both the first air outlet and the second air outlet are closed, the first panel and the second panel are butted.

In some embodiments, the housing includes:

a front cover, configured with the first air outlet and the second air outlet;

Wherein, the area between the first air outlet and the second air outlet of the front cover is inwardly recessed to form an accommodating portion for accommodating the first panel and/or the second panel .

In some embodiments, when the first air outlet and the second air outlet are fully opened, part or all of the first panel and the second panel are overlapped and arranged on the accommodating portion .

In some embodiments, when the first air outlet is opened, the first end of the first panel slides obliquely to the inner side of the accommodating portion to avoid the second panel.

In some embodiments, the casing further includes a track plate, and the track plate is covered at the end of the front cover;

The track plate includes:

a first track groove, connected to the first panel through a first driving device, and used to limit the movement track of the first panel;

The second track groove is connected with the second panel through the second driving device, and is used to limit the movement track of the second panel;

Wherein, the first track groove is opposite to the second track groove.

In some embodiments, the track plate also includes:

The third track groove is intersected with the first track groove, and is used to adjust the inclination angle of the first panel, so that the first panel closes the first air outlet or opens the first air outlet The case is set misaligned with the second panel.

In some embodiments, the middle area of the first edge of the track plate is configured with a receiving portion, and the receiving portion is matched with the receiving portion of the front cover to accommodate the first panel and the second panel. panel.

The air conditioner cabinet provided by the embodiments of the present disclosure can achieve the following technical effects:

Using the air conditioner cabinet provided by the embodiment of the present disclosure, the double air outlet effect is realized through the first air outlet and the second air outlet, and the two air outlets operate independently, which helps to improve the flexibility of the use of the two air outlets; in addition, When the first air outlet and the second air outlet are opened, the first panel and the second panel move relatively, making the structure compact, avoiding extra space during use, and helping to improve space utilization, thereby improving user experience .

The foregoing general description and the following description are exemplary and explanatory only and are not intended to limit the application.

Description of drawings

One or more embodiments are exemplified by the corresponding drawings, and these exemplifications and drawings do not constitute a limitation to the embodiments, and elements with the same reference numerals in the drawings are shown as similar elements, The drawings are not limited to scale and in which:

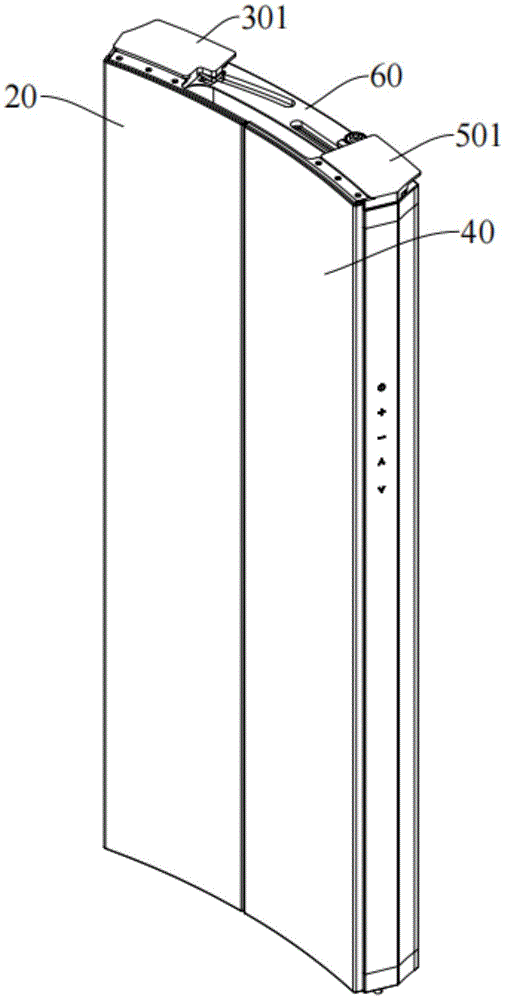

FIG. 1 is a schematic structural diagram of the air-conditioning cabinet provided by an embodiment of the present disclosure;

Fig. 2 is a schematic structural diagram of the closed state of the air-conditioning cabinet provided by an embodiment of the present disclosure;

Fig. 3 is a structural schematic diagram of another viewing angle of the closed state of the air-conditioning cabinet provided by an embodiment of the present disclosure;

Fig. 4 is a structural schematic diagram of another viewing angle of the air conditioner cabinet provided by an embodiment of the present disclosure;

Fig. 5 is a schematic structural diagram of the inclined first panel in the air-conditioning cabinet provided by an embodiment of the present disclosure;

Fig. 6 is a structural schematic diagram of another viewing angle in which the first panel in the air-conditioning cabinet provided by an embodiment of the present disclosure is tilted;

Fig. 7 is a structural schematic diagram of another viewing angle in which the first panel in the air-conditioning cabinet provided by an embodiment of the present disclosure is tilted;

Fig. 8 is a structural schematic diagram of another viewing angle in which the first panel in the air-conditioning cabinet provided by an embodiment of the present disclosure is tilted;

Fig. 9 is a structural schematic diagram of another viewing angle in which the first panel in the air-conditioning cabinet provided by an embodiment of the present disclosure is tilted;

Fig. 10 is a partial enlarged view of place A in Fig. 9;

Fig. 11 is a schematic structural diagram of the open state of the air-conditioning cabinet provided by an embodiment of the present disclosure;

Fig. 12 is a structural schematic diagram of another viewing angle of the open state of the air-conditioning cabinet provided by an embodiment of the present disclosure;

Fig. 13 is a structural schematic diagram of another viewing angle of the open state of the air-conditioning cabinet provided by an embodiment of the present disclosure;

Fig. 14 is a schematic structural view of the track plate provided by an embodiment of the present disclosure;

Fig. 15 is a structural schematic diagram of another viewing angle of the track plate provided by an embodiment of the present disclosure;

Fig. 16 is a schematic structural diagram of the front cover provided by an embodiment of the present disclosure;

Fig. 17 is an assembly schematic diagram of the drive assembly and the first drive device provided by an embodiment of the present disclosure;

Fig. 18 is a partial exploded schematic diagram of the first driving device and the track plate provided by an embodiment of the present disclosure;

Fig. 19 is a partial schematic diagram of the first driving device provided by an embodiment of the present disclosure.

Reference signs:

101: front cover; 102: first air outlet; 103: second air outlet; 104: accommodating part;

20: first panel;

301: first substrate; 302: first gear; 303: first rack; 3031: first mounting hole; 304: moving rack; 305: driving gear; 306: driving motor; 307: track piece;

40: second panel;

501: second substrate; 502: second gear; 503: second rack;

60: track plate; 601: first track groove; 602: second track groove; 603: third track groove; 604: first edge; 605: second edge; 606: receiving part; 607: bending part;

70: the first reel; 80: the second reel;

90: drive assembly; 901: driving gear; 902: driven gear; 903: stepping motor;

100: sliding bearing; 110: purification module; 120: fresh air module; 130: door lining component.

Detailed ways

In order to understand the characteristics and technical content of the embodiments of the present disclosure in more detail, the implementation of the embodiments of the present disclosure will be described in detail below in conjunction with the accompanying drawings. The attached drawings are only for reference and description, and are not intended to limit the embodiments of the present disclosure. In the following technical description, for purposes of explanation, numerous details are set forth in order to provide a thorough understanding of the disclosed embodiments. However, one or more embodiments may be practiced without these details. In other instances, well-known structures and devices may be shown simplified in order to simplify the drawings.

The terms "first", "second" and the like in the description and claims of the embodiments of the present disclosure and the above drawings are used to distinguish similar objects, and are not necessarily used to describe a specific sequence or sequence. It should be understood that the data so used may be interchanged under appropriate circumstances so as to facilitate the embodiments of the disclosed embodiments described herein. Furthermore, the terms "comprising" and "having", as well as any variations thereof, are intended to cover a non-exclusive inclusion.

In the embodiments of the present disclosure, the orientations or positional relationships indicated by the terms "upper", "lower", "inner", "middle", "outer", "front", "rear" etc. are based on the orientations or positional relationships shown in the drawings. Positional relationship. These terms are mainly used to better describe the embodiments of the present disclosure and their implementations, and are not used to limit that the indicated devices, elements or components must have a specific orientation, or be constructed and operated in a specific orientation. Moreover, some of the above terms may be used to indicate other meanings besides orientation or positional relationship, for example, the term "upper" may also be used to indicate a certain attachment relationship or connection relationship in some cases. Those skilled in the art can understand the specific meanings of these terms in the embodiments of the present disclosure according to specific situations.

In addition, the terms "setting", "connecting" and "fixing" should be interpreted broadly. For example, "connection" can be a fixed connection, a detachable connection, or an integral structure; it can be a mechanical connection, or an electrical connection; it can be a direct connection, or an indirect connection through an intermediary, or two devices, components or Internal connectivity between components. Those skilled in the art can understand the specific meanings of the above terms in the embodiments of the present disclosure according to specific situations.

Unless stated otherwise, the term "plurality" means two or more.

In the embodiments of the present disclosure, the character "/" indicates that the preceding and following objects are an "or" relationship. For example, A/B means: A or B.

The term "and/or" is an associative relationship describing objects, indicating that there can be three relationships. For example, A and/or B means: A or B, or, A and B, these three relationships.

It should be noted that, in the case of no conflict, the embodiments and the features in the embodiments of the present disclosure may be combined with each other.

As shown in FIG. 1 to FIG. 19 , an embodiment of the present disclosure provides an air conditioner cabinet, including: a casing, a first panel 20 and a second panel 40 . The first panel 20 and the second panel 40 reciprocate along the outer wall of the casing to open or close the corresponding air outlets.

The casing has first air outlets 102 and second air outlets 103 arranged symmetrically. The air-conditioning cabinet can realize air outlet on both sides through two symmetrically arranged air outlets. Optionally, the size of the first air outlet 102 is the same as that of the second air outlet 103 . In this way, it contributes to the left-right symmetry of the casing and improves the aesthetics.

Optionally, the first air outlet 102 and the second air outlet 103 are arranged side by side along the transverse direction.

The first panel 20 is disposed on the first air outlet 102 for opening or closing the first air outlet 102 . The first panel 20 is located outside the first air outlet 102 . When the first air outlet 102 is closed, the first panel 20 covers the air outlet area of the first air outlet 102 .

The second panel 40 is disposed on the second air outlet 103 for opening or closing the second air outlet 103 . The second panel 40 is located outside the second air outlet 103 . When the second air outlet 103 is closed, the second panel 40 covers the air outlet area of the second air outlet 103 .

Wherein, the first panel 20 and the second panel 40 move independently, and when the first air outlet 102 and the second air outlet 103 are opened, the first panel 20 and the second panel 40 move relatively.

The first panel 20 and the second panel 40 act independently, that is, they are respectively driven by a driving device. The user may choose to open the first air outlet 102 and/or the second air outlet 103 according to requirements. In this way, the switch of the first air outlet 102 and the switch of the second air outlet 103 do not interfere with each other.

When the first air outlet 102 and the second air outlet 103 are opened, the first panel 20 and the second panel 40 are respectively driven by the first driving device and the second driving device to act independently, and the first panel 20 and the second The panels 40 move relative to each other. Exemplarily, when the air conditioner cabinet is installed vertically, the first air outlet 102 is located on the left side, and the second air outlet 103 is located on the right side. When the first air outlet 102 is opened, the first panel 20 moves to the right. When the second air outlet 103 is opened, the second panel 40 moves to the left.

Using the air conditioner cabinet provided by the embodiment of the present disclosure, the double air outlet effect is realized through the first air outlet 102 and the second air outlet 103, and the two air outlets operate independently, which helps to improve the flexibility of the use of the two air outlets; In addition, when the first air outlet 102 and the second air outlet 103 are opened, the first panel 20 and the second panel 40 move relatively, making the structure compact, avoiding extra space during use, and helping to improve user experience .

Optionally, the air conditioner cabinet further includes: a purification module 110 , which is arranged in the cabinet and corresponding to the first air outlet 102 , so that the air purified by the purification module is blown out from the first air outlet 102 . In this way, it helps to improve the cleanliness of the airflow blown out by the air conditioner cabinet.

Optionally, the air conditioner cabinet further includes: a fresh air module 120 disposed in the cabinet and corresponding to the second air outlet 103 so that the air passing through the fresh air module is blown out from the second air outlet 103 .

The air conditioner cabinet machine of this embodiment can not only realize the air output from the dual air outlets, but also achieve the effect of the air output with two functions. In practical applications, the purification module 110 and the fresh air module 120 can work at the same time, that is, they can output air at the same time. You can also choose one of them to work according to your needs. Wherein, when the purification module 110 is working, the first air outlet 102 is opened, and the second air outlet 103 can be closed. When the fresh air module 120 is working, the second air outlet 103 is opened, and the first air outlet 102 can be closed.

Optionally, when both the first air outlet 102 and the second air outlet 103 are closed, the first panel 20 and the second panel 40 are butted.

The "docking setting" here can be not only abutting, but also approaching. In this way, the first panel 20 and the second panel 40 are butted to reduce the gap between the first panel 20 and the second panel 40, thereby preventing foreign matter from entering from the gap between the first panel 20 and the second panel 40, thereby Influence the wind effect and the movement of the first panel 20 and the second panel 40 .

Optionally, when both the first air outlet 102 and the second air outlet 103 are closed, the first panel 20 and the second panel 40 are located on the same plane or on the same arc.

In this way, the first panel 20 and the second panel 40 are located on the same plane or on the same curved surface, which helps to ensure that the surface of the air-conditioning cabinet is flat and improves the overall aesthetics.

It should be noted that the first panel 20 and the second panel 40 are located on the same arc, which can be understood as the arc formed by the extension of the first panel 20 and the second panel 40 .

Optionally, the casing includes: a front cover 101 configured with a first air outlet 102 and a second air outlet 103; The inner recess forms an accommodating portion 104 for accommodating the first panel 20 and/or the second panel 40 .

When the first air outlet 102 and the second air outlet 103 are opened, the first panel 20 and the second panel 40 move relatively, and the first panel 20 and the second panel 40 are accommodated through the accommodating part 104 constructed by the front cover 101. Panel 40. In this way, the first panel 20 and the second panel 40 are prevented from protruding from the air-conditioning cabinet, thereby helping to improve the overall aesthetics of the air-conditioning cabinet.

Optionally, when the first air outlet 102 and the second air outlet 103 are fully opened, part or all of the first panel 20 and the second panel 40 are overlapped and disposed on the accommodating portion 104 .

When the first air outlet 102 and the second air outlet 103 are fully opened, some or all areas of the first panel 20 and the second panel 40 are overlapped. Wherein, part or all of the first panel 20 and the second panel 40 are overlapped, and the area of the overlapping area between the first panel 20 and the second panel 40 depends on the distance between the first air outlet 102 and the second air outlet 103 . The distance is the width of the accommodating portion 104 . And at least the width of the accommodating portion 104 can meet the requirement that the first panel 20 and the second panel 40 are completely overlapped.

Part or all of the first panel 20 and the second panel 40 are overlapped, which can be understood as the area formed when facing the front projection of the first panel 20 and the second panel 40 when the air conditioner cabinet is installed vertically . That is, some or all areas of the orthographic projections of the first panel 20 and the second panel 40 are overlapped.

Optionally, when the first air outlet 102 is opened, the first end of the first panel 20 slides obliquely to the inside of the accommodating portion 104 to avoid the second panel 40 .

In this way, when the first air outlet 102 is opened, the first end of the first panel 20 (that is, the end corresponding to the second panel 40 ) is inclined to the inside of the accommodating portion 104, so that the first panel 20 is inclined toward the second When the panel 40 slides in one direction, it is misplaced with the second panel 40 so as to avoid the second panel 40 and prevent interference between the two.

Definition: when both the first air outlet 102 and the second air outlet 103 are closed, the state of the first panel 20 and the second panel 40 is the initial state. In an initial state, the first panel 20 and the second panel 40 are arranged in abutment. The first panel 20 tilts inward, so that when the first panel 20 slides toward the second panel 40 , it can be misaligned with the second panel 40 to prevent interference with the second panel 40 during the sliding process.

Optionally, the casing further includes a track plate 60 , and the track plate 60 covers the end of the front cover 101 . By covering the track plate 60 on the front cover 101 , the connection stability between the track plate 60 and the front cover 101 can be improved. Wherein, the air conditioner cabinet machine provided in this embodiment includes two track plates 60 , and the two track plates 60 are respectively arranged at two ends of the front cover 101 . The track plate 60 is perpendicular to the front cover 101 .

The track plate 60 includes: a first track groove 601, which is connected with the first panel 20 through a first driving device to limit the movement track of the first panel 20; a second track groove 602, which is connected with the second panel 40 through a second driving device The connection is used to define the movement track of the second panel 40; wherein, the first track groove 601 and the second track groove 602 are arranged opposite to each other.

In this embodiment, the first track groove 601 and the second track groove 602 on the track plate 60 respectively define the movement tracks of the first panel 20 and the second panel 40 . That is, the first panel 20 moves along the direction of the first track groove 601 , and the second panel 40 moves along the direction of the second track groove 602 .

Optionally, the first track groove 601 is arranged along the length direction of the track plate 60 , and the second track groove 602 is arranged along the length direction of the track plate 60 . Here, “the length direction of the track plate 60 ” can be understood as that the length direction of the track plate 60 is the same as the moving direction of the first panel 20 or the second panel 40 .

Both the first track groove 601 and the second track groove 602 are elongated.

The first driving device drives the first panel 20 to slide along the first track groove 601 , so as to open or close the first air outlet 102 .

The second driving device drives the second panel 40 to slide along the second track groove 602 , so as to open or close the second air outlet 103 .

Optionally, the track plate 60 includes opposite first and second plate surfaces, the first plate surface is configured with a first track groove 601 and a second track groove 602; wherein, the edge of the track plate 60 faces from the first plate to The second board surface is bent and extended to form a bent portion 607 , and the bent portion 607 is used for connecting the front cover 101 . Thereby, the relative fixing of the track plate 60 and the front cover 101 is realized.

Optionally, the track plate 60 further includes: a third track groove 603 intersecting with the first track groove 601 to adjust the inclination angle of the first panel 20 so that the first panel 20 closes the first air outlet 102 or When the first air outlet 102 is opened, it is set in a misalignment with the second panel 40 .

When the first panel 20 opens the first air outlet 102 from the initial state, it needs to move inwardly. Through the third track groove 603 intersecting with the first track groove 601, the first panel 20 first moves inward along the third track groove 603 to adjust the inclination angle of the first panel 20, and then moves along the first track groove 601, Therefore, the first air outlet 102 is opened, and is misaligned with the second panel 40 to avoid interference.

In addition, when the first panel 20 closes the first air outlet 102, the first panel 20 moves back along the first track groove 601, based on the fact that the first panel 20 first moves inward and then slides, the first panel 20 moves back. After moving, there is a gap between the first panel 20 and the first air outlet 102. At this time, the angle of the first panel 20 needs to be adjusted again, that is, to move outward along the third track groove 603, so that the first panel 20 closes the first outlet. The tuyere 102 is used to prevent foreign matter from entering the air-conditioning cabinet from the gap between the two.

In this embodiment, the third track groove 603 intersects with the first track groove 601 and communicates with each other.

Optionally, the direction of the first track groove 601 and the direction of the second track groove 602 are set asymmetrically, so that the first panel 20 and the second panel 40 can be misaligned when they move relative to each other to avoid interference.

Optionally, the first track groove 601 is extended from the first edge 604 to the second edge 605 of the track plate 60 . Wherein, the first edge 604 of the track plate 60 is opposite to the second edge 605 .

Optionally, the first track groove 601 and/or the second track groove 602 are groove structures formed by inward depression from the surface of the track plate 60 . That is, non-through groove structure.

Optionally, the first end of the first track groove 601 is opposite to the second end of the second track groove 602 and arranged at a preset distance therebetween.

Optionally, part or all of the bottom wall of the third track groove 603 is a hollow structure penetrating the track plate 60 .

Optionally, the middle area of the first edge 604 of the track plate 60 is configured with a receiving portion 606, and the receiving portion 606 is adapted to the receiving portion 104 of the front cover 101 to accommodate the first panel 20 and the second panel 40.

The first edge 604 of the track plate 60 is the side of the track plate 60 facing the user, and the first panel 20 and the second panel 40 move against the first edge 604 of the track plate 60 .

In the middle area of the first edge 604 of the track plate 60, the receiving part 606 is constructed, and when the first panel 20 opens the first air outlet 102 and the second panel 40 opens the second air outlet 103, the receiving part 606 accommodates the second air outlet 103. A panel 20 and a second panel 40 .

When the first panel 20 and the second panel 40 are accommodated in the accommodating part 606, the flatness of the surface of the air-conditioning cabinet can be ensured, and the protrusion of the first panel 20 and the second panel 40 can be avoided, thereby improving the overall appearance of the air-conditioning cabinet Spend.

In addition, the accommodating portion 606 is compatible with the accommodating portion 104 of the front cover 101 , and based on the size of the accommodating portion 606 , the first panel 20 and the second panel 40 are partially or completely overlapped. Wherein, when the first panel 20 and the second panel 40 are overlapped, the first panel 20 is located at the back of the second panel 40 , that is, the second panel 40 is set facing the user.

Optionally, the first driving device includes: a first base plate 301, a first sliding assembly and a first adjusting assembly. The first driving device in this embodiment is connected to the first panel 20 through the first base plate 301, and the first sliding assembly drives the first panel 20 to slide by driving the first base plate 301 to open or close the first air outlet 102, and the first adjusting assembly The inclination angle of the first panel 20 is adjusted to avoid interference with the second panel 40 during movement.

The first base plate 301 is detachably connected to the end of the first panel 20 . Wherein, the first substrate 301 is arranged vertically to the first panel 20 . Optionally, the first substrate 301 is connected to the first panel 20 through the door lining element 130 .

The first sliding assembly includes a first gear 302 and a first rack 303. The first gear 302 is arranged on the track plate 60 and is rotatable. When the first rack 303 meshes with the first gear 302, the first rack 303 is driven by the first gear 302 to move along the first track groove 601 to drive the first substrate 301 and the first panel 20 to move.

The first gear 302 is disposed on the track plate 60 through the first rotating shaft 70 , that is, the first rotating shaft 70 passes through the track plate 60 , and the first gear 302 is sleeved on the first rotating shaft 70 and located on the surface of the track plate 60 . Wherein, the first rotating shaft 70 is driven to rotate by the drive assembly 90 , thereby driving the first gear 302 to rotate.

Optionally, the driving assembly 90 includes at least a driving gear 901, a driven gear 902 and a stepping motor 903, the driving gear 901 is in transmission connection with the stepping motor 903, the driven gear 902 is sleeved on the first rotating shaft 70, and is connected with the driving gear 901 meshed. The stepping motor 903 can rotate forward and reverse, so that the first gear 302 can rotate forward and reverse. Wherein, the driving assembly 90 is arranged in the casing.

When the first rack 303 meshes with the first gear 302, the first rack 303 is driven by the first gear 302 to move along the first track groove 601, thereby driving the first substrate 301 and the first panel 20 to move, to open or close the first air outlet 102 . The length direction of the first rack 303 is consistent with the length direction of the first track groove 601 .

Optionally, the first rack 303 is slidably connected to the first track groove 601 through the sliding bearing 100 . In this way, the first rack 303 is located on the track plate 60 , one end of the sliding bearing 100 is connected to the first rack 303 , and the other end is located in the first track groove 601 . When the first rack 303 moves, the first rack 303 drives the sliding bearing 100 to move along the first track groove 601 .

Optionally, the first rack 303 is configured with a first mounting hole 3031 for mounting the sliding bearing 100 , and the sliding bearing 100 is embedded in the first mounting hole 3031 .

Optionally, the first installation hole 3031 on the first rack 303 can be a closed loop structure, or an open structure.

Optionally, the first rack 303 is slidably connected to the first track groove 601 through at least two sliding bearings 100 .

The first adjusting component is arranged on the third track groove 603 of the track plate 60 and is connected with the first rack 303 for driving the first rack 303 to slide along the third track groove 603 so that the first rack 303 and the first rack 303 are connected to each other. The first gear 302 is engaged or disengaged.

The first adjusting component drives the first rack 303 to slide along the third track groove 603 to adjust the inclination angle of the first rack 303 , thereby adjusting the inclination angle of the first panel 20 .

Exemplarily, the first adjustment assembly drives the end of the first rack 303 to slide inwardly along the third track groove 603 (that is, to the second edge 605 side of the track plate 60 ), the first rack 303 and the first gear 302 Mesh, and then forwardly rotate through the first gear 302 to drive the first rack 303 to move along the first track groove 601 , thereby driving the first panel 20 to open the first air outlet 102 .

When the first panel 20 closes the first air outlet 102 , the first gear 302 reverses to drive the first rack 303 to move back along the first track groove 601 , thereby driving the first panel 20 to move back. Then the first adjustment assembly drives the first rack 303 to move away from the first gear 302, so that the first rack 303 is separated from the first gear 302, and the first rack 303 drives the first panel 20 to tilt outward, so that The first panel 20 completely closes the first air outlet 102 to reduce the gap between the two.

Optionally, the first base plate 301 is arranged parallel to the track plate 60 . In this way, interference with the track plate 60 during the movement of the first driving device is avoided.

Optionally, the third track groove 603 is a through-slot structure that runs through the track plate 60, and the first adjustment component is located on the second surface side of the track plate 60, and the third track groove 603 that is a through-slot structure and the first rack 303 and sliding bearing 100 are connected. The first adjustment assembly includes: a moving rack 304 , a driving gear 305 and a driving motor 306 . The first rack 303 is driven to move by way of rack and pinion transmission, so as to adjust the inclination angle of the first panel 20 .

The moving rack 304 is located at the bottom of the first rack 303 and is used to drive the first rack 303 to mesh with or separate from the first gear 302 . The moving rack 304 is connected to the first rack 303 through a concave track piece 307 , wherein the track piece 307 is located in the third track groove 603 , and its bottom wall corresponds to the bottom wall of the third track groove 603 . The moving rack 304 and the track piece 307 are respectively located on two sides of the track plate 60 , and the moving rack 304 and the track piece 307 are connected through the connecting piece passing through the third track groove 603 . Wherein, the connecting member can be a fastener or a connecting rod. The moving rack 304 moves synchronously with the rail member 307 .

Optionally, the length of the track member 307 is shorter than the length of the third track groove 603 . And the track member 307 does not interfere with the first rack 303 , and the two are connected through the sliding bearing 100 . When the sliding bearing 100 moves into the groove of the track member 307 , the moving rack 304 moves, and the track member 307 moves synchronously, driving the sliding bearing 100 to move, thereby driving the first rack 303 to move. The sliding bearing 100 can move from the third track groove 603 to the first track groove 601 or from the first track groove 601 to the third track groove 603 only when it moves to the intersection of the third track groove 603 and the first track groove 601 .

Optionally, the groove bottom of the third track groove 603 is lower than the groove bottom of the first track groove 601 , so that the track member 307 is disposed in the third track groove 603 and can only move in the third track groove 603 .

The driving gear 305 meshes with the moving rack 304 to drive the moving rack 304 to reciprocate along the track defined by the third track groove 603 . The driving motor 306 is connected with the driving gear 305 to drive the driving gear 305 to rotate.

Exemplarily, the driving motor 306 rotates forward, drives the driving gear 305 to rotate forward, and the driving gear 305 meshes with the moving rack 304, so as to drive the moving rack 304 to the second edge 605 of the track plate 60 along the third track groove 603 Move on the side where you want to move. The driving motor 306 is reversed, and the driving gear 305 is driven to reverse, thereby driving the moving rack 304 to move along the third track groove 603 to the side where the first edge 604 of the track plate 60 is located. In this way, the moving rack 304 can move back and forth along the track defined by the third track groove 603 through rack and pinion transmission.

Optionally, the second driving device includes a second base plate 501 and a second sliding assembly. The second driving device in this embodiment is connected to the second panel 40 through the second substrate 501 , and drives the second panel 40 to slide through the second sliding assembly to open or close the second air outlet 103 .

The second base plate 501 is detachably connected to the end of the second panel 40 . The second base plate 501 is arranged vertically to the second panel 40 , and optionally, the second base plate 501 is connected to the second panel 40 through the door lining element 130 .

The second sliding assembly includes a second gear 502 and a second rack 503 that are engaged. The second gear 502 is arranged on the track plate 60 and is rotatable. The second rack 503 is driven by the second gear 502 to move along the second track. The groove 602 moves to drive the second substrate 501 and the second panel 40 to move.

The second gear 502 is disposed on the track plate 60 through the second rotating shaft 80 , that is, the second rotating shaft 80 passes through the track plate 60 , and the second gear 502 is sleeved on the second rotating shaft 80 and located on the surface of the track plate 60 . Wherein, the second rotating shaft 80 is driven to rotate by the driving assembly 90 , thereby driving the second gear 502 to rotate.

Here, the driving assembly 90 may refer to the specific structure of the above-mentioned driving assembly 90 .

Exemplarily, the driving assembly 90 includes at least a driving gear 901, a driven gear 902 and a stepping motor 903, the driving gear 901 is in drive connection with the stepping motor 903, the driven gear 902 is sheathed on the second rotating shaft 80, and is connected with the driving gear 901 meshed. The stepping motor 903 can rotate forward and reverse, so that the second gear 502 can rotate forward and reverse. Wherein, the driving assembly 90 is arranged in the casing.

The second rack 503 meshes with the second gear 502, and the second rack 503 is driven by the second gear 502 to move along the second track groove 602, thereby driving the second base plate 501 and the second panel 40 to move to open or Close the second air outlet 103. The length direction of the second rack 503 is consistent with the length direction of the second track groove 602 .

Optionally, the length of the second rack 503 is adapted to the width of the second panel 40, so as to ensure the control force on the second panel 40 when the second panel 40 moves, so as to prevent the edge of the second panel 40 from twisting offset.

Optionally, the second rack 503 is slidably connected to the second track groove 602 through the sliding bearing 100 . In this way, the second rack 503 is located on the track plate 60 , one end of the sliding bearing 100 is connected to the second rack 503 , and the other end is located in the second track groove 602 . When the second rack 503 moves, the second rack 503 drives the sliding bearing 100 to move along the second track groove 602 .

Optionally, the second rack 503 is configured with a second mounting hole for mounting the sliding bearing 100, and the sliding bearing 100 is disposed in the second mounting hole.

Optionally, the second installation hole on the second rack 503 can be a closed loop structure, or an open structure.

Optionally, the second rack 503 is slidably connected to the second track groove 602 through at least two sliding bearings 100 .

The above description and drawings sufficiently illustrate the embodiments of the present disclosure to enable those skilled in the art to practice them. Other embodiments may incorporate structural and other changes. The examples merely represent possible variations. Individual components and functions are optional unless explicitly required, and the order of operations may vary. Portions and features of some embodiments may be included in or substituted for those of other embodiments. Embodiments of the present disclosure are not limited to the structures that have been described above and shown in the drawings, and various modifications and changes may be made without departing from the scope thereof. The scope of the present disclosure is limited only by the appended claims.

Claims (10)

1. A cabinet air conditioner, comprising:

the air conditioner comprises a shell, a first air outlet and a second air outlet, wherein the shell is provided with the first air outlet and the second air outlet which are symmetrically arranged;

the first panel is arranged at the first air outlet and used for opening or closing the first air outlet;

the second panel is arranged at the second air outlet and used for opening or closing the second air outlet;

the first panel and the second panel act independently, and move relatively under the condition that the first air outlet and the second air outlet are opened.

2. The cabinet air conditioner of claim 1, further comprising:

and the purification module is arranged in the shell and corresponds to the first air outlet, so that the air purified by the purification module is blown out from the first air outlet.

3. The cabinet air conditioner of claim 1, further comprising:

the fresh air module is arranged in the casing and corresponds to the second air outlet, so that air passing through the fresh air module is blown out from the second air outlet.

4. A cabinet air conditioner according to claim 1,

and under the condition that the first air outlet and the second air outlet are both closed, the first panel and the second panel are in butt joint arrangement.

5. A cabinet air conditioner according to any one of claims 1-4, wherein the cabinet includes:

a front cover configured with the first air outlet and the second air outlet;

the front cover shell is recessed inwards in the area between the first air outlet and the second air outlet to form a containing part for containing the first panel and/or the second panel.

6. A cabinet air conditioner according to claim 5,

when the first outlet and the second outlet are completely opened, a part or all of the areas of the first panel and the second panel are overlapped and disposed on the accommodating portion.

7. A cabinet air conditioner according to claim 5,

when the first air outlet is opened, the first end of the first panel slides obliquely towards the inner side of the accommodating part to avoid the second panel.

8. The cabinet air conditioner of claim 5, wherein the cabinet further comprises a track plate covering an end of the front casing;

the track plate includes:

the first track groove is connected with the first panel through a first driving device and used for limiting the motion track of the first panel;

the second track groove is connected with the second panel through a second driving device and used for limiting the motion track of the second panel;

wherein the first track groove and the second track groove are oppositely arranged.

9. The cabinet air conditioner of claim 8, wherein the track plate further comprises:

and the third track groove is crossed with the first track groove and used for adjusting the inclination angle of the first panel so as to enable the first panel to close the first air outlet or to be staggered with the second panel under the condition of opening the first air outlet.

10. A cabinet air conditioner according to claim 8,

the middle area of the first edge of the track plate is provided with an accommodating part, and the accommodating part is matched with the accommodating part of the front cover shell and used for accommodating the first panel and the second panel.

Images
