CN218810743U - Sewage collection structure of water treatment filtering equipment - Google Patents

Abstract

The utility model relates to the technical field of sewage collection, and specifically discloses a sewage collection structure for water treatment and filtration equipment, including a sewage pool, the front and rear sides of the sewage pool are fixedly connected with the inner side of a fixed frame, and the sewage on the lower surface of the fixed frame A cleaning mechanism is arranged above the pool, and a traveling mechanism and a guide rod mechanism are respectively arranged on both sides of the sewage pool, and the moving end of the traveling mechanism and the guide rod mechanism are fixedly connected to a scrubbing mechanism. By mixing the flocculant in the sewage tank, the particles and inorganic substances in the sewage are filtered and discharged from the outlet pipe. A large amount of grease remains on the inner wall of the sewage tank near the upper end, and a large amount of sediment remains at the bottom. By starting the cleaning mechanism, the inner wall of the sewage tank is cleaned Spray the degreasing agent first, then spray clean water into the water to rinse, and finally pull out the pumping plate, and start the traveling mechanism and guide rod mechanism to drive the scrubbing mechanism to move and scrub inside the sewage pool, and the oil will finally flow out from the sewage outlet.

Description

Sewage collection structure of water treatment filter equipment

technical field

The utility model relates to the technical field of sewage collection, and specifically discloses a sewage collection structure of water treatment and filtration equipment.

Background technique

In the treatment of urban sewage, sewage mainly includes fixed pollutants, organic pollutants and oil pollutants. Filtration is a necessary treatment method. The first step of filtration is often flocculation and sedimentation. After adding flocculants, sedimentation and filtration are carried out. Sewage contains grease. After adding a mixed flocculant to the sewage for sedimentation treatment, a large amount of grease will remain near the upper end of the inner wall of the sewage tank. Manual cleaning is not only very troublesome, but also difficult to clean.

Utility model content

The purpose of this utility model is to solve the shortcomings in the background technology, and propose a sewage collection structure for water treatment and filtering equipment.

In order to achieve the above purpose, the utility model provides a sewage collection structure for water treatment and filtering equipment, including a sewage pool, the front and rear sides of the sewage pool are fixedly connected with the inner side of the fixing frame, and the lower surface of the fixing frame is above the sewage pool A cleaning mechanism is provided, and the two sides of the sewage pool are respectively provided with a traveling mechanism and a guide rod mechanism. The moving end of the traveling mechanism and the guide rod mechanism is fixedly connected with a brushing mechanism. Outlet and inlet pipes.

Preferably, the cleaning mechanism includes a first screw rod, one end of the first screw rod is fixedly connected to the mounting base, a set of the mounting bases is fixedly installed on the lower surface of the fixing frame, and the other end of the first screw rod Connect the output shaft of the first servo motor through a mounting seat, the outer surface of the first screw rod is covered with a threaded moving seat, the upper surface of the moving seat is fixedly installed with a group of water pumps, and the water inlet of one of the water pumps One end of the water pump is fixedly connected to the water outlet of the water tank through a conduit, and the water outlet end of one of the water pumps is fixedly connected to the installation pipe through a conduit. One side of the installation pipe is provided with a plurality of nozzles, and the water inlet end of the other water pump is fixedly connected through a conduit. The degreaser tank, and the water outlet of the other water pump are fixedly connected to the spray box through a conduit.

Preferably, the traveling mechanism includes a second screw rod, one end of the second screw rod is fixedly connected to the base, a set of the bases is fixedly installed on one side of the sewage pool, and the other end of the second screw rod runs through A base is connected with the output shaft of the second servo motor, and the outer surface of the second screw rod is covered with a threaded sliding seat.

Preferably, the guide rod mechanism includes a guide rod, the guide rod is fixedly installed on the other side of the sewage pool through a fixed seat, and the outer surface of the guide rod is slidably provided with a guide seat.

Preferably, the scrubbing mechanism includes an electric cylinder and a moving rod, the bottom of the electric cylinder and the moving rod are fixedly connected to the lower surface of the sliding seat and the guide seat, and the telescopic end of the electric cylinder and the moving rod is fixedly connected to the I-shaped brush plate bristles are provided on both sides and the bottom of the I-shaped brush plate.

Preferably, the degreaser tank is fixedly installed on the upper surface of the fixed frame, the water tank is fixedly installed on one side of the sewage pool through a fixed plate, and a sewage outlet is opened near the bottom of the sewage pool, and the A pumping plate with sliding fit is arranged inside the sewage outlet, and both sides of the pumping plate are fixedly installed on the sewage pool by fixing pieces.

Compared with the prior art, the utility model has the following beneficial effects:

By mixing the flocculant in the sewage tank, the particles and inorganic substances in the sewage are filtered and discharged from the outlet pipe. A large amount of grease remains on the inner wall of the sewage tank near the upper end, and a large amount of sediment remains at the bottom. By starting the cleaning mechanism, the inner wall of the sewage tank is cleaned Spray the degreasing agent first, then spray clean water into the water to rinse, and finally pull out the pumping plate, start the traveling mechanism and the guide rod mechanism to drive the scrubbing mechanism to move inside the sewage pool, and start the electric cylinder in the scrubbing mechanism at the same time, and the electric cylinder stretches to drive The I-shaped brush plate moves up and down in the sewage tank, not only can clean the oil on the inner wall of the sewage pool near the upper end, but also discharge the residual sediment at the bottom of the sewage pool from the sewage outlet provided on one side through the I-shaped brush plate.

Description of drawings

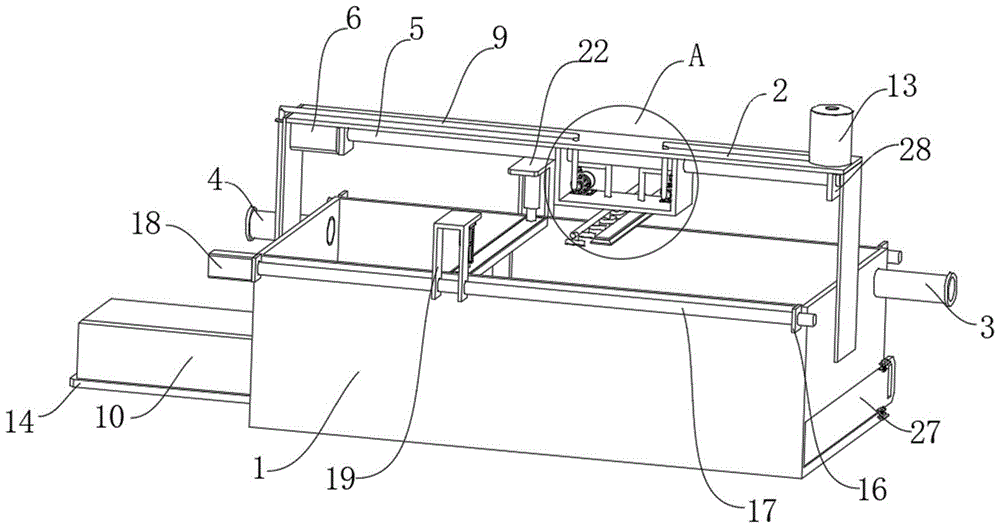

Fig. 1 is the structural representation of the sewage collection structure of a kind of water treatment filtration equipment of the present utility model;

Fig. 2 is the structural representation of main mechanism of the utility model;

Fig. 3 is an enlarged structural schematic diagram of A in Fig. 1 of the present utility model.

In the figure: 1. sewage tank; 2. fixed frame; 3. outlet pipe; 4. water inlet pipe; 5. first screw; 6. first servo motor; 7. moving seat; 8. water pump; 9. conduit; 10, water tank; 11, installation pipe; 12, nozzle; 13, degreaser box; 14, fixed plate; 15, spray box; 16, base; 17, second screw rod; 18, second servo motor; 19, Sliding seat; 20, guide rod; 21, fixed seat; 22, guide seat; 23, electric cylinder; 24, moving rod; 25, I-shaped brush plate; 26, bristles;

Detailed ways

In order to more clearly understand the above purpose, features and advantages of the utility model, the utility model will be further described in detail below in conjunction with the accompanying drawings and specific embodiments.

A sewage collection structure for water treatment and filtering equipment as shown in Figures 1-3, including a sewage pool 1, the front and rear sides of the sewage pool 1 are fixedly connected to the inner side of the fixing frame 2, and the two sides of the sewage pool 1 are opened near the upper end. There are outlet pipe 3 and water inlet pipe 4, degreaser tank 13 is fixedly installed on the upper surface of fixed frame 2, water tank 10 is fixedly installed on one side of sewage pool 1 through fixed plate 14, and the inside of sewage pool 1 is opened near the bottom There is a sewage outlet, and the inside of the sewage outlet is provided with a pumping plate 27 for sliding fit.

A cleaning mechanism is arranged above the sewage pool 1 on the lower surface of the fixed frame 2. The cleaning mechanism includes a first screw mandrel 5, one end of the first screw mandrel 5 is fixedly connected to the mounting seat 28, and a group of mounting seats 28 are fixedly installed on the bottom of the fixed frame 2. On the lower surface, the other end of the first screw mandrel 5 runs through a mounting seat 28 to connect the output shaft of the first servo motor 6. The outer surface of the first screw mandrel 5 is covered with a threaded moving seat 7, and the upper surface of the moving seat 7 is fixed. A group of water pumps 8 are installed, the water inlet end of one water pump 8 is fixedly connected to the water outlet of the water tank 10 through the conduit 9, and the water outlet end of one water pump 8 is fixedly connected to the installation pipe 11 through the conduit 9, and a plurality of nozzles are arranged on one side of the installation pipe 11 12. The water inlet end of the other water pump 8 is fixedly connected to the degreaser tank 13 through the conduit 9, and the water outlet end of the other water pump 8 is fixedly connected to the spray box 15 through the conduit 9. If it is found that there is a large amount of grease remaining on the inner wall of the sewage pool 1 near the upper end , a large amount of sediment remains at the bottom, by starting the cleaning mechanism, the inner wall of the sewage tank 1 is first sprayed with degreasing agent, and then the water is sprayed with clean water to rinse,

Both sides of the sewage pool 1 are respectively provided with a traveling mechanism and a guide rod mechanism. The traveling mechanism includes a second screw rod 17, one end of the second screw rod 17 is fixedly connected to the base 16, and a set of bases 16 is fixedly installed on one side of the sewage pool 1 At the position, the other end of the second screw rod 17 passes through a base 16 to connect to the output shaft of the second servo motor 18 , and the outer surface of the second screw rod 17 is fitted with a threaded sliding seat 19 . The guide rod mechanism includes a guide rod 20. The guide rod 20 is fixedly installed on the other side of the sewage pool 1 through a fixed seat 21. The outer surface of the guide rod 20 is slidably provided with a guide seat 22. The second servo motor 18 works to make the slide The seat 19 moves on the second screw mandrel 17 .

The moving end of the traveling mechanism and the guide rod mechanism is fixedly connected to the scrubbing mechanism. The scrubbing mechanism includes an electric cylinder 23 and a moving rod 24. The bottoms of the electric cylinder 23 and the moving rod 24 are fixedly connected to the lower surface of the sliding seat 19 and the guide seat 22. The telescopic end of the moving rod 24 is fixedly connected to the top of the I-shaped brush plate 25, the two sides and the bottom of the I-shaped brush plate 25 are provided with bristles 26, and the telescopic end of the electric cylinder 23 is telescopic, driving the I-shaped brush plate 25 fixedly connected at one end. The inner wall of the sewage pool 1 moves up and down to achieve the effect of cleaning the upper inner wall of the sewage pool 1 .

Working principle: By mixing the flocculant in the sewage tank 1, the particulate matter and inorganic matter in the sewage are filtered and then discharged from the outlet pipe 3. A large amount of grease remains on the inner wall of the sewage tank 1 near the upper end, and a large amount of sediment remains at the bottom. Clean by starting Mechanism, first spray degreasing agent on the inner wall of the sewage pool 1, then spray clean water into the water to rinse, and finally pull out the pumping plate 27, and start the traveling mechanism and the guide rod mechanism to drive the scrubbing mechanism to move inside the sewage pool 1, and start the scrubbing mechanism at the same time The electric cylinder 23 in the electric cylinder 23 stretches and drives the I-shaped brush plate 25 to move up and down in the sewage pool 1, which can not only clean the oil stains near the upper end in the inner wall of the sewage pool 1, but also pass the residual sediment at the bottom of the sewage pool 1 through the working Shape brush plate 25 brushes and discharges from the sewage outlet that one side is provided with.

The basic principles, main features and advantages of the present utility model have been shown and described above. Those skilled in the industry should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions describe only the principle of the utility model. There will be various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The protection scope required by the utility model is defined by the appended claims and their equivalents.

Claims (6)

1. A sewage collection structure for water treatment and filtration equipment, comprising a sewage pool (1), characterized in that: the front and rear sides of the sewage pool (1) are fixedly connected to the inside of the fixed frame (2), and the fixed frame ( 2) A cleaning mechanism is provided above the sewage pool (1) on the lower surface, and a traveling mechanism and a guide rod mechanism are respectively provided on both sides of the sewage pool (1), and the traveling mechanism is fixedly connected to the moving end of the guide rod mechanism As for the scrubbing mechanism, an outlet pipe (3) and an inlet pipe (4) are provided on both sides of the sewage pool (1) close to the upper end. 2. A sewage collection structure for water treatment and filtering equipment according to claim 1, characterized in that: the cleaning mechanism includes a first screw rod (5), and one end of the first screw rod (5) is fixedly connected to Mounting seat (28), a set of said mounting seat (28) is fixedly installed on the lower surface of the fixed frame (2), and the other end of said first screw rod (5) passes through a mounting seat (28) to connect the first servo The output shaft of the motor (6), the outer surface of the first screw mandrel (5) is covered with a threaded movable seat (7), the upper surface of the movable seat (7) is fixedly equipped with a group of water pumps (8), The water inlet end of one described water pump (8) is fixedly connected to the water outlet of water tank (10) through conduit (9), and the water outlet end of one described water pump (8) is fixedly connected with installation pipe (11) through conduit (9), so One side of the installation pipe (11) is provided with a plurality of nozzles (12), the water inlet end of the other water pump (8) is fixedly connected to the degreaser tank (13) through a conduit (9), and the other water pump The outlet end of (8) is fixedly connected to the spray box (15) by the conduit (9). 3. A sewage collection structure for water treatment and filtering equipment according to claim 1, characterized in that: the traveling mechanism includes a second screw rod (17), and one end of the second screw rod (17) is fixedly connected to Base (16), a group of bases (16) are fixedly installed on one side of the sewage pool (1), and the other end of the second screw rod (17) passes through a base (16) to connect the second servo motor ( 18), the outer surface of the second screw mandrel (17) is sleeved with a threaded sliding seat (19). 4. A sewage collection structure for water treatment and filtering equipment according to claim 1, characterized in that: the guide rod mechanism includes a guide rod (20), and the guide rod (20) passes through a fixed seat (21 ) is fixedly installed on the other side of the sewage pool (1), and the outer surface of the guide rod (20) is slidably provided with a guide seat (22). 5. The sewage collection structure of a kind of water treatment filtering equipment according to claim 1, characterized in that: the brushing mechanism comprises an electric cylinder (23) and a moving rod (24), and the electric cylinder (23) and the moving rod The bottom of the rod (24) is fixedly connected to the lower surface of the sliding seat (19) and the guide seat (22), and the telescopic end of the electric cylinder (23) and the moving rod (24) is fixedly connected to the top of the I-shaped brush plate (25). , the two sides and the bottom of the I-shaped brush plate (25) are provided with bristles (26). 6. The sewage collection structure of a water treatment and filtration device according to claim 2, characterized in that: the degreasing agent tank (13) is fixedly installed on the upper surface of the fixed frame (2), and the water tank (10 ) is fixedly installed on one side of the sewage pool (1) through the fixed plate (14), and the inside of the sewage pool (1) is provided with a slidingly fitted pumping plate (27) near the bottom end, and the sewage pool (1) A sewage outlet is opened near the bottom of the inside of the sewage outlet, and a slidingly fitted pumping plate (27) is arranged inside the sewage outlet.
