Abstract

The utility model discloses a filter device for sewage discharge detection, which comprises a sewage treatment box and a water pump. A circular hole is opened on the left upper end of the sewage treatment box. and the right part of the inner upper wall are provided with a chute through which the front end passes through, and a filtering garbage cleaning mechanism is slidably connected in the two chutes, and a sewage filter bin is fixedly connected to the left part of the upper end of the sewage treatment tank, and the sewage The left part of the outer surface of the filter chamber is fixedly connected with a sewage inlet pipe, and the upper right part of the sewage treatment tank is fixedly connected with a support frame, and a limiting groove is opened on the side of the support frame close to the sewage filter chamber. The filter device for sewage discharge detection described in the utility model can not only effectively filter the impurities in sewage, but also facilitate personnel to clean up the garbage inside the filter box, thereby improving the efficiency of sewage discharge detection. The accuracy of the data is improved, and the service life of the device is also improved.

Description

A filter device for sewage discharge detection

technical field

The utility model relates to the technical field of filtering devices, in particular to a filtering device for sewage discharge detection.

Background technique

Sewage treatment is the process of purifying sewage to meet the water quality requirements for drainage or reuse, and sewage treatment is widely used in various fields such as construction, agriculture, transportation, urban landscape and catering, among which the most widely used is For the detection and treatment of urban sewage discharge, the existing filter device for sewage discharge detection has at least the following disadvantages in the process of use: 1. The filter device used for general sewage discharge detection is used for disinfection and treatment of sewage Most of them are carried out in the open air, so that the odor in the sewage floats in the air, thereby causing air pollution to the environment; 2. After the existing sewage discharge detection filter device filters the garbage in the sewage, it is generally inconvenient for personnel to clean the sewage. Residual garbage is cleaned up.

Utility model content

The main purpose of the utility model is to provide a filter device for sewage discharge detection, which can effectively solve the problems in the background technology.

In order to achieve the above object, the technical scheme that the utility model takes is:

A filter device for sewage discharge detection, including a sewage treatment tank and a water pump, the upper left part of the sewage treatment tank has a through hole, the upper left part of the inner upper wall and the right upper inner wall of the sewage treatment tank There are chutes through which the front end penetrates, and a filter garbage cleaning mechanism is slidably connected in the two chutes. The upper left part of the sewage treatment tank is fixedly connected with a sewage filter bin, and the outer surface of the sewage filter bin is The left part is fixedly connected with a sewage inlet pipe, and the right part of the upper end of the sewage treatment tank is fixedly connected with a support frame. device, and the sealing device is located on the upper side of the sewage filter chamber, the water pump is fixedly connected to the sewage filter chamber through the water inlet pipe, and the output end of the water pump is fixedly connected to the water outlet pipe, and the water outlet pipe is fixed to the sewage treatment tank through a round hole connected, the lower end surface of the outlet pipe is flush with the inner upper wall of the sewage treatment tank.

Preferably, the sealing device includes a cylinder, the cylinder is fixedly connected to the upper end of the support frame, the output end of the cylinder passes through the left part of the upper end of the support frame and is fixedly connected with a sealing cover, and the right part of the outer surface of the sealing cover A slider is fixedly connected, and the middle part of the inner upper wall of the sealing cover is fixedly connected with a threaded column, and the sealing cover is threaded with a sundry filter assembly through the threaded column, and the slider is located in the limiting groove and is slidably connected.

Preferably, the sundry filter assembly includes a conical filter frame, the upper part of the inner wall of the conical filter frame is fixedly connected with a filter with rectangular holes, and the middle part of the upper end of the filter with rectangular holes is fixedly connected with a round frame.

Preferably, the circular frame is screwed to the threaded column, and the tapered filter frame is in close contact with the inner wall of the sewage filter chamber but is not fixed.

Preferably, the filter garbage cleaning mechanism includes a filter box, the upper left part and the upper right part of the filter box are fixedly connected with rectangular sliding bars, and the upper left part and the upper right part of the filter box are respectively separated. There are rectangular filter tanks and rectangular drain tanks, and the rectangular filter tanks are located on the left of the rectangular drain tanks. A partition is fixedly connected between the rectangular filter tank and the rectangular drain tank. The upper part of the inner left wall of the rectangular filter tank and the upper part of the left end of the partition are fixedly connected with an activated carbon filter net, and the right part of the front end of the filter box is fixedly connected with a drain pipe, and the drain pipe is located in the rectangular drain tank the front side.

Preferably, the filter box is not in contact with the water outlet pipe, and the filter box is movably connected to the sewage treatment tank through two rectangular slide bars and two chutes respectively, and the rectangular filter tank is located at the lower part of the water outlet pipe. The activated carbon filter screen is located at the upper left side of several rectangular openings, and the rectangular filter tank communicates with the inside of the rectangular drainage tank through several rectangular openings.

Compared with the prior art, the utility model has the following beneficial effects:

1. In the utility model, the sealing device is provided with a cylinder, a sealing cover, a slider, a threaded column and a sundry filter assembly, so that under the action of the output end of the cylinder, the cylinder can push the sealing cover through the slider to be positioned on the support frame. The limit movement in the downward direction is carried out in the limit groove opened on the top, so the sealing cover can play a sealing function on the sewage filter chamber, so that the smell in the sewage will not disperse to the outside of the sewage filter chamber, thereby protecting the sewage filter chamber. air pollution;

2. In the utility model, by providing a rectangular filter tank and a rectangular drain tank on the filter garbage cleaning mechanism, the rectangular filter tank is connected to the inside of the rectangular drain tank through several rectangular openings opened at the lower right end of the partition, so that the filter When the final sewage is transported from the outlet pipe to the rectangular filter tank, under the filtering effect of the activated carbon filter, it can filter and remove the peculiar smell and small impurities in the sewage again, and the sewage treatment tank passes through two The rectangular sliding bar is slidably connected in the sewage treatment tank, so when the sewage is filtered and discharged, the personnel can take out the filter box from the sewage treatment tank through the handle, so the residual sewage and garbage in the filter box can be cleaned, so that The inside of the sewage treatment tank is clean.

Description of drawings

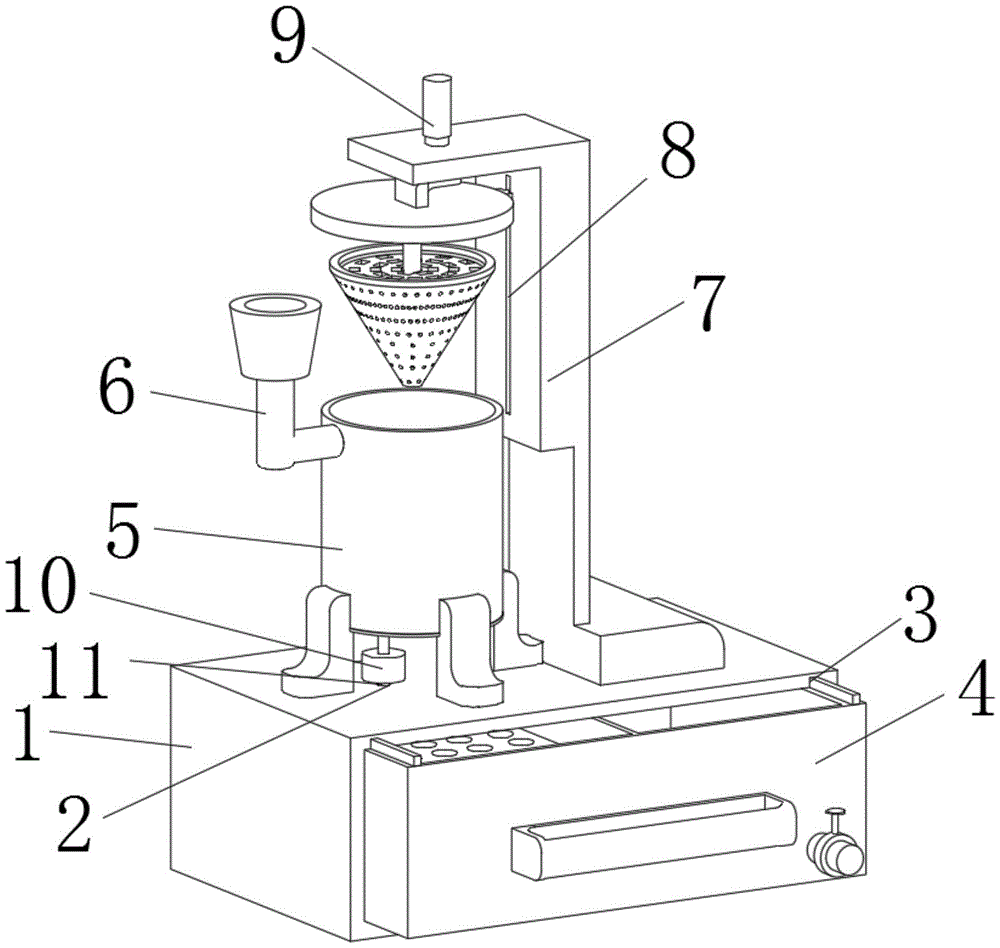

Fig. 1 is a schematic diagram of the overall structure of a filter device used for sewage discharge detection in the present invention;

Fig. 2 is a schematic diagram of the overall structure of a sealing device for a sewage discharge detection filter device of the present invention;

Fig. 3 is a schematic diagram of the overall structure of a sundry filter assembly used for a sewage discharge detection filter device of the present invention;

Fig. 4 is a schematic diagram of the overall structure of a filter garbage cleaning mechanism used in a filter device for sewage discharge detection according to the present invention.

In the figure: 1. Sewage treatment tank; 2. Round hole; 3. Chute; 4. Filtration garbage cleaning mechanism; 5. Sewage filter bin; 6. Sewage inlet pipe; 7. Support frame; , sealing device; 10, water pump; 11, outlet pipe; 41, filter box; 42, clapboard; 43, rectangular mouth; 44, rectangular filter tank; 45, rectangular drainage tank; 46, activated carbon filter screen; 47, drainage Tube; 48, rectangular slide bar; 91, cylinder; 92, sealing cover; 93, slide block; 94, threaded column; 95, sundry filter assembly; 951, conical filter frame; round frame.

Detailed ways

In order to make the technical means, creative features, goals and effects achieved by the utility model easy to understand, the utility model will be further elaborated below in conjunction with specific embodiments.

In the description of the present utility model, it should be noted that the terms "upper", "lower", "inner", "outer", "front end", "rear end", "both ends", "one end", "another end" The orientation or positional relationship indicated by ", etc. is based on the orientation or positional relationship shown in the drawings, which is only for the convenience of describing the utility model and simplifying the description, rather than indicating or implying that the device or element referred to must have a specific orientation, so as to Specific orientation configurations and operations, therefore, should not be construed as limitations on the invention. In addition, the terms "first" and "second" are used for descriptive purposes only, and should not be understood as indicating or implying relative importance.

In the description of the present utility model, it should be noted that, unless otherwise specified and limited, the terms "installed", "set with", "connected", etc. should be understood in a broad sense, such as "connected", which can be a fixed The connection can also be a detachable connection or an integral connection; it can be a mechanical connection or an electrical connection; it can be a direct connection or an indirect connection through an intermediary, and it can be the internal communication of two components. Those of ordinary skill in the art can understand the specific meanings of the above terms in the present utility model in specific situations.

Example

Please refer to Figure 1-4, the utility model provides a technical solution:

A filter device for sewage discharge detection, comprising a sewage treatment tank 1 and a water pump 10, the upper left part of the sewage treatment tank 1 is provided with a through hole 2, the inner upper left part of the sewage treatment tank 1 and the inner upper wall The right part is provided with a chute 3 through which the front end penetrates, and the two chute 3 are jointly slidably connected with a filter garbage cleaning mechanism 4, and the upper left part of the sewage treatment tank 1 is fixedly connected with a sewage filter bin 5, and the outside of the sewage filter bin 5 The left part of the surface is fixedly connected with a sewage inlet pipe 6, the upper right part of the sewage treatment tank 1 is fixedly connected with a support frame 7, the side of the support frame 7 close to the sewage filter chamber 5 has a limit groove 8, and the upper end of the support frame 7 is fixedly connected There is a sealing device 9, and the sealing device 9 is located on the upper side of the sewage filter chamber 5, the water pump 10 is fixedly connected with the sewage filter chamber 5 through the water inlet pipe, and the output end of the water pump 10 is fixedly connected with the water outlet pipe 11, and the water outlet pipe 11 passes through the round hole 2 It is fixedly connected with the sewage treatment tank 1, and the lower end surface of the water outlet pipe 11 is flush with the inner upper wall of the sewage treatment tank 1.

In this embodiment, the sealing device 9 includes a cylinder 91, which is fixedly connected to the upper end of the support frame 7, and the output end of the cylinder 91 runs through the left part of the upper end of the support frame 7 and is fixedly connected with a sealing cover 92, the outer surface of the sealing cover 92 The right part is fixedly connected with a slider 93, and the middle part of the inner upper wall of the sealing cover 92 is fixedly connected with a threaded column 94, and the sealing cover 92 is threaded with a sundry filter assembly 95 through the threaded column 94, and the sliding block 93 slides in the limiting groove 8 Connect, sundry filtering assembly 95 comprises conical filter frame 951, the inner wall top of conical filter frame 951 is fixedly connected with rectangular hole filter screen 952, and the upper middle part of rectangular hole filter screen 952 is fixedly connected with round frame 953, and circular frame 953 and The threaded column 94 is threaded, and the tapered filter frame 951 is close to but not fixed to the inner wall of the sewage filter chamber 5; by setting the sealing device 9, the sealing device 9 is provided with a cylinder 91, a sealing cover, 92, a slide block 93, a screw thread The column, 94, and sundry filter assembly 95, under the cooperation of these, under the action of the output end of the cylinder 91, the cylinder 91 can push the sealing cover 92 through the slider 93 in the limit groove 8 opened on the support frame 7. The limit movement in the downward direction makes the sealing cover 92 capable of sealing the sewage filter bin 5, and the activated carbon plate is fixedly connected to the inner upper wall of the sealing cover 92, so that the sealing cover 92 can seal the sewage. At the same time, the peculiar smell in the sewage can also be adsorbed. In addition, the sealing cover 92 is screwed together with the rectangular hole filter screen 952 through the threaded column 94 and the round frame 953, and the rectangular hole filter screen 952 is connected to the inner wall of the tapered filter frame 951. The upper part is fixedly connected, and the sewage inlet pipe 6 is positioned on the upper side of the rectangular hole filter screen 952, so that the rectangular hole filter screen 952 and the conical filter frame 951 can filter the larger impurities contained in the sewage, and the conical filter frame 951 is close to the inside of the sewage filter bin 5 and is not fixed, so personnel can disassemble the conical filter frame 951 from the sealing cover 92 when the sealing cover 92 is separated from the sewage filtering bin 5, so that the personnel can clean the remaining garbage. to clean up.

In this embodiment, the filter garbage cleaning mechanism 4 includes a filter box 41, the upper left part and the upper right part of the filter box 41 are fixedly connected with a rectangular sliding bar 48, and the upper left part and the upper right part of the filter box 41 are respectively A rectangular filter tank 44 and a rectangular drain tank 45 are provided, and the rectangular filter tank 44 is positioned at the left part of the rectangular drain tank 45, and a dividing plate 42 is fixedly connected between the rectangular filtering tank 44 and the rectangular drain tank 45, and the lower part of the right end of the dividing plate 42 There are several through rectangular openings 43, the upper part of the inner left wall of the rectangular filter tank 44 and the upper part of the left end of the partition plate 42 are fixedly connected with an active carbon filter 46, and the front right part of the filter box 41 is fixedly connected with a drainpipe 47, And the drain pipe 47 is positioned at the front side of the rectangular drainage groove 45, the filter box 41 is not in contact with the outlet pipe 11, and the filter box 41 is flexibly connected with the sewage treatment tank 1 through two rectangular sliding bars 48 and two chutes 3 respectively, Rectangular filter tank 44 is positioned at the bottom of water outlet pipe 11, and activated carbon filter screen 46 is positioned at the upper left side of several rectangular mouths 43, and rectangular filter tank 44 communicates with the inside of rectangular drainage tank 45 through several rectangular mouths 43, and is cleaned by filtering rubbish. The mechanism 4 is provided with a rectangular filter tank 44 and a rectangular drain tank 45, and the rectangular filter tank 44 is connected with the inside of the rectangular drain tank 45 through the lower part of the right end of the partition plate 42, so that the first filtered sewage When transported from the outlet pipe 11 to the rectangular filter tank 44, the sewage can filter and remove the peculiar smell and small particle impurities in the sewage under the filtration of the activated carbon filter screen 46, and the sewage treatment tank 1 is passed through two A rectangular sliding bar 48 and two chutes 3 are slidably connected in the sewage treatment tank 1, so that after the sewage filtration and discharge is completed, the personnel can take out the filter box 41 from the sewage treatment tank 1 by dragging the handle, so that the personnel can very It is convenient to clean up the rubbish in the filter box body 41, so that when personnel use the device again, the filtering efficiency of the device can be improved.

It should be noted that the utility model is a filter device for sewage discharge detection. During use, the cylinder 91 is first started to work through the external control system. Under the action of the output end of the cylinder 91, the cylinder 91 pushes the sealing cover 92 Positioned in the limit groove 8 by the slide block 93, the limit movement in the downward direction is performed, so the sealing cover 92 can seal the sewage filter chamber 5, so that the sewage is well sealed during the filtration process and will not produce large amounts of water. odor, and the sealing cover 92 is screwed together with the rectangular hole filter screen 952 through the threaded column 94 and the round frame 953, and the rectangular hole filter screen 952 is fixedly connected with the inner wall upper part of the conical filter frame 951, and the sewage enters the pipe 6 is located on the upper side of the rectangular hole filter screen 952, so that the rectangular hole filter screen 952 and the conical filter frame 951 can perform the function of first filtering the larger impurities contained in the sewage, and the conical filter frame 951 and the sewage filter bin The inside of 5 is close to not fixed, so the personnel can disassemble the conical filter frame 951 when the sealing cover 92 is separated from the sewage filter chamber 5, so as to facilitate the cleaning of the filtered garbage and ensure the normal operation of the device. On the one hand, the water pump 10 pumps the first filtered water through the water inlet pipe and transports it to the outlet pipe 11 to the filter garbage cleaning mechanism 4 below, and the filter garbage cleaning mechanism 4 is provided with a rectangular filter tank 44 and a rectangular drain tank 45, the rectangular filter tank 44 communicates with the interior of the rectangular drainage tank 45 through several through rectangular openings 43 opened at the lower part of the right end of the partition plate 42, so that the first filtered sewage is transported to the rectangular filter tank 44 through the outlet pipe 11. Under the filtering effect of the activated carbon filter 46, the peculiar smell and small impurities in the sewage can be filtered and removed again, and then the filtered sewage can penetrate into the rectangular drainage tank 45 through several rectangular openings 43, and finally pass through Open the drainage pipe 47 to discharge the qualified sewage, thereby reducing the pollution of the environment. Finally, after the sewage discharge is finished, the personnel can take out the filter box 41 from the sewage treatment tank 1 by the handle, so that the filter box 41 can be cleaned. Quickly clean up the garbage and other sundries left in the machine, which ensures that the device can work normally every time it is used, and improves the service life of the device.

The basic principles and main features of the present utility model and the advantages of the present utility model have been shown and described above. Those skilled in the art should understand that the utility model is not limited by the above-mentioned embodiments. The above-mentioned embodiments and descriptions only illustrate the principle of the utility model. Without departing from the spirit and scope of the utility model, the utility model The new model also has various changes and improvements, and these changes and improvements all fall within the scope of the claimed utility model. The scope of protection required by the utility model is defined by the appended claims and their equivalents.

Claims (6)

1. A filter device for sewage discharge detection, comprising a sewage treatment tank (1) and a water pump (10), characterized in that: the left part of the upper end of the sewage treatment tank (1) has a through hole (2 ), the left part of the inner upper wall and the right part of the inner upper wall of the sewage treatment tank (1) are all provided with a chute (3) through which the front end penetrates, and the two chutes (3) are jointly slidably connected with a filter garbage The cleaning mechanism (4), the upper left part of the sewage treatment tank (1) is fixedly connected with a sewage filter bin (5), and the left part of the outer surface of the sewage filter bin (5) is fixedly connected with a sewage inlet pipe (6) , the upper right part of the sewage treatment tank (1) is fixedly connected with a support frame (7), and the side of the support frame (7) close to the sewage filter bin (5) has a limit groove (8), and the support The upper end of the frame (7) is fixedly connected with a sealing device (9), and the sealing device (9) is located on the upper side of the sewage filter chamber (5), and the water pump (10) is fixedly connected with the sewage filter chamber (5) through the water inlet pipe , the output end of the water pump (10) is fixedly connected with an outlet pipe (11), and the outlet pipe (11) is fixedly connected with the sewage treatment tank (1) through a round hole (2), and the outlet pipe (11) The lower end surface is flush with the inner upper wall of the sewage treatment tank (1). 2. A filter device for sewage discharge detection according to claim 1, characterized in that: the sealing device (9) comprises a cylinder (91), the cylinder (91) and the support frame (7) The upper end is fixedly connected, the output end of the cylinder (91) runs through the upper left part of the support frame (7) and is fixedly connected with a sealing cover (92), and the right part of the outer surface of the sealing cover (92) is fixedly connected with a slider (93), the middle part of the upper inner wall of the sealing cover (92) is fixedly connected with a threaded column (94), and the sealing cover (92) is threaded with a sundry filter assembly (95) through the threaded column (94), so The slider (93) is slidingly connected in the limit groove (8). 3. A filter device for sewage discharge detection according to claim 2, characterized in that: the debris filter assembly (95) includes a conical filter frame (951), and the conical filter frame (951 ) is fixedly connected with a rectangular hole filter screen (952), and the upper middle part of the rectangular hole filter screen (952) is fixedly connected with a round frame (953). 4. A filter device for sewage discharge detection according to claim 3, characterized in that: said round frame (953) is threadedly connected to threaded column (94), and said conical filter frame (951) is connected to The inner wall of the sewage filtering chamber (5) is close to but not fixed. 5. A filter device for sewage discharge detection according to claim 1, characterized in that: the filter garbage cleaning mechanism (4) includes a filter box (41), the filter box (41) The left part of the upper end and the right part of the upper end are fixedly connected with a rectangular slide bar (48), and the left part of the upper end and the right part of the upper end of the filter box (41) are respectively provided with a rectangular filter groove (44) and a rectangular drainage groove (45). , and the rectangular filter tank (44) is positioned at the left part of the rectangular drain tank (45), and a dividing plate (42) is fixedly connected between the rectangular filtering tank (44) and the rectangular drain tank (45), and the dividing plate ( The lower right end of 42) is provided with several through rectangular openings (43), and the inner left wall upper part of the rectangular filter tank (44) and the upper left end of the dividing plate (42) are jointly fixedly connected with an activated carbon filter screen (46), A drain pipe (47) is fixedly connected to the right front end of the filter box (41), and the drain pipe (47) is located at the front side of the rectangular drain groove (45). 6. A filter device for sewage discharge detection according to claim 5, characterized in that: the filter box (41) is not in contact with the water outlet pipe (11), and the filter box (41) is respectively Via two rectangular sliding bars (48) and two chutes (3) are flexibly connected with the sewage treatment tank (1), the rectangular filter groove (44) is positioned at the bottom of the outlet pipe (11), and the active carbon filter ( 46) Located on the upper left side of several rectangular openings (43), the rectangular filter tank (44) communicates with the interior of the rectangular drainage tank (45) through several rectangular openings (43).
